O6M-UW320Wireless LAN USB Adapter

USB Wireless Network Adapter User’s Manual Rev 0.9 USB Wireless Network Adapter User’s Manual Regulatory compliance FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. IMPORTANT NOTE: Federal Communications Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. 2 USB Wireless Network Adapter User’s Manual About this manual This User’s Manual describes how to install and operate your USB Wireless Network Adapter. Please read this manual before you install the product. This manual includes the following topics: ¾ Product description and features. ¾ Hardware installation procedure. ¾ Software installation procedure. ¾ FAQ 3 USB Wireless Network Adapter User’s Manual Table of Contents Regulatory compliance..............................................................................2 About this manual......................................................................................3 Chapter 1 - Introduction...................................................5 Features..............................................................................................5 What is Wireless LAN?........................................................................6 Wireless LAN Modes...........................................................................6 Notes on Wireless LAN Configuration.................................................7 Chapter 2 - Hardware Installation....................................8 Package Contents...............................................................................8 System Requirements for the Adapter.................................................8 Connecting the USB Adapter...............................................................8 LED Indicators.....................................................................................9 Disconnecting the USB Adapter..........................................................9 Chapter 3 – Driver Installation for Windows..................11 Driver installation for Windows 98.....................................................11 Driver installation for Windows 2000.................................................14 Driver installation for Windows ME....................................................17 Driver installation for Windows XP....................................................19 Chapter 4 – Using the Wireless Utility...........................21 Install Wireless LAN Utility.................................................................21 In Windows XP............................................................................24 Use Windows Wireless Network Configuration....................................25 Use Wireless LAN Utility......................................................................28 Use Wireless LAN Utility In Windows 98, 2000 and ME..............31 Configuring the USB Wireless Network Adapter...............................31 Chapter 5 – Installing Network Protocols......................36 Installing the Network Protocols for Windows 98 and Millennium.....36 Appendix A – FAQ.........................................................39 Appendix B – Specifications..........................................40 4 USB Wireless Network Adapter User’s Manual Chapter 1 - Introduction Thank you for purchasing the USB Wireless Network Adapter. This high-speed USB Wireless Network Adapter provides you with an innovative wireless networking solution. The Adapter is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! Now you can carry the LAN in your pocket! The Adapter is a network adapter with a rate of 1, 2, 5.5, and 11 Mbps operating in the ISM band using Direct Sequence Spread Spectrum (DSSS) transmission implementing the IEEE 802.11b standard. This adapter provides Device Drivers for Windows 98, Windows 2000, XP and Windows ME. It also provides tools for the configuration of the adapter. The tool, as well as the installation steps of the plug-and-play procedure for the Microsoft Windows 98, 2000, XP and Windows ME operating systems, is described in this document. Features The USB Wireless Network Adapter offers compliance with the IEEE 802.11b specification. This feature allows them to communicate with other wireless devices that support the standard. Features of the adapter are: z Uses 2.4GHz frequency band, which complies with worldwide requirement z Wire…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 17, 2002 RE: Bromax Communications FCC ID: O6M-UW320 SAR Report: 1.) Please be sure to provide the FCC ID on the front page of the report, and not just the model. 2.) Section 2.1: Please identify the output power as Conducted or Radiated. For clarity, please use liner units for power, and not just dBm. 3.) Section 3: Was an un-modulated carrier really used for testing? What is the difference between the RF power from the transmitter in both Modulated and Unmodulated conditions? Please fully describe what test signals are used during testing. 4.) Please show the test modes in Appendix A in larger size. Also, please label which one is mode 1, mode 2, etc. 5.) All SAR plots MUST show ambient air and fluid temperature during testing. 6.) All SAR plots MUST show outline of EUT or antenna (and dipole on validation test ) on plot. 7.) It is very helpful to identify the plots as mode 1, mode 2, etc. 8.) It is a requirement that a z-axis plot be used at the point of highest SAR. Since three modes are utilized, it would be prudent to show z-axis plots for the highest of each mode. Please supply 9.) What was the fluid depth used during testing? 10.) During dipole calibration, please describe what efforts were used to be sure the dipole was loaded with exactly 50mW. Was forward and reflected power taken into consideration? Other Issues: 1.) There are two antennas described in the Test Report in section 3.1, but only an inverted F antenna described in SAR report. Please explain 2.) The Manual quotes a 20cm “Mobile” separation distance between radiator and body. This is not appropriate for an RF category “portable” device. Please revise. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. l Page 2 December 17, 2002 Any questions about the content of this correspondence should be directed to the sender.

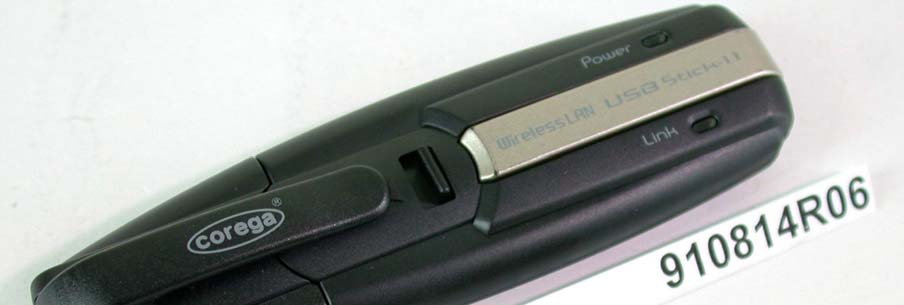

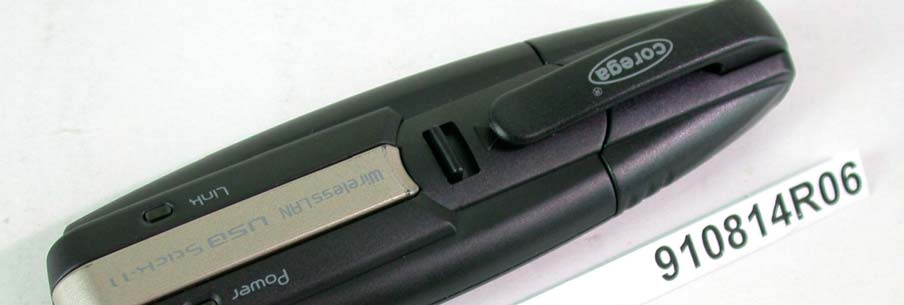

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

Page 9 Page 10

LABEL LOCATION FOR FCC ID

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: O6M-UW320 ADT No.911105R02 Operational Description The transmitter of the EUT is powered by host equipment from USB port. The antennas used in this product are Dipole antenna with UFL connector and Inverted F antenna with no connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: O6M-UW320 Report No.: SA911105R02A 1 Issued: Dec. 24, 2002 SAR TEST REPORT REPORT NO.: SA911105R02A MODEL NO.: UW320-IF RECEIVED: Nov. 5, 2002 TESTED: Dec. 23, 2002 APPLICANT:Bromax Communications, Inc. ADDRESS:No. 20, Kuang Fu Rd., Hsin Chu Industrial Park, Hu Kou, Hsin Chu 303, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 13 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: O6M-UW320 Report No.: SA911105R02A 2 Issued: Dec. 24, 2002 Table of Contents 1. CERTIFICATION ........................................................................................... 3 2. GENERAL INFORMATION............................................................................ 4 2.1 GENERAL DESCRIPTION OF EUT .............................................................. 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 4 3. DESCRIPTION OF TEST MODES AND CONFIGURATIONS ...................... 5 4. DESCRIPTION OF SUPPORT UNITS .......................................................... 6 5. TEST RESULTS ............................................................................................ 7 5.1 TEST PROCEDURES ................................................................................... 7 5.2 MEASURED SAR RESULT ........................................................................... 7 5.3 SAR LIMITS .................................................................................................. 8 5.4 EUT CONDUCTED POWER VARIATION ..................................................... 8 5.5 TISSUE ......................................................................................................... 9 5.6 TEST EQUIPMENT ....................................................................................... 9 6. SYSTEM VALIDATION ................................................................................ 10 7. MEASUREMENT UNCERTAINTIES ........................................................... 11 8. INFORMATION ON THE TESTING LABORATORIES ................................ 13 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: O6M-UW320 Report No.: SA911105R02A 3 Issued: Dec. 24, 2002 1. CERTIFICATION PRODUCT : Wireless USB Adapter MODEL NO. : UW320-IF BRAND : Bromax APPLICANT : Bromax Communications, Inc. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01) We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 6 th Dec. 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts for the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: O6M-UW320 Report No.: SA911105R02A 4 Issued: Dec. 24, 2002 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless USB Adapter MODEL NO. UW320-IF POWER SUPPLY DC powered by host MODULATION TYPE DBPSK, QPSK, CCK RADIO TECHNOLOGY DSSS TRANSFER RATE 1/2/5.5/11Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 CONDUCTED OUTPUT POWER 14.43 dBm (27.73mW) ANTENNA TYPE Dipole (2 different housing) PEAK SAR 0.58 W/kg DATA CABLE NA I/O PORTS USB ASSOCIATED DEVICES NA 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC CFR 47 Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) All tests have been performed and recorded as per the above standards. FCC ID: O6M-UW320 Report No.: SA911105R02A 5 Issued: Dec. 24, 2002 3. DESCRIPTION OF TEST MODES AND CONFIGURATIONS CARRIER MODULATION UNDER TEST Un-modulated CW Carrier CREST FACTOR 1.0 CHANNEL FREQUENCIES UNDER TEST AND ITS CONDUCTED OUTPUT POWER Ch. 1: 2412MHz / 14.40dBm Ch. 6: 2437MHz / 14.43 dBm Ch. 11: 2462MHz / 14.43 dBm ANTENNA CONFIGURATION Dipole (2 different housing) EUT POWER SOURCE From Host Notebook HOST POWER SOURCE Fully Charged Battery The following test configurations have been applied in this test report: Mode a, I: EUT in the USB slot of the notebook, the bottom of the notebook contact the bottom of the flat phantom with 0cm separation distance. Mode b, II: EUT in the USB slot of the notebook, the keyboard face of the notebook is perpendicular to the bottom of the flat phantom and the EUT is located between notebook and phantom. There is 1.5 cm separation distance between the tip of the EUT and the bottom of the flat phantom. Note 1: Model a & b is for folded dipole, Model I & II is for extended dipole. Note 2: Please reference ìAPPENDIX Aî for the photos of test configuration. Note 3: The output power of the un-modulated CW carrier has been adjusted to be the same with that of modulated signal. FCC ID: O6M-UW320 Report No.: SA911105R02A 6 Issued: Dec. 24, 2002 4. DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. NO.PRODUCT BRANDMODEL NO. SERIAL NO. FCC ID 1 NOTEBOOK DELL PP01L TW-09C748-12800-19O-B2 20 FCC DoC APPROVED NO.SIGNAL CABLE DESCRIPTION OF THE ABOVE SUPPORT UNITS 1 NA NOTE: All power cords of the above support units are non shielded (1.8m). FCC ID: O6M-UW320 Report No.: SA911105R02A 7 Issued: Dec. 24, 2002 5. TEST RESULTS …

Text truncated - open the document above for the full version.

Report No.: SA911105R02A APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Mode a Report No.: SA911105R02A Mode b Report No.: SA911105R02A Mode I Report No.: SA911105R02A Mode II Report No.: SA911105R02A A2: TEST DATA Wireless USB Adapter Mode a Distance=0mm; Air temperature:24 degrees centigrade; Liquid temperature:21.9 degrees centigrade SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 2412 MHz; Antenna type: Dipole Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2412 MHz: s = 1.95 mho/m e r = 53.1 r = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.526 mW/g, SAR (10g): 0.259 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.01 dB SAR Tot [mW/g] 5.48E-2 1.10E-1 1.64E-1 2.19E-1 2.74E-1 3.29E-1 3.84E-1 4.38E-1 4.93E-1 5.48E-1 12/23/02 ADVANCE DATA TECHNOLOGY CORPORATION Wireless USB Adapter Mode a Distance=0mm; Air temperature:24 degrees centigrade; Liquid temperature:21.9 degrees centigrade SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 2437 MHz; Antenna type: Dipole Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2437 MHz: s = 1.98 mho/m e r = 53.0 r = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.516 mW/g, SAR (10g): 0.253 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.05 dB SAR Tot [mW/g] 5.42E-2 1.08E-1 1.63E-1 2.17E-1 2.71E-1 3.25E-1 3.79E-1 4.34E-1 4.88E-1 5.42E-1 12/23/02 ADVANCE DATA TECHNOLOGY CORPORATION Wireless USB Adapter Mode a Distance=0mm; Air temperature:24 degrees centigrade; Liquid temperature:21.9 degrees centigrade SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 2462 MHz; Antenna type: Dipole Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2462 MHz: s = 2.01 mho/m e r = 52.9 r = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.526 mW/g, SAR (10g): 0.256 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.01 dB SAR Tot [mW/g] 5.48E-2 1.10E-1 1.64E-1 2.19E-1 2.74E-1 3.29E-1 3.84E-1 4.38E-1 4.93E-1 5.48E-1 12/23/02 ADVANCE DATA TECHNOLOGY CORPORATION Wireless USB Adapter Mode b Distance=15mm; Air temperature:24 degrees centigrade; Liquid temperature:21.9 degrees centigrade SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 2412 MHz; Antenna type: Dipole Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2412 MHz: σ = 1.95 mho/m ε r = 53.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0143 mW/g, SAR (10g): 0.0087 mW/g * Max outside, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: 0.12 dB SAR Tot [mW/g] 1.60E-3 3.20E-3 4.80E-3 6.40E-3 8.00E-3 9.60E-3 1.12E-2 1.28E-2 1.44E-2 1.60E-2 12/23/02 ADVANCE DATA TECHNOLOGY CORPORATION Wireless USB Adapter Mode b Distance=15mm; Air temperature:24 degrees centigrade; Liquid temperature:21.9 degrees centigrade SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 2437 MHz; Antenna type: Dipole Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2437 MHz: σ = 1.98 mho/m ε r = 53.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0132 mW/g, SAR (10g): 0.0080 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.02 dB SAR Tot [mW/g] 1.50E-3 3.00E-3 4.50E-3 6.00E-3 7.50E-3 9.00E-3 1.05E-2 1.20E-2 1.35E-2 1.50E-2 12/23/02 ADVANCE DATA TECHNOLOGY CORPORATION Wireless USB Adapter Mode b Distance=15mm; Air temperature:24 degrees centigrade; Liquid temperature:21.9 degrees centigrade SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 2462 MHz; Antenna type: Dipole Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2462 MHz: σ = 2.01 mho/m ε r = 52.9 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0128 mW/g, SAR (10g): 0.0076 mW/g * Max outside, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.02 dB SAR Tot [mW/g] 1.40E-3 2.80E-3 4.20E-3 5.60E-3 7.00E-3 8.40E-3 9.80E-3 1.12E-2 1.26E-2 1.40E-2 12/23/02 ADVANCE DATA TECHNOLOGY CORPORATION Wireless USB Adapter Mode I Distance=0mm; Air temperature:24 degrees centigrade; Liquid temperature:22.8 degrees centigrade SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 2412 MHz; Antenna type: Inverted F Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2412 MHz: σ = 1.95 mho/m ε r = 53.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.556 mW/g, SAR (10g): 0.289 mW/g * Max outside, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.02 dB SAR Tot [mW/g] 4.66E-2 9.32E-2 1.40E-1 1.86E-1 2.33E-1 2.80E-1 3.26E-1 3.73E-1 4.19E-1 4.66E-1 12/23/02 ADVANCE DATA TECHNOLOGY CORPORATION Wireless USB Adapter Mode I Distance=0mm; Air temperature:24 degrees centigrade; Liquid temperature:22.8 degrees centigrade SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 2437 MHz; Antenna type: Inverted F Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2437 MHz: σ = 1.98 mho/m ε r = 53.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.550 mW/g * , SAR (10g): 0.284 mW/g * Max outside, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.04 dB SAR Tot [mW/g] 4.83E-2 9.66E-2 1.45E-1 1.93E-1 2.41E-1 2.90E-1 3.38E-1 3.86E-1 4.35E-1 4.83E-1 12/23/02 ADVANCE DATA TECHNOLOGY CORPORATION Wireless USB Adapter Mode I Distance=0mm; Air temperature:24 degrees centigrade; Liquid temperature:22.8 degrees centigrade SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 2462 MHz; Antenna type: Inverted F Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2462 MHz: σ = 2.01 mho/m ε r = 52.9 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.580 mW/g, SAR (10g): 0.302 mW/g * Max outside, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.08 dB SAR Tot [mW/g] 5.09E-2 1.02E-1 1.53E-1 2.04E-1 2.55E-1 3.05E-1 3.56E-1 4.07E-1 4.58E-1 5.09E-1 12/23/02 ADVANCE DATA TECHNOLOGY CORPORATION Wireless USB Adapter Mode II Distance=15mm; Air temperature:24 degrees c…

Text truncated - open the document above for the full version.

Wireless USB Adapter Mode 1 Distance=0mm; Air temperature:24 degrees centigrade; Liquid temperature:22.8 degrees centigrade SAM Phantom; Flat Section; Position: (90°,180°); Frequency: 2412 MHz; Antenna type: Inverted F Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2412 MHz: σ = 1.91 mho/m ε r = 53.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0767 mW/g, SAR (10g): 0.0406 mW/g, (Worst-case extrapolation) Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.0 12/07/02 ADVANCE DATA TECHNOLOGY CORPORATION 0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11 0.12 0.13 0.14 0.15 0 10203040 SAR tot [mW/g] [mm]

Wireless USB Adapter Mode I Distance=0mm; Air temperature:24 degrees centigrade; Liquid temperature:22.8 degrees centigrade SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 2462 MHz; Antenna type: Dipole Probe: ET3DV6 - SN1687; ConvF(4.40,4.40,4.40); Crest factor: 1.0; Body 2462 MHz: σ = 2.01 mho/m ε r = 52.9 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.580 mW/g, SAR (10g): 0.302 mW/g * Max outside, (Worst-case extrapolation) Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.0 12/23/02 ADVANCE DATA TECHNOLOGY CORPORATION 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 0 10203040 SAR tot [mW/g] [mm]

FCC ID: O6M-UW320 Report No.: RF911105R021Issued: Nov. 25, 2002 FCC TEST REPORT REPORT NO.: RF911105R02 MODEL NO.: UW320-IF RECEIVED: Nov. 5, 2002 TESTED: Aug. 1 ~ Aug. 23, 2002, Nov. 15 ~ Nov. 17, 2002 APPLICANT: BROMAX COMMUNICATIONS, INC. ADDRESS: No. 20, Kuang Fu Road, Hsin Chu Industrial Park, Hu Kou, Hsin Chu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O6M-UW320 Report No.: RF911105R022Issued: Nov. 25, 2002 Table of Contents 1CERTIFICATION........................................................................................... 4 2SUMMARY OF TEST RESULTS .................................................................. 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT................................................ 9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2 TEST INSTRUMENTS .................................................................................. 9 4.1.3 TEST PROCEDURES ................................................................................ 10 4.1.4 DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5 TEST SETUP.............................................................................................. 11 4.1.6 EUT OPERATING CONDITIONS ............................................................... 12 4.1.7 TEST RESULTS (A).................................................................................... 13 4.1.8 TEST RESULTS (B).................................................................................... 19 4.2RADIATED EMISSION MEASUREMENT................................................... 25 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 25 4.2.2 TEST INSTRUMENTS ................................................................................ 26 4.2.3 TEST PROCEDURES ................................................................................ 27 4.2.4 DEVIATION FROM TEST STANDARD ....................................................... 27 4.2.5 TEST SETUP.............................................................................................. 28 4.2.6 EUT OPERATING CONDITIONS ............................................................... 28 4.2.7 TEST RESULTS (A).................................................................................... 29 4.2.8 TEST RESULTS (B).................................................................................... 33 4.36dB BANDWIDTH MEASUREMENT .......................................................... 37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 37 4.3.2 TEST INSTRUMENTS ................................................................................ 37 4.3.3 TEST PROCEDURE ................................................................................... 38 4.3.4 DEVIATION FROM TEST STANDARD ....................................................... 38 4.3.5 TEST SETUP.............................................................................................. 38 4.3.6 EUT OPERATING CONDITIONS ............................................................... 38 4.3.7 TEST RESULTS ......................................................................................... 39 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 43 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT........... 43 4.4.2 INSTRUMENTS.......................................................................................... 43 4.4.3 TEST PROCEDURES ................................................................................ 44 4.4.4 DEVIATION FROM TEST STANDARD....................................................... 44 FCC ID: O6M-UW320 Report No.: RF911105R023Issued: Nov. 25, 2002 4.4.5 TEST SETUP.............................................................................................. 44 4.4.6 EUT OPERATING CONDITIONS ............................................................... 44 4.4.7 TEST RESULTS ......................................................................................... 45 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 46 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 46 4.5.2 TEST INSTRUMENTS ................................................................................ 46 4.5.3 TEST PROCEDURE ................................................................................... 47 4.5.4 DEVIATION FROM TEST STANDARD ....................................................... 47 4.5.5 TEST SETUP.............................................................................................. 47 4.5.6 EUT OPERATING CONDITION.................................................................. 47 4.5.7 TEST RESULTS ......................................................................................... 48 4.6BAND EDGES MEASUREMENT..…

Text truncated - open the document above for the full version.

FCC ID: O6M-UW320 Report No.: RF911105R0257Issued: Nov. 25, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: O6M-UW320 Report No.: RF911105R0258Issued: Nov. 25, 2002 RADIATED EMISSION TEST
