O6M-WE602B54M Wireless LAN CardBus Card

54M Wireless LAN CardBus Card User’s Manual Rev 0.9 54M Wireless LAN CardBus Card User’s Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2 54M Wireless LAN CardBus Card User’s Manual About this manual This User’s Manual describes how to install and operate your CardBus Wireless LAN Card. Please read this manual before you install the product. This manual includes the following topics: ¾ Product description and features. ¾ Hardware installation procedure. ¾ Software installation procedure. ¾ FAQ 3 54M Wireless LAN CardBus Card User’s Manual Table of Contents Regulatory compliance.............................................! About this manual......................................................................................3 Chapter 1 - Introduction...................................................5 Features..............................................................................................5 What is Wireless LAN?.......................................................................6 Wireless LAN Modes...........................................................................6 Notes on Wireless LAN Configuration.................................................7 Chapter 2 - Hardware Installation....................................8 Package Contents...............................................................................8 System Requirements for the Adapter................................................8 Hardware description..........................................................................8 Inserting the Wireless LAN Card.........................................................8 LED Indicators.....................................................................................9 Ejecting the Wireless LAN card.........................................................10 Chapter 3 – Driver Installation for Windows..................11 Driver installation for Windows 98.....................................................11 Driver installation for Windows 2000.................................................14 Driver installation for Windows ME....................................................17 Driver installation for Windows XP....................................................19 Chapter 4 – Installing and Using the Wireless Utility.....21 Installation in Windows......................................................................21 Using Wireless Utility In Windows XP...............................................24 Use Windows Wireless Network Configuration.....................................24 Use Wireless LAN Utility........................................................................27 Use Wireless LAN Utility In Windows 98, 2000 and ME...................30 Configuring the CardBus Wireless LAN Card...................................30 Chapter 5 – Installing Network Protocols......................34 Installing the Network Protocols for Windows 98 and Millennium.....34 Appendix A – FAQ.........................................................37 Appendix B – Specifications..........................................38 4 54M Wireless LAN CardBus Card User’s Manual Chapter 1 - Introduction Thank you for purchasing the CardBus Wireless LAN Card. This high-speed CardBus Wireless LAN Card provides you with an innovative wireless networking solution. The Adapter is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! The Adapter is a network Adapter with a rate of 1, 2, 5.5, and 11 Mbps operating in the ISM band using Direct Sequence Spread Spectrum (DSSS) transmission implementing the IEEE 802.11b standard. This Adapter provides Device Drivers for Windows Operating Systems. It also provides tools for the configuration of the Adapter. The tool, as well as the installation steps of the plug-and-play procedure for the Windows operating systems, is described in this document. Features The CardBus Wireless LAN Card offers compliance with the IEEE 802.11b specification. This feature allows them to communicate with other wireless devices that support the standard. Features of the Adapter are: z Uses 2.4GHz frequency band, which complies with…

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: 54M Wireless LAN CardBus Card (Receiver Part) MODEL NO.: WE602-BF TRADE NAME: Bromax IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920120R05A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： ManufacturerUSA Local Representative Company name: BROMAX COMMUNICATIONS, INC. To Be Determined. Address: No.20, Kuang Fu Road, Hsin Chu Industrial Park, Hu Kou,Hsin Chu 303, Taiwan, R.O.C. Contact Person: Frank Fu Title: Manager Tel/Fax: Tel: +886-35-972-988 Fax: +886-35-683-414

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 10, 2003 RE: FCC ID: O6M-WE602B Attention: Ellis Wu I have a few comments on this Application. 1. The Manual for the 88mW PCMCIA WLAN does not contain any RF exposure information. Please correct. xxx 2. On page 4 you state that the conducted power of the unit is 87.09 mW, yet on page 10 of the report you state that the conducted power of the device is 78.5 mW. Please correct your SAR report to be within the 5% variance allowed between the EMC and SAR report and to be consistent with reported power levels. xxx Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

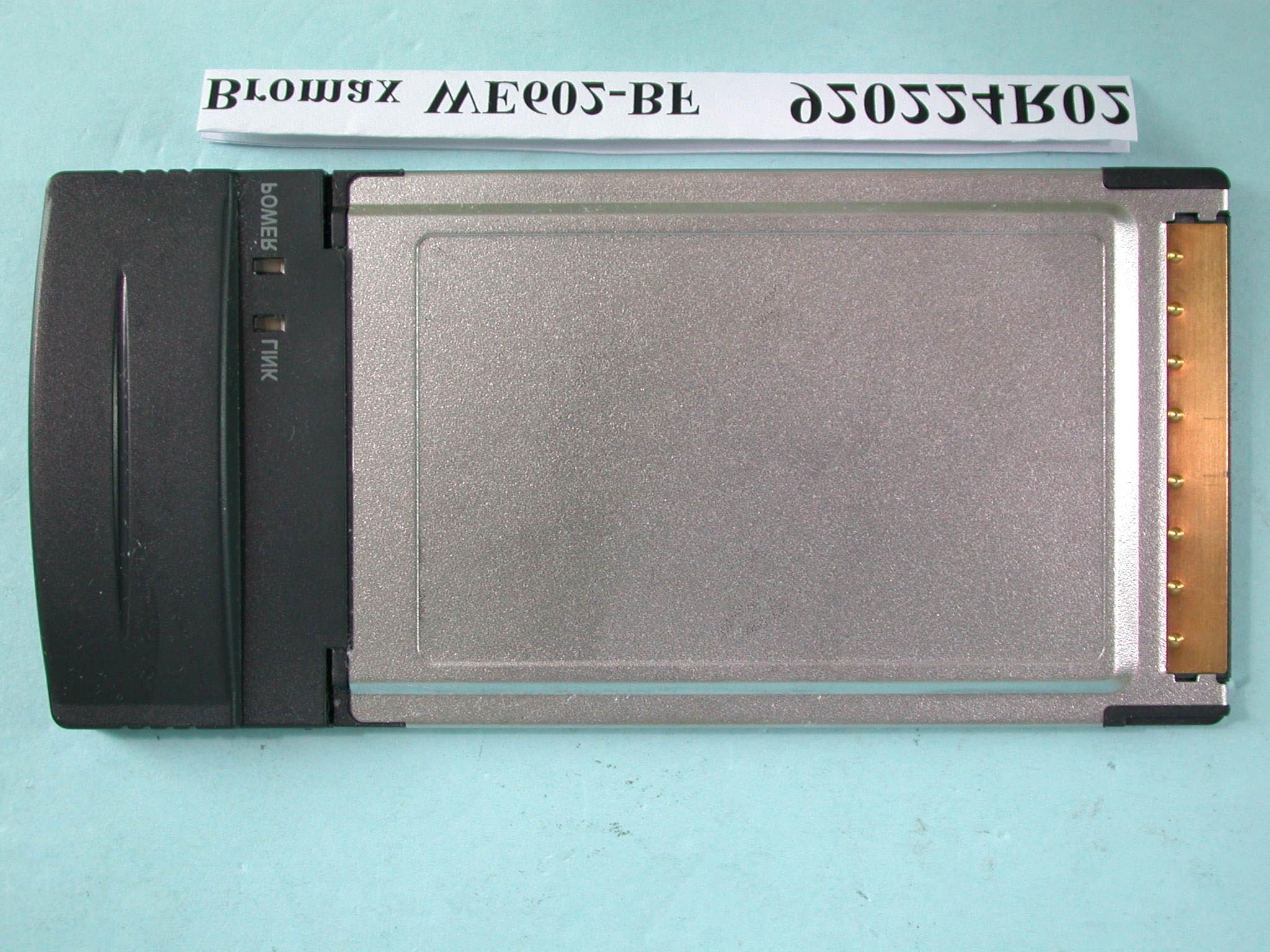

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6

FCC ID: O6M-WE602B ADT No.920224R02 Operational Description This device is a 54M Wireless LAN CardBus Card which operates in 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCMCIA interface. The antenna is Printed antenna. There is no antenna connector. The other instruction, please have a look at the users manual.
