11Mbps Wireless LAN Module User Manual Rev 0.9 Regulatory Compliance FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi- dential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful in- terference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compli- ance could void your authority to operate the equipment. IMPORTANT NOTE: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter Wireless LAN card user manual ii Table of contents CHAPTER 1 .................................................................................................... 1 Introduction1 Features ............................................................................................... 1 What is Wireless LAN? ........................................................................ 1 LAN Modes .......................................................................................... 2 Notes on wireless LAN configuration .................................................. 2 CHAPTER 2 .................................................................................................... 3 Hardware installation3 Hardware description .......................................................................... 3 Status LEDs.......................................................................................... 3 CHAPTER 3 .................................................................................................... 3 Installation for Embedded Linux System3 Iinstallation for Linux .......................................................................... 3 CHAPTER 4 .................................................................................................... 6 Using the Wireless Utility6 Configuration Utility............................................................................ 6 APPENDIX A .................................................................................................. 8 Troubleshooting8 Q&A .................................................................................................... 8 APPENDIX B .................................................................................................. 9 Specifications ....................................................................................... 9 1 Chapter 1 Introduction Thank you for using the Wireless LAN module. This high-speed Wireless LAN module provides you with an inno- vative wireless networking solution for your embedded system. The module is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! Now you can carry the LAN in your pocket! This module is designed for 1. Wireless LAN Printer Server 2. Wireless LAN Ethernet Adapter 3. Wireless LAN Access Point / Gateway 4. Wireless LAN Router 5. Wireless LAN Broadband Router 6. Wireless LAN Presentation Gateway Features • Wire-free access to networked resources from anywhere beyond the desktop • Low interference & high susceptibility guarantee reliable performance • Delivers data rate up to 11 Mbps • Dynamically shifts between 11, 5.5, 2, and 1 Mbps network speed, based on signal strength, for maximum avail- ability and reliability of connection • Uses 2.4GHz frequency band, which complies with worldwide requirement • Used on embedded operating systems • Ensures great security by providing the Wired Equivalent Privacy (WEP) defined in the IEEE 802.11 standard What is Wireless LAN? Wireless Local Area Network (WLAN) systems offer a great number of advantages over traditional wired sys- tems. WLANs are flexible and easy to setup and manage. They are also more economical than wired LAN systems. Using radio frequency (RF) technology, WLANs transmit and receive data through the air. WLANs combine data connectivity with user mobility. For example, users can roam from a conference room to their office without being disconnected from the LAN. Using WLANs, users can conveniently access shared information, and network administrators can configure and augment networks without installing or moving network cables. WLAN technology provides users with many convenient and cost saving features: • Mobility: WLANs provide LAN users with access to real-time information anywhere in their organiza- tion, providing service opportunities that are impossible with wired networks. • Ease of Installation: Installing is easy for novice and expert users alike, eliminating the need to install network cables in walls and ceilings. • Scalability: WLANs can be configured in a variety of topologies to adapt to specific applications and installations. Configurations are easily changed and ra…

Text truncated - open the document above for the full version.

BROMAX COMMUNICATIONS, INC. No.20, Kuang Fu Road, Hsin Chu Industrial Park, Hu Kou,Hsin Chu 303, Taiwan, R.O.C. TEL: +886- 03-597-2988*8370 FAX: +886- 03-568-3414 MAIL: [email protected] FCC ID: O6M-WM302 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

Subject: =?big5?B?pl6rSKFHIFJlOiBSZXZpZXc gb2YgQlJPTUFYIENPTU1VTklDQVRJT05TLCBJTkM=? = =?us-ascii?Q?=2E=2C_?= =?us-ascii?Q?FCC?= ID: O6M- WM302 To: [email protected] Dear Tim, This product will be sold only to the integrators. And the other project, PKW-WM11 is completely the same with this one. Thank yo u. Alan ----- 轉呈è€... Rennie Wang/ADT æ-¼ 2002/06/19 09:55 AM ----- "Timothy R. Johnson" 收件人： [email protected] <TRJ@adelphia. å‰ ̄本抄é€： net> ä ̧»æ— ̈： Re: Review of BROMAX COMMUNICATIONS, INC., FCC ID: O6M-WM302 2002/06/19 09:22 AM Rennie, Can you please confirm if this is being sold only to integrators and not the general public? Thanks, Tim

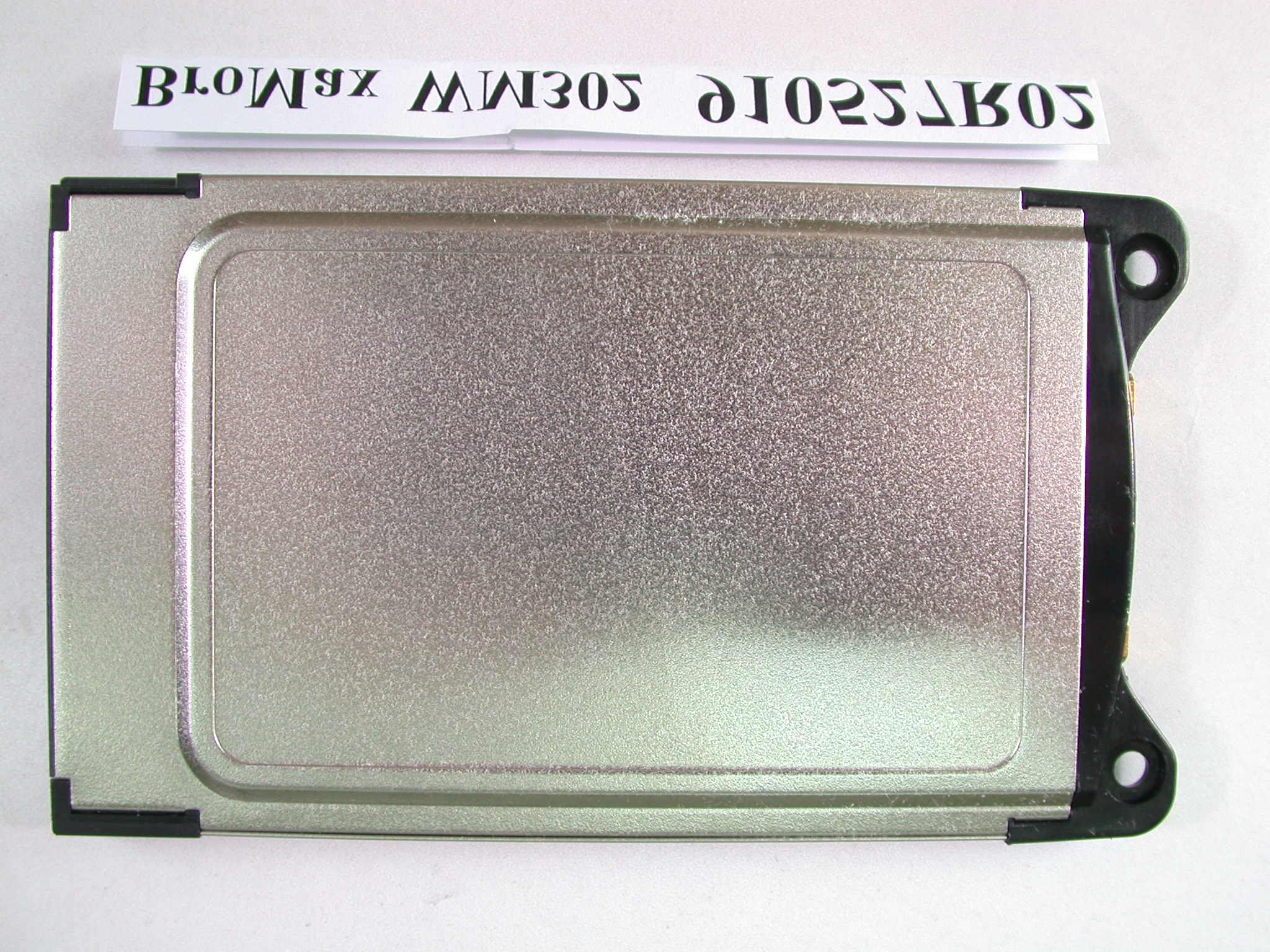

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 6 Page 7

Page 8 Page 9

Page 10 Page 11

FCC ID Label Location

Page 3 Page 4 Page 5

FCC ID: O6M-WM302 ADT No.910527R02 Operational Description The transmitter of the EUT (11Mbps Wireless LAN Module) is powered by host equipment via a PCMCIA interface. The antenna is dipole and printed antenna, and the antenna connector type is MMCX. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: O6M-WM302 ADT No.: 910527R02 FCC TEST REPORT REPORT NO.: RF910527R02 MODEL NO.: WM302 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:BROMAX COMMUNICATIONS, INC. ADDRESS: No.20, Kuang Fu Road, Hsinchu Industrial Park Hukou, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 FCC ID: O6M-WM302 ADT No.: 910527R02 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, as the warning statement on users manual, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: O6M-WM302 ADT No.: 910527R02 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: O6M-WM302 ADT No.: 910527R02 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 4 dBi or 2.51 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241270.633.76 6243770.633.76 11246269.023.71 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: O6M-WM302 Report No.: RF910527R021Issued: June 11, 2002 FCC TEST REPORT REPORT NO.: RF910527R02 MODEL NO.: WM302 RECEIVED: May 22, 2002 TESTED: May 23 ~ June 6 , 2002 APPLICANT: BROMAX COMMUNICATIONS, INC. ADDRESS: No.20, Kuang Fu Road, Hsin Chu Industrial Park, Hu Kou,Hsin Chu 303, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O6M-WM302 Report No.: RF910527R022Issued: June 11, 2002 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS (A) .................................................................................... 12 4.1.7TEST RESULTS (B) .................................................................................... 18 4.1.8TEST RESULTS (C).................................................................................... 24 4.2RADIATED EMISSION MEASUREMENT ................................................... 30 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 30 4.2.2TEST INSTRUMENTS ................................................................................ 31 4.2.3TEST PROCEDURES................................................................................. 32 4.2.4TEST SETUP .............................................................................................. 33 4.2.5EUT OPERATING CONDITIONS................................................................ 33 4.2.6TEST RESULTS (A) .................................................................................... 34 4.2.7TEST RESULTS (B) .................................................................................... 39 4.2.8TEST RESULTS (C).................................................................................... 44 4.36dB BANDWIDTH MEASUREMENT .......................................................... 49 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 49 4.3.2TEST INSTRUMENTS ................................................................................ 49 4.3.3TEST PROCEDURE ................................................................................... 50 4.3.4TEST SETUP .............................................................................................. 50 4.3.5EUT OPERATING CONDITIONS................................................................ 50 4.3.6TEST RESULTS.......................................................................................... 51 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 55 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 55 FCC ID: O6M-WM302 Report No.: RF910527R023Issued: June 11, 2002 4.4.2TEST INSTRUMENTS ................................................................................ 55 4.4.3TEST PROCEDURES................................................................................. 56 4.4.4TEST SETUP .............................................................................................. 56 4.4.5EUT OPERATING CONDITIONS................................................................ 56 4.4.6TEST RESULTS.......................................................................................... 57 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 58 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 58 4.5.2TEST INSTRUMENTS ................................................................................ 58 4.5.3TEST PROCEDURE ................................................................................... 59 4.5.4TEST SETUP .............................................................................................. 59 4.5.5EUT OPERATING CONDITIONS................................................................ 59 4.5.6TEST RESULTS.......................................................................................... 60 4.6BAND EDGES MEASUREMENT ................................................................ 64 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 64 4.6.2TEST INSTRUMENTS ................................................................................ 64 4.6.3TEST PROCEDURE ..................…
