O6M-WM60654M WLAN MiniPCI Card Module

54M WLAN MiniPCI Module User Manual Rev 0.9 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is en- couraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to op- erate this equipment. This device complies with Part 15 of the FCC Rules. Operation is sub- ject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunc- ii tion with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still respon- sible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be re- sponsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: O6M-WM606”. Manual Information That Must be Included The users manual for end users must include the following in- formation in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the an- Preface iii tenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other an- tenna or transmitter. iv Table of contents CHAPTER 1 .................................................................................................... 1 Introduction 1 Features ............................................................................................... 1 What is Wireless LAN? ........................................................................ 2 LAN Modes .......................................................................................... 3 Notes on wireless LAN configuration .................................................. 4 CHAPTER 2 .................................................................................................... 5 Hardware installation 5 Hardware description .......................................................................... 5 Product Outlook ................................................................................. 5 CHAPTER 3 .................................................................................................... 7 Using the Wireless Utility 7 Configuration Utility............................................................................ 7 APPENDIX A ................................................................................................ 10 Specifications ..................................................................................... 10 1 Chapter 1 Introduction Thank you for using the Wireless MiniPCI Module. This high-speed 54Mbps Wireless MiniPCI Module provides you with an innovative wireless networking solution for your embedded system. The mod- ule is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconven- ient wires! Now you can carry the LAN in your pocket! This module is designed for 1. Wireless LAN Printer Server 2. Wireless LAN Ethernet Adapter 3. Wireless LAN Access Point 4. Wireless LAN Router / Gateway / Cable Modem 5. Wireless LAN Broadband Router 6. Wireless LAN Presentation Gateway Features • Wire-free access to networked resources from anywher…

Text truncated - open the document above for the full version.

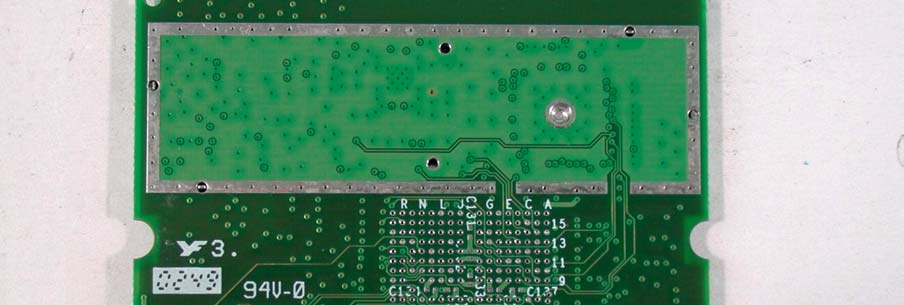

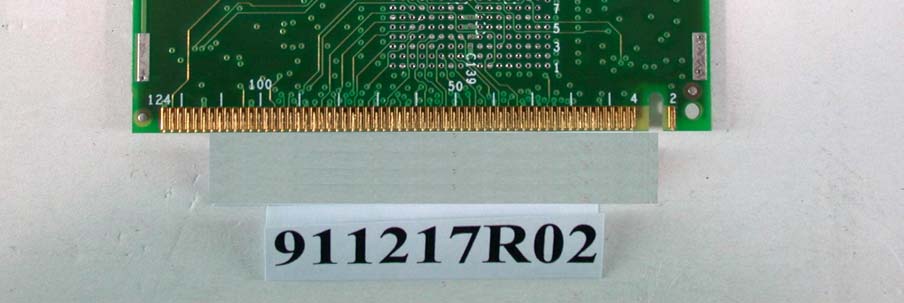

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4

FCC ID: O6M-WM606 ADT No.911217R01 Operational Description This device is a 54M WLAN MiniPCI Module which operates in the 2.4Ghz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a Mini-PCI interface. The antenna is Dipole antenna with UFL connector. The other instruction, please have a look at the users manual.

FCC ID: O6M-WM606 ADT No.: 911217R01 FCC TEST REPORT REPORT NO.: RF911217R02A MODEL NO.: WM606-B ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: BROMAX COMMUNICATIONS, INC. ADDRESS: No. 20, Kuang Fu Road, Hsin Chu Industrial Park, Hu Kou, Hsin Chu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O6M-WM606 ADT No.: 911217R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: O6M-WM606 ADT No.: 911217R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: O6M-WM606 ADT No.: 911217R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.16 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : For 802.11b: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241241.783.24 6243744.153.33 11246248.193.48 For 802.11g: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241252.973.65 6243744.673.35 11246243.653.31 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: O6M-WM606 Report No.: RF911217R02A1Issued: December 25, 2002 Reference No.: RF911217R02 FCC TEST REPORT REPORT NO.: RF911217R02A MODEL NO.: WM606-B RECEIVED: Dec. 17, 2002 TESTED: Dec. 12 ~ Dec. 22, 2002 APPLICANT: BROMAX COMMUNICATIONS, INC. ADDRESS: No. 20, Kuang Fu Road, Hsin Chu Industrial Park, Hu Kou, Hsin Chu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: O6M-WM606 Report No.: RF911217R02A2Issued: December 25, 2002 Reference No.: RF911217R02 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS................................................................ 12 4.1.7TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES................................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 21 4.2.5TEST SETUP .............................................................................................. 22 4.2.6EUT OPERATING CONDITIONS................................................................ 22 4.2.7TEST RESULTS ---(with 2dBi antenna gain)............................................... 23 4.2.8TEST RESULTS ---(with 5dBi antenna gain)............................................... 25 4.2.9TEST RESULTS (A) ---(with 2dBi antenna gain)......................................... 27 4.2.10 TEST RESULTS (A) ---(with 5dBi antenna gain)......................................... 30 4.2.11 TEST RESULTS (B) ---(with 2dBi antenna gain)......................................... 33 4.2.12 TEST RESULTS (B) ---(with 5dBi antenna gain)......................................... 36 4.36dB BANDWIDTH MEASUREMENT .......................................................... 39 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 39 4.3.2TEST INSTRUMENTS ................................................................................ 39 4.3.3TEST PROCEDURE ................................................................................... 40 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 40 4.3.5TEST SETUP .............................................................................................. 40 FCC ID: O6M-WM606 Report No.: RF911217R02A3Issued: December 25, 2002 Reference No.: RF911217R02 4.3.6EUT OPERATING CONDITIONS................................................................ 40 4.3.7TEST RESULTS (A) .................................................................................... 41 4.3.8TEST RESULTS (B) .................................................................................... 45 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 49 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 49 4.4.2TEST INSTRUMENTS ................................................................................ 49 4.4.3TEST PROCEDURES................................................................................. 50 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 50 4.4.5TEST SETUP .............................................................................................. 50 4.4.6EUT OPERATING CONDITIONS................................................................ 50 4.4.7TEST RESULTS (A) .................................................................................... 51 4.4.8TEST RESULTS (B) .................................................................................... 51 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 52 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 52 4.5.2TEST INSTRUMENTS ................................................................................ 52 4.5.3TEST PROCEDURE ..................…

Text truncated - open the document above for the full version.

FCC ID: O6M-WM606 Report No.: RF911217R02A70Issued: December 25, 2002 Reference No.: RF911217R02 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: O6M-WM606 Report No.: RF911217R02A71Issued: December 25, 2002 Reference No.: RF911217R02 FCC ID: O6M-WM606 Report No.: RF911217R02A72Issued: December 25, 2002 Reference No.: RF911217R02 RADIATED EMISSION TEST FCC ID: O6M-WM606 Report No.: RF911217R02A73Issued: December 25, 2002 Reference No.: RF911217R02
