O6QPS60XC1VEGAPULS 65/66 Tank Level Probing Radar

Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report Number: 2009282-6566 Page 45 of 48 Appendix H: User Manual Please refer to the following pages. OperatingInstructions VEGAPULS66 4...20mA/HARTtwo-wire DocumentID: 36519 Radar Contents 1Aboutthisdocument 1.1Function.................................. 4 1.2Targetgroup.............................. 4 1.3Symbolismused............................ 4 2Foryoursafety 2.1Authorisedpersonnel........................ 5 2.2Appropriateuse............................ 5 2.3Warningaboutmisuse....................... 5 2.4Generalsafetyinstructions.................... 5 2.5CEconformity............................. 6 2.6FulfillmentofNAMURrecommendations.......... 6 2.7RadioapprovalforEurope.................... 6 2.8RadioapprovalforUSA/Canada................ 6 2.9Environmentalinstructions..................... 6 3Productdescription 3.1Configuration.............................. 7 3.2Principleofoperation........................ 8 3.3Packaging,transportandstorage............... 8 3.4Accessoriesandreplacementparts.............. 9 4Mounting 4.1Generalinstructions......................... 11 4.2Mountinginstructions........................ 11 5Connectingtopowersupply 5.1Preparingtheconnection..................... 22 5.2Connection................................ 23 5.3Wiringplan,singlechamberhousing............. 25 5.4Wiringplan,doublechamberhousing............ 25 5.5WiringplanwithdoublechamberhousingExd..... 26 5.6Wiringplan-versionIP66/IP68,1bar........... 27 5.7Switchonphase............................ 27 6Setupwiththeindicatingandadjustmentmodule 6.1Insertindicatingandadjustmentmodule........... 28 6.2Adjustmentsystem.......................... 29 6.3Parameteradjustment........................ 30 6.4Savingtheparameteradjustmentdata............ 38 7SetupwithPACTware 7.1ConnectingthePC.......................... 39 7.2ParameteradjustmentwithPACTware............ 40 7.3Savingtheparameteradjustmentdata............ 41 8Setupwithothersystems 8.1DDadjustmentprograms..................... 42 2VEGAPULS66•4...20mA/HARTtwo-wire Contents 36519 - EN - 100602 8.2Communicator375,475...................... 42 9Diagnosis,faultrectificationandservice 9.1Maintenance.............................. 43 9.2Measuredvalueandeventmemory.............. 43 9.3ErrormessagesaccordingtoNE107............ 44 9.4Rectifymalfunctions......................... 47 9.5Exchangingtheelectronicsmodule.............. 48 9.6Softwareupdate............................ 48 9.7Howtoproceedincaseofrepair................ 49 10Dismounting 10.1Dismountingsteps.......................... 50 10.2Disposal................................. 50 11Supplement 11.1Technicaldata............................. 51 11.2Dimensions............................... 60 SafetyinstructionsforExareas PleasenotetheEx-specificsafetyinformationforinstallationand operationinExareas.Thesesafetyinstructionsarepartofthe operatinginstructionsmanualandcomewiththeEx-approved instruments. VEGAPULS66•4...20mA/HARTtwo-wire3 Contents 36519 - EN - 100602 1Aboutthisdocument 1.1Function Thisoperatinginstructionsmanualprovidesalltheinformationyou needformounting,connectionandsetupaswellasimportant instructionsformaintenanceandfaultrectification.Pleasereadthis informationbeforeputtingtheinstrumentintooperationandkeepthis manualaccessibleintheimmediatevicinityofthedevice. 1.2Targetgroup Thisoperatinginstructionsmanualisdirectedtotrainedqualified personnel.Thecontentsofthismanualshouldbemadeavailableto thesepersonnelandputintopracticebythem. 1.3Symbolismused Information,tip,note Thissymbolindicateshelpfuladditionalinformation. Caution:Ifthiswarningisignored,faultsormalfunctionscan result. Warning:Ifthiswarningisignored,injurytopersonsand/orserious damagetotheinstrumentcanresult. Danger:Ifthiswarningisignored,seriousinjurytopersonsand/or destructionoftheinstrumentcanresult. Exapplications ThissymbolindicatesspecialinstructionsforExapplications. lList Thedotsetinfrontindicatesalistwithnoimpliedsequence. àAction Thisarrowindicatesasingleaction. 1Sequence Numberssetinfrontindicatesuccessivestepsinaprocedure. 4VEGAPULS66•4...20mA/HARTtwo-wire 1Aboutthisdocument 36519 - EN - 100602 2Foryoursafety 2.1Authorisedpersonnel Alloperationsdescribedinthisoperatinginstructionsmanualmustbe carriedoutonlybytrainedspecialistpersonnelauthorisedbytheplant operator. Duringworkonandwiththedevicetherequiredpersonalprotective equipmentmustalwaysbeworn. 2.2Appropriateuse VEGAPULS66isasensorforcontinuouslevelmeasurement. Youcanfinddetailedinformationontheapplicationrangeinchapter "Productdescription". Operationalreliabilityisensuredonlyiftheinstrumentisproperlyused accordingtothespecificationsintheoperatinginstructionsmanualas wellaspossiblesupplementaryinstructions. 2.3Warningaboutmisuse Inappropriateorincorrectuseoftheinstrumentcangiveriseto application-specifichazards,e.g.vesseloverfillordamagetosystem componentsthroughincorrectmountingoradjustment. 2.4Generalsafetyinstructions Thisisastate-of-the-artinstrumentcomplyingwithallprevailing regulationsandguidelines.Theinstrumentmustonlybeoperatedina technicallyflawlessandreliablecondition.Theoperatorisresponsible forthetrouble-freeoperationoftheinstrument. Duringtheentiredurationofuse,theuserisobligedtodeterminethe complianceoftherequiredoccupationalsafetymeasureswiththe currentvalidrulesandregulationsandalsotakenoteofnew regulations. Thesafetyinstructionsinthisoperatinginstructionsmanual,the nationalinstallationstandardsaswellasthevalidsafetyregulations andaccidentpreventionrulesmustbeobservedbytheuser. Forsafetyandwarrantyreasons,anyinvasiveworkonthedevice beyondthatdescribedintheoperatinginstructionsmanualmaybe carriedoutonlybypersonnelauthorisedbythemanufacturer.Arbitrary conversionsormodificationsareexplicitlyforbidden. Thesafetyapprovalmarkingsandsafetytipsonthedevicemustalso beobserved. VEGAP…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report Number: 2009282-6566 Page 37 of 48 Appendix B: Agency Authorization Letter Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report Number: 2009282-6566 Page 38 of 48 Appendix C: FCC Confidentiality Request Letter Please refer to the following page.

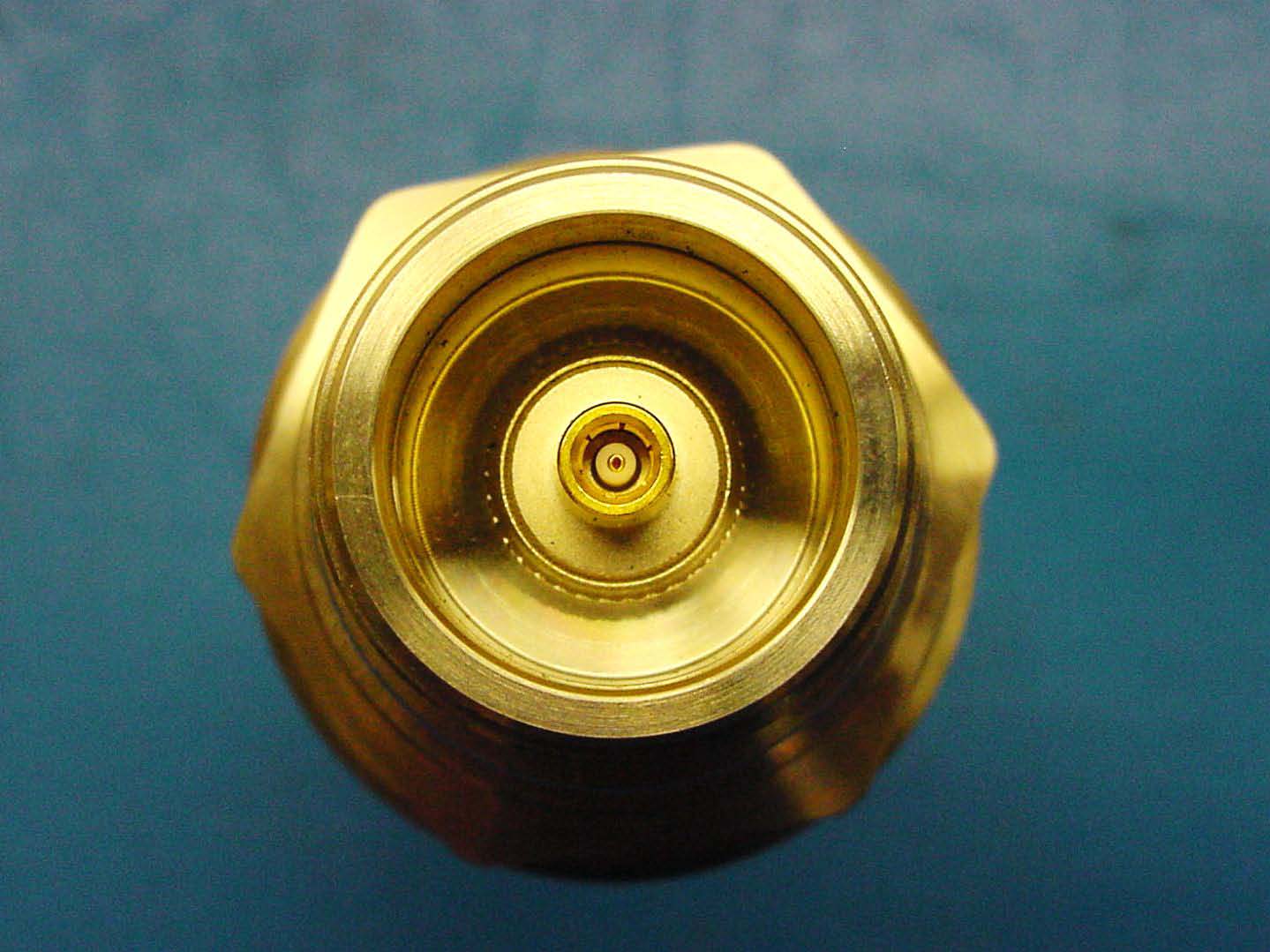

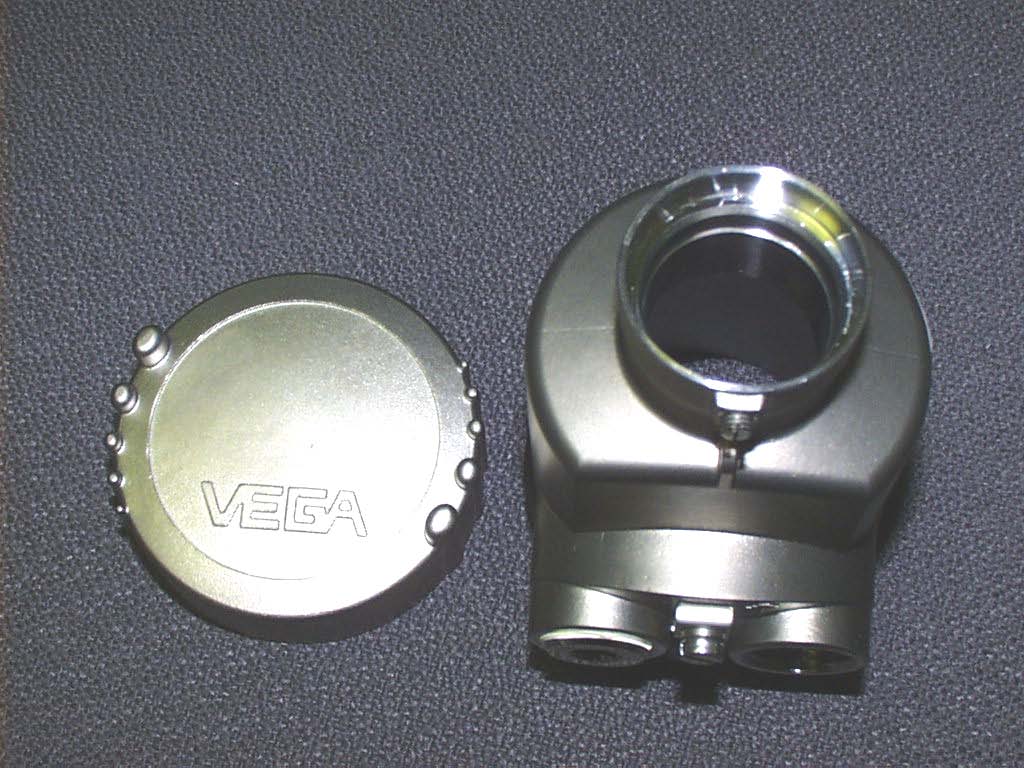

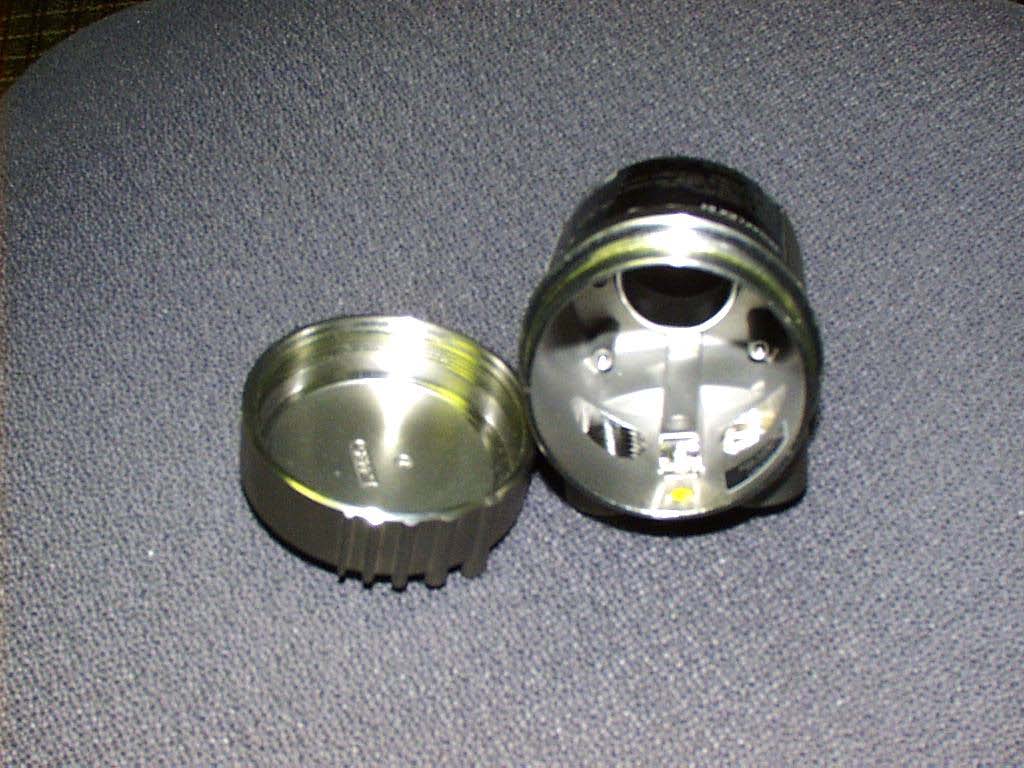

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Ph: 703-689-0368 Fax: 703-689-2056 External Photograph Report VEGA Grieshaber KG MODELS: VEGAPULS 65 VEGAPULS 66 FCC ID: O6QPS60XC1 Report No: 2009282-6566EP August 28, 2010 Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Table of Contents Photograph 1: 10” Horn Antenna 3 Photograph 2: 4” Horn Antenna 4 Photograph 3: 250mm Rod Antenna 5 Photograph 4: 50mm Rod Antenna 6 Photograph 5: Antenna Port 7 Photograph 6: Plastic Housing Front View 8 Photograph 7: Plastic Housing inside View 9 Photograph 8: Plastic Housing Fitting 10 Photograph 9: Aluminum Housing 11 Photograph 10: Aluminum Housing Front View 12 Photograph 11: Double Aluminum Chamber Housing Fitting 13 Photograph 12: Double Aluminum Housing Fitting Front View 14 Photograph 13: Double Aluminum Chamber Housing Rear View 15 Photograph 14: Stainless Steel Housing Fitting 16 Photograph 15: Stainless Steel Housing Front View 17 Photograph 16: Stainless Steel Housing Top View 18 Photograph 17: LCD Display Top View 19 Photograph 18: LCD Display Bottom View 20 Photograph 19: Electronics Can (Front) 21 Photograph 20: Electronics Can (Top) 22 Photograph 21: Electronics Can (Bottom) 23 Photograph 22: Electronics Can (Rear) 24 Photograph 23: Electronics Can (Inside View) 25 Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 1: 10” Horn Antenna Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 2: 4” Horn Antenna Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 3: 250mm Rod Antenna Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 4: 50mm Rod A ntenna Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 5: Antenna Port Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 6: Plastic Housing Front View Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 7: Plastic Housing inside View Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 8: Plastic Housing Fitting Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 9: Aluminum Housing Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 10: Aluminum Housing Front View Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 11: Double Aluminum Chamber Housing Fitting Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 12: Double Aluminum Housing Fitting Front View Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 13: Double Aluminum Chamber Housing Rear View Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 14: Stainless Steel Housing Fitting Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 15: Stainless Steel Housing Front View Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 16: Stainless Steel Housing Top View Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566EP Photograph 17: LCD Display Top View Rhein Tech La…

Text truncated - open the document above for the full version.

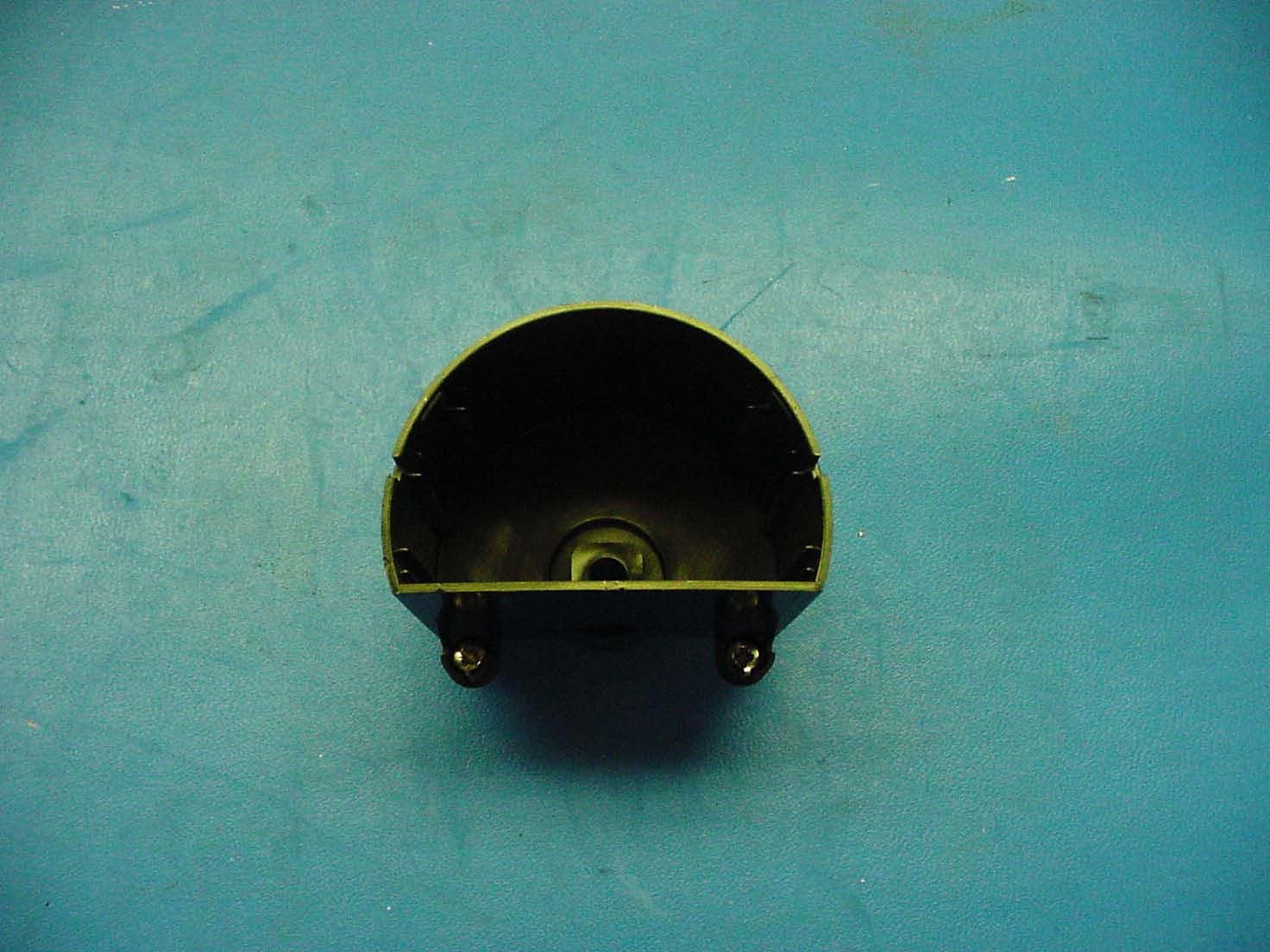

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Ph: 703-689-0368 Fax: 703-689-2056 VEGA Grieshaber KG Internal Photograph Report MODELS: VEGAPULS 65 VEGAPULS 66 FCC ID: O6QPS60XC1 Report No: 2009282-6566 IP August 25, 2010 Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Table of Contents Photograph 1: Adjustment Board (Component Side) ............................................................................2 Photograph 2: Adjustment Board (Solder Side) ....................................................................................2 Photograph 3: Power Supply Board (Component Side) .......................................................................3 Photograph 4: Power Supply Board (Solder Side) ................................................................................4 Photograph 5: CPU Board (Component Side) ......................................................................................5 Photograph 6: CPU Board (Solder Side) ..............................................................................................6 Photograph 7: Frequency Control Board (Component Side) ................................................................6 Photograph 8: Frequency Control Board (Component Side with Shield)..............................................7 Photograph 9: Frequency Control Board (Solder Side) ........................................................................7 Photograph 10: Microwave Board (Component Side).............................................................................8 Photograph 11: Microwave Board (Component Side with Shield) ..........................................................8 Photograph 12: Microwave Board (Solder Side) .....................................................................................9 Photograph 13: Microwave Board (Shielding Side) ............................................................................. 10 Photograph 14: Shielded Microwave Board ......................................................................................... 10 Photograph 15: Electronics Cover (Component Side) ......................................................................... 11 Photograph 16: Electronics Cover (Solid Side) .................................................................................... 11 Photograph 17: Electronic-Kit 1 ............................................................................................................ 12 Photograph 18: Electronic-Kit 2 ............................................................................................................ 12 Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Photograph 1: Adjustment Board (Component Side) Photograph 2: Adjustment Board (Solder Side) Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Photograph 3: Power Supply Board (Component Side) Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Photograph 4: Power Supply Board (Solder S ide) Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Photograph 5: CPU Board (Component Side) Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Photograph 6: CPU Board (Solder Side) Photograph 7: Freq uency Control Board (Component Side) Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Photograph 8: Frequency Control Board (Component Side with Shield) Photograph 9: Frequency Control Board (Solder Side) Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Photograph 10: Microwave Board (Component Side) Pho tograph 11: Microwave Board (Component Side with Shield) Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Photograph 12: Microwave Board (Solder Side) Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Photograph 13: Microwave Board (Shielding Side) Photograph 14: Shielded Microwave Board Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566IP Photograph 15: Electronics Cover (Component Side) Photograph 16: Electronics Cover (Solid Side) Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standa…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report Number: 2009282-6566 Page 36 of 48 Appendix A: RF Exposure Compliance - §2.1093 Per FCC 1.1310 Table 1B, the maximum permissible RF exposure for an uncontrolled environment is 1 mW/cm 2 for the frequencies used in this device. The worst-case power for each antenna at the center frequency of the band of operation is used for the calculation below. The power density at a 20 cm distance is shown for the antenna used. As shown, the calculated power density is well below the FCC’s limit. The actual power density for the EUT is calculated as shown below. )4/()( 2 dGPS×××=π where: S = power density P = transmitter conducted power in (W) G = antenna numeric gain d = distance to radiation center (m) The EUT power at the input of the antenna is +10 dBm - 25.3 dB = -15.3 dBm or 0.0295 mW. -25.3dB is derived from duty cycle = 10*log (PRF*Pulse width) = 10*log (280 ns*0.6 ns) = -25.3 dB where PRF = 3.56 MHz, and Pulse width = 1.2 ns. Frequency (GHz) Antenna Antenna Max Gain (dBi) Numeric Gain Power (W) Separation Distance (cm) Power Density (mW/cm 2 ) 6.3 10” Horn 21.6 144.5 0.0295 E -3 20 0.01 Note: The 10” Horn Antenna represents the highest antenna gain of all the antennas listed in Table 3-1. Demonstration of compliance to the FCC’s RF Exposure limit using this antenna guarantees that all antennas listed in Table 3-1 meet the FCC’s RF Exposure limit. NOTICE: Radiation Exposure Statement This equipment shall only be installed and operated with the antennas listed in Table 3-1 of this report and shall be installed with a minimum of 20 cm of separation distance between the antenna and all persons during normal operation. Please note that the installation of the EUT in closed tank applications in which tank diameters are always greater than 20 cm satisfy the 20 cm minimum RF exposure distance requirement.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 F F C C C C P P a a r r t t 1 1 5 5 C C e e r r t t i i f f i i c c a a t t i i o o n n R R e e p p o o r r t t VEGA Grieshaber KG Am Hohenstein 113 77761 Schiltach Germany MODELS: VEGAPULS 65 VEGAPULS 66 FCC ID: O6QPS60XC1 Frequency Range Output Power (W) Conducted Frequency Tolerance (ppm) Emission Designator 6.3 GHz 0.01 N/A N/A Report Prepared By: Desmond A. Fraser Document Number: 2009282-6566 I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15 and ANSI C63.4. Signature: Date: October 6, 2010 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and VEGA Grieshaber KG. The test results relate only to the item(s) tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445 . Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report Number: 2009282-6566 Page 2 of 48 Table of Contents 1 General Information ................................................................................................................................................... 5 1.1 Test Facility ........................................................................................................................................................ 5 1.2 Referenced Standards ....................................................................................................................................... 5 2 EUT Configuration, Exercise and Measurement ........................................................................................................ 6 2.1 Test Equipment Consideration ........................................................................................................................... 6 3 Pulse De-sensitizing Factor and Duty Cycle .............................................................................................................. 7 3.1 Calculation of Pulse Desensitization Factor ....................................................................................................... 7 3.2 Field Strength Calculation .................................................................................................................................. 8 3.3 EUT Antenna Data ............................................................................................................................................. 9 3.4 Test Distance ..................................................................................................................................................... 9 3.5 Test Set-up ....................................................................................................................................................... 10 4 Conducted Emissions - §15.207 .............................................................................................................................. 11 4.1 Conducted Limits - §15.207 Test Procedure .................................................................................................... 11 4.2 Conducted Emission Test Data Plot ................................................................................................................. 11 5 Radiated Emissions - §15.209 ................................................................................................................................. 13 5.1 Radiated Emission Limits - §15.209 – Test Procedure..................................................................................... 13 5.2 Radiated Emissions Limits Test Data ............................................................................................................... 13 6 Restricted Bands - §15.205 ...................................................................................................................................... 29 6.1 Restricted Band Limits - §15.205 – Test Procedure ......................................................................................... 29 7 Bandwidth Measurement - §15.403(c) ..................................................................................................................... 31 7.1 26 dB Emission Bandwidth Procedure ............................................................................................................. 31 7.2 2/ (τ eff ) Bandwidth Calculation .......................................................................................................................... 33 8 Test Equipment ........................................................................................................................................................ 34 9 Conclusion ............................................................................................................................................................... 35 Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report Number: 2009282-6566 Page 3 of 48 Table of Tables Table 3-1: EUT Antenna Data ......................................................................................................................................... 9 Table 5-1: Field Strength of…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance Test Configuration Photograph Report VEGA Grieshaber KG Models: VEGAPULS 65 VEGAPULS 66 FCC ID: O6QPS60XC1 Report No: 2009282-6566TP August 28, 2010 Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566TP Table of Contents 1.Conducted Emissions 3 Photograph 1: Conducted Emissions EUT View A 3 Photograph 2: Conducted Emissions EUT View B 4 2.Radiated Emissions 5 2.1 Radiated Emissions - EUT in Metal Tank 5 Photograph 3: 10” Horn Antenna Front View 5 Photograph 4: 10” Horn Antenna Rear View 6 Pho tograph 5: 4" Horn Antenna Front View 7 Photograph 6: 4" Horn Antenna Rear View 8 Photograph 7: 250mm Rod Antenna Front View 9 Photograph 8: 250mm Rod Antenna Rear View 10 Photograph 9: 50mm Rod Antenna Front View 11 Photograph 10: 50mm Rod Antenna Rear View 12 2.2 Radiated Emissions - EUT in Concrete Tank 13 Photograph 11: 10” Horn Antenna Front View Concrete Tank 13 Photograph 12: 10” Horn Antenna Rear View Concrete Tank 14 Photograph 13: 4” Horn Antenna Front View Concrete Tank 15 Photograph 14: 4” Horn Antenna Rear View Concrete Tank 16 Photograph 15: 250mm Rod Antenna Front View Concrete Tank 17 Photograph 16: 2 50mm Rod Antenna Rear View Concrete Tank 18 Photograph 17: 50mm Rod Antenna Front View Concrete Tank 19 Photograph 18: 50mm Rod Antenna Rear View Concrete Tank 20 2.3 Radiated Emissions - EUT in Reinforced Fiberglass Tank 21 Photograph 19: 10” Horn Antenna Front View Fiberglass Tank 21 Photograph 20: 10” Rod Antenna Rear View Fiberglass Tank 22 Photograph 21: 4” Horn Antenna Front View Fiberglass Tank 23 Photograph 22: 4” Horn Antenna Rear View Fiberglass Tank 24 Photograph 23: 250mm Rod Horn Antenna Front View Fiberglass Tank 25 Photograph 24: 250mm Rod Antenna Rear View Fiberglass Tank 26 Photograph 25: 50mm Rod Antenna Front View Fiberglass Tank 27 Photograph 26: 50mm Rod Antenna Rear View Fiberglass Tank 28 Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566TP 1. Conducted Emissions Photograph 1: Conducted Emissions EUT View A Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566TP Photograph 2: Conducted Emissions EUT View B Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566TP 2. Radiated Emissions 2.1 Radiated Emissions - EUT in Metal Tank Photograph 3: 10” Horn Antenna Front View Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS60XC1 Herndon, VA 20170 Standard: FCC 15.209 http://www.rheintech.com Report No: 2009282-6566TP Photograph 4: 10” Horn Antenna Rear View Rhein Tech Laboratories, Inc. Client: VEGA Grieshaber KG 360 Herndon Parkway Models: VEGAPULS 65 / 66 Suite 1400 FCC ID: O6QPS…

Text truncated - open the document above for the full version.
