O6ZC61-500Client Receiver

Antenna Appendix Specification Front End(MoCA2.0) Input impeadance 75 ohm Frequency Range 400 MHz to 700 MHz Tx Signal Level Between -1dBm and +7dBm Rx sensitivity Min. PHY Rate = 95.62 Mbps in conditions of RX power level -63 dBm Modulation OFDM Video/Audio Processing Video Resolution 1920x1080p(30/24), 1920x1080i, 1280x720p, 720x480p, 720x480i Audio Mode Single/Dual Mono/Stereo/Joint Stereo Memory Flash Memory 8MB(SNOR), 128MB(NAND) RAM 256MB I/O Specification Mini-DIN Mini-DIN Output Connector (10-pin mini-DIN connector) HDMI Out A type connector(x1) S/PDIF Out S/PDIF Output Connector (Phono) USB USB 2.0 Port (Type “A” connector) Power Supply Power Type External Power Supply Input Voltage 120V, 0.5A, 60Hz Output Voltage 12V, 1.5A, 18W Protection Separate internal fuse & lightning protection Physical Specification Size 150 x 93 x 26mm(W x D x H) Weight 251.5g USER GUIDE DIRECTV GENIE ™ & EARLIER HD DVR RECEIVERS P.O. Box 1079 El Segundo, CA 90245 When you see the ENERGY STAR label on your set-top box, it means that your set-top box is ENERGY STAR qualified, giving you the benefit of saving energy and helping our environment. However, ENERGY STAR labeled HD DVR set-top boxes qualify for ENERGY STAR only when configured with the DIRECTV ® Whole-Home DVR service. All other ENERGY STAR labeled set-top boxes, when used in conjunction with a DIRECTV subscription, meet ENERGY STAR criteria without requiring the consumer to take any additional steps. 3 Welcome! Now that you’re plugged in, it’s time to start enjoying access to over 285 (including over 190 full-time HD channels) channels of live and On Demand TV programming, satellite music and a huge selection of box office hits from DIRECTV CINEMA ® . We’ll take you step by step through everything, from pushing the POWER button to searching for your favorite programs. This User Guide applies to the DIRECTV ® HD DVR and the Genie ™ HD DVR and Mini Clients. Because this User Guide was designed to accommodate several models, your Receiver, its user interface, and certain features may vary from what is shown here. Online Manuals and Other Resources To view the most up-to-date manuals for DIRECTV Receivers and other equipment, please visit www.directv.com/manuals or go to www.directv.com and search for keyword “manuals”. You can also visit www.directv.com to manage your account, and find information about DIRECTV service, programming packages, special promotions, and much more. Getting Connected If a professional installed your DIRECTV ™ HD DVR and any Clients, you are ready to start watching TV. If your equipment was not professionally installed, or you just added a surround sound system or other equipment, please see Appendix 1, “Setup and Activation”. IMPORTANT: • Advanced Receiver service fee is required with all HD DVRs to view the HD channels included in your programming package in HD, and for DVR functionality. • DIRECTV hardware, programming and Advanced Receiver service available separately. For information and pricing, please visit directv.com. WELCOME TO THE DIRECTV FAMILY! 4 DIRECTV HD DVR RECEIVER USER GUIDE TABLE OF CONTENTS Welcome to the DIRECTV Family! ............................................3 Safety & Care ...........................................................................6 Product Information ................................................................8 CHAPTER 1: USING YOUR REMOTE CONTROL Your Remote Control .............................................................10 The Progress Bar ..................................................................17 Live Buffer .............................................................................18 CHAPTER 2 - CHANNELS & PROGRAM INFO Program Guide ......................................................................20 Channel Banner & TV Options ...............................................26 Menu ......................................................................................30 CHAPTER 3: SEARCH & BROWSE Movies, On Demand and Pay Per View ..................................34 Sports ....................................................................................40 TV Shows and Genie ™ Recommends ......................................41 Search Features ....................................................................43 CHAPTER 4: RECORDINGS Recording a Single Show .......................................................48 Recording a Series ................................................................50 Watching and Deleting Your Recorded Shows .......................52 Playlist ...................................................................................53 Manage Recordings ...............................................................57 Recording from Your Computer, Phone or Tablet .................61 CHAPTER 5 - EXTRAS & SPECIAL FEATURES Extras ....................................................................................64 Special Features ....................................................................70 DIRECTV ® Whole-Home DVR Service ....................................74 Genie ™ HD DVR & Mini ...........................................................79 DIRECTV ™ Mobile Apps ..........................................................80 CHAPTER 6 - SETTINGS & HELP Settings .................................................................................84 Parental Controls ..................................................................93 Favorite Channels .................................................................98 5 Help .......................................................................................99 CHAPTER 7 - GENIE ™ HD DVR Genie ™ HD DVR ....................................................................102 DIRECTV Genie Mini Back Panel Example ...........................107 CHAPTER 8 - TROUBLESHOOTING & FAQS Troubleshooting Tips ...........................................................110 Frequentl…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 HUMAX Co., Ltd (Yubang-dong)2, Yeongmun-ro, Cheoin-gu Yongin-si, Gyeonggi-do, Korea Tel. +82-31-776-6386 / Fax. +82-31-776-6199 Date: 21 December 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, HUMAX Co.,Ltd, hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: O6ZC61-500 Product description: Client Receiver model name: C61-500 Sincerely, Client’s signature : Client’s name & title : Inseok Seo & Senior Engineer Contact information / address: HUMAX Village, 11-4, Sunae-dong, Bundang-gu, Seongnam city, Gyeonggi-do, South Korea SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 5.0 HUMAX Co., Ltd (Yubang-dong)2, Yeongmun-ro, Cheoin-gu Yongin-si, Gyeonggi-do, Korea Tel. +82-31-776-6386 / Fax. +82-31-776-6199 Date: 21 December 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: O6ZC61-500 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Inseok Seo & Senior Engineer Contact information / address: HUMAX Village, 11-4, Sunae-dong, Bundang-gu, Seongnam city, Gyeonggi-do, South Korea SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 5.0

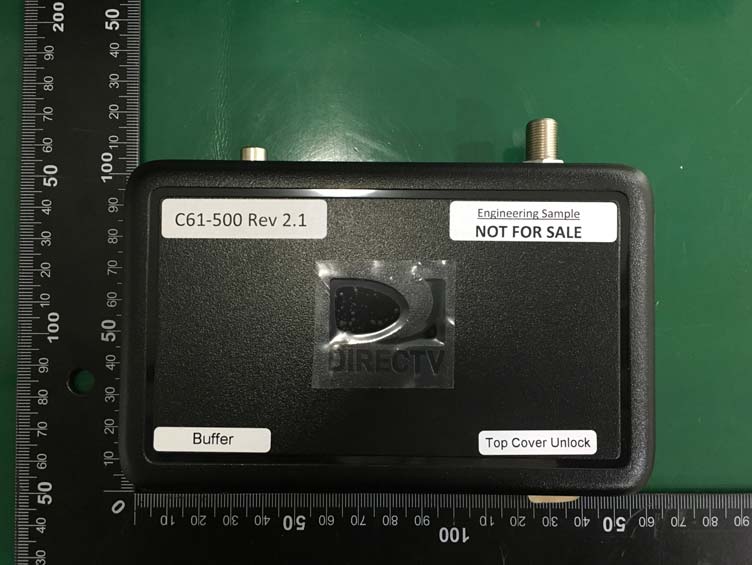

http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval

<Label Design> <Location>

http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval Antenna 1 Antenna 2

http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Av er ag ing Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824/f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01  SPGRRPGS4 4 2  S = power density [㎽/㎠] P = Power input to antenna [㎽] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [㎝] http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 3. Calculation Result of RF Exposure Mode Target power Tune up tolerance Max tune up power Max tune up power Ant Gain Ant Gain Power Density at 20 ㎝ Limit [㏈m] [㏈] [㏈m] [㎽] [㏈i] [㎽] [㎽/㎠] [㎽/㎠] RF4CE O-QPSK_ANT 1 1 ±2 3 2.00 4.00 2.51 0.00 100 1.000 00 RF4CE O-QPSK_ANT 2 0 ±2 2 1.58 0.90 1.23 0.00 039 1.000 00 4. Target power and tolerance, Max tune up power Mode Target power [㏈m] Tolerance [㏈] Max tune up power [㏈m] Average Power [㏈m] Zigbee_O-QPSK Lowest_ANT 1 1 ±2 3 1.94 Zigbee_O-QPSK Middle_ANT 1 1 ±2 3 1.97 Zigbee_O-QPSK Highest_ANT 1 1 ±2 3 1.91 Zigbee_O-QPSK Lowest_ANT 2 0 ±2 2 1.10 Zigbee_O-QPSK Middle_ANT 2 0 ±2 2 0.97 Zigbee_O-QPSK Highest_ANT 2 0 ±2 2 0.82

http://www.kctl.co.kr Page: ( 2 ) / ( 43 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0093 KCTL-TIR001-003/0 [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description .......................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 5 3.3 Test frequency .............................................................................................................................................. 6 3.4 Test Voltage .................................................................................................................................................. 6 4. Summary of test results .................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 4.2 Uncertainty ................................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ..................................................................................................................... 9 5.3 Peak Power Spectral Density ...................................................................................................................... 11 5.4 6 dB Bandwidth(DTS Channel Bandwidth) .............................................................................................. 16 5.5 Spurious Emission, Band Edge, and Restricted bands ............................................................................... 24 5.6 Conducted Emission ................................................................................................................................... 41 6. Test equipment used for test ........................................................................................................................... 43 http://www.kctl.co.kr Page: ( 3 ) / ( 43 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0093 KCTL-TIR001-003/0 1. Client information Applicant: HUMAX Co., Ltd Address: HUMAX B/D, 2, Yeongmun-ro, Cheoin-gu, Yongin-si, Gyeonggi- do, 449-934, KOREA Telephone number: +82-31-776 6386 Facsimile number: +82-31-776-6748 Contact person: Jung Chan Hun / [email protected] Manufacturer: HUMAX Co., Ltd Address: HUMAX B/D, 2, Yeongmun-ro, Cheoin-gu, Yongin-si, Gyeonggi- do, 449-934, KOREA http://www.kctl.co.kr Page: ( 4 ) / ( 43 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0093 KCTL-TIR001-003/0 2. Laboratory information Address KCTL Ltd. 65 Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone Number: 82-70-5008-1016 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No.: KR0040 FCC Site Registration No.: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP KCTL Ltd. Suwon city http://www.kctl.co.kr Page: ( 5 ) / ( 43 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0093 KCTL-TIR001-003/0 3. Description of E.U.T. 3.1 Basic description Applicant: HUMAX Co., Ltd Address of Applicant HUMAX B/D, 2, Yeongmun-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-934, KOREA Manufacturer HUMAX Co., Ltd Address of Manufacturer HUMAX B/D, 2, Yeongmun-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-934, KOREA Type of equipment Client Receiver Basic Model C61-500 Serial number N/A 3.2 General description Frequency Range 2 425 ㎒ ~ 2 475 ㎒ Type of Modulation O-QPSK Number of Channels 11 ch Type of Antenna PCB Antenna Antenna Gain Ant 1: 4.0 ㏈i Ant 2: 0.9 ㏈i Transmit Power 2.06 ㏈m Power supply DC 12 V Product SW/HW version 1.0 Radio SW/HW version 1.0 Test SW Version tera term RF power setting in TEST SW w 3 Note : The above EUT information was declared by the manufacturer. http://www.kctl.co.kr Page: ( 6 ) / ( 43 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0093 KCTL-TIR001-003/0 3.3 Test frequency Frequency Lowest frequency 2 425 ㎒ Middle frequency 2 450 ㎒ Highest frequency 2 475 ㎒ 3.4 Test Voltage Mode Voltage Norminal Voltage DC 12 V http://www.kctl.co.kr Page: ( 7 ) / ( 43 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0093 KCTL-TIR001-003/0 4. Summary of test results 4.1 Standards & results FCC Rule Reference IC Rule Reference Parameter Report Section Test Result 15.203, 15.247(b)(4) - Antenna Requirement 5.1 C 15.247(b)(3) RSS-247, 5.4(4) Maximum Peak Output Power 5.2 C 15.247(e) RSS-247, 5.2 Peak Power Spectral Density 5.3 C 15.247(a)(2) RSS-247, 5.2 6 ㏈ Channel Bandwidth 5.4 C - RSS-…

Text truncated - open the document above for the full version.

http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval Te s t setup photos * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval * 1 ㎓ Over * Conducted Emission
