O76-X1DL0915ALOW POWER TRANSCEIVER WITH OPTIONAL INTERNET GATEWAY

Hand Hygiene Electronic Monitoring System Gateway/Repeater Installation and Service Guide Version 1.1 1/29/2013 GOJO Industries, Inc. Activity Counter Installation and Service User Guide January 29, 2013 1 ! Warning (In according to FCC part 15.19): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. ! Caution (Pertaining to FCC part 15.21): Modifications to this equipment not expressly approved by GOJO Industries, Inc. could void the user's authority to operate the equipment. This unit is certified to FCC Part 15 Part C for intentional unlicensed radiators. FCC ID O76-X1DL0915A Activity Counter Installation and Service User Guide January 29, 2013 2 Glossary of Terms System The GOJO compliance monitoring hardware and web-based software used to record hand hygiene events and opportunities by using dispensers, activity counters, repeaters and gateways. Sensor The module in a dispenser or activity counter, which records and transmits usage data. Repeater Used to extend the distance of the Radio Frequency signal between sensors and gateway devices. Gateway Used to transmit hand compliance events and opportunities to the web- based software. Activity Counter Infra-Red sensing device that records room entrances and exits of hospital staff, patients, and/or visitors. Mounted above a doorway in a patient room or monitored area. Dashboard The web-software that is used to display data collected by the system in meaningful graphs, tables and charts. Average Compliance A calculation that includes the average number of observed opportunities (room entrances and exits) for a unit. Generally provided by the hospital Infection Control or Nurse Manager as a result of direct observation. The average opportunities are used as the denominator in the compliance calculation. Actual Compliance Calculated by dividing actual dispenser events and actual activity counter opportunities. SmartLink™ Module The module that resides in a GOJO dispenser that transmits data to the system. Improvement Index A visual representation of progress made toward hand hygiene improvement. This view does not display the actual compliance rates, but instead uses a predetermined baseline and goal to show compliance. The baseline is generated by collecting 2 weeks of usage data before an intervention is executed. Activity Counter Installation and Service User Guide January 29, 2013 3 Device Overview The GOJO Gateway and Repeater are two components of the Activity Monitoring System. The network of Gateways and Repeaters collect data wirelessly from sensors, and pass this information to the cloud server through the internet. The sensors can be SmartLink™ enabled dispensers or Activity Counters. Gateways and Repeaters both receive data directly from sensors. The Gateway requires a wired connection to a network with internet access. The Repeaters do not connect directly to a network, and are instead used to extend the wireless range of the system. Repeaters receive data from the sensors, and in turn pass along the data to other Repeaters or to a Gateway. System Architecture Public or Private Internet GOJO Smartlink ™ dispensers 74.3% Hand Hygiene reporting tools are accessed through a secure logon and can be displayed on most internet enabled devices Amazon Cloud is accessible via SSL encrypted endpoints Amazon Simple Storage Service (Amazon S3) Amazon Simple Queue Service (Amazon SQS) AWS Premium Support Amazon RDS Amazon Elastic Compute Cloud (EC2) Amazon CloudWatch Internet Gateway Repeater Activity Counter Events from Smartlink™ dispensers and Activity Counters send data to the Amazon Cloud Activity Counter Installation and Service User Guide January 29, 2013 4 Technical Specifications Hardware Network Repeater o Auto configuring star-mesh network topology o Line powered wireless devices (120VAC) o 915 MHz 2-way proprietary communications* o 910 MHz receiver for sensor data* o Continuously receiving incoming communications o Supports up to 40 Dispenser and/or People Counter devices o Transmission Range: 300 ft. open air / 150 ft. indoor Network Gateway o Auto configuring star-mesh network topology o 10/100 Mbps Ethernet interface o RJ45 (standard) Ethernet cable connection o Connected via port 50101 (outbound traffic only) o Uses DHCP for IP address assignment o Line powered wireless devices (120VAC) o 915 MHz 2-way proprietary communications* o 910 MHz receiver for sensor data* o Continuously receiving incoming communications o Supports up to 6 Repeater plus 40 Dispenser and/or People Counter devices o Transmission Range: 300 ft. open air / 150 ft. indoor o 256 bit data packet size (small) *This unit is certified to FCC Part 15 Part C for intentional unlicensed radiators. FCC ID O76-X1DL0915A Activity Counter Installation and Service User Guide January 29, 2013 5 Installation Selecting a Location The placement of the Gateways and Repeaters is critical to ensure a reliable system. After the locations of all of the sensors (dispensers and Activity Counters) in a facility have been determined, the process of selecting where to position the Gateways and any needed Repeaters can begin. The intent of the location selection process is to create a zone of coverage that will fully encompass all of the sensors. There is a lot of flexibility in where the Gateways and Repeaters can be placed, within the following guidelines:  Every sensor must be within range of either a Gateway or Repeater. Sensors have a typical operating range of about 80’, so the initial layout should locate a Gateway or Repeater no further than 80’ from every sensor.  The system requires at a minimum one Gateway. The Gateway is hard-wired to a facility’s network, and so access to an available network port and maximum cable run lengths need to be considere…

Text truncated - open the document above for the full version.

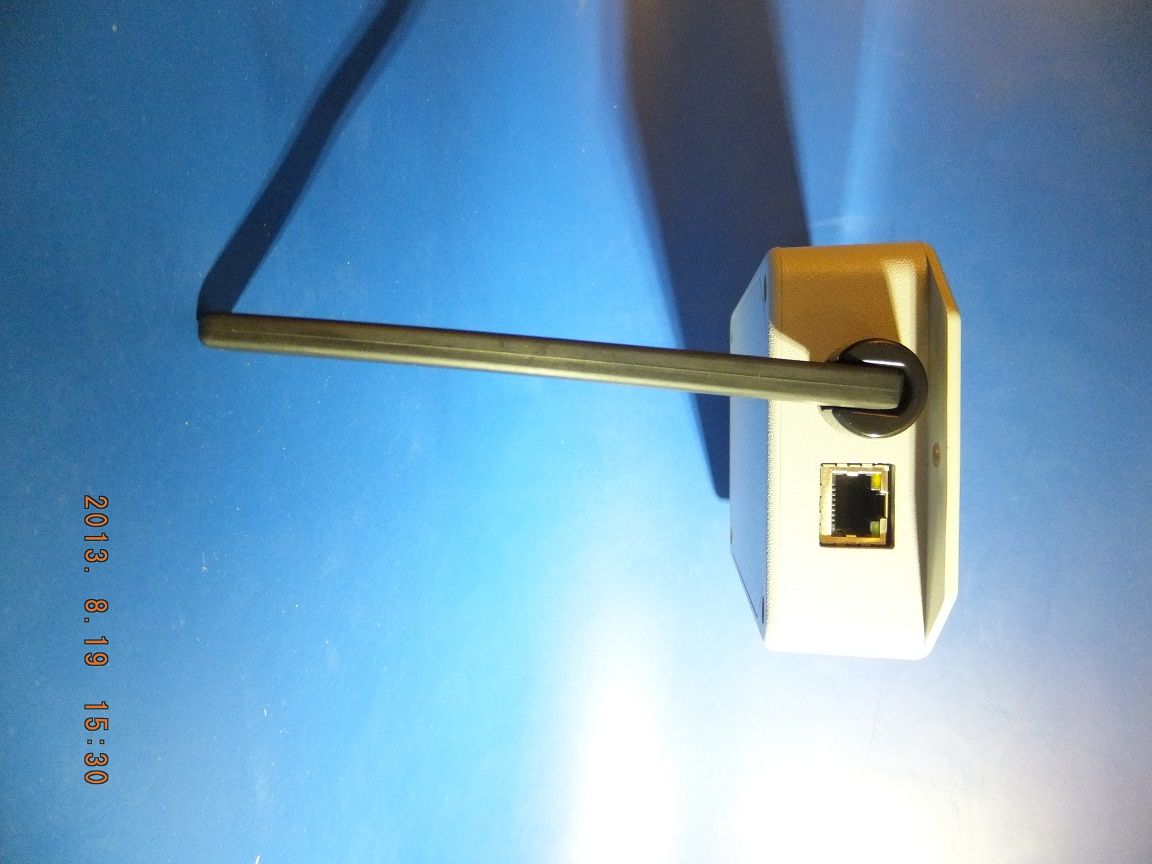

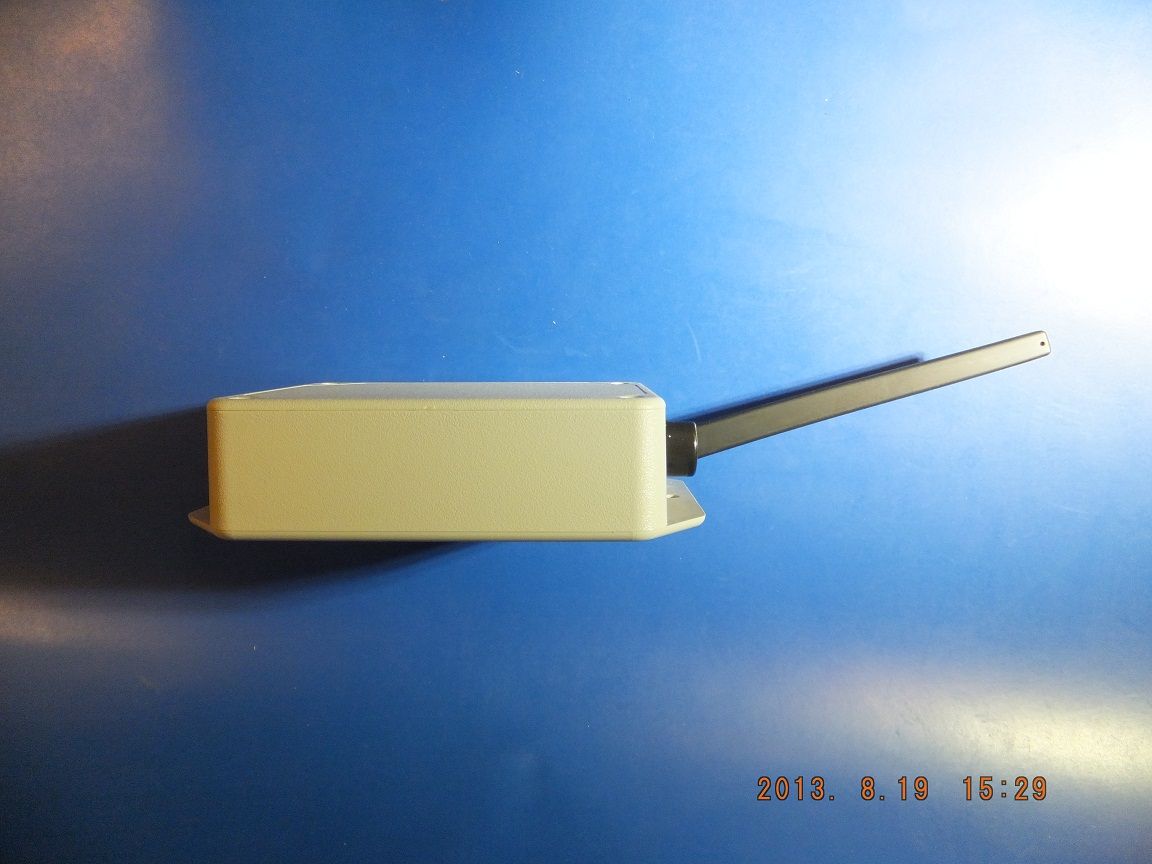

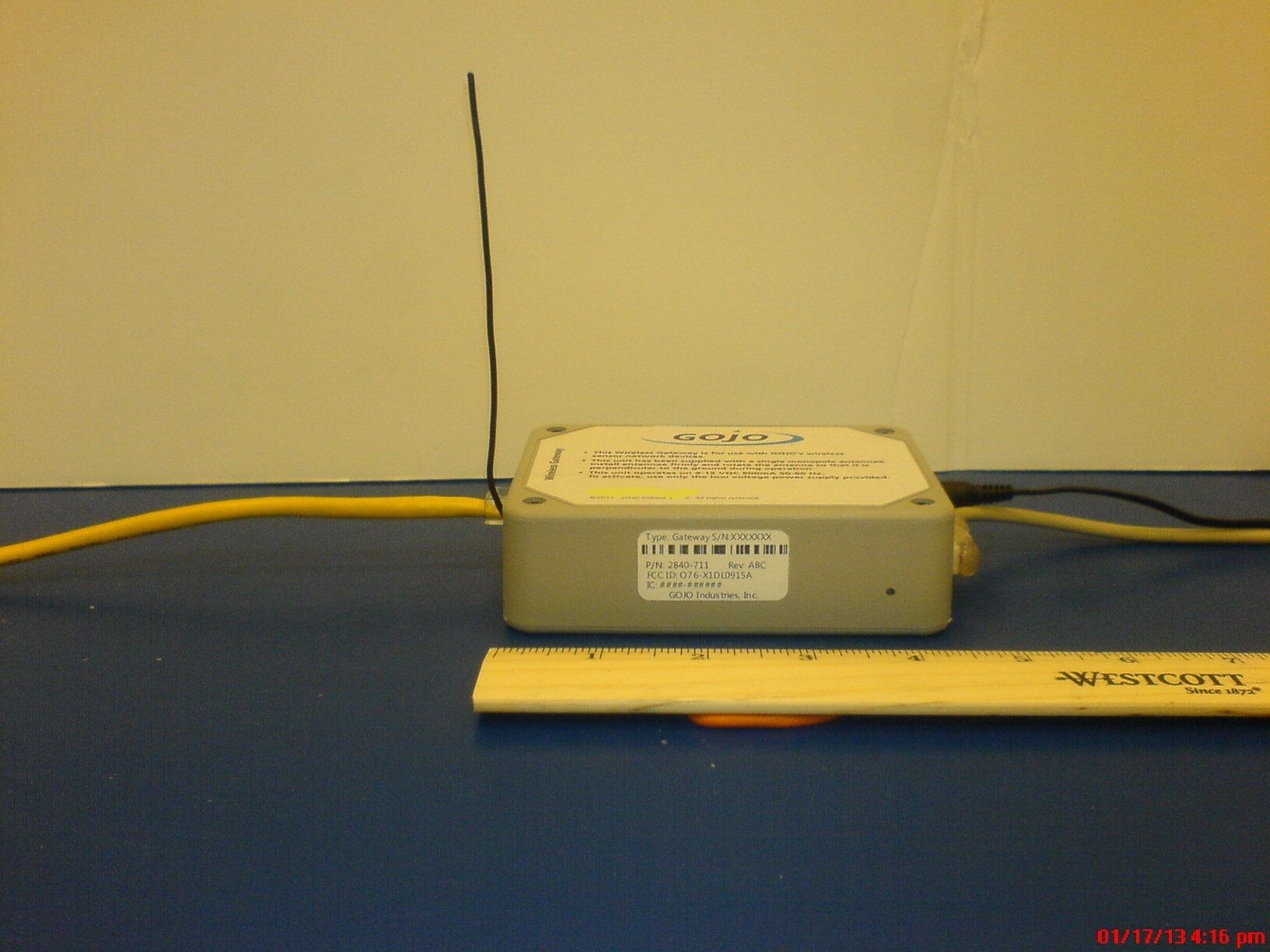

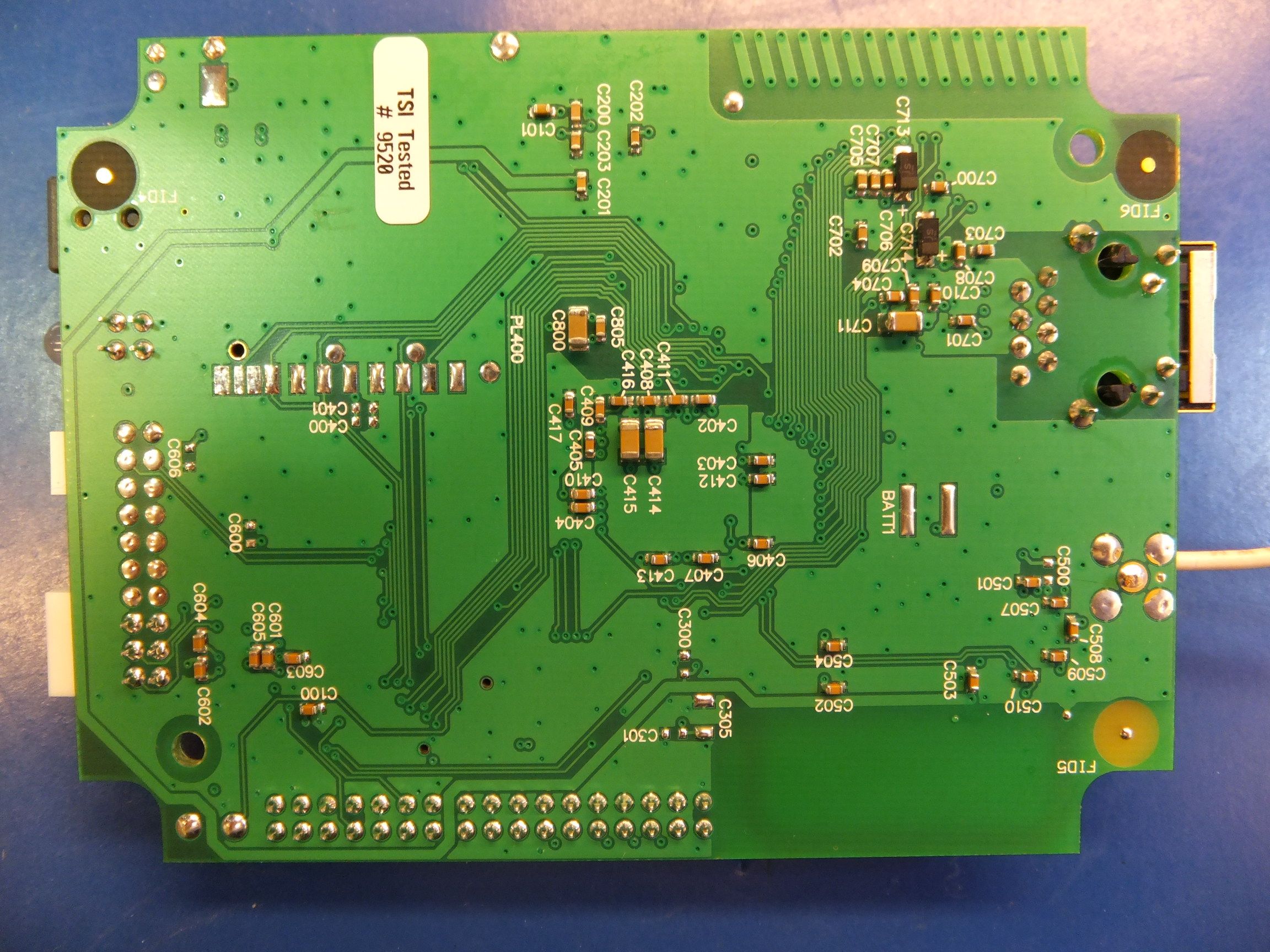

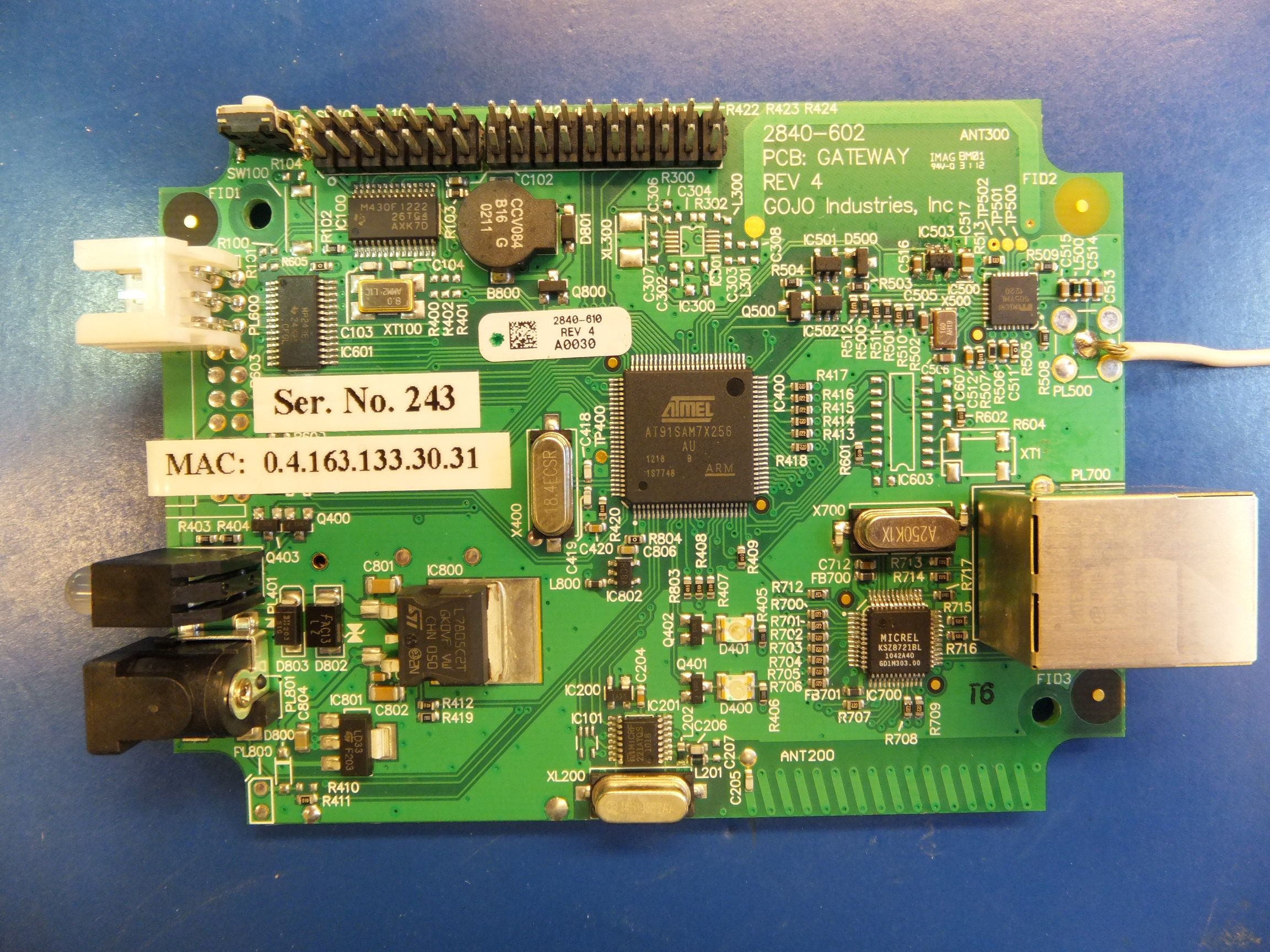

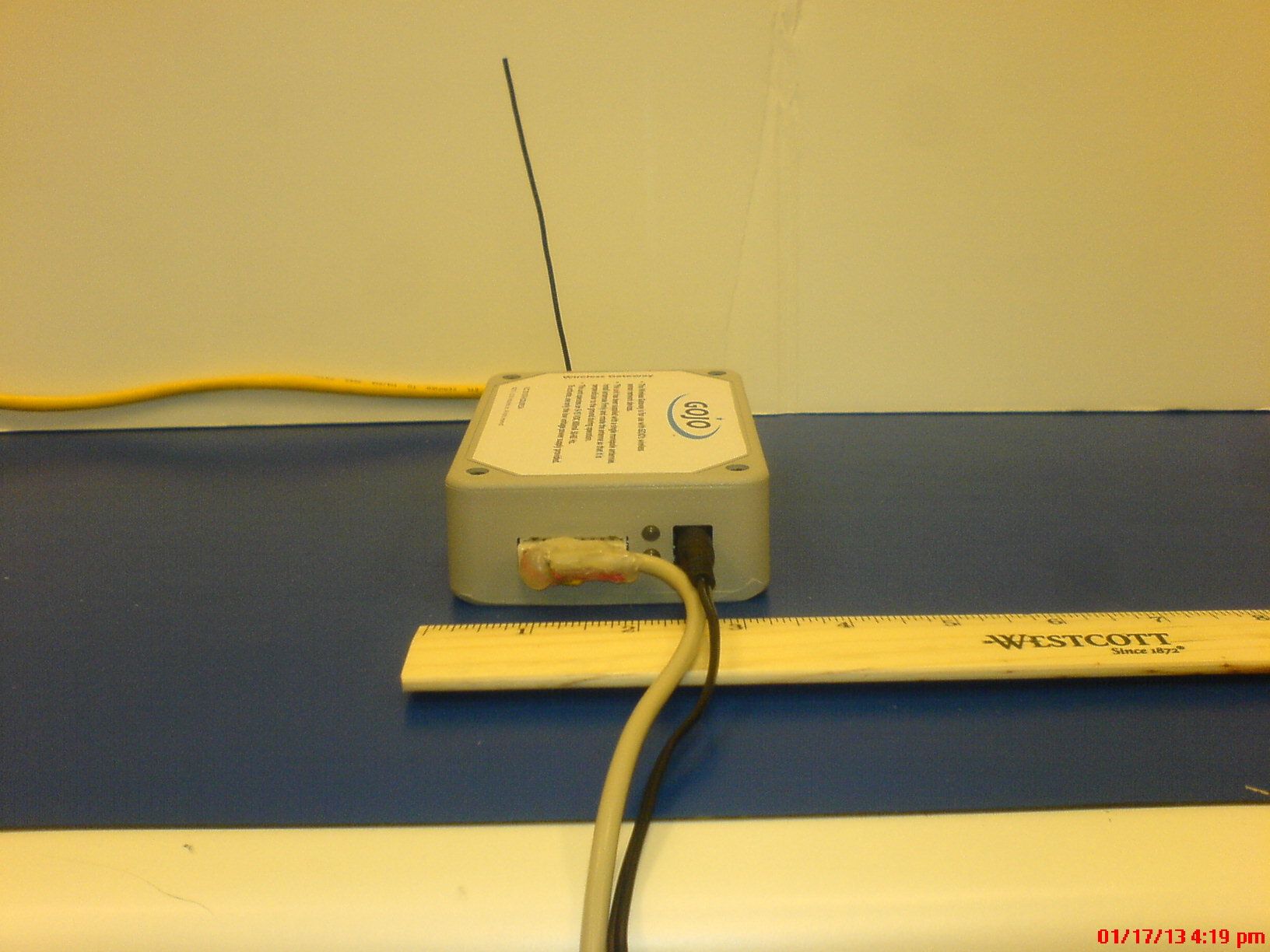

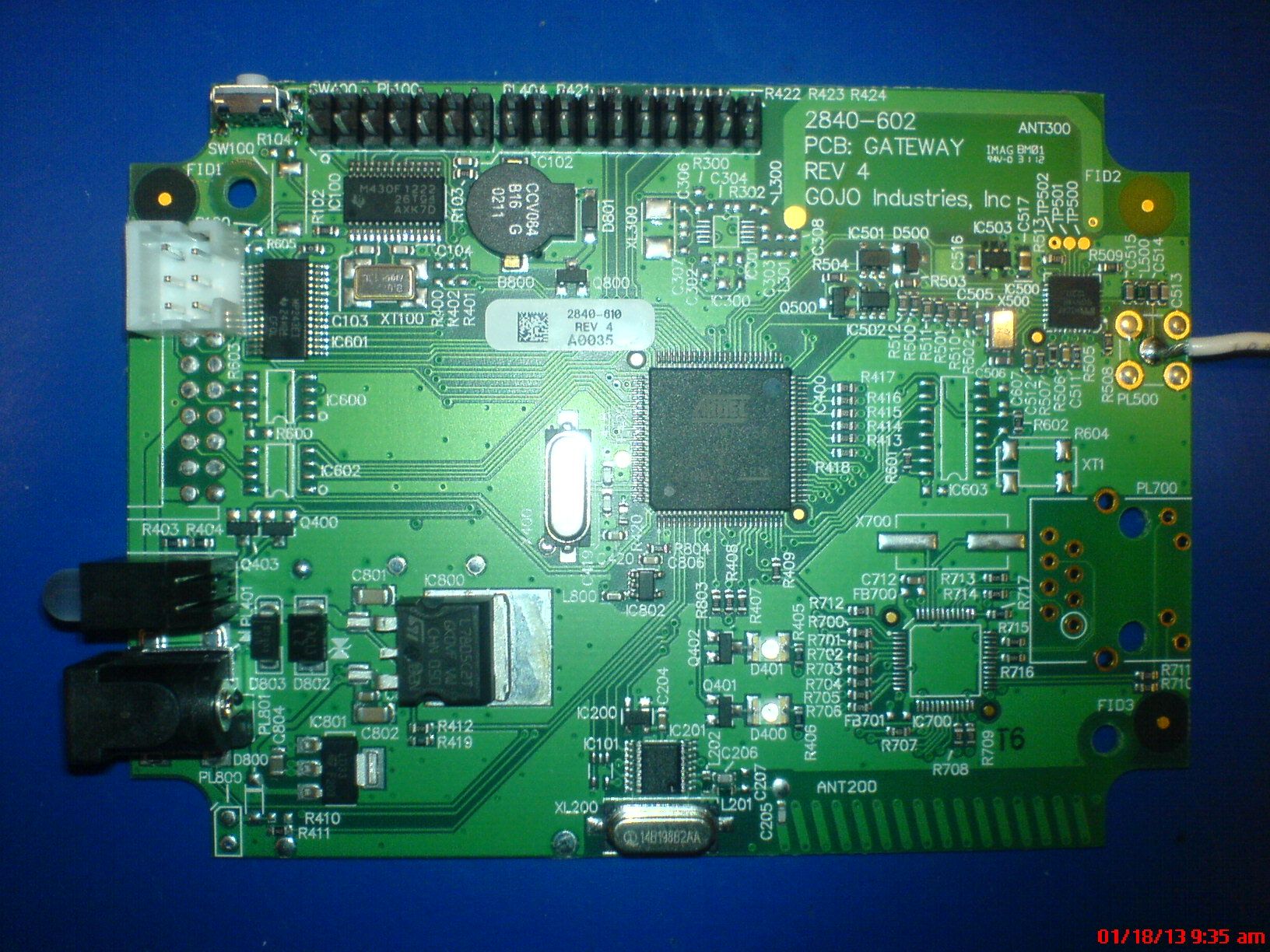

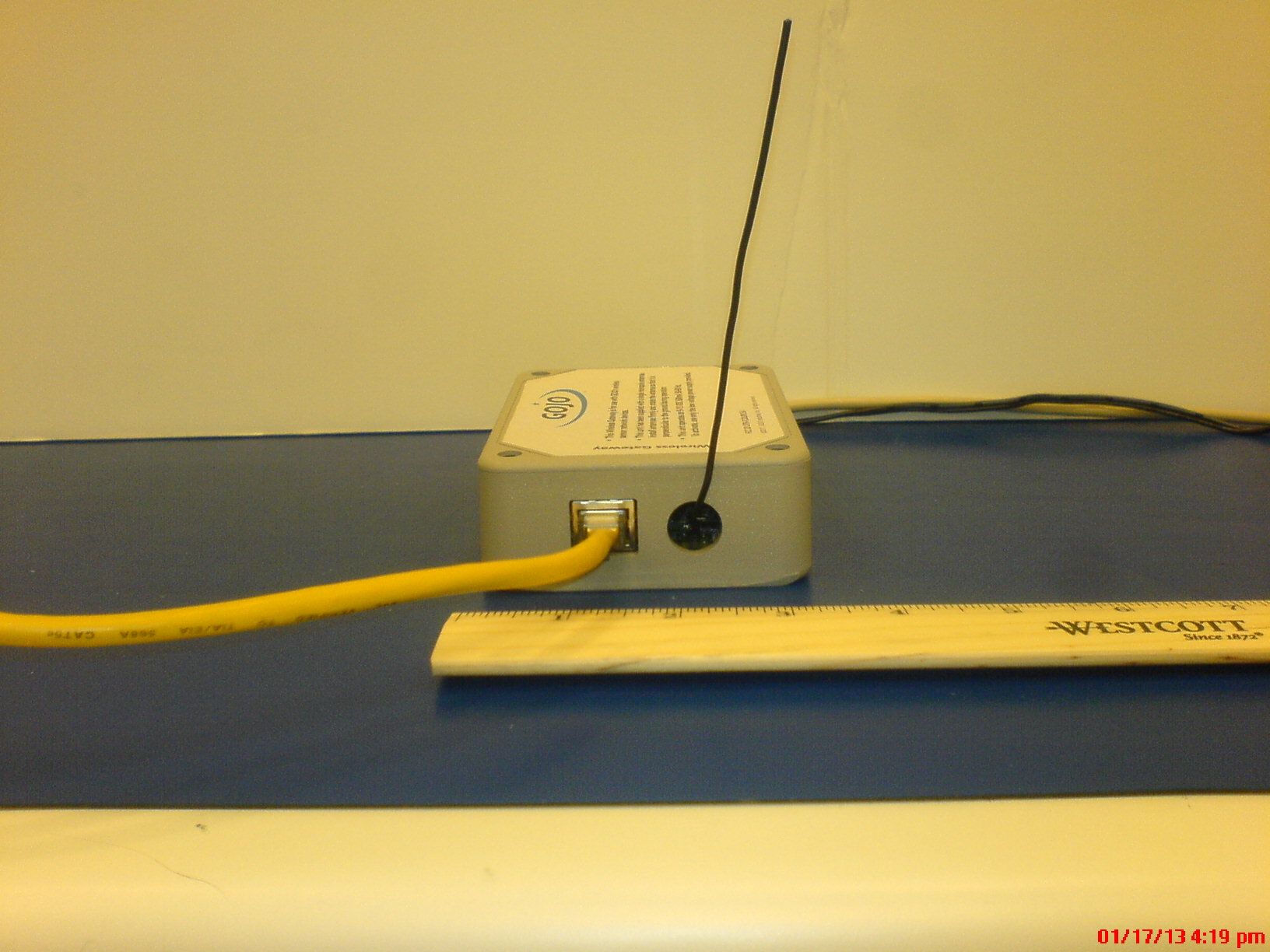

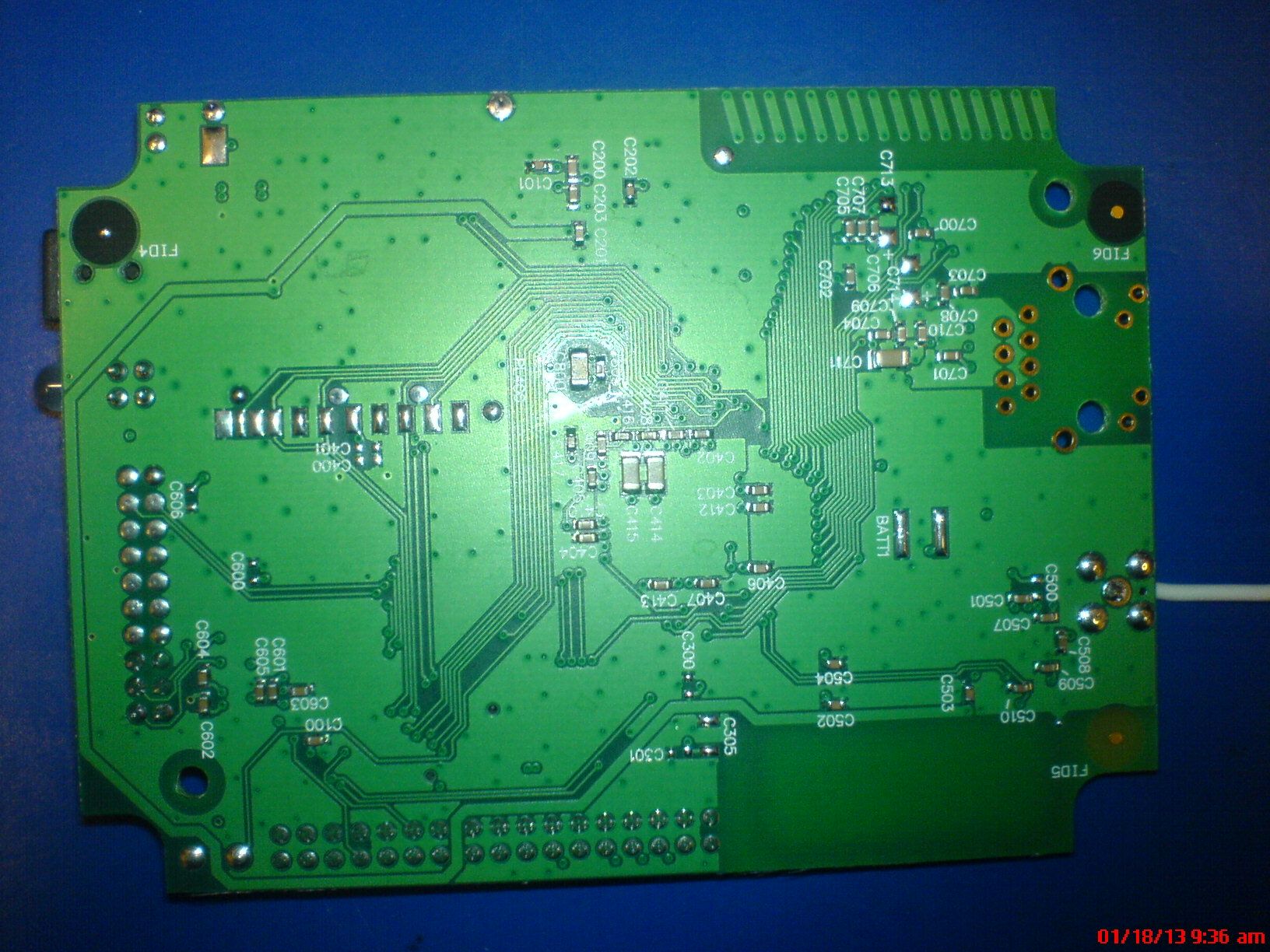

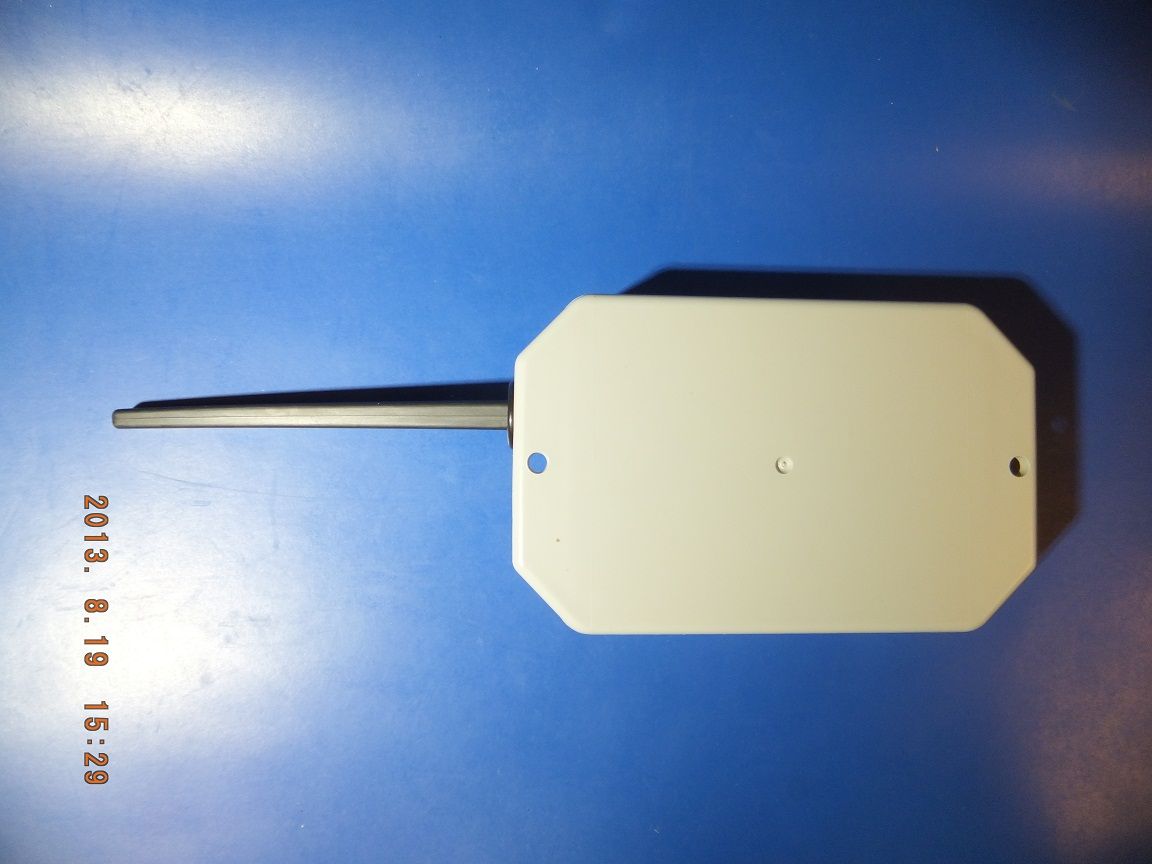

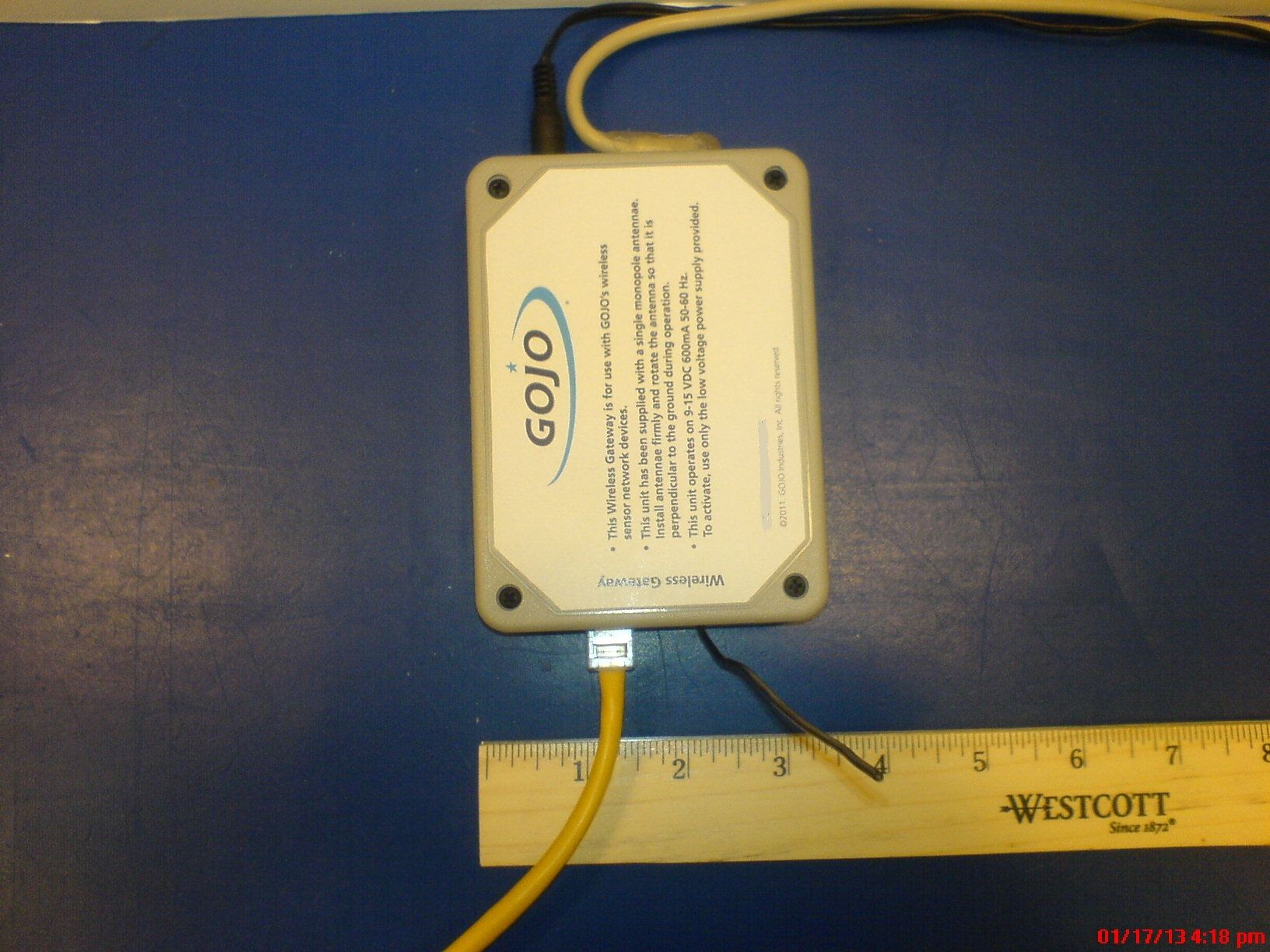

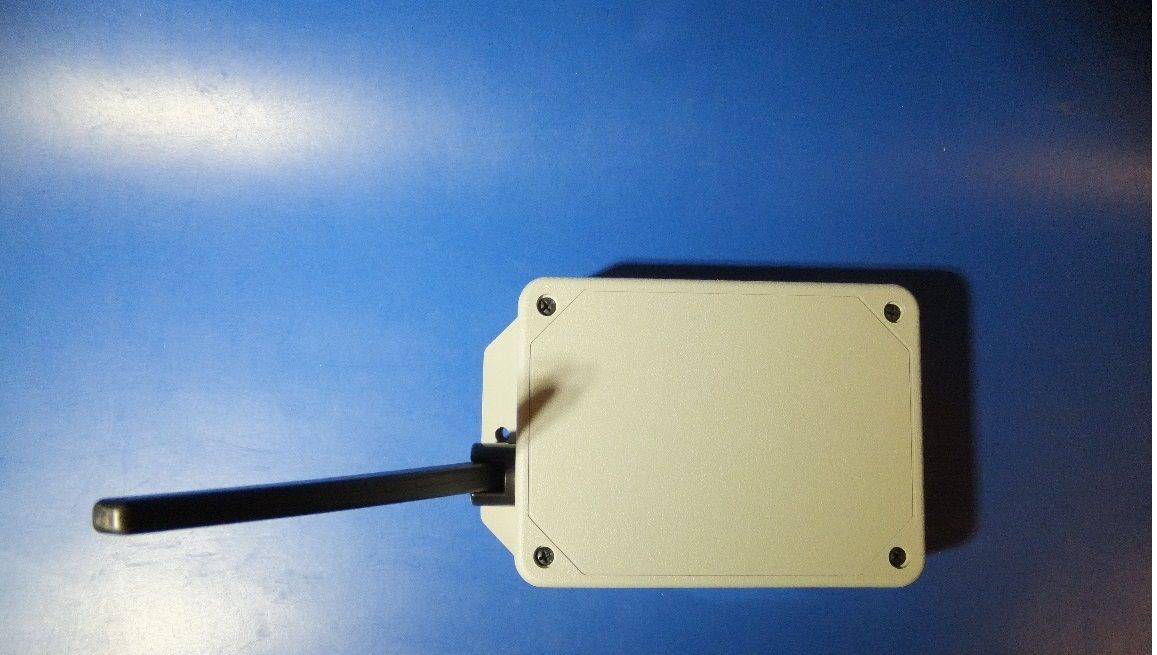

A B C D A B C D 1 12 2 3 3 4 4 3.355 1.357 5.500 DATEAPRVD. BYREVISIONECO ECRREV APPROVAL SIGNATURES ON FILE DWG. NO. 2840-711 THIRD ANGLE PROJECTION UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES 12840-711C12/20/12DATE: DECIMALS: X.X = 0.1 .X.XX = 0.01 .X.XXX = 0.005 FRACTIONS: X/XX = 1/32 ANGLES: X.X = 0.5 X.XX = 0.50 REV.DWG. NO.SIZE M. MOORECHKD BY: 1 of 1 DO NOT SCALE 12/20/12DATE: SHEETSCALE 1:1 M. MOOREDRAWN BY: ONE GOJO PLAZA, SUIT 500 AKRON, OH 44311 AND IS LOANED UPON CONDITION THAT IT IS NOT TO BE REPRODUCED OR COPIED IN WHOLE OR PART, OR USED FOR FURNISHING INFORMATION TO OTHERS OR FOR ANY OTHER PURPOSE DETRIMENTAL TO THE INTEREST OF GOJO INDUSTRIES, INC. AND WILL BE RETURNED UPON REQUEST GOJO INDUSTRIES, INC. THIS DRAWING IS THE PROPERTY OF TOLERANCES: Developmental STATE: GATEWAY ASSY TITLE: ITEMPART NODESCRIPTIONQTY 12840-617PIVOT, ANTENNA MOUNT1 22840-618CAP, ANTENNA MOUNT1 32840-703BASE_GATEWAY1 42840-704COVER GATEWAY1 52840-710PCB ASSY GATEWAY1 62840-819ANTENNA SHEATH1 3 5 4 1 2 6 PRE PRODUCTION REVISIONS (PROJECT): 01) DATE NAME - DESCRIPTION OF REVISION REFERENCE ONLY PRELIMINARY DESIGN ENG: NOTES: 1. OVAL BOXED DIMENSIONS ARE CRITICAL. 2. PART TO BE FREE OF DIRT, GREASE, OIL OR ANY FOREIGN MATERIAL.

A B C D A B C D 1 12 2 3 3 4 4 3.355 1.357 5.500 DATEAPRVD. BYREVISIONECO ECRREV 3/13/13 APTRELEASED TO PRODUCTION51735A APPROVAL SIGNATURES ON FILE DWG. NO. 2840-611 THIRD ANGLE PROJECTION UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES A2840-611C03/21/12DATE: DECIMALS: X.X = 0.1 .X.XX = 0.01 .X.XXX = 0.005 FRACTIONS: X/XX = 1/32 ANGLES: X.X = 0.5 X.XX = 0.50 REV.DWG. NO.SIZE B. LIGHTNERCHKD BY: 1 of 1 DO NOT SCALE 03/21/12DATE: SHEETSCALE 1:1 L.THOMASDRAWN BY: ONE GOJO PLAZA, SUIT 500 AKRON, OH 44311 AND IS LOANED UPON CONDITION THAT IT IS NOT TO BE REPRODUCED OR COPIED IN WHOLE OR PART, OR USED FOR FURNISHING INFORMATION TO OTHERS OR FOR ANY OTHER PURPOSE DETRIMENTAL TO THE INTEREST OF GOJO INDUSTRIES, INC. AND WILL BE RETURNED UPON REQUEST GOJO INDUSTRIES, INC. THIS DRAWING IS THE PROPERTY OF TOLERANCES: Developmental STATE: REPEATER ASSY: BUCKEYE TITLE: QTY.DESCRIPTIONPART NO.ITEM 1TECHTRON REPEATER2840-6101 1PIVOT, ANTENNA MOUNT2840-6172 1CAP, ANTENNA BASE2840-6183 2POLY LABEL, SILVER 1X1 2840-6194 1BOX GATEWAY2840-7035 1COVER GATEWAY2840-7046 1ANTENNA SHEATH2840-8197 1 5 6 2 3 7 4 NOTES: 1. PART TO BE FREE OF DIRT, GREASE, OIL OR ANY FOREIGN MATERIAL. 2. SHIPPING REQUIREMENTS: CAREFULLY PACKED TO AVOID DAMAGE IN QUANTITIES, IN UNIFORM SIZED SHIPPING CONTAINERS ON UNIFORM SIZED PALLET (48"LENGTH X 40"WIDTH X 66"TALL) CARTONS TO BE MARKED CLEARLY IN 1" HIGH MINIMUM LETTERS. WITH QUANTITY, GOJO PART, LOT, AND P.O. NUMBER. 3. ADHERE ITEM 4; CENTERED OVER UNUSED RECTANGULAR HOLES

A A A B C D A B C D 1 12 2 3 3 4 4 R.22 .20 .30 5.00 .5° .25 .25 .25 .13 .08 DATEAPRVD. BYREVISIONECO ECRREV APPROVAL SIGNATURES ON FILE DWG. NO. 2840-819 12840-819C11/27/12DATE: DECIMALS: X.X = 0.1 .X.XX = 0.01 .X.XXX = 0.001 FRACTIONS: X/XX = 1/32 ANGLES: X.X = 0.5 X.XX = 0.50 REV.DWG. NO.SIZE M. MOORECHKD BY: 1 of 1 DO NOT SCALE 11/27/12DATE: SHEETSCALE 2:1 M. MOOREDRAWN BY: ONE GOJO PLAZA, SUITE 500 AKRON, OH 44311 AND IS LOANED UPON CONDITION THAT IT IS NOT TO BE REPRODUCED OR COPIED IN WHOLE OR PART, OR USED FOR FURNISHING INFORMATION TO OTHERS OR FOR ANY OTHER PURPOSE DETRIMENTAL TO THE INTEREST OF GOJO INDUSTRIES, INC. AND WILL BE RETURNED UPON REQUEST GOJO INDUSTRIES, INC. THIS DRAWING IS THE PROPERTY OF TOLERANCES: Developmental STATE: ANTENNA SHEATH TITLE: THIRD ANGLE PROJECTION INTERPRET DRAWING PER ASME Y14.100 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES NOTES: 1. MATERIAL: THERMOPLASTIC ELASTOMER 70+/-10 SHORE A COLOR: BLACK MOLD SHRINKAGE: .XXX 2. FINISH: CAVITY: SPE/SPI #D-1 CORE: SPE/SPI #B-2 3. MAXIMUM PART FLASH .005 4. MAXIMUM PART MISMATCH .005 5. ELLIPTICAL BOXED DIMENSIONS REQUIRE DEMONSTRATED PROCESS CAPABILITY (Cpk/Ppk) >1.33 WITH ACCEPABLE GAGE R & R. 1st ARTICLE INSPECTION: MEASURE ALL DIMENSIONS (1 pc) 6. PART VOLUME = 0.285 in 3 7. PART WEIGHT = 4.9 GR (or 0.011 LB) 8. PART TO BE FREE OF DIRT, GREASE, OIL OR ANY FOREIGN MATERIAL 9. CHECK CRITICAL DIMENSIONS FROM EACH CAVITY AT THE BEGINNING OF EACH PRODUCTION RUN AND AT THE START OF EACH SHIFT. 10. EACH MATERIAL LOT TO BE NOTCHED IZOD TESTED PER ASTM D256, ISO 180. OR CERTIFICATE OF COMPLIANCE ON FILE FROM SUPPLIER. 11. NO CONTAMINATION PARTICLES, FLOW LINES, OR BURN MARKS ALLOWED ON "A" SURFACES. 3 PER INCH PERMITTED ON "B" SURFACES. CHECK EACH CAVITY AT THE BEGINNING OF EACH PRODUCTION RUN AND AT THE START OF EACH SHIFT. 12. PART MUST MATCH GOJO APPROVED COLOR CHIP. CHECK EACH CAVITY AT THE BEGINNING OF EACH PRODUCTION RUN AND AT THE START OF EACH SHIFT. 13. SHIPPING REQUIREMENTS: CAREFULLY PACKED TO AVOID DAMAGE IN QUANTITIES, IN UNIFORM SIZED SHIPPING CONTAINERS ON UNIFORM SIZED PALLET (48"LENGTH X 40"WIDTH X 66"TALL) CARTONS TO BE MARKED CLEARLY IN 1" HIGH MINIMUM LETTERS. WITH QUANTITY, GOJO PART, LOT, AND P.O. NUMBER. PRE PRODUCTION REVISIONS (PROJECT): 01) 11/27/12 MWM - FIRST DRAFT 02) 04/12/13 MWM - CHANGED MATERIAL 03) 05/17/13 MWM - RELEASE FOR TOOLING REFERENCE ONLY PRELIMINARY DESIGN ENG:

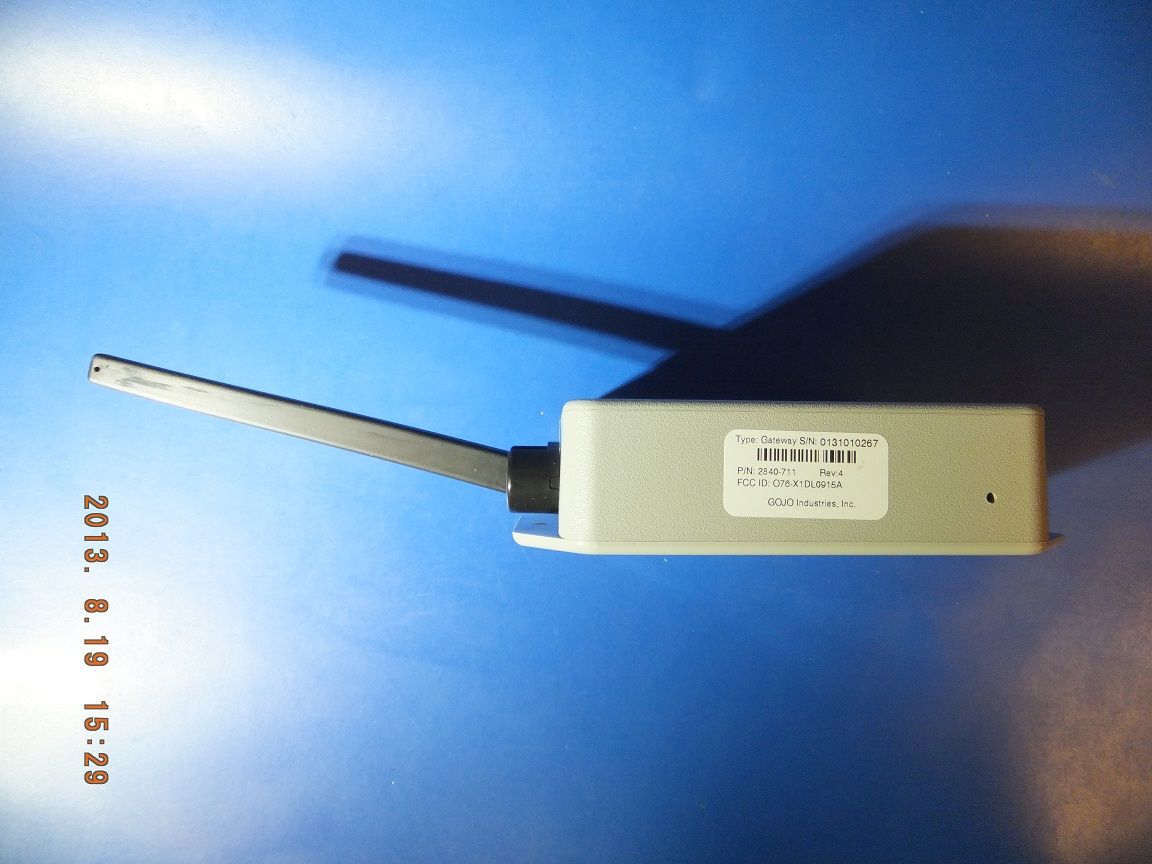

A B C D 4321 4321 TITLE: STATE: CONFIDENTIAL ©2013 GOJO Industries, Inc. All Rights Reserved. ONE GOJO PLAZA, SUITE 500 AKRON, OH 44311 AND IS LOANED UPON CONDITION THAT IT IS NOT TO BE REPRODUCED OR COPIED IN WHOLE OR PART, OR USED FOR FURNISHING INFORMATION TO OTHERS OR FOR ANY OTHER PURPOSE DETRIMENTAL TO THE INTEREST OF GOJO INDUSTRIES, INC. AND WILL BE RETURNED UPON REQUEST GOJO INDUSTRIES, INC. THIS DRAWING IS THE PROPERTY OF DRAWN BY: M. BULLOCK DATE: 1/15/13 CHKD BY: DATE: SCALE 1:1 DO NOT SCALE SIZE B DWG. NO. SHEET 1 of 1 REV TOLERANCES: DECIMALS: X.X = 0.1 .X.XX = 0.01 .X.XXX = 0.005 FRACTIONS: X/XX = 1/32 ANGLES: X.X = 0.5 X.XX = 0.50 INTERPRET DRAWING PER ASME Y14.100 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THIRD ANGLE PROJECTION REVECO ECRREVISIONAPRVD. BYDATE APPROVAL SIGNATURES ON FILE DWG. NO. 2840-714 1 FCC LABEL, AMS GATEWAY Developmental 2840-714 A B C D 1.5 in. 0.75 in. SCALE 1:1 NOTES: 1. MATERIAL: FASSON 77113 COLOR: WHITE FACESTOCK: 0.7 MIL CLEAR BOPP ADHESIVE: S2001 LINER: 1.2 MIL PET 2. OVAL BOXED DIMENSIONS ARE CRITICAL. 3. PART TO BE FREE OF DIRT, GREASE, OIL OR ANY FOREIGN MATERIAL 4. SHIPPING REQUIREMENTS: CAREFULLY PACKED TO AVOID DAMAGE IN QUANTITIES, IN UNIFORM SIZED SHIPPING CONTAINERS ON UNIFORM SIZED PALLET (48"LENGTH X 40"WIDTH X 66" TALL) CARTONS TO BE MARKED CLEARLY IN 1" HIGH MINIMUM LETTERS. WITH QUANTITY, GOJO PART, LOT, AND P.O. NUMBER. T ype: Gateway S/N:XXXXXXX ❙❘ ❙ ❘❘ ❚❘ ❘❙❙ ❚❘❘❙ ❘❚❙❙ ❘ ❙❙❚ ❚ ❘❙❙❘ ❙❘❘ P/N: 2840-711 Rev: ABC FCC ID: O7 6-X1DL0915A IC: ####-###### GOJO Indus tries, In c. T ype: Gateway S/N:XXXXXXX ❙❘ ❙ ❘❘ ❚❘ ❘❙❙ ❚❘❘❙ ❘❚❙❙ ❘ ❙❙❚ ❚ ❘❙❙❘ ❙❘❘ P/N: 2840-711 Rev: ABC FCC ID: O7 6-X1DL0915A IC: ####-###### GOJO Indus tries, In c.

A B C D 4321 4321 TITLE: STATE: CONFIDENTIAL ©2013 GOJO Industries, Inc. All Rights Reserved. ONE GOJO PLAZA, SUITE 500 AKRON, OH 44311 AND IS LOANED UPON CONDITION THAT IT IS NOT TO BE REPRODUCED OR COPIED IN WHOLE OR PART, OR USED FOR FURNISHING INFORMATION TO OTHERS OR FOR ANY OTHER PURPOSE DETRIMENTAL TO THE INTEREST OF GOJO INDUSTRIES, INC. AND WILL BE RETURNED UPON REQUEST GOJO INDUSTRIES, INC. THIS DRAWING IS THE PROPERTY OF DRAWN BY: M. BULLOCK DATE: 1/15/13 CHKD BY: DATE: SCALE 1:1 DO NOT SCALE SIZE B DWG. NO. SHEET 1 of 1 REV TOLERANCES: DECIMALS: X.X = 0.1 .X.XX = 0.01 .X.XXX = 0.005 FRACTIONS: X/XX = 1/32 ANGLES: X.X = 0.5 X.XX = 0.50 INTERPRET DRAWING PER ASME Y14.100 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THIRD ANGLE PROJECTION REVECO ECRREVISIONAPRVD. BYDATE APPROVAL SIGNATURES ON FILE DWG. NO. 2840-614 1 FCC LABEL, AMS REPEATER Developmental 2840-614 A B C D 1.5 in. 0.75 in. SCALE 1:1 NOTES: 1. MATERIAL: FASSON 77113 COLOR: WHITE FACESTOCK: 0.7 MIL CLEAR BOPP ADHESIVE: S2001 LINER: 1.2 MIL PET 2. OVAL BOXED DIMENSIONS ARE CRITICAL. 3. PART TO BE FREE OF DIRT, GREASE, OIL OR ANY FOREIGN MATERIAL 4. SHIPPING REQUIREMENTS: CAREFULLY PACKED TO AVOID DAMAGE IN QUANTITIES, IN UNIFORM SIZED SHIPPING CONTAINERS ON UNIFORM SIZED PALLET (48"LENGTH X 40"WIDTH X 66" TALL) CARTONS TO BE MARKED CLEARLY IN 1" HIGH MINIMUM LETTERS. WITH QUANTITY, GOJO PART, LOT, AND P.O. NUMBER. T ype: Repeater S/N:XXXXXXX ❙❘ ❙ ❘❘ ❚❘ ❘❙❙ ❚❘❘❙ ❘❚❙❙ ❘ ❙❙❚ ❚ ❘❙❙❘ ❙❘❘ P/N: 2840-611 Rev: ABC FCC ID: O7 6-X1DL0915A IC: ####-###### GOJO Indus tries, In c. T ype: Repeater S/N:XXXXXXX ❙❘ ❙ ❘❘ ❚❘ ❘❙❙ ❚❘❘❙ ❘❚❙❙ ❘ ❙❙❚ ❚ ❘❙❙❘ ❙❘❘ P/N: 2840-611 Rev: ABC FCC ID: O7 6-X1DL0915A IC: ####-###### GOJO Indus tries, In c.

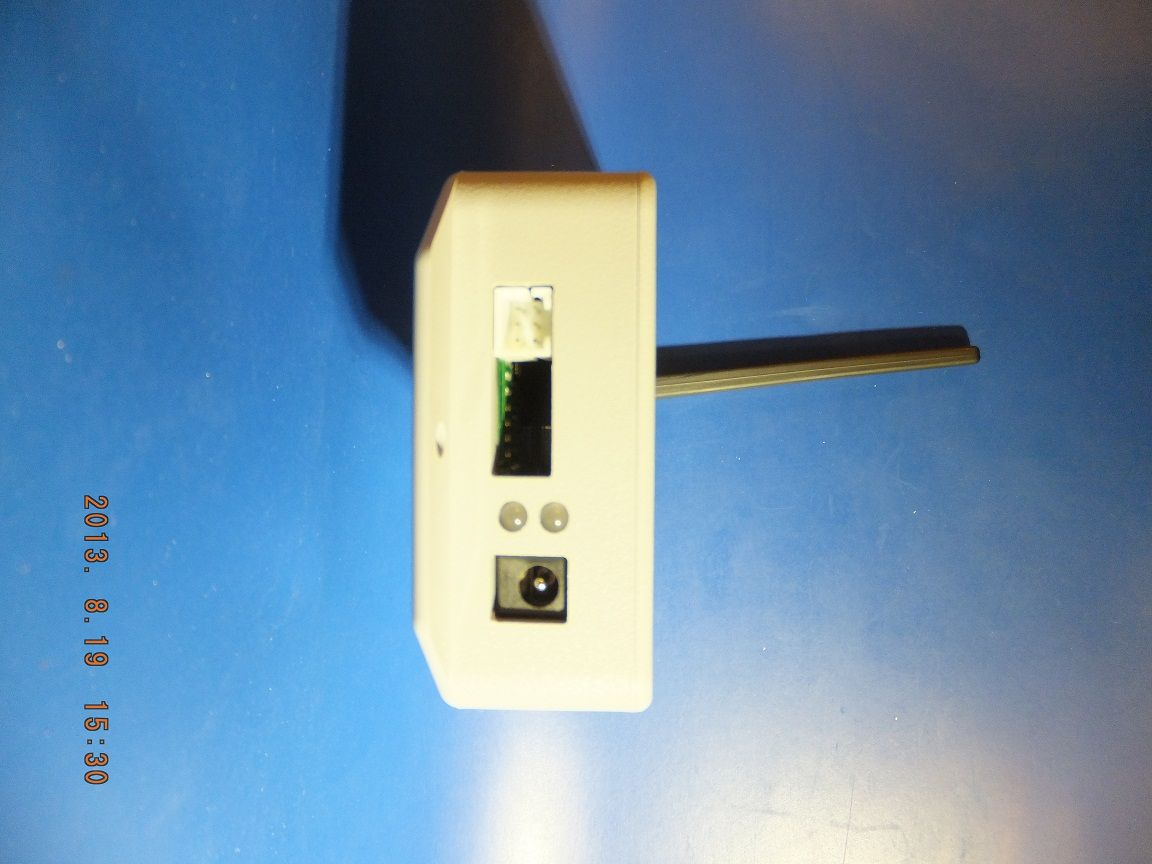

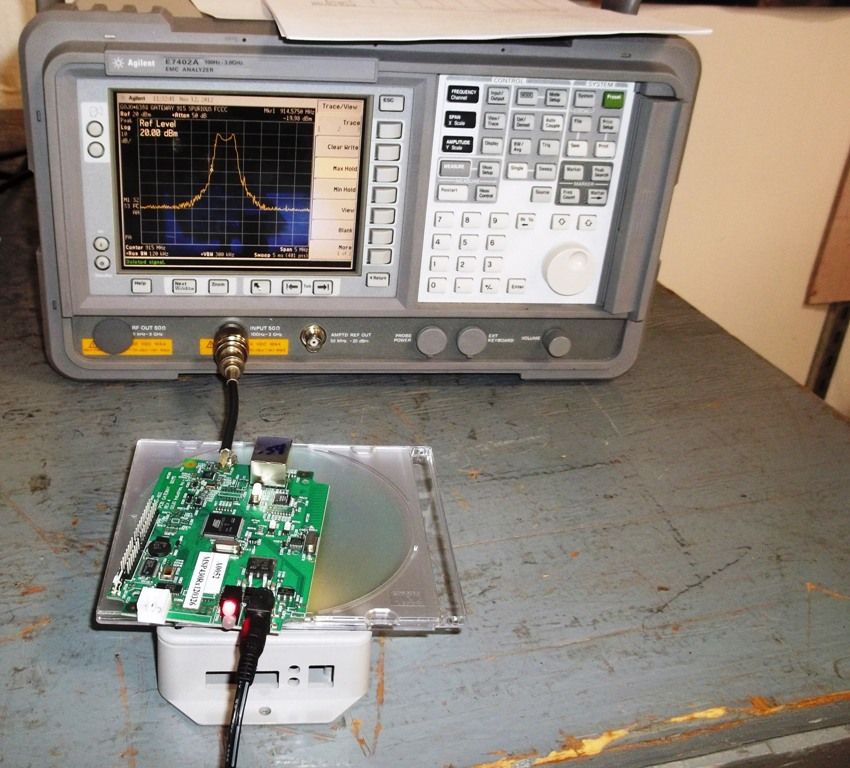

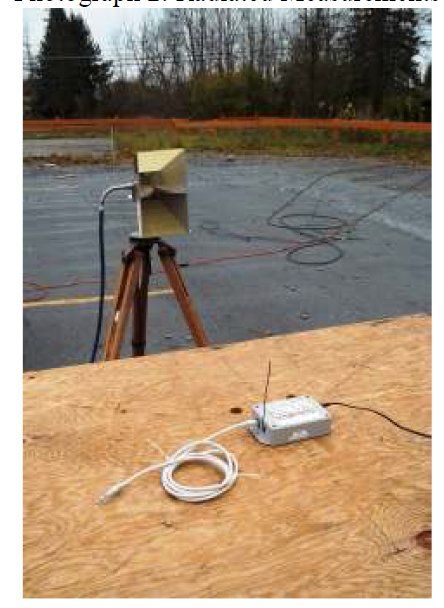

This report shall not be reproduced, except in full, without the written approval of DTT, Inc. and must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. 9 of [# + data charts] D D I I V V E E R R S S I I F F I I E E D D T.E.S.T. TECHNOLOGIES, INC. November 27, 2012 Mr. Brad Lightner GOJO Industries 1 GOJO Plaza'Suite 500 Akron, OH 44311 Dear Mr. Lightner: Enclosed is the test report for the GOJO Industries Gateway 2840'711/ Repeater 2840' 611 System which was tested at our facility located at 4675 Burr Drive in Liverpool, NY. This facility is on file with the Federal Communications Commission (FCC) per 47 CFR 2.948. (Site File Registration Number: 306552) As narrated in the report, the product configuration meets the requirements of the FCC per CFR 47 Part 15.247 Class C for Intentional Radiators. Additionally, all spurious emissions signals are greater than 20 dB below the limit of FCC Part 15.209 and are not reported. Therefore, the unit under test meets the FCC Part 15.209 requirements. The plots indicated ambient scans. Thank you for selecting Diversified T.E.S.T. Technologies, Inc. for your testing needs. We look forward to working with you on future projects. Should you have any questions or concerns regarding this report, contact me at 315'457'0245. Please feel free to visit our website at www.dttlab.com. Sincerely, Michael McElroy Technical Associate 4675 Burr Drive ● Liverpool, NY 13088 ● 1'800'724'6452 ● FAX: 315'457'0428 ● 315'457'0245 PDF processed with CutePDF evaluation editionwww.CutePDF.com DIVERSIFIED T.E.S.T. TECHNOLOGIES, INC. TEST REPORT GOJO Industries Gateway 2840-711/ Repeater 2840-611 System Project Number: 6388 This report shall not be reproduced, except in full, without the written approval of DTT, Inc. 1 Table of Contents Emissions Testing Documentation Table of Contents 1 Test Report 2 Test Regulations 3 Test Conditions 4 Test Operation Mode 5 Test Results 6 Test Setup Photographs 7 Harmonics Test Datasheets-915 MHz 8 Test Datasheets-Bandwidth over 500 kHz- 915 MHz 9 Spurious Emissions Test Data-915 MHz 10 100 kHz Band Edge Bandwidth Test 11 Peak Power Output Test-915 MHz 12 Power Density Test-915 MHz 13 Measurement Protocol 14 DIVERSIFIED T.E.S.T. TECHNOLOGIES, INC. TEST REPORT GOJO Industries Gateway 2840-711/ Repeater 2840-611 System Project Number: 6388 This report shall not be reproduced, except in full, without the written approval of DTT, Inc. 2 Test Report Laboratory Diversified TEST Technologies, Inc. 4675 Burr Drive Liverpool, NY 13088 315-457-0245 Manufacturer GOJO Industries 1 GOJO Plaza-Suite 500 Akron, OH 44311 Report Issue Date: November 27, 2012 Project Number: 6388 Report Number: 6388-112712 FCCC Gateway/ Repeater System (Edition 3) Date Received: November 12, 2012 Date Tested: November 12, 2012 – November 14, 2012 Product: Gateway Model Numbers: 2840-711 FCC ID: O76-X1DL0915A Traceability: Reference standards of measurement have been calibrated by a competent body using standards traceable to NIST. The testing performed by Diversified TEST Technologies, Inc. has shown that the product referenced above complies with the electromagnetic compatibility requirements according to the standard(s) specified on page 3 of the test report. The results in this test report apply only to the product denoted above. The manufacturer is responsible for ensuring that additional units are manufactured with identical mechanical and electrical characteristics. The equipment listed above conforms to the specified requirements of the test standards listed on page 3 of this report. Complied by: Signature: _____________________________ Date: November 27, 2012 Michael McElroy Technical Associate Reviewed by: Signature: _____________________________ Date: November 27, 2012 Annelle Frierson Vice- President DIVERSIFIED T.E.S.T. TECHNOLOGIES, INC. TEST REPORT GOJO Industries Gateway 2840-711/ Repeater 2840-611 System Project Number: 6388 This report shall not be reproduced, except in full, without the written approval of DTT, Inc. 3 Emissions Test Regulations The emissions tests were performed according to the following regulations: EN 50081-1:1992 EN 50081-2:1995 EN 55011:1998 / A1:1999 / A2:2001 Group 1 Group 2 Class A Class B EN 55013:1990 / A12:1994 / A13:1996 / A14:1999 EN 55014:1993 / A1: 1997 Household appliances and similar Portable tools Semiconductor devices EN 55022:1998 Class A Class B FCC Part 15.247 Class A Class B Class C Certification Verification Declaration of Conformity DIVERSIFIED T.E.S.T. TECHNOLOGIES, INC. TEST REPORT GOJO Industries Gateway 2840-711/ Repeater 2840-611 System Project Number: 6388 This report shall not be reproduced, except in full, without the written approval of DTT, Inc. 4 Emissions Test Conditions: FCC PART 15.247 The Harmonics and Bandwidth measurements were tested in a horizontal and vertical polarization at the following test location: Diversified TEST Technologies, Inc. Open Area Test Site Diversified TEST Technologies, Inc. Lab at a test distance of: 1 meter 3 meters 30 meters Test equipment used: Manufacturer Model Description Serial # Cal. Cal. Due Hewlett Packard 8593EM Spectrum Analyzer 3536A00139 6/19/12 6/19/13 Electro-Metrics RGA60 Ridge Horn Antenna 2981 8/25/12 8/25/13 Hewlett Packard 7550A Plotter 2407A00476 CNR CNR Electro-Metrics LPA-25 Log Periodic Antenna 200-1000 MHz 1242 9/11/12 9/11/13 MFR- 57500 Blue low-loss transmit cable 337 CNR CNR Non-conductive wooden turntable CNR CNR 10-meter open field test range, grounded with ¼ ” x ¼ ” hardware cloth CNR CNR EMCO 6520 Active Loop Antenna 9110-2685 7/19/12 7/19/13 Hewlett Packard 8595E Spectrum Analyzer 3746A03177 7/23/12 7/23/13 Agilent E7402A Spectrum Analyzer MY45103221 3/25/12 3/25/13 Electro-Metrics BIA-30W Biconical Antenna 103 9/1/12 9/1/13 DIVERSIFIED T.E.S.T. TECHNOLOGIES, INC. TEST REPORT GOJO Industries Gateway 2840-711/ Repeater 2840-611 System Project Number: 6388 This report shall not be reproduced, except in ful…

Text truncated - open the document above for the full version.
