COMPANY NAME: VERTEX STANDARD CO., LTD. EUT: MURS-22 VHF WORK ORDER NUMBER: 2001083 FCC ID: O7KMURS22 Page 41 of 63 22 OPERATOR’S MANUAL Please see the following page MURS-22 Operating Instructions About Topaz3 Topaz3 is the exclusive supplier of Maxon®, Legacy and TruTalk brand communication products. Our Business and Industry product line ranges from FCC licensed two-way radios suitable for markets like farm, government, law enforcement, utility, etc. to consumer recreational and light-duty business markets. Product offerings include a variety of UHF and VHF handheld and mobile radios, repeaters and RF link modules as well as FRS (Family Radio Service), GMRS (General Mobile Radio Service) radios, Citizen’s Band radios and weather monitors. Available accessory items include: a variety of carrying cases, spare batteries, desktop and mobile chargers, ear bud speaker microphones, and more for each radio model. For additional information on our product line, visit our website: www.topaz3.com Table of Contents / Contenido I.FCC RF Exposure Compliance Requirements - for Occupational Use Only.............. .1 I.Requerimientos de Obediencia a la Exposici ón de RF del FCC - para uso Ocupacional Solamente .......................... 27 II.Unpacking and Checking Equipment...... 3 II.Desempaque y Verificación del Equipo.......... 29 III.Getting Started.......................................4 III.Preparación..................................................30 Charging the NiMH Battery Pack............4 Cargador de la Batería de NiMH....................30 Attaching and Removing the Battery Pack.6 Instalación y Retiro de la Batería.....................32 Installing the Antenna......................... 7 Instalación de la Antena..............................33 Installing the Belt Clip..........................7 Instalación del Clip de Cinturón....................33 Installing the Speaker Mic. Jack Cover.......7 Instalación de la Cubierta de la Clavija de Conexión de Micrófono del Altavoz .............34 Attaching the Optional Speaker Mic..........8 Agregando el Micrófono de Altavoz Opcional ..34 IV. Control Buttons / Operation Features.....9 IV. Botones de Control del Radio / Rasgos de Funcionamiento...................................... 35 V.Radio Operation...................................10 V.Funcionamiento del Radio............................ 36 Power On / Transmit...........................10 Encienda / Transmite...................................36 VI. Channel Frequency Selection................ 11 VI. Selección de Frecuencia de Canales.............. 37 VII.CTCSS Tone Signaling............................13 VII.Señal de Tonos de CTCSS.............................40 VIII.CTCSS Tone Setup.................................14 VIII.Arreglo de Tonos de CTCSS..........................41 IX. Channel Setting Confirmation..................17 IX.Confirmación de la Configuración de Canal.................................................45 Frequency Confirmation........................17 Confirmación de la Frecuencia.....................45 CTCSS Tone Confirmation.......................18 Confirmación de Tonos de CTCSS.................45 X.Radio Functions..................................... 19 X.Funciones del Radio.....................................46 Time-Out-Timer (T-O-T)..................................19 Temporizador de Tiempo Límite (T-O-T)..........46 Battery Save......................................................19 Preservación de Batería...............................47 Low Battery Warning.............................19 Aviso de Batería Baja..................................47 XI. Licensing, Safety and Service Information.20 XI. Información de Autorización y Servicio.......... 48 FCC Licensing....................................20 Licencia de la FCC.....................................48 Safety Information................................20 Información de Seguridad............................48 Service..............................................21 Servicio.......................................................49 XII. Maintenance......................................... 21 XII. Mantenimiento............................................49 XIII. Software Copyrights............................... 22 XIII.Derechos de Propiedad Literaria del Software..50 XIV.Topaz3 / Legacy Product Warranty........... 23 XIV.Garantía del Producto de Topaz3 / Legacy...... 51 I. FCC RF Exposure Compliance Requirements - for Occupational Use Only The Federal Communications Commission (FCC), with its action in General Docket 93-62, November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Topaz3 / TruTalk subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below the Occupational Safety and Health Act (OSHA) and Federal Communications Commission limits. CAUTION -DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. •When transmitting, hold the radio in a vertical position with its microphone 2 inches (5 cm) away from your mouth. Keep the antenna at least 2 inches (5 cm) from your head and body. •This device has been approved for use, at a maximum duty factor of 50%, using the specific belt clip tested for body-worn SAR compliance. Other belt clips or body- worn accessories may not comply and should be avoided. ALWAYS use Maxon, Legacy and TruTalk authorized accessories: antennas, batteries, belt clips, 1 I. FCC RF Exposure Compliance Requirements - for Occupational Use Only, continued •The radio is transmitting when the red LED on the front of the radio is illuminated. You can cause the radio to transmit by pressing the P-T-T bar on the radio. •These are required operating configurations for meeting FCC RF exposure compliance. Fai…

Text truncated - open the document above for the full version.

COMPANY NAME: VERTEX STANDARD CO., LTD. EUT: MURS-22 VHF WORK ORDER NUMBER: 2001083 FCC ID: O7KMURS22 Page 37 of 63 18 BLOCK DIAGRAM

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 June 18, 2001 Federal Communications Commission RE: 2001127 / 2001137 Model: MURS-22 and MURS-25 FCC ID: O7KMURS22 To Whom It May Concern: The reason for the revised report is the addition of the MURS-25. Originally we did not think that testing would be completed for the MURS-25 and thought we would have to do a permissive change to add this information to the FCC ID: O7KMURS22. The MURS-22 and MURS-25 are identical both electrically and mechanically. The difference is that the new added features below were added to the MURS-25: 1. LCD for easy user interface 2. A 6 th channel option for Repeater Interface: TX – 154.600, RX – 154.570 3. Other user features such as Channel Scan, TOT, and VOX. 4. Weather Receiver function on 162.400, 162.425, 162.450, 162.475, 162.500, 162.525, and 162.550. Thank you Melissa Carter [email protected] Rhein Tech Laboratories, Inc.

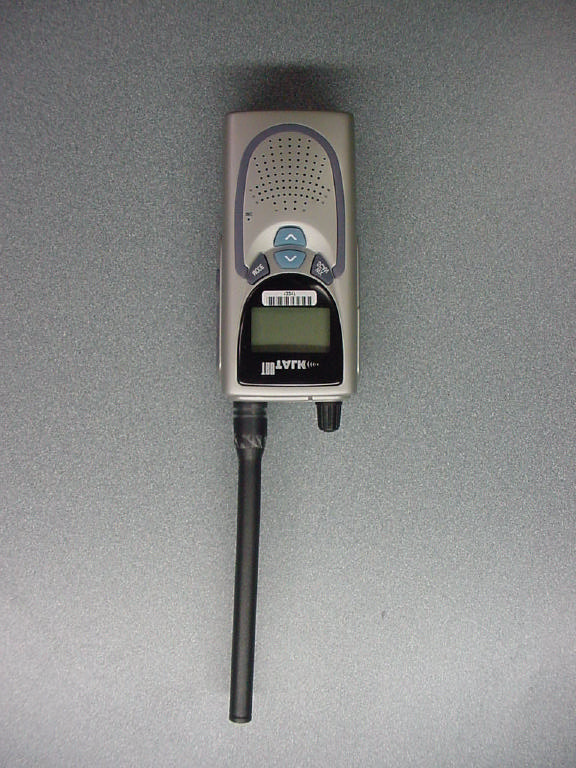

COMPANY NAME: VERTEX STANDARD CO., LTD. EUT: MURS-22 VHF WORK ORDER NUMBER: 2001083 FCC ID: O7KMURS22 Page 45 of 63 25 EXTERNAL PHOTOGRAPHS External Pictures Antenna Antenna Connector Front with antenna Back with Antenna Top Back Front Right Left

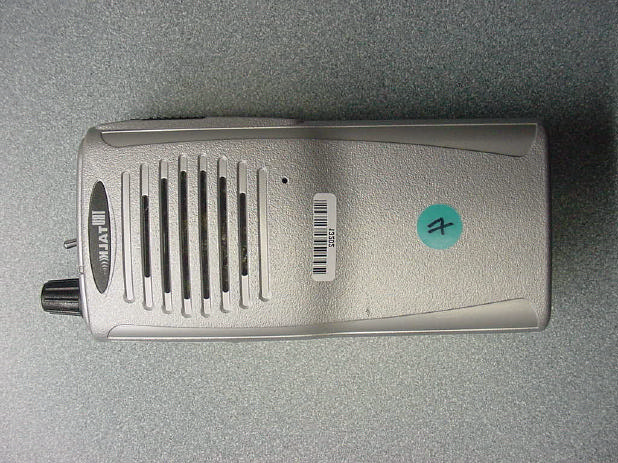

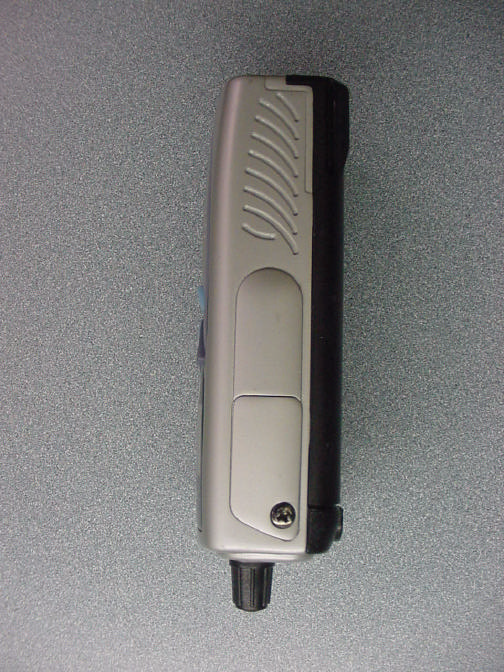

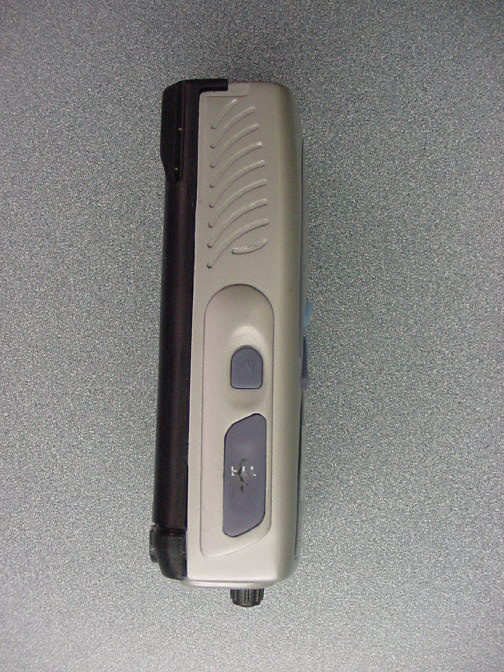

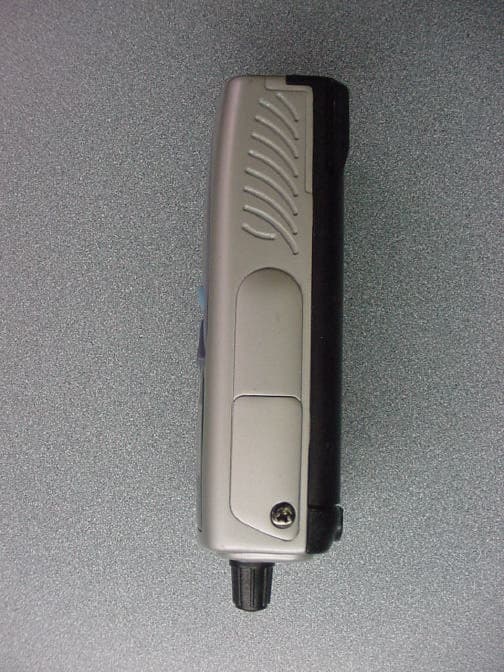

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 74 APPENDIX I: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 19: FRONT VIEW (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 75 PHOTOGRAPH 20: REAR VIEW (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 76 PHOTOGRAPH 21: TOP VIEW (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 77 PHOTOGRAPH 22: RIGHT VIEW (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 78 PHOTOGRAPH 23: LEFT VIEW (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 79 PHOTOGRAPH 24: REAR VIEW WITH BATTERY REMOVED (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 80 PHOTOGRAPH 25: ANTENNA (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 81 PHOTOGRAPH 26: ANTENNA CONNECTOR (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 82 PHOTOGRAPH 27: ANTENNA CONNECTOR (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 83 PHOTOGRAPH 28: FRONT VIEW (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 84 PHOTOGRAPH 29: REAR VIEW (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 85 PHOTOGRAPH 30: LEFT SIDE VIEW (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 86 PHOTOGRAPH 31: RIGHT SIDE VIEW (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 87 PHOTOGRAPH 32: TOP VIEW (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 88 PHOTOGRAPH 33: ANTENNA (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 89 PHOTOGRAPH 34: ANTENNA CONNECTOR (MURS-25)

COMPANY NAME: VERTEX STANDARD CO., LTD. EUT: MURS-22 VHF WORK ORDER NUMBER: 2001083 FCC ID: O7KMURS22 Page 38 of 63 19 LABEL INFORMATION Please see the following page Page 1 of 2 file://F:\REPORTS\Topaz3\2001127_MURS-22 new wo\FCC\MURS 22 Back Label.jpg06/05/2001 Page 1 of 2 file://F:\REPORTS\Topaz3\2001127_MURS-22 new wo\FCC\MURS 22 Label.jpg06/05/2001

APPENDIX A: LABEL INFORMATION FCC ID: O7KMURS22 CANADA

COMPANY NAME: VERTEX STANDARD CO., LTD. EUT: MURS-22 VHF WORK ORDER NUMBER: 2001083 FCC ID: O7KMURS22 Page 44 of 63 24 INTERNAL PHOTOGRAPHS Internal Pictures Rear Battery Removed Label in Battery Housing Inside Front Cover Inside Back Chassis Front of PCB in Chassis Front of PCB Back of PCB

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 62 APPENDIX H: INTERNAL PHOTOGRAPHS PHOTOGRAPH 7: PCB FRONT (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 63 PHOTOGRAPH 8: PCB BACK (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 64 PHOTOGRAPH 9: PCB FRONT IN CHASSIS (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 65 PHOTOGRAPH 10: INSIDE FRONT COVER (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 66 PHOTOGRAPH 11: INSIDE BACK CHASSIS (MURS-22) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 67 PHOTOGRAPH 12: FRONT OF PCB MOUNTED INSIDE CHASSIS (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 68 PHOTOGRAPH 13: INSIDE OF FRONT COVER (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 69 PHOTOGRAPH 14: BACK WITH BATTERY REMOVED (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 70 PHOTOGRAPH 15: BACK OF PCB (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 71 PHOTOGRAPH 16:BACK OF PCB WITH POSITIVE BATTERY TERMINAL REMOVED (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 72 PHOTOGRAPH 17: FRONT OF PCB (MURS-25) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 73 PHOTOGRAPH 18: FRONT OF PCB WITH LCD REMOVED (MURS-25)

COMPANY NAME: VERTEX STANDARD CO., LTD. EUT: MURS-22 VHF WORK ORDER NUMBER: 2001083 FCC ID: O7KMURS22 Page 39 of 63 20 PRODUCT DESCRIPTION Please see the following page Topaz 3 MURS-22 Product Description TruTalk MURS-22 VHF Portable The MURS-22 is a full-featured VHF portable programmed for the new License-free Multi User Radio Service frequencies. FEATURES • MURS VHF Frequencies, (no license required) • Range – Up to 5 Miles • 2 Watt Transmit Power • 2 Channel Operation • 5 Pre-programmed User Selectable Frequencies 151.820 mHz 151.880 mHz 151.940 mHz * 154.570 mHz Blue Dot, Factory Channel 1 * 154.600 mHz Green Dot, Factory Channel 2 • 38 Standard and 11 Non-standard CTCSS Tones • Tri-Color LED indicators for Transmit, Carrier, Carrier and Tone • Rotary Power and Volume Switch • Automatic Squelch • Built to MIL STD 810F • Locking 3.5mm Accessory Jack • 750 mAh NiMH Battery Pack Included • Attractive Two-Tone Cabinet Deep Green and Black • Monitor Button • Audible and LED Low Battery Alert • Time-Out-Timer Transmit Inhibit • Automatic Power Save ACCESSORIES Battery – 750 mAh Ni-MH. Antenna – wide band frequency range 148 - 174 MHz SMA type. Spring steel belt clip – Screw on type. Desk top slow charger – Single cavity. Wall charger – Used with desk top charger 200 mAh 110V UL approved. PACKAGING • Dual-Language packaging in Gift Box. • Packaging and Owners’ Manual will be in English and Spanish. RF Performance General Channel Spacing – 12.5 kHz PLL Step – 5,6.25 kHz Channel Frequency Spread –2.78 MHz Antenna Impedance – 50 Ω ΩΩ Ω Operating Voltage – 7.2V ± ±± ± 20% Battery Life – 5:5:90 duty cycle 6 hours Operating Temperature Range - -30º C ~ +60º C Frequency Stability - ± ±± ± 5 ppm (-30º C ~ +60º C) Receiver (Measurements made per EIA standard EIA-RS 316B) Sensitivity (12 dB SINAD) – Narrow 0.28μV Selectivity – Narrow 55 dB Intermodulation Distortion – Narrow 55 dB Spurious Response – 50 dB / half image 40 dB Audio Output – 500 mW at less than 10% distortion Transmitter (Measurements made per EIA standard EIA-RS 316B) RF Power Output – 2W ERP Spurious & Harmonic – 43dB Modulation – Narrow 11KØF3E FM Noise – Narrow 34 dB Modulation Distortion – Less than 5% Physical Dimensions Height- 125mm (4 7/8”) or less Width- 58mm (2 ¼”) or less Depth- 32mm (1 ¼”) or less Signaling Requirements CTCSS - All 38 TIA/EIA standard tone frequencies and 11 non-standard tones. Factory default CTCSS tone will be - NO Tone. No.Freq. (Hz) No.Freq. (Hz) No.Freq. (Hz) No.Freq. (Hz) No.Freq. (Hz) 0167.01197.421136.531192.841171.3 0271.912100.022141.332203.542177.3 0374.413103.523146.233210.743183.5 0477.014107.224151.434218.144189.9 0579.715110.925156.735225.745196.6 0682.516114.826162.236233.646199.5 0785.417118.827167.937241.847206.5 0888.518123.028173.838250.348229.1 0991.519127.329179.93969.349254.1 1094.820131.830186.240159.8000ff

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / QRTL01-040 TOPAZ3, L.L.C Page 41 APPENDIX A: PRODUCT DESCRIPTION Please see the following page Topaz 3 MURS-22 Product Description TruTalk MURS-22 VHF Portable The MURS-22 is a full-featured VHF portable programmed for the new License-free Multi User Radio Service frequencies. FEATURES • MURS VHF Frequencies, (no license required) • Range – Up to 5 Miles • 2 Watt Transmit Power • 2 Channel Operation • 5 Pre-programmed User Selectable Frequencies 151.820 mHz 151.880 mHz 151.940 mHz * 154.570 mHz Blue Dot, Factory Channel 1 * 154.600 mHz Green Dot, Factory Channel 2 • 38 Standard and 11 Non-standard CTCSS Tones • Tri-Color LED indicators for Transmit, Carrier, Carrier and Tone • Rotary Power and Volume Switch • Automatic Squelch • Built to MIL STD 810F • Locking 3.5mm Accessory Jack • 750 mAh NiMH Battery Pack Included • Attractive Two-Tone Cabinet Deep Green and Black • Monitor Button • Audible and LED Low Battery Alert • Time-Out-Timer Transmit Inhibit • Automatic Power Save ACCESSORIES Battery – 750 mAh Ni-MH. Antenna – wide band frequency range 148 - 174 MHz SMA type. Spring steel belt clip – Screw on type. Desk top slow charger – Single cavity. Wall charger – Used with desk top charger 200 mAh 110V UL approved. PACKAGING • Dual-Language packaging in Gift Box. • Packaging and Owners’ Manual will be in English and Spanish. RF Performance General Channel Spacing – 12.5 kHz PLL Step – 5,6.25 kHz Channel Frequency Spread –2.78 MHz Antenna Impedance – 50 Ω ΩΩ Ω Operating Voltage – 7.2V ± ±± ± 20% Battery Life – 5:5:90 duty cycle 6 hours Operating Temperature Range - -30º C ~ +60º C Frequency Stability - ± ±± ± 5 ppm (-30º C ~ +60º C) Physical Dimensions Height- 125mm (4 7/8”) or less Width- 58mm (2 ¼”) or less Depth- 32mm (1 ¼”) or less Signaling Requirements CTCSS - All 38 TIA/EIA standard tone frequencies and 11 non-standard tones. Factory default CTCSS tone will be - NO Tone. No.Freq. (Hz) No.Freq. (Hz) No.Freq. (Hz) No.Freq. (Hz) No.Freq. (Hz) 0167.01197.421136.531192.841171.3 0271.912100.022141.332203.542177.3 0374.413103.523146.233210.743183.5 0477.014107.224151.434218.144189.9 0579.715110.925156.735225.745196.6 0682.516114.826162.236233.646199.5 0785.417118.827167.937241.847206.5 0888.518123.028173.838250.348229.1 0991.519127.329179.93969.349254.1 1094.820131.830186.240159.8000ff

COMPANY NAME: VERTEX STANDARD CO., LTD. EUT: MURS-22 VHF WORK ORDER NUMBER: 2001083 FCC ID: O7KMURS22 Page 40 of 63 21 SCHEMATICS Please see the following page.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 TYPE CERTIFICATION REPORT Topaz3, L.L.C. 10828 NW Air World Drive Kansas City, MO 64153 MODEL: MURS-22 FCC ID: O7KMURS22 April 18, 2001 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 §15.109: RADIATED EMISSIONS LIMITS PART 22: 1998 PUBLIC MOBILES SERVICES PART 74: 1998 LOW POWER AUXILIARY STATION PART 90: 1998 PRIVATE LAND MOBILE RADIO SERVICES PART 95 (A): 1998 GENERAL MOBILE RADIO SERVICES ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS ANSI/TIA/EIA603- 1992 LAND MOBILE FM OR PM COMMUNICATIONS EQUIPMENT MEASUREMENT AND PERFORMANCE STANDARDS ANSI/TIA/EIA 603-1-1998 ADDENDUM TO ANSI/TIA/EIA 603-1992 RSS-119, Issue 5: 1996 LAND MOBILE AND FIXED RADIO TRANSMITTERS AND RECEIVERS.27.41 TO 960.0 MHZ FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator 90.210 151.820 2.14 5 ppm 11K0F3E 90, 22, 74, 95 154.570 2.16 5 ppm 11K0F3E Canadian Frequency Range Output Power (W) Freq. Tolerance RSS-119 151.820 2.14 5 ppm 11K0F3E RSS-119 154.570 2.16 5 ppm 11K0F3E REPORT PREPARED BY: EMC Engineer: Daniel Baltzell Technical Writer: Melissa Fleming Document Number: 2001083 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. COMPANY NAME: VERTEX STANDARD CO., LTD. EUT: MURS-22 VHF WORK ORDER NUMBER: 2001083 FCC ID: O7KMURS22 Page 2 of 63 TABLE OF CONTENTS 1 GENERAL INFORMATION............................................................................................................................................................................................4 1.1 TEST FACILITY.............................................................................................................................................................................................................4 1.2 RELATED SUBMITTAL(S)/GRANT(S).........................................................................................................................................................................4 2 CONFORMANCE STATEMENT...................................................................................................................................................................................5 3 TESTED SYSTEM DETAILS..........................................................................................................................................................................................6 3.1 CONFIGURATION OF TESTED SYSTEM......................................................................................................................................................................6 4 FIELD STRENGTH CALCULATION..........................................................................................................................................................................7 5 CONDUCTED MEASUREMENT..................................................................................................................................................................................8 5.1 PART 15.207(D) CONDUCTED EMISSION TEST RESULTS........................................................................................................................................9 6 RADIATED MEASUREMENT.....................................................................................................................................................................................10 6.1 PART 15.109 RADIATED EMISSION TEST RESULTS...............................................................................................................................................11 7 FCC RULES AND REGULATIONS PART 2 §2.1046 (A): RF POWER OUTPUT: CONDUCTED.......................................................12 7.1 TEST PROCEDURE......................................................................................................................................................................................................12 7.2 TEST DATA..................................................................................................................................................................................................................12 7.3 TEST EQUIPMENT.......................................................................................................................................................................................................12 8 PART 2.1046 (A) RF POWER OUTPUT: RADIATED - ERP..............................................................................................................................13 8.1 TEST PROCEDURE......................................................................................................................................................................................................13 8.2 TEST DATA..................................................................................................................................................................................................................13 8.3 TEST EQUIPMENT.......................................................................................................................................................................................................13 9 FCC RULES AND REGULATIONS PART 2 §2.1051: SPURIOUS EMISSIONS AT ANTENNA TERMINALS...............................14 9.1 TEST PROCEDURE......................................................................................................................................................................................................14 9.2 TEST DATA.....................................................................................................................…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 TYPE CERTIFICATION REPORT Topaz3, L.L.C. 10828 NW Air World Drive Kansas City, MO 64153 MODEL: MURS-22 and MURS-25 FCC ID: O7KMURS22 June 8, 2001 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 §15.109: RADIATED EMISSIONS LIMITS PART 95: 1998 PERSONAL RADIO SERVICES ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS ANSI/TIA/EIA603- 1992 LAND MOBILE FM OR PM COMMUNICATIONS EQUIPMENT MEASUREMENT AND PERFORMANCE STANDARDS ANSI/TIA/EIA 603-1-1998 ADDENDUM TO ANSI/TIA/EIA 603-1992 FCC Rules Parts Frequency Range Output Power ERP (W) Freq. Tolerance Emission Designator 95(J) 151.820 1.4 5 ppm 11K0F3E 95(J) 151.880 1.4 5 ppm 11K0F3E 95(J) 151.940 1.4 5 ppm 11K0F3E 95(J) 154.570 1.4 5 ppm 11K0F3E 95(J) 154.600 1.4 5 ppm 11K0F3E REPORT PREPARED BY: EMC Engineer: Daniel Baltzell Technical Writer: Melissa Fleming Document Number: 2001083 / 2001127 / 2001137 / QRTL01-040 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report FCC ID: O7KMURS22 2001083 / 2001127 / 2001137 / QRTL01-040 TOPAZ3, L.L.C Page 2 TABLE OF CONTENTS 1 GENERAL INFORMATION..................................................................................................................................................................................................6 1.1 DIFFERENCE BETWEEN MODELS......................................................................................................................................................................6 1.2 TEST FACILITY...........................................................................................................................................................................................................6 1.3 TEST FACILITY...........................................................................................................................................................................................................6 1.4 RELATED SUBMITTAL(S)/GRANT(S)...................................................................................................................................................................6 2 CONFORMANCE STATEMENT.........................................................................................................................................................................................7 3 TESTED SYSTEM DETAILS...............................................................................................................................................................................................8 4 FIELD STRENGTH CALCULATION..................................................................................................................................................................................9 5 CONDUCTED MEASUREMENT.....................................................................................................................................................................................10 5.1 PART 15.207(D) CONDUCTED EMISSION TEST RESULTS.......................................................................................................................11 6 RADIATED MEASUREMENT...........................................................................................................................................................................................12 6.1 FCC PART 15 §15.109(A) RADIATED EMISSION TEST RESULTS...........................................................................................................12 7 FCC PART 2 §2.1046 (A): RF POWER OUTPUT: CONDUCTED...........................................................................................................................16 7.1 TEST…
