O7KPL450PL1145/PL2245 Mobile Radio

PL1145 Operating Instructions ProLine Series About Topaz3 Topaz3 is the exclusive supplier of Maxon®, Legacy and TruTalk brand communication products. Our product line ranges from FCC licensed two-way radios suitable for Business and Industry (B&I) markets like farm, government, law enforcement, utility, etc. to consumer recreational and light-duty business markets. Product offerings include a variety of UHF and VHF handheld and mobile radios, repeaters and RF link modules as well as FRS (Family Radio Service), GMRS (General Mobile Radio Service) radios, Citizen’s Band radios and weather monitors. Available accessory items include: a variety of carrying cases, spare batteries, desktop and mobile chargers, ear bud speaker microphones, and more for each radio model. For additional information on our product line, visit our website: www.topaz3.com Table of Contents / Contenido I.FCC RF Exposure Compliance Requirements - for Occupational Use Only.............. .1 I. Requerimientos de Obediencia a la Exposición de RF del FCC - para uso Ocupacional Solamente ............................46 II.Unpacking and Checking Equipment.....3 II.Desempaque y Verificación del Equipo...........27 III.Getting Started.......................................4 III.Preparación.....................................................28 Charging the NiMH Battery Pack............4 Cargador de la Batería de NiMH.....................28 Attaching and Removing the Battery Pack.6 Instalación y Retiro de la Batería.....................30 Installing the Antenna...........................7 Instalación de la Antena................................31 Installing the Belt Clip...........................7 Instalación del Clip de Cinturón.....................31 Installing the Speaker Mic. Jack Cover......7 Instalación de la Cubierta de la Clavija de Conexión de Micrófono del Altavoz...........32 Attaching the Optional Speaker Mic........8 Agregando el Micrófono de Altavoz Opcional ...32 IV.Control Buttons / Operation Features.....9 IV.Botones de Control del Radio / Rasgos de Funcionamiento....................................33 V.Radio Operation....................................10 V.Funcionamiento del Radio..............................34 Power On / Transmit.............................10 Encienda / Transmite......................................34 VI. Channel Frequency Selection.................11 VI. Selección de Frecuencia de Canales................35 VII. CTCSS Tone Signaling............................13 VII. Señal de Tonos de CTCSS................................38 VIII. CTCSS Tone Setup.................................14 VIII. Arreglo de Tonos de CTCSS..............................39 IX. Channel Setting Confirmation...............17 IX.Confirmación de la Configuración de Canales..................................................43 Frequency Confirmation......................17 Confirmación de la Frecuencia........................43 CTCSS Tone Confirmation....................18 Confirmación de Tonos de CTCSS.....................43 X.Radio Functions....................................19 X.Funciones del Radio........................................44 Time-Out-Timer (T-O-T).......................19 Temporizador de Tiempo Límite (T-O-T)............44 Battery Save.......................................19 Preservación de Batería..................................45 Low Battery Warning...........................19 Aviso de Batería Baja.....................................45 XI. Licensing, Safety and Service Information..20 XI.Información de Autorización y Servicio...........47 FCC Licensing....................................20 Licencia de la FCC........................................47 Safety Information...............................20 Información de Seguridad..............................47 Service..............................................21 Servicio.......................................................48 XII. Maintenance.........................................21 XII. Mantenimiento................................................49 XIII. Software Copyrights...............................22 XIII. Derechos de Propiedad Literaria del Software...50 XIV. Topaz3 / Legacy Product Warranty.........23 XIV.Garantía del Producto de Topaz3 / Legacy.........51 I. FCC RF Exposure Compliance Requirements - for Occupational Use Only The Federal Communications Commission (FCC), with its action in General Docket 93-62, November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Topaz3 / Legacy subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below the Occupational Safety and Health Act (OSHA)and Federal Communications Commission limits. CAUTION -DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. •This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is restricted to occupational use, work related operations only where radio operator must have the knowledge to control its RF exposure conditions. •The radio is transmitting when the red LED on the front of the radio is illuminated. You can cause the radio to transmit by pressing the P-T-T bar on the radio. •When transmitting, hold the radio in a vertical position with its microphone 1 to 2 inches (2.5 to 5 cm) away from your mouth. Keep the antenna at least 1 inch (2.5 cm) from your head and body. 1 I. FCC RF Exposure Compliance Requirements - for Occupational Use Only, continued •ALWAYS use Maxon, Legacy and TruTalk authorized accessories: antennas, batteries, belt clips, speaker mics, etc. •Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. 2 II. Unpacking and Checking Equipment Carefully unpack the radio and it…

Text truncated - open the document above for the full version.

Sensitivity 12 dB SINAD.25 μV @12.5 kHz; .28 μV @25 kHz Selectivity>55 dB @12.5 kHz; >60 dB @ 25 kHz Intermodulation55 dB @ 12.5 kHz; 60 dB @ 25 kHz Spurious Response60 dB60 dB Audio Output500 mW (Int.) @ 8 Ω; 500 mW (Ext.) @ 8 Ω (Method @ <10% THD level) RF Output1 Watt2 Watts Spurious and Harmonic Emissions43 dB43 dB Modulation16K0F3E, 11K0F3E FM Hum and Noise>34 dB @ 12.5 kHz; >40 dB @ 25 kHz Audio Distortion<5%<5% Specifications are subject to change without notice. Frequency Range (UHF)8 Pre-programmed:8 Pre-programmed: 464.5000 MHz, 464.5500 MHz, 467.7625 MHz 467.8125 MHz, 467.8500 MHz, 467.8750 MHz 467.9000 MHz, 467.9250 MHz Channels12 Channel Spacing25 / 12.5 kHz25 / 12.5 kHz PLL Step5.0 / 6.25 kHz5.0 / 6.25 kHz Channel Separation3.425 MHz3.425 MHz Antenna Impedance50 Ω50 Ω Operating Voltage7.2V DC Nominal7.2V DC Nominal Battery Life (with 750 mAh NiMH battery)14 Hours11 Hours (90-5-5 duty cycle)(90-5-5 duty cycle) (with optional 1350 mAh NiMH battery)25 Hours19 Hours (90-5-5 duty cycle)(90-5-5 duty cycle) Operating Temperature-22 o F to +140 o F (-30 o C to +60 o C) Frequency Stability (-30 o C to +60 o C)± 5.0 ppm± 5.0 ppm Dimensions (H x W x D) (with battery)4-7/8" x 2-1/4" x 1-1/4" (125 x 58 x 32 mm) Weight (with 750 mAh NiMH battery and antenna)13.6 oz. (380 gm) FCC IdentifierO7KPL450O7KPL450 FCC ComplianceParts 22, 74, 90Parts 22, 74, 90, 95 IC Certification Numberpendingpending StandardStandard StandardStandard Standard 810F810F 810F810F 810F Metho Metho Metho Metho Metho dd dd d / Procedure / Procedure / Procedure / Procedure / Procedure Light Rain506.4 / Proc. II Humidity507.4 / Proc. I Dust510.4 / Proc. I Vibration514.4 / Proc. I Shock516.4 / Proc. I, IV spespe spespe spe cc cc c ii ii i ff ff f icationsications icationsications ications 10828 NW Air World Drive Kansas City, Missouri 64153 800-821-7848, Ext. 699 • Fax: 816 / 891-8815 www.topaz3.com For more information, contact: P/N: 680-120-2036 transmitter (measurement procedures made per ANSI / TIA / EIA - 603) receiver (measurement procedures made per ANSI / TIA / EIA - 603) ProLine PL2245 / PL1145 UHF modelUHF model PL1145 PL2245 ISO 9002 Certification featurfeatur featurfeatur featur es / functionses / functions es / functionses / functions es / functions • 2 Channel, 2 Watt model PL2245; 1 Channel, 1 Watt model PL1145 • Programmable 12.5 kHz / 25 kHz channel spacing • Meets MIL-STD810F specifications • 38 Standard, 11 non-standard CTCSS tones • Locking single-pin accessory connector • TX Inhibit • Time-out-timer • Battery save circuitry • Die-cast aluminum frame, polycarbonate cabinet • Tri-color LED • Spring steel belt clip • Manufactured under ISO 9002 quality standards • FCC Certified for use in U.S.A and its possessions Batteries:Batteries: Batteries:Batteries: Batteries: 750 mAh NiMH Battery pack (ACC-201); 1350 mAh NiMH Battery pack (ACC-202) Antenna:Antenna: Antenna:Antenna: Antenna: UHF Antenna, 6", 465 MHz (ACC-146) Chargers:Chargers: Chargers:Chargers: Chargers: Single unit desktop "slow" charger (ACC-410); Single unit desktop "fast" charger (ACC-412) Audio:Audio: Audio:Audio: Audio: Lapel speaker microphone with ear jack, locking connector (ACC-726) Carrying:Carrying: Carrying:Carrying: Carrying: Belt clip (720-0000-003) accessories / optionsaccessories / options accessories / optionsaccessories / options accessories / options Supplier of Maxon®, Legacy and TruTalk products MILMIL MILMIL MIL -STD methods / pr-STD methods / pr -STD methods / pr-STD methods / pr -STD methods / pr ocedurocedur ocedurocedur ocedur eses eses es general The ProLine PL1145 and PL2245 meet the following:

PL1145 Operating Instructions ProLine Series Topaz3, LLC 10828 NW Air World Drive Kansas City, Missouri 64153 www.topaz3.com Toll free: 800-821-7848 816-891-6320 Printed in Korea Part No.: 680-090-2018, Rev. C Supplier of Maxon®, Legacy and TruTalk Communication Products Notes / Notas: About Topaz3 Topaz3 is the exclusive supplier of Maxon®, Legacy and TruTalk brand communication products. Our product line ranges from FCC licensed two-way radios suitable for Business and Industry (B&I) markets like farm, government, law enforcement, utility, etc. to consumer recreational and light-duty business markets. Product offerings include a variety of UHF and VHF handheld and mobile radios, repeaters and RF link modules as well as FRS (Family Radio Service), GMRS (General Mobile Radio Service) radios, Citizen’s Band radios and weather monitors. Available accessory items include: a variety of carrying cases, spare batteries, desktop and mobile chargers, ear bud speaker microphones, and more for each radio model. For additional information on our product line, visit our website: www.topaz3.com Notes / Notas: Table of Contents / Contenido I.FCC RF Exposure Compliance Requirements - for Occupational Use Only.............. .1 I. Requerimientos de Obediencia a la Exposición de RF del FCC - para uso Ocupacional Solamente ...........................27 II.Unpacking and Checking Equipment.....3 II.Desempaque y Verificación del Equipo...........29 III.Getting Started.......................................4 III.Preparación...................................................30 Charging the NiMH Battery Pack............4 Cargador de la Batería de NiMH.....................30 Attaching and Removing the Battery Pack.6 Instalación y Retiro de la Batería.....................32 Installing the Antenna...........................7 Instalación de la Antena...............................33 Installing the Belt Clip...........................7 Instalación del Clip de Cinturón.....................33 Installing the Speaker Mic. Jack Cover......7 Instalación de la Cubierta de la Clavija de Conexión de Micrófono del Altavoz...........34 Attaching the Optional Speaker Mic........8 Agregando el Micrófono de Altavoz Opcional ...34 IV. Control Buttons / Operation Features.....9 IV. Botones de Control del Radio / Rasgos de Funcionamiento...................................35 V.Radio Operation....................................10 V.Funcionamiento del Radio.............................36 Power On / Transmit.............................10 Encienda / Transmite....................................36 VI. Channel Frequency Selection.................11 VI. Selección de Frecuencia de Canales................37 52 XIV. Garantía del Producto de Topaz3 / Legacy, continuado placas funcionalmente equivalentes reacondicionadas o nuevas. Las piezas reemplazadas, accesorios, baterías o placas están garantizadas por el resto del plazo original. Todos los componentes sustituidos, accesorios, baterías o placas pasan a ser de propiedad de Topaz3, LLC. LAS GARANTÍAS EXPRESAS CONTENIDAS AQUÍ REEMPLAZAN TODAS LAS DEMÁS GARANTÍAS, EXPRESAS O IMPLÍCITAS O ESTATUTARIAS, INCLUYENDO, SIN LIMITACIONES, CUALQUIER GARANTÍA DE COMERCIABILIDAD O IDONEIDAD PARA UN FIN PARTICULAR. PARA CUALQUIER PRODUCTO QUE NO CUMPLA CON LA GARANTÍA ESPECIFICADA, LA ÚNICA COMPENSACIÓN SERÁ LA REPARACIÓN O SUSTITUCIÓN. BAJO NINGUNA CIRCUNSTANCIA TOPAZ3, LLC. SERÁ RESPONSABLE ANTE EL COMPRADOR O SUS CLIENTES POR DAÑOS, INCLUYENDO DAÑOS ESPECIALES, FORTUITOS, INDIRECTOS O CONSECUENTES, O LA PÉRDIDA DE GANANCIAS, INGRESOS O DATOS RESULTANTES DEL USO O LA IMPOSIBILIDAD DE USO DEL PRODUCTO. Esta garantía queda nula para ventas y entregas fuera de los EE.UU. VII.CTCSS Tone Signaling..............................13 VII.Señal de Tonos de CTCSS..............................40 VIII.CTCSS Tone Setup....................................14 VIII.Arreglo de Tonos de CTCSS...........................41 IX. Channel Setting Confirmation..................17 IX. Confirmación de la Configuración de Canal..................................................45 Frequency Confirmation..........................17 Confirmación de la Frecuencia......................45 CTCSS Tone Confirmation....................... 18 Confirmación de Tonos de CTCSS..................45 X.Radio Functions.......................................19 X.Funciones del Radio......................................46 Time-Out-Timer (T-O-T)..........................19 Temporizador de Tiempo Límite (T-O-T)..........46 Battery Save...........................................19 Preservación de Batería................................47 Low Battery Warning..............................19 Aviso de Batería Baja...................................47 XI. Licensing, Safety and Service Information..20 XI. Información de Autorización y Servicio...........48 FCC Licensing.......................................20 Licencia de la FCC......................................48 Safety Information..................................20 Información de Seguridad............................48 Service.................................................21 Servicio....................................................49 XII. Maintenance............................................21 XII. Mantenimiento.............................................49 XIII.Software Copyrights................................. 22 XIII.Derechos de Propiedad Literaria del Software..50 XIV.Topaz3 / Legacy Product Warranty............23 XIV.Garantía del Producto de Topaz3 / Legacy......51 51 XIV. Garantía del Producto de Topaz3 / Legacy Topaz3, LLC (en lo sucesivo denominada “Topaz3”) garantiza que sus Productos y sus accesorios incluídos estarán exentos de defectos de fabricación y materiales bajo su uso normal por un período de dos (2) años (de un (1) año para accesorios) a partir de la fecha de compra por parte del usuario final original, siempre y cuando el comprador haya cumplido con los requisitos indicados en …

Text truncated - open the document above for the full version.

PL2245 Operating Instructions ProLine Series Topaz3, LLC 10828 NW Air World Drive Kansas City, Missouri 64153 www.topaz3.com Toll free: 800-821-7848 Phone: 816-891-6320 • Fax: 816-891-8815 Printed in Korea P/N: 680-090-2006, Rev. B Supplier of Maxon, Legacy and TruTalk Communication Products ® Notes / Notas: About Topaz3Topaz3 is the exclusive supplier of Maxon ® , Legacy and TruTalk brand communication products.Our product line ranges from FCC licensed two-wayradios suitable for Business and Industry (B&I) marketslike farm, government, law enforcement, utility, etc. toconsumer recreational and light-duty business markets.Product offerings include a variety of UHF and VHFhandheld and mobile radios, repeaters and RF linkmodules as well as FRS (Family Radio Service), GMRS(General Mobile Radio Service) radios, Citizen’s Bandradios and weather monitors.Available accessory items include: a variety of carryingcases, spare batteries, desktop and mobile chargers,ear bud speaker microphones, and more for each radiomodel.For additional information on our product line, visit ourwebsite: www.topaz3.com Notes / Notas: Table of Contents / Contenido I. FCC RF Exposure Compliance Requirements - for Occupational Use Only.............. .1 I. Requerimientos de Obediencia a la Exposici ó n de RF del FCC - para uso Ocupacional Solamente ............................27 II. Unpacking and Checking Equipment.....3 II. Desempaque y Verificación del Equipo...........29 III. Getting Started.......................................4 III. Preparación.....................................................30 Charging the NiMH Battery Pack ............ 4 Cargador de la Batería de NiMH ..................... 30 Attaching and Removing the Battery Pack.6Instalación y Retiro de la Batería ..................... 32 Installing the Antenna ...........................7 Instalación de la Antena ................................ 33 Installing the Belt Clip ...........................7 Instalación del Clip de Cinturón ..................... 33 Installing the Speaker Mic. Jack Cover...... 7 Instalación de la Cubierta de la Clavija de Conexión de Micrófono del Altavoz ..... ......34 Attaching the Optional Speaker Mic........ 8 Agregando el Micrófono de Altavoz Opcional ...34 IV. Control Buttons / Operation Features.....9 IV. Botones de Control del Radio / Rasgos de Funcionamiento....................................35 V. Radio Operation....................................10 V. Funcionamiento del Radio..............................36 Power On / Transmit ............................. 10 Encienda / Transmite. .............................. .......36 VI. Channel Frequency Selection.................11VI. Selección de Frecuencia de Canales................37 52 XIV. Garantía del Producto de Topaz3 / Legacy, continuado placas funcionalmente equivalentes reacondicionadas o nuevas. Las piezasreemplazadas, accesorios, baterías o placas están garantizadas por el restodel plazo original. Todos los componentes sustituidos, accesorios, baterías oplacas pasan a ser de propiedad de Topaz3, LLC.LAS GARANTÍAS EXPRESAS CONTENIDAS AQUÍ REEMPLAZAN TODASLAS DEMÁS GARANTÍAS, EXPRESAS O IMPLÍCITAS O ESTATUTARIAS,INCLUYENDO, SIN LIMITACIONES, CUALQUIER GARANTÍA DECOMERCIABILIDAD O IDONEIDAD PARA UN FIN PARTICULAR.PARA CUALQUIER PRODUCTO QUE NO CUMPLA CON LA GARANTÍAESPECIFICADA, LA ÚNICA COMPENSACIÓN SERÁ LA REPARACIÓN OSUSTITUCIÓN. BAJO NINGUNA CIRCUNSTANCIA TOPAZ3, LLC. SERÁRESPONSABLE ANTE EL COMPRADOR O SUS CLIENTES POR DAÑOS,INCLUYENDO DAÑOS ESPECIALES, FORTUITOS, INDIRECTOS OCONSECUENTES, O LA PÉRDIDA DE GANANCIAS, INGRESOS O DATOSRESULTANTES DEL USO O LA IMPOSIBILIDAD DE USO DEL PRODUCTO.Esta garantía queda nula para ventas y entregas fuera de los EE.UU. VII. CTCSS Tone Signaling..............................13VII. Señal de Tonos de CTCSS.................................40VIII. CTCSS Tone Setup....................................14VIII. Arreglo de Tonos de CTCSS .............................. 41 IX. Channel Setting Confirmation..................17IX. Confirmación de la Configuración de Canal.....................................................45Frequency Confirmation ...................... ....17 Confirmación de la Frecuencia ........................ 45 CTCSS Tone Confirmation .................... ... 18 Confirmación de Tonos de CTCSS ..................... 45 X. Radio Functions.......................................19 X. Funciones del Radio........................................46 Time-Out-Timer (T-O-T) ....................... ...19 Temporizador de Tiempo Límite (T-O-T) ........... 46 Battery Save ....................................... ....19 Preservación de Batería .................................. 47 Low Battery Warning .............................. 19 Aviso de Batería Baja ..................................... 47 XI. Licensing, Safety and Service Information.20XI. Información de Autorización y Servicio...........48 FCC Licensing ....................................... 20 Licencia de la FCC ........................................ 48 Safety Information .................................. 20 Información de Seguridad .............................. 48 Service ................................................. 21 Servicio ....................................................... 49 XII. Maintenance............................................21XII. Mantenimiento................................................49XIII. Software Copyrights................................. 22XIII. Derechos de Propiedad Literaria del Software..50XIV. Topaz3 / Legacy Product Warranty............23 XIV. Garantía del Producto de Topaz3 / Legacy........51 51 XIV. Garantía del Producto de Topaz3 / LegacyTopaz3, LLC (en lo sucesivo denominada “Topaz3”) garantiza que susProductos y sus accesorios incluídos estarán exentos de defectos defabricación y materiales bajo su uso normal por un período de dos (2) años(de un (1) año para accesorios) a partir de la fecha de compra por parte delusuario fi…

Text truncated - open the document above for the full version.

Dear Mr. Joe Dichoso, Re: FCC ID O7KPL450 We hereby send this letter to notify the FCC that said product FCC ID O7KPL450 will be manufactured to comply with SAR compliance test not exceeding test data of 2.3W conducted output at the antenna terminal. Sincerely, Gerald Happy LMR Marketing Product Manager Topaz3 L.L.C. 10828 NW Air World Drive, Kansas City, Missouri 64153-1238 Phone: 800-821-7848 Fax: 816-891-8815 www.topaz3.com

Date: August 16, 2000 Federal Communications Commission EQUIPMENT AUTHORIZATION BRANCH 7435 Oakland Mills Road Columbia, MD 21046 Re: Agent Authorization To Whom It May Concern: Topaz3 L.L.C., 10828 NW Air World Drive, Kansas City, Missouri 64153 hereby authorizes Rhein Tech Laboratories, Inc. (RTL), 360 Herndon Parkway, Suite 1400, Herndon, VA 20170 to act as agent. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: In signing this letter, Applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes: FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant. No party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes, see 47 CFR 1.2002(b). Sincerely Gerald Happy LMR Marketing Product Manager

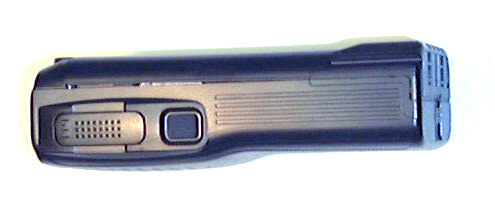

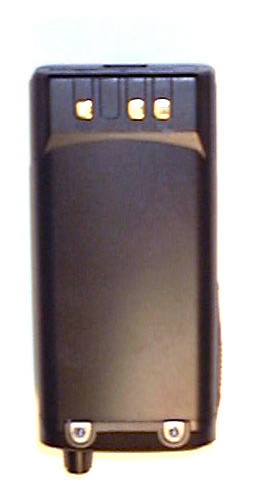

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 54 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio 23 EXTERNAL PHOTOGRAPHS TOP VIEW 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 55 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio FRONT VIEW 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 56 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio SIDE VIEW 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 57 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio REAR VIEW

fNcNcN@id canada sˆ ̃Œ„’@noN m•‡ˆ’ t‹Œ™@‡ˆœŒ†ˆ@†•“–’Œˆ™@žŒš‹@p„ ̃š@QU@•‰@ š‹ˆ@fNcNcN@r›’ˆ™N@o–ˆ ̃„šŒ•”@Œ™@™›...Žˆ†š@š•@ š‹ˆ@†•”‡ŒšŒ•”@š‹„š@š‹Œ™@‡ˆœŒ†ˆ@‡•ˆ™@”•š@ †„›™ˆ@‹„ ̃“‰›’@Œ”šˆ ̃‰ˆ ̃ˆ”†ˆN@@ m„‡ˆ@Œ”@k• ̃ˆ„

Date: January 3, 2001 Federal Communicatio ns Co mmission EQUIPMENT AUTHORIZATION BRANCH 7435 Oakland Mills Road Columbia, MD 21046 Re: Programming Capability Models PL1145, PL2245 Dear FCC Representative; Reference part 90.203(e), frequency-programming capability. The end user will be able to select from the following preprogrammed channel frequencies through a series of button presses. The user guide denotes that the operator must be properly licensed under the applicable Part and / or Parts of the FCC Rules and Regulations and to consult an authorized Dealer or nearest FCC field office for information about obtaining a license. Brown- 464.5000 MHz Yellow- 464.5500 MHz J- 467.7625 MHz K- 467.8125 MHz Silver Star- 467.8500 MHz Gold Star- 467.8750 MHz Red Star- 467.9000 MHz Blue Star- 467.9250 MHz Sincerely Gerald Happy LMR Mar keti ng Produc t Ma nager Topaz3

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 36 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio 16 LABEL INFORMATION 16.1 Warning Label 16.2 FCC ID Label 16.3 Location of Label on EUT CAUTION: Device must be restricted to occupational use to satisfy FCC RF exposure compliance. See owner’s manual for specific operating requirements. Topaz3, L.L.C. PL1145/PL2245 Mobile Radio FCC ID: O7KPL450 FCC ID Label Location RF Warning Label Location

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 44 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio 22 INTERNAL PHOTOGRAPHS BOTTOM OF PCB 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 45 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio TOP OF PCB 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 46 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio FRONT OF PCB IN CASE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 47 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio INSIDE FRONT CASE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 48 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio MICROPHONE-SPEAKER CLIP AND SCREW 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 49 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio MICROPHONE-SPEAKER COMPONENTS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 50 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio MICROPHONE-SPEAKER INSIDE BACK COVER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 51 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio MICROPHONE-SPEAKER INSIDE FRONT COVER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 52 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio SPEAKER-MICROPHONE BACK ZOOMED 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 53 of 57 2000482 / QRTL00-405 Topaz3, L.L.C. PL1145/PL2245 Mobile Radio SPEAKER-MICROPHONE BACK

Device must be restricted to occupational use to satisfy FCC RF exposure compliance. See owner’s manual for specific operating instructions. CAUTION ! Label artwork for PL-1145 & PL-2245 Series Portable “FCC Caution Label” prints white letters on black adhesive stock. “Caution” Typefont is Universe Condensed, 6 pt. Trim marks do not print. Final cut label is 31 mm wide x 13 mm tall

FCC caution label placement for PL1145 & PL2245

CELLTECH RESEARCH INC. Test Report S/N: 122300-50O7K 1955 Moss Court, Kelowna, Date(s) of Tests: January 2, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless mobile and/or portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for controlled environment/occupational exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. (See test report). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant Information: TOPAZ3, LLC 10828 NW Air World Drive, Kansas City, Missouri 64153-1238 Attn: Gerald Happy LMR Marketing Product Manager Tel: 800-821-7848 Fax: 816-891-8815 FCC ID: O7KPL450 Model(s): PL1145/PL2245 EUT Type: Handheld UHF PTT Radio Transceiver Modulation: FM (UHF Band) Tx Frequency Range: 464.5 - 467.925 MHz Max. RF Output Power: 33.6 dBm (Conducted) FCC Rule Part(s): 2.1093; ET Docket 96-326 CELLTECH RESEARCH INC. Test Report S/N: 122300-50O7K 1955 Moss Court, Kelowna, Date(s) of Tests: January …
