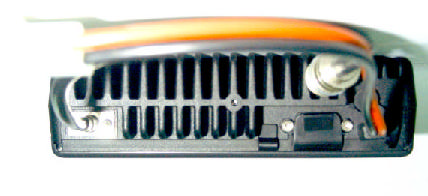

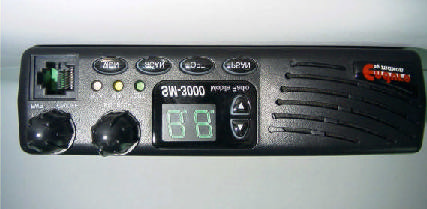

COMPANY NAME: TOPAZ3, L.L.C.. EUT: SM-3450 MOBILE RADIO CLIENT REFERENCE NUMBER: QRTL00-316 WORK ORDER NUMBER: 2000301 FCC ID: O7KSM3450U2 Page 56 of 56 23 MANUAL Mobile Radio SM-3000 SM-3000 Operation Channel Monitoring In accordance with the FCC Rules, while operating, the channel must be monitored prior to transmitting,. Your Maxon Dealer will be able to assist with particular operational parameters and procedures for the various functions. Power On – Volume – Power Off Turn the radio on by rotating the off/on – volume control clockwise. You will hear a click and the radio’ s alert tones. Increase the radio volume by continuing the clockwise rotation. To return the radio off, rotate the control counter-clockwise to detent. Transmitting 1) It is necessary to monitor the channel for activity before a transmission. Monitor by pressing the monitor button or observing the TX/Call indicator for a solid yellow or green color. If solid yellow or green is observed, you must wait for the indication to leave before a transmission can be made. 2) Press and hold the P-T-T button on the front of the microphone unit. Hold the microphone unit 1 to 2 inches from your mouth, speak clearly and distinctly into the microphone area of the front. 3) Release the P-T-T nutton as soon as the message is complete. The P-T-T button must be pressed contimuously while speaking. Receiving 1) When a message is received, the TX?Call indicator will glow solid yellow or green(depending if CTCSS or DCS tone has been programmed). 2) Respond to a message by pressing the P-T-T button on the front of the microphone unit. Press the P-T- T continuously while talking and release to listen. If scanning modes are enabled, be sure to respond before scanning resumes. If you do not, another call may be received and the selected channel may have to changed. Scanning is indicated by solid yellow Scan indicator. Refer to “Scan Modes” section for more information. Monitor Button 1) Monitor : Pressing and holding the monitor button will open the squelch of the radio, defeating the CTCSS/DCS tone squelch and allowing you to listen for channel activity. 2) Nuisance Delete : This function will allow you to temporarily delete an unwanted channel from the scan list. Nuisance delete can be activated only when receiving the unwanted channel. Turning the unit off and on will return the unit to the original scan list. Status Indicators and Audible Alert Tones Your Radio has a sophsticated microprocessor control which provides a series of audible alert tones. DESCRIPTIONLED MESSAGE or COLORAUDIBLE TONE Power On - Ready“88” and Red, AllFive Beeps Correct CallGreenN/A TransmitRedN/A BusyYellowN/A In Scan ModeScanN/A In Pscan ModePscanN/A Busy Channel Lock Out“ bL ”Single Beep Time-Out-Timer“ to ”Single Beep Penalty“ Pt ”Three Beeps Eeprom Error“ Er ”Single Beep Key AcceptN/ASingle Beep Out of Lock Error“ UL ”Two Beeps Scan Delete“ _d ”Single Beep Scan All Delete“ Ad ”Two Beeps Transmit Inhibit In Scanning“ _H ”Two Beeps Receive Only In Scanning“ rO ”Two Beeps Editing Group Scan List You can edit your pre-programmed Group Scan List by adding or deleting scan list from the Group Scan List. To activate scan list editing, press and hold the scan button on the front of the radio and turn volume on the radio. Upon entering the scan list edit function, the LED will indicate the “ SE ” message. To exit the scan list edit function, turn volume off the radio. Select the Scan Group The radio will display the Scan Group Number by “ Cx ”. You can change the Scan Group Number by up or down button. To activate scan list editing for selected group, press the scan button. Adding or Deleting to Scan List The radio will display the channel number by flash or static. To add or delete this channel from the scan list, press the monitor button. When added, the channel number will display by flash. When deleted, the channel number will display by static. Editing Priority Channel You can edit your pre-programmed Priority Channel. To activate priority channel editing, press and hold the pscan button on the front of the radio and turn volume on the radio. Upon entering the priority channel edit function, the LED will indicate the “ PE ” message. The radio will display the priority channel number by flash. You can change the channel number by up or down button. To activate priority channel for selected channel, press the monitor button. Scanning The radio can be programmed for one of four diffent scan type, as determined by your dealer. Once the radio has enabled the scan mode, it will traverse through the pre-programmed Scan List. The time spent on receiving on receiving a channel in the scan list is referred to as the Scan Speed. The radio will wait on the carrier detected channel for the Scan Speed Time in order to decode the signaling scheme. When an incoming call is detected and decoded, scanning stops and the radio enters the Un-Muted Rx Mode. After the call has ended, the radio enters the Scan Wait Mode for a pre-programmed period of time. This is referred to as the Scan Wait Time. This allows the user time to respond to the call (if the call is valid) before the Scan Wait Time expires. The radio then re-enters the Scan Wait Mode and Scan Wait Time is reset. Once the Scan Wait Time has expires, the radio will resume scanning. 1) Normal Scan TX RX : The radio only receives calls from channels in the selected group scan list. TX : The radio will transmit on the priority channel if a call is not received. If a scanned call is received, the radio will transmit on that scanned channel until scanning resumes. If transmission is attempted when the radio have not priority channel, an alert will sound. 2) RX Only/No TX RX : The radio will only receive calls on the channels in the selected group scan list TX : No transmissions are allowed. If transmission is attempted, an alert will sound. 3) Priority Scan TX RX : The radio will receive calls from channels in the selected group s…

Text truncated - open the document above for the full version.

October 17, 2000 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: O7KSM3450U2 731 Confirmation Number: EA98548 Correspondence Reference Number: 16471 1/ Because of recent occurrences of authorized operation at 406 MHz, the US Coast Guard and NOAA have asked us to implement a program to notify the equipment manufacturers, service personnel and users that the frequency band 406 - 406.1 MHz is reserved for use by distress beacons. Such steps should include a warning in the users manual. The ultimate protection would be software to lockout this frequency band. Please indicate what measures you will take in this matter. Verify that this frequency band will NOT be programmed into the preprogrammed channels. Revised Operating Instruction Manual is attached. 1 SM-3000 Enduro series Synthesized Scanning Radio Operating Instructions About Your SM-3000 Enduro series Radio Maxon's SM-3000 Enduro series radio feature up to 13 groups and up to 16 channel operation per group for a total channel capacity of 99 channels of superior performance and reliability. Operation and functions for Maxon's SM-3000 Enduro series radios are described in this manual. We urge you to thoroughly read this manual before operating the radio. Application of some of the functions described in this manual is determined by the system you use. Your Maxon Dealer will program your radio so that you have the greatest number of functions possible relative to your needs. Should you have questions regarding the operation of the radio please consult your Maxon Dealer. About Maxon / Topaz3 Maxon is a world-respected name in professional FM two-way radio equipment operating in the UHF, VHF and 800 MHz frequencies; personal two-way communication devices, including the popular FRS ( Family Radio Service) and GMRS radios; and a varity of wireless communication products (two-way voice messaging handsets, Wireless Local Loop terminals, etc.). Topaz3 is the exclusive supplier of Maxon products to North America. For more specific product information: visit our website: www.topax3.com Table of Contents Safety / Warning Information.................................................................. Unpacking Information.......................................................... SM-3000 Enduro Series Features.................................................... Description of Radio Components......................................... Antenna Installation............................................................... SM-3000 Enduro Series Operation................................................. Power On-Volume.................................................. Channel Select Transmit.................................................................. Receive................................................................... Power Off.............................................................. Status Indicators and Audible Alert Tones............................. Scan Modes......................................................................... Normal Channel Scan............................................ Priority Channel Scan............................................. Other Scanning Features....................................................... Look Back.............................................................. Scan Channel Delete.............................................. CTCSS/DCS Scanning............................................ Normal Scan TX..................................................... Priority Scan TX..................................................... Priority Only TX..................................................... 2 Receive Only Scan................................................. Scan List Edit ........................................................................ Licensing and Service Information........................................ Software Copyrights............................................................. Maintenance........................................................................ Warranty Statement................................................................. 1 Safety / Warning Information The Federal Communications Commission (FCC), with its action in General Docket 93-62, November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Maxon subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below the Occupational Safety and Health Act and Federal Communications Commission limits. Warning - It is mandatory that radio installations in vehicles fueled by liquefied petroleum gas conform to the following standard: National Fire Protection Association standard NFPA 58 applies to radio installations in vehicles fueled by liquefied petroleum (LP) gas with LP gas container in the trunk or other sealed-off space within the interior of the vehicle. This standard requires that: 1. Any space containing radio equipment shall be isolated by a seal from the space in which the LP gas container and its fittings are located. 2. Remote (outside) filling connections shall be vented to the outside. Warning - DO NOT operate the transmitter of a mobile radio when someone outside the vehicle is within two feet (0.6 meter) of the antenna. Warning - DO NOT allow children to operate transmitter - equipped radio equipment. Caution - DO NOT operate the radio near electrical blasting caps or in an explosive atmosphere. Caution - DO NOT operate the transmitter of any radio unless all RF connectors are secure and any open connectors are properly terminated. All equipment must be properly grounded for safe operation. All equipment should be serviced by a qualified technician. Note: This radio operates in FCC regulated frequency bands. All radios must be licensed by the FCC before use. Because this radio contains a transm…

Text truncated - open the document above for the full version.

1 SM-3000 Enduro series Synthesized Scanning Radio Operating Instructions About Your SM-3000 Enduro series Radio Maxon's SM-3000 Enduro series radio feature up to 13 groups and up to 16 channel operation per group for a total channel capacity of 99 channels of superior performance and reliability. Operation and functions for Maxon's SM-3000 Enduro series radios are described in this manual. We urge you to thoroughly read this manual before operating the radio. Application of some of the functions described in this manual is determined by the system you use. Your Maxon Dealer will program your radio so that you have the greatest number of functions possible relative to your needs. Should you have questions regarding the operation of the radio please consult your Maxon Dealer. About Maxon / Topaz3 Maxon is a world-respected name in professional FM two-way radio equipment operating in the UHF, VHF and 800 MHz frequencies; personal two-way communication devices, including the popular FRS ( Family Radio Service) and GMRS radios; and a varity of wireless communication products (two-way voice messaging handsets, Wireless Local Loop terminals, etc.). Topaz3 is the exclusive supplier of Maxon products to North America. For more specific product information: visit our website: www.topax3.com Table of Contents Safety / Warning Information.................................................................. Unpacking Information.......................................................... SM-3000 Enduro Series Features.................................................... Description of Radio Components......................................... Antenna Installation............................................................... SM-3000 Enduro Series Operation................................................. Power On-Volume.................................................. Channel Select Transmit.................................................................. Receive................................................................... Power Off.............................................................. Status Indicators and Audible Alert Tones............................. Scan Modes......................................................................... Normal Channel Scan............................................ Priority Channel Scan............................................. Other Scanning Features....................................................... Look Back.............................................................. Scan Channel Delete.............................................. 2 CTCSS/DCS Scanning............................................ Normal Scan TX..................................................... Priority Scan TX..................................................... Priority Only TX..................................................... Receive Only Scan................................................. Scan List Edit ........................................................................ Licensing and Service Information........................................ Software Copyrights............................................................. Maintenance........................................................................ Warranty Statement................................................................. 1 Safety / Warning Information The Federal Communications Commission (FCC), with its action in General Docket 93-62, November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Maxon subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below the Occupational Safety and Health Act and Federal Communications Commission limits. Warning - It is mandatory that radio installations in vehicles fueled by liquefied petroleum gas conform to the following standard: National Fire Protection Association standard NFPA 58 applies to radio installations in vehicles fueled by liquefied petroleum (LP) gas with LP gas container in the trunk or other sealed-off space within the interior of the vehicle. This standard requires that: 1. Any space containing radio equipment shall be isolated by a seal from the space in which the LP gas container and its fittings are located. 2. Remote (outside) filling connections shall be vented to the outside. Warning - DO NOT operate the transmitter of SM-3000 mobile radio when someone (bystanders) outside the vehicle is within 5 feet (1.6 meter) of the antenna. Safety Training Information: Antennas used for this transmitter must not exceed an antenna gain of 3 dBd. The radio must be used in vehicle-mount configurations with a maximum operating duty factor not exceeding 50%, in typical Push-To-Talk configurations. This radio is restricted to occupational use, work related operations only where radio operator must have the knowledge to control the exposure conditions of its passengers and bystanders by maintaining the minimum separation distance of 53 inches (135 cm). Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least 53 inches away from rear seat passengers in order to comply with the FCC RF exposure requirements. For roof top installation, the antenna must be placed in the center of the roof. Warning - DO NOT allow children to operate transmitter - equipped radio equipment. Caution - DO NOT operate the radio near electrical blasting caps or in an explosive atmosphere. Caution - DO NOT operate the transmitter of any radio unless all RF connectors are secure and any open connectors are properly terminated. All equipment must be properly grounded for safe operation. 3 All equipment should be serviced by a qualified technician. Note: This radio operates in FCC regulated fre…

Text truncated - open the document above for the full version.

1 SM-3000 Enduro series Synthesized Scanning Radio Operating Instructions About Your SM-3000 Enduro series Radio Maxon's SM-3000 Enduro series radio feature up to 13 groups and up to 16 channel operation per group for a total channel capacity of 99 channels of superior performance and reliability. Operation and functions for Maxon's SM-3000 Enduro series radios are described in this manual. We urge you to thoroughly read this manual before operating the radio. Application of some of the functions described in this manual is determined by the system you use. Your Maxon Dealer will program your radio so that you have the greatest number of functions possible relative to your needs. Should you have questions regarding the operation of the radio please consult your Maxon Dealer. About Maxon / Topaz3 Maxon is a world-respected name in professional FM two-way radio equipment operating in the UHF, VHF and 800 MHz frequencies; personal two-way communication devices, including the popular FRS ( Family Radio Service) and GMRS radios; and a varity of wireless communication products (two-way voice messaging handsets, Wireless Local Loop terminals, etc.). Topaz3 is the exclusive supplier of Maxon products to North America. For more specific product information: visit our website: www.topax3.com Table of Contents Safety / Warning Information.................................................................. Unpacking Information.......................................................... SM-3000 Enduro Series Features.................................................... Description of Radio Components......................................... Antenna Installation............................................................... SM-3000 Enduro Series Operation................................................. Power On-Volume.................................................. Channel Select Transmit.................................................................. Receive................................................................... Power Off.............................................................. Status Indicators and Audible Alert Tones............................. Scan Modes......................................................................... Normal Channel Scan............................................ Priority Channel Scan............................................. Other Scanning Features....................................................... Look Back.............................................................. Scan Channel Delete.............................................. 2 CTCSS/DCS Scanning............................................ Normal Scan TX..................................................... Priority Scan TX..................................................... Priority Only TX..................................................... Receive Only Scan................................................. Scan List Edit ........................................................................ Licensing and Service Information........................................ Software Copyrights............................................................. Maintenance........................................................................ Warranty Statement................................................................. 1 Safety / Warning Information The Federal Communications Commission (FCC), with its action in General Docket 93-62, November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Maxon subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below the Occupational Safety and Health Act and Federal Communications Commission limits. Warning - It is mandatory that radio installations in vehicles fueled by liquefied petroleum gas conform to the following standard: National Fire Protection Association standard NFPA 58 applies to radio installations in vehicles fueled by liquefied petroleum (LP) gas with LP gas container in the trunk or other sealed-off space within the interior of the vehicle. This standard requires that: 1. Any space containing radio equipment shall be isolated by a seal from the space in which the LP gas container and its fittings are located. 2. Remote (outside) filling connections shall be vented to the outside. Safety Training Information: Antennas used for this transmitter must not exceed an antenna gain of 3 dBd. The radio must be used in vehicle-mount configurations with a maximum operating duty factor not exceeding 50%, in typical Push-To-Talk configurations. This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is restricted to occupational use, work related operations only where radio operator must have the knowledge to control the exposure conditions of its passengers and bystanders by maintaining the minimum separation distance of 53 inches (135 cm). Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. Caution - DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “RED” LED on the front of the radio is illuminated. You can cause the radio to transmit by pressing the “PTT” button on the radio’s microphone. Caution - DO NOT operate the transmitter of SM-3000 mobile radio when someone (bystanders) outside the vehicle is within 5 feet (1.6 meter) of the antenna. Antenna Installation: For rear deck trunk installation, the antenna must be located at least 53 inches away from rear seat passengers in order to comply with the FCC RF exposure requirements. For roof top installation, the antenna must be placed in the center of the roof. Warning - DO NOT allow …

Text truncated - open the document above for the full version.

1 SM-3000 Enduro series Synthesized Scanning Radio Operating Instructions About Your SM-3000 Enduro series Radio Maxon's SM-3000 Enduro series radio feature up to 13 groups and up to 16 channel operation per group for a total channel capacity of 99 channels of superior performance and reliability. Operation and functions for Maxon's SM-3000 Enduro series radios are described in this manual. We urge you to thoroughly read this manual before operating the radio. Application of some of the functions described in this manual is determined by the system you use. Your Maxon Dealer will program your radio so that you have the greatest number of functions possible relative to your needs. Should you have questions regarding the operation of the radio please consult your Maxon Dealer. About Maxon / Topaz3 Maxon is a world-respected name in professional FM two-way radio equipment operating in the UHF, VHF and 800 MHz frequencies; personal two-way communication devices, including the popular FRS ( Family Radio Service) and GMRS radios; and a varity of wireless communication products (two-way voice messaging handsets, Wireless Local Loop terminals, etc.). Topaz3 is the exclusive supplier of Maxon products to North America. For more specific product information: visit our website: www.topax3.com Table of Contents Safety / Warning Information.................................................................. Unpacking Information.......................................................... SM-3000 Enduro Series Features.................................................... Description of Radio Components......................................... Antenna Installation............................................................... SM-3000 Enduro Series Operation................................................. Power On-Volume.................................................. Channel Select Transmit.................................................................. Receive................................................................... Power Off.............................................................. Status Indicators and Audible Alert Tones............................. Scan Modes......................................................................... Normal Channel Scan............................................ Priority Channel Scan............................................. Other Scanning Features....................................................... Look Back.............................................................. Scan Channel Delete.............................................. 2 CTCSS/DCS Scanning............................................ Normal Scan TX..................................................... Priority Scan TX..................................................... Priority Only TX..................................................... Receive Only Scan................................................. Scan List Edit ........................................................................ Licensing and Service Information........................................ Software Copyrights............................................................. Maintenance........................................................................ Warranty Statement................................................................. 1 Safety / Warning Information The Federal Communications Commission (FCC), with its action in General Docket 93-62, November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Maxon subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below the Occupational Safety and Health Act and Federal Communications Commission limits. Warning - It is mandatory that radio installations in vehicles fueled by liquefied petroleum gas conform to the following standard: National Fire Protection Association standard NFPA 58 applies to radio installations in vehicles fueled by liquefied petroleum (LP) gas with LP gas container in the trunk or other sealed-off space within the interior of the vehicle. This standard requires that: 1. Any space containing radio equipment shall be isolated by a seal from the space in which the LP gas container and its fittings are located. 2. Remote (outside) filling connections shall be vented to the outside. Safety Training Information: Antennas used for this transmitter must not exceed an antenna gain of 3 dBd. The radio must be used in vehicle-mount configurations with a maximum operating duty factor not exceeding 50%, in typical Push-To-Talk configurations. This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is restricted to occupational use, work related operations only where radio operator must have the knowledge to control the exposure conditions of its passengers and bystanders by maintaining the minimum separation distance of 53 inches (135 cm). Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. Caution - DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “RED” LED on the front of the radio is illuminated. You can cause the radio to transmit by pressing the “PTT” button on the radio’s microphone. Caution - DO NOT operate the transmitter of SM-3000 mobile radio when someone (bystanders) outside the vehicle is within 5 feet (1.6 meter) of the antenna. Antenna Installation: For rear deck trunk installation, the antenna must be located at least 53 inches away from rear seat passengers in order to comply with the FCC RF exposure requirements. For roof top installation, the antenna must be placed in the center of the roof. Warning - DO NOT allow …
