O7X-BLDS02X-Box Transmitter/Receiver Dongle

IMPORTANT NOTICE Blade 2.4 Street FCC-ID: O7X-BLDS01 FCC-ID: O7X-BLDS02 Changes or modifications not expressly approved by the manufac- turer could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde- sired operation. Pelican and its logo are registered trademarks. XBOX is a registered trademark of Microsoft Corp. Xbox® is a registered trademark of Microsoft Corp. This product is not designed, manufactured, sponsored or endorsed by Microsoft Corp , 1 Table of Contents Console Protection Guarantee ..................3 Product Layout........................................4-5 Overview ....................................................6 Features/Benefits ....................................7 Directions..................................................9 Trouble Shooting ......................................10 Warranty/Customer Service ......................11 2 Pelican’s Console Protection Guarantee assures you of Pelican’s commit- ment to quality and customer satisfaction. The Protection Guarantee warrants the connection (the plug port of the video game console and the plug of the Pelican controller) between the controller and your video game console sys- tem., i.e., that with the proper use of our controller (see manual) we agree to replace or repair your video game system in the event that our controller directly causes damage to your game console as a result of our controller failing to perform properly. Circumstances that may cause our protection guarantee to take effect might be one of the following :the video game console does not acknowledge a controller which has been plugged in, orig- inal controller fails to operate after using a Pelican con- troller, other non-pad controllers fail to operate after using a Pelican Controller. This protection warranty does not include the video game power supply, any part relating to the CD/DVD load and read mechanism, internal operating system, nor the cabinet of the video game system. This warranty will not apply if the Pelican controller is not used as directed in the product manual enclosed. For further information or help please contact us toll free at (800) 331- 3844 or on line at http://www.pelicanperformance.com 3 Console Protection Guarantee Product Layout Blade 2.4 Street Controller 4 LED Left Analog Stick Back Button Start Button White Button Black Button Action Buttons Relocated Black & White Buttons Directional Pad 5 Connect Button Signal LED Receiver/Transmitter Unit Top View Side View Overview Wireless Blade 2.4 Street controller uses advanced 2.4 GHz technology and Channel-Hopping which gives you the ability to play without the limitations and hassles of typical corded controllers and switch-dependent controllers. All of this gives you lightning fast control over your favorite games without cords to trip over, channels to set, or fears of outside interference disturbing play control. There are a few buttons, LED’s (lights), and features not found on your basic Xbox® Controller. The following is an explanation of these elements. Auto-Hopping This removes the hassle of setting chan- nels via a series of switches or having your connection corrupted by interference. Auto-hopping moves to the nearest, clearest channel for you, with no breaks in play, to make sure your signal never lags behind your com- mands. Simply press the CONNECT button on the receiver, wait three seconds and press the BACK button on the controller to make a connection. This programs the Host to connect to the Controller every time it is used. 6 Features & Benefits Auto On/Off: The controller will automatically go to sleep mode after 3 mins. of no action. Holding the START button for 5 sec- onds also sends the controller to sleep. Touch any of the four action buttons (A,B,X,Y), START, or BACK to power up your new wireless controller. Hyper-Responsive Controls:Our controls are made out of top quality components so that you lose nothing in control and response when you need it most over the life of your controller. Signal LED: If the LED light lights up green when pressing an action button or moving the analog sticks, your 2.4 Street controller has a link and is working properly. Relocated Black and White Buttons: The Black and White buttons have been relocated to give the user greater comfort and a much quicker reaction time than other controllers. 7 Battery Compartment: 2.4 Street controller requires the use of two AA batteries (not included). The batteries were placed in between the triggers making the 2.4 Street controller’s weight perfectly balanced. Double check and make sure batteries are inserted correctly. Power Save Mode: When not in use for 3 min the 2.4 Street controller auto- matically goes into a sleep mode to conserve batteries. A touch of any action button puts the controller back into play mode. The Rumble Motors will automatically disable when the batteries are getting low. You can disable the Rumble Motors manually by pressing the D-Pad Down and Back at the same time. You can restore the Rumble Motors by pressing the D-Pad Up and the Back button. 8 Please verify that all the batteries are inserted correctly. If they are inserted incorrectly, it may cause personal injury as well as damage to your 2.4 Street Wireless Controller. WARNING Directions 1. Make sure your Xbox® is turned off. 2.Remove the battery lid and place 2 AA batteries into the 2.4 Street Wireless controller. Make sure the batteries are inserted as shown in the battery compartment. 3.Insert the receiver into the Xbox® controller slot of your choice and power up the Blade Street and then your Xbox®. Note: Press the Connect button on the Receiver once (Signal LED will FLASH slowly). Then press the Back button on controller. This pr…

Text truncated - open the document above for the full version.

Letter Of Agency June 6, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Pelican Accessories authorizes Washington Laboratories, Ltd. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Shilo Prychak Product Manager Pelican Accessories

Request for Confidentiality June 6, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: O7X-BLDS02 Please be advised that under the provision of 47 CFR 0.459 the following exhibits are be held confidential on behalf of Pelican Accessories: • Schematic • Operational Description • Block Diagram The application contains technical information that Pelican Accessories deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Shilo Prychak Product Manger Pelican Accessories

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 1, 2005 RE: Pelican Accessories FCC ID: O7X-BLDS02 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The label placement photos on the “receiver/transmitter” may not be correct. The X-Box is essentially a “computer” with specialized accessory ports. This means that in addition to the 15.249 Certification, either Declaration of Conformity or Certification to Part 15B would apply. Please review these requirements and the labeling with your client. If you choose Certification, this will revert to a Composite application with a single FCC ID to cover both Part 15B and 15.249. If DofC will apply then the FCC logo must appear on this device labeling. 2.) The AC conducted Test Setup photos show the “street controller” along with what appears to be an X-Box console and a TV receiver. In addition, the AC conducted photos do not give any indication as to the cabling between the X-Box and its peripherals. Please review and correct as necessary. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

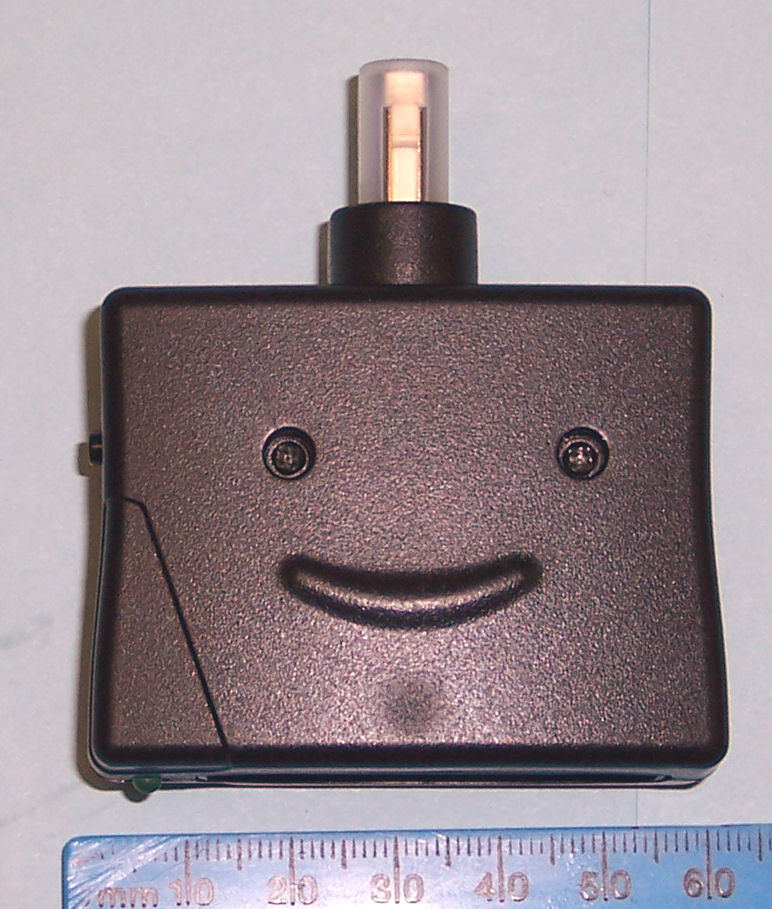

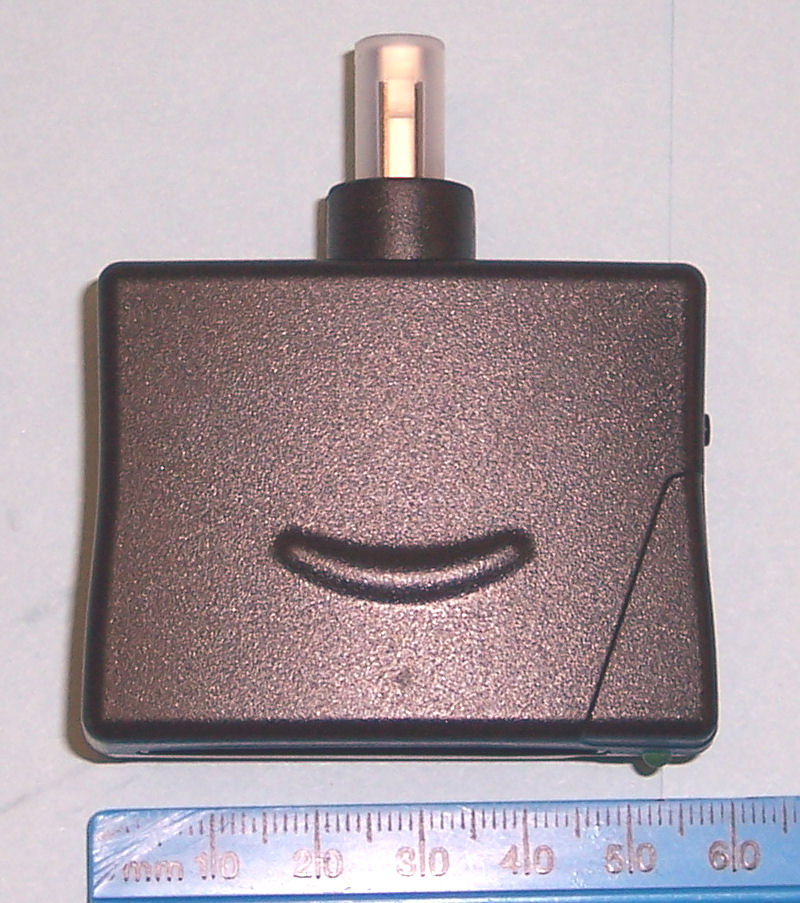

External Photos

Internal Photos Note: Radio Card lies flat upon the functional PCB. There are no components underneath.

Document 8771-01, Rev. 0 FCC ID: O7X-BLD02 FCC Certification Test Report Washington Laboratories, Ltd June 2005 FCC Certification Test Report for Pelican Accessories, Inc. FCC ID: O7X-BLD02 June 29, 2005 Prepared for: Pelican Accessories, Inc. 1840 East 27th Street Vernon, CA 90058 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 FCC Certification Test Report Document 8771-01, Rev. 0 FCC ID: O7X-BLD02 FCC Certification Test Report Washington Laboratories, Ltd June 2005 FCC Certification Test Report for the Pelican Accessories, Inc. Blade Wireless X-Box Controller Host FCC ID: O7X-BLD02 June 29, 2005 WLL JOB# 8771 Prepared by: Brian J. Dettling Documentation Specialist Reviewed by: Gregory M. Snyder Wireless/Telco Services Manager & Chief EMC Engineer Document 8771-01, Rev. 0 FCC ID: O7X-BLD02 FCC Certification Test Report Washington Laboratories, Ltd June 2005 ii Abstract This report has been prepared on behalf of Pelican Accessories, Inc. to support the attached Application for Equipment Authorization. The test report and application are submitted for an Intentional Radiator under Part 15.249 of the FCC Rules and Regulations. This Federal Communication Commission (FCC) Certification Test Report documents the test configuration and test results for a Pelican Accessories, Inc. Blade Wireless X-Box Controller Host. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The Pelican Accessories, Inc. Blade Wireless X-Box Controller Host complies with the limits for a Intentional Radiator device under Part 15.249 of the FCC Rules and Regulations. Document 8771-01, Rev. 0 FCC ID: O7X-BLD02 FCC Certification Test Report Washington Laboratories, Ltd June 2005 iii Table of Contents Abstract ............................................................................................................................... ii 1 Introduction..................................................................................................................1 1.1 Compliance Statement .........................................................................................1 1.2 Test Scope ............................................................................................................1 1.3 Contract Information............................................................................................1 1.4 Test Dates ............................................................................................................1 1.5 Test and Support Personnel .................................................................................1 2 Equipment Under Test .................................................................................................2 2.1 EUT Identification & Description .......................................................................2 2.2 Test Configuration ...............................................................................................2 2.3 Testing Algorithm................................................................................................2 2.4 Test Location .......................................................................................................2 2.5 Measurements ......................................................................................................3 2.5.1 References........................................................................................................3 2.6 Measurement Uncertainty....................................................................................3 3 Test Equipment ............................................................................................................4 4 Test Results ..................................................................................................................5 4.1 Occupied Bandwidth: (FCC Part §2.1049) ..........................................................5 4.2 Radiated Emissions: (FCC Part §2.1053) ............................................................8 4.2.1 Test Procedure...............................................................................................8 4.3 Conducted Emissions (AC Power Line) ............................................................14 List of Tables Table 1. Device Summary..................................................................................................2 Table 2: Test Equipment List............................................................................................4 Table 3. Occupied Bandwidth Results...............................................................................7 Table 4. Radiated Emissions Limits ..................................................................................8 Table 5. Radiated Emissions Test Data, Low Frequency ................................................10 Table 6. Radiated Emissions Data, Low Channel Emissions ..........................................11 Table 7. Radiated Emissions Data, Mid Channel Emissions...........................................12 Table 8. Radiated Emissions Data, High Channel Emissions .........................................13 Table 9: AC Power Line Conducted Emissions Test Data Sheet ....................................15 List of Figures Figure 1. Occupied Bandwidth, Low Channel ..................................................................5 Figure 2. Occupied Bandwidth, Mid Channel ...................................................................6 Figure 3. Occupied Bandwidth, High Channel ..................................................................7 Document 8771-01…

Text truncated - open the document above for the full version.

Test Setup Photos
