O8F-PIXUWGSM/UMTS Phone with 802.11 b/g and Bluetooth

User Guide Intellectual property notices © 2010 Palm, Inc. All rights reserved. Palm, Pixi, Synergy, Touchstone, webOS, and the Palm and Pixi logos are among the trademarks or registered trademarks owned by or licensed to Palm, Inc. Microsoft and Outlook are trademarks of the Microsoft group of companies. Exchange ActiveSync Enabled. Facebook ® is a registered trademark of Facebook, Inc. Google and Google Maps are trademarks of Google, Inc. Amazon, Amazon MP3, and the Amazon MP3 logo are trademarks of Amazon.com, Inc. or its affiliates. Doc View and PDF View are provided by Documents To Go ® , a product of DataViz, Inc. (dataviz.com). All other brand and product names are or may be trademarks of, and are used to identify products or services of, their respective owners. Disclaimer and limitation of liability Palm, Inc. and its suppliers assume no responsibility for any damage or loss resulting from the use of this guide. Palm, Inc. and its suppliers assume no responsibility for any loss or claims by third parties that may arise through the use of this software. Palm, Inc. and its suppliers assume no responsibility for any damage or loss caused by deletion of data as a result of malfunction, dead battery, or repairs. Be sure to make backup copies of all important data on other media to protect against data loss. Patent pending. This product also is licensed under United States patent 6,058,304. Use of this device requires providing a valid email address, mobile phone number, and related information for account setup and activation. A data plan is also required. An unlimited-usage data plan is strongly recommended, or additional data charges may apply. Open Source License information You can view the Open Source License terms on your phone. Tap the center of the gesture area, and then tap the Launcher icon. Swipe left until the PDF View icon appears. Tap PDF View and then tap Open Source Information.pdf. You can also view the file on your computer. Connect your phone to your computer with the USB cable. On your phone, tap USB Drive. On your computer, locate and double-click the removable drive name for your phone. To locate the drive, do the following for your operating system: •Windows Vista/Windows 7: Open Computer. •Windows XP: Open My Computer. •Mac: Open Finder. • Linux (Ubuntu): The drive is displayed on the desktop. • Other Linux distribution: The location of the drive may vary by system. After you open the drive, double-click the file Open Source Information.pdf. Recycling and disposal This symbol indicates that Palm products should be recycled and not be disposed of in unsorted municipal waste. Palm products should be sent to a facility that properly recycles electrical and electronic equipment. For information on environmental programs visit palm.com/environment or recyclewirelesss.com/. As part of Palm’s corporate commitment to be a good steward of the environment, we strive to use environmentally friendly materials, reduce waste, and develop the highest standards in electronics recycling. v. 0.0 Contents3 Contents Chapter 1Basics 6Get to know your phone 7Set up your phone 10Turn the phone on/off 11Open applications 12Work with applications 13Enter and save information 15Use the menus 16Search to find info and make calls 16View and respond to notifications Chapter 2Phone 20Make calls 21Receive calls 21Use voicemail 21What can I do during a call? 22Set up and use a Bluetooth ® hands-free device Chapter 3Email and other messages 24Email 25Messaging Chapter 4Personal information 30Contacts 31Calendar Chapter 5Photos, videos, and music 34Camera 34Photos 34Videos 35Music Chapter 6Web and wireless connections 38Wi-Fi 38Web 38Bluetooth ® wireless technology Chapter 7Documents 40Doc View 40PDF View Chapter 8Preferences 44Screen & Lock 44Sounds & Ringtones Chapter 9Learn More 48While using your phone Regulatory and Safety Information Index 4Contents Chapter 1 : Basics5 Basics You’re about to discover the many things about your Palm ® Pixi Plus phone that can help you better manage your life and have fun, too. As you become more familiar with your phone, you’ll want to personalize the settings and add applications to make it uniquely yours. But first, take the few easy steps in this chapter to set up your phone and get it running. Then learn about the key features that make moving around on your phone and accessing your information easy: gestures, menus, search, notifications, and more. In this chapter 6Get to know your phone 7Set up your phone 10Turn the phone on/off 11Open applications 12Work with applications 13Enter and save information 15Use the menus 16Search to find info and make calls 16View and respond to notifications 6Chapter1:Basics Get to know your phone Front view 1Earpiece 2Touchscreen: Tap and make other gestures directly on the screen. See To u c h s c r e e n. 3Gesture area: Make the back gesture and begin other gestures here. 4Keyboard: See Use the keyboard. 5Microphone 6Ringer switch: Slide to turn the ringer and notification sounds on or off. (Red means off.) The ringer switch does not affect music or video playback sounds. 7Vo l u m e 8Charger/microUSB connector IMPORTANTBe careful not to scratch, crush, or apply too much pressure on the touchscreen. Do not store your phone in a place where other items might damage it. Do not use harsh chemicals, cleaning solvents, or aerosols to clean the phone or its accessories. Keyboard 1Option: Press to enter numbers, punctuation, and symbols that appear above the letters on the keys (see Enter alternate keyboard characters), or to move the cursor. 2Shift: See Enter uppercase letters. 3Space 4Backspace 5Enter: Press to enter a line return (for example, in a memo or in an email message you are composing) or to accept information you entered in a field. See Enter information in a field. 6Sym: Press to enter symbols and accented characters that don't appear on the keys. See Enter characters from the symbols table. To u c h s c r e …

Text truncated - open the document above for the full version.

Date: January 8, 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Manthos Economou Sr. Mgr. Corporate Compliance [email protected] Office: 408-617-8304 Palm, Inc. 950 W. Maude Avenue M/S 21R11 Sunnyvale, CA 94085-2801 USA REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Federal Communications Commission January 22, 2010 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: O8F-PIXUW To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days from the date of the Grant of Equipment Authorization: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Manthos Economou Sr. Mgr. Corporate Compliance [email protected] Office: 408-617-8304 Palm, Inc. 950 W. Maude Avenue M/S 21R11 Sunnyvale, CA 94085-2801 USA

47173 Benicia Street, Fremont CA 94538 Tel: 510-771-1000, Fax: 510-661-0888 Federal Communication Commissions 7435 Oakland Mills Road Columbia MD 21046 Subject: Supersede Test Report Ref: Applicant: Palm Inc. FCC ID: O8F-PIXUW Applications: DTS Grant date: March 26, 2010 To Whom It May Concern: During internal audit review, CCS-TCB found the test report uploaded to FCC web site is not the final version of test report. Due to this error, CCS-TCB has modified the 2412-2462 MHz output power from 0.182 W to 0.134 W. As the result, the submitted test report has been supersede with final version of test report. Best Regards Mike Kuo / President Compliance Certification Services April 8, 2010

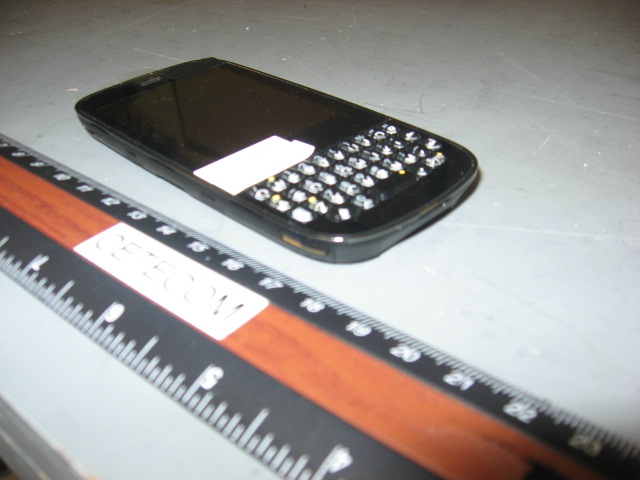

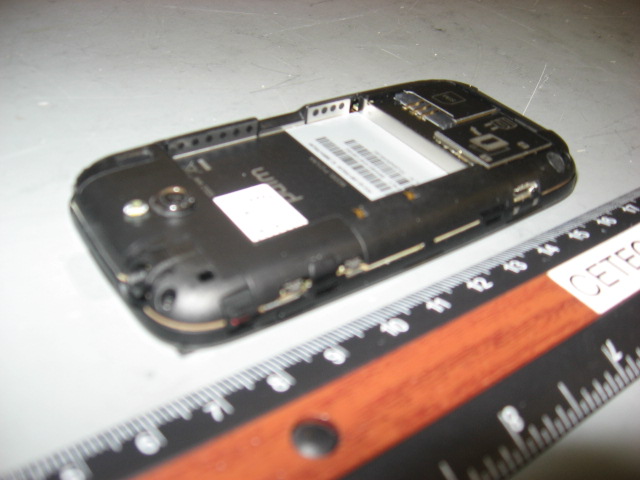

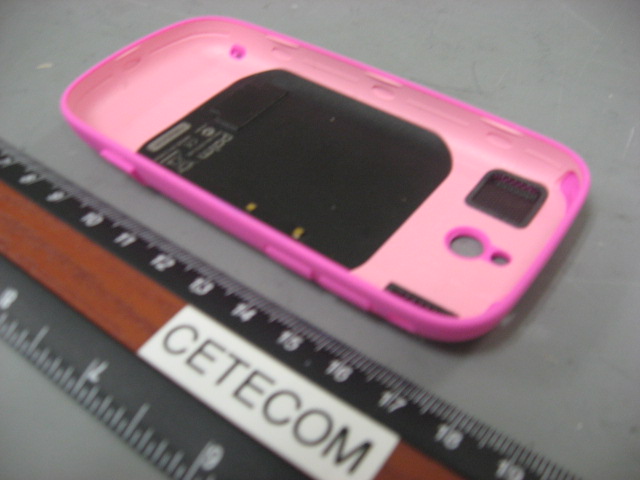

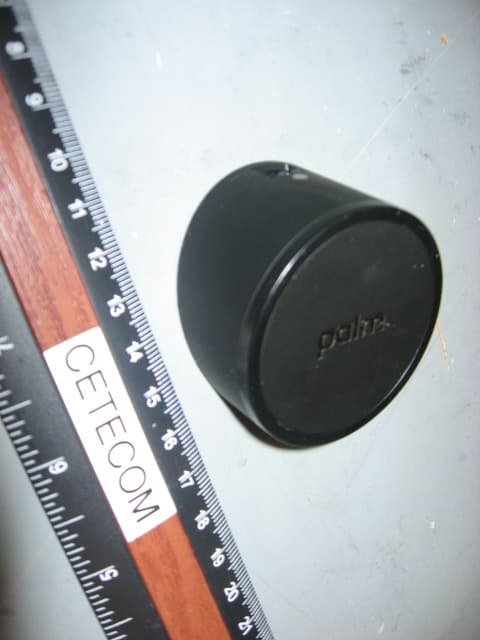

External Photos Phone Back Phone Front AC Adapter AC Adapter Battery Battery Standard Cover Standard Cover Inductive Cover Inductive Cover Inductive Dock Inductive Dock USB Cable

FCC ID and location The FCC ID on your Palm phone is located on a label inside the battery compartment.

FCC OET BULLETIN 65 SUPPLEMENT C IC RSS-102 ISSUE 3 SAR EVALUATION REPORT For GSM/UMTS Phone with 802.11bg and Bluetooth MODEL: P121UNA FCC ID: O8F- PIXUW IC: 39Ø5A-PIXUW REPORT NUMBER: 09U12974-1, Revision B ISSUE DATE: February 19, 2010 Prepared for PALM 950 MAUDE AVENUE SUNNYVALE, CA. 94085 UNITED STATES Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 09U12974-1B DATE: February 19, 2010 FCC ID: O8F-PIXUW IC: 39Ø5A- PIXUW Page 2 of 49 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- December 18, 2009 Initial Issue -- A December 21, 2009 Corrected typo on page 27 A. Zaffar B February 19, 2010 Added average RF conducted output power in Section 10.4 Sunny Shih REPORT NO: 09U12974-1B DATE: February 19, 2010 FCC ID: O8F-PIXUW IC: 39Ø5A- PIXUW Page 3 of 49 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................................. 5 2. TEST METHODOLOGY ...................................................................................................................... 6 3. FACILITIES AND ACCREDITATION.................................................................................................. 6 4. CALIBRATION AND UNCERTAINTY................................................................................................. 7 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 7 4.2. MEASUREMENT UNCERTAINTY .............................................................................................. 8 5. EQUIPMENT UNDER TEST ............................................................................................................... 9 6. SYSTEM SPECIFICATIONS ............................................................................................................. 10 7. COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUIDS .................................... 11 8. LIQUID PARAMETERS CHECK....................................................................................................... 12 8.1. LIQUID CHECK RESULTS FOR 835 MHZ ............................................................................... 13 8.2. LIQUID CHECK RESULTS FOR 1900 MHZ ............................................................................. 16 8.3. LIQUID CHECK RESULTS FOR 2450 MHZ ............................................................................. 19 9. SYSTEM CHECK .............................................................................................................................. 22 9.1. SYSTEM CHECK RESULTS FOR D835V2 .............................................................................. 23 9.2. SYSTEM CHECK RESULTS FOR D1900V2 ............................................................................ 23 9.3. SYSTEM CHECK RESULTS FOR D2450V2 ............................................................................ 24 10. OUTPUT POWER VERIFICATION............................................................................................... 25 10.1. GSM .......................................................................................................................................... 25 10.2. UMTS RELEASE 99.................................................................................................................. 26 10.3. UMTS HSDPA........................................................................................................................... 27 10.4. WIFI RF OUTPUT POWER....................................................................................................... 28 11. SUMMARY OF TEST RESULTS.................................................................................................. 29 11.1. UMTS BAND II & UMTS BAND V ............................................................................................. 29 11.1.1. LEFT HAND SIDE ............................................................................................................. 29 11.1.2. RIGHT HAND SIDE........................................................................................................... 29 11.1.3. BODY ................................................................................................................................ 30 11.1.4. BODY WITH INDUCTIVE BACK COVER ......................................................................... 30 11.2. GSM850 AND GSM1900 .......................................................................................................... 31 11.2.1. LEFT HAND SIDE ............................................................................................................. 31 11.2.2. RIGHT HAND SIDE........................................................................................................... 31 REPORT NO: 09U12974-1B DATE: February 19, 2010 FCC ID: O8F-PIXUW IC: 39Ø5A- PIXUW Page 4 of 49 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11.2.3. BODY ................................................................................................................................ 32 11.2.4. BODY WITH INDUCTIVE BACK COVER ......................................................................... 33 11.3. WIFI..........................…

Text truncated - open the document above for the full version.

Date/Time: 12/10/2009 2:06:17 PM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.871 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=15mm, Pin=100 mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.17 mW/g d=15mm, Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 37.0 V/m; Power Drift = -0.057 dB Peak SAR (extrapolated) = 1.52 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.657 mW/g Maximum value of SAR (measured) = 1.18 mW/g 0 dB = 1.18mW/g Date/Time: 12/10/2009 2:24:14 PM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=100 mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 1.18 mW/g Date/Time: 12/13/2009 9:16:31 AM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.893 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=15mm, Pin=100 mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.16 mW/g d=15mm, Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 36.4 V/m; Power Drift = -0.160 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 0.979 mW/g; SAR(10 g) = 0.641 mW/g Maximum value of SAR (measured) = 1.14 mW/g 0 dB = 1.14mW/g Date/Time: 12/13/2009 9:34:28 AM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=100 mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 1.13 mW/g Date/Time: 12/8/2009 12:14:18 PM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(7.51, 7.51, 7.51); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.16 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.7 V/m; Power Drift = -0.045 dB Peak SAR (extrapolated) = 71.0 W/kg SAR(1 g) = 37.4 mW/g; SAR(10 g) = 19.2 mW/g Normalized to target power = 1 W and actual power = 0.25 W Maximum value of SAR (measured) = 47.4 mW/g 0 dB = 47.4mW/g Date/Time: 12/8/2009 12:30:45 PM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 11.8 mW/g Date/Time: 12/9/2009 11:16:47 AM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(7.51, 7.51, 7.51); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.73 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5…

Text truncated - open the document above for the full version.

Date/Time: 12/13/2009 10:35:45 AM Test Laboratory: Compliance Certification Services 1_Left Hand Side_Touch DUT: Palm; Type: N/A; Serial: 8020 Communication System: UMTS850; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.884 mho/m; ε r = 43.5; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch - L-ch/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.01 mW/g Touch - L-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 9.29 V/m; Power Drift = 0.000 dB Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.903 mW/g; SAR(10 g) = 0.660 mW/g Info: Interpolated medium parameters used for SAR evaluation. Date/Time: 12/13/2009 10:08:53 AM Test Laboratory: Compliance Certification Services 1_Left Hand Side_Touch DUT: Palm; Type: N/A; Serial: 8020 Communication System: UMTS850; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.894 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch - M-ch/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.36 mW/g Touch - M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 10.7 V/m; Power Drift = -0.051 dB Peak SAR (extrapolated) = 1.59 W/kg SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.878 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.35 mW/g Date/Time: 12/13/2009 10:31:49 AM Test Laboratory: Compliance Certification Services 1_Left Hand Side_Touch DUT: Palm; Type: N/A; Serial: 8020 Communication System: UMTS850; Frequency: 836.6 MHz;Duty Cycle: 1:1 Touch - M-ch/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.102 mW/g Date/Time: 12/13/2009 10:58:59 AM Test Laboratory: Compliance Certification Services 1_Left Hand Side_Touch DUT: Palm; Type: N/A; Serial: 8020 Communication System: UMTS850; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.904 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch - H-ch/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.26 mW/g Touch - H-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 10.1 V/m; Power Drift = 0.005 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 1.12 mW/g; SAR(10 g) = 0.816 mW/g Info: Interpolated medium parameters used for SAR evaluation. Date/Time: 12/13/2009 6:03:27 PM Test Laboratory: Compliance Certification Services 3_Left Hand Side_Touch with Inductive cover DUT: Palm; Type: N/A; Serial: 8020 Communication System: UMTS850; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.894 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch - M-ch/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.27 mW/g Touch - M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 10.0 V/m; Power Drift = 0.112 dB Peak SAR (extrapolated) = 1.50 W/kg SAR(1 g) = 1.14 mW/g; SAR(10 g) = 0.841 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.28 mW/g Date/Time: 12/13/2009 11:46:26 AM Test Laboratory: Compliance Certification Services 2_Left Hand Side_Tilt DUT: Palm; Type: N/A; Serial: 8020 Communication System: UMTS850; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.894 mho/m; ε…

Text truncated - open the document above for the full version.
