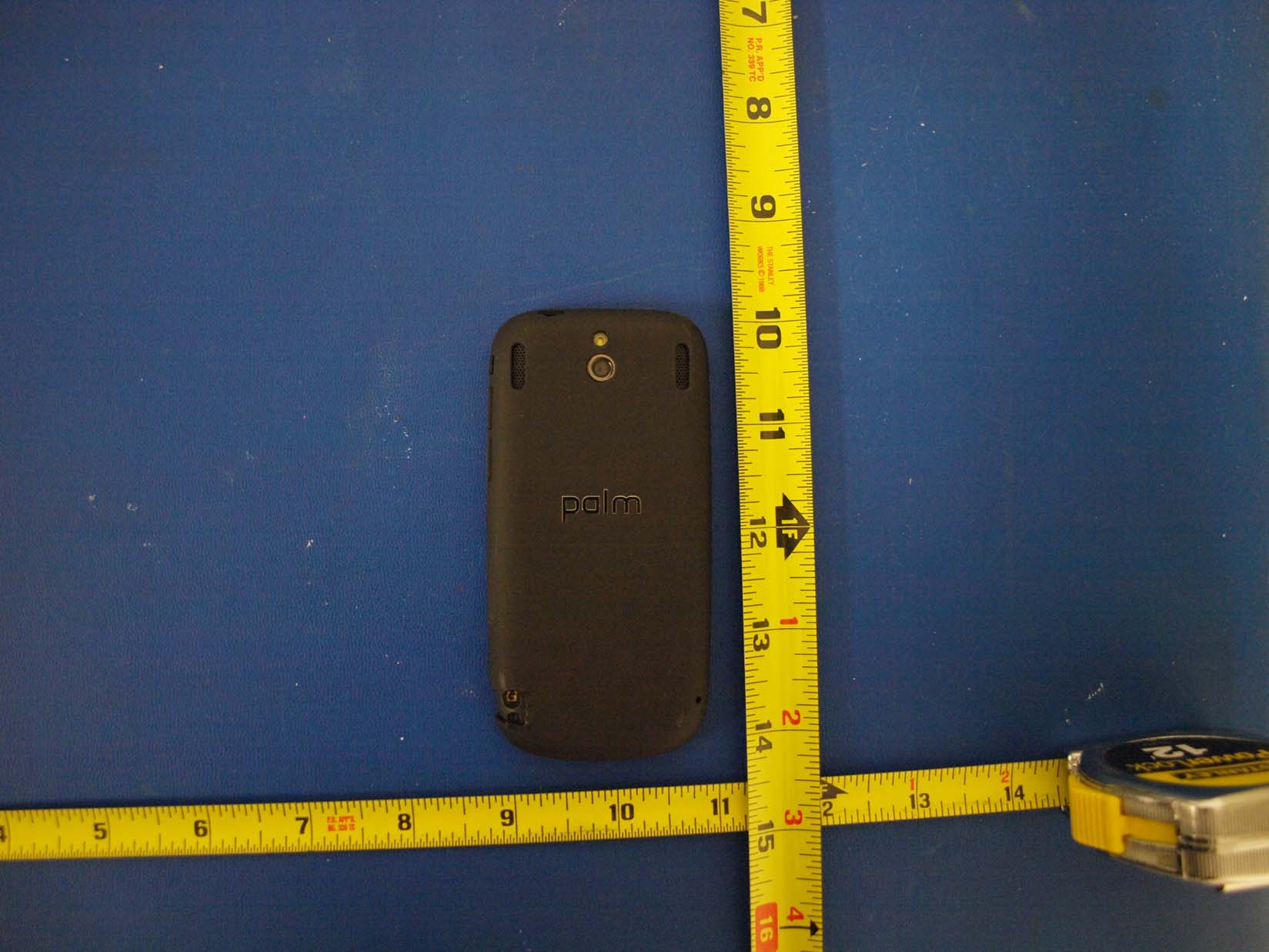

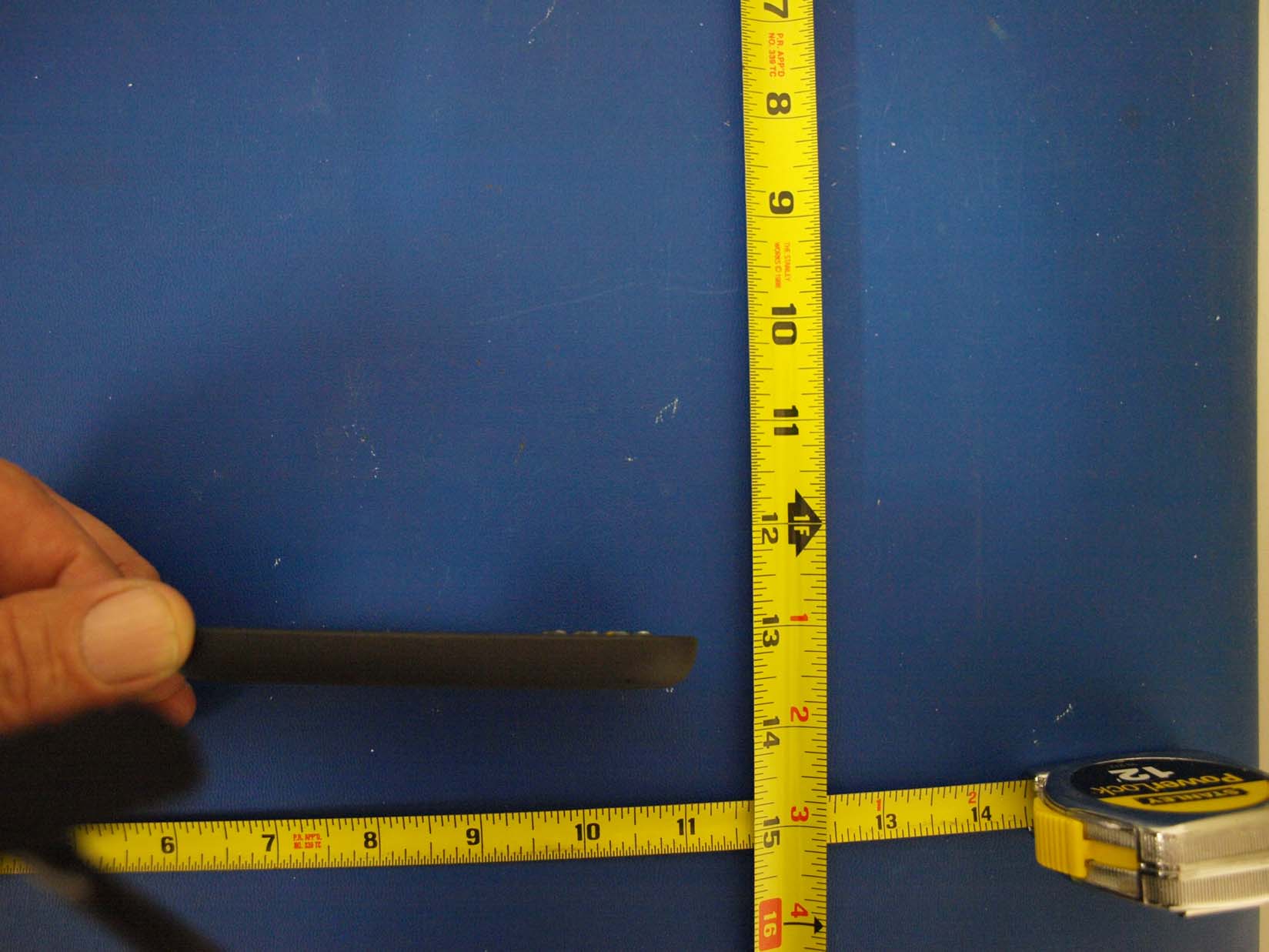

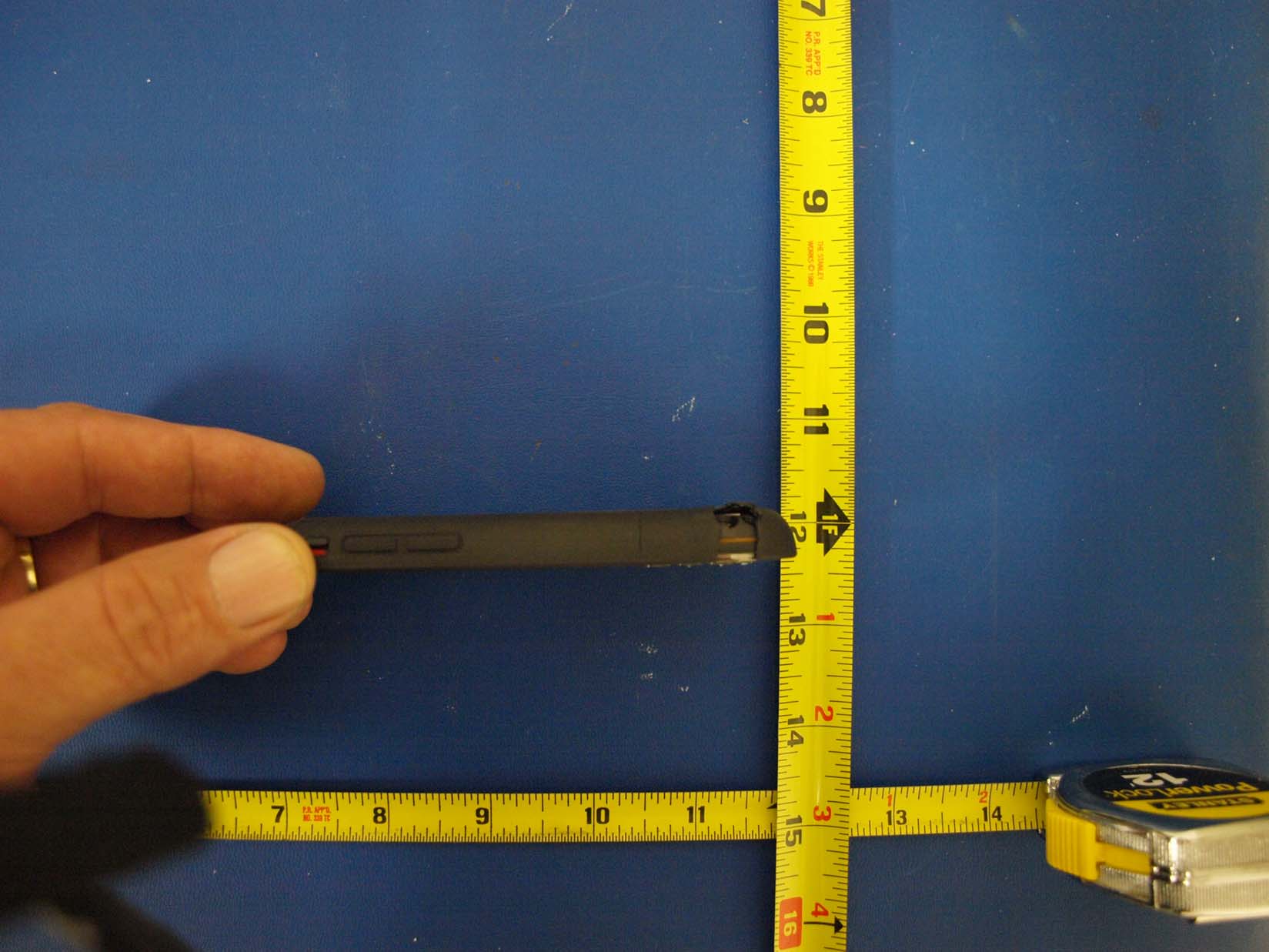

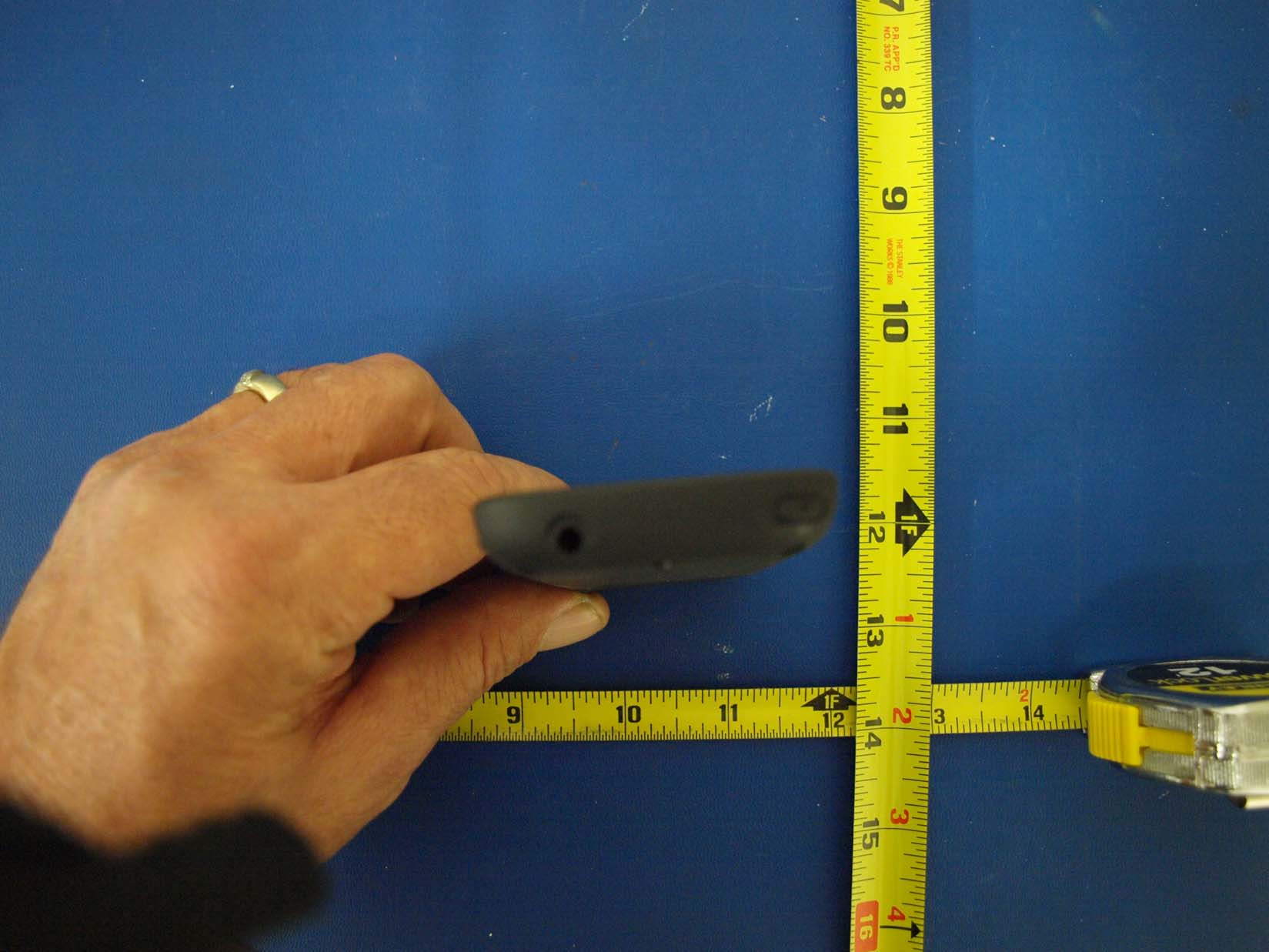

O8F-PIXYWGSM phone with 802.11 b/g and Bluetooth

User Guide Intellectual property notices © 2010 Palm, Inc. All rights reserved. Palm, Pixi, Synergy, Touchstone, webOS, and the Palm and Pixi logos are among the trademarks or registered trademarks owned by or licensed to Palm, Inc. Microsoft and Outlook are trademarks of the Microsoft group of companies. Exchange ActiveSync Enabled. Facebook ® is a registered trademark of Facebook, Inc. Google and Google Maps are trademarks of Google, Inc. Doc View and PDF View are provided by Documents To Go ® , a product of DataViz, Inc. (dataviz.com). All other brand and product names are or may be trademarks of, and are used to identify products or services of, their respective owners. Disclaimer and limitation of liability Palm, Inc. and its suppliers assume no responsibility for any damage or loss resulting from the use of this guide. Palm, Inc. and its suppliers assume no responsibility for any loss or claims by third parties that may arise through the use of this software. Palm, Inc. and its suppliers assume no responsibility for any damage or loss caused by deletion of data as a result of malfunction, dead battery, or repairs. Be sure to make backup copies of all important data on other media to protect against data loss. Patent pending. This product also is licensed under United States patent 6,058,304. Use of this device requires providing a valid email address, mobile phone number, and related information for account setup and activation. A data plan is also required. An unlimited-usage data plan is strongly recommended, or additional data charges may apply. Open Source License information You can view the Open Source License terms on your phone. Tap the center of the gesture area, and then tap the Launcher icon. Swipe left until the PDF View icon appears. Tap PDF View and then tap Open Source Information.pdf. You can also view the file on your computer. Connect your phone to your computer with the USB cable. On your phone, tap USB Drive. On your computer, locate and double-click the removable drive name for your phone. To locate the drive, do the following for your operating system: •Windows Vista/Windows 7: Open Computer. •Windows XP: Open My Computer. •Mac: Open Finder. • Linux (Ubuntu): The drive is displayed on the desktop. • Other Linux distribution: The location of the drive may vary by system. After you open the drive, double-click the file Open Source Information.pdf. Recycling and disposal This symbol indicates that Palm products should be recycled and not be disposed of in unsorted municipal waste. Palm products should be sent to a facility that properly recycles electrical and electronic equipment. For information on environmental programs visit palm.com/environment or recyclewireless.com/. As part of Palm’s corporate commitment to be a good steward of the environment, we strive to use environmentally friendly materials, reduce waste, and develop the highest standards in electronics recycling. v. 0.0 Contents3 Contents Chapter 1Basics 6Get to know your phone 8Set up your phone 10Turn the phone on/off 12Open applications 13Work with applications 13Enter and save information 15Use the menus 16Search to find info and make calls 16View and respond to notifications Chapter 2Phone 20Make calls 21Receive calls 21Use voicemail 22What can I do during a call? 22Set up and use a Bluetooth ® hands-free device Chapter 3Email, text, multimedia, and instant messaging 24Email 25Messaging Chapter 4Contacts, Calendar, and other personal information 30Contacts 31Calendar Chapter 5Photos, videos, and music 34Camera 34Photos 34Videos 35Music Chapter 6Web and wireless connections 38Wi-Fi 38Web 38Bluetooth ® wireless technology Chapter 7Documents 40Doc View 40PDF View Chapter 8Preferences 44Screen & Lock 44Sounds & Ringtones Chapter 9Learn More 48While using your phone 4Contents Regulatory and safety information Index Chapter 1 : Basics5 Basics You’re about to discover the many things about your Palm ® Pixi™ Plus phone that can help you better manage your life and have fun, too. As you become more familiar with your phone, you’ll want to personalize the settings and add applications to make it uniquely yours. But first, take the few easy steps in this chapter to set up your phone and get it running. Then learn about the key features that make moving around on your phone and accessing your information easy: gestures, menus, search, notifications, and more. In this chapter 6Get to know your phone 8Set up your phone 10Turn the phone on/off 12Open applications 13Work with applications 13Enter and save information 15Use the menus 16View and respond to notifications 6Chapter1:Basics Get to know your phone Front view 1Earpiece 2Touchscreen: Tap and make other gestures directly on the screen. 3Gesture area: Make the back gesture and begin other gestures here. 4Keyboard 5Microphone 6Ringer switch: Slide to turn the ringer and notification sounds on or off. (Red means off.) The ringer switch does not affect music or video playback sounds. 7Vo l u m e 8Charger/microUSB connector IMPORTANTBe careful not to scratch, crush, or apply too much pressure on the touchscreen. Do not store your phone in a place where other items might damage it. Do not use harsh chemicals, cleaning solvents, or aerosols to clean the phone or its accessories. Keyboard 1Option: Press to enter numbers, punctuation, and symbols that appear above the letters on the keys, or to move the cursor. 2Shift 3Space 4Backspace 5Enter: Press to enter a line return (for example, in a memo or in an email message you are composing) or to accept information you entered in a field. 6Sym: Press to enter symbols and accented characters that don't appear on the keys.. Chapter 1 : Basics7 Touchscreen 1Application name: Displays the name of the currently open application. Drag down over the app name to open the application menu. 2Launcher: See Open an application in the Launcher. 3Scroll arrow: Swipe up or down to see icons that are on the page but hidden. 4Quick …

Text truncated - open the document above for the full version.

Federal Communications Commission March 17, 2010 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: O8F-PIXYW To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days from the date of the Grant of Equipment Authorization: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Manthos Economou Sr. Mgr. Corporate Compliance [email protected] Office: 408-617-8304 Palm, Inc. 950 W. Maude Avenue M/S 21R11 Sunnyvale, CA 94085-2801 USA

FCC ID and location The FCC ID on your Palm phone is located on a label inside the battery compartment. FCC ID label inside battery compartment

FCC OET BULLETIN 65 SUPPLEMENT C SAR EVALUATION REPORT For GSM850/1900MHz + 802.11bg + BT2.1+EDR MODEL: P121UEU FCC ID: O8F- PIXYW REPORT NUMBER: 10U13098-5A ISSUE DATE: March 15, 2010 Prepared for PALM 950 MAUDE AVENUE SUNNYVALE, CA. 94085 UNITED STATES Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13098-5A DATE: March 15, 2010 FCC ID: O8F- PIXYW Page 2 of 40 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- March 10, 2010 Initial Issue -- -- March 15, 2010 Corrected typo on Section 4.1 from SPAEG to SPEAG Sunny Shih REPORT NO: 10U13098-5A DATE: March 15, 2010 FCC ID: O8F- PIXYW Page 3 of 40 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................................. 5 2. TEST METHODOLOGY ...................................................................................................................... 6 3. FACILITIES AND ACCREDITATION.................................................................................................. 6 4. CALIBRATION AND UNCERTAINTY................................................................................................. 7 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 7 4.2. MEASUREMENT UNCERTAINTY .............................................................................................. 8 5. EQUIPMENT UNDER TEST ............................................................................................................... 9 6. SYSTEM SPECIFICATIONS ............................................................................................................. 10 7. LIQUID PARAMETERS CHECK....................................................................................................... 11 7.1. LIQUID CHECK RESULTS FOR 835 MHZ ............................................................................... 12 7.2. LIQUID CHECK RESULTS FOR 1900 MHZ ............................................................................. 14 7.3. LIQUID CHECK RESULTS FOR 2450 MHZ ............................................................................. 16 8. SYSTEM CHECK .............................................................................................................................. 18 8.1. SYSTEM CHECK RESULTS FOR D835V2 .............................................................................. 19 8.2. SYSTEM CHECK RESULTS FOR D1900V2 ............................................................................ 19 8.3. SYSTEM CHECK RESULTS FOR D2450V2 ............................................................................ 19 9. OUTPUT POWER VERIFICATION ................................................................................................... 20 9.1. GSM .......................................................................................................................................... 20 9.2. WIFI RF OUTPUT POWER....................................................................................................... 21 10. SUMMARY OF TEST RESULTS.................................................................................................. 22 10.1. GSM850 .................................................................................................................................... 22 10.1.1. LEFT HAND SIDE ............................................................................................................. 22 10.1.2. RIGHT HAND SIDE........................................................................................................... 22 10.1.3. BODY ................................................................................................................................ 23 10.1.4. BODY WITH INDUCTIVE BACK COVER ......................................................................... 23 10.2. GSM1900 .................................................................................................................................. 24 10.2.1. LEFT HAND SIDE ............................................................................................................. 24 10.2.2. RIGHT HAND SIDE........................................................................................................... 24 10.2.3. BODY ................................................................................................................................ 25 10.2.4. BODY WITH INDUCTIVE BACK COVER ......................................................................... 25 10.3. WIFI........................................................................................................................................... 26 10.3.1. LEFT HAND SIDE ............................................................................................................. 26 REPORT NO: 10U13098-5A DATE: March 15, 2010 FCC ID: O8F- PIXYW Page 4 of 40 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 10.3.2. RIGHT HAND SIDE........................................................................................................... 26 10.3.3. BODY WORN .................................................................................................................... 26 1…

Text truncated - open the document above for the full version.

Date/Time: 3/6/2010 12:14:24 PM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.883 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=15mm, Pin=100 mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.16 mW/g d=15mm, Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 36.5 V/m; Power Drift = -0.060 dB Peak SAR (extrapolated) = 1.51 W/kg SAR(1 g) = 0.994 mW/g; SAR(10 g) = 0.651 mW/g Maximum value of SAR (measured) = 1.17 mW/g Date/Time: 3/6/2010 12:32:08 PM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=100 mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 1.17 mW/g Date/Time: 3/5/2010 8:36:43 PM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.37 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(7.51, 7.51, 7.51); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.13 mW/g d=10mm, Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.9 V/m; Power Drift = -0.134 dB Peak SAR (extrapolated) = 7.41 W/kg SAR(1 g) = 3.92 mW/g; SAR(10 g) = 2.03 mW/g Maximum value of SAR (measured) = 4.98 mW/g Date/Time: 3/5/2010 8:53:17 PM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 d=10mm, Pin=100mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 4.99 mW/g Date/Time: 3/5/2010 11:41:43 AM Test Laboratory: Compliance Certification Services System Performance Check - D2450V2 DUT: Dipole ; Type: D2450V2; Serial: 748 Communication System: System Check Signal - CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.48, 6.48, 6.48); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 6.09 mW/g d=10mm, Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.4 V/m; Power Drift = 0.342 dB Peak SAR (extrapolated) = 10.6 W/kg SAR(1 g) = 5.11 mW/g; SAR(10 g) = 2.34 mW/g Maximum value of SAR (measured) = 6.72 mW/g Date/Time: 3/5/2010 11:58:47 AM Test Laboratory: Compliance Certification Services System Performance Check - D2450V2 DUT: Dipole ; Type: D2450V2; Serial: 748 Communication System: System Check Signal - CW; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=100mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 6.60 mW/g

Date/Time: 3/6/2010 4:51:00 PM Test Laboratory: Compliance Certification Services GSM835_Left Hand Side_Touch DUT: Palm; Type: N/A; Serial: N/A Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.884 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.356 mW/g Touch_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 20.2 V/m; Power Drift = 0.076 dB Peak SAR (extrapolated) = 0.448 W/kg SAR(1 g) = 0.345 mW/g; SAR(10 g) = 0.252 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.386 mW/g Date/Time: 3/6/2010 3:28:37 PM Test Laboratory: Compliance Certification Services GSM835_Left Hand Side_Touch with inductive cover DUT: Palm; Type: N/A; Serial: N/A Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.884 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.364 mW/g Touch_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 20.3 V/m; Power Drift = 0.015 dB Peak SAR (extrapolated) = 0.443 W/kg SAR(1 g) = 0.342 mW/g; SAR(10 g) = 0.249 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.380 mW/g Date/Time: 3/6/2010 3:59:08 PM Test Laboratory: Compliance Certification Services GSM835_Left Hand Side_Tilt DUT: Palm; Type: N/A; Serial: N/A Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.884 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.151 mW/g Touch_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 13.3 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 0.183 W/kg SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.105 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.155 mW/g Date/Time: 3/6/2010 12:45:43 PM Test Laboratory: Compliance Certification Services GSM835_Right Hand Side_Touch DUT: Palm; Type: N/A; Serial: N/A Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.884 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom section: Right Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.314 mW/g Touch_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 18.4 V/m; Power Drift = 0.005 dB Peak SAR (extrapolated) = 0.350 W/kg SAR(1 g) = 0.270 mW/g; SAR(10 g) = 0.199 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.300 mW/g Date/Time: 3/6/2010 1:11:10 PM Test Laboratory: Compliance Certification Services GSM835_Right Hand Side_Tilt DUT: Palm; Type: N/A; Serial: N/A Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.884 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom section: Right Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(8.72, 8.72, 8.72); Calibrated: 3/23/2009 - …

Text truncated - open the document above for the full version.

Date/Time: 3/5/2010 9:05:39 PM Test Laboratory: Compliance Certification Services GSM1900_Left Hand Side_Touch DUT: Palm; Type: N/A; Serial: N/A Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; σ = 1.36 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(7.51, 7.51, 7.51); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.637 mW/g Touch_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 8.06 V/m; Power Drift = -0.148 dB Peak SAR (extrapolated) = 0.873 W/kg SAR(1 g) = 0.602 mW/g; SAR(10 g) = 0.361 mW/g Maximum value of SAR (measured) = 0.709 mW/g Date/Time: 3/5/2010 9:57:52 PM Test Laboratory: Compliance Certification Services GSM1900_Left Hand Side_Touch with inductive cover DUT: Palm; Type: N/A; Serial: N/A Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; σ = 1.36 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(7.51, 7.51, 7.51); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.600 mW/g Touch_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 8.41 V/m; Power Drift = -0.117 dB Peak SAR (extrapolated) = 0.854 W/kg SAR(1 g) = 0.573 mW/g; SAR(10 g) = 0.344 mW/g Maximum value of SAR (measured) = 0.683 mW/g Date/Time: 3/5/2010 9:30:38 PM Test Laboratory: Compliance Certification Services GSM1900_Left Hand Side_Tilt DUT: Palm; Type: N/A; Serial: N/A Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; σ = 1.36 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(7.51, 7.51, 7.51); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.236 mW/g Tilt_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 11.0 V/m; Power Drift = -0.002 dB Peak SAR (extrapolated) = 0.296 W/kg SAR(1 g) = 0.204 mW/g; SAR(10 g) = 0.132 mW/g Date/Time: 3/5/2010 10:23:56 PM Test Laboratory: Compliance Certification Services GSM1900_Right Hand Side_Touch DUT: Palm; Type: N/A; Serial: N/A Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.36 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Right Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(7.51, 7.51, 7.51); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.559 mW/g Touch_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 6.72 V/m; Power Drift = 0.070 dB Peak SAR (extrapolated) = 0.724 W/kg SAR(1 g) = 0.464 mW/g; SAR(10 g) = 0.290 mW/g Maximum value of SAR (measured) = 0.549 mW/g Date/Time: 3/5/2010 10:48:13 PM Test Laboratory: Compliance Certification Services GSM1900_Right Hand Side_Tilt DUT: Palm; Type: N/A; Serial: N/A Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.36 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Right Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: -…

Text truncated - open the document above for the full version.
