O8FJIMICellphone with Bluetooth

CONTENTS i Learning the basics . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Palm ® Treo™ 700w smartphone overview . . . . . . . . . . . . . . . . . . . . . 1 Turning your smartphone on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Moving around the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Opening and closing applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using your Today screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Synchronizing contacts and other info . . . . . . . . . . . . . . . . . . . . . . . 16 Maximizing battery life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Using your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Phone overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Receiving calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Using voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Managing active calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Creating a speed dial button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Using a phone headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Staying organized . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Staying in touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Browsing the web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Setting up a Bluetooth ® connection . . . . . . . . . . . . . . . . . . . . . . . . . 56 ii Playing media files . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Pictures & Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Windows Media Player Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Staying productive . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Word Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 PowerPoint Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Excel Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Managing files and applications . . . . . . . . . . . . . . . . . . 70 Finding information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Installing applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Setting synchronization options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Using expansion cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 Customizing your smartphone . . . . . . . . . . . . . . . . . . . 78 Today screen settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Display and appearance settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Application settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 Locking your smartphone and info . . . . . . . . . . . . . . . . . . . . . . . . . . 84 System settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Getting help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Performing a soft reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Where to learn more . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . 91 LEARNING THE BASICS 1 LEARNING THE BASICS PALM ® TREO™ 700W SMARTPHONE OVERVIEW The following illustrations show the locations and names of the physical features of your Palm ® Treo™ 700w smartphone. Refer to these illustrations while following this guide. Indicator light (phone and charge indicator) Multi- connector 5-way navigator Earpiece Power/End button Microphone Headset jack Start button Phone/Send button Side button OK button Volume button Action keys 2 Ringer switch Antenna Infrared (IR) port Stylus Expansion card slot Camera lens (camera smart- phone only) Battery door release Speaker Self-portrait mirror LEARNING THE BASICS 3 TURNING YOUR SMARTPHONE ON/OFF You can use the organizer features of your Treo 700w smartphone independently of the wireless features and applications. In other words, the screen and phone are designed to be turned off and on separately. NOTETo conserve battery power, the screen turns off automatically after one minute. If you want the screen to stay on longer, you can adjust the shutoff setting. Press Start, select Settings, select the System tab, and then select Power. Select the Advanced tab, and then increase the On battery power setting. Turning your phone on and off When you turn on your phone, it connects to a mobile network so that you can make and receive phone calls and use other wireless services. 1. Press and hold Power/End to turn on your phone. When your smartphone locates a signal, Verizon Wireless and the signal-strength icon appear at the top of the screen and the indicator light flashes green, indicating you can use the phone and Internet features (if supported by the local network). If you’re outside a cove…

Text truncated - open the document above for the full version.

19 September 2005 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality request for FCC ID: O8FJIMI To whom it may concern, Palm requests that the following documents contained in this certification application be permanently withheld from public disclosure. • All schematic diagrams • All Assembly drawings, component placement drawings • Theory of Operations (Functional requirements document) • All Parts lists (BOM – Bill of Materials) • All block diagrams Palm also certifies that no party to this application is subject to denial of benefits, including FCC benefits, pursuant to section 5301 of the anti-drug abuse act of 1988, 21 U.S.C 853(a) Sincerely David Waitt Palm Sr. Regulatory Engineer Palm Inc. 950 West Maude Avenue Sunnyvale, California 95085-2801

19 September 2005 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: TEMPORARY Confidentiality request for FCC ID: O8FJIMI To whom it may concern, Palm requests that the following documents contained in this certification application be temporarily withheld from public disclosure. Palm will give appropriate notice when the product is available to the public and these documents can be released for public disclosure. • All photos of the device, internal and external contained in separate exhibits Treo_xxx_ext_int_photos.pdf • All test setup photos contained in separate exhibits (This would include the SAR test setup photos but not the setup photos in the FCC Part 22/24 , RSS 133/134 report) Treo XXX SAR Test Setup Photos.pdf • User Manual Palm also certifies that no party to this application is subject to denial of benefits, including FCC benefits, pursuant to section 5301 of the anti-drug abuse act of 1988, 21 U.S.C 853(a) Sincerely Palm Inc. 950 West Maude Avenue Sunnyvale, California 95085-2801 David Waitt Palm Sr. Regulatory Engineer

Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 91 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 Front of DUT Back of DUT EXTERNAL DUT PHOTOGRAPHS Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 92 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 Left Side of DUT Right Side of DUT EXTERNAL DUT PHOTOGRAPHS Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 93 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 Top end of DUT Bottom end of DUT EXTERNAL DUT PHOTOGRAPHS Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 94 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 EXTERNAL DUT PHOTOGRAPHS Leather Side Case with Belt-Clip Accessory (SKU#3180WW) (Front Keypad/LCD Side of DUT Facing Body) Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 95 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 EXTERNAL DUT PHOTOGRAPHS Leather Side Case with Belt-Clip Accessory (SKU#3180WW) (Front Keypad/LCD Side of DUT Facing Body) Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 96 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 EXTERNAL DUT PHOTOGRAPHS Leather Side Case with Belt-Clip (SKU#3180WW) & Generic Ear-Microphone Accessories (Front Keypad/LCD Side of DUT Facing Body) Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 97 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 EXTERNAL DUT PHOTOGRAPHS Fitted Leather Pouch & Swivel Belt-Clip (SKU#3179WW) with Generic Ear-Microphone Accessories (Back of DUT Facing Body) Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 98 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 EXTERNAL DUT PHOTOGRAPHS Fitted Leather Pouch and Swivel Belt-Clip Accessory (SKU#3179WW) (Back of DUT Facing Body) Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 99 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 Top end of DUT & Fitted Leather Pouch Bottom end of DUT & Fitted Leather Pouch EXTERNAL DUT PHOTOGRAPHS Fitted Leather Pouch and Swivel Belt-Clip Accessory (SKU#3179WW) (Back of DUT Facing Body) Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs In…

Text truncated - open the document above for the full version.

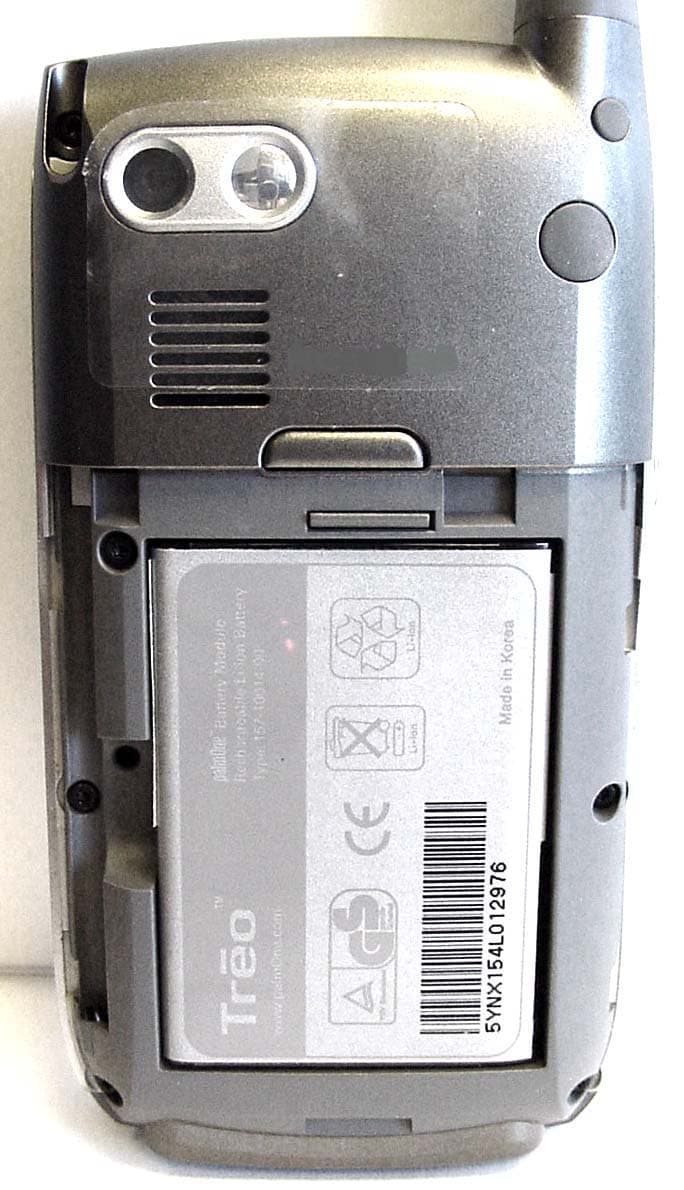

19 September 2005 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Regulatory label location for FCC ID: O8FJIMI Back cover removed, battery compartment location of regulatory label Rear view of Treo xxx Palm Inc. 950 West Maude Avenue Sunnyvale, California 95085-2801

Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 1 Total Page: 11 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 2 Rev.00 Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 3 Rev.00 Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 5 Rev.00 Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 9 Rev.00 Bluetooth module: Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 10 Rev.00 CDMA module: Compliance Certification Services Inc. Report No: 50713106 Date of Issue: August 06, 2005 Page 11 Rev.00 Bluetooth Antenna: CDMA Antenna:

To: Mr. Tim Johnson, American TCB From: David Waitt Subject: FCC ID: O8FJIMI (ADMIN REPLY) Question #10, Request for additional photo. IC: 3905A-JIMI Date: 26 Sept 2005 This letter addresses your request for an additional internal photo of the new Palm Treo product. This exhibit should be held confidential temporarily. If there are any questions or if additional information is required, please contact me at [email protected] On behalf of Palm Inc, David Waitt Sr. Regulatory Engineer [email protected] Palm Inc. 950 West Maude Avenue Sunnyvale, California 95085-2801

Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 1 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE SAR TEST REPORT FOR THE PALM, INC. PORTABLE DUAL-BAND PCS/CELLULAR CDMA2000 PHONE WITH BLUETOOTH MODEL(S): TREO XXX FCC ID: O8FJIMI IC: 3905A-JIMI Test Report Serial Number 082205O8F-T664-S24C Issue 1.1 Test Report Issue Date September 09, 2005 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Test Report Prepared by: Cheri Haight Test Report Writer Celltech Labs Inc. Test Report Approved By: Jonathan Hughes General Manager Celltech Labs Inc. Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 2 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information Palm, Inc. 950 West Maude Avenue Sunnyvale, CA 94085-2801 United States FCC IDENTIFER: O8FJIMI IC IDENTIFIER: 3905A-JIMI Model(s): Treo XXX FCC Rule Part(s): 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (01-01) IEEE Standard 1528-2003 FCC Classification: PCS Licensed Transmitter held to ear (PCE) Device Description: Portable Dual-Band PCS/Cellular CDMA2000 Phone with co-located Bluetooth Tx Frequency Range(s): 1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) 2402 - 2480 MHz (Bluetooth) Max. RF Output Power Tested: 23.8 dBm Conducted (PCS CDMA) 24.0 dBm Conducted (Cellular CDMA) 0 dBm Peak Conducted (Bluetooth) Battery Type(s) Tested: Lithium-ion 3.7 VDC (P/N: 157-10014-00) Antenna Type(s) Tested: Fixed Stubby (Dual-Band CDMA) Internal (Bluetooth) Body-Worn Accessories Tested: Leather Side Case with Belt-Clip (SKU#3180WW) Leather Pouch and Swivel Belt-Clip (SKU#3179WW) Additional Configuration(s) Tested: 1.5 cm Air-Gap Spacing (Front and Back Sides of DUT) Audio Accessories Tested: Generic Ear-Microphone Max. SAR Levels Evaluated: Head: 1.26 W/kg (PCS Band); 1.26 W/kg (Cellular Band) Body: 0.548 W/kg (PCS Band); 1.01 W/kg (Cellular Band) Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 1 (Provisional), and IEEE Standard 1528-2003 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Tested By: Sean Johnston Compliance Technologist Celltech Labs Inc. Reviewed By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 TABLE of CONTENTS 1.0 INTRODUCTION __________________________________________________________ 4 2.0 DESCRIPTION of Device Under Test (DUT) ____________________________________ 4 3.0 SAR MEASUREMENT SYSTEM ______________________________________________ 5 4.0 MEASUREMENT SUMMARY ________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION ____________________________________________ 10 6.0 EVALUATION PROCEDURES ______________________________________________ 12 7.0 SYSTEM PERFORMANCE CHECK __________________________________________ 13 8.0 SIMULATED EQUIVALENT TISSUES ________________________________________ 14 9.0 SAR SAFETY LIMITS _____________________________________________________ 14 10.0 ROBOT SYSTEM SPECIFICATIONS ________________________________________ 15 11.0 PROBE SPECIFICATION (ET3DV6) _________________________________________ 16 12.0 SAM PHANTOM V4.0C ___________________________________________________ 16 13.0 DEVICE HOLDER _______________________________________________________ 16 14.0 TEST EQUIPMENT LIST ______________________________…

Text truncated - open the document above for the full version.

Applicant: Palm, Inc. FCC ID: O8FJIMIIC ID: 3905A-JIMI Model:Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.:1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc.21 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SARFCC 2.1093 IC RSS-102 APPENDIX A - SAR MEASUREMENT DATA Applicant: Palm, Inc. FCC ID: O8FJIMIIC ID: 3905A-JIMI Model:Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.:1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc.22 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SARFCC 2.1093 IC RSS-102 Date Tested: 08/23/2005 Head SAR - Cellular Band - Right Ear - Cheek/Touch Position - Channel 384 DUT: Palm Inc. Model: Treo XXX; Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth; Serial: PWVC0835H0AX Ambient Temp: 22.9 qC; Fluid Temp: 22.7 qC; Barometric Pressure: 101.8 kPa; Humidity: 31% Communication System: Cellular CDMA RF Output Power: 23.8 dBm (Conducted) Frequency: 836.52 MHz; Channel 384; Duty Cycle: 1:1 Li-ion Battery Pack (P/N: 157-10014-00) Medium: HSL835 (ı = 0.87 mho/m; İ r = 41.3; ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(6.47, 6.47, 6.47); Calibrated: 18/03/2005 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn370; Calibrated: 25/01/2005 - Phantom: SAM 4.0; Type: Fiberglas; Serial: 1033 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Head SAR - Cellular Band - Right Ear - Cheek/Touch Position - Mid Channel/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Head SAR - Cellular Band - Right Ear - Cheek/Touch Position - Mid Channel/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 31.8 V/m; Power Drift = 0.0783 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 1.06 mW/g; SAR(10 g) = 0.784 mW/g Head SAR - Cellular Band - Right Ear - Cheek/Touch Position - Mid Channel/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 31.8 V/m; Power Drift = 0.0783 dB Peak SAR (extrapolated) = 1.46 W/kg SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.734 mW/g  Applicant: Palm, Inc. FCC ID: O8FJIMIIC ID: 3905A-JIMI Model:Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.:1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc.23 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SARFCC 2.1093 IC RSS-102 Date Tested: 08/23/2005 Head SAR - Cellular Band - Right Ear - Cheek/Touch Position - Channel 1013 DUT: Palm Inc. Model: Treo XXX; Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth; Serial: PWVC0835H0AX Ambient Temp: 22.9 qC; Fluid Temp: 22.7 qC; Barometric Pressure: 101.8 kPa; Humidity: 31% Communication System: Cellular CDMA RF Output Power: 24.0 dBm (Conducted) Frequency: 824.70 MHz; Channel 1013; Duty Cycle: 1:1 Li-ion Battery Pack (P/N: 157-10014-00) Medium: HSL835 (ı = 0.87 mho/m; İ r = 41.3; ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(6.47, 6.47, 6.47); Calibrated: 18/03/2005 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn370; Calibrated: 25/01/2005 - Phantom: SAM 4.0; Type: Fiberglas; Serial: 1033 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Head SAR - Cellular Band - Right Ear - Cheek/Touch Position - Low Channel/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Head SAR - Cellular Band - Right Ear - Cheek/Touch Position - Low Channel/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.5 V/m; Power Drift = 0.296 dB Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.739 mW/g Head SAR - Cellular Band - Right Ear - Cheek/Touch Position - Low Channel/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.5 V/m; Power Drift = 0.296 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.942 mW/g; SAR(10 g) = 0.611 mW/g  Applicant: Palm, Inc. FCC ID: O8FJIMIIC ID: 3905A-JIMI Model:Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.:1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc.24 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SARFCC 2.1093 IC RSS-102 Date Tested: 08/23/2005 Head SAR - Cellular Band - Right Ear - Cheek/Touch Position - Channel 777 DUT: Palm Inc. Model: Treo XXX; Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth; Serial: PWVC0835H0AX Ambient Temp: 22.9 qC; Fluid Temp: 22.7 qC; Barometric Pressure: 101.8 kPa; Humidity: 31% Communication System: Cellular CDMA RF Output Power: 24.0 dBm (Conducted) Frequency: 848.31 MHz; Channel 777; Duty Cycle: 1:1 Li-ion Battery Pack (P/N: 157-10014-00) Medium: HSL835 (ı = 0.87 mho/m; İ r = 41.3; ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(6.47, 6.47, 6.47); Calibrated: 18/03/2005 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn370; Calibrated: 25/01/2005 - Phantom: SAM 4.0; Type: Fiberglas; Serial: 1033 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Head SAR -…

Text truncated - open the document above for the full version.

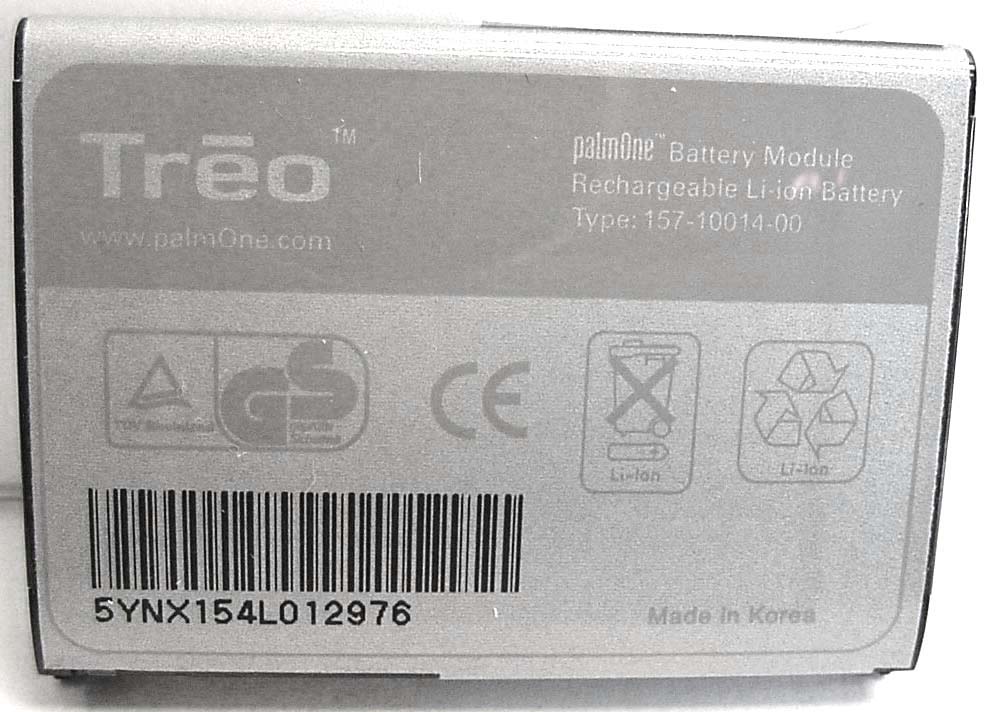

Applicant: Palm, Inc. FCC ID: O8FJIMI IC ID: 3905A-JIMI Model: Treo XXX DUT Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth Freq.: 1851.25-1908.75 / 824.70-848.31 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 43 of 105 Test Report Serial No.: 082205O8F-T664-S24C Rev. No.: Revision 1 Date of Report Issue: Sept. 09, 2005 Test Date(s): August 22-25 & 30, 2005 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 Date Tested: 08/24/2005 Head SAR - PCS Band - Left Ear - Cheek/Touch Position - Channel 600 DUT: Palm Inc. Model: Treo XXX; Type: Portable Dual-Band CDMA 2000 Phone with Bluetooth; Serial: PWVC0835H0AX Ambient Temp: 24.0 °C; Fluid Temp: 23.5 °C; Barometric Pressure: 102.0 kPa; Humidity: 31% Communication System: PCS CDMA RF Output Power: 23.8 dBm (Conducted) Frequency: 1880.00 MHz; Channel 600; Duty Cycle: 1:1 Li-ion Battery Pack (P/N: 157-10014-00) Medium: HSL1880 (σ = 1.35 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(5.18, 5.18, 5.18); Calibrated: 18/03/2005 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn370; Calibrated: 25/01/2005 - Phantom: SAM 4.0; Type: Fiberglas; Serial: 1033 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Head SAR - PCS Band - Left Ear - Cheek/Touch Position - Mid Channel/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Head SAR - PCS Band - Left Ear - Cheek/Touch Position - Mid Channel/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.6 V/m; Power Drift = -0.123 dB Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g)…
