O8FMADECACDMA Cellphone with Bluetooth

Sprint PCS Vision SM Smart Device Treo™ 650 by palmOne User’s Guide Portions copyright © 2002-2004 Sprint. All rights reserved. No reproduction in whole or in part without prior written approval. Sprint and the diamond logo design are trademarks of Sprint Communications Company L.P. Portions copyright © 2002-2004 palmOne, Inc. All rights reserved. palmOne, Treo, the palmOne and Treo logos, Palm, Palm OS, HotSync, Graffiti, and Palm Powered are among the trademarks or registered trademarks owned by or licensed to palmOne, Inc. This product contains ACCESS Co., Ltd.’s NetFront 3.0 Internet browser software. © 1996-2004 ACCESS Co., Ltd. and ACCESS Systems America, Inc. NetFront is the trademark or registered trademark of ACCESS Co., Ltd. in Japan and in other countries except the United States of America. NetFront is a registered trademark of NetFront Communications, Inc. in the United States of America and is used under a license. A portion of this software includes software modules developed by the Independent JPEG group. RealPlayer is a trademark or registered trademark of RealNetworks, Inc. MPEG Layer-3 audio decoding technology is licensed from Fraunhofer IIS and Thomson. palmOne, Inc. is an authorized licensee of the MultiMediaCard trademark. ActiveSync is a registered trademark or Microsoft Corporation. All other brand and product names are or may be trademarks of, and are used to identify products or services of, their respective owners. Printed in the U.S.A. PN: 406-10149-00 Table of Contents Welcome to Sprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Where to Learn More . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii Section 1: Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1A.Setting Up Your Sprint PCS Vision SM Smart Device Treo™ 650 by palmOne . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 What You Need. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Inserting the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1B.Setting Up Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Getting Started With Sprint PCS Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Setting Up Your Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Sprint PCS Account Passwords. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 1C.Connecting to Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Preparing Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Connecting Your Smart Device to Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Installing the Synchronization Software on Your Computer . . . . . . . . . . . . . . . . . . . . . . . . 23 Section 2: Your Sprint PCS Vision Smart Device . . . . . . . . . . . . . . . 25 2A.Learning the Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Your New Sprint PCS Smart Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Turning Your Device’s Phone On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Moving Around the Treo Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Opening Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 2B.Using Your Device’s Phone Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Signal Strength and Phone Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Managing Active Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Controlling Your Roaming Experience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Internal Phone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Defining Favorite Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Using a Phone Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Connecting to Devices With Bluetooth Wireless Technology . . . . . . . . . . . . . . . . . . . . . . 71 2C.Using Your Device’s Organizer Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

14 Oct 2004 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality request for FCC ID: O8FMADECA To whom it may concern, Handspring requests that the following documents contained in this certification application be withheld from public disclosure. All schematic diagrams All Assembly drawings, Component placement drawings All Parts Lists (BOM) All Block Diagrams All Operational Descriptions PalmOne also certifies that no party to this application is subject to denial of benefits, including FCC benefits, pursuant to section 5301 of the anti-drug abuse act of 1988, 21 U.S.C 853(a) Sincerely David Waitt PalmOne Sr. Regulatory Engineer 400 McCarthy Blvd. Milpitas, CA 95035 www.palmone.com

Sept 2004 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality request for FCC ID: O8FMADECA To whom it may concern, PalmOne requests that the following files related to the above referenced certification application be temporarily withheld from public disclosure. ALL test setup photos ALL external product photos ALL user manuals All Internal product photos PalmOne anticipates offering the product to the public in the near future and will notify the FCC when the product is available to the public so the Commissions may place appropriate application files on its web site for public dissemination. If there are any questions of concerns, please do not hesitate to contact me at the email address below. Sincerely David Waitt 400 McCarthy Blvd. Milpitas, CA 95035 www.palmone.com PalmOne Sr. Regulatory Engineer [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 14, 2004 RE: Palmone Inc. FCC ID: O8FMADECA After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide a Tune Up Procedure for this device. 2) Are schematics available for the Part 22/24 portion of the device. Please explain. 3) Please provide the DC voltages/currents applied into the transmitter module for normal operation over the power range. 4) For Digital Device emissions, please comment on the RBW/VBW settings used for the all tests. 5) Please address simultaneous TX for CDMA + Bluetooth EMC results. 6) The users manual appears to be missing the information required by 15.105(b). 7) Please explain why only the right ear (with Aluminum case) was tested for 800 MHz, and only the left ear (with Aluminum case) for 1900 MHz. 8) Temp Stability for both 800 and 1900 MHz does not appear to be shown down to -30 C. Please provide. 9) FYI...The RBW shown in the plots doesn’t match the table on page 27 of the Bluetooth report. 10) The average time of occupancy for the Bluetooth report seems to be based upon a 900 MHz DSSS. The time should be calculated based upon 79 *0.4 seconds. Please correct. 11) Run #2 on page 35 (Bluetooth) appears to be Low channel, not middle. Please confirm/correct. 12) Run #3 on page 36 (Bluetooth) appears to be High channel, not middle. Please confirm/correct. 13) Why are the fundamental levels on page 34-36 (Bluetooth) using 100 kHz RBW higher than the reported levels in the bandwidth test using 1 MHz RBW. 14) Please explain the output power results. Is this a substitution method, or conducted power calculated using the far field equations and known antenna gains? 15) If the highest substitution EIRP measured is -2.2 dBm (0.0006 mW) for Bluetooth, please correct the 731 form. 16) Note that Part 24 phone should be PCE equipment code, not EGC. Please correct the 731 form. 17) FYI......Regarding short term confidentiality, you are responsible for the following: a) Note that any documents held under the short-term confidentiality will automatically become public after 45 days. A manufacturer may extend this period up to an additional 45 days. This requires an additional cover letter requesting this extension must be submitted to ATCB a minimum of 7 days prior to the expiration of the original 45 day temporary grant of confidentiality b) If the manufacturer engages in public marketing activities or otherwise publicizes the device prior to the expiration of the short-term confidentiality period, the applicant must immediately notify ATCB so the exhibits can be made publicly available. z Page 2 October 25, 2004 Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

To: Mr. Tim Johnson, American TCB From: David Waitt Subject: FCC ID: O8FMADECA Date: October 16, 2004 This letter addresses your compliance concerns regarding the FCC / IC application referenced above. If there are any questions or if additional information is required, please contact me at [email protected] Regards, David Waitt PalmOne Regulatory Engineer SAR issues ATCB: Please explain why only the left ear (with Aluminum case) was tested for 800 MHz, and only the right ear (with Aluminum case) for 1900 MHz. PalmOne: In actuality the SAR test report shows that the aluminum case was tested: 800 MHz Cellular - RIGHT ear 1900 MHz PCS – LEFT ear The AL case was tested in this manor due to the fact that the highest head SAR for 800MHz was reported for the right ear and the highest head SAR for 1900MHz was reported for the left ear. The Al case was tested on the mid channel of each band and resulted in a SAR more then 3dB below the limit, thus, no additional head testing was performed. Additionally, body SAR test was performed with the AL case and found to be more than 3dB below the limit on the mid channel of each band. General ATCB: Please provide a Tune Up Procedure for this device. PalmOne: PalmOne does not have access to the tune up procedure for this RF module since it is a purchased part from an outside vendor. That document is confidential to the manufacturer of the RF module. ATCB: Are schematics available for the Part 22/24 portion of the device. Please explain. PalmOne: Schematics for the CDMA RF module are proprietary to the designer and manufacturer of the CDMA module. PalmOne does not have access to the schematics for the module. ATCB: Please provide the DC voltages/currents applied into the transmitter module for normal operation over the power range. PalmOne: Voltage, Typical: 3.4 VDC , Maximum Current: .677A 400 McCarthy Blvd. Milpitas, CA 95035 www.palmone.com ATCB: Temp Stability for both 800 and 1900 MHz does not appear to be shown down to -30 C. Please provide. PalmOne: An attempt was made to gather data at -30C, however the operational temperature range of the product is -20 to 55 C. The product was did not maintain a call at -30 C. therefore it was not possible to gather data at that temperature. ATCB: For Digital Device emissions, please comment on the RBW/VBW settings used for the all tests. PalmOne: Conducted Emissions: 150kHz to 30 MHz: QP and Avg detector on receiver with 9 kHz IF BW Radiated Emissions 30 MHz to 1 GHz: Peak and QP detector on receiver with 120kHz IF BW 1GHz to 2 GHz: Peak and Avg detector on receiver with 1 MHz IF BW ATCB: The users manual appears to be missing the information required by 15.105(b). PalmOne: The 15.105 Class B statement will be added to the manual as soon as possible at the next revision/printing of the manual. In the mean time, an “insert page” will be placed in the box with the product. Bluetooth ATCB: Please address simultaneous TX for CDMA + Bluetooth EMC results PalmOne: The BT emissions were tested with the CDMA phone transmitting simultaneously with the CDMA phone. This was verified on both of the CDMA operating bands (900 / 1900 MHz) ATCB: FYI. The RBW shown in the plots doesn't match the table on page 27 of the Bluetooth report. PalmOne: Table has been corrected with the correct RBW. ATCB: The average time of occupancy for the Bluetooth report seems to be based upon a 900 MHz DSSS. The time should be calculated based upon 79 *0.4 seconds. Please correct. PalmOne: It has been corrected. Revised data and report uploaded. ATCB: Run #2 on page 35 (Bluetooth) appears to be Low channel, not middle. Please confirm/correct. PalmOne: Channel has been properly label. ATCB: Run #3 on page 36 (Bluetooth) appears to be High channel, not middle. Please confirm/correct. PalmOne: Channel has been properly label. ATCB: Why are the fundamental levels on page 34-36 (Bluetooth) using 100 kHz RBW higher than the reported levels in the bandwidth test using 1 MHz RBW. PalmOne: The table has been removed to avoid any more confusion. The table is to show the limit that will be used for Non- restricted emissions, but the non-restricted emissions meet the 15.209 limits with enough margin, so the tables are not necessary. ATCB: Please explain the output power results. Is this a substitution method, or conducted power calculated using the far field equations and known antenna gains? PalmOne: A statement on the start of each data worksheet, has been included. Mainly the field strength of the fundamental was measured at 3 meters. This value is then converted to dBm by subtracting 95.2 dB.

To: Mr. Tim Johnson, American TCB From: David Waitt Subject: FCC ID: O8FMADECA Date: October 22, 2004 This letter addresses your compliance concerns regarding the FCC / IC application referenced above. If there are any questions or if additional information is required, please contact me at [email protected] Regards, David Waitt PalmOne Regulatory Engineer ATCB) The 731 form no long contains DSS and JBP equipment codes. I believe this should contain PCE, JBP, DSS codes. Please verify. PalmOne) The 731 has been corrected ATCB) I do not see how you obtained the powers listed on the 731. Max ERP for 800 MHz appears on page 32 of the report 22.6 dBm (182 mW), contrary to the 22.4 dBm listed on pages 8 and 26. Max EIRP for 1900 MHz appears on page 27 of the report 24.5 dBm (282 mW). PalmOne) The summary tables in the report have been corrected. ATCB ) Your answer regarding simultaneous TX does not appear to agree with plots given in the test report. Please review. PalmOne) The Bluetooth transmitter was tested for radiated emissions simultaneously while the unit was transmitting on a CDMA phone call. There was no noticeable difference in the emissions profile between the single Bluetooth transmitter and the two transmitters operating simultaneously. ATCB) Please provide theory of operation for the Bluetooth as previously discussed. PalmOne) The Theory of operations has been uploaded. 400 McCarthy Blvd. Milpitas, CA 95035 www.palmone.com

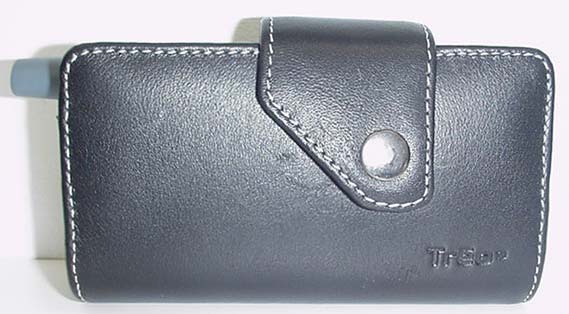

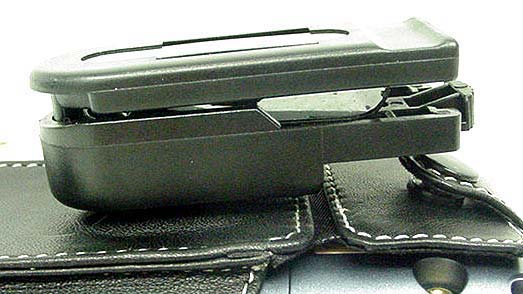

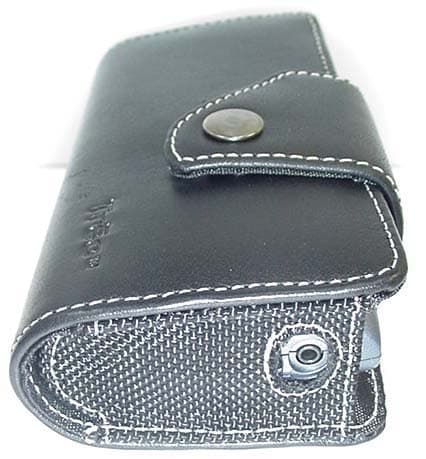

© 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation Front of DUT Back of DUT EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation Left Side of DUT Right Side of DUT EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation Top of DUT Bottom of DUT EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Leather Side Case with Belt-Clip Accessory (SKU#3180WW) (Front Keypad/LCD Side of DUT Facing Body) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Leather Side Case with Belt-Clip Accessory (SKU#3180WW) (Front Keypad/LCD Side of DUT Facing Body) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Leather Side Case with Belt-Clip Accessory (SKU#3180WW) & Generic Ear-Microphone (Front Keypad/LCD Side of DUT Facing Body) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Fitted Leather Pouch and Swivel Belt-Clip Accessory (SKU#3179WW) with Generic Ear-Microphone (Back of DUT Facing Body) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Fitted Leather Pouch and Swivel Belt-Clip Accessory (SKU#3179WW) (Back of DUT Facing Body) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Fitted Leather Pouch and Swivel Belt-Clip Accessory (SKU#3179WW) (Back of DUT Facing Body) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Fitted Leather Pouch and Swivel Belt-Clip Accessory (SKU#3179WW) (Back of DUT Facing Body) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Aluminum Case & Swivel Belt-Clip Accessory (SKU#3202WW) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Aluminum Case & Swivel Belt-Clip Accessory (SKU#3202WW) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation T EXTERNAL DUT PHOTOGRAPHS Aluminum Case & Swivel Belt-Clip Accessory (SKU#3202WW) (Back of DUT Facing Body) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Aluminum Case & Swivel Belt-Clip Accessory (SKU#3202WW) (Back of DUT Facing Body) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Aluminum Case & Swivel Belt-Clip Accessory (SKU#3202WW) with Generic Ear-Microphone (Back of DUT Facing Body) © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation DUT Battery Compartment DUT with Lithium-ion Battery EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs In. palmOne, Wireless Business Unit FCC ID: O8FMADECA Treo 650 Portable Dual-Band CDMA2000 Phone with Bluetooth Test Report S/N: 072604-534O8F Test Date(s): July 27-31 & August 18, 2004 Test Type: FCC/IC SAR Evaluation Lithium-ion Battery (P/N: 167-10165-00) Lithium-ion Battery (P/N: 167-10165-00) EXTERNAL DUT PHOTOGRAPHS

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 22, 2004 RE: Palmone Inc. FCC ID: O8FMADECA After a review of the submitted information, I have a few comments on the above referenced Application. 1) The 731 form no long contains DSS and JBP equipment codes. I believe this should contain PCE, JBP, DSS codes. Please verify. 2) I do not see how you obtained the powers listed on the 731. Max ERP for 800 MHz appears on page 32 of the report 22.6 dBm (182 mW), contrary to the 22.4 dBm listed on pages 8 and 26. Max EIRP for 1900 MHz appears on page 27 of the report 24.5 dBm (282 mW). 3) Your answer regarding simultaneous TX does not appear to agree with plots given in the test report. Please review. 4) Please provide theory of operation for the Bluetooth as previously discussed. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

FCC / IC Certification Application FCC ID: O8FMADECA IC:3959A-MADECA Treo 650 (CDMA) Label / Label Location 400 McCarthy Blvd. Milpitas, CA 95035 www.palmone.com Battery Cover and Battery removed. Label Location Under the battery

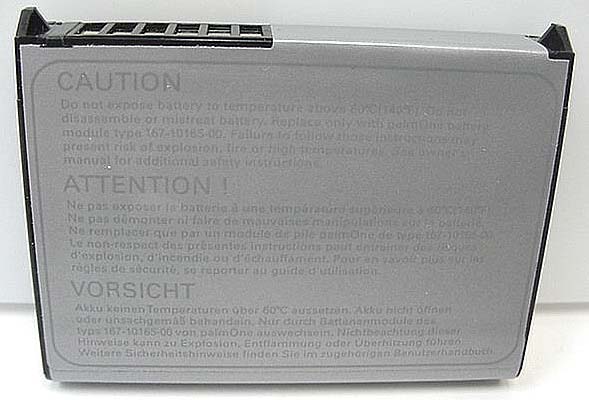

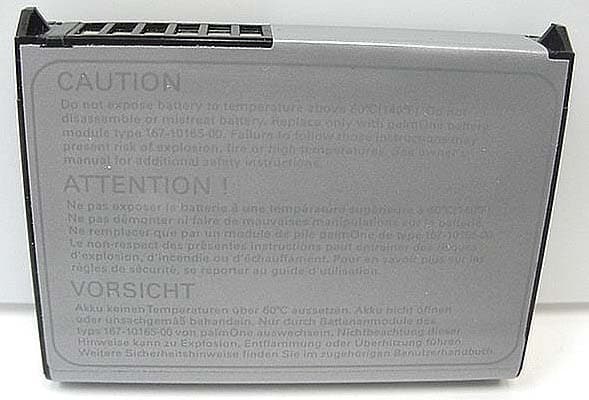

FCC / IC Certification Application FCC ID: O8FMADECA IC:3959A-MADECA Treo 650 (CDMA) Internal Photographs 400 McCarthy Blvd. Milpitas, CA 95035 www.palmone.com Treo 650 (CDMA) Front Treo 650 (CDMA) Back Treo 650 (CDMA) battery cover removed Battery and cover removed Regulatory label location and text Rear cover and antenna removed Antenna Closeup Internal housing removed RF Module Removed RF Module with Shields RF Moduel , Shields Removed Main PCB, Label Side Main PCB, Label Side, Label removed Main PCB / Keyboard & Display Main PCB , Shield Side Main PCB, Shields Removed Main PCB, Label Side Display , Rear Display, Rear, Shield Removed Display, rear, detail

File: R57070 Page 1 of 14 Electromagnetic Emissions Test Report and Verification of Compliance per FCC Part 15, Subpart B Specifications for a Class B Digital Device and ICES-003 Class B on the PalmOne, Inc. Model: TREO 650 (CDMA) MANUFACTURER: PalmOne, Inc. 400 N. McCarthy Blvd. Milpitas, CA 95035-5112 TEST SITE: Elliott Laboratories, Inc. 41039 Boyce Road Fremont, CA 94538 REPORT DATE: September 8, 2004 FINAL TEST DATE: July 22, 2004 AUTHORIZED SIGNATORY: ______________________________ Juan Martinez Senior EMC Engineer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: September 8, 2004 File: R57070 Page 2 of 14 pages TABLE OF CONTENTS COVER PAGE...................................................................................................................................................................................1 TABLE OF CONTENTS..............................................................................................................................................................2 SCOPE............................................................................................................................................................................................3 VALIDATING SIGNATURES.....................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................................4 EMISSION TEST RESULTS.......................................................................................................................................................5 LIMITS OF CONDUCTED INTERFERENCE VOLTAGE.....................................................................................................5 LIMITS OF RADIATED INTERFERENCE FIELD STRENGTH..........................................................................................5 MEASUREMENT UNCERTAINTIES....................................................................................................................................6 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................6 GENERAL...................................................................................................................................................................................6 ENCLOSURE..............................................................................................................................................................................6 MODIFICATIONS.....................................................................................................................................................................6 SUPPORT EQUIPMENT...........................................................................................................................................................7 EUT INTERFACE PORTS........................................................................................................................................................7 EUT OPERATION.....................................................................................................................................................................7 TEST SITE......................................................................................................................................................................................8 GENERAL INFORMATION.....................................................................................................................................................8 CONDUCTED EMISSIONS CONSIDERATIONS.................................................................................................................8 RADIATED EMISSIONS CONSIDERATIONS.…
