O8HSK-163KIOSK

USER MANUAL (KIOSK 15 ̋, 21.5 ̋) Thank you for purchasing a product of SAM4S (The contents of this manual is subject to change without prior notice.) • The copyright of this e-Manual is in SAM4S • Some equipment nomenclature and abbreviations used here may differ form that contained in other SAM4S publications. • The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • Read the safety instructions carefully and thoroughly. All cautions and warnings on the equipment or user’s manual should be noted. • Lay this equipment on a stable surface before setting it up. • Keep this equipment away from humidity and high temperature. • Make sure the power voltage is within safety range and has been adjusted properly to the value of 100~240V before connecting the equipment to the power outlet. • Always keep the strong magnetic or electrical objects away from the equipment. • Always unplug the power cord before connecting any External Devices. • Never pour liquid into the opening that could damage the equipment or cause an electrical shock. Safety Instructions FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Instructions Desk typeStand type KIOSK Figure SK-161 (163) is an self ordering kiosk. It is a device for buyers to select the desired menu and pay by themselves without the help of the clerk at the store. The order will be checked by the clerk and will inform the buyer when it is ready. < Main body >< Power Cable > Unpacking System Spec Name and Function of Each Part Front View Multi Touch Paper Outlet Wi-Fi Antenna(Option) Barcode Scanner Back View Camera(Option) Lock Key Interface 2 x D-SUB 9P Serial Port Audio Port(Mic, Line Out) RJ-45 LAN(Ethernet) Port 4 x USB 2.0 Port HDMI Port Display Port(VGA) 12V DC Power Input Power Button Interface Usage Procedure Connect the power cable to a power inlet. Connect the power cable to a power outlet. Power Inlet Power Cable Power Outlet Open the Front Cover Turn the key clockwise, open the “Interface cover” in the direction as shown and connect the peripheral cables. Touch Screen Calibration Press power button to boot system. Paper Roll Installation Printer

ShinHeung Precision Co., Ltd. 53, Je3gongdan3-gil, Seoun-myeon, Anseong-si, Gyeonggi-do, Korea Date: February 25, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Dear Sir/Madam, Re: Letter of Similarity We, ShinHeung Precision Co., Ltd., declare the differences for between original model and variant models. - Product: KIOSK - Model name: SK-163 - Variant Model name: SK-363, SK-563 -> The derivative models are for the different buyer code. -> All the derivative models are electrically identical in terms of RF parameters and are for marketing purpose. Sincerely, Byoungjo Ha / Chief Engineer

ShinHeung Precision Co., Ltd. 53, Je3gongdan3-gil, Seoun-myeon, Anseong-si, Gyeonggi-do, Korea Date: February 25, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Athena Kim/Assistant manager of KCTL Inc. and hereafter referred to as KCTL to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Athena Kim/Assistant manager of KCTL Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KCTL as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Byoungjo Ha / Chief Engineer

ShinHeung Precision Co., Ltd. 53, Je3gongdan3-gil, Seoun-myeon, Anseong-si, Gyeonggi-do, Korea CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 February 25, 2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, ShinHeung Precision Co., Ltd. requests confidentiality for the following products: FCC ID Number Product Title/Model O8HSK-163 KIOSK / SK-163, SK-363, SK-563 The following exhibits contain trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. We request that the following information submitted be held permanent confidential treatment. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description -. Parts list If you have any questions, please feel free to contact me at the address shown below. Sincerely, Byoungjo Ha / Chief Engineer

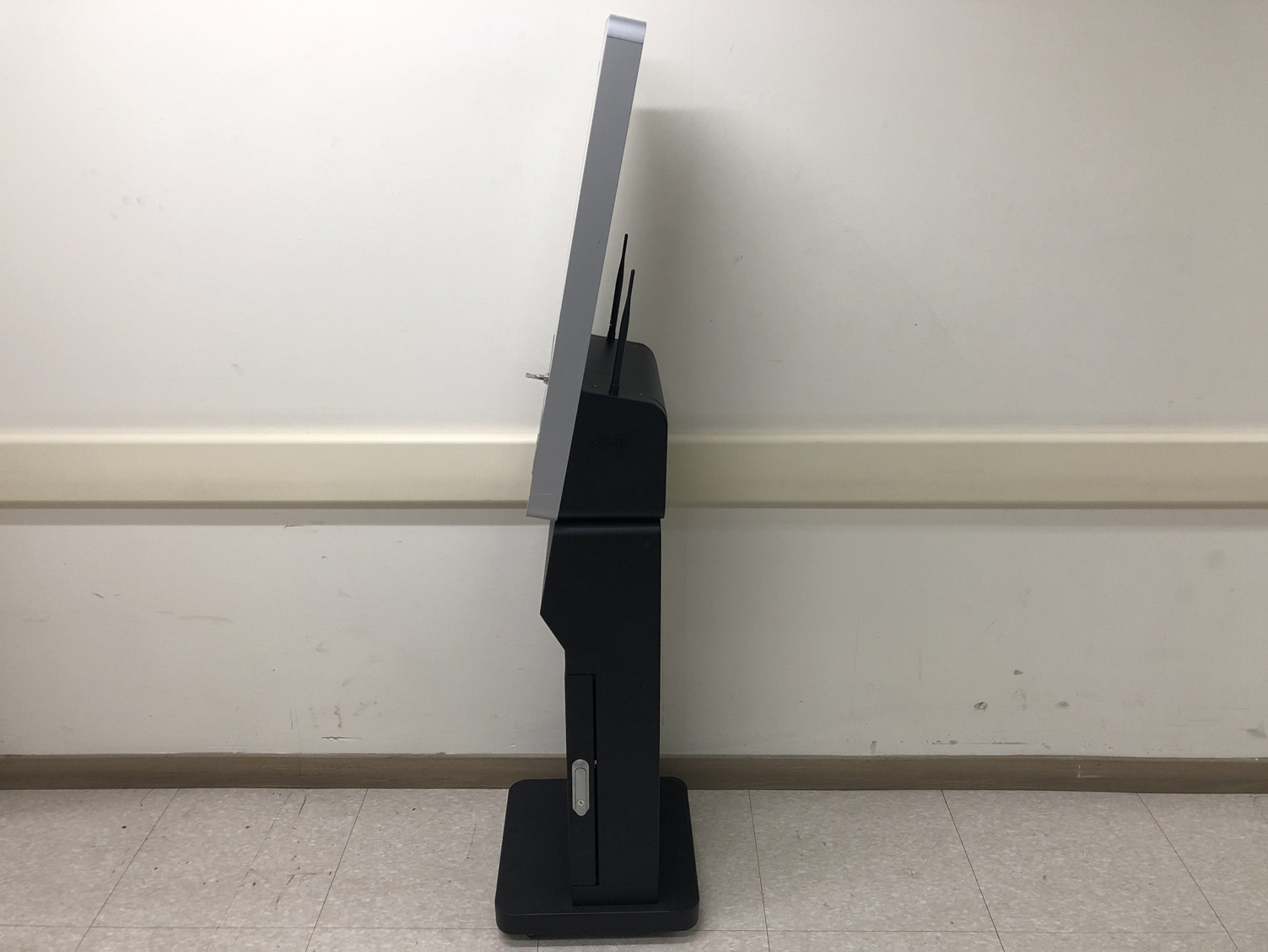

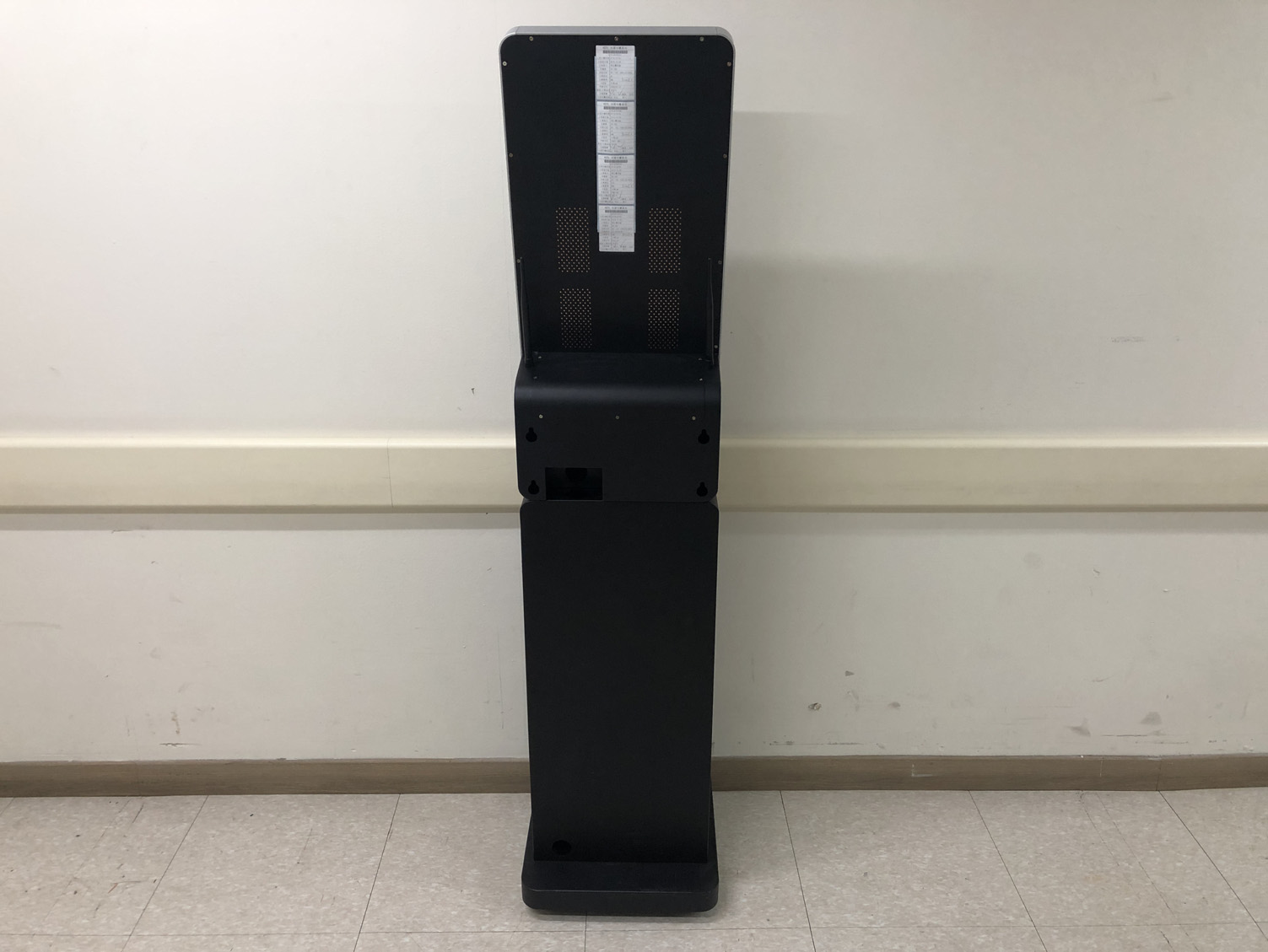

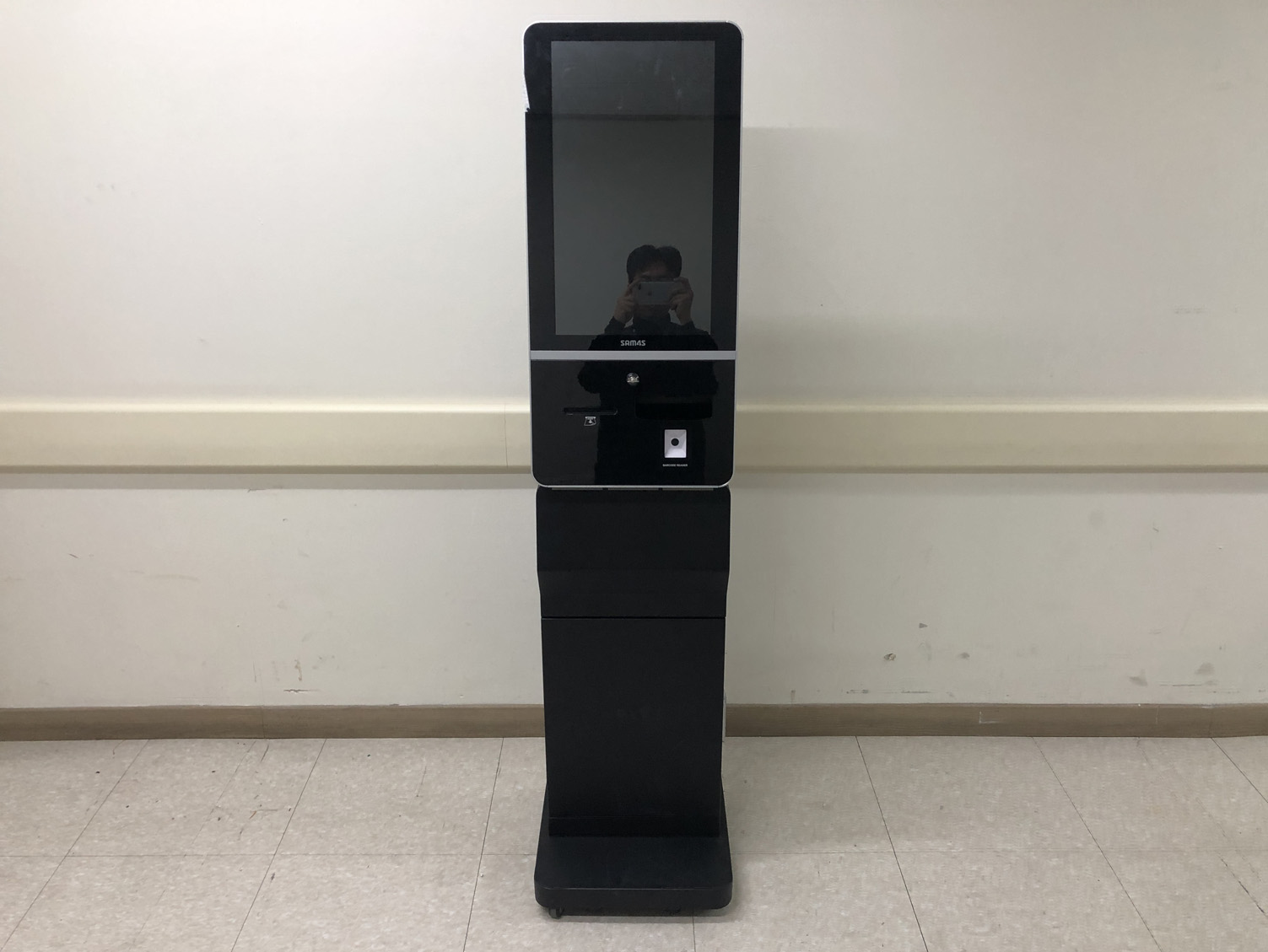

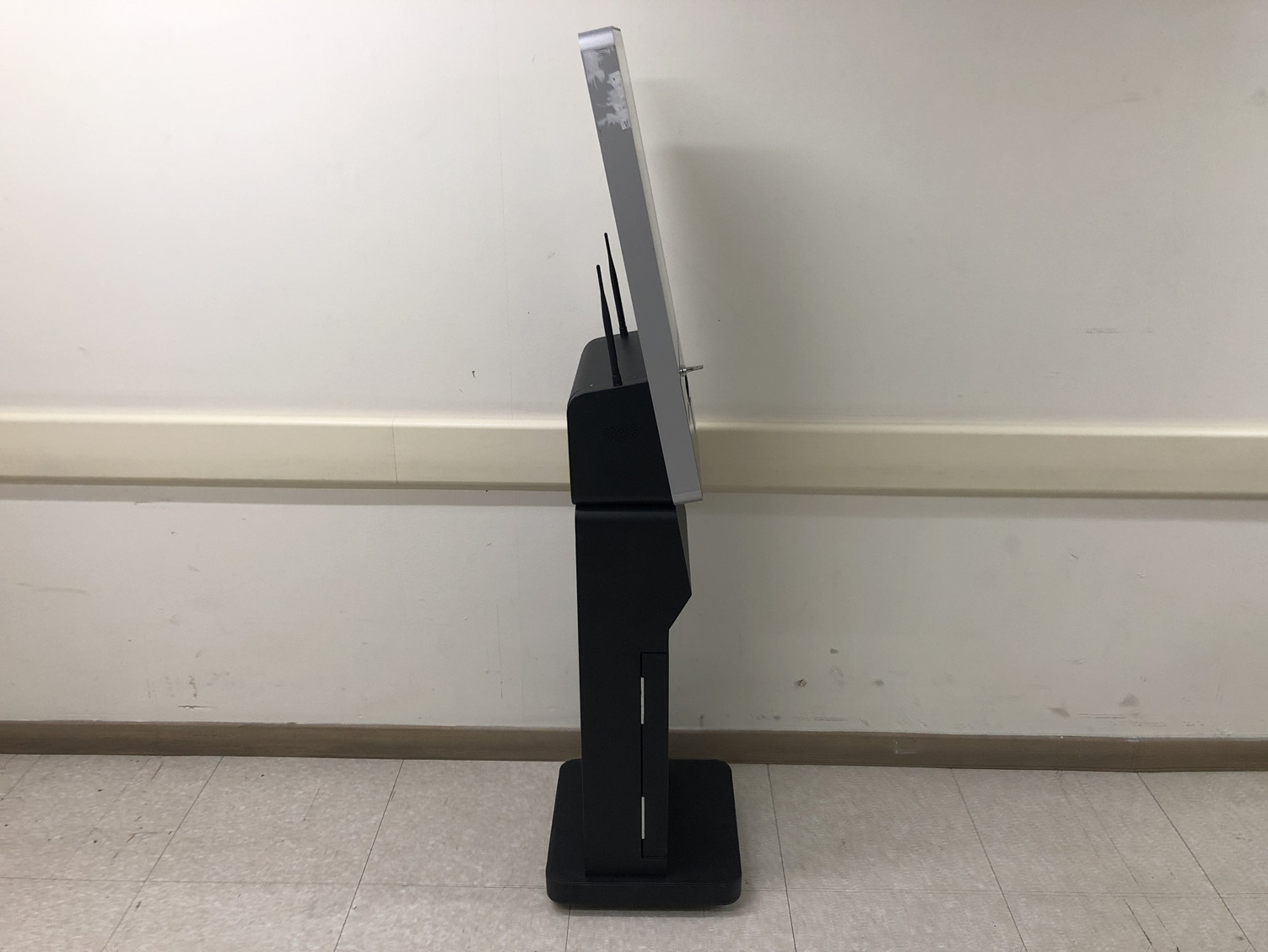

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval -Dipole Antenna http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval -stander

<Label Info.> label size: 80mm x 40mm

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval RF Module http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

verify No.009885809041 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0093-A Page (2) of (8) KCTL-TIR001-003/2 Report revision history Date Revision Page No 2020-03-04 Initial report - 2020-03-05 Updated 8 This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KOLAS accreditation. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0093-A Page (3) of (8) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 CONTENTS 1. General information ......................................................................................................4 2. Device information ........................................................................................................4 2.1. Information about derivative model ......................................................................5 2.2. Frequency/channel operations................................................................................5 3. Measurement uncertainty .............................................................................................6 4. RF Exposure .................................................................................................................7 4.1. Test results..............................................................................................................8 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0093-A Page (4) of (8) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 1. General information Client : ShinHeung Precision Co., Ltd. Address : 53, Je3gongdan3-gil, Seoun-myeon, Anseong-si, Gyeonggi-do, Korea Manufacturer : ShinHeung Precision Co., Ltd. Address : 53, Je3gongdan3-gil, Seoun-myeon, Anseong-si, Gyeonggi-do, Korea Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 Industry Canada Registration No. : 8035A KOLAS No.: KT231 2. Device information Equipment under test : KIOSK Model : SK-163 Derivative Model : SK-363, SK-563 Modulation technique : WIFI(802.11a/b/g/n)_DSSS, OFDM Power source : AC 120 V Antenna specification : Dipole Antenna Antenna gain : 3.42 ㏈i Operation temperature : 21 °C Software version : Windows 10 Enterprise 2016 LTSB Hardware version : VER1.0 Frequency range & Number of channels 2 412 ㎒ ~ 2 462 ㎒ : WIFI(802.11b/g/n_HT20)_11 ch 2 422 ㎒ ~ 2 452 ㎒ : WIFI(802.11n_HT40)_09 ch KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0093-A Page (5) of (8) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 2.1. Information about derivative model The difference between basic model and derivative models is: Derivative models are for the different buyer code. 2.2. Frequency/channel operations This device contains the following capabilities: 802.11b/g/n(HT20/40) Ch. Frequency (㎒) 301 2 412 . . . . 06 2 437 . . . . 11 2 462 Table 2.2.1. 802.11b/g/n(HT20) mode Ch. Frequency (㎒) 03 2 422 . . . . 06 2 442 . . . . 09 2 452 Table 2.2.2. 802.11n HT40 mode KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0093-A Page (6) of (8) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 3. Measurement uncertainty The measurement uncertainties shown below were calculated in accordance with the requirements of ANSI C63.10-2013. All measurement uncertainty values are shown with a coverage factor of k=2 to indicated a 95 % level of confidence. The measurement data shown herein meets of exceeds the U CISPR measurement uncertainty values specified in CISPR 16-4-2 and thus, can be compared directly to specified limits to determine compliance. Parameter Expanded uncertainty (±) Conducted RF power 1.76 ㏈ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0093-A Page (7) of (8) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 4. RF Exposure FCC Regulation This document is prepared to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC rules and Regulations. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Table 1 – Limits for Maximum Permissible Exposure (MPE) Frequency Range (㎒) Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Averaging Time [minute] (A) Limits for Occupational / Controlled Exposure 0.3 ~ 3.0 614 1.63 *100 6 3.0 ~ 30 1842/f 4.89/f *900/f 2 6 30 ~ 300 61.4 0.163 1.0 6 300 ~ 1 500 / / f/300 6 1 500 ~ 15 000 / / 5 6 (B) Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19/f *180/f 2 30 30 ~ 300 …

Text truncated - open the document above for the full version.

verify No.118039499197 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (2) of (42) KCTL-TIR001-003/2 Report revision history Date Revision Page No 2020-02-25 Initial report - 2020-03-03 Updated 6,7,12,13,40 This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KOLAS accreditation. Note. The report No. KR20-SRF0080 is superseded by the report No. KR20-SRF0080-A. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (3) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 CONTENTS 1. General information ...................................................................................................... 4 2. Device information ........................................................................................................ 4 2.1. Information about derivative model ...................................................................... 5 2.2. Frequency/channel operations ................................................................................ 5 2.3. Peak output power .................................................................................................. 6 3. Antenna requirement .................................................................................................... 6 4. Summary of tests .......................................................................................................... 7 5. Measurement uncertainty ............................................................................................. 8 6. Test results ................................................................................................................... 9 6.1. Spurious Emission, Band Edge and Restricted bands ............................................ 9 6.2. AC Conducted emission ....................................................................................... 39 7. Measurement equipment ............................................................................................ 41 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (4) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 1. General information Client : ShinHeung Precision Co., Ltd. Address : 53, Je3gongdan3-gil, Seoun-myeon, Anseong-si, Gyeonggi-do, Korea Manufacturer : ShinHeung Precision Co., Ltd. Address : 53, Je3gongdan3-gil, Seoun-myeon, Anseong-si, Gyeonggi-do, Korea Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 Industry Canada Registration No. : 8035A KOLAS No.: KT231 2. Device information Equipment under test : KIOSK Model : SK-163 Derivative Model : SK-363, SK-563 Modulation technique : WIFI(802.11a/b/g/n)_DSSS, OFDM Power source : AC 120 V Antenna specification : Dipole Antenna Antenna gain : 3.42 ㏈i Operation temperature : 21 °C Software version : Windows 10 Enterprise 2016 LTSB Hardware version : VER1.0 Frequency range & Number of channels 2 412 ㎒ ~ 2 462 ㎒ : WIFI(802.11b/g/n_HT20)_11 ch 2 422 ㎒ ~ 2 452 ㎒ : WIFI(802.11n_HT40)_09 ch KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (5) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 2.1. Information about derivative model The difference between basic model and derivative models is: Derivative models are for the different buyer code. 2.2. Frequency/channel operations This device contains the following capabilities: 802.11b/g/n(HT20/40) Ch. Frequency (㎒) 01 2 412 . . . . 06 2 437 . . . . 11 2 462 Table 2.2.1. 802.11b/g/n(HT20) mode Ch. Frequency (㎒) 03 2 422 . . . . 06 2 442 . . . . 09 2 452 Table 2.2.2. 802.11n HT40 mode KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (6) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 2.3. Peak output power PKPM1 Peak-reading power meter method The maximum peak conducted output power may be measured using a broadband peak RF power meter. The power meter shall have a video bandwidth that is greater than or equal to the DTS bandwidth and shall utilize a fast-responding diode detector. -Peak output power Mode Channel Frequency [㎒] Peak output power [㏈m] Average output power [㏈m] 802.11 b Lowest 2 412 18.04 16.11 Middle 2 437 18.06 16.13 Highest 2 462 18.16 16.21 802.11 g Lowest 2 412 22.29 14.08 Middle 2 437 23.34 16.02 Highest 2 462 22.69 14.62 802.11 n HT20 Lowest 2 412 21.70 13.61 Middle 2 437 23.12 15.96 Highest 2 462 21.61 13.36 802.11 n HT40 Lowest 2 422 21.76 13.40 Middle 2 437 23.01 15.34 Highest 2 452 21.62 13.03 Note 1) : The above peak output power were retested results. Note 2) : Duty Cycle Correction Factor = 0 3. Antenna requirement Requirement of FCC part section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the d…

Text truncated - open the document above for the full version.

KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (26) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (27) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 802.11HT20 1 Channel Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 2 389.92 1) V 62.92 31.88 -29.04 - 65.76 74.00 8.24 4 824.94 1) V 60.44 33.93 -52.85 - 41.52 74.00 32.48 7 236.47 V 60.81 35.40 -51.87 - 44.34 74.00 29.66 Average Data 2 389.92 1) V 49.96 31.88 -29.04 - 52.80 54.00 1.20 Average data Blank Horizontal/Vertical for Band-edge KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (28) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (29) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 6 Channel Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 4 874.33 1) V 59.97 33.95 -54.22 - 39.70 74.00 34.30 7 311.69 1) V 61.13 35.40 -51.50 - 45.03 74.00 28.97 Average Data No spurious emissions were detected within 20 ㏈ of the limit. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (30) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (31) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 11 Channel Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 2 483.56 1) V 60.68 32.07 -29.21 - 63.54 74.00 10.46 4 925.08 1) H 60.29 33.97 -54.87 - 39.39 74.00 34.61 7 386.00 1) V 59.94 35.40 -51.13 - 44.21 74.00 29.79 Average Data 2 483.56 1) V 49.36 32.07 -29.21 - 52.22 54.00 1.78 Average data Blank Horizontal/Vertical for Band-edge KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (32) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (33) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 802.11HT40 3 Channel Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 2 488.89 1) V 63.58 32.08 -29.23 - 66.43 74.00 7.57 4 844.42 1 V 58.66 33.94 -53.39 - 39.21 74.00 34.79 7 266.83 1) H 60.93 35.40 -51.72 - 44.61 74.00 29.39 Average Data 2 488.89 1) V 49.21 32.08 -29.23 - 52.06 54.00 1.94 Average data Blank Horizontal/Vertical for Band-edge KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (34) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (35) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 6 Channel Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 4 873.42 1) V 60.46 33.95 -54.19 - 40.22 74.00 33.78 7 311.23 1) V 60.77 35.40 -51.50 - 44.67 74.00 29.33 Average Data No spurious emissions were detected within 20 ㏈ of the limit. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (36) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0080-A Page (37) of (42) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 9 Channel Frequency Pol. Reading…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Realtek Semiconductor Corp. Applicant Address No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan FCC ID TX2-RTL8723BE Manufacturer’s company Realtek Semiconductor Corp. Manufacturer Address No. 2,Innovation Road II, Hsinchu Science Park, Hsinchu 300,Taiwan Product Name 802.11b/g/n RTL8723BE Combo module Brand Name REALTEK Model No. RTL8723BE Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Feb. 08, 2013 Final Test Date Apr. 13, 2013 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB…

Text truncated - open the document above for the full version.
