01-04-20 MPMAN MP - K80 Specification 0.9 1/18 Clik! (Pocket Zip) Digital Audio Player MP-K80 User’s Manual Information to User 01-04-20 MPMAN MP - K80 Specification 0.9 2/18 Clik! (Pocket Zip) Digital Audio Player 1. PORTABLE MP3 PLAYER HARDWARE SPECIFICATION 1.1 MECHANICAL SPECIFICATION 1.1.1 Dimensions Dimensions are 61 1.1.2 Materials The front case of the player is to be aluminum of silver color and the rest is to be a high density plastic of blue color 2. ELECTRICAL SPECIFICATION 2.1 SIMPLE SYSTEM SPECIFICATION OVERVIEW 2.1.1 DRM support WMA DRM 2.1.2 Music PlayBack MP3(MPEG-1, 2, 2.5) WMA(Windows Media Audio) 2.1.3 Voice Recording 3 Hours / 40Mbyte disk ADPCM Voice file PC playable Built-in Microphone 01-04-20 MPMAN MP - K80 Specification 0.9 3/18 Clik! (Pocket Zip) Digital Audio Player 2.1.4 FM Transmitter System embedded Selectable Frequency range : 106.7~107.9 MHz 2.1.5 Equalizer Normal/Classic/Jazz/Rock/Pop 2.1.6 User Interface Playback for selected function (Normal, Repeat, Repeat All, Shuffle Repeat All) Bookmark AB Repeat Erase (voice, mp3, wma.. files) 2.1.7 Self Test All LCD pixel test Media available size test Left/Right tone test 2.1.8 Audio S/N Ratio: > 85dB (A-Weighted) Distortion: < 0.14% (A-Weighted) Frequency Response: 20Hz~20KHz 2.1.9 PC Interface USB (File transfer rate: 300KB/s) USB cable : 1.5m 2.1.10 Display STN LCD: black character EL back light: blue green File name scroll 01-04-20 MPMAN MP - K80 Specification 0.9 4/18 Clik! (Pocket Zip) Digital Audio Player Track number display Music/Voice/FM TX Mode display Repeat Mode display(repeat, Shuffle) Play time, sampling rate display Battery, Volume level display Multi Language support Player Active icon display 2.1.11 Multi language Display the song name to Multi language in LCD : English, Korean, Japanese, Spanish, 2.1.12 Battery Embedded Li-ion Rechargeable Recharge circuit embedded Recharge status LED(RED/GREEN) Play time: MIN 6 Hours/ Normal 8 Hours Weight: 38g 2.1.13 Auto Power OFF 30 seconds 2.1.14 Memory Embedded: non Removable: Clik! (Pocket Zip) Disk(40MB/disk) 2.1.15 Accessory Audio Manager Installation CD User’s manual USB cable: 1.5m Earphone AC/DC power adapter Clik! (Pocket Zip) Disk(2EA) 01-04-20 MPMAN MP - K80 Specification 0.9 5/18 Clik! (Pocket Zip) Digital Audio Player 2.1.16 Audio Manager PC : RioPort Audio Manager MAC 2.2 FUNCTIONAL OPERATION AND CONTROL 2.2.1 SDMI The Portable MP3 Player will operate in compliance to the appropriate SDMI guidelines and can be upgrade to support any future requirements for SDMI. DRM support WMA DRM. 2.2.2 Firmware Upgrade The vendor will supply a utility to upgrade the player firmware by downloading it from the PC. This will allow new features and functions and is intended to be the mechanism to fully support SDMI phase 2. The upgrade utility will provide when MP-K80 player need firmware upgrade in the internet. If User is press the F/W Upgrade button, then it will prompt the user to download the upgrade to the player. During the upgrade all user input will be disregarded on the player . The firmware upgrade process will be capable of restarting in the event the firmware is corrupted during the upgrade or the USB connection is terminated after a partial download. 2.2.3 CODEC Support The player will support the latest version of the following CODECs: • WMA (Windows Media Audio) • MP3 (MPEG-1, 2, 2.5) • The ARM MP3 Decoder is compliant with: • audio layer III ISO standards: 01-04-20 MPMAN MP - K80 Specification 0.9 6/18 Clik! (Pocket Zip) Digital Audio Player — ISO/IEC 11172-3:1993 (MPEG-1) — ISO/IEC 13818-3:1998 (MPEG-2 LSF). • the MPEG-2.5 extensions. Multichannel audio (MPEG-2 MC) is not supported. • WAV G.721(8kHz/32bps) In addition, the player will have the ability to be upgraded to the following CODECs through a firmware download: 2.2.4 Volume Control Volume is controlled by two (2) buttons marked with a “+” or a “-“. The volume level will proportionally range from minimum (1) to maximum (20) over 20 discrete steps. Momentarily pressing either the “+” or “-“ buttons would increase or decrease the volume by one step respectively. The volume icon in the display will indicate 10 lines. 1 line is 2 volume level. 2.2.5 Lock Control A two (2) position slide switch will provide a lock function when in position 2. Position one (1) is normal operation. Lock is defined as all other controls (buttons) will have no effect on the player when in lock mode. An icon indicating “KEY HOLD” will be displayed in the LCD indicating that lock mode is active. When the player is in lock mode, the previous operational state is preserved. Note that the display will not be on when the player is in the OFF mode, but the lock function will still operate as previously described. However, pressing the ON/OFF button when OFF in lock mode will cause the display to illuminate and the “KEY HOLD” letters to be displayed for 3 seconds. Note also that the operation of the USB connection is unaffected by the position of the LOCK switch. 01-04-20 MPMAN MP - K80 Specification 0.9 7/18 Clik! (Pocket Zip) Digital Audio Player 2.2.6 Operational Modes The operation of the player is controlled by eight (8) buttons, except as defined above for volume and lock control. The eight buttons are PLAY/PAUSE, NEXT/FAST FORWARD, PREVIOUS/REWIND, STOP/POWER OFF(ON), RECORD, [A<->B], [ERASE] and [MODE]. These buttons are also referred to below by the designations [P/P], [NEXT], [FF], [PREV], [REW], [STOP], [REC] and [MODE], [A<->B], [ERASE]. If a given action is not specified in the state transition tables, it is defined as a “do not care” and has no operational effect. 2.2.7 POWER UP/RESET Description: New or of no battery power batteries have just been installed in the player. The player will reset itself and transition immediately to the STOPstate . If no first time play list will show saved track or bookmark track and file name. Transmitter frequency will be displayed only saved or initial(106.7Mhz) value fo…

Text truncated - open the document above for the full version.

Block diagram

From: [email protected] Sent: Friday, May 11, 2001 7:10 PM To: [email protected] Cc: ?????; ????? Subject: FW: Eiger FCC ID:O8TMP-K80, AN01T1296 Dear Mike. Thank you for your comments. It is very helpfult for my staff to understand the Standards exactly. Belows are the ansewers to your questions Answer 1) We did testing at X, Y, Z axis and found that the worst reading is at Y axis. Please check the attached test report(10 pages) Answer 2) We did testing at max volume. Mas modulation signal is applied automatically when we turn on the TX switch. Answer 3) Please look at 1st page of manual. You could find the relevant information to user. Answer4) 200kHz test was performed by Conducted and Field strength level was performed by Radiated If you need more information, please let me know Best Regards PS) My client push me to get the certificate ASAP. Your quick reply will be highly appreciated Jasen -----Original Message----- From: Mike Kuo [mailto:[email protected]] Sent: Thursday, May 10, 2001 11:49 AM To: '[email protected]' Subject: Eiger FCC ID:O8TMP-K80, AN01T1296 Question #1 When test intentional radiator, you should use ANSI C63.4 Paragraph 13 and ANNEX I as guideline. In ANSI C63.4 Paragraph 13.1.4.1, when test hand-held device, emission levels need to be investigated through three orthogonal axes to determine the max. emission level. When this device is used as Transmitter device, it is considered as hand-held device. Please refer to ANSI C63.4 requirement and provide the test data, and setup photo to comply this requirement. In your test data, you have to indicate which axes is produced the highest emission level. Question #2 While performing the test required for Question #2, please also reference to 13.1.1.1 modulation requirement. If a device is equipped with input connector ( USB), the typical modulation signals shall be applied at the max. modulation. ( since this equipment is equipped with user control, you have to make the volume is turn to the max.) Question #3: User manual does not contain the information required under 15.21 of FCC rules. Question #4: In the 200kHz tests, the emission plots show the fundamental frequency levels are different than the one reported in page 10 of field strength levels. Please explain. ========================= Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Telephone number:408-463-0885 EXT:105 Fax number :408-463-0888 E-Mail:[email protected]

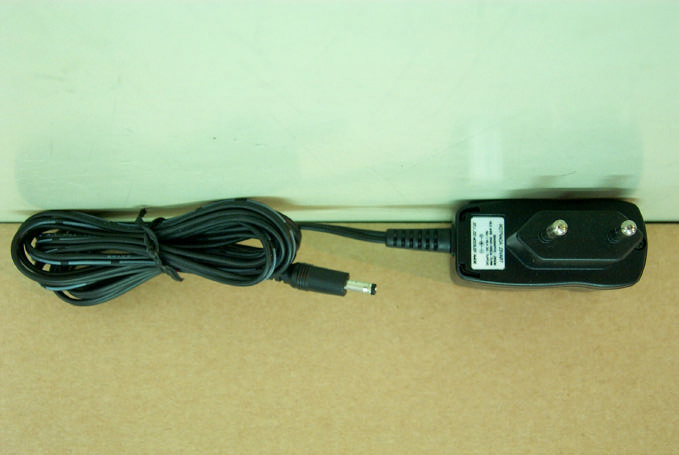

EUT External Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 1 of 6 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 EUT External Photos EUT (Front) EUT External Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 2 of 6 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 EUT (Rear) EUT External Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 3 of 6 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Label (Format) EUT External Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 4 of 6 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Label (Location) Location : Rear Side of EUT EUT External Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 5 of 6 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Adaptor (Front) EUT External Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 6 of 6 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Adaptor (Rear)

EUT External Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 3 of 6 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Label (Format)

EUT Internal Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 1 of 8 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 EUT Internal Photos Main Board #1 (Front) EUT Internal Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 2 of 8 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Main Board #1 (Rear) EUT Internal Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 3 of 8 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Main Board #2 (Front) EUT Internal Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 4 of 8 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Main Board #2 (Rear) EUT Internal Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 5 of 8 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Pocket ZIP Drive (Front) EUT Internal Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 6 of 8 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Pocket ZIP Drive (Rear) EUT Internal Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 7 of 8 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Adaptor Board (Front) EUT Internal Photos Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 8 of 8 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Adaptor Board (Rear)

2. Pin assignment & Description Pin No. Pin name Description R-ch INPUT It cuts DC with the capacitor and it inputs R-ch audio signal. Pre-emphasis time constantIt connects a capacitor for the time constant of pre-emphasis. LPF time constant This is 15kHz LPF. Filter It is a ripple filter for the reference voltage of the audio part. Composite signal output It connects to the FM modulator. GND GND PLL phase detector output It connects to the PLL LPF circuit. VCC Power supply terminal RF Oscillator This is the base terminal of the colpitts oscillator. RF GND RF GND RF output It connects to the antenna through BPF. PLL VCC PLL power supply terminal X'tal Oscillator It connects a 7.6MHz crystal oscillator. X'tal Oscillator It connects a 7.6MHz crystal oscillator. Chip enable(/CS) The terminal to make high level in serial data input. Clock(SLK) The clock which takes data and synchronization in serial data input. Data(SDA) The input terminal of the serial data which is forwarded from the controller. Audio Mute 0.8VCC ≤ Pin18 : Mute ON 0.2VCC ≥ Pin18 : Mute OFF Pilot signal adjust Pilot signal adjust terminal LPF time constant This is 15kHz LPF. Pre-emphasis time constantIt connects a capacitor for the time constant of pre-emphasis. L-ch INPUT It cuts DC with the capacitor and it inputs L-ch audio signal. 3. Explanation for Terminal Function 3-1 Pre-emphasis Circuit 1 R-ch audio source input terminal It cuts DC with the capacitor and it inputs R-ch audio signal. 22 L-ch audio source input terminal It cuts DC with the capacitor and it inputs L-ch audio signal. 2,21 Pre-emphasis time constant terminal It connects a capacitor for the time constant of pre-emphasis. τ = 22.7k × C R404 27KJ CA405 1/10V 12 C403 2.2n/16V CA402 1/10V 12 CA404 1/10V 12 C406 2.2n/16V L-CH 1 R-CH 1 123 202122 R-inPre-empLPF LPF Pre-emp L-in R403 27KJ R402 27KJ CA403 1/10V ROHM A 12 R405 27KJ 1608 1608 1608 1608 A AA 1608 1608 1608 3-2 LPF Circuit 3,20 LPF time constant terminal This is 15kHz LPF. It connects a 150pF capacitor. C402 150p/50V C407 150p/50V 123456 171819202122 R-inPre-empLPFFilterComposite Mute Pilot adj LPF Pre-emp L-in 1608 1608 3-3 Ripple Filter of Power Supply 4 Filter terminal It is a ripple filter for the reference voltage of the audio part. CA407 10/10V 1 2 1234567 R-inPre-empLPFFilterCompositeGND A 3-4 Modulation Rate Adjust 5 Composite signal output terminal It connects to the FM modulator. CA406 10/10V 1 2 1234567891011 R-inPre-empLPFFilterCompositeGNDPLLVCCRF oscRF GNDRF out MPX 1 R411 5.1KJ R412 5.1KJ A 1608 1608 6 GND 3-5 PLL Loop Filter 7 PLL phase detector output terminal It connects to the PLL LPF circuit. VCC-TX Q402 2SD2142K C412 330p/16V R413 10KJ R406 20KJ C416 2.2n/16V C415 47n/16V CA410 100/10V 12 R418 3.3KJ R419 100J CA409 100/10V 1 2 R420 3.3KJ CA408 10/10V 12 R417 2.2KJ VT 1 1234567891011 R-inPre-empLPFFilterCompositeGNDPLLVCCRF oscRF GNDRF out PLL VCC X-tal oscX-tal osc Pilot adj Pre-emp 1608D SOT-23 1608 1608 ROHM 1608 1608 A1608 D 1608 1608 8 Power supply terminal 3-6 VCO 9 RF oscillator terminal This is the base terminal of the colpitts oscillator. It connects time constant of the oscillation. R410 0R0 C411 15p/16V L401 5CBM-5023 C413 18p/16V C414 33p/16V D401 KV1471E 21 R414 10KJ 891011 VCCRF oscRF GNDRF out PLL VCC X-tal oscX-tal osc 1608 1608 1608 TOKO 1608 SMD-41608 URD TOKO 3-7 RF Output 10 RF GND 11 RF transmission output terminal It connects to the antenna through BPF. B401 GFWB1 123 R407 360J R408 82J C409 1n/16V R409 82J C420 100p/50V 91011 RF oscRF GNDRF out PLL VCC ANT 1 SMD-5 1608 1608 1608 SOSHIN 1608 1608 12 PLL power supply terminal 3-8 X’tal Oscillator 13,14 X'tal oscillator terminal It connects a 7.6MHz crystal oscillator. C404 27p/50V C405 27p/50V X401 7.6MHz/20pF 121314 PLL VCC X-tal oscX-tal osc CS 16081608 SX-3(ATS-25/SMD) 3-9 Input of the Serial Data 15 Chip enable terminal The terminal to make high level in serial data input. 16 Clock input terminal The clock which takes data and synchronization in serial data input. 17 Data input terminal The input terminal of the serial data which is forwarded from the controller. 1213141516171819202122 PLL VCC X-tal oscX-tal osc CS SCKSDA Mute Pilot adj LPF Pre-emp L-in PB4 1 PB3 1 PB2 1 3-10 Audio Mute 18 Audio mute terminal 0.8VCC ≤ Pin18 : Mute ON 0.2VCC ≥ Pin18 : Mute OFF 3-11 Separation Adjust 19 Pilot signal adjust terminal C412 330p/16V CA408 10/10V 12 R413 10KJ A1608 1608

Operation Explanation 1. Schematic VCC-PLL VCC-TX VCC-PLL VCC-TX VCC-TX Q402 2SD2142K C412 330p/16V R410 0R0 B401 GFWB1 123 R407 360J R413 10KJ R406 20KJ R412 5.1KJ R404 27KJ C404 27p/50V R408 82J C411 15p/16V L401 5CBM-5023 C416 2.2n/16V C415 47n/16V C405 27p/50V CA401 10/10V 1 2 CA406 10/10V 1 2 CA405 1/10V 12 CA410 100/10V 12 C401 104/16V C413 18p/16V R418 3.3KJ R419 100J C403 2.2n/16V C414 33p/16V C402 150p/50V CA409 100/10V 1 2 C408 103/16V C409 1n/16V R411 5.1KJ CA407 10/10V 1 2 CA402 1/10V 12 CA404 1/10V 12 R409 82J R420 3.3KJ CA408 10/10V 12 X401 7.6MHz/20pF C406 2.2n/16V D401 KV1471E 21 R414 10KJ C420 100p/50VC407 150p/50V C417 1n/16V R417 2.2KJ L-CH 1 R-CH 1 U401 BH1415S/F 1234567891011 1213141516171819202122 R-inPre-empLPFFilterCompositeGNDPLLVCCRF oscRF GNDRF out PLL VCC X-tal oscX-tal osc CS SCKSDA Mute Pilot adj LPF Pre-emp L-in PB4 1 PB3 1 PB2 1 ANT 1 VCC-PLL 1 VT 1 MPX 1 GND 1 VCC-TX 1 R403 27KJ R402 27KJ CA403 1/10V ROHM A 12 R405 27KJ L430 NC 1608D SOT-23 1608 1608 ROHM A SMD-5 1608 1608 A A 1608 1608 1608 1608 1608 1608 1608 1608 SSOP-22 1608 1608 D 1608 1608 1608 A 1608 1608 1608 1608 A 1608 1608 1608 AA TOKO 1608 SMD-4 1608 1608 SOSHIN 1608 SX-3(ATS-25/SMD) 1608 1608 URD TOKO 1608 1608 1608 1608

Test Report No. CTK01 - F055 Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Issue: 2001-04-20 Page 1 of 14 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Model : MP-K80 FCC ID O8TMP-K80 Product type MP3 PLAYER + FM TRANSMITTER Serial No. - Applicant EIGER M&C CO., LTD. Address 562-6, Woman-Dong, Paldal-Gu, Suwon-City, Kyungki-Do, KOREA Manufacturer EIGER M&C CO., LTD. Address 562-6, Woman-Dong, Paldal-Gu, Suwon-City, Kyungki-Do, KOREA TX Frequency Range 106.7MHz – 107.9MHz Test specification (Standard) : FCC Part15 Subpart B Class B , Subpart C Test Result : In compliance Tested by (Test engineer) 2001-04-20 Young Joon, Park Date Name Signature Reviewed by (EMC Manager) 2001-04-20 James, Hong Date Name Signature Definition : Applicable, : Not Applicable, N/A : Not Applicable, - : Not Applicable The test result only responds to the tested sample. No single part of this document may be reproduced without permission from Certitek Standards Laboratory Co., Ltd. Tel: +82-31-339-9970, Fax: +82-31-339-9972 E E E M M M C C C - - - T T T e e e s s s t t t R R R e e e p p p o o o r r r t t t Test Report No. CTK01 - F055 Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Issue: 2001-04-20 Page 2 of 14 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Table of contents 1. EUT description............................................................................................................................3 Introduction..........................................................................................................................................................................................3 Identification.........................................................................................................................................................................................3 Electrical rating..................................................................................................................................................................................3 2. Test Set-up.......................................................................................................................................4 Test Mode................................................................................................................................................................................................4 Cable configuration..........................................................................................................................................................................4 Cable description...............................................................................................................................................................................5 Auxiliary equipment........................................................................................................................................................................5 Test software.........................................................................................................................................................................................5 Measurement Procedures.............................................................................................................................................................6 3. Test Result.......................................................................................................................................7 Test summary.......................................................................................................................................................................................7 Emissions from the intentional radiator #1.......................................................................................................................8 Emissions from the intentional radiator #2.....................................................................................................................10 Emissions from the intentional radiator #3.....................................................................................................................11 Radiated emission............................................................................................................................................................................12 Conducted emission........................................................................................................................................................................13 Test Report No. CTK01 - F055 Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Issue: 2001-04-20 Page 3 of 14 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 1. EUT description Introduction MP-K80 is a MP3 PLAYER + FM TRANSMITER. Identification Receipt date : 2001-03-19 Model : MP-K80 Manufacturer : EIGER M&C CO., LTD. Address : 562-6, Woman-Dong, Paldal-Gu, Suwon-City, Kyungki-Do, KOREA Contact person : Y. J. LEE Telephone : +82 - 31 - 211 - 7092 Peripheral Device Ports Electrical rating Input : DC 4.2V (Embedded Li-ion Rechargeable Battery) Output : - Port name Description USB DATA Download Port EARPHONE Connect to Earphone DC 4.2V Connect to Adaptor Test Report No. CTK01 - F055 Certitek standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Issue: 2001-04-20 Page 4 of 14 www.certitek.com Certitek Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 2. Test Set-up Test Mode Downloading & Playing Music. Cable configuration EUT PC USB Port Keyboard Mouse (PS/2) Mouse (Serial) Headset Game pad Earphone (for EUT) Monitor …
