O9G2020ICTIn Car Transceiver

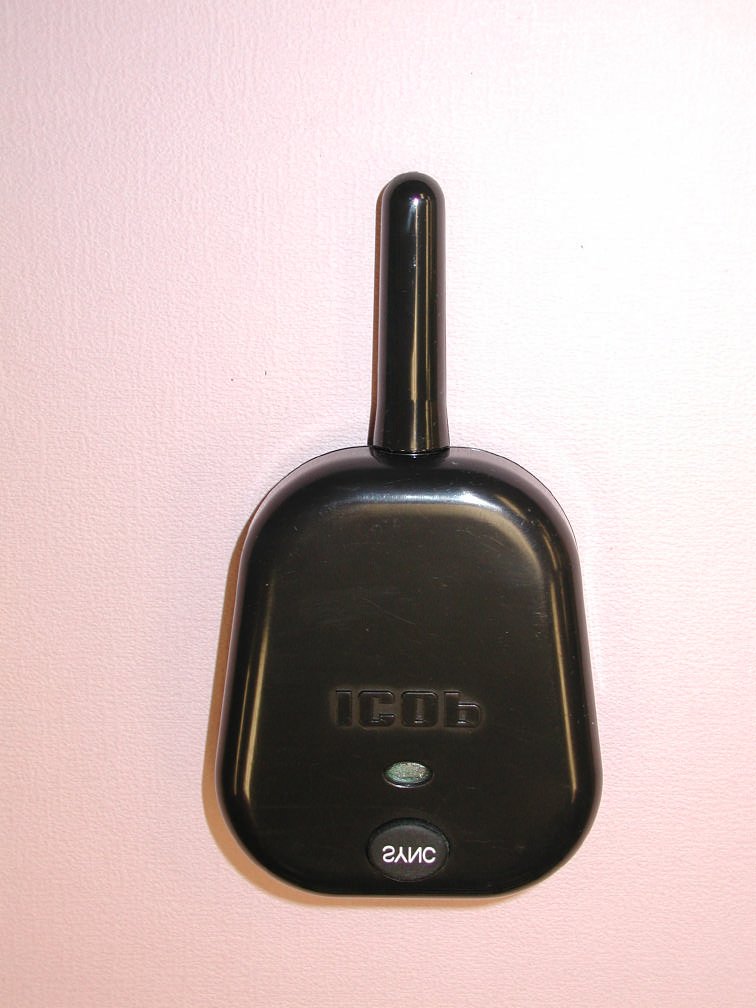

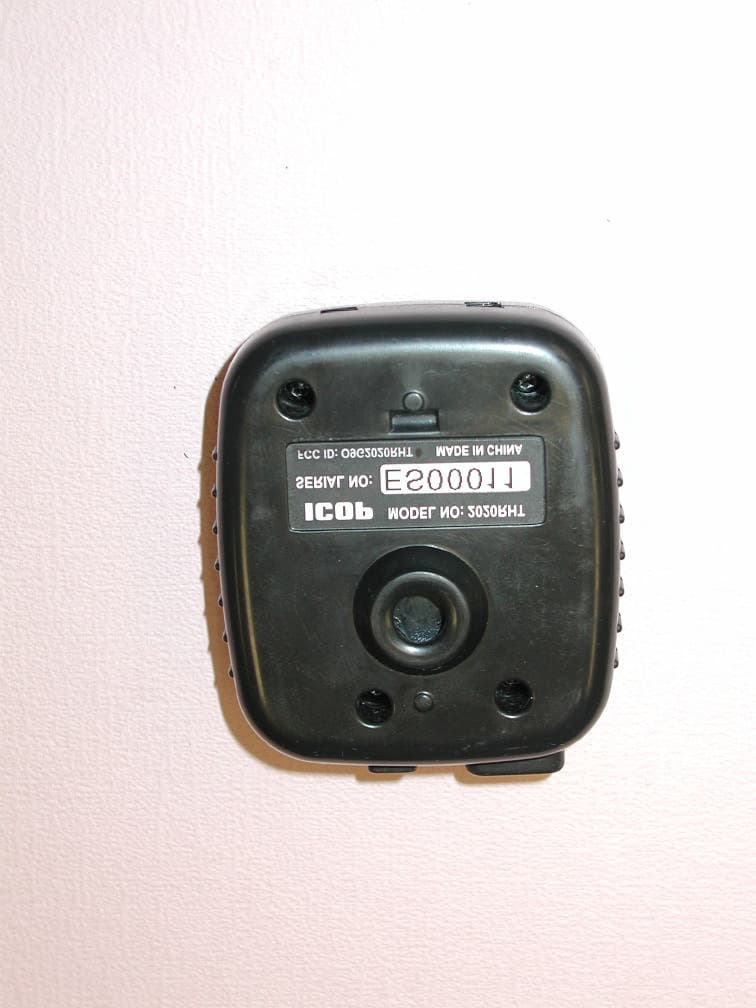

Operating Instructions ICOP 2020WMIC Items included in this package with part numbers No. Quantity Model No. Description ICOP Part No. 1 1 2020ICT In-Car Transceiver 600-00111-00 2 1 2020RHT Remote Transceiver 600-00110-00 3 1 2020BC Belt Clip 600-00116-00 4 1 2020ICC In-Car Charger 600-00115-00 5 1 N/A Cable - In-Car Charger 600-00119-00 6 1 2020CPC Cigar Plug Charger 600-00112-00 7 1 2020HOC Home Office Charger 600-00114-00 8 1 N/A Instruction Manual 700-00100-00 System description: The ICOP 2020WMIC wireless microphone system operates as part of ICOP’s in-car DVR (digital video recorder) system. The ICOP 2020 Wireless Microphone System consists of 2 transceivers. The first transceiver, called the In-Car Transceiver (2020ICT), is mounted inside the vehicle. The In-Car Transceiver must be connected to the JBOX (junction box) to interface audio and control signals to the DVR. The In-Car Transceiver consists of two receivers and one transmitter, a fixed antenna, an RJ-45 connector, and a push button for synchronization with the Remote Transceivers. The second transceiver, called the Remote Transceiver (2020RHT), is carried by the patrolman either on his belt or lapel. The Remote Transceiver is a self-contained unit, which includes an internal microphone, external microphone/charge jack, battery charge terminals, internal rechargeable battery, internal antenna, and 3 buttons for Standby/Off, Help and Transmit Record On/Off. The system operates in the 900 MHz ISM (Instrument Scientific Medical) band and is license free. The system range is 1000 feet. The ICOP 2020 Wireless Microphone System uses Frequency Hopping Spread Spectrum (FHSS) Narrow Band FM, which provides excellent privacy, security and avoidance of interference. Three chargers are included with the 2020WMIC system. These are the In-Car Charger (2020ICC), the Cigar Plug Charger (2020CPC) and the Home Office Charger (2020HOC). In-Car Transceiver Model Number 2020ICT Operating Instructions: Depending on the installation, the In-Car Transceiver will have power applied at all times or only when the ignition switch is on. The In-Car Transceiver (ICT) may be used with one or two Remote Transceivers. Upon application of power, the In-Car Transceiver will turn on SYNC Button RJ45 Connector Antenna SYNC Status LED its red SYNC Status LED and attempt a link confirmation with the first Remote Transceiver unit on its currently assigned channels. The In-Car Transceiver will then attempt a link confirmation with a second Remote Transceiver. After the attempts are completed, the In- Car Transceiver’s red SYNC Status LED will blink one or two times every five seconds for three minutes to indicate the number of Remote Transceiver units found. If no units are found, the SYNC Status LED will remain off. To synchronize or resynchronize the In-Car Transceiver to one or two Remote Transceivers, place the Remote Transceiver unit(s) into the In-Car Chargers or plug into the Cigar Plug Charger and press the SYNC button on the In-Car Transceiver. The In-Car Transceiver will first attempt a link confirmation with assigned Remote Transceiver units in or out of their charging bases. Assigned Remote Transceivers that are not in use should be turned off or placed in an Office Charger to avoid unintentional resynchronization with units not in use. The In-Car Transceiver SYNC Status LED will light for the duration of the synchronization and confirmation operation. If two Remote Transceiver units are found and confirmed, the process is completed and the SYNC Status LED will blink two times every five seconds for three minutes to indicate that two Remote Transceivers are synchronized to the In-Car Transceiver. If only one Remote Transceiver unit is found and confirmed, the In-Car Transceiver will enter programming mode on the special low-power synchronization channel and attempt to program the current security and channel information into the next Remote Transceiver unit available in charge mode that it can find. If the programming attempt fails to find a second Remote Transceiver, the SYNC Status LED will blink one time every five seconds for three minutes to indicate that one remote is synchronized to the In-Car Transceiver. Only two Remote Transceivers can be synchronized to an In-Car Transceiver at one time. The In-Car Transceiver will add together the audio from the two Remote Transceivers synced to it into a single audio path to be sent to the DVR. If one unit is out of range or is not transmitting, that audio path will be muted. General Specifications: Operating Frequency Range 902 – 928 MHz Operating Voltage 9 to 15 VDC Frequency Hopping Sequences 32,768 Frequencies per Sequence 16 Audio Output 250 mV RMS Range 1000 ft FCC Information: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. An FCC license is not required for operation of this device. 2020RHT Operating instructions: The Remote Transceiver has an internal 550 mA hour rechargeable battery pack. Prior to the first use the battery should be charged for 12 to 15 hours. The Remote Transceiver can be charged through its charge terminals located on the bottom of the unit while placed in the In-Car Charger (2020ICC) or the Multiple Office Charger (2020MOC), or through the external mic/charge jack with the Cigar Plug Charger (2020CPC) or Home Office Charger(2020HOC). After the battery is charged, the Remote Transceiver must be synchronized to the In-Car Transceiver. To synchronize or resynchronize the In-Car Transceiver to one or two Remote Transceivers, place the Remote Transceiver unit(s) into the In-Car Chargers or plug into the Cigar Plug Charger and press the SYNC button on the In-Car Transceiver. The In-Car Transceiver will first attempt a link confirmation with assigned Remote …

Text truncated - open the document above for the full version.

TriSquare Communications 1420 NW Vivion Rd., Suite 113, Kansas City, Missouri 64118 March 21, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Ref: FCC ID: O9G2020ICT Request for Confidentiality Dear Sirs: With regard to the referenced application, TriSquare Communications, Inc. is requesting confidentiality of certain sections of the accompanying documents. The documents for which TriSquare Communications, Inc. is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, W. Gary Staley President

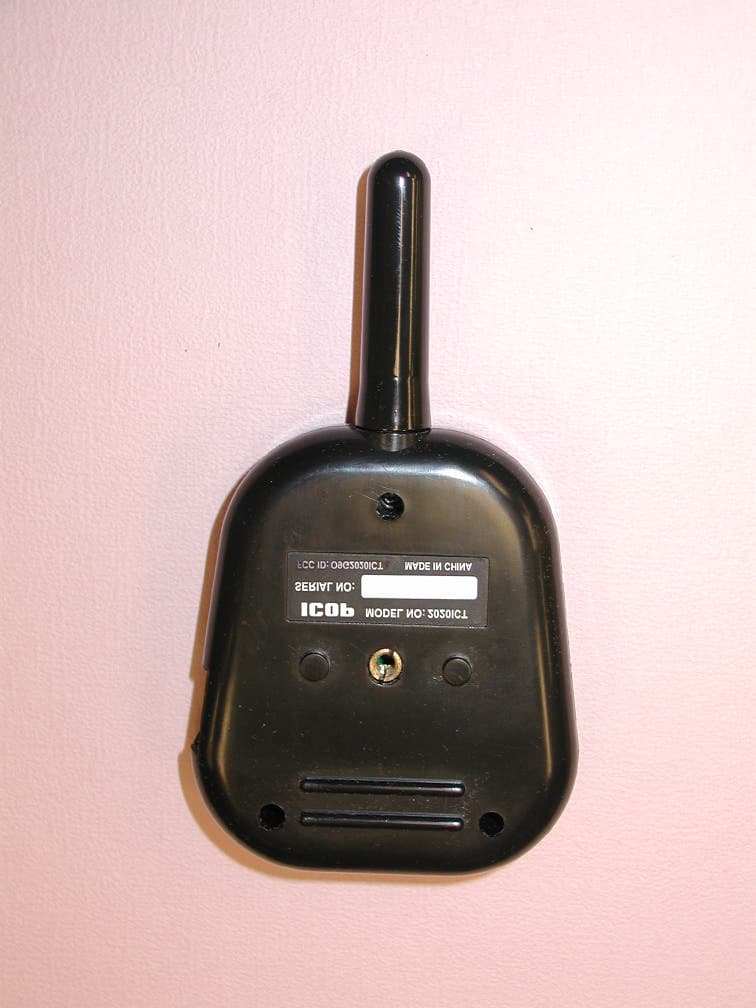

SERIAL NO: MODEL NO: 20/20 ICT FCC ID: O9G2020ICT MADE IN CHINA SERIAL NO: MODEL NO: 20/20 ICT FCC ID: O9G2020ICT MADE IN CHINA O9G2020ICT Label and Placement

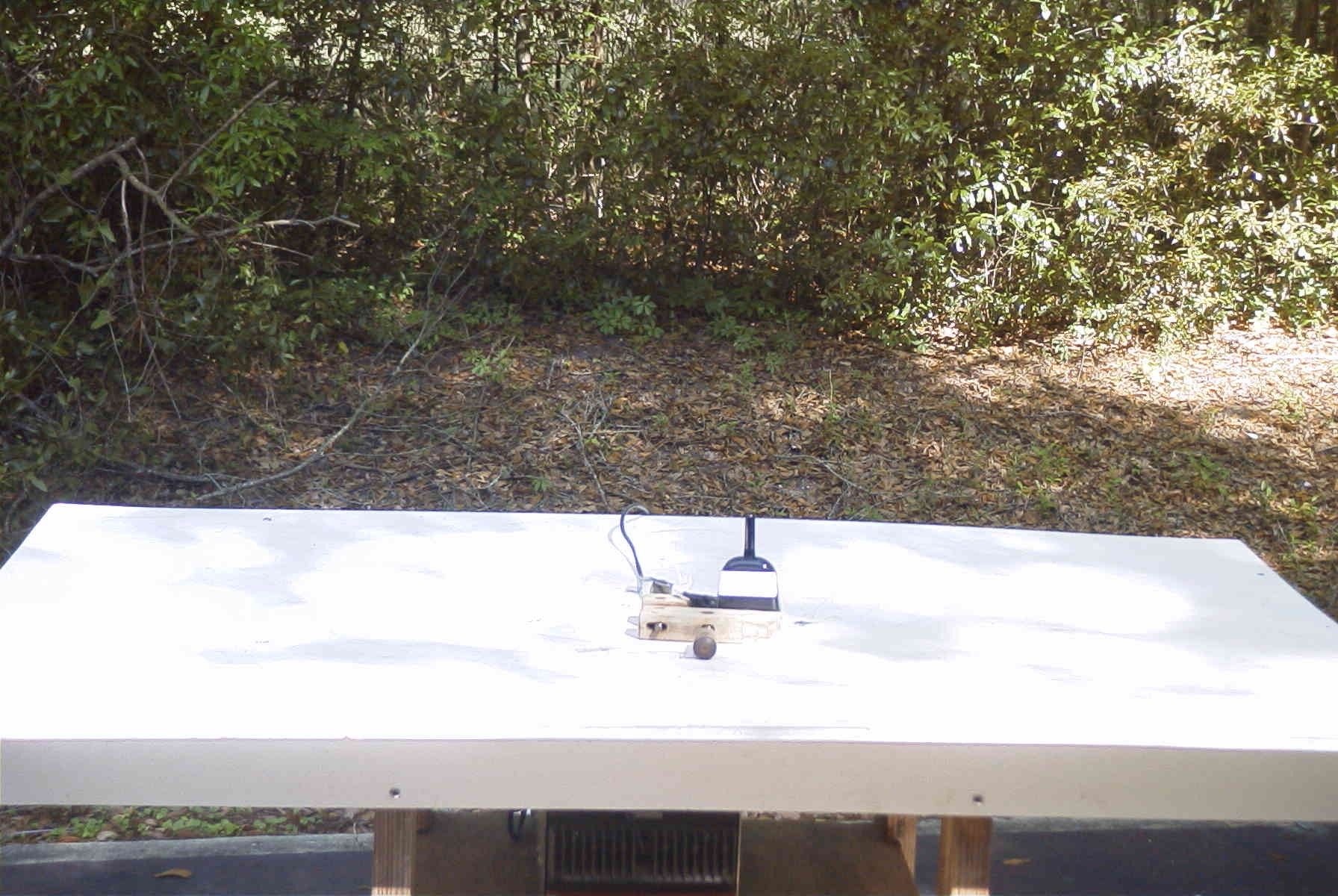

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TRISQUARE COMMUNICATIONS INC. FCC ID: O9G2020ICT REPORT #: T\Trisquare_O9G\661AUT5\661AUT5TestReport.doc COVER SHEET Test Report Product Name: IN CAR TRANSCEIVER FCC ID: O9G2020ICT Applicant: TRISQUARE COMMUNICATIONS INC. 1420 N.W. VIVION ROAD SUITE 113 KANSAS CITY MO. 64118-4555 Date Receipt: 3/30/2005 Date Tested: 4/5/2005 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TRISQUARE COMMUNICATIONS INC. FCC ID: O9G2020ICT REPORT #: T\Trisquare_O9G\661AUT5\661AUT5TestReport.doc TABLE OF CONTENTS APPLICANT: TRISQUARE COMMUNICATIONS INC. FCC ID: O9G2020ICT TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1-6.........TEST EQUIPMENT LIST PAGE 7...........TEST PROCEDURE PAGE 8...........TEST SET UP PHOTO PAGE 9-11........RADIATION INTERFERENCE TEST DATA PAGE 12-13.......OCCUPIED BANDWIDTH EXHIBIT INCLUDED: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRPAHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TRISQUARE COMMUNICATIONS INC. FCC ID: O9G2020ICT REPORT #: T\Trisquare_O9G\661AUT5\661AUT5TestReport.doc Page 1 of 13 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date or Status 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 9/23/03 9/23/05 Tan Tower RF Preselector HP 85685A 3221A01400 CAL 9/23/03 9/23/05 Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 9/23/03 9/23/05 Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 9/23/03 9/23/05 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 4/27/06 Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 3/22/04 3/22/06 Silver Tower RF Preselector HP 85685A 2926A00983 CAL 3/22/04 3/22/06 Silver Tower Quasi- Peak Adapter HP 85650A 3303A01844 CAL 3/22/04 3/22/06 Silver Tower Preamplifier HP 8449B 3008A01075 CAL 3/22/04 3/22/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 BiconiLog Antenna EMCO 3143 9409-1043 No Cal Required Log-Periodic Electro-LPA-25 1122 CAL 8/26/06 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TRISQUARE COMMUNICATIONS INC. FCC ID: O9G2020ICT REPORT #: T\Trisquare_O9G\661AUT5\661AUT5TestReport.doc Page 2 of 13 Device Manufacturer Model Serial Number Cal/Char Date Due Date or Status Antenna Metrics 8/26/04 Log-Periodic Antenna Electro- Metrics LPA-30 409 CAL 3/4/03 3/4/05 Log-Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 Dipole Antenna Kit Electro- Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro- Metrics TDA-30/1-4 153 CAL 9/26/02 9/26/05 Double-Ridged Horn Antenna Electro- Metrics RGA-180 2319 CAL 2/17/03 2/17/05 Horn Antenna *(at 3 meters) Electro- Metrics EM-6961 6246 CAL 3/31/03 3/31/05 Horn Antenna *(at 10 meters) Electro- Metrics EM-6961 6246 CAL 6/4/03 6/4/05 Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 Harmonic Mixer with Horn Antenna Oleson Microwave Labs M08HW/A F30425-1 CHAR 4/25/03 4/25/05 Harmonic Mixer with Horn Antenna Oleson Microwave Labs M12HW/A E30425-1 CHAR 4/25/03 4/25/05 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 7/16/04 7/16/06 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 7/16/04 7/16/06 Oscilloscope Tektronix 2230 300572 CAL 7/3/03 7/3/05 System One Audio Precision System One SYS1-45868 CHAR 4/25/02 4/25/04 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 7/19/04 7/19/06 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TRISQUARE COMMUNICATIONS INC. FCC ID: O9G2020ICT REPORT #: T\Trisquare_O9G\661AUT5\661AUT5TestReport.doc Page 3 of 13 Device Manufacturer Model Serial Number Cal/Char Date Due Date or Status Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CHAR 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CAL 7/2/03 7/2/05 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 7/2/03 7/2/05 Power Meter HP 432A 1141A07655 CAL 4/15/03 4/15/05 Power Sensor HP 478A 72129 CAL 4/15/03 4/15/05 Power Meter And Sensor Bird 4421-107 & 4022 0166 & 0218 CAL 4/16/03 4/16/05 Digital Thermometer Fluke 2166A 42032 CAL 7/19/04 7/19/06 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 Thermometer Extech 4028 14871-2 CAL 3/7/03 3/7/05 Hygro-Thermometer Extech 445703 0602 CAL 10/4/02 10/4/04 Frequency Counter HP 5352B 2632A00165 CAL 8/3/04 8/3/06 Frequency Counter HP 5385A 2730A03025 CAL 3/7/03 3/7/05 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 Out of Service Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 8/26/04 8/26/06 Sweep Generator Wiltron 6648 101…

Text truncated - open the document above for the full version.
