O9U-B-DS-PRODoor access system

Brivo Door Station Pro Installation Guide Introduction I Legal Disclaimers .......................................................................................................2 Introduction ................................................................................................................4 Pre-Installation Procedures II Understand the function of the Brivo Door Station Pro (B-DS-PRO) ...... 6 Understand B-DS-PRO product compatibility ................................................6 V erify client site is ready for installation ............................................................6 Verify shipping contents .........................................................................................7 V erify tools needed for installation .....................................................................7 V erify Brivo control panel setup to accept Brivo Door Station Pro ..........8 Confirm Brivo Door Station Pro powers up successfully .............................8 F ollow safety precautions ......................................................................................9 General Assembly Procedures III Wiring the cable to the Brivo Door Station Pro ............................................10 Prepare the location to mount the Brivo Door Station Pro ......................11 Mounting the Brivo Door Station Pro ..............................................................13 Brivo Door Station Pro Configuration IV Configure and test your Brivo Door Station Pro in Access .......................14 Configure Intercom call receiver in Brivo Access .........................................15 C onfigure notifications for your Brivo Door Station Pro ...........................15 Test your intercom call receiver in Brivo Access ...........................................16 T est your intercom to call a mobile phone using BMP ..............................16 Configure and test a user with physical credentials ...................................17 Configure and test a user with Bluetooth credentials ...............................17 R eader LED Operations for Brivo Door Station Pro .....................................18 C onnecting a laptop to the main control board admin port ..................38 C onnect the LAN to the main control board .................................................38 Maintenance Mode Operations .........................................................................21 Appendices VII Ports and IP Addresses for the Brivo Door Station Pro ..............................27 Maintenance Mode Operations VI Brivo Door Station Pro Maintenance Mode Operations ............................26 Troubleshooting V Verify OSDP connection ........................................................................................19 Verify communication with Brivo cloud server ............................................20 Verify WebUI works and firmware is up to date............................................21 Verify functionality through Troubleshooting Tool .....................................22 T roubleshooting Live Video .................................................................................23 V ideo Services for Brivo Door Station Pro ......................................................25 © 2025 Brivo Systems LLC. All rights reserved.PUB-Brivo Door Station Installation Guide_v2.1 2 Brivo Door Station Installation Guide Legal Disclaimers FCC Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with the FCC requirements for RF exposure. This device should be installed with a minimum distance of 20cm between the device and your body. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation or when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1.Reorient or relocate the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. Canada This device complies with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1.This device may not cause interference, and 2.This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1.l’appareil ne doit pas produire de brouillage; 2.l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02-04-2026 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: O9U-B-DS-PRO Brivo Systems, LLC (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0004075354 Company Name: Brivo Systems LLC Address: 7700 Old Georgetown Rd. Suite 300 Bethesda, Maryland 20814 Contact Person: Steven Bryant Tel.: +1 (301) 664-5242 Email: [email protected] Sincerely, Steven Bryant Sr. Embedded Product Manager

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02-04-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: O9U-B-DS-PRO Brivo Systems, LLC (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity, or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Steven Bryant

Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02-04-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: O9U-B-DS-PRO Brivo Systems, LLC (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Brivo Systems, LLC (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). ☒ Device is inherently compliant based on hardware limitations or software controls. or ☐ A Software Bill of Materials (SBOM) is provided to the TCB for review, and ☐ The end-user or third parties cannot install additional software on this device. Sincerely, Steven Bryant

February 4, 2026 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: O9U-B-DS-PRO To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Block Diagram Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards Steven Bryant Sr. Embedded Product Manager Brivo Systems, LLC

Authority to Act as Agent FCC February 4, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: O9U-B-DS-PRO To Whom It May Concern: We, the undersigned, hereby authorize Jason Stewart of VPI Technology at 313 W. 12800 S,. Suite 311, Draper UT 84020 to act as our agent and on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by VPI Technology on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, By: Steven Bryant Title: Sr. Embedded Product Manager On behalf of Brivo Systems, LLC

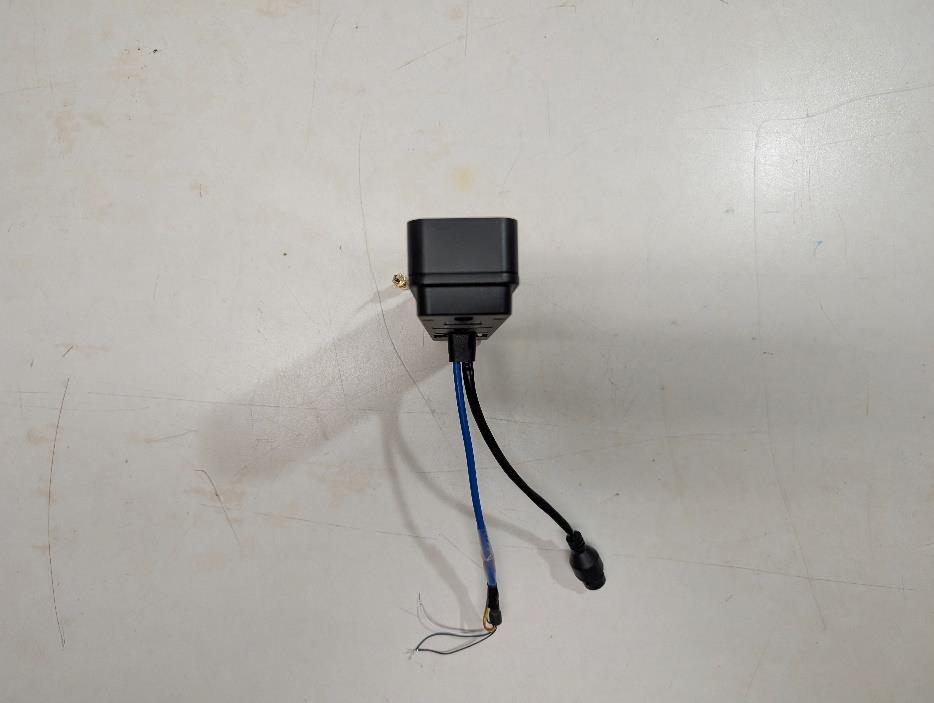

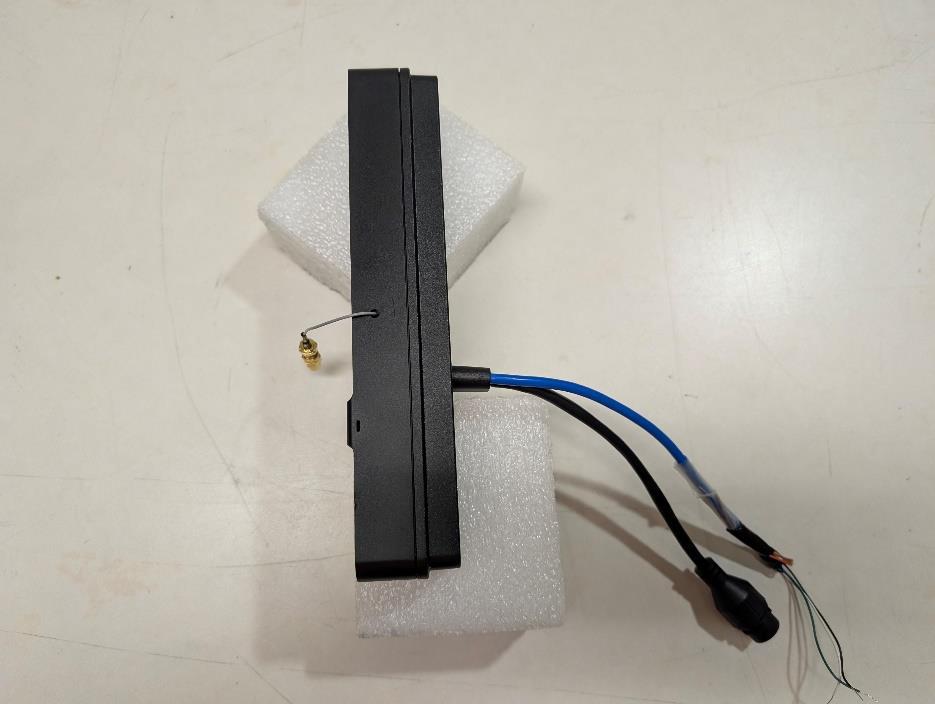

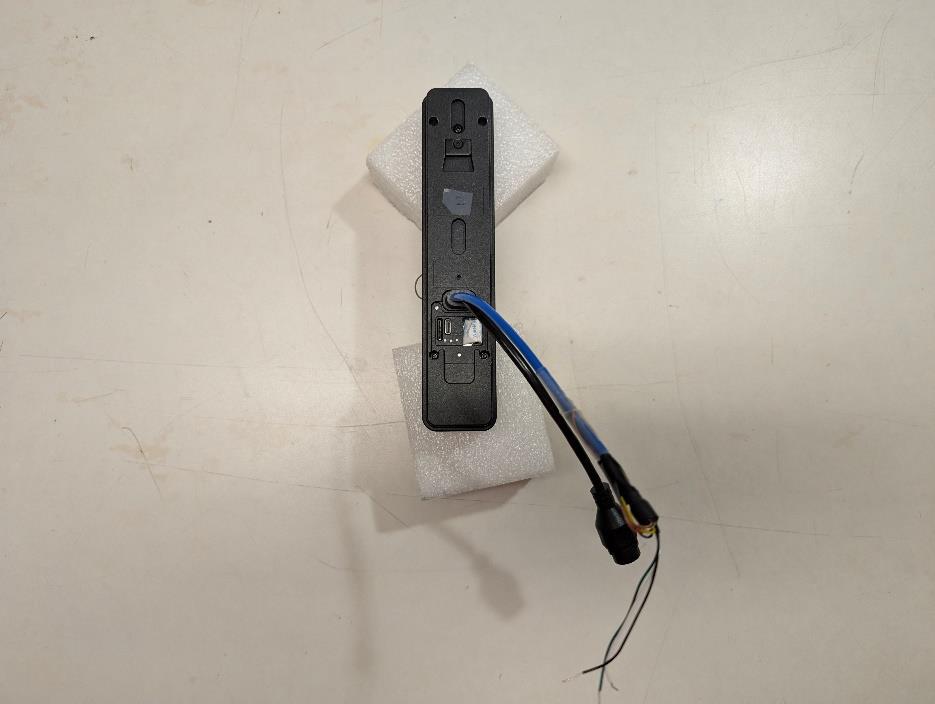

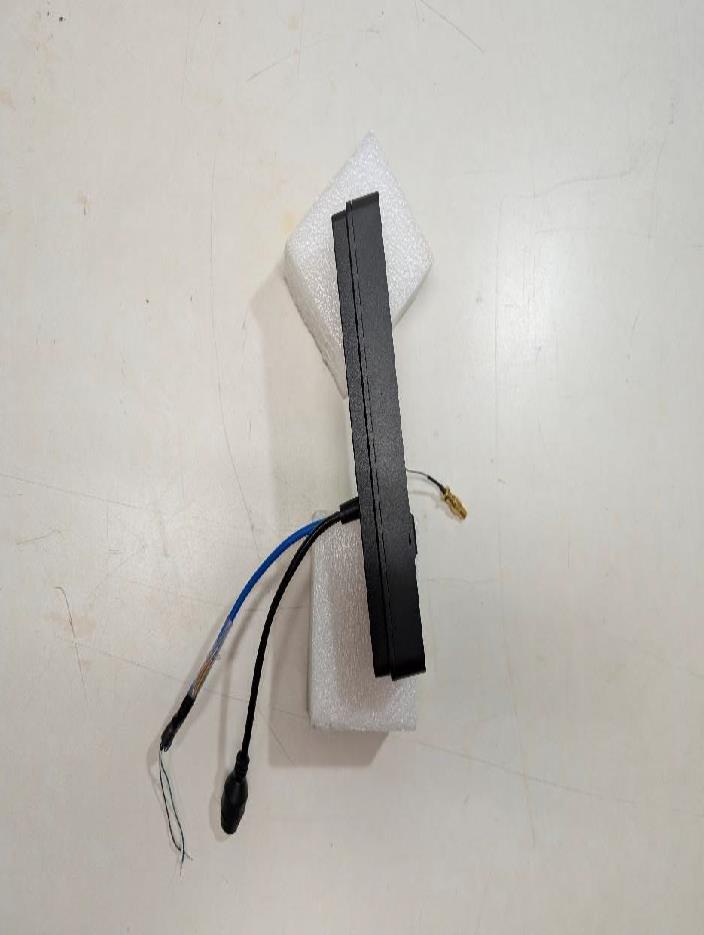

313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_ExtPho.docx Page 1 of 6 PROPRIETARY External Photographs Photograph 1 – Front View of the EUT Antenna Port for Conducted Testing Only, Not on Retail Device 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_ExtPho.docx Page 2 of 6 PROPRIETARY Photograph 2 – Back View of the EUT 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_ExtPho.docx Page 3 of 6 PROPRIETARY Photograph 3 – View of Top of the EUT 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_ExtPho.docx Page 4 of 6 PROPRIETARY Photograph 4 – View of Bottom of the EUT 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_ExtPho.docx Page 5 of 6 PROPRIETARY Photograph 5 – View of Side 1 of the EUT 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_ExtPho.docx Page 6 of 6 PROPRIETARY Photograph 6 – View of Side 2 of the EUT

Top Label Bottom Label

313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 1 of 17 PROPRIETARY Internal Photographs Photograph 1 –View of the RF Circuitry under the RF Shield, NFC Connector to NFC Antenna 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 2 of 17 PROPRIETARY Photograph 2 –View of the RF Circuitry under the RF Shield, BLE Chip Antenna 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 3 of 17 PROPRIETARY Photograph 3 – Top view of RF PCB 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 4 of 17 PROPRIETARY Photograph 4 – Bottom view of RF PCB 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 5 of 17 PROPRIETARY Photograph 5 – Top view of Keypad PCBA 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 6 of 17 PROPRIETARY Photograph 6 – Bottom view of Keypad PCBA 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 7 of 17 PROPRIETARY Photograph 7 – Top view of Power PCBA 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 8 of 17 PROPRIETARY Photograph 8 – Bottom view of Power PCBA 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 9 of 17 PROPRIETARY Photograph 9 – Top view of Main PCBA 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 10 of 17 PROPRIETARY Photograph 10 – Bottom view of Main PCBA 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 11 of 17 PROPRIETARY Photograph 11 – Front Housing with all PCBs removed, Front Keypad overlay visible. 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 12 of 17 PROPRIETARY Photograph 12 – Front housing with NFC antenna in place 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 13 of 17 PROPRIETARY Photograph 13 – Front Housing with Keypad PCB Installed on top of NFC Antenna 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 14 of 17 PROPRIETARY Photograph 14 – Front housing with RF Board on top of Keypad PCB 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 15 of 17 PROPRIETARY Photograph 15 – Back Housing with Main PCB 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 16 of 17 PROPRIETARY Photograph 16 – Back housing with Power PCB on top of Main PCB 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_IntPho.docx Page 17 of 17 PROPRIETARY Photograph 17 – Front and Back housings with all PCBs installed

313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_MPE.docx Page 1 of 2 PROPRIETARY 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 47 C.F.R. Part 2, Subpart J, Section 2.1093 447498 D04 Interim General RF Exposure Guidance v01 Maximum Permissible Exposure Calculations For FCC ID: O9U-B-DS-PRO EUT Device Category = General Population/Uncontrolled Exposure EUT consists of one ISM band radio transmitting, operating over a range of: 2402 MHz to 2480 MHz And one NFC radio operating at 13.56 MHz MPE Summary: According subpart 1.1307 (b)(1) and 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density Calculated Formulary: Predication of MPE limit at a given distance S = power density (in appropriate units, e.g. mW/cm 2 ) R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) PG = EIRP 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_MPE.docx Page 2 of 2 PROPRIETARY MPE and Limit are calculated for this device as follows: 2.4 GHz Frequency Band Freq Output Power (dBm) Tune-up Tolerance (dB) Max Antenna Gain (dBi) Max EIRP (dBm) Max EIRP (mW) Power Density at 20 cm (mW/cm2) Limit (mW) Margin (mW) BLE 2402 4.8 0.0 -1.0 3.8 2.4 0.0005 1.000 0.9995 2440 4.9 0.0 -1.0 3.9 2.5 0.0005 1.000 0.9995 2480 4.8 0.0 -1.0 3.8 2.5 0.0005 1.000 0.9995 Result: The device meets FCC MPE limit at 20 cm for General Population/Uncontrolled Exposure as specified in 47 CRF §1.1310 and §2.1091. NFC Radio, Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time- averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. NFC Maximum EIRP = 0.00068726 mW (at frequency = 13.56MHz) < 1mW Result: Exempt RF Device For Simultaneous transmissions, the combined calculated power density should comply with: =S BLE /S BLE_LIMIT + S NFC /S NFC_LIMIT =0.0005+0.00068726 =0.00118726 < 1.0 Result: Simultaneous transmit meets the MPE exemption at 20cm

313 West 12800 South, Suite 311 Draper, UT 84020 (801) 260-4040 Test Report Certification FCC ID O9U-B-DS-PRO Equipment Under Test B-DS-PRO Test Report Serial No V082128_02 Dates of Test November 17-25, 2025 Report Issue Date February 20, 2026 Test Specifications: Applicant: FCC Part 15, Subpart C Brivo Systems LLC 7700 Old Georgetown Rd. Suite 300 Bethesda, MD 20814 U.S.A. 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 V082128_02_Brivo_B-DS-PRO_FCC_15-247_BLE.docx Page 2 of 58 PROPRIETARY Certification of Engineering Report This report has been prepared by VPI Technology, Inc. to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C. This report may be reproduced in full. Partial reproduction of this report may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Applicant Brivo Systems LLC Manufacturer Brivo Systems LLC Brand Name Brivo Model Number B-DS-PRO FCC ID O9U-B-DS-PRO On this 20 th day of February 2026, I, individually and for VPI Technology, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has accredited the VPI Technology, Inc. EMC testing facilities, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the US government. VPI Technology, Inc. Tested by: Benjamin N. Antczak Reviewed by: Jason Stewart 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 V082128_02_Brivo_B-DS-PRO_FCC_15-247_BLE.docx Page 3 of 58 PROPRIETARY Revision History Revision Description Date 01 Original Report Release February 20, 2026 02 Correcting applicant address on pages 1 and 5, and test standard version in section 3.3 February 27, 2026 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 V082128_02_Brivo_B-DS-PRO_FCC_15-247_BLE.docx Page 4 of 58 PROPRIETARY Table of Contents 1 Client Information ................................................................................................................................. 5 1.1 Applicant ....................................................................................................................................... 5 1.2 Manufacturer ................................................................................................................................. 5 2 Equipment Under Test (EUT) ............................................................................................................... 6 2.1 Identification of EUT .................................................................................................................... 6 2.2 Customer Supplied Data (if applicable) ........................................................................................ 6 2.3 Description of EUT ....................................................................................................................... 6 2.4 EUT and Support Equipment ........................................................................................................ 7 2.5 Interface Ports on EUT ................................................................................................................. 7 2.6 Modification Incorporated/Special Accessories on EUT .............................................................. 7 2.7 Deviation from Test Standard ....................................................................................................... 7 3 Test Specification, Methods and Procedures ........................................................................................ 8 3.1 Test Specification .......................................................................................................................... 8 3.2 Methods & Procedures .................................................................................................................. 8 3.3 Test Procedure ............................................................................................................................ 12 4 Operation of EUT During Testing ...................................................................................................... 13 4.1 Operating Environment ............................................................................................................... 13 4.2 Operating Modes ......................................................................................................................... 13 4.3 EUT Exercise Software ............................................................................................................... 13 5 Summary of Test Results .................................................................................................................... 14 5.1 FCC Part 15, Subpart C .............................................................................................................. 14 5.2 Result .......................................................................................................................................... 14 6 Measurements, Examinations and Derived Results ............................................................................ 15 6.1 General Comments ...................................................................................................................... 15 6.2 Test Results ................................................................................................................................. 15 6.3 Sample Measurement Calculations ............................................................................................. 30 7 Test Procedures and Test Equipment .................................................................................................. 31 7.1 Conducted Emissions at Mains Ports ..................................................…

Text truncated - open the document above for the full version.

2.4 GHz SMD, Above Metal, Low Profile Mini Chip Antenna P/N 2450AT42E010B This antenna will generally have a metal layer directly underneath for proper operation, exceptions may apply. Detail Specification: Page 1 of 9 1 L ±± 2 W ±± 3 T ±± 4 a ±± b ±± C https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2021 Johanson Technology, Inc. All Rights Reserved GND All sales are subject to Johanson Technology, Inc. terms and conditions. 1 Make sure to have Pin 2 soldered to its PCB land pad but not connected to GND or input, it must be NC (or floating). 0.0200.0080.500.20 0.1970.0085.000.20 0.0590.0081.500.20 NC 1 0.0790.0082.000.20 GND Ver. 5.1 Johanson Technology, Inc. reserves the right to make design changes without notice. 0.0590.0081.500.20 0.012 max0.30 max High Frequency Ceramic Solutions 10/28/2021 *Evaluation boards 1 and 2 are meant to demonstrate the difference in performance achievable with different substrate thicknesses. Part Number Explanation This antenna was designed in mind for small coin cell, wearable, IoT, 2.4 BLE, 802.11, ISM, Zigbee, etc. applications in close-range networks where metal or a battery/display covers the entire length or side of the PCB or encasement must be present directly under the antenna and there's no room for usual/typical antenna metal clearance. Impedance (Ω) Power Capacity (W) -40 to +85°C +5 to +35°C Humidity 45 - 75% RH 50 2 max. (CW) 2,000 General Specifications Part Number Frequency (MHz) Mechanical SpecificationsTerminal Configuration Inmm Feeding Point 2450AT42E010B 2400 - 2480 -1.0 (YZ-V) EVB1* 2.7 min. EVB2 * 3.5 min. -1.0 (YZ-V) Suffix = S Suffix = E 18 months max. Return Loss (dB) Peak Gain (dBi typ.) Average Gain (dBi typ.)-3.5 (YZ-V)-5.0 (YZ-V) Evaluation Board 2 2450AT42E010B-EB2SMA (comes with 1 female SMA connector) P/N Suffix E.g. 2450AT42E010BS E.g. 2450AT42E010BE Evaluation Board 1 Packing Style 2450AT42E010B-EB1SMA (comes with 1 female SMA connector) Bulk (loose pcs.) T & R Reel Quantity (pcs./reel) Operating Temp Recommended Storage Conditions and Period for unused Product on T&R Antenna mounts directly above or below the metal layer of PCB. No antenna clearance required ever again! b T a b    L W c Top View Bottom View Side View 2.4 GHz SMD, Above Metal, Low Profile Mini Chip Antenna P/N 2450AT42E010B This antenna will generally have a metal layer directly underneath for proper operation, exceptions may apply. Detail Specification: Page 2 of 9 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2021 Johanson Technology, Inc. All Rights Reserved Mounting Consideration 1: Evaluation Board 1 (Thickness = 1.5mm) Ver. 5.1 High Frequency Ceramic Solutions Johanson Technology, Inc. reserves the right to make design changes without notice. 10/28/2021 *Line width should be designed to match 50ohm characteristic impedance, depending on PCB material and thickness. A coplanar waveguide trace is recommended for best results. For this particular antenna It is recommended that the designer leave available slots for the matching network, even if all slots won't be used, this will prepare the PCB for the unpredictable final mass production version of the matching circuit. The antenna matching network values above are used when antenna is mounted on Johanson's evaluation board. The matching values on client’s PCB will be different. To order a pre-tuned 50 Ω EVB with a female SMA connector you see here Click here: https://www.johansontechnology.com/request-a-sample Reference p/n: 2450AT42E010B-EB1SMA All sales are subject to Johanson Technology, Inc. terms and conditions. Metal bottom GND plane to be placed directly underneath yellow soldemask zone, covering entire area. 1.5 nH Matching circuit 1.5mm 0.3mm 2mm 1.5mm 0.6mm 1.0mm 0.6mm 0.5mm 0.63mm 0.63mm Floating pad 3mm 6.26mm     * Ground Plane (where other SMD components will be mounted) 30mm 6.26mm 50mm 50Ω Feed Line 3mm Top View Bottom View Ground Want the layout file? Send us a message at: https://www.johansontechnology.com/ask-a-question p/n: 2450AT42E010B-EB1SMA Matching circuit 2.4 GHz SMD, Above Metal, Low Profile Mini Chip Antenna P/N 2450AT42E010B This antenna will generally have a metal layer directly underneath for proper operation, exceptions may apply. Detail Specification: Page 3 of 9 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2021 Johanson Technology, Inc. All Rights Reserved Ver. 5.1 *Line width should be designed to match 50ohm characteristic impedance, depending on PCB material and thickness. A coplanar waveguide trace is recommended for best results. For this particular antenna It is recommended that the designer leave available slots for the matching network, even if all slots won't be used, this will prepare the PCB for the unpredictable final mass production version of the matching circuit. The antenna matching network values above are used when antenna is mounted on Johanson's evaluation board. The matching values on client’s PCB will be different. To order a pre-tuned 50 Ω EVB with a female SMA connector you see here Click here: https://www.johansontechnology.com/request-a-sample Reference p/n: 2450AT42E010B-EB2SMA High Frequency Ceramic Solutions 10/28/2021 Johanson Technology, Inc. reserves the right to make design changes without notice. Mounting Consideration 1: Evaluation Board 2 (Thickness = 2.5mm) All sales are subject to Johanson Technology, Inc. terms and conditions. 0.5mm Floating pad * 1.5 nH 3.6pF 1.0 nH 8.2 pF Matching circuit 0.13mm     Metal bottom GND plane to be placed directly underneath yellow soldemask zone, covering entire area. Ground Plane (where other SMD components will be mounted) 30mm 6.26mm 50mm 50Ω Feed Line 3mm Top View Bottom View Ground Want the layout file? Send us a message at: https://www.johansontechnology.com/ask-a-question p/n: 2450AT42E0…

Text truncated - open the document above for the full version.

313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_TestSetupPho.docx Page 1 of 11 PROPRIETARY Test Set Up Photographs Radiated Photograph 1: Front View Radiated Emissions Worst Case Configuration, Below 30MHz 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_TestSetupPho.docx Page 2 of 11 PROPRIETARY Photograph 2: Back View Radiated Emissions Worst Case Configuration, Below 30MHz 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_TestSetupPho.docx Page 3 of 11 PROPRIETARY Photograph 3: Front View Radiated Emissions Worst Case Configuration, 30 – 1000 MHz 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_TestSetupPho.docx Page 4 of 11 PROPRIETARY Photograph 4: Back View Radiated Emissions Worst Case Configuration, 30 – 1000 MHz 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_TestSetupPho.docx Page 5 of 11 PROPRIETARY Photograph 5: Front View Radiated Emissions Worst Case Configuration, Above 1000 MHz 313 West 12800 South, Suite 311, Draper, UT 84020 • (801) 260-4040 BDSPRO_TestSetupPho.docx Page 6 of 11 PROPR…
