O9ZFP-3000Magic Secure 3000

FP1000 PC BASE MODULE ■ ■■ ■ BLOCK DIAGRAM ■ ■■ ■ View of PCB Layout PCB Layout PCB LayoutPCB Layout PCB Layout Finger print Finger printFinger print Finger print Sensor SensorSensor Sensor FP Sensor, FP Sensor,FP Sensor, FP Sensor, USB Controller USB ControllerUSB Controller USB Controller PC PCPC PC ■ ■■ ■ USB connector ► 1. VCC ► 2. USBD- ► 3. USBD+ ► 4. GND ► 5. FGND FP3000 Finger print mouse ■ ■■ ■ PRODUCTION MAKE-UP ► Finger print sensor ► FP1000 module PCB ► MSMOUSE relation mouse PCB ► USB, PS2 cable (1.5m) ► MOUSE CASE ► Device Driver ■ ■■ ■ FUNTION ► WHEEL & WHEEL Button FUNTION ■ ■■ ■ INTERFACE SPEC INTERFACE SPECINTERFACE SPEC INTERFACE SPEC ► USB (Universal System Bus) ► PS/2 Mouse ■ ■■ ■ S/W S/WS/W S/W ► FP3000 Magic Secure 2.0 ■ ■■ ■ BLOCK DIAGRAM ■ ■■ ■ PRODUCTION APPEARANCE Finger print Finger printFinger print Finger print Sensor SensorSensor Sensor FP Sensor, FP Sensor,FP Sensor, FP Sensor, USB Controller USB ControllerUSB Controller USB Controller PC PCPC PC PS2 MOUSE ■ ■■ ■ Finger Print Sensor Spec ► 18.2mm x 12.8mm active sensor surface. ► 256x360 sensor array format. ► 50-micron square pixel (508DPI) ► Ultra-hard protective coating. ► 15 frames per second capture rate ► 8 bit Microprocessor (RAM) Interface. ► Chip-on board module package. ► Integrated A/D converter. ► 5V Operation ► Less then 20mA nom. Supply current @5V ► Built in ESD protective circuit ■ ■■ ■ PS2 MOUSE Spec ► Using 51K resistor for RC oscillation. ► Compatible with legacy PS/2 mouse. ► Compatible with Microsoft scrolling mouse. ► Built in noise immunity circuit. ► Built in current comparator for photo-couples input. ► Built in three step dynamic input impedance. ► Three key-switches and four photo-couples input. ► Both key-press and key-release debounce interval 12ms. ► The sampling rate of motion detector is about 65KHz. ► Low port dissipation.

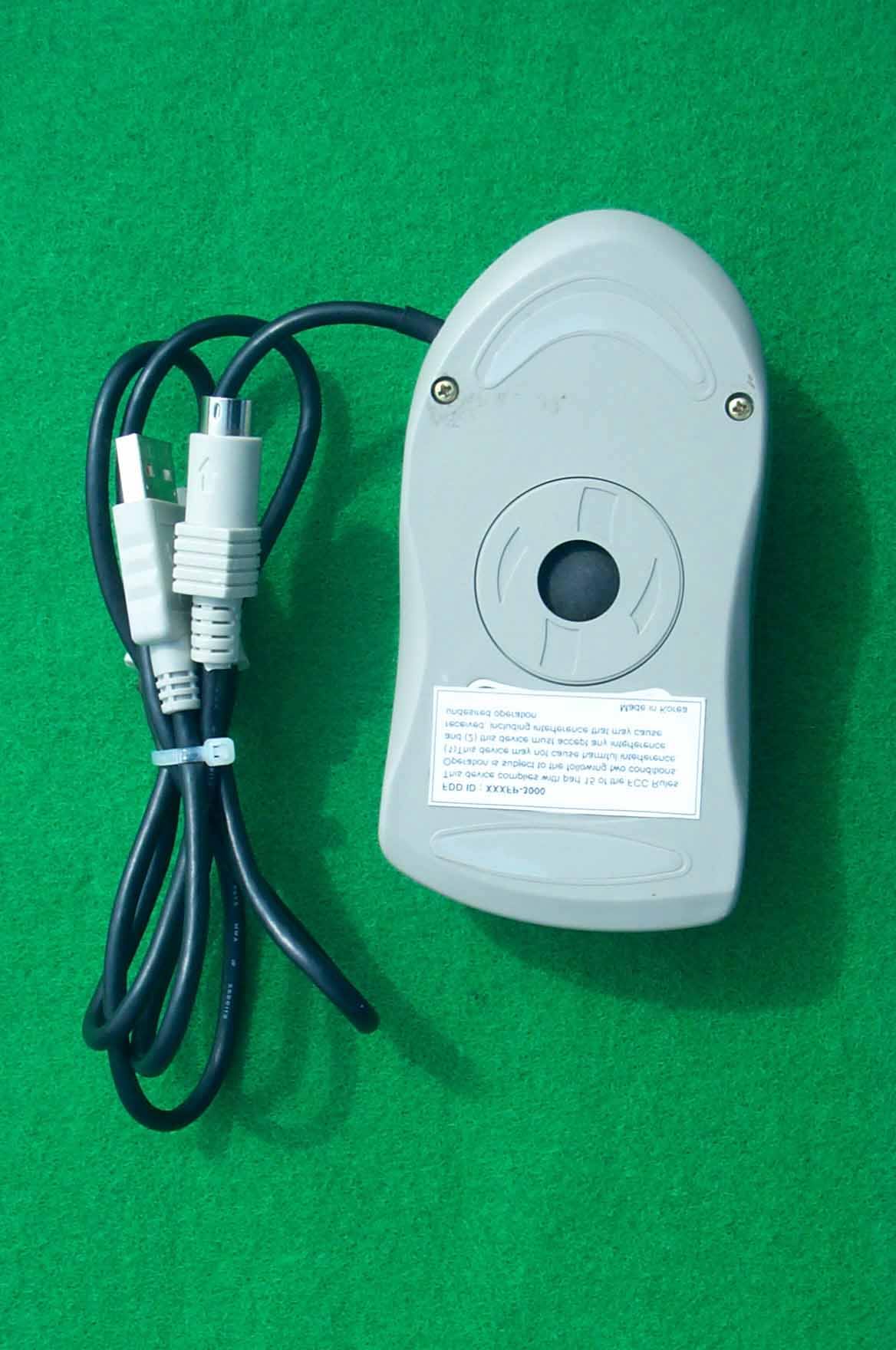

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00119 FCC ID : XXXFP-3000 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00119 FCC ID : XXXFP-3000

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-00119 FCC ID : XXXFP-3000 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : O9ZFP-3000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 3 SKT SKTOS-00119 FCC ID : XXXFP-3000 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 3 SKT SKTOS-00119 FCC ID : XXXFP-3000 SK TECH CO., LTD. Page 3 of 3 SKT SKTOS-00119 FCC ID : XXXFP-3000

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00119 FCC ID : XXXFP-3000 Operational Description Section 1 : Overall installation procedure 1. Turn on system. 2. Connect fingerprint identification device or wheel mouse to the system.(for mouse, USB port must be connected in advance of PS/2) 3. A message of inserting CD will appear by operation of Window 98 Plug & Play when it senses new hardware. 4. Insert ‘MagicSecure 2.0’ CD into CD ROM Drive, and then follow hardware installation wizard to install fingerprint identification device or wheel mouse. 5. When driver installation is finished, run setup.exe file to install MagicSecure 2.0 program. 6. Restart the system after installation, and logon with name and password typed during installation. 7. Authentication method can be changed to fingerprint, password or both by using MagicSecure administrator. Section 2 : Connection 1. Connect to USB Port 2. Connect to PS/2 Port Section 3 : Device driver Installation 1. Click <Next> in the ‘Add New Hardware Wizard’ window. 2. Select<Search for the best driver for your device > and then click ‘Next’. 3. Insert CD and select ‘CD ROM Drive’ and then click ‘Next’. 4. Installation will start if you click ‘Next’. 5. Click ‘Finish’. SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00119 FCC ID : XXXFP-3000 Section 4 : Wheel mouse installation 1. After program installation, a window asking you to install wheel mouse will be appeared. Click ’OK’, and then the installation will be proceeded. 2. Select ‘English’ and click ‘Next’. 3. You can install mouse application, mouse driver or both. If you want only application, select ‘Mouse application’ If you want only mouse driver, select ‘mouse driver’ and if you want both, select ‘Both’, Click ‘Next’. 4. Select ‘PS2 Port’ and click ‘Next’. 5. Click ‘Next’ if you want to install in said folder, if not, click ‘change folder’. 6. The system will restart by clicking ‘Finish’ button and all fingerprint identification mouse installation process will be completed.

1234 A B C D 4321 D C B A Title NumberRevisionSize Letter Date:4-Jan-2000 Sheet of File:\\..\ST9USB12_no_sc.schDrawn By: C1 30p C2 30p Y1 8MHz R1 1.5K R2 10K C3 .1uF VCC USBD+ USBD- R3 24 R4 24 L1 Ferrite Bead VCC INT USBD+ USBD- C11 .1u 1 2 3 4 5 6 J1 USBConnector R5 10 TC_PWR_CNTL A10/P1.2 A9/P1.1 A8/P1.0 A7/D7/P0.7 A6/D6/P0.6 A5/D5/P0.5 A4/D4/P0.4 A3/D3/P0.3 A2/D2/P0.2 A1/D1/P0.1 A0/D0/P0.0 P6.7 P6.6 AIN3/P6.5 WKUP14/AIN2/P6.4 WKUP13/AIN1/P6.3 AVDD AIN0/INTCLK/P6.2 INT6/P6.1 INT5/SDAO/P6.0 VDD OSCIN VSS OSCOUT NMI/WDOUT/P5.7 WKUP9/TOUTB/P5.6 INT0/RW/P5.5 WKUP8/USBOE/P5.4 INT2/TOUTA/P5.3 INT3/STBO0/P5.2 INT4/TINB/P5.1 NCNC INT1/TINA/P5.0 RESET VPP HSK7/SDS/P3.7 HSK6/AS/P3.6 HSK5/P3.5 HSK4/P3.4 HSK3/P3.3 HSK2/P3.2 HSK1/P3.1 HSK0/P3.0 DS USBGND USBVCC NC NC USBDP0 USBDM0 BACK/P4.3 AS/P4.2 WAIT/P4.1 BREQ/P4.0 VDD VSS NC NC A15/P1.7 A14/P1.6 A13/P1.5 A12/P1.4 A11/P1.3 U1 ST92163 GND VCC VCC VCC VCC AVCC AVCC INT DATA0 DATA2 DATA4 WRB NRST CSB A0 DATA1 DATA3 PAD_SEL0 RDB GPIO1 DATA7 DATA6 GPIO2 DATA5 VCC_OUT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 NC2 NC1 J2 TouchChip Rev-F MiniFlex GPIO0DATA0 DATA2 DATA1 DATA4 DATA3 DATA7 DATA6 DATA5 CCS 8MHZ WRB NRST CSB A0 RDB C4 .1uF C5 .1uF C6 .1uF C7 .1uF C8 .1uF TC_PWR_CNTL VCCVCC_OUT IDD_SENSE IDD_SENSE C9 .1uF R6 330 RDB Q1 MOSFET P USBVCC USBVCC C10 .1uF

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-00119 FCC ID : XXXFP-3000 Certificate of Compliance Test Report No.: SKTOS-00119 NVLAP CODE : 200220-0 Applicant: Hunno Technologies, Inc. Applicant Address: 12F, Sewon Venture Town, 705-18, Yoksam-Dong, Kangnam-Ku, Seoul, Korea Product: Magic Sequre 3000 FCC ID: O9ZFP-3000 Model No.: FP-3000 Receipt No.: SKE20000814-618 Date of receipt: Aug. 14, 2000 Date of Issue: Sep. 25, 2000 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H. Kang Tested by:S.K.Lee/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-00119 FCC ID : XXXFP-3000 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Data 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted documents 5 4. Measurement conditions 6 4.1 Modes of operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. Emission Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 》 》》 》List of Tables Table 1 List of test and measurement equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-00119 FCC ID : XXXFP-3000 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-00119 FCC ID : XXXFP-3000 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment ! Conducted Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESHS 10 862970/019 04.2001 LISN KNW-407 M63284 07.2001 LISN ESH2-Z5 862060/029 06.2001 Conducted Cable N/A N/A 07.2001 ! Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESVS 10 825120/013 04.2001 Spectrum Analyzer R3361A 11730187 07.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 04.2001 Biconical Antenna BBA9106 N/A 04.2001 Open Site Cable N/A N/A 07.2001 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A 07.2001 Amp & Spectrum connection cable N/A N/A 07.2001 50Ω Switcher MP59B M93083 07.2001 2.3 Test Date Date of Application : Aug. 14, 2000 Date of Test : Sep. 07, 2000 ~ Sep. 21, 2000 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-00119 FCC ID : XXXFP-3000 3. Description of the tested samples The EUT is Magic Sequre 3000. 3.1 Rating and Physical Characteristics ※ ※※ ※ System Requirements • OS : Microsoft Windows 98 • CPU : Pentium 133MHz or above • HDD : More than 20MB needed • Memory : More than 32 MB • Interface : 1 USB port, PS/2 port (for wheel mouse) • Installation program : Microsoft Internet Explorer 4.0 or above 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-00119 FCC ID : XXXFP-3000 4. Measurement Conditions Testing Input Voltage : AC 120V, 60Hz (DC 5V, 500mA by the PC) 4.1 Modes of Operation The EUT was in the following operation mode during all testing; EUT is connected the PC by USB cable and PS/2 cable. Check to continuous fingerprinter identification. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Personal Computer H.P Brio BA600/550 SG01901646 DoC Monitor Comtec Systems CT-151A None DoC Printer H.P 2225C 3245S12493 DSI6XU2225 Joystick Logitech J-ZA10 LZA01651409 DoC Keyboard W3 IGK-2000i 100060126234 HQKBITS9001 Mouse 1 A4 Tech AM-5E 951237243 H8GAM555P Mouse 2 Logitech M-BE55 LZE02551778 DoC Speaker FAN HAI DIAN CMK600 None N/A Mic None None None N/A SK TECH CO., LTD. Page 7 of 13 SKT SKTOS-00119 FCC ID : XXXFP-3000 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark PC power cable 1.8m Non-Shield None Monitor power cable 1.8m Non-Shield None VGA cable 1.5m Shield None Pinter power cable 1.8m Non-Shield None Printer interface cable 1.6m Shield None Joystick interface cable 1.8m Non-Shield None Mouse 1 interface cable 1.8m Non-shield None Mouse 2 interface cable 1.8m Non-shield None Keyboard interface cable 1.8m Non-Shield None Speaker interface cable 1.2m Non-Shield None Speaker power cable 1.8m Non-Shield None Mic interface cable 2.0m Non-Shield None 4.4 Test Setup T…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00119 FCC ID : XXXFP-3000 Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00119 FCC ID : XXXFP-3000 Photograph 2: Setup for Radiated Emissions
