O9ZMS2600Fingerprint ID Scanner

FingerprintIDMouseMS3500 FingerprintIDScannerMS2600 User'sManual HunnoTechnologiesInc. Fingerprint ID Mouse/ScannerMS3500/2600 Hunno Technologies Inc. -2- Copyright (c) 1999-2002 Hunno Technologies Inc. All rights reserved. The copyright of this document belongs to Hunno Technologies Inc. No part of this document may be copied or reproduced by any means. MagicSecure is a registered trademark of Hunno Technologies Inc. Microsoft Windows 2000 Professional is a registered trademark of Microsoft Corporation. Microsoft Windows XP Home Edition is a registered trademark of Microsoft Corporation. Microsoft Windows XP Professional Edition is a registered trademark of Microsoft Corporation. All other product names mentioned in this document are the registered trademarks of the corresponding companies and are protected by the patent and copyright laws. FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected.
Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. 12F. Sewon Venture Town, 705-18, Yoksam-Dong, Kangnam-Ku, Seoul, 135-080, South Korea Website : http://www.hunno.com/ E-mail: [email protected] Fingerprint ID Mouse/ScannerMS3500/MS2600 Hunno Technologies Inc. -3- Getting Started MagicSecure MS3500/MS2600 eliminates the need for user passwords with something can't be stolen or forgotten, tighten network security, simplifies the log-on process, and reduces the costs associated with managing corporate networks. MS3500/MS2600, which can be used on almost any surface without a mouse pad, guarantees fast recognition speed and accuracy. Strong durability of optical sensor shall be efficient for user's Cost Saving Policy. Unpacking MS3500 : USB Fingerprint ID Mouse MS3500 USB Mouse MagicSecure Program CD Software User Guide MS2600 : USB Fingerprint ID Scanner MS2600 USB Scanner MagicSecure Program CD Software User Guide Features
Windows 98/ME/2000/XP/NT Logon
USB Support
Weel & Optical Mouse Function, Scroll Function, Zoom Function
Folder & File Encryption
Screensaver
4 Type Security Code (Fingerprint, Password, Fingerprint and/or Password)
Boot Protection
Log Data Management
Windows XP-Style Icon G Fingerprint ID Mouse/ScannerMS3500/2600 Hunno Technologies Inc. -4- Specifications
Verification Time : 1.0 sec
FRR : 0.01%
FAR : 0.001%
Size of Template : 256 byte
Resolution : 500 dpi
Communication : USB
Power : DC 5V (Bus Power) System requirements
Windows 98/ME, Windows 2000
Pentium 133Mhz or above, 32MB RAM, 20MB HDD
USB Port MagicSecure MS3500/MS2600 Part Names Hardware Installation 1. Turn on the power of PC1. 2. Connecting the MS3500/MS2600. Connect the MS2600 (Fingerprint Identification Device for PC Security) to the USB port of the PC 3. Installing Device Drivers. USB Interface Fin gerprint Sensor Fingerprint Sensor USB Interface Optical Senso r Fingerprint ID Mouse/ScannerMS3500/MS2600 Hunno Technologies Inc. -5- Software Installation There are three device drivers that should be installed when MS3500(device name) is operated on Windows 98 : USB composite device, MS3500(driver name), and USB human interface device. Install MS3500 only when MS3500 is operated on Windows 2000/Window XP. There is one device driver that should be installed when MS2600 is operated on Windows 98/ Windows 2000/ Windows XP : MS2600 For Windows 98 1. USB composite device (MS3500) At theAdd New Hardware Wizardscreen shown above, clickNext. At the screen shown above, selectSearch for the best driver for your device (Recommended),and then clickNext. At the screen shown above, selectSpecify a location, and then clickNext. Fingerprint ID Mouse/ScannerMS3500/2600 Hunno Technologies Inc. -6- At the screen shown above, clickingNextwill start the installation When the driver installation is complete and the screen indicating that Windows has finished installing USB composite device appears, clickFinish. 2. MS3500/MS2600 At theAdd New Hardware Wizardscreen shown above, clickNext. At the screen shown above, selectSearch for the best driver for your device (Recommended),and then clickNext. Fingerprint ID Mouse/ScannerMS3500/MS2600 Hunno Technologies Inc. -7- At the screen shown above, insert the MagicSecure CD and select CD ROM drive, and then click Next. Note:If the path to the CD ROM drive is not found 1) Ensure that the CD has been inserted. 2) After verifying the CD is inserted, clickBackto return to the screen where the drive is specified. 3) SelectSpecify a location, and then clickBrowse.... 4) AtFolder Browse, specify the CD-ROM drive and clickOK. At the screen shown above, clicki…

Text truncated - open the document above for the full version.

EMI TEST REPORT Report Number : KSQ-FCC021010FCCID : O9ZMS2600 Page 19 / 20 Appendix A - Schematics/Block Diagram Block Diagram of MagicSecure MS 3500/MS2600 MS3500 Fingerprint Mouse Only Prism LED Surface DSP Image Sensor Lens Wheel Det USB Controller USB Interface OSC 12MHz Prism Lens Fingerprint Detector Hunno Technologies Inc.

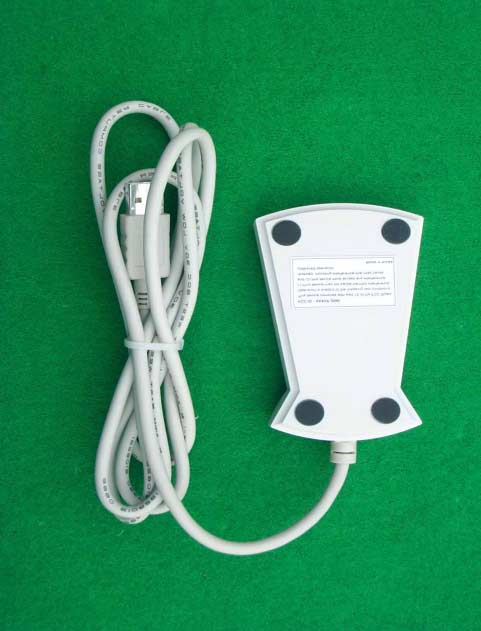

EMI TEST REPORT Report Number : KSQ-FCC021010FCCID : O9ZMS2600 Page 15 / 20 5.External Photographs 5.1EUT: Front View 5.2EUT: Rear View EMI TEST REPORT Report Number : KSQ-FCC021010FCCID : O9ZMS2600 Page 16 / 20 5.3EUT: Label View 5.4EUT: Internal View

EMI TEST REPORT Report Number : KSQ-FCC021010FCCID : O9ZMS2600 Page 12 / 20 3. Product Labelling Requirements 3.1FCC ID/Statement Product shall be placed the following FCC ID on the device and FCC Statement on the user's manual: FCC IDFCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note :When the device is so small or for such use that it is not practicable to place the statement on it, the information shall be placed in prominent location in the instruction manual or pamphlet supplied to the user. However, the FCC identifier or unique identifier, as appropriate, must be displayed on the device. 3.2 FCC Label Location FCC Identifier Location FCC ID : 09ZMS2600

EMI TEST REPORT Report Number : KSQ-FCC021010FCCID : O9ZMS2600 Page 17 / 20 6. Internal Photographs 6.1EUT: Main Board, Component View EMI TEST REPORT Report Number : KSQ-FCC021010FCCID : O9ZMS2600 Page 18 / 20 6.2EUT: Main Board, Circuit View

EMI TEST REPORT FCC PART 15 CLASS B for Hunno Technologies Inc. 12F, Sewon Venture Town, 705-18, Yoksam-Dong, Kangnam-Ku, Seoul 135-080, Korea on the Fingerprint ID Scanner FCC ID: O9ZMS2600 Issued Date : Oct 10, 2002 Report Number : KSQ-FCC021010 Prepared By: Test Date :Oct 08, 2002 Test Engineer :K. P. Jin Printed Name Signature Compliance EngineerJ. J. Ha Printed Name Signature Korea Standard Quality Laboratories Testing Laboratories for EMC and Safety Compliance #102, Jangduk-Dong, Hwasung-Shi, Kyunggi-Do, KOREA www.ksqlab.com This report may not be reproduced without the full written consent of Korea Standard Quality Laboratories. EMI TEST REPORT Report Number : KSQ-FCC021010FCCID : O9ZMS2600 Page 1 / 20 Table of Contents 1 General Information 1.1 Introduction ················································································································3 1.2 Product Description for Equipment Under Test (EUT) ············································· 3 1.3 Equipment Under Test ······························································································· 4 1.4 Support Equipment ····································································································· 4 1.5 External I/O Cabling ·································································································· 4 1.6 Special Accessories ···································································································· 4 1.7 EUT Modifications ····································································································· 5 1.8 Configuration of Test System ···················································································· 5 2 Test Performed 2.1 Conducted Emission Measurements ·········································································· 6 2.1.1 Test Description ······························································································· 6 2.1.2 Test Equipments ······························································································· 6 2.1.3 Test Environments ··························································································· 6 2.1.4 Test Limits ······································································································· 6 2.1.5 Test Procedure ·································································································· 6 2.1.6 Test Configuration ··························································································· 7 2.1.7 Test Results ······································································································ 7 2.1.8 Test Data ·········································································································· 7 2.1.9 Plots of Test Data ····························································································· 8 2.2 Radiated Emission Measurements ············································································· 9 2.2.1 Test Description ······························································································· 9 2.2.2 Test Equipments ······························································································· 9 2.2.3 Test Environments ··························································································· 9 2.2.4 Test Limits ······································································································· 9 2.2.5 Test Procedure ································································································ 10 2.2.6 Field Strength Calculation ·············································································· 10 2.2.7 Test Configuration ························································································· 10 2.2.8 Test Results ···································································································· 11 2.2.9 Test Data ········································································································ 11 EMI TEST REPORT Report Number : KSQ-FCC021010FCCID : O9ZMS2600 Page 2 / 20 Table of Contents(cont'd) 3 Product Labelling Requirements 3.1 FCC Statement ········································································································· 12 3.2 Label Location ·········································································································· 12 4 Test Setup Photographs 4.1 Conducted Emission: Front View ············································································ 13 4.2 Conducted Emission: Rear View ············································································· 13 4.3 Radiated Emission: Front View ··············································································· 14 4.4 Radiated Emission: Rear View ················································································ 14 5 External Photographs 5.1 EUT: Front View ······································································································ 15 5.2 EUT: Rear View ······································································································· 15 5.3 EUT: Label View ····································································································· 16 5.4 EUT: Internal View ·································································································· 16 6 Internal Photographs 6.1 EUT: Main Board, Component View ······································································ 17 6.2 EUT: Main Board, Circuit View ·············································································· 18 A ppendix A EUT Schematics/Block Diagram ······································································· 19 A ppendix B User's Manual ·········································…

Text truncated - open the document above for the full version.

EMI TEST REPORT Report Number : KSQ-FCC021010FCCID : O9ZMS2600 Page 13 / 20 4. Test Setup Photographs 4.1 Conducted Emission: Front View 4.2 Conducted Emission: Rear View EMI TEST REPORT Report Number : KSQ-FCC021010FCCID : O9ZMS2600 Page 14 / 20 4.3 Radiated Emission: Front View 4.4 Radiated Emission: Rear View
