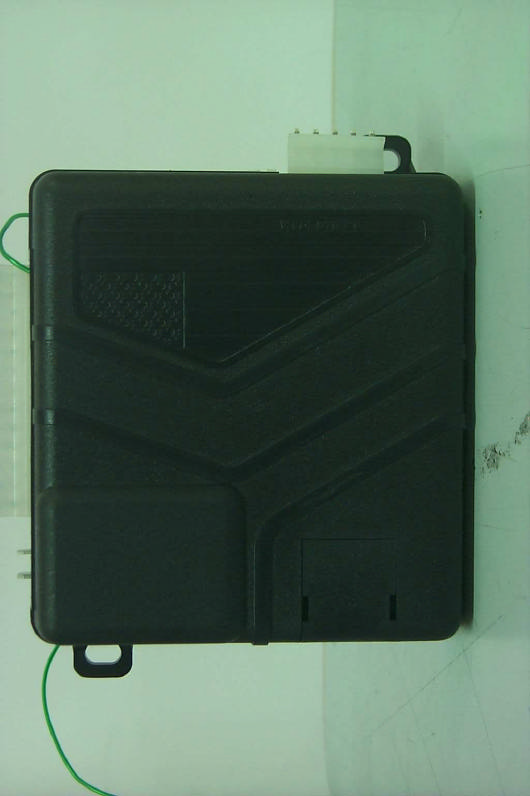

OARRXAM2000Vehicle Security System

ONETECH Corp. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-31-746-8500 FAX: 82-31-746-8700) ONETECH IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The label included following statement will be attached on the rear side of product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : OARRXAM2000 ΦΧΧ Ι∆ ΑΡΕΑ

Operational Description The car alarm transmitter is a low powered, hand held unit for remote controlling the car locks and other features. See the function descriptions in attached. The transmitter is powered by a 12 volt battery. It is designed to operated on a single fixed frequency at 303 MHz. See the attached block diagram and schematic. There are 4 buttons trigger the integrated circuit which produces the digital control signals and will modulate the carrier signal.. The modulated output of the RF amplifier stage is coupled to the PCB strip antenna. The antenna is integrated on the PCB . The transmitter is manually operated by the buttons pushed and will automatically deactivate within 3 seconds after the button being released. This feature is incorporated by the IC internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user. No external ground is required or used with this transmitter.

ONETECH Corp. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-31-746-8500 FAX: 82-31-746-8700) ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT PRODUCTVEHICLE SECURITY SYSTEM FCC IDOARRXAM2000 MODEL NO.RXAM2000SERIAL NO.N/A APPLICANT & ADDRESS PRECISION ENGINEERING IND., INC. 11627 CANTARA STREET NORTH HOLLYHOOD, CA 91605 U. S.A. REPORT NO.E007R-027ISSUE DATEJuly 19, 2000 PREPARED BY: ONETECH CORP. #505 SK APT. FACTORY 223-28, SANGDAEWON 1 DONG, J UNGWON-GU, SEONGNAM-CITY, KYUNGGI-DO, 462-121, KOREA. (TEL: 82-31-746-8500 FAX: 82-31-746-8700) REMOTE CONTROL SECURITY RECEIVER CERTIFICATION TO FCC PART 15 REQUIREMENT REPORT NO.: E007R-027FCC ID: OARRXAM2000DATE: July 19, 2000 LIST OF EXHIBITS FCC ID: OARRXAM2000 MODEL : RXAM2000 EXHIBIT 1. IDENTIFICATION LABEL 2. AGENT AUTHORIZATION 3. TECHNICAL INFORMATION: ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT 4. PHOTO REPORT 5. USER’S MANUAL & SCHEMATIC (BLOCK DIAGRAM) PREPARED BY : ONETECH CORP. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-31-746-8500 FAX: 82-31-746-8700) REPORT NO.: E007R-027FCC ID: OARRXAM2000DATE: July 19, 2000 EXHIBIT 1. IDENTIFICATION LABEL: PROPOSED FCC LABEL (Part15 sec. 15.19) The label included following statement will be attached on bottom side of product. “Please find an ID Label for EUT at ID Label/Location Info in Exhibit Type” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : OARRXAM2000 REPORT NO.: E007R-027FCC ID: OARRXAM2000DATE: July 19, 2000 EXHIBIT 2. AGENT AUTHORIZATION: “Please find an Agent Authorization Letter at Cover Letters in Exhibit Type” REPORT NO.: E007R-027FCC ID: OARRXAM2000DATE: July 19, 2000 EXHIBIT 3. TECHNICAL INFORMATION: ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT PRODUCTVEHICLE SECURITY SYSTEM FCC IDOARRXAM2000 MODEL NO.RXAM2000SERIAL NO.N/A APPLICANT & ADDRESS PRECISION ENGINEERING IND., INC. 11627 CANTARA STREET NORTH HOLLYHOOD, CA 91605 U. S.A. REPORT NO.E007R-027ISSUE DATEJuly 19, 2000 PREPARED BY: ONETECH CORP. #505 SK APT. FACTORY 223-28, SANGDAEWON 1 DONG, J UNGWON-GU, SEONGNAM-CITY, KYUNGGI-DO, 462-121, KOREA. (TEL: 82-31-746-8500 FAX: 82-31-746-8700) REMOTE CONTROL SECURITY RECEIVER CERTIFICATION TO FCC PART 15 REQUIREMENT REPORT NO.: E007R-027FCC ID: OARRXAM2000DATE: July 19, 2000 TABLE OF CONTENTS Page 1. VERIFICATION OF COMPLIANCE.............................................................................................. 1 2. GENERAL INFORMATION............................................................................................................. 2 2.1 P RODUCT D ESCRIPTION ................................................................................................................. 2 2.2 R ELATED S UBMITTAL ( S ) / G RANT ( S ) ............................................................................................. 2 2.3 T EST S YSTEM D ETAILS ................................................................................................................... 2 2.4 T EST M ETHODOLOGY ..................................................................................................................... 2 2.5 T EST F ACILIT Y ................................................................................................................................2 3. SYSTEM TEST CONFIGURATION................................................................................................ 3 3.1 J USTIFICATION ................................................................................................................................3 3.2 E QUIPMENT M ODIFICATIONS ......................................................................................................... 3 3.3 M ODE OF OPERATION DURING THE TEST ....................................................................................... 3 3.4 C ONFIGURATION OF T EST S YSTEM ................................................................................................ 3 4. PRELIMINARY TESTS..................................................................................................................... 4 4.1 AC P OWER LINE C ONDUCTED E MISSIONS T ESTS ......................................................................... 4 4.2 R ADIATED E MISSIONS T ESTS ......................................................................................................... 4 5. CONDUCTED MEASUREMENT PHOTOS................................................................................... 5 6. RADIATED MEASUREMENT PHOTOS....................................................................................... 6 7. FINAL RESULT OF MEASUREMENT .......................................................................................... 7 7.1 C ONDUCTED E MISSIONS T ESTS ...................................................................................................... 7 7.2 R ADIATED E MISSION T ESTS ........................................................................................................... 8 8. FIELD STRENGTH CALCULATION............................................................................................. 9 9. LIST OF TEST EQUIPMENT......................................................................................................... 10 REPORT NO.: E007R-027FCC ID: OARRXAM2000DATE: July 19, 2000 − 1 − 1. VERIFICATION OF COMPLIANCE APPLICANT: PRECISION ENGINEERING IND., INC. ADDRESS: 11627 CANTARA STREET NORTH HOLLYHOOD, CA 91605 U.S.A. CONTACT PERSON : JOHN JOUNGHOON KIM / MANAGER TELEPHONE NO: (818) 767-8593 FCC ID : OARRXAM2000MODEL NO/NAME: RXAM2000 SERIAL NUMBER: N/A DATE: July 19, 2000 DEVICE TYPE UNINTENTIONAL RADIATOR (SUPERREGENERATI…

Text truncated - open the document above for the full version.

REPORT NO.: E007R-027 FCC ID: OARRXAM2000 DATE: July 19, 2000 - 6 - 6. RADIATED MEASUREMENT PHOTOS <Radiated Measurement Photos> Signal Cable from S.G.
