Allremote Wireless Technology, 2006/12/20 1 RRC065A User Manual 1.) Into Duplication Mode: Make sure “”SW” is on “UP” position. Press and hold all buttons on RRC065A, blue LED flashing 3 times shortly and 3 seconds later will light on still, now please releasing buttons. It Had into Duplication Mode now. 2.) Duplicating Code: 2-1. Please be sure RRC065A had in Duplication Mode. “SW” has to be on “up” position then press any one of RRC065A button still, Blue LED will keeping flashing.(It means that in real Duplication situation) 2-2. Releasing all buttons, and please push “SW” to the down position. 2-3. Please take original remote and press button still also, close to RRC065A right side to find and searching till RRC065A red indicator LED indicating more brighter, It means to the best duplicating position. then press desire button on RRC065A blue LED will flashing once (It means done), what if blue LED keeping flashing or not light off.(It means fail), please go back procedure 2-2. 2-4. Push SW1 up. 3.) Finishing Duplicating: 3-1. press all RRC065A together till blue LED flashing once, it means all Done and can be used. 3-2. What if duplication & set up fail,(Can not remote by RRC065A ),please repeat procedure 1.) 2.) and 3.) once again. Normally press any RRC065A button, it emits including 4 type Frequency (390MHz / 318MHz / 310MHz / 300MHz) Main receiver will operate in 5 seconds, if you need to re-emitting signal by RRC065A , Please releasing all buttons after blue LED light’s off and repress once again. GENIE’S Garage Door operation 1.) Following same way with RRC065A Duplication Mode, Duplicating Genie’s Remote unit code into RRC065A. 2.) Please Following Genie’s Original User Manual, and learning RRC065A as new group for setting up. Allremote Wireless Technology, 2006/12/20 2 4.) Every single Genie’s Garage Main receiver only acceptance 2 pcs RRC065A Maximum to learn into on each different remote button. For Example, When you learn into first RRC065A on button A, The second RRC065A must on button B. GENIE’S Main Receiver Learning Mode. Press once learning button of Main receiver, The LED indicator will keeping flashing, then press RRC065A face toward to main receiver. When Main receiver catch the signal the LED is becoming light on still. Now, Please press once again on RRC065A same button, when main receiver’s LED indicator is lighted off, It meant Learning is done, be working immediately on NEW remote unit. (Note: In certain instances, this procedure may cause the Genie  Intellicod /GMI-3BL  Remote to "unlearn" the programming. Make sure to check the Genie  Intellicode /GMI-3BL  Remote when finished, and re-program according to the manufacturer's Instructions if necessary. Then check both units to make sure that they operate the garage door opener properly.) COMPATIBILITY CHART: REPLACEMENT BRAND Models TRANSMISSION (APPROX. YEAR) FREQUENCY Chamberlain 750CB, 753CB,756CB,850CB,853CB,856CB 390 MHz Genie GIT-1 ,GIT-2,GIT-3,GMI-3BL,GMIC-2BL 390 MHz GPT90-1,GPT90-3,MAT90,GT912,GCT-3 , GT-31 Lift Master 33LM,51LM,53LM,54LM ,61LM,62LM,63LM,64LM, 390MHz 81LM, 82LM, 83LM, TC-1, TC-2, TC-4. Sears / Craftsman 1984 ~ 1997 390 MHz Linear/Moor-O-Matic/ DTC,LB,DT2A,DT4,DT3+1,DTK 310 MHz Delta 3 system Digic-code DC5012,DC5032,DC42,DC5062,DC5072 310 MHz Stanley 1976 ~ 1997 310 MHz Multi-Code 3060,3070,3083, 3089, 4120,4140 300 MHz Digic-code 5030,5040,5060,5070 300 MHz Allremote Wireless Technology, 2006/12/20 3 FCC approved, ID No. OAVRRC065A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

910805 1 Federal Communications Commission FCC ID: OAVRRC065A Product Name: Remote Control Model Name: RRC065A Trade Name: ALLREMOTE Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics. By: By: Eric Wang (Signature) (Printed) Title : President Applicant : ALTRUSTY ENTERPRISE CO., LTD. Address : 4F, No. 3, Alley 16, Lane 235, Bau Chiau Rd., Hsin-Tien City 231, Taipei Hsien, Taiwan, R.O.C. Tel : 886-2-8665-6969 Fax: 886-2-8665-3838 Date : Mar. 13, 2006

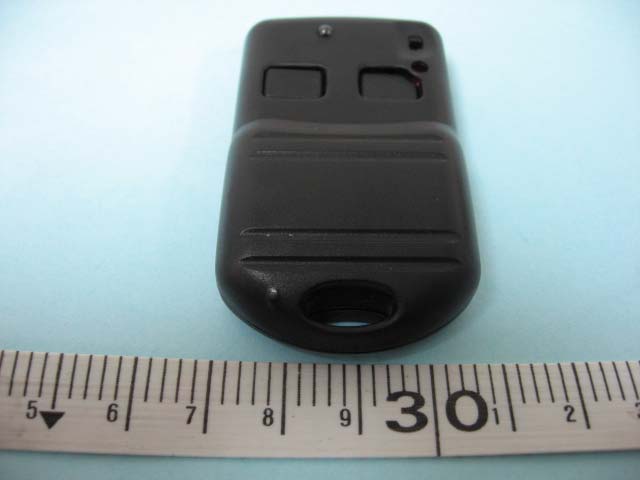

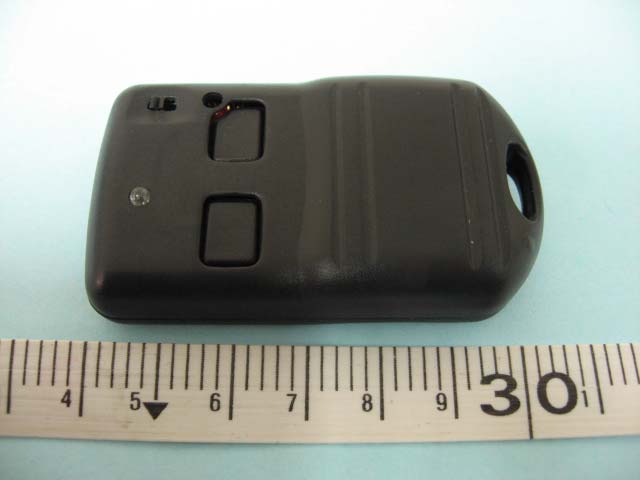

ETC Report No.: 06-01-RBF-110 Sheet 1 of 4 Sheets FCC ID.: OAVRRC065A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Front View of EUT ETC Report No.: 06-01-RBF-110 Sheet 2 of 4 Sheets FCC ID.: OAVRRC065A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Side View of EUT

Model : RRC065A FCC ID : OAVRRC065A 23 mm 10mm

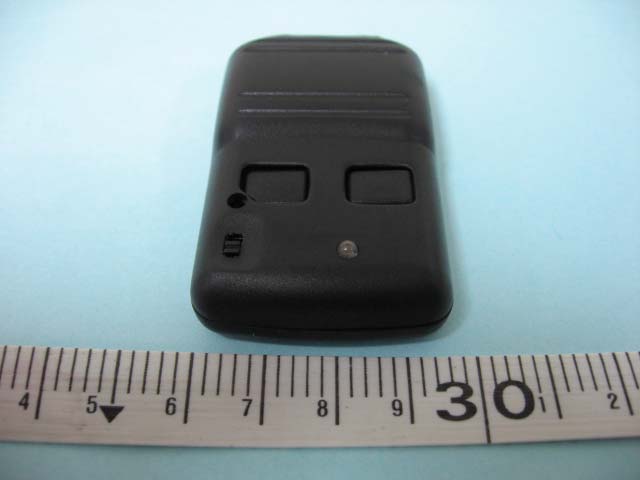

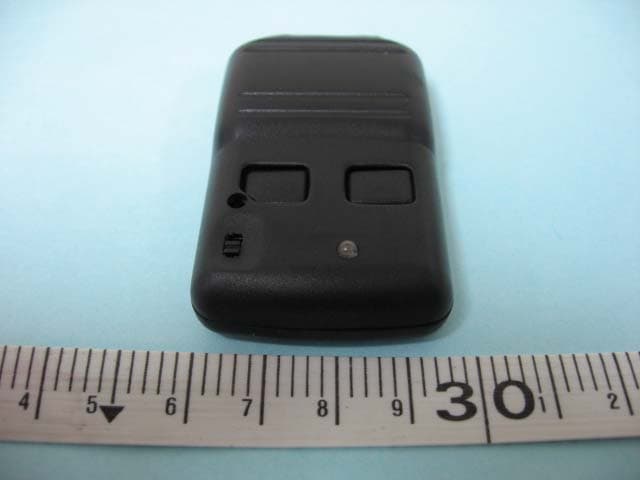

ETC Report No.: 06-01-RBF-110 Sheet 3 of 4 Sheets FCC ID.: OAVRRC065A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Bottom View of EUT 6. Internal View of EUT ETC Report No.: 06-01-RBF-110 Sheet 4 of 4 Sheets FCC ID.: OAVRRC065A Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Component View of Main PCB 8. Solder View of Main PCB

A. Entering the copy mode 1. The amplify and detecting circuit is formed by Q4, R25, R26, C8, L1 and D1. OP and U3B form the second order amplifier. OP and U3A form the comparator. Take the base band signal and get the external CODE from IC P64 transfer to CPU. Then store this CODE into EEPROM (U2, 24LC04). 2. R16, R19, R17, Q3 and LED1 are the signal level indicator of copying. 3. SW1 is the power switch of copy mode. 4. Y1, C3 and C4 provide the CPU oscillating circuit. B. Leave the copy mode then transmit the CODE stored 1. CPU reads the stored CODE in EEPROM then sends 4 RF circuits via P65, P66, P67 and P70 and transmits 4 frequencies: 300MHz, 310MHz, 318MHz and 390MHz. 2. R27, R28, R29, R30, C9, C10, C12, Q7, Y2 are ASK modulated oscillation circuit at 390MHz. 3. R31, R32, R33, R34, C13, C14, C15, C16, Q8 and Y3 are ASK modulated oscillation circuit at 318MHz. 4. R35, R36, R37, R38, C17, C18, C19, Q9 and Y4 are ASK modulated oscillation circuit at 310MHz. 5. R39, R41, R42, C21, C22, C24, C23, Q10 and Y5 are ASK modulated oscillation circuit at 300MHz. 6. U1, C1 and C2 providing constant voltage 5V for IC and copying circuits. 7. R1, R2, Q1 are POWER switching circuit. Q2, R4 and R5 are programmed become the power maintenance circuits. 8. R8 and LED2 is the function indicator.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Remote Control FCC ID. : OAVRRC065A Model : RRC065A Working Frequency : 300 MHz; 310 MHz; 318 MHz; 390 MHz for APPLICANT : ALTRUSTY ENTERPRISE CO., LTD. ADDRESS : 4F, No. 3, Alley 16, Lane 235, Bau Chiau Rd., Hsin- Tien City 231, Taipei Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 06-01-RBF-110 ETC Report No.:06-01-RBF-110 FCC ID.: OAVRRC065A Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : ALTRUSTY ENTERPRISE CO., LTD. 4F, No. 3, Alley 16, Lane 235, Bau Chiau Rd., Hsin-Tien City 231, Taipei Hsien, Taiwan, R.O.C. Manufacture : ALTRUSTY ENTERPRISE CO., LTD. 4F, No. 3, Alley 16, Lane 235, Bau Chiau Rd., Hsin-Tien City 231, Taipei Hsien, Taiwan, R.O.C. Description of EUT : a) Type of EUT : Remote Control b) Trade Name : ALLREMOTE c) FCC ID : OAVRRC065A d) Model No. : RRC065A e) Working Frequency : 300 MHz; 310 MHz; 318 MHz; 390 MHz f) Power Supply : DC 12V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2006) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Dec. 29, 2006 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:06-01-RBF-110 FCC ID.: OAVRRC065A Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION.......................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE: ...............................................................................................................................1 1.3 TEST METHODOLOGY............................................................................................................................................. 1 1.4 TEST FACILITY........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION....................................................................................................................... 2 2.3 LIMITATION............................................................................................................................................................ 2 2.4 LABELING REQUIREMENT....................................................................................................................................... 4 2.5 USER INFORMATION............................................................................................................................................... 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE................................................................................................................................... 6 4.3 TEST DATA............................................................................................................................................................. 8 4.4 FIELD STRENGTH CALCULATION.......................................................................................................................... 24 4.5 ACTIVATE TIME.................................................................................................................................................... 24 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................... 24 4.7 RADIATED TEST EQUIPMENT................................................................................................................................62 4.8 MEASURING INSTRUMENT SETUP......................................................................................................................... 62 4.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................... 63 5. BANDWIDTH OF EMISSION........................................................................................................................... 64 5.1 APPLICABLE STANDARD.............................................................…
