OAVTXSL016Wireless Remote Control for Searchlight

Handheld Wireless Remote TX-SL016 OPERATION： 1. Operation: Press on/off power button to Switch on or off searchlight. Operate directions of the light beam by pressing the direction buttons. Up = Down = Right = Left = 2. Power Switch: Turn on to rotate or tilt the searchlight. 3. Speed Switch: Switch between fast and slow movement speed. 4. Lamp Switch: Turn on or off LED of the searchlight. 5. Flicker Switch: Turn on or off flashing function of LED. REMOTE PROGRAMMING PROCESS： 1. Switch off DC Power or disconnect from battery. 2. Make sure there is NO other transmitter operating at the same time. 3. Switch on DC Power, within 5 seconds press Remote up ▲ and down ▼button once simultaneously. 4. Searchlight will flash to acknowledge the Remote, connection has been made. 5. To program the second Remote (up to 4 remotes may be used with the searchlight, programming a fifth will replace the first), within five seconds after the first Remote programmed, press the second Remote up and down button or repeat step 1. RADIO FREQUENCY：2406MHz Wireless Remote Battery: 23A*2pcs Wireless Remote Operation Distance: 65M FCC INFORMATION The Federal Communication Commission Radio Frequency Intererence Statement includes the following paragraph: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

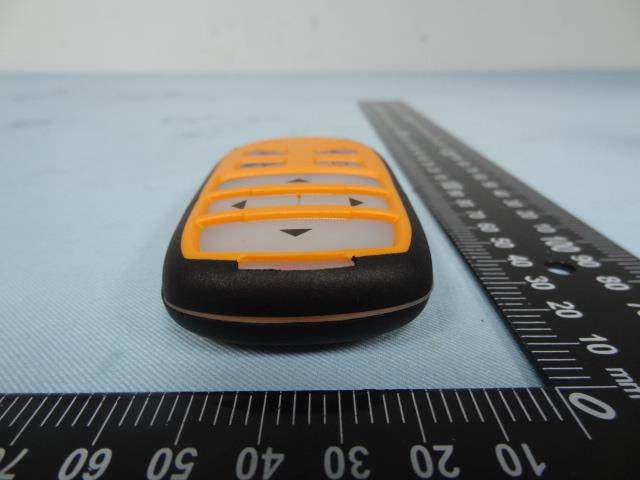

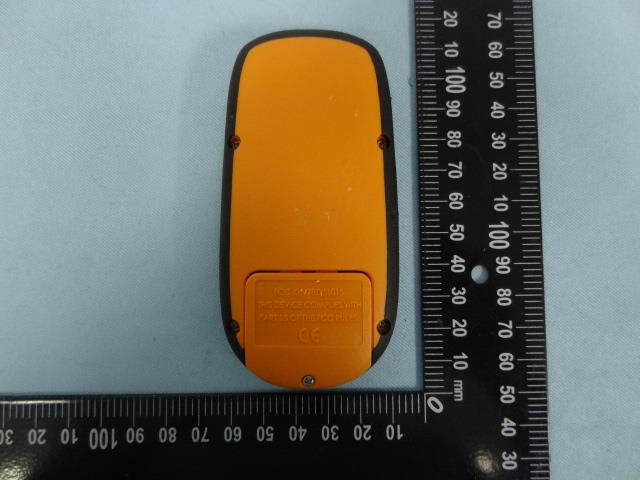

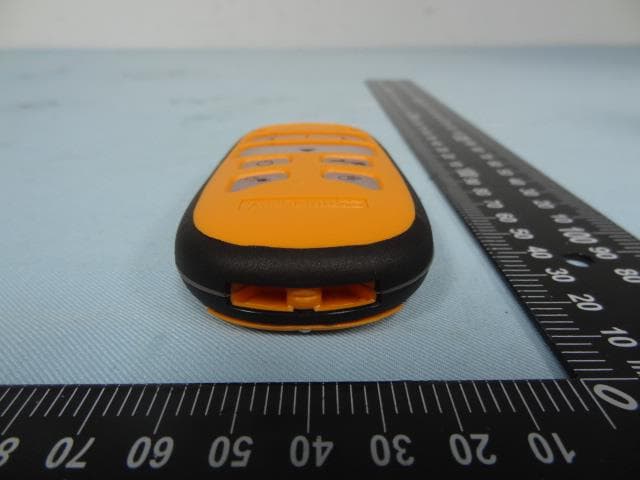

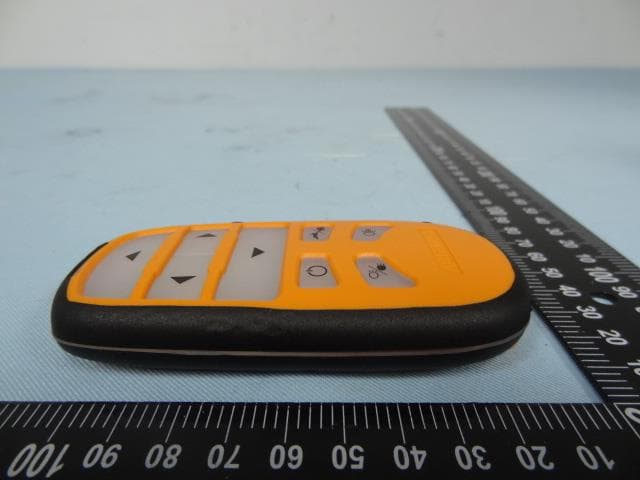

ETC Report No. : 19-05-RBF-036-01 Sheet 1 of 5 Sheets FCC ID: OAVTXSL016 CONSTRUCTED PHOTOS of EUT (A) EUT 1. 2. ETC Report No. : 19-05-RBF-036-01 Sheet 2 of 5 Sheets FCC ID: OAVTXSL016 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No. : 19-05-RBF-036-01 Sheet 3 of 5 Sheets FCC ID: OAVTXSL016 CONSTRUCTED PHOTOS of EUT 5. 6.

EXHIBIT D Equipment ID. Label FCC ID: OAVTXSL016 Transmitter 1. A label will be affixed to the rear of the device. 2. The following statement according to 15.19 Labeling requirement (c) the device is so small, this statement is placed in the instruction manual. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERNCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIERED OPERATION. FCC ID: OAVTXSL016

ETC Report No. : 19-05-RBF-036-01 Sheet 4 of 5 Sheets FCC ID: OAVTXSL016 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No. : 19-05-RBF-036-01 Sheet 5 of 5 Sheets FCC ID: OAVTXSL016 CONSTRUCTED PHOTOS of EUT 10. 11.

Rev. 2.0 RF Exposure Evaluation of E.U.T. : Wireless Remote Control for Searchlight FCC ID. : TX-SL016 Model No. : OAVTXSL016 Working Frequency : 2406MHz for APPLICANT : Altrusty Enterprise Co., Ltd. ADDRESS : 4F., No.3, Aly. 16, Ln. 235, Baoqiao Rd., Xindian Dist. New Taipei City 23145, Taiwan Test Performed by ELECTRONICS TESTING CENTER (ETC) , TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX : (02)26010910 http:// www.etc.org.tw ; e-mail:[email protected] Report Number : 19-05-RBF-036-03-MPE ETC Report No.: 19-05-RBF-036-03-MPE FCC ID: OAVTXSL016 Rev. 2.0 TEST REPORT CERTIFICATION Applicant : Altrusty Enterprise Co., Ltd. 4F., No.3, Aly. 16, Ln. 235, Baoqiao Rd., Xindian Dist. New Taipei City 23145, Taiwan Manufacturer : Altrusty Enterprise Co., Ltd. 4F., No.3, Aly. 16, Ln. 235, Baoqiao Rd., Xindian Dist. New Taipei City 23145, Taiwan Description of EUT : Wireless Remote Control for Searchlight a) Type of EUT : Allremote b) Trade Name : Altrusty Enterprise Co., Ltd. c) Model No. : TX-SL016 d) FCC ID : OAVTXSL015 e) Working Frequency : 2406MHz f) Power Supply : Battery: 12V / 23A Regulation Applied : FCC KDB447498 D01. The equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of section 1.1310 of FCC 47 CFR Part 1. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC Issued Date : Oct. 22 , 2019 Test Engineer : (Jack Chang , Engineer ) Approve & Authorized Signer : Vincent Chang, Supervisor EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.: 19-05-RBF-036-03-MPEFCC ID: OAVTXSL016 Rev. 2.0 Product Information: Type of EUT: Wireless Remote Control for Searchlight FCC ID: OAVTXSL016 Model: TX-SL016 According to KDB 447498 secti on 4.3.1, the 1-g S AR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance,mm)] ·[ √ f(GHz)] ≤ 3.0 The max. average power of channel, including tune-up tolerance(mW) is 0.00398mW @ 2406MHz (With Tune-up tolerance), The min. test separation distance (mm) is 5 mm, So, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [ √ f(GHz)] = 0.000524 < 3.0 (With Tune-up tolerance). Therefore, standalone SAR measurements are not required for both head and body. .

I FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless Remote Control for Searchlight MODEL : TX-SL016 FCC ID : OAVTXSL016 Frequency Range : 2406MHz for APPLICANT : Altrusty Enterprise Co., Ltd. ADDRESS : 4F., No.3, Aly. 16, Ln. 235, Baoqiao Rd., Xindian Dist. New Taipei City 23145, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX: (02)26010910 http：// www.etc.org.tw; e-mail：[email protected] Report Number : 19-05-RBF-036-01 ETC Report No. : 19-05-RBF-036-01 FCC ID: OAVTXSL016 TEST REPORT CERTIFICATION Applicant : Altrusty Enterprise Co., Ltd. 4F., No.3, Aly. 16, Ln. 235, Baoqiao Rd., Xindian Dist. New Taipei City 23145, Taiwan Manufacturer : Altrusty Enterprise Co., Ltd. 4F., No.3, Aly. 16, Ln. 235, Baoqiao Rd., Xindian Dist. New Taipei City 23145, Taiwan Description of EUT a) Type of EUT : Wireless Remote Control for Searchlight b) Trade Name : Allremote c) Model No. : TX-SL016 d) Power Supply : Battery: 12V / 23A e) Frequency Range : 2406MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.10-2013, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Band Edge Requirement Pass Duty Cycle Pass 20dB Bandwidth Pass ETC Report No. : 19-05-RBF-036-01 FCC ID: OAVTXSL016 Table of Contents Page Cover Page........................................................................................................I TEST REPORT CERTIFICATION...........................................................................II Table of Contents...............................................................................................IV `1 GENERAL INFORMATION ..................................................................................................... 1 1.1 Product Description ...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 2 1.4 Test Facility .................................................................................................................................. 2 2 PROVISIONS APPLICABLE ..................................................................................................... 3 2.1 Definition ..................................................................................................................................... 3 2.2 Requirement for Compliance ....................................................................................................... 4 2.3 Restricted Bands of Operation ..................................................................................................... 6 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 7 3. SYSTEM TEST CONFIGURATION ......................................................................................... 8 3.1 Justification .................................................................................................................................. 8 3.2 Devices for Tested System ........................................................................................................... 8 4 RADIATED EMISSION MEASUREMENT .............................................................................. 9 4.1 Applicable Standard ..................................................................................................................... 9 4.2 Measurement Procedure ............................................................................................................... 9 4.3 Measuring Instrument ................................................................................................................ 11 4.4 Radiated Emission Data ............................................................................................................. 12 4.4.1 RF Fundamental ................................................................................................................................ 12 4.4.2 RF Harmonic ..................................................................................................................................... 14 4.4.3 Other Emissions ................................................................................................................................. 18 4.5 Field Strength Calculation ......................................................................................................... 20 4.6 Photos of Radiation Measuring Setup ........................................................................................ 21 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 23 5.1 Standard Applicable ................................................................................................................... 23 5.2 Measurement Procedure ............................................................................................................. 23 5.3 Conducted Emission Data ....................................................................…
