OBMALPHA-1-400-1Alpha-numeric pager

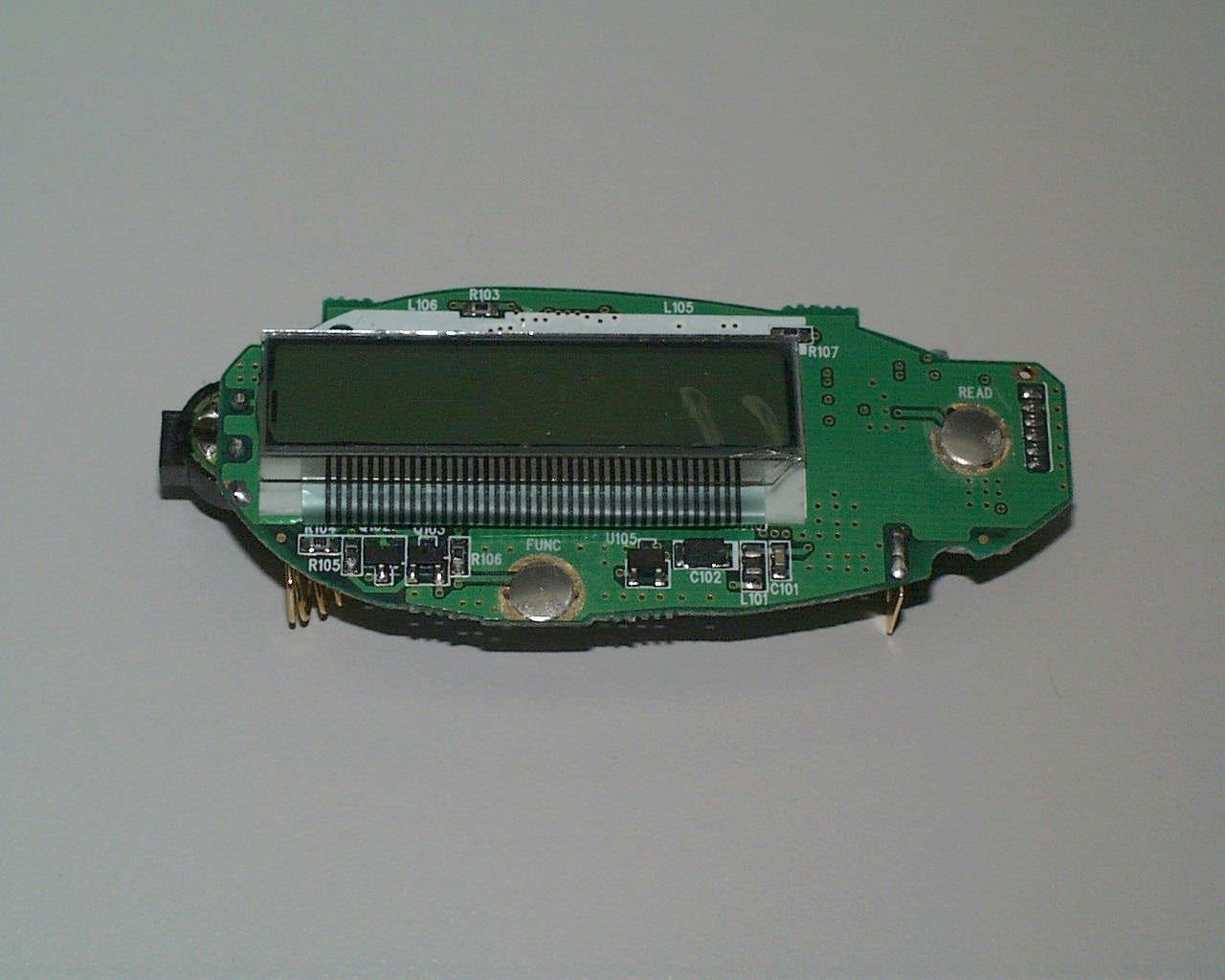

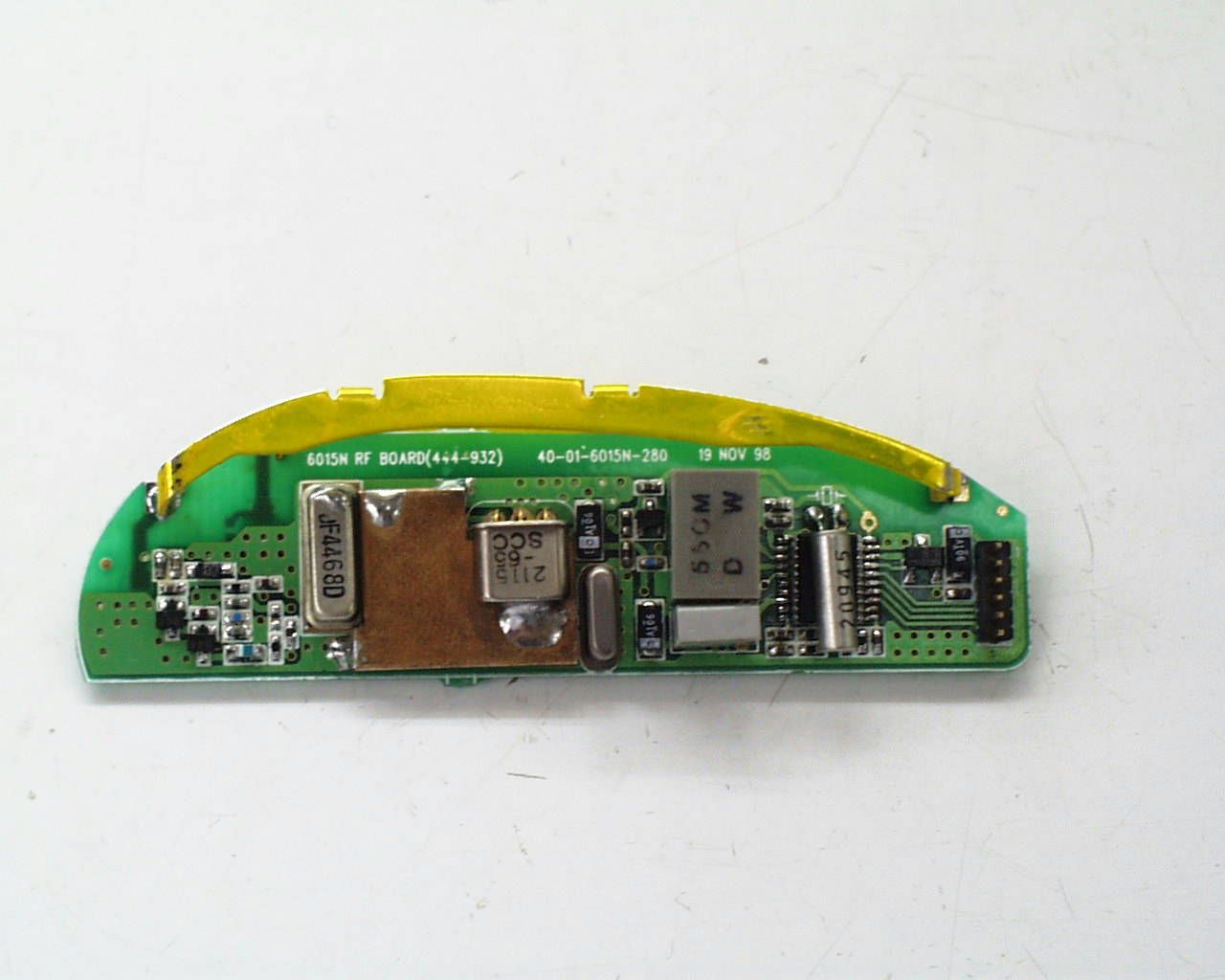

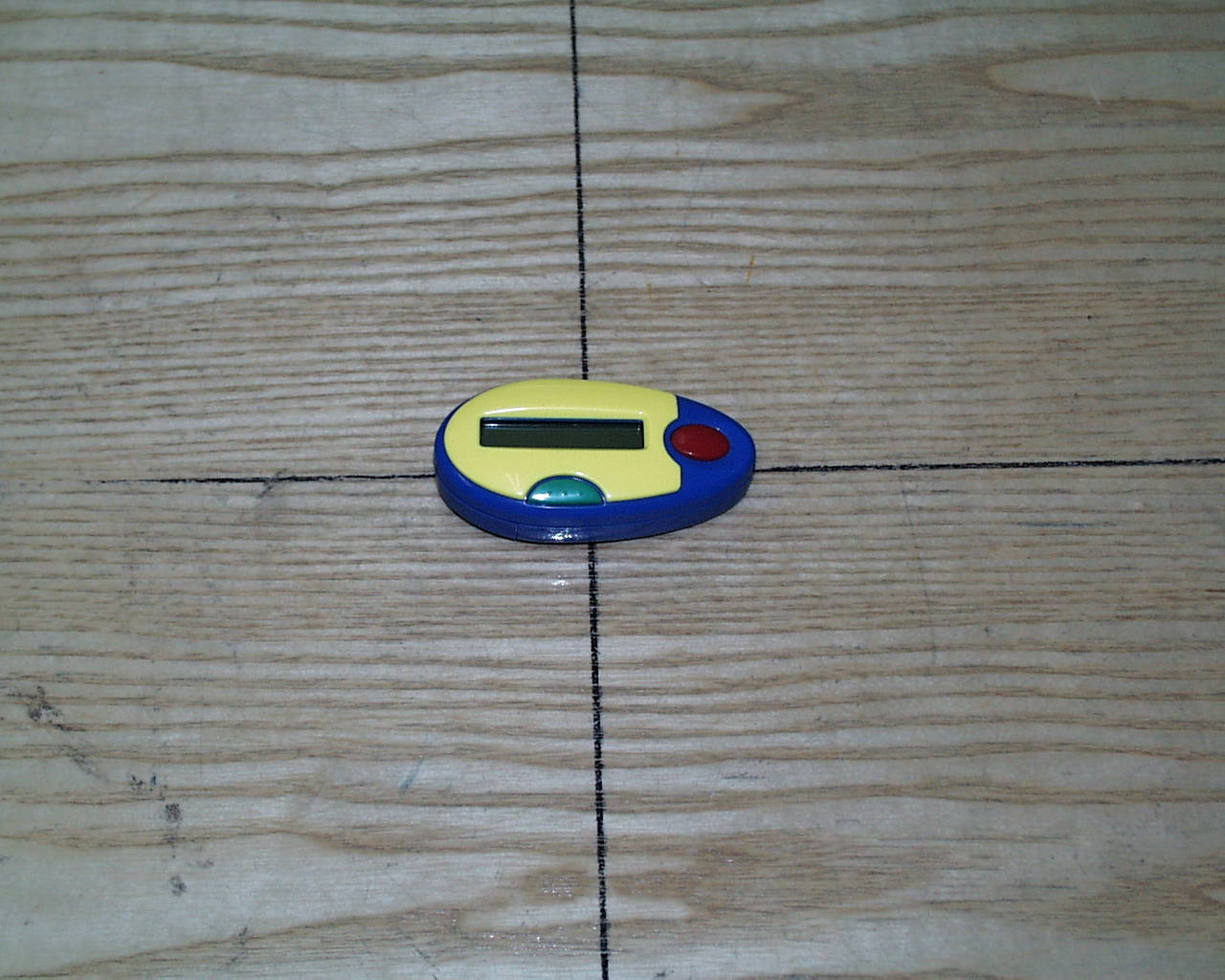

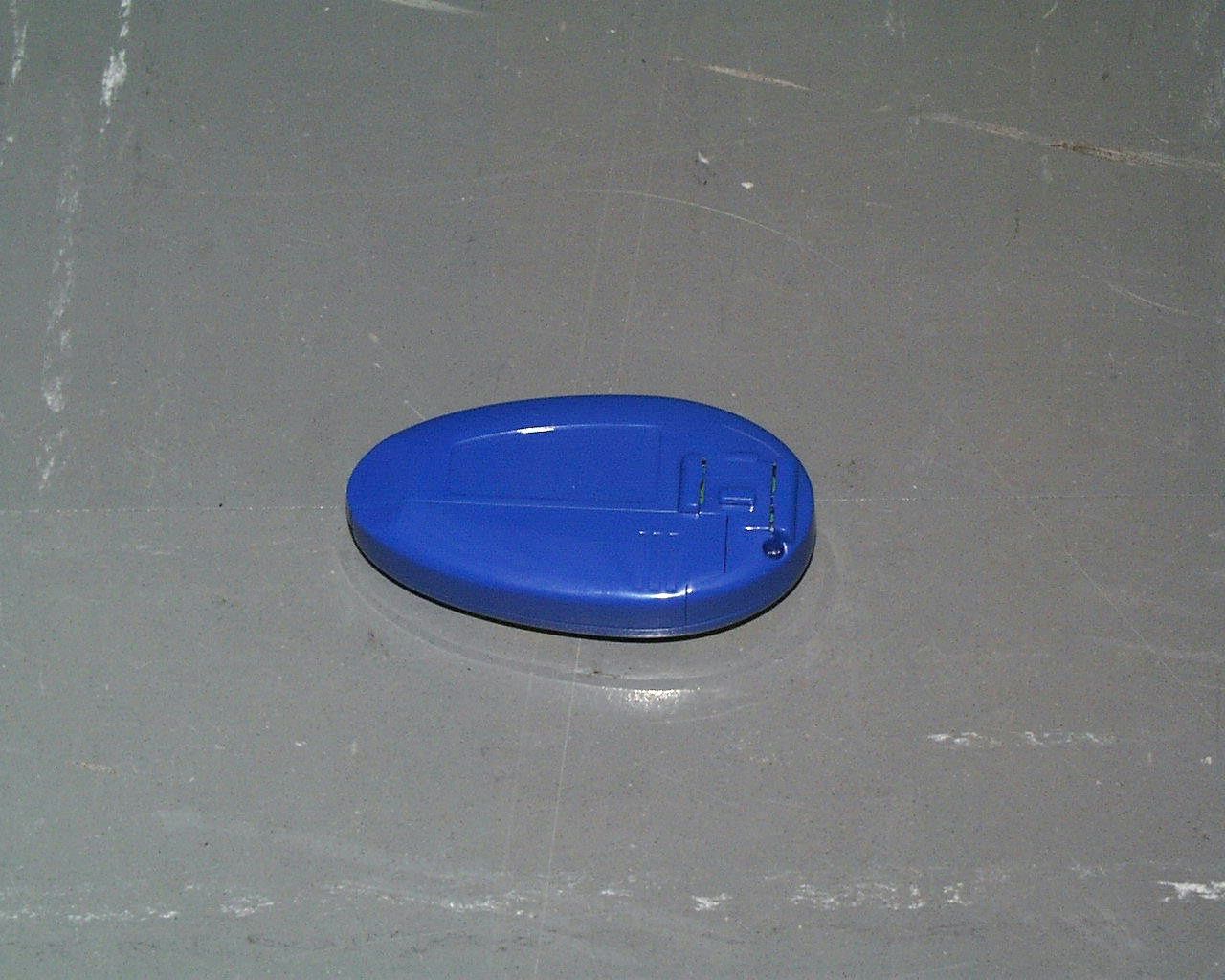

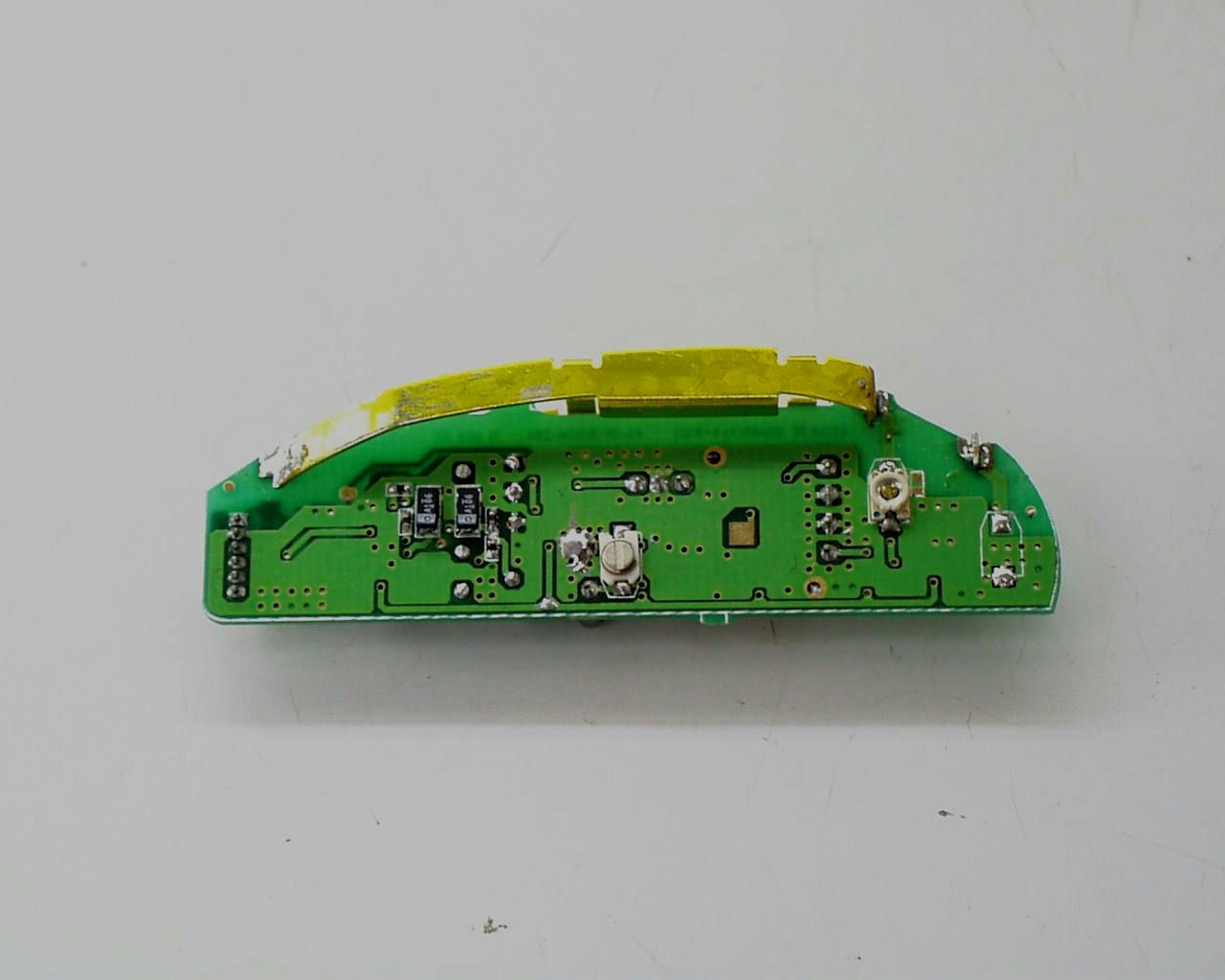

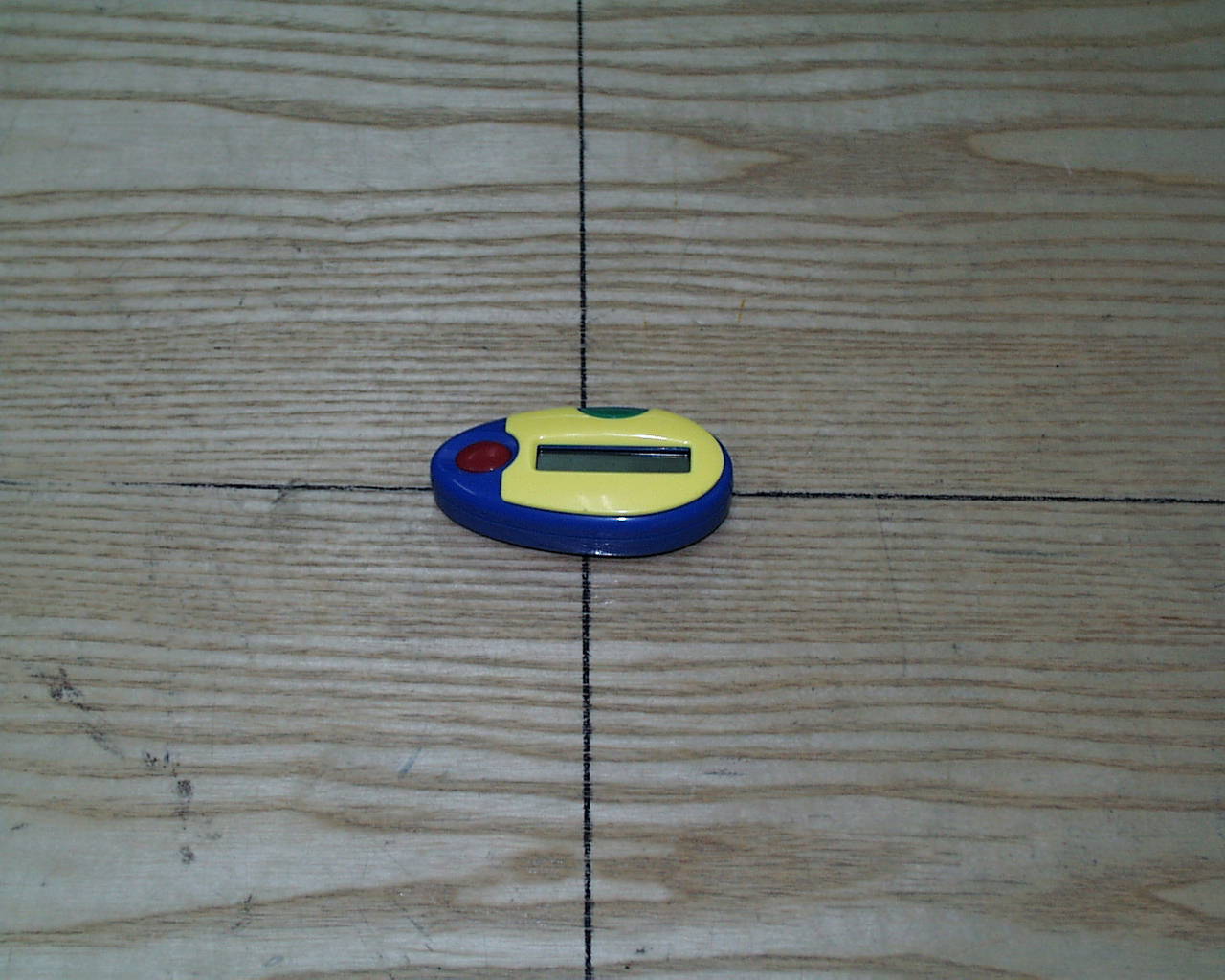

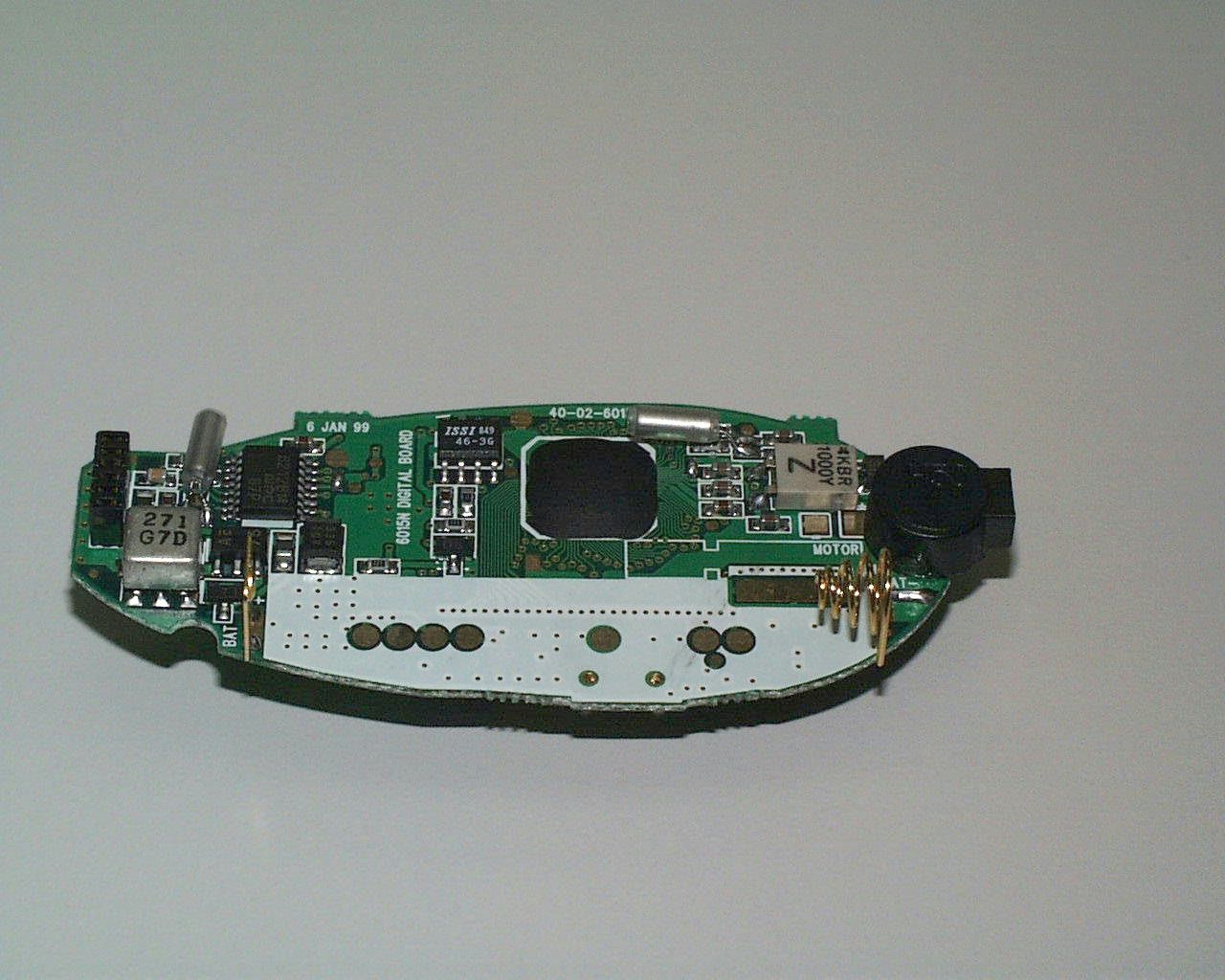

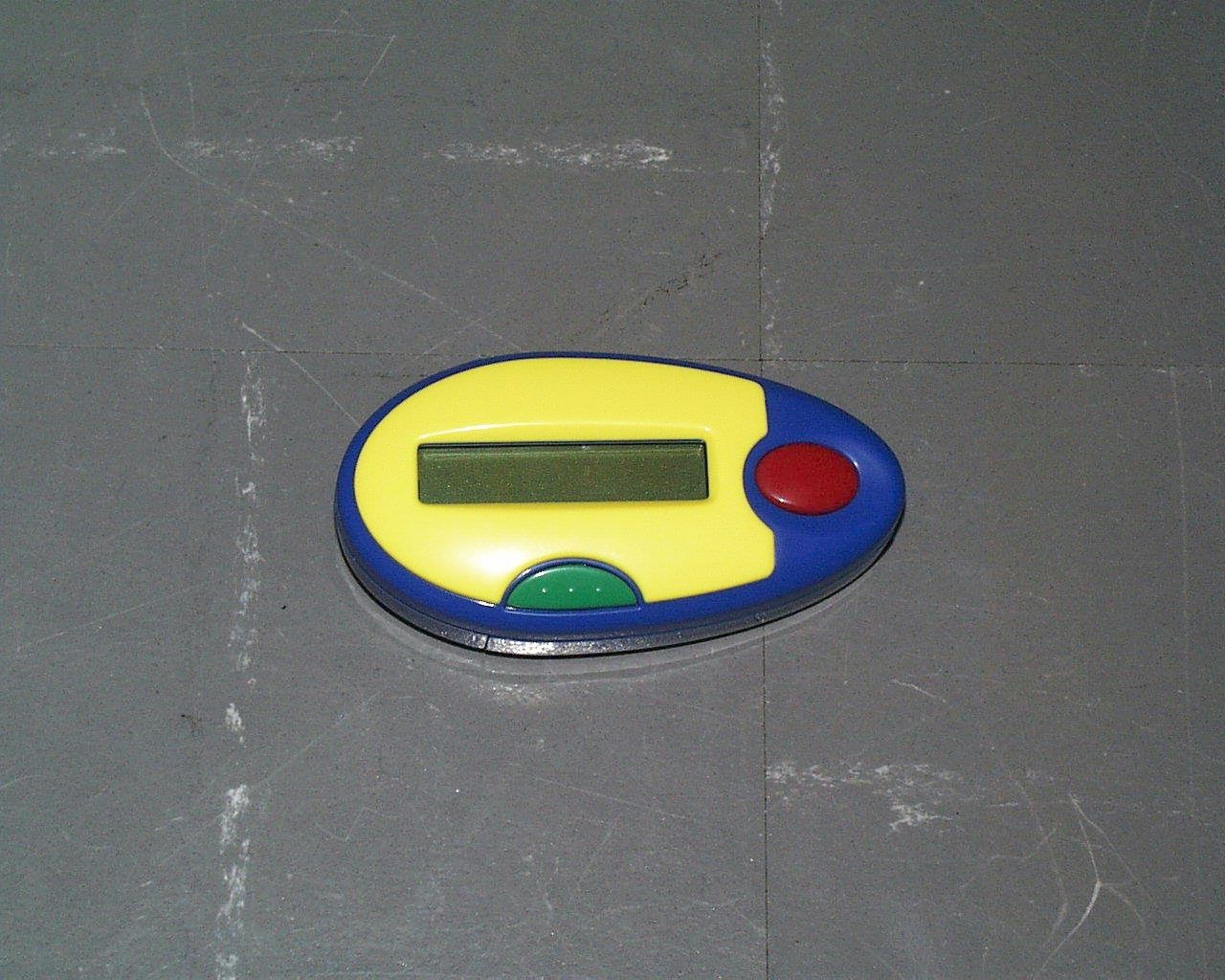

Intertek Testing Services ETL SEMKO Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2745 8306 Cirkisys Electronics Ltd. Application For Certification (FCC ID: OBMALPHA-1-400-1) Superheterodyne Receiver WO# 99033431 WN/at 3 May, 1999 INTERTEK TESTING SERVICES FCC ID: OBMALPHA-1-400-1 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: OBMALPHA-1-400-1 ii MEASUREMENT/TECHNICAL REPORT Cirkisys Electronics Ltd. - MODEL: ALPHA - ONE 6015N FCC ID: OBMALPHA-1-400-1 This report concerns (check one:)Original Grant X Class II Change _____ Equipment Type: Superheterodyne Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:Wilbur Ng Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong Phone:852-2173-8502 Fax:852-2745-8306 INTERTEK TESTING SERVICES FCC ID: OBMALPHA-1-400-1 iii Table of Contents 1.0 General Description ....................................................................................................... 1 1.1Product Description ............................................................................................. 1 1.2Related Submittal(s) Grants ................................................................................ 1 1.3Test Methodology ................................................................................................ 2 1.4Test Facility.......................................................................................................... 2 2.0 System Test Configuration ............................................................................................ 3 2.1Justification .......................................................................................................... 3 2.2EUT Exercising Software .................................................................................... 3 2.3Support Equipment List and Description .............................................................. 3 2.4Equipment Modification...................................................................................... 5 2.5Special Accessories.............................................................................................. 5 3.0 Emission Results ............................................................................................................. 7 3.1Field Strength Calculation ................................................................................... 8 3.2Radiated Emission Configuration Photograph..................................................... 9 3.3Radiated Emission Data...................................................................................... 11 4.0 Equipment Photographs ............................................................................................... 14 5.0 Product Labelling .......................................................................................................... 16 6.0 Technical Specifications ............................................................................................... 18 7.0 Instruction Manual ....................................................................................................... 20 8.0 Miscellaneous Information ........................................................................................... 22 8.1Discussion of Pulse Desensitization.................................................................... 23 8.2Calculation of Average Factor............................................................................ 24 8.3Emissions Test Procedures ................................................................................. 25 INTERTEK TESTING SERVICES FCC ID: OBMALPHA-1-400-1 iv List of attached file Exhibit typeFile Descriptionfilename Cover LetterLetter of Agencyletter.pdf Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emissionradiated1.jpg, radiated2.jpg External PhotoExternal Photoophoto1.jpg to ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto4.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: OBMALPHA-1-400-1 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: OBMALPHA-1-400-1 2 1.0 General Description 1.1Product Description The Equipment Under Test (EUT) is a POCSAG alpha-numeric pager operating at 444 - 450 MHz. The EUT is powered by a 1.5V “AAA” battery. It can operate from 444 MHz to 450 MHz by choosing corresponding value of channel crystal X1. It has two buttons and 16-characters (14-segment type) LCD display. The message will be displayed on the LCD glass and will scroll if more than 16 characters. When a new user message is being received, the pager will give an alert signal, such as buzzing sound or vibration form vibrator. For electronic filing, the brief circuit description is saved with filename: descri.pdf 1.2Related Submittal(s) Grants This is an application for Certification of a receiver. INTERTEK TESTING SERVICES FCC ID: OBMALPHA-1-400-1 3 1.3Test Methodology Both AC mains line-conducted and radiated emission measurements were performed according to the procedures in ANSI C63.4…
