OCMPRESTOPADUSB02RF MOUSEPAD

Page 2 of 26 Document Number: 990322 Preliminary User’s Manual 1.You should have Windows 98 installed on your computer 2.Run HIDVIEW v 3.0 3.Removed and reinsert the USB Device 4.The Program should recognize available USB device 5.Run “get data from device” 6.Run “continuous” 7.Place transponder on mousepad

Page 2 of 26 Document Number: 990322 This device complies with the FCC, part 15 rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: OCMPRESTOPADUSB02 Preliminary User’s Manual 1.You should have Windows 98 installed on your computer 2.Run HIDVIEW v 3.0 3.Removed and reinsert the USB Device 4.The Program should recognize available USB device 5.Run “get data from device” 6.Run “continuous” 7.Place transponder on mousepad

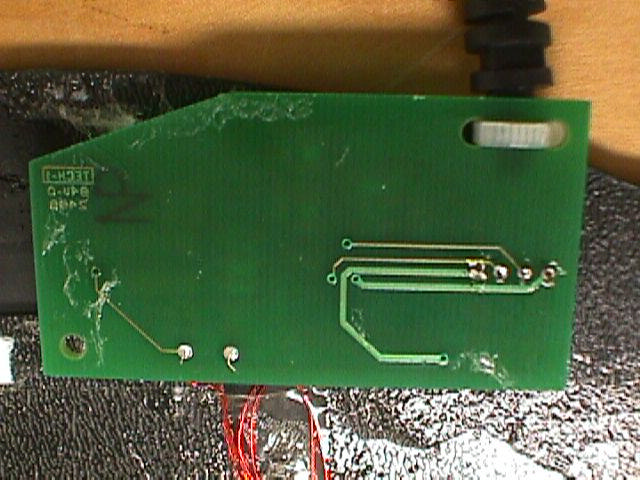

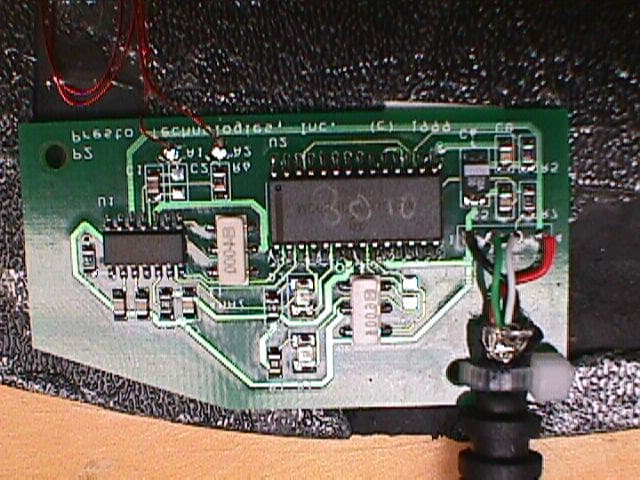

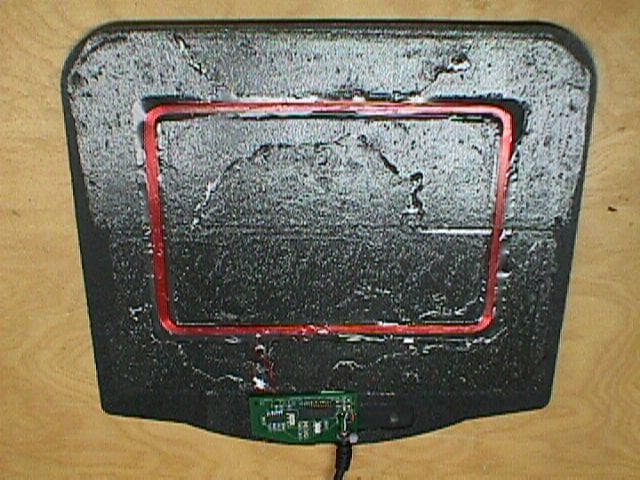

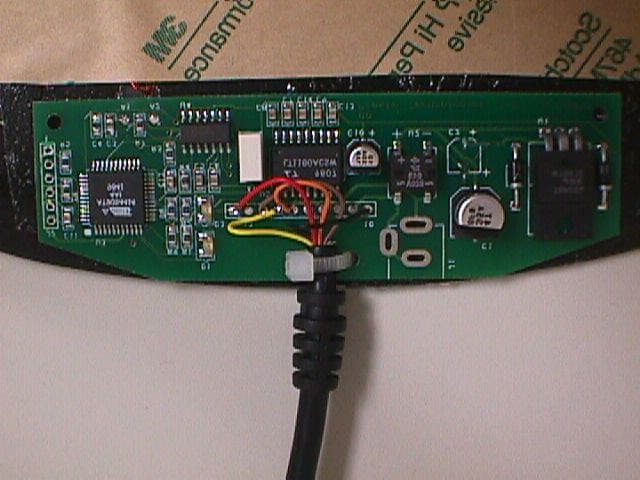

PHOTOS OF EUT Mousepad, Top Side Mousepad, Plastic Housing, Inside Top Half Mousepad, Bottom Side Mousepad, Antenna Mousepad, Processor Board, Component Side Mousepad, Processor Board, Solder Side Transponder, Side A Transponder, Side B Mousepad, USB Connector

PRODUCT LABELING FCC LABEL This device complies with the FCC, part 15 rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: OCMPRESTOPADUSB02 LOCATION OF LABEL ON EUT ← Back of RFID Mousepad Location of Label

PRODUCT DESCRIPTION The device, called PrestoPad USB™ is an RFID detection system. It is intended for use while connected to a Personal Computer. There are three major components to the system: a microphone, an antenna control chip and an antenna coil (see block diagram below). In operation, the device emits a 125kHz RF field. When an appropriate transponder “tag” enters the field, the coil on the transponder couples with the RF field and sufficient potential is generated in the tag to allow communication of the tag’s serial number and/or other information from the tag to the device. The device microprocessor then encapulates this information for transmission via the USB connection to the Personal Computer. Antenna Coil Reader IC (Phillips HTRC110) Microprocessor (Motorola 68705HCJB4) USB Connection Personal Computer

55 44 33 22 11 D D C C B B A A Place close to pin 14 Release JCM Jeff Mock1859 Scott St.San Francisco, CA 94115415 346-2829415 346-2830 [email protected](c) 1998 Stuff for AC adapter power Stuff for RS-232 version LEDs for development only Device Programming Cable Connection +5 VDCNCGame Port ID-CMOS TransmitCMOS ReceiveRS232 TransmitRS232 ReceiveAC adapterAC adapterGround 01 S0 Presto Technologies Serial Mouse Pad 11 Wednesday, January 27, 1999 TitleSize Document Number Rev Date: Sheet of A1A2 SCKDIN PSCKMOSI VDD ID0ID1AC1AC2RS232RXRS232TX RESET-MISO RXTX RS232EN LED0LED1 CLK DOUT VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD R3100K 1 2 R715 1 2 C50.1uF 12 C60.1uF 12 C33900 1 2 C120.1uF 12 C130.1uF 12 TP1TP 1 TP C4390 1 2 + C10 10uF/25V 12 TP2TP 1 TP U4HTRC110 4214 1 1213 59 10 83 67 TX1TX2 RX GNDCEXTQGNDMODEDINDOUTSCKVDD XTAL1XTAL2 X14 MHZ 1 3 2 X1 X2 GND R4 1.5K 12 R1180 1 2 R2180 1 2 J2CONN6 123456 P1P2P3P4P5P6 U3AT90S4414QUAD.80M/44/WG12.00 3736353433323130 4 1638151427 57 3218 29 1819202122232425 4041424344 910111213 26 PA0PA1PA2PA3PA4PA5PA6PA7 RESET-GNDVDDXTAL1XTAL2ALE RXD TXD SCKMISOMOSIINT0ICP PC0PC1PC2PC3PC4PC5PC6PC7 PB0PB1PB2PB3PB4 PD3PD4PD5PD6PD7 OC1B R51.5K 12 R61.5K 12 PWR 123 PI PO PS + C1 47uF/35V 12 D41N4001 12 + C2 10uf/25V 12 R81.5K 12 J3CONN10 123456789 10 P1P2P3P4P5P6P7P8P9P10 R91.5K 12 C80.1uf 12 C140.1uf 12 C110.1uF 12 U5LT1180A 37 161718 24 158149 56 10131112 VP VM GNDVDDONC1PC1M RS232OUT1RS232OUT2 RS232IN1RS232IN2 C2PC2MLOUT2LOUT1LIN2LIN1 C70.1uf 1 2 C90.1uf 1 2 U2BRIDGE 34 12 AC1AC2 P M D21N4001 1 2 U178M05 1 3 2 IN OUT GND D1LED A C D3LED A C

 APPLICATION FOR FCC CERTIFICATION CLASS B TRANSMITTER DEVICE Presto Technologies, Inc. 110 Pulpit Hill Road Amherst, MA 01002 413-549-8780 MODEL: PrestoPad USB RFID Mousepad Transmitter FCC ID: OCMPRESTOPADUSB02 June 30, 1999 REPORT PREPARED BY: EMI Technician:K. Franck Schuppius Administrative Writer:Dixie L. Shetter Rhein Tech Laboratories, Inc. Document Number: 990322 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. This report concerns (check one):Original Grant: X Class II Change: Equipment Type: Transmitter Deferred grant requested per 47 CFR 0.457 (d) (1) (ii)?Yes:No: X If yes, defer until: Date Company name agrees to notify the Commission by: (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes:No: X If no, assumed Part 15, subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision.. Page 2 of 27 Document Number: 990322 TABLE OF CONTENTS 1.0GENERAL INFORMATION.................................................................................................................4 1.1RELATED SUBMITTAL(S)/GRANT(S)........................................................................................................4 1.2PRODUCT DESCRIPTION..........................................................................................................................5 1.3TEST SYSTEM DETAILS...........................................................................................................................6 1.4CONFIGURATION OF TESTED SYSTEM......................................................................................................7 1.6TEST METHODOLOGY............................................................................................................................8 1.7TEST FACILITY.......................................................................................................................................8 2.0PRODUCT LABELING.........................................................................................................................9 3.0SYSTEM TEST CONFIGURATION..................................................................................................10 3.1JUSTIFICATION.....................................................................................................................................10 3.2EUT EXERCISE SOFTWARE...................................................................................................................10 3.3SPECIAL ACCESSORIES.........................................................................................................................10 3.4SPURIOUS NOISE..................................................................................................................................10 3.5CONFORMANCE STATEMENT.................................................................................................................11 4.0MEASUREMENT PHOTOS................................................................................................................13 4.1CONDUCTED MEASUREMENT PHOTOS...................................................................................................13 4.2RADIATED MEASUREMENT PHOTOS......................................................................................................14 5.0CONDUCTED EMISSION DATA.......................................................................................................15 6.0RADIATED EMISSION DATA...........................................................................................................16 6.1FIELD STRENGTH CALCULATION...........................................................................................................18 7.0PHOTOS OF EUT................................................................................................................................19 APPENDIX LISTING APPENDIX A: SCHEMATICS OF PRESTOPAD USB RFID MOUSEPAD TRANSMITTER.........................12 APPENDIX B: EMISSIONS EQUIPMENT LIST......................................................................................................24 APPENDIX C: CONDUCTED AND RADIATED TEST METHODOLOGY....................................................................25 APPENDIX D: USER’S MANUAL.................................................................................................................26 Page 3 of 27 Document Number: 990322 FIGURE INDEX FIGURE 1: FCC LABEL......................................................................................................................................9 FIGURE 2: LOCATION OF LABEL ON EUT............................................................................................................9 FIGURE 3: MOUSEPAD, TOP SIDE.....................................................................................................................19 FIGURE 4: MOUSEPAD, PLASTIC HOUSING, INSIDE TOP HALF............................................................................19 FIGURE 5: MOUSEPAD, BOTTOM SIDE..............................................................................................................20 FIGURE 6: MOUSEPAD, ANTENNA....................................................................................................................20 FIGURE 7: MOUSEPAD, PROCESSOR BOARD, COMPONENT SIDE.........................................................................21 FIGURE 8: MOUSEPAD, PROCESSOR BOARD, SOLDER SIDE................................................................................21 FIGURE 9: TRANSPONDER, SIDE A...................................................................................................................22 FIGURE 10: TRANSPONDER, SIDE B............................................................................................…

Text truncated - open the document above for the full version.

Magnetic Field Test 9KHz – 10 MHz Radiated Test Data - OATS 2 Test Date: September 29, 1999 Work Order: 990322 Customer Reference: n/a Model: usb mousepad Mode: Transmit / Receive Name: chris Limit/Distance: Part 209/10M Notes: Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Turntable Azimuth (deg) Antenna Height (m) Analyzer Reading (dBuV/m) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) 0.125QpH1451.024.121.745.864.8-19.0 0.251QpH2701.023.121.744.858.7-13.9 0.376QpH1501.020.821.642.455.2-12.8 0.627QpH2701.020.922.243.150.8-7.7 3.007QpH2451.022.322.845.148.6-3.5 6.390QpH2351.020.922.947.848.6-4.8 13.793QpH2251.020.323.746.048.6-4.6 Mode: stand by Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Turntable Azimuth (deg) Antenna Height (m) Analyzer Reading (dBuV/m) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) 0.125QpH1451.020.021.741.764.8-23.1 0.254QpH1801.024.621.746.358.6-12.3 0.381QpH1801.019.521.941.455.1-13.7 0.508QpH1451.020.822.142.952.6-9.7 0.635QpH1451.020.222.242.450.7-8.3 0.762QpH1451.017.022.439.449.2-9.8 0.889QpH1401.018.522.541.047.9-6.9 1.016QpH2701.015.522.938.446.8-8.4 3.301QpH1751.020.523.043.548.6-5.1 6.730QpH2701.018.523.041.548.6-7.1 14.858QpH1851.020.623.844.448.6-4.2 22.859QpH2451.018.225.643.848.6-4.8
