OD9BAP-1Portable air purifier

BAP-1 manual 1. Connect the supplied 5V 1.5A switching adapter to USB port as power supply to unit as well as charging up the internal Li battery. 2. Long press power on/of f button (marked 4) 2 sec to switch on unit. Long press again 2 s ec to switch off. 3. Short press fan button (marke d 5) to adjust fan speed. The LED intensity will change accordingly with each press. Higher intensity means higher speed. 4. Short pr ess sweeping button (marked 1) to change the wind sweeping function on and of f. LED will light up when it is ON. 5. Short pr ess night light button (marked 2) to swit ch between night light mode and PM2.5 indication mode. LED will light up when night light mode is ON. 6. Short press music button to switch lullaby playing on or off. LED will light up when lullaby playing is ON. 7. Follow fig 2 to take out the bottom cover for filter replacement. Install back bottom cover afterwards. 8. Follow Bebcare Air app for functions that can be controlled via the app. photo 1 Photo 2 FCC Warning This device complies with part 15 of the FCC Rules.Operation is subject to the condition that this devicedoes not cause harmful interference (1) This device may not cause harmful interference. (2) This device must accept any interference received,including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pu rsuant to Part 15 of the FCC rules. These limits are designed to provide reasonabl e protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐Consult the dealer or an experienced radio/TV technician for help. )&&5DGLDWLRQ([SRVXUH6WDWHPHQW This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Techwalt Electronics Co. Ltd' A6;' r,t, i"*er 1, Tern Centre,237 Queen's Road' Hong Kong rpr-: ssz-isso-0860 FAX: 852-2850-6936 E-mail: twatlhk@netvigator'com FCC Authorization Date'.2019-12-20 FEDERAL COMMTINICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it maY concern: We.TechwallElectronicsCo.Ltd.,HerebyauthonzesBayAreaComplianceLaboratories ;,o",p,;;il;;;;1ffi;;r';it 'att"'s relating to application ror Equipment authorization, including the t'g"i"g "ittf documenti relaiing to these matters' All acts carried out by Bay erea Compiio'nie Laboratory Corporation on our behalf shall have the same effect as our own action' We, the undersigned, hereby certiff that we are not subject to a denial of federal benefits' thatincludesFCCbenefits,pursuanttoSection530loftheAnti-DrugAbuseActof1988, 21U.S.C. 862. This authorization is valid until further written notice from the applicant' Sincerely Yours, Client's signature Printed Name: s.M. wong Title: Managing Director QA-FR-170-B

Techwall Electronics Co. Ltd. aOo, i+lf, fo*er 1, Tern Centre,237 Queen's Road, Hong Kong TEL:852-2850-6860 FAX: 852-2850-6936 E-mail: twallhk@netvigator. com Date:Z019-12-20 FEDERAL COMMI]NICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification ofFCC ID: OD9BAP-1 lnaccordancewithSections0.45Tand0.45goftheCommission,sRules,TechwallElectronicsCo.Ltd., ffibfi;, iffi"* "onna"ntial treatment of information accompanying this application as outlined below: . Block Diagram o Schematics . OperationDescription Theabovematerialscontainproprietaryandconfidenlialinformationnotcustomarilyreleasedtothe public. The public disclosure of'ttter. ',out.tiutt provides unjustifred benefits to its competitors in the market. Sincerely, Title: Managing Director QA-FR-171-A Printed Name: gM. wong

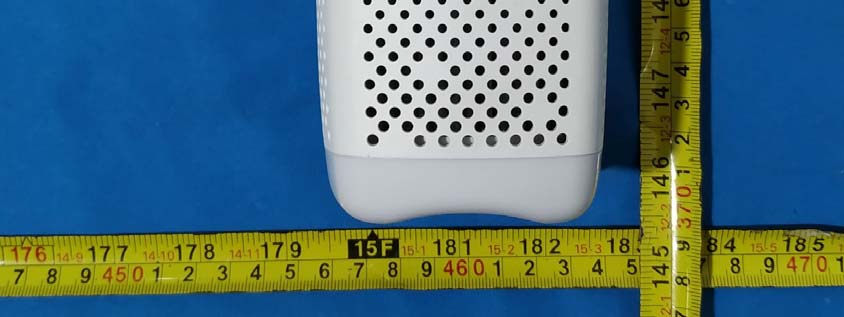

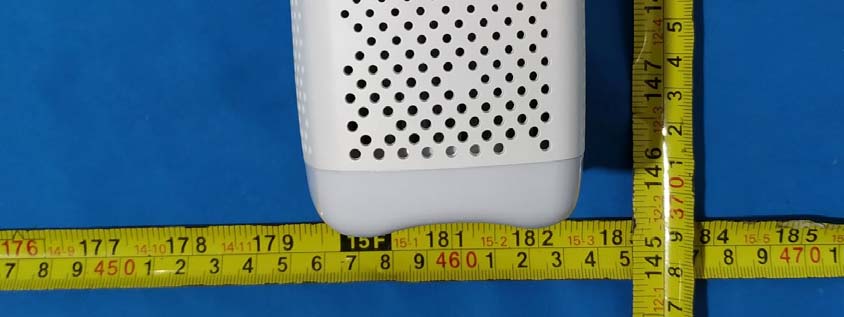

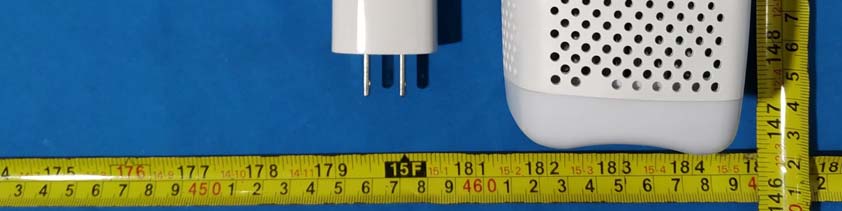

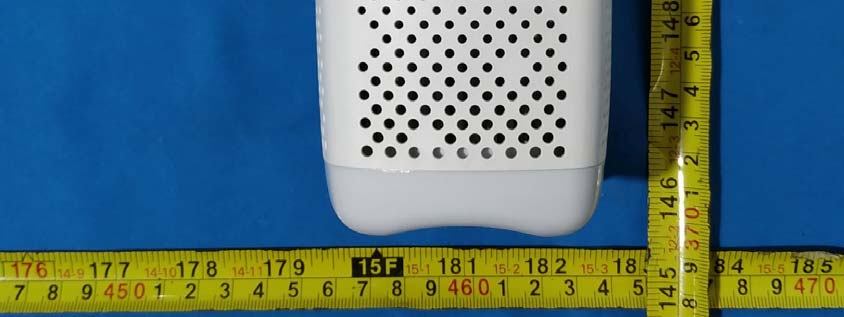

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS
