ODADOWNFRAFT-BT01Bluetooth Speaker

Speaker User Manual Introduction: Please take a few moments to read through the following user manual before using this Speaker: 1 - Power on/off 2 - Charging port 3 - LED 4 - Speaker Wired Operations: 1. Turn the Power ON/OFF button to active the speaker. A blue light will appear 2. Connect the speaker to your computer or other audio devices as below drawings (mini USB plug into speaker charging port, USB port plug into female USB port and OD3.5mm pin plug into audio port) 3. Play the music by our audio device. Battery Charging This Bluetooth speaker has inside a lithium battery, please use the accessory USB cable to charge the battery though PC or USB travel charger. Normally it will need 3 hours to fully charge the battery. When charging the light will be red. When the speaker is fully charged the light will no longer be showing Package contents ●1 speaker (Bluetooth optional) ●1 USB & audio cable ●1 User Manual Technical details: ●Power supplier: DC 5V ● 2402.00‐2480.00MHz (Channel Frequency=2402+1(K‐1), K=1, 2, 3 ......79) ●Output power: 2W (1 kHz, THD10%) ●Frequency: 120HZ---15000Hz ●Speaker: OD40mm 4 OHM 3W ●Distance：open air≥10m ●Li-ion: 3.7V 35mm*18mm*5.8mm (350mA) ●SNR：≥65dB ●If it is Bluetooth , the version is Bluetooth 1.0 NOTES Keep away from high-temperature or prolonged exposure to direct sunlight. Avoid contact with liquids. Do not insert any conductive objects into the sound box. Do not disassemble. Keep out of reach of children. Warranty In case your BOOMPOODS® fails to function because of defects due to material or workmanship, it will be repaired or replaced at no cost within 6 months of receiving the item providing: It has not suffered accidental damage such as a knock or immersion in water, etc... It has not been disassembled. It needs to be returned to the service center free of charge, the service center will not bear any shipping cost of the returned item. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Confidentiality Request Letter Dongguan Yujia Industry Co.,Ltd Add: Shang Ye St., Yong Jun Road, Shuiliang Village, Dalingshan Town, Dongguan City , Guangdong Province, China Tel: 0769-85417910 Fax: 0769-85411010 2012-07-17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID:ODADOWNFRAFT-BT01 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Shawkingdom Chang / Sales Contact information / address : Shang Ye St., Yong Jun Road, Shuiliang Village, Dalingshan Town, Dongguan City , Guangdong Province, China Tel: 0769-85417910 Fax: 0769-85411010 E-Mail: [email protected]

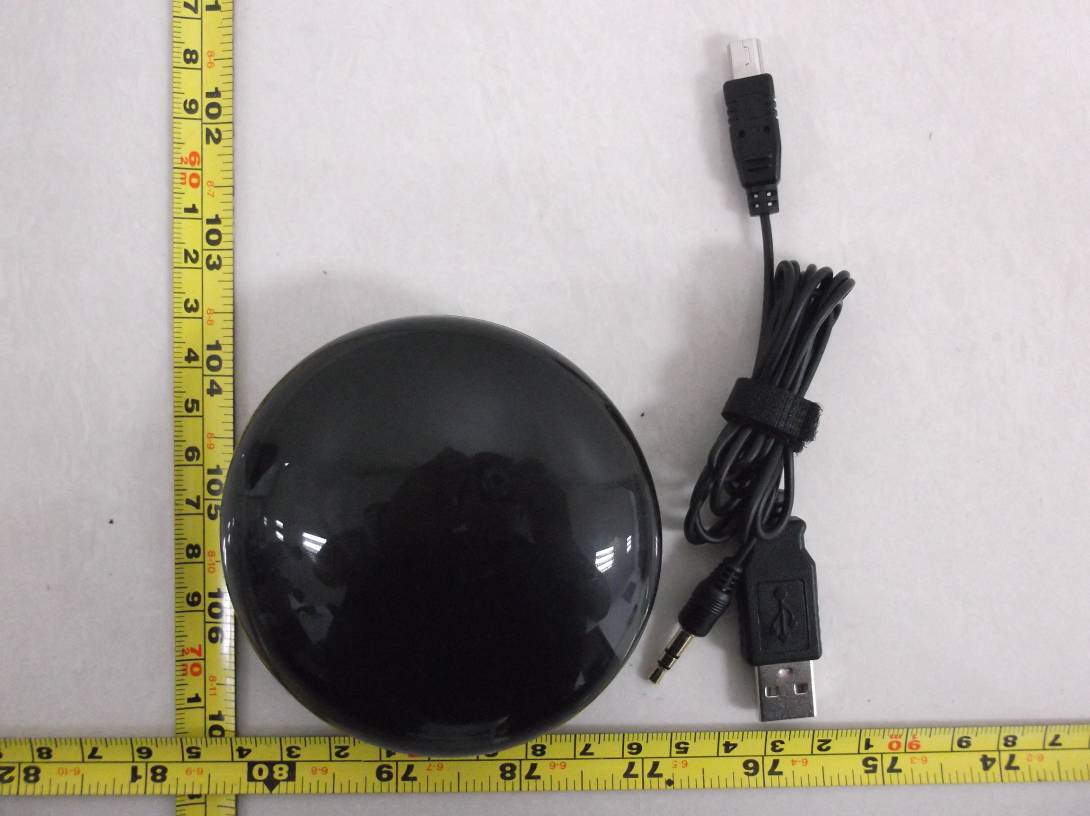

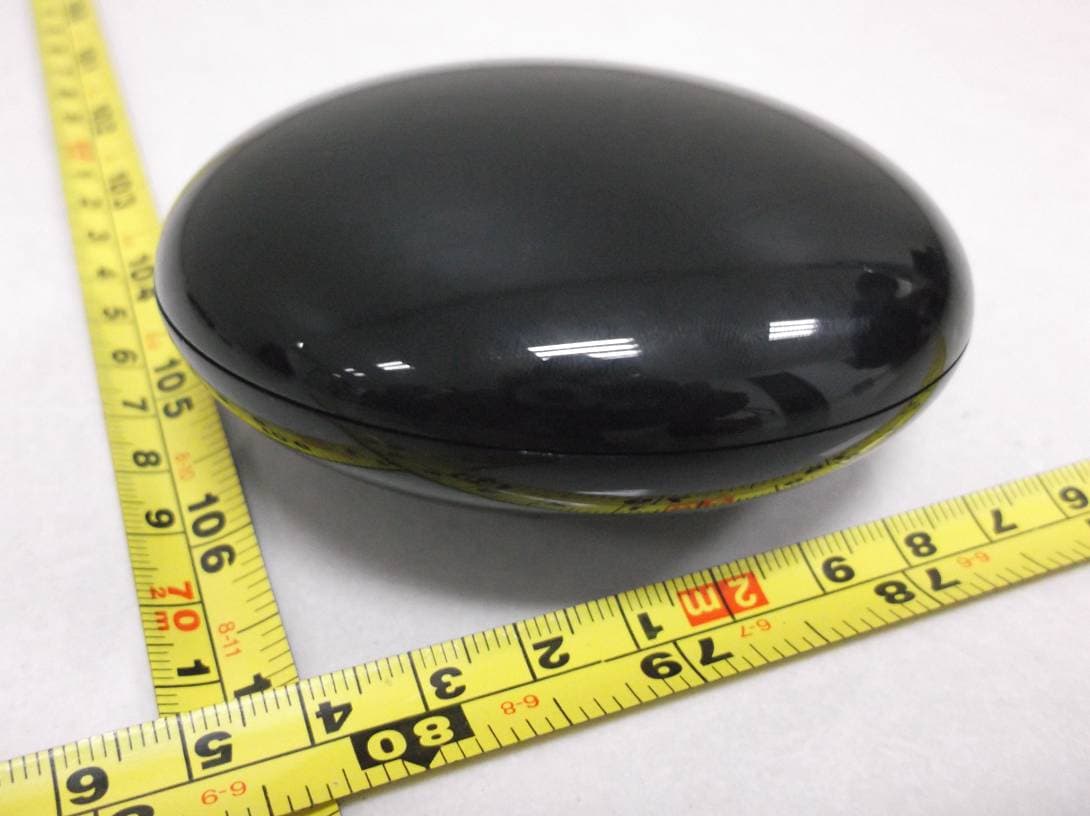

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:ODADOWNFRAFT-BT01 Report No.:LCS120711061QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:ODADOWNFRAFT-BT01 Report No.:LCS120711061QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID:ODADOWNFRAFT-BT01 Report No.:LCS120711061QF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Label: L1.5(cm)xW1.2(cm) Label Location Brand Name: Model Number:BT-01 FCC ID:ODADOWNFRAFT-BT01

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:ODADOWNFRAFT-BT01 Report No.:LCS120711061QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:ODADOWNFRAFT-BT01 Report No.:LCS120711061QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Antenna Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:ODADOWNFRAFT-BT01 Report No.:LCS120711061QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:ODA DOWNFRAFT-BT01 Report No.:LCS120711061QF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 34 RADIO TEST REPORT FOR Dongguan Yujia Industry Co., Ltd Bluetooth Speaker Model No.: BT-01 Prepared for : Dongguan Yujia Industry Co., Ltd Address : Shang Ye St., Yong Jun Road, Shuiliang Village, Dalingshan Town, Dongguan City , Guangdong Province, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : July 11, 2012 Number of tested samples : 1 Serial number : Prototype Date of Test : July 11, 2012 – July 17, 2012 Date of Report : July 17, 2012 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:ODA DOWNFRAFT-BT01 Report No.:LCS120711061QF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 34 TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ............... : LCS120711061QF Date of Issue ................................. : July 17, 2012 Testing Laboratory Name.......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Dongguan Yujia Industry Co., Ltd Address ......................................... : Shang Ye St., Yong Jun Road, Shuiliang Village, Dalingshan Town, Dongguan City , Guangdong Province, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 Subpart C, ANSI C63.4-2003 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : Bluetooth Speaker Trade Mark ................................... : Manufacturer ................................ : Dongguan Yujia Industry Co., Ltd Model/ Type reference ................. : BT-01 Ratings .......................................... : DC 3.7V (Li-ion Battery) DC 5V from PC connected to AC 120V/60 Hz Result .......................................... : Positive Compiled by: Supervised by: Approved by: Ada Liang/ File administrators Vito Cao/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:ODA DOWNFRAFT-BT01 Report No.:LCS120711061QF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 34 RADIO -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS120711061QF July 17, 2012 Date of issue Type / Model........................... : BT-01 EUT......................................... : Bluetooth Speaker Applicant............................... : Dongguan Yujia Industry Co., Ltd Address.................................. : Shang Ye St., Yong Jun Road, Shuiliang Village, Dalingshan Town, Dongguan City , Guangdong Province, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dongguan Yujia Industry Co., Ltd Address................................... : Shang Ye St., Yong Jun Road, Shuiliang Village, Dalingshan Town, Dongguan City , Guangdong Province, China Telephone............................... : / Fax.......................................... : / Factory................................... : Dongguan Yujia Industry Co., Ltd Address................................... : Shang Ye St., Yong Jun Road, Shuiliang Village, Dalingshan Town, Dongguan City , Guangdong Province, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:ODA DOWNFRAFT-BT01 Report No.:LCS120711061QF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 34 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .................................................................................................... 5 1.1 Description of Device (EUT)...............................................................................................................5 1.2 Host System Configuration List and Details .......................................................................................5 1.3 External I/O Cable ...............................................................................................................................5 1.4 Description of Test Facility .................................................................................................................5 1.5 Statement of The Measurement Uncertainty .......................................................................................6 1.6 Measurement Uncertain…
