ODD-VM560Mobile Phone

Note: All the figures described in the Quick Guide are for your reference only. These may be different from the actual display on your VINCI Tab MV. Charging • Connect the USB cable to the USB connector with the arrow on the cable facing the screen • Do not bend the connector as it may damage or cause device malfunction. • Connect the other end of the cable to the charger or to your PC. It takes about 4 hours to reach a full charge. 4 VINCI Tab MV Created for Families with Kids Thanks for choosing VINCI Tab MV, designed for families with kids. • If your SIM card comes with WCDMA 3G services, you can get online using the wireless network. Turn on 3G data service in SIM Card Management, under Settings. • Turn off the unit and open the back cover to remove the battery • Insert the SIM card into the slot • Install the battery and close the back cover • 3G data SIM to be inserted in slot 1. If you use VINCI Tab MV with voice service, insert your SIM to slot 2 The Status Bar VINCI Tab MV Data Connection SIM Card Installation Indicates that the battery is fully charged Indicates that the battery is very low Battery is currently charging Airplane mode WIFI connected Bluetooth enabled Signal strength USB is connected SD card is removed Indicates Unread Message FeatureVINCI Tab MV Voice Call & SMS Optional per your SIM service CPU/GPU1 GHz with 3D Acceleration RAM512 MB Internal Storage 4GB Battery3000 MAH Screen480x800 multi-touch 5 inch Preloaded System’s Apps: Browser, YouTube, Google Play, Gmail, Skype, PDF Reader, Quickoffice, Map, GPS Preloaded for Kids: VINCI Curriculum preschool level 1, 2, 3 (2 of each), VINCI Kids Library 3 stories, 20 VINCI Music Videos (approximately 1 hour) Note 1: You can also use VINCI Tab MV as a Quad band GSM phone. Note 2: WCDMA for 3G data service is valid in North America and certain regions of the world (dual band 850/1900). Note 3: Services are available only where your phone service is offered. This version supports the USB interface. You can connect your VINCI Tab MV with the PC via the USB and data cable to copy or move files, browse images and video files. • Insert the USB data cable connector into the USB interface of VINCI Tab MV • Connect the other terminal of the USB data cable with the USB interface of the PC Note: USB connector may become damaged or malfunction if bent • If your SIM card comes with voice service, you can make calls, send/receive SMS by enabling these services in SIM Card Management, under Settings. USB Connection Voice Service GSM SIM Card MicroSD Card MicroSD card will be detected/ refreshed only after power cycling Data SIM Card Getting Started Note: The availability of these features depends on your cellular service plan To get started, turn on your VINCI Tab MV by pressing and holding the power ON/OFF button for a few seconds. Then follow the screen prompts to set up VINCI Tab MV. Visit www.vincigenius.com to register your VINCI Tab MV and to: • Validate your warranty • Obtain timely support • Download free content GPS • Use the GPS app preloaded on VINCI Tab MV for location or map service. WIFI • Enable WIFI by going to Settings, then turn on WIFI and follow the prompt to enter a password. FeatureVINCI Tab MV 3G DataWCDMA850/1900 WIFIYes GPSYes Web Access • In the browser interface tap the address bar • Insert the correct URL (e.g., www.vincigenius.com), then tap Start Install New Content VINCI Curriculum MicroSD cards do NOT work with VINCI Tab MV. After Parent Login, you may install new apps through WIFI. VINCI Curriculum apps can be downloaded by visiting curriculum.vincigenius.com.You may also install additional VINCI Kids Library titles from kidslibrary.vincigenius.com. Warning: • Do not use VINCI Tab MV while charging • Make sure the MicroUSB connector is positioned correctly to ensure proper charging • Do not use liquids, chemicals or detergents to clean VINCI Tab MV. Only use a dry, lint-free cloth Return & Warranty: • 12 months parts and labor only, except for the battery and screen. Please review the complete details of the Return and Warranty Policy at store.vincigenius.com/control/vincipolicy Carrying Your Tab When you are using the Tab, keep it at some distance (at least 2.5 cm away from your body). In case there is a need of slipcover, belt clip, or other accessories to carry your Tab, it is important to ensure these accessories are approved by the manufacturer. Otherwise, it may exceed the upper limit of radio frequency leakage. Energy Leak of Radio Frequency VINCI Tab MV is a low-power, wireless transmitter and receiver. After being powered on, it will periodically send and receive radio signals while Safety Precautions & Warranty FCC Statement: This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the device and receiver; connect the device into an outlet on a circuit differ- ent from that to which the receiver is connected; or consult the dealer or an experienced radio/ television technician for help. Use Conditions: This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) This device must accept any interference received…

Text truncated - open the document above for the full version.

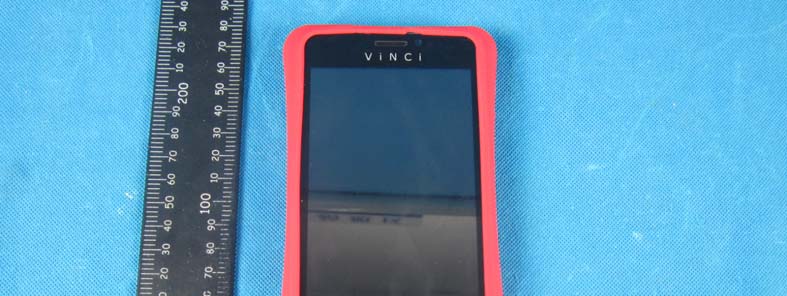

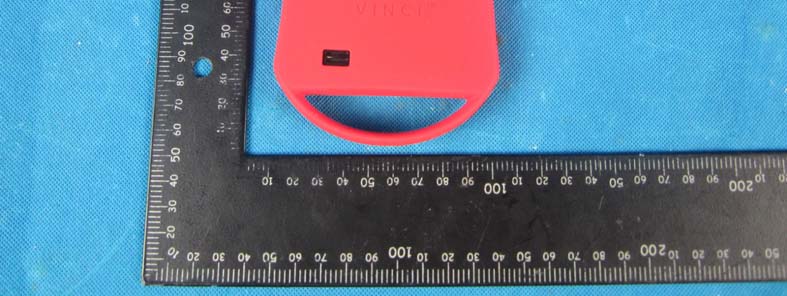

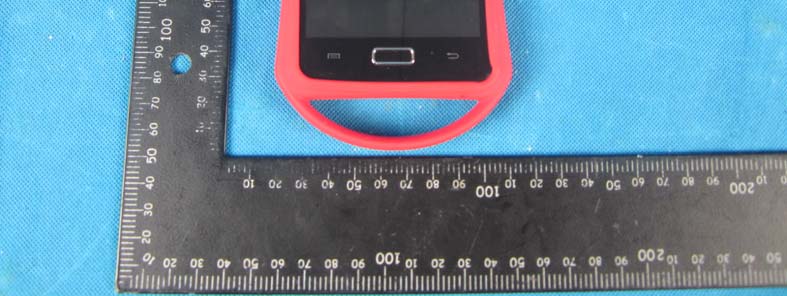

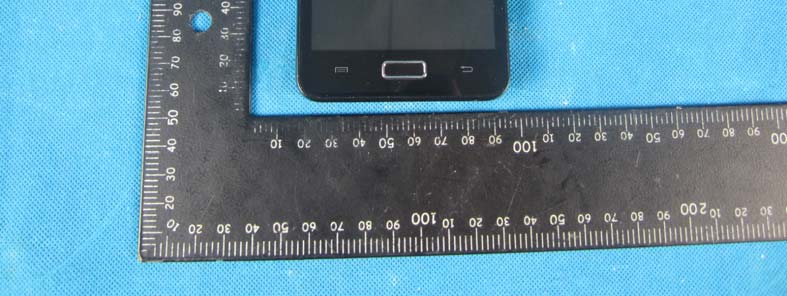

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23 Photo 24 Photo 25

FCC RADIO TEST REPORT FCC ID: ODD-VM560 Product： VINCI Mobile Device Trade Name： N/A Model Name： VINCI VM5610 Serial Model： N/A Report No.： NTEK-2012NT1025163F2 Prepared for Rullingnet Corporation Limited Unit 1210, Level 12, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 86 Report No.:NTEK-2012NT1025163F2 TEST RESULT CERTIFICATION Applicant’s name ................. : Rullingnet Corporation Limited Address ................................. : Unit 1210, Level 12, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong Manufacture's Name ............ : Rullingnet Corporation Limited Address ................................. : Unit 1210, Level 12, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong Product description Product name ........................... : VINCI Mobile Device Model and/or type reference : VINCI VM5610 Serial Model： N/A Standards ............................. : FCC Part15.247 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 25 Oct. 2012 ~11 Nov. 2012 Date of Issue ........................................... : 12 Nov. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 86 Report No.:NTEK-2012NT1025163F2 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 42 4 . NUMBER OF HOPPING CHANNEL 54 4.1 APPLIED PROCEDURES / LIMIT 54 4.1.1 TEST PROCEDURE 54 4.1.2 DEVIATION FROM STANDARD 54 4.1.3 TEST SETUP 54 4.1.4 EUT OPERATION CONDITIONS 54 4.1.5 TEST RESULTS 55 5 . AVERAGE TIME OF OCCUPANCY 56 Page 4 of 86 Report No.:NTEK-2012NT1025163F2 Table of Contents Page 5.1 APPLIED PROCEDURES / LIMIT 56 5.1.1 TEST PROCEDURE 56 5.1.2 DEVIATION FROM STANDARD 56 5.1.3 TEST SETUP 57 5.1.4 EUT OPERATION CONDITIONS 57 5.1.5 TEST RESULTS 58 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 64 6.1 APPLIED PROCEDURES / LIMIT 64 6.1.1 TEST PROCEDURE 64 6.1.2 DEVIATION FROM STANDARD 64 6.1.3 TEST SETUP 64 6.1.4 EUT OPERATION CONDITIONS 64 6.1.5 TEST RESULTS 65 7 . BANDWIDTH TEST 71 7.1 APPLIED PROCEDURES / LIMIT 71 7.1.1 TEST PROCEDURE 71 7.1.2 DEVIATION FROM STANDARD 71 7.1.3 TEST SETUP 71 7.1.4 EUT OPERATION CONDITIONS 71 7.1.5 TEST RESULTS 72 8 . PEAK OUTPUT POWER TEST 78 8.1 APPLIED PROCEDURES / LIMIT 78 8.1.1 TEST PROCEDURE 78 8.1.2 DEVIATION FROM STANDARD 78 8.1.3 TEST SETUP 78 8.1.4 EUT OPERATION CONDITIONS 78 8.1.5 TEST RESULTS 79 9 . EUT TEST PHOTO 85 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 86 Report No.:NTEK-2012NT1025163F2 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 86 Report No.:NTEK-2012NT1025163F2 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 86 Report No.:NTEK-2012NT1025163F2 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment VINCI Mobile Device Trade Name N/A Model Name VINCI VM5610 Serial Model N/A Model Difference N/A Product Description The EUT is a VINCI Mobile Device Operation Frequency: 2402~2480 MHz Modulation Type: BT(1Mbps): GFSK BT EDR(2Mbps): ∏ /4-DQPSK BT EDR(3Mbps): 8-DPSK Bit Rate of Transmitter 1Mbps/2Mbps/3Mbps Number…
