ODD-VSM510A5� VINCI Learning Tablet

Install New Apps After Parent Login, you may install new apps either by downloading from any app store or by inserting a MicroSD card. When installing from a MicroSD card, follow the same direction as for installing VINCI Curriculum apps. Parent Mode • Press the Menu button and enter password “MyVINCI” (case sensitive). The password can be changed only on VINCI Tab M models running Android 4 or higher. • Create new folders and organize your apps by pressing your finger on the screen to bring up the next promt Getting Started Your VINCI Tab M is ready to enjoy. Turn on, unlock and explore • Press the power button to go in and out of sleep mode • Press and hold the power button for more than 5 seconds to reset • Press the Menu button to access ANDROID TM settings USB Cable Audio Jack MicroSD Card Installing VINCI Curriculum SD Cards: • Insert the Curriculum MicroSD Card directly into the VINCI Tab M, gold PINs facing up. • Login to Parent Mode, open “ASTRO” and go to external SD card: /mnt/sdcard/tflash for Android 2.3; /mnt/sdcard/ ext_sd for Android 4.0 • Tap on CPInstaller (Curriculum Pack Installer) and follow the prompt to install. • If you already have CPInstaller installed, delete the old version and install the new version upon prompt. • All VINCI Curriculum apps are placed automatically under the appropriate VINCI Curriculum icon on the Home screen. Charging • Connect the USB cable to the USB connector with the arrow on the Cable facing the screen • Do not bend the connector as it may damage or cause device malfunction. • Connect the other end of the cable to the charger or to your PC. It takes about 4 hours to reach a full charge. Transfer Media Files You can turn on USB mode when plugging your VINCI Tab M into your PC. Using Windows Explorer or any file explorer to view and exchange media files. Warning: Please do NOT change original folder structure under /mnt/sdcard/. Copy your media files into corresponding folders instead. For example, music mp3 files under Music, video MP4 files under Movie. 4 View Pictures or Videos On VINCI Tab desktop, locate Gallery. It will display all the media files including pictures and videos. Tap on a media file to enjoy. Supported Media Formats Music: MP3. Video: MP4 encoded H.264. Check www.vincigenius.com for updates. Safety Certifications VINCI Tab M is certified per FDA standard ASTM F963. Return & Warranty 12 months parts and labor only. Accidental damage of the touch screen is not covered under the regular warranty. More details at http://www.vincigenius.com/support/downloads This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the device and receiver • Connect the device into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio / television technician for help. Use Conditions: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Warning: • Do not play while charging • Make sure the MicroUSB connecter is positioned correctly • Do not use liquids, chemicals or detergents to clean your VINCI Tab M. Only use a dry, lint-free cloth • The inside of your VINCI Tab M contains fragile components. Do not twist, disassemble, drop from a high place, in water, or onto a hard surface, and avoid extreme heat. Technical Support: www.vincigenius.com/support Phone: 1-855-MY-VINCI Email: [email protected] QUICK GUIDE VINCI Tab M Register your VINCI Tab M today at www.vincigenius.com to: • Validate your warranty • Obtain timely support • Download VINCI Diary for free to track your child’s developmental milestones and design your child’s personal story book.

Authorization Letter We, (the approval holder) Company name Rullingnet Corporation Limited Addresss Unit 1210, Level 12, Core F, Cyberport 3,'100 Cyberport Road Hong Kong Hong Kong declare that the following representative (agent) Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District Shenzhen to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description 5" VINCI Learning Tablet Tradename or Brand(s) N/A Attestation: City and Countryr Date: Name: (this must be a person) Function: Raymond Ye Quality Manager

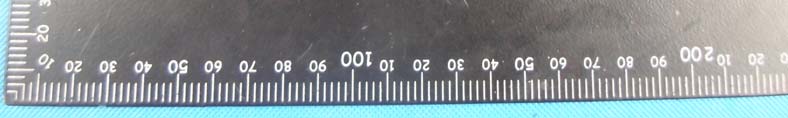

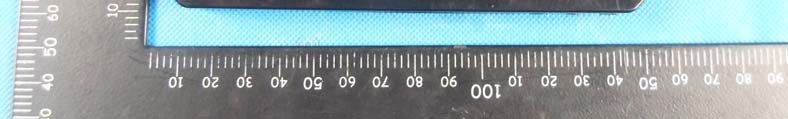

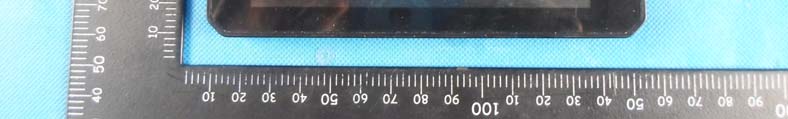

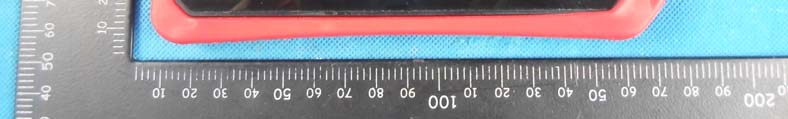

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

Photo 11 Photo 12 Photo 13 Photo 14 WiFi Module Photo 15 WiFi Module Photo 16 WiFi Module Photo 17 WiFi Antenna Photo 18

Page 1 Operational Description Interface Specifications Keys: Power On/Off, Sleep/wake, Reset (long press) Volume Up/Down 3 Android Button, Home/Back/Menu Multimedia: 5” LCD Panel, Resolution 800x480 Microphone Stereo built-in speaker External Storage: MicroSD card slot Safety: Food-class handler Page 2 VINCI Learning Tablet is a mobile touchscreen computer created with child's safety as our primary concern. A protective soft-cornered handle uses non-toxic food-grade material. VINCI uses the most advanced technology - capacitive touchscreen, Cortex A5 processor, and Android OS, to provide incremental and interactive learning through engaging games as per VINCI Curriculum, which includes 3 cognitive learning levels: Level 1 The Curious; Level 2 The Confident; and Level 3 The Capable, for children between the ages of 18 months to 5 years. It runs Android OS (operating system) with following Features: z Little handle for little hands - keeping your child 100% mobile z Display: 5-inch (diagonal) glossy widescreen, multi-touch, 800-by-480-pixel resolution z 512MB RAM, 8G Internal Storage z 3 megapixel back camera/camcorder,0.3 megapixel front camera/camcorder z Full MP3, MP4 player z Expandable storage with MicroSD card slot (up to 32GB) z 2 to 3 hours of continuous play time (1800 mAH rechargeable battery) z Desktop Connection for app installation and media synchronization via VINCI Tab Manager z Size and Weight: 6.54" (16.60 cm) by 3.90" (9.90 cm) by 0.63" (1.60 cm); 0.55lb (0.25 kg) Page 3 Engineering Specification Here is the engineering specification of Vinci Tab II VS-3001 Display • 5-inch (diagonal) glossy widescreen • Multi-Touch display • 800-by-480-pixel resolution Processor • Cortex A5 @ 1.0GHz Memory • DDR3-1333 512MB RAM Camera • 3 Mega Pixels, back ,0.3 Mega Pixels,front Battery and Power • Built-in (1800 mAH) rechargeable lithium-polymer battery Size and Weight • Height: 6.54" (16.60 cm) • Width: 3.90" (9.90 cm) • Depth: 0.63" (1.60 cm) • Weight: 0.55 lb (0.25 kg) Page 4 Wireless Communication VINCI Learning Tablet uses IEEE 802.11 b/g/n(20/40MHz) network access, with integrating a module on PCBA. The wireless network can be configured on LCD with Android OS utility. The antenna is of type FPCB, paste it on the back cover Bit Rate: 802.11b:11/5.5/2/1 Mbps. 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n (20MHz):150/144.44/130/117/115.56/104/86.67/78/52/6.5 Mbps 802.11n (40MHz):270/240/180/150/120/108/90/54 Mbps WIFI module operates within 2412MHz~2462MHz frequency band. Channels are numbered 1~11 and are centered on the frequencies below. Channel Center Frequency (MHz) 1 2412MHz 2 2417MHz 3 2422MHz 4 2427MHz 5 2432MHz 6 2437MHz 7 2442MHz 8 2447MHz 9 2452MHz 10 2457MHz 11 2462MHz

RF EXPOSURE TEST Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) For portable device,the power limit is 60/f(in GHz) mW For limit 60/f is equal: 60/2.412=24.87mW 60/2.437=24.62 mW 60/2.462=24.37mW 60/2.422=24.77mW 60/2.437=24.62 mW 60/2.452=24.46mW Maximum measured transmitter power TX 802.11b Mode Frequency Peak output power. Antenna Gain EIRP EIRP Te s t Channe (MHz) (dBm) dBi dBm mW CH01 2412 10.25 -1.93 8.32 6.79 CH06 2437 10.81 -1.93 8.88 7.73 CH11 2462 9.81 -1.93 7.88 6.14 TX 802.11g Mode CH01 2412 7.54 -1.93 5.61 3.64 CH06 2437 8.58 -1.93 6.65 4.62 CH11 2462 9.13 -1.93 7.20 5.25 TX 802.11n/20M Mode CH01 2412 7.60 -1.93 5.67 3.69 CH06 2437 8.34 -1.93 6.41 4.37 CH11 2462 8.89 -1.93 6.96 4.97 TX 802.11n/40M Mode CH03 2422 7.62 -1.93 5.69 3.71 CH06 2437 8.34 -1.93 6.41 4.37 CH11 2452 8.43 -1.93 6.50 4.67 The max.output power E.I.R.P is 7.73mW<24.37mW Conclusion: No SAR is required.

FCC RADIO TEST REPORT FCC ID:ODD-VSM510A Product： 5′′ VINCI Learning Tablet Trade Name： N/A Model Name： ViNCi Tab M Serial Model： N/A Report No.： NTEK- 2012DC0919006F Prepared for Rullingnet Corporation Limited Unit 1210, Level 12, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 78 Report No.: NTEK-2012DC0919006F TEST RESULT CERTIFICATION Applicant’s name................. : Rullingnet Corporation Limited Address ................................. : Unit 1210, Level 12, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong Manufacture's Name............ : Rullingnet Corporation Limited Address ................................. : Unit 1210, Level 12, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong Product description Product name ........................... : 5′′ VINCI Learning Tablet Model and/or type reference : ViNCi Tab M Serial Model .............................. : N/A Standards............................. : FCC Part15.247 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 12 Oct. 2012 ~18 Sep. 2012 Date of Issue...........................................: 12 Oct. 2012 Test Result...............................................: Pass Testing Engineer : (Jason Chen) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 78 Report No.: NTEK-2012DC0919006F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 56 4.1 APPLIED PROCEDURES / LIMIT 56 4.1.1 TEST PROCEDURE 56 4.1.2 DEVIATION FROM STANDARD 56 4.1.3 TEST SETUP 56 4.1.4 EUT OPERATION CONDITIONS 56 4.1.5 TEST RESULTS 57 5 . BANDWIDTH TEST 65 5.1 APPLIED PROCEDURES / LIMIT 65 5.1.1 TEST PROCEDURE 65 Page 4 of 78 Report No.: NTEK-2012DC0919006F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 65 5.1.3 TEST SETUP 65 5.1.4 EUT OPERATION CONDITIONS 65 5.1.5 TEST RESULTS 66 6 . PEAK OUTPUT POWER TEST 74 6.1 APPLIED PROCEDURES / LIMIT 74 6.1.1 TEST PROCEDURE 74 6.1.2 DEVIATION FROM STANDARD 74 6.1.3 TEST SETUP 74 6.1.4 EUT OPERATION CONDITIONS 74 6.1.5 TEST RESULTS 75 7 . ANTENNA REQUIREMENT 76 7.1 STANDARD REQUIREMENT 76 7.2 EUT ANTENNA 76 8 . EUT TEST PHOTO 77 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 78 Report No.: NTEK-2012DC0919006F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 78 Report No.: NTEK-2012DC0919006F 1.1 TEST FACILITY Shenzhen NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 78 Report No.: NTEK-2012DC0919006F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 5′′ VINCI Learning Tablet Trade Name N/A Model Name ViNCi Tab M Serial Model N/A Model Difference N/A Product Description The EUT is a 5′′ VINCI Learning Tablet Operation Frequency: 2412~2462 MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n(20MHz):150/144.44/130/11 7/115.56/104/86.67/78/52/6.5 Mbps 802.11n(40MHz):270/240/180/150/1 20/108/90/54 Mbps Number Of Channel 11 CH, Please see Note 2. Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 10.81 dBm (Max.) 802.11g: 9.13 dBm (Max.) 802.11n(20M) : 8.89 dBm (Max.) 802.11n(40M) : 8.43 dBm (Max.) Antenna Gain (dBi) -1.93dBi EIRP 802.11b: 8.88 dBm (Max.) 802.11g: 7.20 dBm (Max.) 802.11n(20M) : 6.96 dBm (Max.) 802.11n(40M) : 6.50…

Text truncated - open the document above for the full version.

Page 77 of 78 Report No.: NTEK-2012DC0919006F 8. EUT TEST PHOTO Radiated Measurement Photos Page 78 of 78 Report No.: NTEK-2012DC0919006F Conducted Measurement Photos
