OEUB8001900-1CWireless In-Vehicle Cellular Signal Enhancer

In-Vehicle Cellular Signal Enhancer Installation & Operation Manual 800 and 1900 MHz Models B800-1900-1P For portable/transferable installations B800-1900-1F For fixed installations For direct connection to existing hands-free cradle kits B800-1900-WU 2 Designed and Manufactured in the U.S.A. © 2005 Richardson Electronics, Ltd. — Rev. 2 Installation & Operation Manual In-Vehicle Cellular Signal Enhancer Table of Contents 1. Package Contents ............................................................... 4 2. Important Safety Information ............................................ 5 A. Limited Warranty ......................................................... 5 B. Limitation on Liability .................................................. 6 C. FCC Regulations .......................................................... 6 3. Electrical Specifications ..................................................... 7 4. Portable Installation (B800-1900-1P) ........................... 8-11 5. Fixed Installation (B800-1900-1F) ............................. 12-15 6. Direct Connect Installation (B800-1900-WU) ........... 16-18 7. Technical Support, Troubleshooting ........................... 18-19 Entire contents © 2005 Richardson Electronics, Ltd. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or in any information storage and retrieval system now known or to be invented, without the written permission of Richardson Electronics, Ltd., 40W267 Keslinger Road., P.O. Box 393, LaFox, Illinois, 60147. The specifications of this guide are subject to change without notice. Richardson Electronics, Ltd. assumes no liability for the use of the information contained herein, nor does Richardson Electronics, Ltd. assume any liability arising out of the application or use of any product. © 2005 Richardson Electronics, Ltd. — Rev. 2 3 IMPORTANT! Read instructions completely before attempting installation 1. Package Contents B800-1900-1F – Fixed Version Part Number Description B800-1900-1 In-Vehicle Amplifier Unit VCSE-RERAD Small (patch/re-rad) Antenna VCSE-DONOR Rear (wing/donor) Antenna VCSE-15CABLE DC Power Cable VCSE-SPLICE Terminal Splice (Qty.2) B800-1900-1P – Portable Version Part Number Description B800-1900-1 In-Vehicle Amplifier Unit VCSE-RERAD Small (patch/re-rad) Antenna VCSE-MAGANT Exterior Magnetic Mount Antenna with Cable VCSE-12VADAPT 12V DC Cigarette Lighter Adapter B800-1900-WU – Direct Connect Version Part Number Description B800-1900-1W In-Line Amplifier Unit VCSE-CBL00045 6 ft. Mini-UHF to Mini-UHF (male) Cable VCSE-CBL00049 DC Power JAE Cable Assembly with 2 Amp Fuse VCSE-CON00082 Adapter Mini-UHF male to FME Male VCSE-CON00083 Adapter FME Female to Mini-UHF Female Record the serial number found at the bottom of your Call Capture cellular signal enhancer amplifier unit for future reference: Serial #_______________________________________ 4 © 2005 Richardson Electronics, Ltd. — Rev. 2 2. Important Safety Information The B800-1900-1F, B800-1900-1P and B800-1900-WU Call Capture Products comply with FCC regulations. Follow all guidelines in the installation and instruction manual and read this information completely before beginning the installation procedure. Never operate the system in an unintended application. NOTE: Installer should have cell phone turned off while doing the installation. Only after unit is installed should the cellular phone be turned on and tested with the system. Turn off all cellular phones within 50 feet of the installation area. A. LIMITED WARRANTY – LIMITED WARRANTY -The Call Capture System by Richardson Electronics, Ltd. warrants to the purchaser for a period of one (1) year from the date of purchase, but in no event longer than two (2) years from the date of manufacture, that its Products identified above under Package Contents and sold hereunder will at the time of shipment be free from defects in material and workmanship and will conform to Richardson Electronics specifications stated in this Manual. If Products sold hereunder are not as warranted, Richardson Electronics shall, at its option, repair or replace the Product; provided that: 1) proof of purchase (a copy of a valid receipt or invoice) and written notice of the alleged defect are received by Richardson Electronics within the warranty period stated above; 2) customer obtains a written Return Authorization from Richardson Electronics for the Product; 3) the Product is returned in a protected shipping container at customer’s expense; and 4) Richardson Electronics determines that the Product does not meet the warranty stated herein. If Richardson Electronics determines that the Product does not meet the warranty, Richardson Electronics will pay for transporting the repaired or exchanged Product to the customer. This warranty shall not apply to any Products Richardson Electronics determines to have been, by customer or otherwise, subject to mishandling, misuse, neglect, improper testing, repair, alteration, damage, assembly or processing that alters physical or electrical properties. As the above Products depend on the existence of a sufficient signal to enhance, Richardson Electronics cannot and does not warrant that the Products will work in all locations. In addition, Richardson Electronics does not warrant that interference will not occur in a particular installation. THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES, EXPRESS AND/OR IMPLIED INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, AND OF FITNESS FOR A PARTICULAR PURPOSE, USE OR APPLICATION AND FOR ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF THE SELLER, UNLESS SUCH OTHER WARRANTIES, OBLIGATIONS OR LIABILITIES ARE EXPRESSLY AGREED TO IN WRITING BY RICHARDSON ELECTRONICS. © 2005 Richardson Electronics, Ltd. — Rev. 2 5 B. LIMITATION ON LIABILITY – IN NO EVENT SHALL RICH…

Text truncated - open the document above for the full version.

Wednesday, June 15, 2005 Elite Electronic Engineering, Inc. TCB Certification Services 1516 Centre Circle Downers Grove IL 60515 Attn: Daniel Crowder FCC/Certification Department Group Leader Gentlemen, RES Ltd. is submitting application for equipment authorization for the Wireless In-Vehicle Cellular Signal Enhancer, FCC ID: OEUB8001900-1C under rule parts 22 & 24. This equipment is used to increase signal strength and reduced number of dropped calls in a car. It operates in the 800MHz and the 1900MHz band and covers AMP, GSM, TDMA and CDMA. Power Output Band Frequency Modulation dBm W Emission Designator AMP 27 0.5 D1F GSM 27 0.5 GXW TDMA 27 0.5 DXW 824 - 849 MHz (uplink) CDMA 25 0.3 F9W AMP 15 0.03 D1F GSM 15 0.03 GXW TDMA 15 0.03 DXW 800MHz 869 - 894 MHz (downlink) CDMA 15 0.03 F9W AMP 27 0.5 D1F GSM 27 0.5 GXW TDMA 27 0.5 DXW 1850-1910 MHz (uplink) CDMA 25 0.3 F9W AMP 15 0.03 D1F GSM 15 0.03 GXW TDMA 15 0.03 DXW 1900MHz 1930-1990 MHz (downlink) CDMA 15 0.03 F9W We request that the following exhibits to be held confidential and withheld from public inspection. They are RES Ltd.’s confidential proprietary information and are not normally released to the public. 1. Block Diagrams 2. Operational Description 3. Parts List 4. Schematic If you have any questions regarding this filing, please contact me at: Edwin Moreno RF Design Engineer RES Ltd. 2410 Vantage Dr. Elgin, IL 60123 Phone: (847) 844-4635 Fax: (847) 844-4650 Email: [email protected]

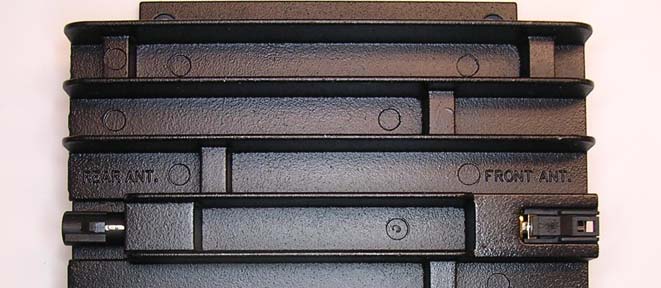

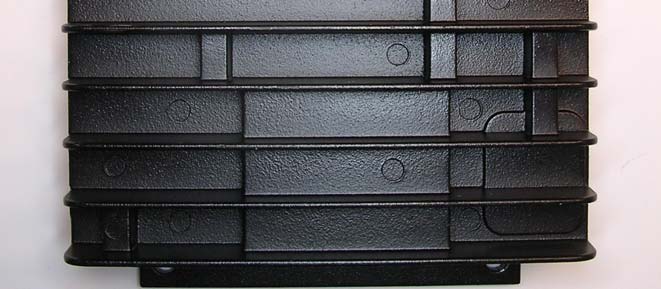

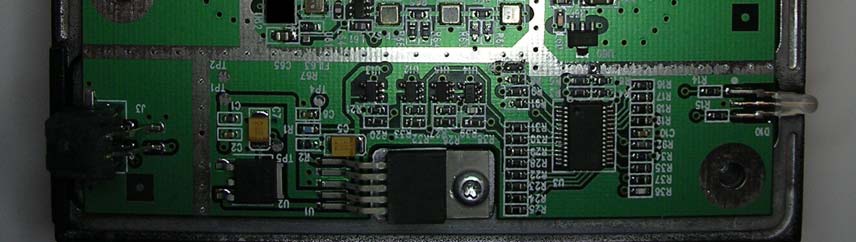

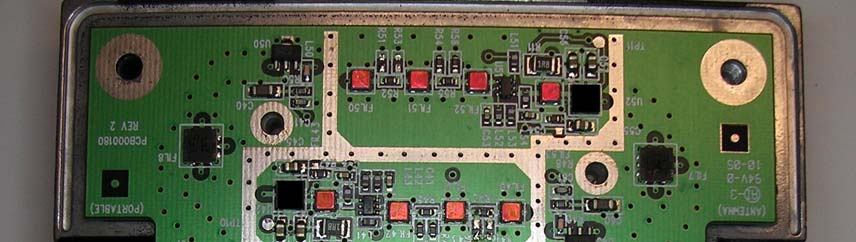

External, Front External, Back Internal Board

External, Front External, Back Internal Board

PART LIST Item Qt yDescriptRef Desig 1 2 AMP 900 MHZ POWERU62 U72 2 2 AMP 1900 MHZ POWER AMPU42 U52 3 4FILTER 881.5 MHzFIL60 FIL61 FIL62 FIL63 4 4FILTER 1880 MHZFIL 50 FIL51 FIL52 FIL53 5 4FILTER 836.5 MHZFIL70 FIL71 FIL72 FIL73 6 4FILTER 1960 MHZFIL40 FIL41 FIL42 FIL43 7 3CAP 0.1UFC2 C6 C10 8 1CAP 1000pFC1 912CAP 100pF C41 C48 C49 C50 C58 C59 C61 C68 C69 C70 C78 C79 1012CAP 47nF C42 C43 C44 C52 C53 C54 C62 C63 C64 C72 C73 C74 11 12 CAP 4.7uF C45 C46 C47 C55 C56 C57 C65 C66 C67 C75 C76 C77 12 2CAP 22uF C5 C7 13 4CAP 1uFC40 C51 C60 C71 14 2CAP 1.5pFC22 C31 154DIRECTIONAL COUPLER-DETECTORU43 U53 U63 U73 16 2DUPLEXER AMPSFIL5-6 17 2DUPLEXER PCSFIL3-4 18 1REGULATOR 2.85VU2 19 4IND 2.2nHL44 L54 L64 L74 20 4IND 4.7nHL42 L52 L62 L72 21 8IND 33nHL41 L43 L51 L53 L61 L63 L71 L7 3 22 4IND100nHL40 L50 L60 L70 23 1REGULATOR ICU1 24 4OP AMPU12 U13 U14 U15 25 1LEDD10 26 2DIPLEXERFIL1 FIL2 27 1MICROCONTROLLERU10 28 1DIGITAL POTENTIOMETERU11 29 4RES 22OHMR40 R50 R60 R70 308RES 3.01KOHMR44 R45 R54 R55 R64 R65 R74 318RES 1.0KOHMR6 R10 R11 R12 R46 R56 R66 R76 32 4RES 100OHMR61 R63 R71 R73 33 4RES 4.75KOHMR13 R14 R15 R16 34 2RES 68OHMR62 R72 35 4RES 300OHMR41 R43 R51 R53 36 1RES 2.49KOHMR5 37 2RES 18OHMR42 R52 38 2RES 200OHMR17 R18 39 4VARIABLE GAIN BLOC KU41 U51 U61 U71 40 4GAIN BLOCKU40 U50 U60 U70

TUNEUP PROCEDURE The wireless In-Vehicle Cellular Signal Enhancer requires no manual tuning. All settings are factory aligned and controlled by a microprocessor.

SAR Test Report for Wireless In-Vehicle Cellular Signal Enhancer Model B8001900 FCC ID OEUB8001900-1C Prepared by: Edwin Moreno RF Design Eng. RES, Ltd. RES Ltd. has reviewed the Wireless In-Vehicle Cellular Signal Enhancer Model B800-1900-1, FCC ID OEUB8001900-1C, for the need to conduct SAR evaluation. Due to the design and installation of this product, it qualifies for the exclusion called out in 2.1091. The Wireless In-Vehicle Cellular Signal Enhancer is operated as a mobile device as defined in 2.1091(b) bases on its design and installation. The unit is installed into a vehicle such that it is physically secured and is generally located more than 20cm from the end-user. In addition, the user manual is included a user reminder that there should be at least 20cm of separation between the vehicle’s occupants and the antennas during normal operation. The unit has a maximum transmitted conducted power of 0.5W (27dBm) in the uplink path, and 0.03W (15dBm) in the downlink path with unity antenna gain. There’s a minimum cable loss of 3.0 dB. Overall, the unit’s total ERP is less than 1W.

Page 1 of 401 Engineering Test Report No. 35094-01 Measurement of RF Emissions from a Cellular Signal Enhancer, Model No. B8001900-1 For : RES Limited Elgin, IL Date Received : May 16, 2005 Dates Tested : May 16 - 27, 2005 Test Personnel : T.Palaniswami, EMC Engineer Specification : FCC "Code of Federal Regulations” Title 47 Parts 22 and 24 Test Report By : T. Palaniswami EMC Engineer Witnessed By : Edwin Moreno RES Limited Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 35094-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 401 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION....................................................................................................................................3 1.1 DESCRIPTION OF TEST ITEM.........................................................................................................3 1.2 PURPOSE..........................................................................................................................................3 1.3 DEVIATIONS, ADDITIONS AND EXCLUSIONS.............................................................................3 1.4 APPLICABLE DOCUMENTS............................................................................................................3 1.5 SUBCONTRACTOR IDENTIFICATION...........................................................................................3 1.6 LABORATORY CONDITIONS.........................................................................................................3 2.0 TEST ITEM SETUP AND OPERATION................................................................................................3 2.1 POWER INPUT..................................................................................................................................3 2.2 GROUNDING.....................................................................................................................................3 2.3 PERIPHERAL EQUIPMENT.............................................................................................................3 2.4 MODULATION..................................................................................................................................3 2.5 FREQUENCY SELECTION...............................................................................................................3 2.6 RF POWER OUTPUT........................................................................................................................3 3.0 TEST EQUIPMENT................................................................................................................................3 3.1 TEST EQUIPMENT LIST...................................................................................................................3 3.2 CALIBRATION TRACEABILITY.....................................................................................................3 4.0 REQUIREMENTS, PROCEDURES AND RESULTS..............................................................................3 4.1 RF POWER OUTPUT MEASUREMENTS.........................................................................................3 4.1.1 REQUIREMENTS........................................................................................................................3 4.1.2 PROCEDURES............................................................................................................................3 4.1.3 RESULTS....................................................................................................................................3 4.2 OCCUPIED BANDWIDTH MEASUREMENTS.................................................................................3 4.2.1 REQUIREMENTS........................................................................................................................3 4.2.2 PROCEDURES............................................................................................................................3 4.2.3 RESULTS....................................................................................................................................3 4.3 SPURIOUS EMISSIONS AT ANTENNA TERMINAL.......................................................................3 4.3.1 REQUIREMENTS........................................................................................................................3 4.3.2 PROCEDURES............................................................................................................................3 4.3.3 RESULTS....................................................................................................................................3 4.4 FIELD STRENGTH OF SPURIOUS EMISSIONS...............................................................................3 4.4.1 PRELIMINARY RADIATED MEASUREMENTS.......................................................................3 4.4.1.1 REQUIREMENTS.................................................................................................................3 4.4.1.2 PROCEDURES.....................................................................................................................3 4.4.1.3 RESULTS..............................................................................................................................3 Engineering Test Report No. 35094-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 3 of 401 4.4.2 FINAL RADIATED EMISSIONS.................................................................................................3 4.4.2.1 REQUIREMENTS.......................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 35094-01 Page 101 of 401 Ref Lvl -20 dBm Ref Lvl -20 dBm RBW 1 MHz VBW 1 MHz SWT 29 ms RF Att 20 dB 0.8 dB Offset A IN1 1MA UnitdBm Start5 GHzStop10 GHz500 MHz/ 1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 24.MAY.2005 09:19:02 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 869 MHz AMPS Date : May 24, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 102 of 401 50.8 dB Offset A UnitdBm Start30 MHzStop1 GHz97 MHz/ Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 0 dBRBW 100 kHz SWT 245 ms VBW 100 kHz IN1 1MA1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 24.MAY.2005 08:54:52 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 881.5 MHz AMPS Date : May 24, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 103 of 401 Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 0 dB 50.8 dB Offset A UnitdBm Start1 GHzStop5 GHz400 MHz/ RBW 1 MHz VBW 1 MHz SWT 10 ms IN1 1MA1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 24.MAY.2005 08:56:07 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 881.5 MHz AMPS Date : May 24, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 104 of 401 Ref Lvl 30 dBm Ref Lvl 30 dBm RBW 1 MHz VBW 1 MHz SWT 29 ms RF Att 0 dB 50.8 dB Offset A IN1 1MA UnitdBm Start5 GHzStop10 GHz500 MHz/ 1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 24.MAY.2005 08:56:53 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 881.5 MHz AMPS Date : May 24, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 105 of 401 0.8 dB Offset A UnitdBm Start30 MHzStop1 GHz97 MHz/ Ref Lvl -20 dBm Ref Lvl -20 dBm RF Att 20 dBRBW 100 kHz SWT 245 ms VBW 100 kHz IN1 1MA1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 24.MAY.2005 09:21:36 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 881.5 MHz AMPS Date : May 24, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 106 of 401 Ref Lvl -20 dBm Ref Lvl -20 dBm RF Att 20 dB 0.8 dB Offset A UnitdBm Start1 GHzStop5 GHz400 MHz/ RBW 1 MHz SWT 10 ms VBW 1 MHz IN1 1MA1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 24.MAY.2005 09:22:27 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 881.5 MHz AMPS Date : May 24, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 107 of 401 Ref Lvl -20 dBm Ref Lvl -20 dBm RBW 1 MHz VBW 1 MHz SWT 29 ms RF Att 20 dB 0.8 dB Offset A IN1 1MA UnitdBm Start5 GHzStop10 GHz500 MHz/ 1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 24.MAY.2005 09:23:26 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 881.5 MHz AMPS Date : May 24, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 108 of 401 50.8 dB Offset A UnitdBm Start30 MHzStop1 GHz97 MHz/ Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 0 dBRBW 100 kHz SWT 245 ms VBW 100 kHz IN1 1MA1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 24.MAY.2005 08:58:37 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 894 MHz AMPS Date : May 24, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 109 of 401 Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 0 dB 50.8 dB Offset A UnitdBm Start1 GHzStop5 GHz400 MHz/ RBW 1 MHz VBW 1 MHz SWT 10 ms IN1 1MA1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 24.MAY.2005 09:00:01 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 894 MHz AMPS Date : May 24, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 110 of 401 Ref Lvl 30 dBm Ref Lvl 30 dBm RBW 1 MHz VBW 1 MHz SWT 29 ms RF Att 0 dB 50.8 dB Offset A IN1 1MA UnitdBm Start5 GHzStop10 GHz500 MHz/ 1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 24.MAY.2005 09:01:00 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 894 MHz AMPS Date : May 24, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 111 of 401 0.8 dB Offset A UnitdBm Start30 MHzStop1 GHz97 MHz/ Ref Lvl -20 dBm Ref Lvl -20 dBm RF Att 20 dBRBW 100 kHz SWT 245 ms VBW 100 kHz IN1 1MA1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 24.MAY.2005 09:24:58 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 894 MHz AMPS Date : May 24, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 112 of 401 Ref Lvl -20 dBm Ref Lvl -20 dBm RF Att 20 dB 0.8 dB Offset A UnitdBm Start1 GHzStop5 GHz400 MHz/ RBW 1 MHz VBW 1 MHz SWT 10 ms IN1 1MA1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 24.MAY.2005 09:26:25 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 894 MHz AMPS Date : May 24, 2…

Text truncated - open the document above for the full version.

Engineering Test Report No. 35094-01 Page 201 of 401 0.8 dB Offset A UnitdBm RF Att 20 dBRBW 100 kHz SWT 245 ms VBW 100 kHz IN1 1MA Ref Lvl -15 dBm Ref Lvl -15 dBm Start30 MHzStop1 GHz97 MHz/ 1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -115 -15 Date: 23.MAY.2005 17:33:15 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 849 MHz TDMA Date : May 23, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 202 of 401 Ref Lvl -20 dBm Ref Lvl -20 dBm RF Att 20 dB 0.8 dB Offset A UnitdBm Start1 GHzStop5 GHz400 MHz/ RBW 1 MHz VBW 1 MHz SWT 10 ms IN1 1MA1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 23.MAY.2005 17:34:26 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 849 MHz TDMA Date : May 23, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 203 of 401 Ref Lvl -20 dBm Ref Lvl -20 dBm RBW 1 MHz VBW 1 MHz SWT 29 ms RF Att 20 dB 0.8 dB Offset A IN1 1MA UnitdBm Start5 GHzStop10 GHz500 MHz/ 1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 23.MAY.2005 17:35:28 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 849 MHz TDMA Date : May 23, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 204 of 401 50.8 dB Offset A UnitdBm Start30 MHzStop1 GHz97 MHz/ Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 0 dBRBW 100 kHz SWT 245 ms VBW 100 kHz IN1 1MA1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 23.MAY.2005 18:35:43 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 869 MHz TDMA Date : May 23, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 205 of 401 Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 0 dB 50.8 dB Offset A UnitdBm Start1 GHzStop5 GHz400 MHz/ RBW 1 MHz VBW 1 MHz SWT 10 ms IN1 1MA1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 23.MAY.2005 18:37:06 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 869 MHz TDMA Date : May 23, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 206 of 401 Ref Lvl 30 dBm Ref Lvl 30 dBm RBW 1 MHz VBW 1 MHz SWT 29 ms RF Att 0 dB 50.8 dB Offset A IN1 1MA UnitdBm Start5 GHzStop10 GHz500 MHz/ 1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 23.MAY.2005 18:38:04 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 869 MHz TDMA Date : May 23, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 207 of 401 0.8 dB Offset A UnitdBm Start30 MHzStop1 GHz97 MHz/ Ref Lvl -20 dBm Ref Lvl -20 dBm RF Att 20 dBRBW 100 kHz SWT 245 ms VBW 100 kHz IN1 1MA1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 23.MAY.2005 17:38:24 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 869 MHz TDMA Date : May 23, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 208 of 401 Ref Lvl -20 dBm Ref Lvl -20 dBm RF Att 20 dB 0.8 dB Offset A UnitdBm Start1 GHzStop5 GHz400 MHz/ RBW 1 MHz VBW 1 MHz SWT 10 ms IN1 1MA1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 23.MAY.2005 17:39:40 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 869 MHz TDMA Date : May 23, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 209 of 401 Ref Lvl -20 dBm Ref Lvl -20 dBm RBW 1 MHz VBW 1 MHz SWT 29 ms RF Att 20 dB 0.8 dB Offset A IN1 1MA UnitdBm Start5 GHzStop10 GHz500 MHz/ 1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 23.MAY.2005 17:40:29 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 869 MHz TDMA Date : May 23, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 210 of 401 50.8 dB Offset A UnitdBm Start30 MHzStop1 GHz97 MHz/ Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 0 dBRBW 100 kHz SWT 245 ms VBW 100 kHz IN1 1MA1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 23.MAY.2005 18:45:51 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 881.5 MHz TDMA Date : May 23, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 211 of 401 Ref Lvl 30 dBm Ref Lvl 30 dBm RBW 1 MHz VBW 1 MHz SWT 10 ms RF Att 0 dB 50.8 dB Offset A IN1 1MA UnitdBm Start1 GHzStop5 GHz400 MHz/ 1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 23.MAY.2005 18:47:15 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 881.5 MHz TDMA Date : May 23, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 212 of 401 Ref Lvl 30 dBm Ref Lvl 30 dBm RBW 1 MHz VBW 1 MHz SWT 29 ms RF Att 0 dB 50.8 dB Offset A IN1 1MA UnitdBm Start5 GHzStop10 GHz500 MHz/ 1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 23.MAY.2005 18:48:02 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 22 Antenna Conducted Emissions Test Mode : Tx @ 881.5 MHz TDMA Date : May 23, 2005 Notes : Output (50…

Text truncated - open the document above for the full version.

Engineering Test Report No. 35094-01 Page 301 of 401 Ref Lvl -20 dBm Ref Lvl -20 dBm RBW 1 MHz VBW 1 MHz SWT 58 ms RF Att 10 dB 1.2 dB Offset A IN1 1MA UnitdBm Start10 GHzStop20 GHz1 GHz/ 1MAX1MA -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 25.MAY.2005 21:39:25 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 24 Antenna Conducted Emissions Test Mode : Tx @ 1930.3MHz GSM Date : May 25, 2005 Notes : Input Engineering Test Report No. 35094-01 Page 302 of 401 51.2 dB Offset A UnitdBm Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 0 dBRBW 100 kHz SWT 245 ms VBW 100 kHz IN1 1MA Start30 MHzStop1 GHz97 MHz/ 1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 25.MAY.2005 21:11:16 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 24 Antenna Conducted Emissions Test Mode : Tx @ 1955MHz GSM Date : May 25, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 303 of 401 Ref Lvl 30 dBm Ref Lvl 30 dBm RBW 1 MHz VBW 1 MHz SWT 10 ms RF Att 0 dB 51.2 dB Offset A IN1 1MA UnitdBm Start1 GHzStop5 GHz400 MHz/ 1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 25.MAY.2005 21:12:03 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial No. : 010003 Test : FCC 24 Antenna Conducted Emissions Test Mode : Tx @ 1955MHz GSM Date : May 25, 2005 Notes : Output (50dB External Pads) Engineering Test Report No. 35094-01 Page 304 of 401 Ref Lvl 30 dBm Ref Lvl 30 dBm RBW 1 MHz VBW 1 MHz SWT 29 ms RF Att 0 dB 51.2 dB Offset A IN1 1MA UnitdBm Start5 GHzStop10 GHz500 MHz/ 1MAX1MA -60 -50 -40 -30 -20 -10 0 10 20 -70 30 D1 -13 dBm Date: 25.MAY.2005 21:13:04 Manufacturer : RF Engineering Solutions Ltd Model No. : B8001900-1 Cellular Signal Enhancer Serial…

Text truncated - open the document above for the full version.
