OEUBDA1900-1In-Home Repeater

In-Home Repeater User’s Manual / Installation Instructions You will find two antennas and an AC power transformer in your in-home repeater package. To achieve the best possible performance within your home, follow the instructions outlined below: • The In-Home Repeater will work best within a room that has the best signal strength coming from a cell tower. Have your cell phone on and with you as you test the different areas of the house where you would like to use the repeater. If your cell phone is not receiving any signal within a room, the In-Home Repeater will not be able to create a signal. The In-Home Repeater only is able to improve a signal that is already present. • Position the donor antenna (unit with suction cups and transmission cable) towards the top of the glass on a window in a room where you would like to improve an existing signal. The unit should be a minimum of 1-inch below the window frame to simplify removal of antenna from suction cups. Donor antenna should be positioned so that the transmission cable is coming out the bottom of the unit. • Connect the donor antenna to the re-rad antenna (larger unit with LED indicators) with the transmission cable. Position the re-rad antenna on the floor and off to the side of the donor antenna (FIGURE 1). Positioning of these two antennas is very important. Once you plug the re-rad antenna into your standard home outlet, the left- most LED should be green indicating the system is installed correctly. If the LED is either yellow or red, first confirm the distance between the two antennas is correct. If the distances are correct, make sure there are no physical obstructions (namely metal objects) that could cause interference near the two antennas. To achieve optimum performance this LED must be green. However, the system will operate at a reduced performance level if the LED is yellow. If the LED is red, try re-positioning the antennas. • The five other LEDs (right side) on the re-rad antenna indicate the receive strength from the base station. You should have 2 – 5 LEDs lit for the system to be operable. If at least 2 LEDs are not lit, you may want to move the In-Home Repeater to another location. Re-Rad Antenna/Cell Phone Initialization • After following the steps above, your antennas are positioned properly, the single, left-most LED is green or yellow and at least two of the five remaining LEDs are lit. You will now initialize your cell phone to the re-rad antenna. • Place a call on your cell phone to 800-523-6910, ext. 3737. While you listen to the recorded message, press the initialization button found on the back of the re-rad antenna (FIGURE 2). If initialization is successful, the left-most LED will flash green several times. If initialization failed, this same LED will flash red several times. Carefully watch this LED, as it will return to the original color (yellow or green) after initialization. • Tips to ensure initialization succeeds: o Confirm unit is plugged in. o Make sure no one else in the house is using a cell phone. o Confirm that your phone call is still active and try pushing initialization button again. Checklist: ⌧ In-Home Repeater must be in a room where you are already receiving a signal from a cellular base station. ⌧ Re-rad antenna operational LED (left-most) must be either green (best) or yellow (operable). ⌧ Signal strength LEDs (five indicators) must have at least two lit (operable). ⌧ Initialize In-Home Repeater by placing call on your cell phone and pushing initialization button on the back of the re-rad antenna while call is active. A series of green flashes indicates successful initialization. ⌧ Re-rad antenna should be installed to allow a minimum of 12” clearance from the unit in order to meet federal guidelines regarding RF radiation. Congratulations – Your In-Home Repeater is ready for use. Figure 1 Figure 2

February 4, 2004 Elite Electronic Engineering, Inc. TCB Certification Services 1516 Centre Circle Downers Grove IL 60515 Attn: Dan Crowder Gentlemen, TRL Technologies, Inc. is submitting application for equipment authorization for an in-home repeater, FCC ID: OEUBDA1900-1, under rule part 24. This equipment is used to improve cellular phone coverage in one’s residence. It operates in the PCS band and covers GSM, TDMA and CDMA. Frequency Modulation Power Emission Output Designator (dBm) (W) Uplink 1850-1910 MHz GSM 27 0.5 GXW TDMA 27 0.5 DXW CDMA 27 0.5 F9W Downlink 1930-1990 MHz GSM 27 0.5 GXW TDMA 27 0.5 DXW CDMA 27 0.5 F9W The 27dBm power output level from each direction is resulted from a 20dBm amplifier power output plus a 7dBi antenna gain. We request that the following exhibits to be held confidential and withheld from public inspection. They are TRL Technologies, Inc.’s confidential proprietary information and are not normally released to the public. 1. Block Diagrams 2. Operational Description 3. Parts List 4. Schematics If you have any questions regarding this filing, please contact me at: Hiep Lam Electrical Engineer TRL Technologies, Inc. 2410 Vantage Dr. Elgin, IL 60123 Phone: (847) 844-4636 Fax: (847) 844-4650 Email: [email protected]

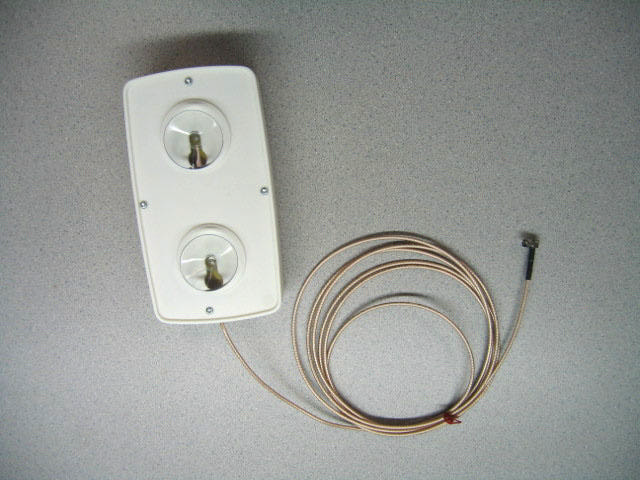

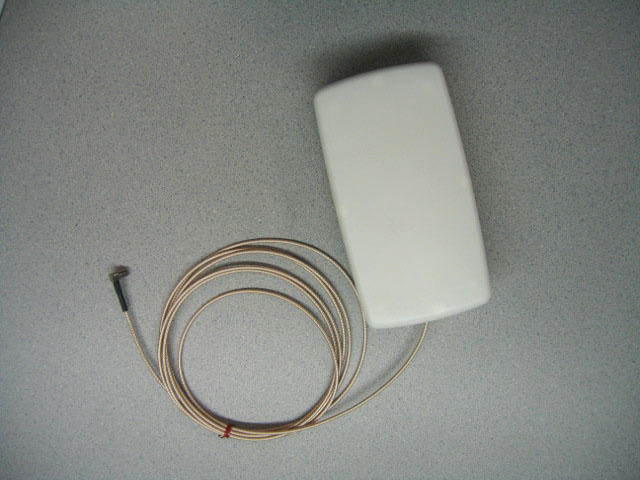

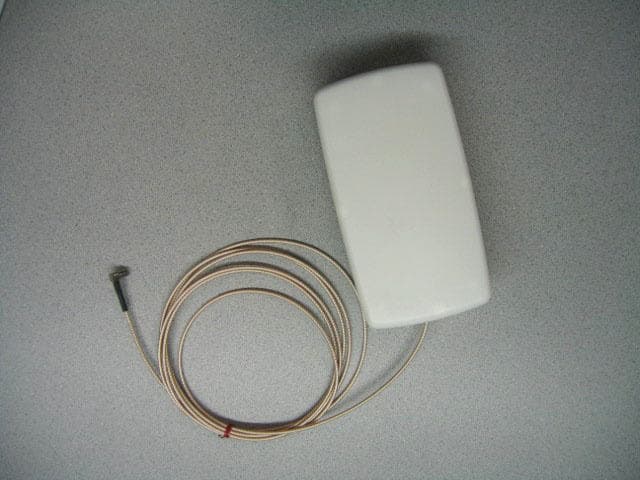

Donor Antenna, Front Donor Antenna, Back Donor Antenna, Internal

In-Home Repeater and Re-Rad Antenna, Front In-Home Repeater and Re-Rad Antenna, Back In-Home Repeater, Internal Re-Rad Antenna, Internal

FCC Label

In-Home Repeater and Re-Rad Antenna, Front In-Home Repeater and Re-Rad Antenna, Back In-Home Repeater, Internal Re-Rad Antenna, Internal

Amplifier Model BDA1900-1 Tune-Up Procedure The bi-directional amplifier model BDA1900-1 requires no manual tuning. All settings are factory aligned and the finished product is ultimately controlled by a microcontroller.

TRL Technologies, Inc. FCC ID: OEUBDA1900-1 SAR Test Report for TRL Technologies 1900MHz In-Home Repeater Model #BDA1900-1 FCC ID #OEUBDA1900-1 Prepared by: Ken Nelson, Electrical Engineering Manager, TRL Technologies Inc. TRL Technologies Inc. Product Safety Laboratory has reviewed the 1900MHz In-home Repeater System, FCC ID #OEUBDA1900-1, for the need to conduct SAR evaluation. Due to the design and installation of this product, it qualifies for the exclusion called out in 2.1091. The system consists of two directional antennas, a donor antenna and a re-rad antenna with a bi-directional amplifier between them. The donor antenna is mounted to a window, and it’s radiation pattern is directed towards the outside of the house. Due to the suction cups being used to mount the antenna, it is impossible to mount it backwards, so there is little concern regarding the donor antenna proposing any danger regarding exposure levels. The re-rad antenna is either mounted towards the bottom of a wall or is set on the floor, and its radiation pattern is directed towards the inside of the house. Transmitting devices that can be easily re- located such as the 1900MHz In-Home Repeater are considered mobile devices if they meet the 20cm seperation requirement. The system antenna’s are generally more than 30cm from the end user, as referenced in the Users / Installation manual. The 1900MHz In-Home Repeater has a maximum transmitted conducted power of 0.1W (+20dBm) in both directions. The antennas used in both the donor and re-rad units have a maximum gain of 7dBi. The cable loss to the donor antenna is 4dB, resulting in a total ERP of 0.2W (+23dBm). The cable loss to the re-rad is 0.5dB, resulting in a total ERP of 0.45W (+26.5dBm).

Page 1 of 182 Engineering Test Report No. 33111-01 Measurement of RF Emissions from an In-Home Repeater, Model No. BDA 1900-1 For : TRL Technologies Elgin, IL P.O. No. : 780-0000001633 Date Received : January 12, 2004 Date Tested : January 12, 2004 through February 2, 2004 Test Personnel : Mark E. Longinotti, NARTE® Certified EMC Test Engineer ATL-0154-E Specification : FCC "Code of Federal Regulations” Title 47 Part 24 Test Report By : Mark E. Longinotti NARTE® Certified EMC Test Engineer ATL-0154-E Witnessed by : Hiep Lam TRL Technologies Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 33111-01 Page 2 of 182 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION....................................................................................................................................4 1.1 DESCRIPTION OF TEST ITEM.........................................................................................................4 1.2 PURPOSE..........................................................................................................................................4 1.3 DEVIATIONS, ADDITIONS AND EXCLUSIONS.............................................................................4 1.4 APPLICABLE DOCUMENTS............................................................................................................4 1.5 SUBCONTRACTOR IDENTIFICATION...........................................................................................5 1.6 LABORATORY CONDITIONS.........................................................................................................5 2.0 TEST ITEM SETUP AND OPERATION................................................................................................5 2.1 POWER INPUT..................................................................................................................................5 2.2 GROUNDING.....................................................................................................................................5 2.3 PERIPHERAL EQUIPMENT.............................................................................................................5 2.4 MODULATION..................................................................................................................................5 2.5 FREQUENCY SELECTION...............................................................................................................6 2.6 RF POWER OUTPUT........................................................................................................................7 3.0 TEST EQUIPMENT................................................................................................................................7 3.1 TEST EQUIPMENT LIST...................................................................................................................7 3.2 CALIBRATION TRACEABILITY.....................................................................................................7 4.0 REQUIREMENTS, PROCEDURES AND RESULTS..............................................................................7 4.1 RF POWER OUTPUT MEASUREMENTS.........................................................................................7 4.1.1 REQUIREMENTS........................................................................................................................7 4.1.2 PROCEDURES............................................................................................................................7 4.1.3 RESULTS....................................................................................................................................8 4.2 OCCUPIED BANDWIDTH MEASUREMENTS.................................................................................8 4.2.1 REQUIREMENTS........................................................................................................................8 4.2.2 PROCEDURES............................................................................................................................8 4.2.3 RESULTS....................................................................................................................................9 4.3 SPURIOUS EMISSIONS AT ANTENNA TERMINAL.......................................................................9 4.3.1 REQUIREMENTS........................................................................................................................9 4.3.2 PROCEDURES............................................................................................................................9 4.3.3 RESULTS..................................................................................................................................10 4.4 FIELD STRENGTH OF SPURIOUS EMISSIONS.............................................................................10 4.4.1 PRELIMINARY RADIATED MEASUREMENTS.....................................................................10 4.4.1.1 REQUIREMENTS...............................................................................................................10 4.4.1.2 PROCEDURES...................................................................................................................11 4.4.1.3 RESULTS............................................................................................................................11 4.4.2 FINAL RADIATED EMISSIONS...............................................................................................11 Engineering Test Report No. 33111-01 Page 3 of 182 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOU…

Text truncated - open the document above for the full version.

Engineering Test Report No. 33111-01 Page 45 of 182 Engineering Test Report No. 33111-01 Page 46 of 182 Engineering Test Report No. 33111-01 Page 47 of 182 Engineering Test Report No. 33111-01 Page 48 of 182 Engineering Test Report No. 33111-01 Page 49 of 182 Engineering Test Report No. 33111-01 Page 50 of 182 Engineering Test Report No. 33111-01 Page 51 of 182 Engineering Test Report No. 33111-01 Page 52 of 182 Engineering Test Report No. 33111-01 Page 53 of 182 Engineering Test Report No. 33111-01 Page 54 of 182 Engineering Test Report No. 33111-01 Page 55 of 182 Engineering Test Report No. 33111-01 Page 56 of 182 Engineering Test Report No. 33111-01 Page 57 of 182 Engineering Test Report No. 33111-01 Page 58 of 182 Engineering Test Report No. 33111-01 Page 59 of 182 Engineering Test Report No. 33111-01 Page 60 of 182 Engineering Test Report No. 33111-01 Page 61 of 182 Engineering Test Report No. 33111-01 Page 62 of 182 Engineering Test Report No. 33111-01 Page 63 of 182 Engineering Test Report No. 33111-01 Page 64 of 182 Engineering Test Report No. 33111-01 Page 65 of 182 Engineering Test Report No. 33111-01 Page 66 of 182 Engineering Test Report No. 33111-01 Page 67 of 182 Engineering Test Report No. 33111-01 Page 68 of 182 Engineering Test Report No. 33111-01 Page 69 of 182 Engineering Test Report No. 33111-01 Page 70 of 182 Engineering Test Report No. 33111-01 Page 71 of 182 Engineering Test Report No. 33111-01 Page 72 of 182 Engineering Test Report No. 33111-01 Page 73 of 182 Engineering Test Report No. 33111-01 Page 74 of 182 Engineering Test Report No. 33111-01 Page 75 of 182 Engineering Test Report No. 33111-01 Page 76 of 182 Engineering Test Report No. 33111-01 Page 77 of 182 Engineering Test Report No. 33111-01 Page 78 of 182 Engineering Test Report No. 33111-01 Page 79 of 182 Engineering Test Report No. 33111-01 Page 80 of 182 Engineering Test Report No. 33111-01 Page 81 of 182 Engineering Test Report No. 33111-01 Page 82 of 182 Engineering Test Report No. 33111-01 Page 83 of 182 Engineering Test Report No. 33111-01 Page 84 of 182 Engineering Test Report No. 33111-01 Page 85 of 182 Engineering Test Report No. 33111-01 Page 86 of 182 Engineering Test Report No. 33111-01 Page 87 of 182 Engineering Test Report No. 33111-01 Page 88 of 182

Engineering Test Report No. 33111-01 Page 89 of 182 Engineering Test Report No. 33111-01 Page 90 of 182 Engineering Test Report No. 33111-01 Page 91 of 182 Engineering Test Report No. 33111-01 Page 92 of 182 Engineering Test Report No. 33111-01 Page 93 of 182 Engineering Test Report No. 33111-01 Page 94 of 182 Engineering Test Report No. 33111-01 Page 95 of 182 Engineering Test Report No. 33111-01 Page 96 of 182 Engineering Test Report No. 33111-01 Page 97 of 182 Engineering Test Report No. 33111-01 Page 98 of 182 Engineering Test Report No. 33111-01 Page 99 of 182 Engineering Test Report No. 33111-01 Page 100 of 182 Engineering Test Report No. 33111-01 Page 101 of 182 Engineering Test Report No. 33111-01 Page 102 of 182 Engineering Test Report No. 33111-01 Page 103 of 182 Engineering Test Report No. 33111-01 Page 104 of 182 Engineering Test Report No. 33111-01 Page 105 of 182 Engineering Test Report No. 33111-01 Page 106 of 182 Engineering Test Report No. 33111-01 Page 107 of 182 Engineering Test Report No. 33111-01 Page 108 of 182 Engineering Test Report No. 33111-01 Page 109 of 182 Engineering Test Report No. 33111-01 Page 110 of 182 Engineering Test Report No. 33111-01 Page 111 of 182 Engineering Test Report No. 33111-01 Page 112 of 182 Engineering Test Report No. 33111-01 Page 113 of 182 Engineering Test Report No. 33111-01 Page 114 of 182 Engineering Test Report No. 33111-01 Page 115 of 182 Engineering Test Report No. 33111-01 Page 116 of 182 Engineering Test Report No. 33111-01 Page 117 of 182 Engineering Test Report No. 33111-01 Page 118 of 182 Engineering Test Report No. 33111-01 Page 119 of 182 Engineering Test Report No. 33111-01 Page 120 of 182 Engineering Test Report No. 33111-01 Page 121 of 182 Engineering Test Report No. 33111-01 Page 122 of 182 Engineering Test Report No. 33111-01 Page 123 of 182 Engineering Test Report No. 33111-01 Page 124 of 182 Engineering Test Report No. 33111-01 Page 125 of 182 Engineering Test Report No. 33111-01 Page 126 of 182 Engineering Test Report No. 33111-01 Page 127 of 182 Engineering Test Report No. 33111-01 Page 128 of 182 Engineering Test Report No. 33111-01 Page 129 of 182 Engineering Test Report No. 33111-01 Page 130 of 182 Engineering Test Report No. 33111-01 Page 131 of 182 Engineering Test Report No. 33111-01 Page 132 of 182 Engineering Test Report No. 33111-01 Page 133 of 182

Engineering Test Report No. 33111-01 Page 134 of 182 Engineering Test Report No. 33111-01 Page 135 of 182 Engineering Test Report No. 33111-01 Page 136 of 182 Engineering Test Report No. 33111-01 Page 137 of 182 Engineering Test Report No. 33111-01 Page 138 of 182 Engineering Test Report No. 33111-01 Page 139 of 182 Engineering Test Report No. 33111-01 Page 140 of 182 Engineering Test Report No. 33111-01 Page 141 of 182 Engineering Test Report No. 33111-01 Page 142 of 182 Engineering Test Report No. 33111-01 Page 143 of 182 Engineering Test Report No. 33111-01 Page 144 of 182 Engineering Test Report No. 33111-01 Page 145 of 182 Engineering Test Report No. 33111-01 Page 146 of 182 Engineering Test Report No. 33111-01 Page 147 of 182 Engineering Test Report No. 33111-01 Page 148 of 182 Engineering Test Report No. 33111-01 Page 149 of 182 Engineering Test Report No. 33111-01 Page 150 of 182 Engineering Test Report No. 33111-01 Page 151 of 182 Engineering Test Report No. 33111-01 Page 152 of 182 Engineering Test Report No. 33111-01 Page 153 of 182 Engineering Test Report No. 33111-01 Page 154 of 182 Engineering Test Report No. 33111-01 Page 155 of 182 Engineering Test Report No. 33111-01 Page 156 of 182 Engineering Test Report No. 33111-01 Page 157 of 182 Engineering Test Report No. 33111-01 Page 158 of 182 Engineering Test Report No. 33111-01 Page 159 of 182 Engineering Test Report No. 33111-01 Page 160 of 182 Engineering Test Report No. 33111-01 Page 161 of 182 Engineering Test Report No. 33111-01 Page 162 of 182 Engineering Test Report No. 33111-01 Page 163 of 182 Manufacturer : TRL Technology Model : BDA 1900-1 Serial No. : 1001 Specification : FCC-24 Spurious Radiated Emissions Date : January 14, 2004 Notes : TDMA @ 1855MHz : Test Distance is 3 meters Freq. MHz Ant Pol Meter Reading dBuV/m Matched Signal dBm Antenna Gain dB Cable Factor dB ERP Total dB Attn dB Min Attn dB 3710.0 H 53.6 -45.0 5.6 3.5 -42.9 62.9 33.0 3710.0 V 59.8 -39.2 5.6 3.5 -37.1 57.1 33.0 5565.0 H 54.2 -37.6 6.7 4.4 -35.3 55.3 33.0 5565.0 V 54.6 -41.5 6.7 4.4 -39.2 59.2 33.0 7420.0 H 53.1 -34.2 7.1 5.7 -32.8 52.8 33.0 7420.0 V 59.0 -32.4 7.1 5.7 -31.0 51.0 33.0 9275.0 H 47.5 -34.8 8.3 6.3 -32.8 52.8 33.0 9275.0 V 52.7 -39.2 8.3 6.3 -37.2 57.2 33.0 11130.0 H 43.0 -35.8 7.8 6.9 -34.9 54.9 33.0 11130.0 V 46.2 -36.5 7.8 6.9 -35.6 55.6 33.0 12985.0 H 42.4 -38.0 8.6 7.5 -36.9 56.9 33.0 12985.0 V 43.4 -38.5 8.6 7.5 -37.4 57.4 33.0 14840.0 H 43.2 -31.9 6.9 8.1 -33.1 53.1 33.0 14840.0 V 42.6 -35.3 6.9 8.1 -36.5 56.5 33.0 16695.0 H 42.5 -29.4 7.9 8.2 -29.7 49.7 33.0 16695.0 V 42.5 -34.0 7.9 8.2 -34.3 54.3 33.0 18550.0 H 41.4 -28.9 8.7 8.4 -28.6 48.6 33.0 18550.0 V 41.7 -29.3 8.7 8.4 -29.0 49.0 33.0 1477.0 V 46.2 -27.9 5.9 2.1 -24.1 44.1 33.0 1477.0 H 42.8 -30.0 5.9 2.1 -26.2 46.2 33.0 V - Vertical H - Horizontal Checked By : ______________________________ Mark E. Longinotti Engineering Test Report No. 33111-01 Page 164 of 182 Manufacturer : TRL Technology Model : BDA 1900-1 Serial No. : 1001 Specification : FCC-24 Spurious Radiated Emissions Date : January 14, 2004 Notes : CDMA @ 1855MHz : Test Distance is 3 meters Freq. MHz Ant Pol Meter Reading dBuV/m Matched Signal dBm Antenna Gain dB Cable Factor dB ERP Total dB Attn dB Min Attn dB 3710.0 H 53.0 -45.6 5.6 3.5 -43.5 63.5 33.0 3710.0 V 58.3 -40.9 5.6 3.5 -38.8 58.8 33.0 5565.0 H 52.2 -39.4 6.7 4.4 -37.1 57.1 33.0 5565.0 V 57.3 -38.0 6.7 4.4 -35.7 55.7 33.0 7420.0 H 51.4 -36.4 7.1 5.7 -35.0 55.0 33.0 7420.0 V 56.7 -35.3 7.1 5.7 -33.9 53.9 33.0 9275.0 H 47.2 -35.2 8.3 6.3 -33.2 53.2 33.0 9275.0 V 51.4 -40.5 8.3 6.3 -38.5 58.5 33.0 11130.0 H 41.1 -38.1 7.8 6.9 -37.2 57.2 33.0 11130.0 V 42.8 -36.5 7.8 6.9 -35.6 55.6 33.0 12985.0 H 42.4 -38.0 8.6 7.5 -36.9 56.9 33.0 12985.0 V 42.6 -38.5 8.6 7.5 -37.4 57.4 33.0 14840.0 H 42.2 -31.9 6.9 8.1 -33.1 53.1 33.0 14840.0 V 42.6 -35.3 6.9 8.1 -36.5 56.5 33.0 16695.0 H 42.2 -29.4 7.9 8.2 -29.7 49.7 33.0 16695.0 V 41.9 -34.0 7.9 8.2 -34.3 54.3 33.0 18550.0 H 40.8 -28.9 8.7 8.4 -28.6 48.6 33.0 18550.0 V 40.7 -29.3 8.7 8.4 -29.0 49.0 33.0 1477.0 V 46.3 -27.8 5.9 2.1 -24.0 44.0 33.0 V - Vertical H - Horizontal Checked By : ______________________________ Mark E. Longinotti Engineering Test Report No. 33111-01 Page 165 of 182 Manufacturer : TRL Technology Model : BDA 1900-1 Serial No. : 1001 Specification : FCC-24 Spurious Radiated Emissions Date : January 14, 2004 Notes : GSM @ 1855MHz : Test Distance is 3 meters Freq. MHz Ant Pol Meter Reading dBuV/m Matched Signal dBm Antenna Gain dB Cable Factor dB ERP Total dB Attn dB Min Attn dB 3710.0 H 52.8 -45.7 5.6 3.5 -43.6 63.6 33.0 3710.0 V 58.1 -41.2 5.6 3.5 -39.1 59.1 33.0 5565.0 H 47.3 -44.4 6.7 4.4 -42.1 62.1 33.0 5565.0 V 53.9 -41.9 6.7 4.4 -39.6 59.6 33.0 7420.0 H 49.0 -38.3 7.1 5.7 -36.9 56.9 33.0 7420.0 V 55.8 -35.9 7.1 5.7 -34.5 54.5 33.0 9275.0 H 47.5 -34.9 8.3 6.3 -32.9 52.9 33.0 9275.0 V 52.8 -38.8 8.3 6.3 -36.8 56.8 33.0 11130.0 H 41.2 -38.1 7.8 6.9 -37.2 57.2 33.0 11130.0 V 47.1 -36.5 7.8 6.9 -35.6 55.6 33.0 12985.0 H 42.1 -38.0 8.6 7.5 -36.9 56.9 33.0 12985.0 V 43.2 -38.5 8.6 7.5 -37.4 57.4 33.0 14840.0 H 41.9 -31.9 6.9 8.1 -33.1 53.1 33.0 14840.0 V 42.3 -35.3 6.9 8.1 -36.5 56.5 33.0 16695.0 H 42.5 -29.4 7.9 8.2 -29.7 49.7 33.0 16695.0 V 42.7 -34.0 7.9 8.2 -34.3 54.3 33.0 18550.0 H 41.9 -28.9 8.7 8.4 -28.6 48.6 33.0 18550.0 V 41.0 -29.3 8.7 8.4 -29.0 49.0 33.0 1477.0 V 46.4 -27.7 5.9 2.1 -23.9 43.9 33.0 V - Vertical H - Horizontal Checked By : ______________________________ Mark E. Longinotti Engineering Test Report No. 33111-01 Page 166 of 182 Manufacturer : TRL Technology Model : BDA 1900-1 Serial No. : 1001 Specification : FCC-24 Spurious Radiated Emissions Date : January 14, 2004 Notes : TDMA @ 1875MHz : Test Distance is 3 meters Freq. MHz Ant Pol Meter Reading dBuV/m Matched Signal dBm Antenna Gain dB Cable Factor dB ERP Total dB Attn dB Min Attn dB 3750.0 H 44.6 -51.4 5.6 3.5 -49.3 69.3 33.0 3750.0 V 57.6 -40.2 5.6 3.5 -38.1 58.1 33.0 5625.0 H 42.7 -48.8 6.7 4.4 -46.5 66.5 33.0 5…
