OG3-RA2G4MSRMSR module

1 Multistandard radio module (MSR module) block diagram MSR module block diagram 2 RF chip block diagram Mode of operation The radio part is software defined so it can operate in different modes, in the module this is as a Bluetooth or 802.15.4 transceiver. Al time critical tasks for the radio is handled by the ARM M0 CPU which is dedicate d for the radio. The communication with the main CPU is handler over a shared RAM. The main micro is an ARM M4F with op to 704K flash and 144K SRAM and 256K ROM (mostly used for operating system, BLE and 802.15.4 stack.

1 Radio module approval request We, Grundfos Holding A/S, declare that our Multistandard radio module “OG3-RA2G4MSR” fulfil all 8 FCC requirements for a full modular approval at described in KDB 996369 D01 1. Our Modular transmitter has a dedicated RF shielding covering all components on the component side, and a solid ground layer on the PCB middle layer 2. Our Modular transmitter has buffered inputs to ensure compliance under excessive data rates 3. Our modular transmitter has a dedicated power supply regulation in the main microprocessor 4. Our modular transmitter has a solder connection to a Planar Integrated F Antenna / PIFA on the host product, with a maximum of 2.15 dBi gain 5. Our modular transmitter must be tested “Stand-alone” on a host pump control PCB 6. Our modular transmitter is labeled with its own FCC ID, laser printed on the shield 7. Our modular transmitter must meet all specific rules applicable to the transmitter 8. Our modular transmitter must meet the RF exposure requirements. Yours sincerely, GRUNDFOS Holding A/S Nikolaj Haahr Korshøj Lead Digital Compliance Specialist GRUNDFOS Holding A/S Poul Due Jensens Vej 7 DK-8850 Bjerringbro Denmark Phone: (+45) 87 50 14 00 www.grundfos.com To whom it may concern Danske Bank, Copenhagen Citibank N.A., New York Nordea Bank Danmark A/S, Copenhagen VAT-No.: 31 85 83 56 Date: 06.07.2021 Our ref.: NHK [email protected]

1 Confidentiality Request FCC ID: OG3‐RA2G4MSR Pursuant to FCC 47 CFR 0.457(d)(1)(ii) and FCC 47 CFR 0.459 of the Commission’s Rules, Grundfos Holding A/S hereby requests permanent confidential treatment of information accompanying this application as outlined below:  Schematics and layout (6200466X#96_1315194_schematic; 6200466X_1315194_SMD; Layout MSR Module)  User manual (Grundfos_multistandard_radio_module_Userguide_V1_2_3) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The user manual is exclusively exchanged inside Grundfos and held confidential. It contains sensitive information and will not be shared with any 3 rd party unless under NDA. The Applicant understands that pursuant to FCC 47 CFR 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, GRUNDFOS Holding A/S Nikolaj Haahr Korshøj Lead Digital Compliance Specialist Product Compliance Mobile: +4524940709 E‐mail: [email protected] GRUNDFOS Holding A/S Poul Due Jensens Vej 7 DK‐8850 Bjerringbro Denmark Phone: (+45) 87 50 14 00 www.grundf os.com TUV SUD BABT UNLIMITED (TCB) Octagon House, Concorde Way Segensworth North, Fareham, Hampshire, PO15 5RL United Kingdom GRUNDFOS Holding A/S Poul Due Jensens Vej 7 DK‐8850 Bjerringbro Denmark Phone: (+45) 87 50 14 00 www.grundfos.com Danske Bank, Copenhagen Citibank N.A., New York Nordea Bank Danmark A/S, Copenhagen VAT‐No.: 31 85 83 56 Date: 30.06.2021 Our ref.: NHK [email protected]

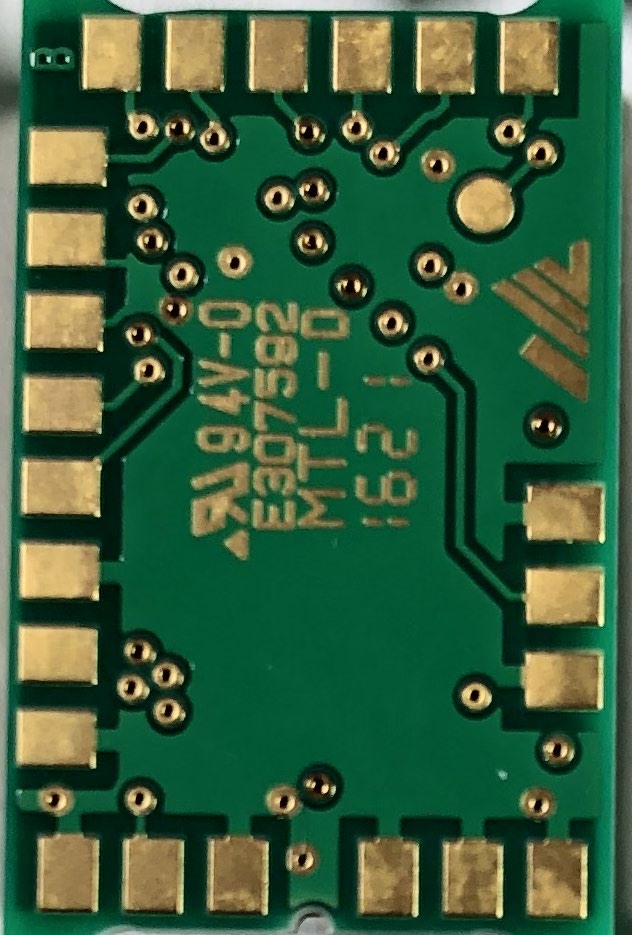

1 External photos of -RA2G4MSR Top view Figure 1 Size of module is 19.60 x 12.60 mm 2 Bottom view Figure 2 Size of module is 19.60 x 12.60 mm

Basic Material No.: WWW.GRUNDFOS.COM “As this is CONFIDENTIAL property of GRUNDFOS Holding A/S it must not be passed on to any person not authorized by GRUNDFOS or be copied or otherwise utilized by anybody without GRUNDFOS’ expressed written permission.” Scale: Drawer: Date: Dimension of basic material: Approved: Date: Type of basic material: Replaced: Part name: Replaced by: MSR/BLE approval markings Drawing No: 92593673 Page : of Chg.note Date – Init. 1 1 Grundfos Holding A/S FCC ID: OG3–RA2G4MSR IC: 10447A–RA2G4MSR CMIIT: XXXXXXXXXXX Radio approval markings for the shield at MSR-Module 6200467X

1 Label information for -RA2G4MSR Label is laseretched to the RF shield Label content Grundfos Holding A/S FCC ID: OG3–RA2G4MSR IC: 10447A–RA2G4MSR CMIIT: XXXXXXXXXXX Label location Labelling information is placed on the RF shield Labelling example Figure 1 Text to be laseretched to the module RF shield

1 Internal photos of -RA2G4MSR Mounted Top view

1 Antenna for Multistandard Radio Module – MSR Antenna type The antenna type used for the MSR module is a “Printed Inverted F Antenna” or PIFA for short. Antenna gain Antenna gain in maximum direction is 2.15 dBi Antenna Schematic design 2 Antenna PCB layout Antenna Photo Antenna matching network Antenna matching is not because the antenna impedance is 37 Ohm

1 Parts list / Bill of Material (BOM) Ref. Value Description Manufacturer Manufacturer Part No R6 100K SMD Resist 0201 1% 50mW 25V E6 100K Yageo RC0201FR-07100KRL C2 C4 C7 C9 C10 C12 C13 C14 100nF SMD CAP X7S 0201 10V E6 100nF 10% muRata GRM033C71A104KE14D R1 R2 R3 R5 R7 R8 R9 R10 R13 100R SMD Resist 0201 1% 50mW 25V E3 100R Yageo RC0201FR-07100RL R11 R12 R14 10K SMD Resist 0201 1% 50mW 25V E5 10K Yageo RC0201FR-0710KRL C6 10pF SMD CAP C0G 0201 50V E2 10pF 5% muRata GRM0335C1H100JA01D R4 1K SMD Resist 0201 1% 50mW 25V E4 1K Yageo RC0201FR-071KRL C3 1uF SMT CAP X5R 0402 E7 10V 1uF 10% muRata GRM15 C1 22uF SMD CAP X5R 0603 6.3V E8 22uF 20% Samsung CL10A226MQ8NRNE X1 48MHz SMD Crystal 2520 48MHz+-10ppm HONG KONG CRYSTALS HKC2520SX-48MHZ- 30844-R4V1 L1 BLM15HG102SN1 SMD FILTER 0402 1K 0.25A BLM15HG102SN1D muRata BLM15HG102SN1 L3 12nH SMD Inductor 0402 12nH 5% muRata LQG15HN12NJ02D L2 6.8uH SMD Inductor 6u8H +- 20% 0805 TDK MLZ2012M6R8WT000 SHIELD1 Shield Shield for MSR- Module Ningbo Hexin Electronics Co 92598632 T1 2450BM14G0011 SMD Filter Balun 2.45-2.5GHz Johanson Technology 2450BM14G0011 U1 Micro MSR SMD Micro Flash 2.4GHz CC2652R Texas Instruments CC2652R PCB V-0 Multilayer printed wiring boards Suntak STM-5 Alt. PCB V-0 Multilayer printed wiring boards Onpress COP6

TÜV SÜD, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100 Website: www.tuvsud.com/en COMMERCIAL-IN-CONFIDENCE SAR EXCLUSION DOCUMENT Approved by Date 16 June 2021 Matt Russell Authorised Signatory ©2021 Not to be reproduced, except in its entirety, without the permission of TÜV SÜD Page 1 of 2 Document 75951634-06 Issue 01 2400 - 2483.5 MHz Transmitter: FCC Standalone SAR Test Exclusion Considerations (KDB 447498 D01) Section 4.3.1 b) 100 MHz – 6 GHz – Separation Distance >50 mm The SAR Test exclusion thresholds for 1500 MHz to 6 GHz test separation distances >50 mm are determined by: Step a) Threshold result from Formula in Section 4.3.1 a); The Step a) formula has to be re-arranged to give power allowed at numeric threshold at 50 mm test separation distance as required by Step b): Power Allowed At Numeric Threshold = {(Numeric Threshold / √ f (GHz) ) x 50 mm Separation Distance} mW • Numeric threshold = 3 for Head/Body or 7.5 for Extremities • f (GHz) is the RF channel transmit frequency in GHz. • Power and distance are rounded to the nearest mW and mm before calculation. • The result is rounded to one decimal place for comparison Step b) 2) 1500MHz to 6GHz Power threshold = {[Power allowed at numeric threshold for 50 mm {Formula Step A})] + [(test separation distance – 50 mm)·10]} mW • Power and distance are rounded to the nearest mW and mm before calculation. • The result is rounded to one decimal place for comparison ©2021 Not to be reproduced, except in its entirety, without the permission of TÜV SÜD Page 2 of 3 Document Number: 75951634-06 | Issue: 01 COMMERCIAL-IN-CONFIDENCE SAR Exclusion Result: Frequency (MHz) Power Output mW Duty Cycle % Maximum Power (Tune up Value) * (mW) Test Separation Distance (mm) SAR Exclusion Power Threshold (mW) SAR Test Exclusion (Yes/No) 2400 5.19 100 5.19 200 1596.8 Yes * Maximum power including tolerance of the time averaged declared conducted output power of the device. The SAR exclusion threshold has been evaluated using the formula described above from information supplied by the manufacturer below. Based on the calculation above, the EUT is categorically excluded from SAR testing. ©2021 Not to be reproduced, except in its entirety, without the permission of TÜV SÜD Page 3 of 3 Document Number: 75951634-06 | Issue: 01 COMMERCIAL-IN-CONFIDENCE Manufacturer’s Declaration of Product information:

TÜV SÜD is a trading name of TUV SUD Ltd Registered in Scotland at East Kilbride, Glasgow G75 0QF, United Kingdom Registered number: SC215164 TUV SUD Ltd is a TÜV SÜD Group Company Phone: +44 (0) 1489 558100 Fax: +44 (0) 1489 558101 www.tuvsud.com/en TÜV SÜD Octagon House Concorde Way Fareham Hampshire PO15 5RL United Kingdom TÜV SÜD SIGNATURE RESPONSIBLE FOR ISSUE DATE Steve Marshall Senior Engineer Authorised Signatory 30 June 2021 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD document control rules. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC 47 CFR Part 15C, ISED RSS-247 and ISED RSS-GEN. The sample tested was found to comply with the requirements defined in the applied rules. RESPONSIBLE FOR NAME DATE SIGNATURE Testing George Porter 30 June 2021 Testing Anthony Hubbard 30 June 2021 FCC Accreditation 90987 Octagon House, Fareham Test Laboratory ISED Accreditation 12669A Octagon House, Fareham Test Laboratory EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with FCC 47 CFR Part 15C: 2019, ISED RSS-247: Issue 2 (02- 2017) and ISED RSS-GEN: Issue 5 (04-2018) + A2 (02-2021) for the tests detailed in section 1.3. FCC and ISED Test Report GRUNDFOS Holding A/S Radio Module, Model: MSR – Multistandard Radio module In accordance with FCC 47 CFR Part 15C, ISED RSS-247 and ISED RSS-GEN (2.4 GHz Bluetooth Low Energy) Prepared for: GRUNDFOS Holding A/S Poul Due Jensens Vej 7 Bjerringbro 8850 DENMARK FCC ID: OG3-RA2G4MSR IC: 10447A-RA2G4MSR COMMERCIAL-IN-CONFIDENCE Document 75951634-02 Issue 01 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD. No part of this document may be reproduced without the prior written approval of TÜV SÜD. © 2021 TÜV SÜD. This report relates only to the actual item/items tested. ACCREDITATION Our UKAS Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our UKAS Accreditation. Results of tests not covered by our UKAS Accreditation Schedule are marked NUA (Not UKAS Accredited). Document 75951634-02 Issue 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 63 Contents 1 Report Summary .........................................................................................................................2 1.1 Report Modification Record ...........................................................................................................2 1.2 Introduction ....................................................................................................................................2 1.3 Brief Summary of Results .............................................................................................................3 1.4 Application Form ...........................................................................................................................4 1.5 Product Information .......................................................................................................................6 1.6 Deviations from the Standard ........................................................................................................6 1.7 EUT Modification Record ..............................................................................................................6 1.8 Test Location .................................................................................................................................6 2 Test Details ..................................................................................................................................7 2.1 Restricted Band Edges..................................................................................................................7 2.2 Emission Bandwidth ................................................................................................................... 11 2.3 Maximum Conducted Output Power .......................................................................................... 16 2.4 Spurious Radiated Emissions .................................................................................................... 19 2.5 Authorised Band Edges ............................................................................................................. 56 2.6 Power Spectral Density .............................................................................................................. 60 3 Measurement Uncertainty ....................................................................................................... 63 Document 75951634-02 Issue 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 63 1 Report Summary 1.1 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue 1 First Issue 30-June-2021 Table 1 1.2 Introduction Applicant GRUNDFOS Holding A/S Manufacturer GRUNDFOS Holding A/S Model Number(s) MSR – Multistandard Radio module Serial Number(s) Not Applicable (FAR-560189-03) Not Applicable (FAR-560189-06) Hardware Version(s) R02 & R03 Software Version(s) bleModule_CC2652R1_V04.40.04.xxxx Number of Samples Tested 2 Test Specification/Issue/Date FCC 47 CFR Part 15C: 2019 ISED RSS-247 Issue 2 (2017-02) ISED RSS-GEN: Issue 5 (2018-04) + A2 (02-2021) Order Number Date 4513488246 11-March-2021 Date of Receipt of EUT 30-March-2021 Start of Test 12-May-2021 Finish of Test 20-May-2021 Name of Engineer(s) George Porter and Anthony Hubbard Related Document(s) ANSI C63.4 (2014) ANSI C63.10 (2013) Document 75951634-02 Issue 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 3 …

Text truncated - open the document above for the full version.

FCC ID: OG3-RA2G4MSR IC: 10447A-RA2G4MSR Grundfos Holding A/S MSR – Multistandard Radio Module 2021 Not to be reproduced, except in its entirety, Page 1 of 9 without the Permission of TÜV SÜD Reference: 75951634 PHOTOGRAPHS OF TEST SET UP Figure 1 – Radiated Disturbance - 30 MHz to 1 GHz Figure 2 – Radiated Disturbance - 1 GHz to 8 GHz FCC ID: OG3-RA2G4MSR IC: 10447A-RA2G4MSR Grundfos Holding A/S MSR – Multistandard Radio Module 2021 Not to be reproduced, except in its entirety, Page 2 of 9 without the Permission of TÜV SÜD Reference: 75951634 Figure 3 – Radiated Disturbance - 8 GHz to 18 GHz Figure 4 – Radiated Disturbance - 18 GHz to 25 GHz
