OGE-QTIMIDSMXMTMXMT � MIDS Single Channel Fixed Frequency Relay

9409 E. 55 th Pl. S. * Tulsa, OK 74145 * (918) 622-7052 * Fax (918) 664-8557 M M I I D D S S I I N N S S T T R R U U C C T T I I O O N N M M A A N N U U A A L L Receivers MPDM-MIDS Hand Held Receiver (P/N 13D0109-1) and MRCR-MIDS Remote Control Receiver (P/N 13D0148) Transmitters MRCT-MIDS Remote Control Transmitter (P/N 13D0160, 13D0812) and MXMT-MIDS Transmitter (P/N 13D0159) All rights reserved. No part of this book may be reproduced or utilized in any form or by any means, electronic or mechanical, without the prior written permission of Qual-Tron, Inc. QTI Revision: C Form #: 30Z0147 Effective Date: 24 August 2006 MIDS Manual Table of Contents Section 1: MIDS Transmitter (MXMT) Description ................................................................................................ Page 3 Features ................................................................................................ Page 3 Operation ................................................................................................ Page 4 RF Link ................................................................................................ Page 5 Emplacement Considerations ........................................................................... Page 5 Section 2: MIDS Remote Control Transmitter (MRCT) Description ................................................................................................ Page 6 Features ................................................................................................ Page 6 Operation ................................................................................................ Page 7 RF Link ................................................................................................ Page 8 Emplacement Considerations ........................................................................... Page 8 Section 3: MIDS Hand Held Receiver (MPDM) Description ................................................................................................ Page 9 Features ................................................................................................ Page 9 Operation ................................................................................................ Page 10 RF Link ................................................................................................ Page 10 Section 4: MID Remote Control Receiver (MRCR) Description ................................................................................................ Page 11 Features ................................................................................................ Page 11 Operation ................................................................................................ Page 12 RF Link ................................................................................................ Page 12 Section 5: Frequency/Channel Calculations Channel to Frequency .................................................................................... Page 13 Frequency to Channel .................................................................................... Page 13 Section 6: FCC Notice / RF FCC Notice ........................................................................... Page 14 FCC Compliance Information RF Exposure – MPE/SAR ........................................................................... ........................................................................... Page 14 Page 14 QTI Page 2 Revision: C Form #: 30Z0147 Effective Date: 24 August 2006 Section 1: MIDS Transmitter (MXMT) Description The MIDS Transmitter (MXMT) is used to transmit a digitally encoded ID number, via narrow band VHF (138-174 MHz) RF frequencies, when activated by various types of attached ground sensors. The transmitter is factory pre-set to a single (customer specified) channel. See frequency range below. Channel: Factory Pre-Set Single Channel Sensor Connecto r Battery Cap Antenna ID Codes: 00-63 (Even numbers only for normal use, all numbers for special applications.) Antenna: Wire Whip, ¼ Wave Frequency Range: 138-174 MHz Power Supply: 1-2 each 9 V DC Batteries (MN1604) Battery Life: 4-6 months in temperate climate Sensor: Any Qual-Tron sensor Pin Connections: A: Ground B: +9 VDC C: Tx Trigger D: ID Code Control (do not use) Design Features • ID code selection (Switches inside battery compartment) • Internal power ON – Normal operation – Antenna up • Internal power OFF – Non operating – Battery cap down • Internal power ON – Sensor alignment – Battery cap up • Transmit ID code alarms • Sensor Fault alarms • Sealed battery compartment • Four pin Mil-Type (sensor) connector • Potted and sealed electronic components • Injection molded lexan plastic housing • Metal battery cap clamps with heat welded screw inserts • Frequency matched antenna QTI Page 3 Revision: C Form #: 30Z0147 Effective Date: 24 August 2006 Operation ID Code Set-Up – The ID is the number transmitted when the attached sensor is activated. The ID number transmitted is the sum of the switches, 8A + B. These switches should be set with the screwdriver provided to prevent damage to the plastic slots. Use only even number ID codes between 00-62. Example: ID Code 30 (A) x8 position = 3; (B) x1 position = 6; = (8 x 3) + (1 x 6) = 24 + 6 = 30 (ID number 30 will be transmitted) ID Switch Setting Chart ID X8 x1 ID x8 x1 ID x8 x1 ID x8 x1 00 0 0 16 2 0 32 4 0 48 6 0 02 0 2 18 2 2 34 4 2 50 6 2 04 0 4 20 2 4 36 4 4 52 6 4 06 0 6 22 2 6 38 4 6 54 6 6 08 1 0 24 3 0 40 5 0 56 7 0 10 1 2 26 3 2 42 5 2 58 7 2 12 1 4 28 3 4 44 5 4 60 7 4 14 1 6 30 3 6 46 5 6 62 7 6 Note: For all applications use even ID codes only. When a sensor fault occurs (if the connection between the transmitter and sensor is broken for any reason), the transmitter will activate and transmit the next higher odd ID number. Example: If the normal ID code is 20, then 21 would be transmitted when a sensor fault occurs. This would advise the user of …

Text truncated - open the document above for the full version.

Marie Confroy From: Asad Bajwa Sent: Wednesday, December 13, 2006 12:02 PM To: Marie Confroy Subject: RE: 20331 - Qual-Tron , Inc. - METrak Mail From: Marie Confroy Attachments: EMC20331-FCC90_MXMT Asad.doc Page 1 of 2 12/13/2006 Hi Marie, Here is the response to Liming’s questions, please let me know if there are additional questions and I will be very glad to help. Best Regard. Asad 1-Correct Frequency Range is 138-174 MHz 2-146-168 MHz were the frequencies of the channels tested. Rest of the things has been fixed per the comments below. -----Original Message----- From: Liming Xu Sent: Friday, December 01, 2006 9:08 AM To: Marie Confroy Cc: Asad Bajwa; Marie Confroy; Jennifer Sanchez Subject: RE: 20331 - Qual-Tron , Inc. - METrak Mail From: Marie Confroy Hi All, I am reviewing this project with following question: 1. What is the EUT operation frequency? In Summary Page listed: 138-174 MHz In MXMT operational technical listed: 138-154 MHz In test report page 6 of 36 listed: 146-168 MHz 2. The Equipment Code/Class is TNB not DSC 3. The emission mask and bandwidth was tested under 90.210(d) Not 90.210(L) please correct all in the report 4. For a battery operate device 2.1055(d)(2): (2) For hand carried, battery powered equipment, reduce primary supply voltage to the battery operating end point which shall be specified by the manufacturer. 5. In test report page 2: Highest clock frequency: 174 MHz? Please remove it BR Liming -----Original Message----- From: Marie Confroy [mailto:[email protected]] Sent: Thursday, November 30, 2006 9:18 AM To: Liming Xu Cc: Asad Bajwa; Marie Confroy; Jennifer Sanchez Subject: 20331 - Qual-Tron , Inc. - METrak Mail From: Marie Confroy Importance: High Job Number: 20331 Model Desc: MXMT, MPDM and MRLY Customer Name: Qual-Tron , Inc. Customer Code: QUA14 ----------------------------------------------------- Task Number: 297359 Task Description: Technical Review Task Status: In Progress Hi Liming, Please accomplish the FCC TCB technical review for this project with the following information: H:\METrak_Job_Folders\2006\Q\Qual-Tron , Inc. - QUA14\20331\TCB\Customer Info\MXMT Let me know if I should provide you anything else, or if there may be any delays you may foresee in reviewing. Thanks! Best Regards, Marie Ann Confroy Quality and Certifications Administrator MET Laboratories (410) 949-1910 [email protected] Page 2 of 2 12/13/2006

Jennifer Sanchez From: Jennifer Sanchez Sent: Friday, January 05, 2007 11:20 AM To: Liming Xu Cc: Asad Bajwa; Jennifer Sanchez; Tony Permsombut; Kevin Mehaffey Subject: RE: 20331 - Qual-Tron , Inc. - METrak Mail From: Marie Confroy 1/9/2007 Hi Liming, The changes below have been made in the report, please see file: EMCU20331-FCC90_MMXT_Rev2.pdf Please continue with your Technical Request. If you need any additional information, please let me know. Thanks!! Jennifer Sanchez 408-213-2359 MET Laboratories, Santa Clara CA From: Liming Xu Sent: Wednesday, December 13, 2006 8:48 PM To: Marie Confroy Cc: Asad Bajwa; Jennifer Sanchez Subject: RE: 20331 - Qual-Tron , Inc. - METrak Mail From: Marie Confroy Hello Marie, The questions 3 and 4 have been not fixed: 3. The emission mask and bandwidth was tested under 90.210(d) Not 90.210(L) please correct all in the report 4. For a battery operate device 2.1055(d)(2): (2) For hand carried, battery powered equipment, reduce primary supply voltage to the battery operating end point which shall be specified by the manufacturer. Please correct BR From: Marie Confroy Sent: Wednesday, December 13, 2006 12:25 PM To: Liming Xu Cc: Asad Bajwa; Jennifer Sanchez Subject: FW: 20331 - Qual-Tron , Inc. - METrak Mail From: Marie Confroy Importance: High Hello Liming, Please find the revised test report and response to your request for additional information for the FCC TCB certification for the MXMT below. Asad has provided comments along with the attached revised test report. The revised Test Report is located in the Customer Information folder for MXMT. The old test report has been archived as applicable. Please continue your technical review fort his application for certification. Please let me know if you have any questions or concerns. Thank you! Best Regards, Marie Ann Confroy Quality and Certifications Administrator MET Laboratories (410) 949-1910  (410) 354-3313 [email protected] From: Asad Bajwa Sent: Wednesday, December 13, 2006 12:02 PM To: Marie Confroy Subject: RE: 20331 - Qual-Tron , Inc. - METrak Mail From: Marie Confroy Hi Marie, Here is the response to Liming’s questions, please let me know if there are additional questions and I will be very glad to help. Best Regard. Asad 1-Correct Frequency Range is 138-174 MHz 2-146-168 MHz were the frequencies of the channels tested. Rest of the things has been fixed per the comments below. -----Original Message----- From: Liming Xu Sent: Friday, December 01, 2006 9:08 AM To: Marie Confroy Cc: Asad Bajwa; Marie Confroy; Jennifer Sanchez Subject: RE: 20331 - Qual-Tron , Inc. - METrak Mail From: Marie Confroy Hi All, I am reviewing this project with following question: 1. What is the EUT operation frequency? In Summary Page listed: 138-174 MHz In MXMT operational technical listed: 138-154 MHz In test report page 6 of 36 listed: 146-168 MHz 2. The Equipment Code/Class is TNB not DSC 3. The emission mask and bandwidth was tested under 90.210(d) Not 90.210(L) please correct all in the report 4. For a battery operate device 2.1055(d)(2): (2) For hand carried, battery powered equipment, reduce primary supply voltage 1/9/2007 to the battery operating end point which shall be specified by the manufacturer. 5. In test report page 2: Highest clock frequency: 174 MHz? Please remove it BR Liming -----Original Message----- From: Marie Confroy [mailto:[email protected]] Sent: Thursday, November 30, 2006 9:18 AM To: Liming Xu Cc: Asad Bajwa; Marie Confroy; Jennifer Sanchez Subject: 20331 - Qual-Tron , Inc. - METrak Mail From: Marie Confroy Importance: High Job Number: 20331 Model Desc: MXMT, MPDM and MRLY Customer Name: Qual-Tron , Inc. Customer Code: QUA14 ----------------------------------------------------- Task Number: 297359 Task Description: Technical Review Task Status: In Progress Hi Liming, Please accomplish the FCC TCB technical review for this project with the following information: H:\METrak_Job_Folders\2006\Q\Qual-Tron , Inc. - QUA14\20331\TCB\Customer Info\MXMT Let me know if I should provide you anything else, or if there may be any delays you may foresee in reviewing. Thanks! Best Regards, Marie Ann Confroy Quality and Certifications Administrator MET Laboratories (410) 949-1910 [email protected] 1/9/2007

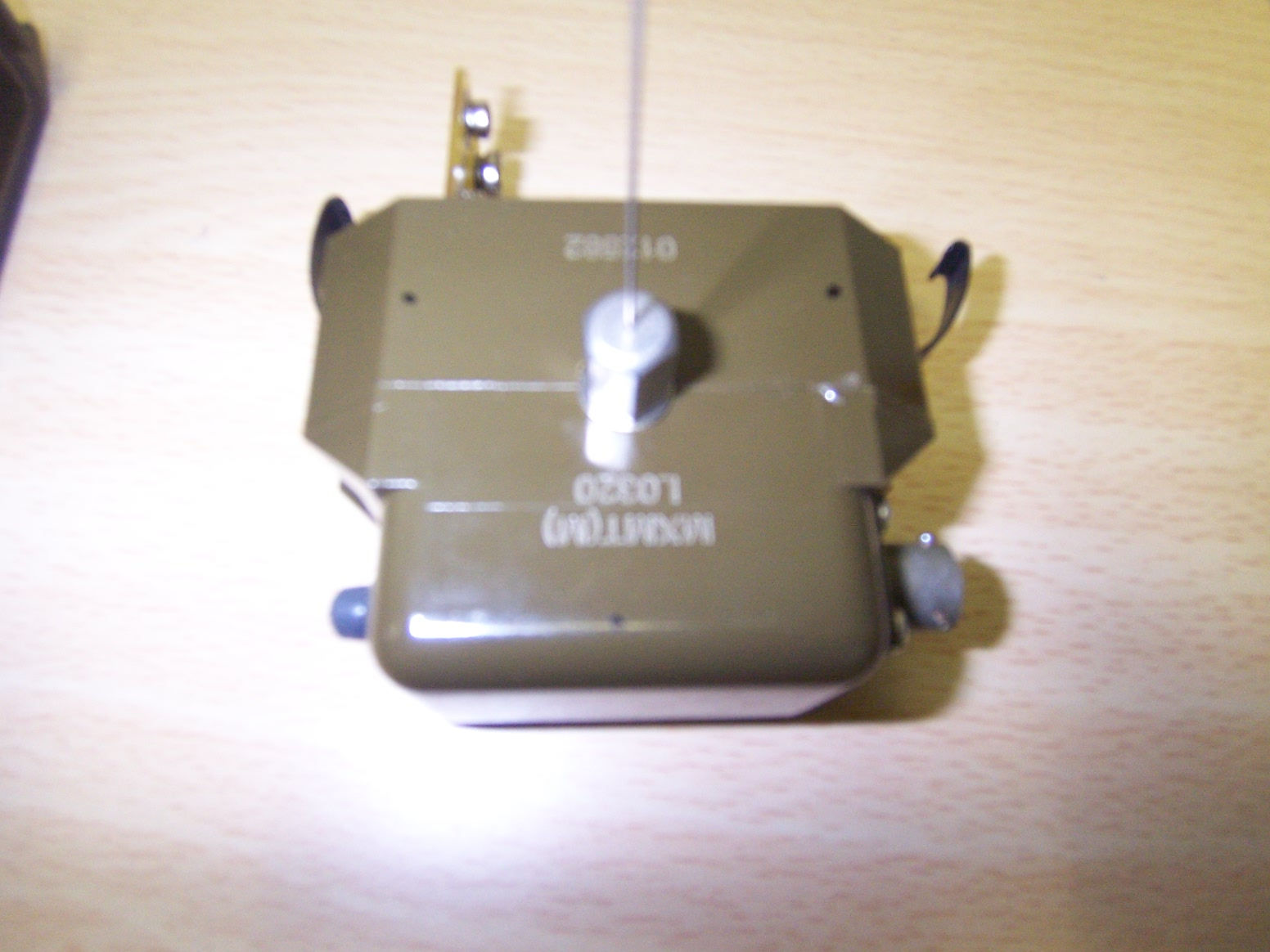

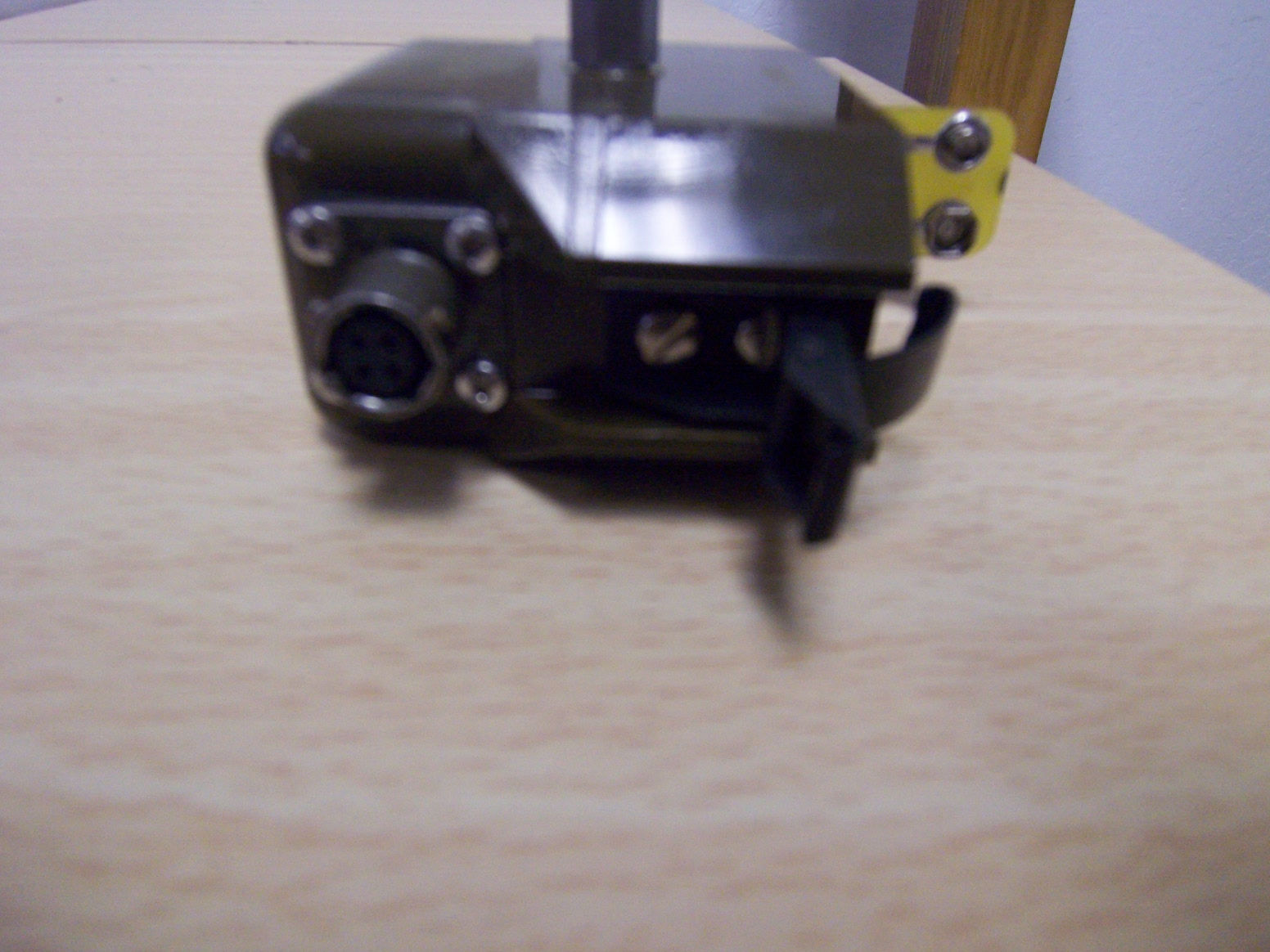

Qual-Tron MXMT External Photographs Qual-Tron MXMT Qual-Tron MXMT Qual-Tron MXMT

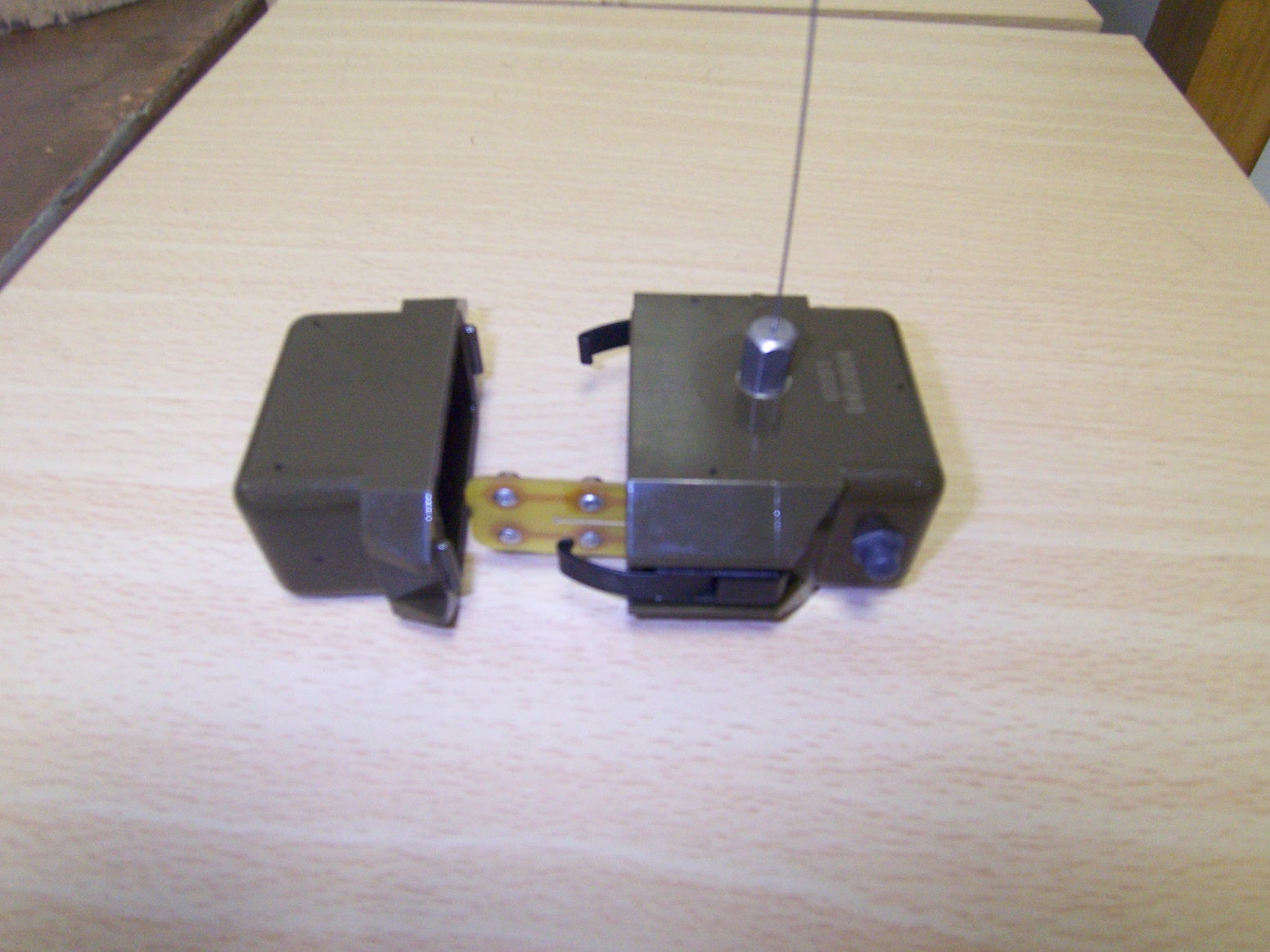

Qual-Tron MXMT Internal Photographs Qual-Tron MXMT Qual-Tron MXMT

DRN DATE SIZE A CODE IDENT 2N899 DOCUMENT NAME MXMT FCC Operational T echnical.doc REV A CKD DATE The information contained in this document is considered proprietary and is the sole and exclusive property of Qual-Tron, Inc. This information is not to be used except as expressly authorized by this company. TITLE: MXMT – OPERATIONAL TECHNICAL DOCUMENTATION APP DATE SCALE N/A WEIGHT N/A PAGE 1 OF 2 REVISION RECORD LTR DESCRIPTION DATE APPROVED The information contained in this document is considered proprietary and is the sole and exclusive property of Qual-Tron, Inc. TITLE: MXMT OPERATIONAL/ TECHNICAL DESCRIPTION INTRODUCTION Qual-Tron, Inc. of Tulsa Oklahoma manufactures a full range of unattended ground sensors and monitoring systems used to detect intrusion activity. The mechanical and electrical sensors include Breakwire, Magnetic, Seismic, IR Break Beam, Passive IR Sensors and Hydrophones. These sensors are used in combination with the MIDS single channel system, MIDS-II (modified) single channel system and EMIDS Multi-channel system. These systems utilize transmitters, relays and receivers to provide digitally encoded messages of alarm activity. Qual-Tron also manufactures base station equipment, power supplies and auxiliary equipment to provide a complete functional system. PURPOSE The purpose of this document is to provide a brief description of the circuit functions of the MXMT MIDS Single Channel Transmitter along with a statement describing how the MXMT operates. A description of the ground system and antenna is also discussed. MXMT OPERATIONS The MXMT is a MIDS single channel, fixed frequency transmitter. It is capable of transmitting 32 separate ID codes. During normal operation, the transmitter is triggered by an external sensor. The transmitter has built-in features to allow alignment of the PIR – Passive Infrared Sensor and MBBD – IR Break Beam Sensor. Once batteries are installed, built-in switches determine alignment and operational mode. When triggered by a sensor, the MXMT transmits a 20-bit digitally encoded packet. The packet includes a two digit ID code, along with a 4-bit message type. A fault message is automatically transmitted for any sensor disconnect. The MXMT is compatible with all Qual-Tron sensors. CIRCUIT FUNCTIONS BLOCK 1: The transmitter is triggered by a momentary positive pulse, typically 5 Volts from a sensor. This trigger sets a monostable counter which enables the transmitter and the encoder circuitry for approximately 50 milliseconds (19 Hz). The encoder uses a 19.2 KHz oscillator to DRN DATE SIZE A CODE IDENT 2N899 DOCUMENT NAME MXMT FCC Operational T echnical.doc REV A CKD DATE The information contained in this document is considered proprietary and is the sole and exclusive property of Qual-Tron, Inc. This information is not to be used except as expressly authorized by this company. TITLE: MXMT – OPERATIONAL TECHNICAL DOCUMENTATION APP DATE SCALE N/A WEIGHT N/A PAGE 2 OF 2 generate a 1200 baud Manchester code that includes 8 bits of preamble, a start bit, a message type, a selectable ID code and an odd parity bit. This encoded message is used to modulate an FSK transmitter. BLOCK 2: The modulation input into the FSK modulator is used for deviation of the crystal Y1 +/- 333 Hz. The crystal range of Y1 for the low band is set per customer order in the range 15.333 MHz to 17.00 MHz. This modulated signal is then multiplied using two tripler circuits. This dual tripling multiplies the frequency by 9 to provide a 138 MHz – 154 MHz output with a deviation of +/- 3 KHz. The signal is then fed into the Power Amp, which is set for 1 watt output. The antenna is a simple wire whip stub antenna screwed into the enclosure. MODULATION SYSTEM DESCRIPTION The modulation of this system employs Frequency Shift Keying at 1200 Baud. The transmission of data is typically event driven in short-bursts of 25 ms or less. The modulation uses a 20-bit Manchester code that includes 8-bits of preamble, a start bit, 4-bit message type, 6-bits of ID and a parity bit.

MXMT Operational-Technical Description.doc Revision: C QUAL-TRON, INC SINGLE CHANNEL TRANSMITTER MODEL: MXMT P/N: 13D0159 DESCRIPTION PERFORMANCE SPECIFICATION The MXMT is a MIDS single channel, fixed frequency transmitter. It is capable of transmitting 32 separate ID codes. During normal operation, the transmitter is triggered by an external sensor. The transmitter has built in features to allow alignment of the PIR and MBBD sensors. Once batteries are installed, built-in mercury switches determine alignment, operation, and can also turn off the transmitter. A fault message is automatically transmitted for any sensor malfunctions. The MXMT is compatible with any Qual-Tron sensor. (NOTE: Specify operating frequency when ordering.) Contact Information: Qual-Tron, Inc. 9409 East 55 th Place South Ph: (918) 622-7052 Tulsa, OK 74145-8157 Fax: (918) 664-8557 [email protected] www.qual-tron.com Transmission Range: Nominal 2 miles+, (Range varies from a few hundred feet to several miles – depending on deployment conditions. Range can be extended with relays) Dimensions: 4.0”L x 3.3”W x 1.5”H Weight: 0.44 lb, without batteries Channel/Frequency: Pre-set single channel between 138-174 MHz Operating Temp: -40° C to +65° C Storage Temp: -50° C to +70° C Power Supply: 2 each 9 volt DC batteries Transmission Output: Minimum 1 Watt Battery Life: 4-6 months in temperate climate (life can be extended with optional equipment) Mechanical Features: Enclosed in weather tight Lexan plastic housing. Vibration, shock, and water resistant. Items Included: Model P/N Description Qty MXMT 13D0159 Single Channel Transmitter 1 ANT/WIRE 3 styles Antenna, Wire (match to freq.) 1 Commercial Off The Shelf (COTS)

9409 E. 55 th Pl. S. Tulsa, OK 74145-8157 (918) 622-7052 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: #18) Tune-up procedure over power range or at specific operating levels. To Whom It May Concern: This is to affirm that the MXMT MIDS Single Channel Fixed Frequency Transmitter is factory tuned and aligned. The user in-the-field cannot adjust the power of the component. Please contact me if there is any information you may need. Sincerely, Thomas F. Kotch VP Operations August 22, 2006

Electromagnetic Compatibility Qual-Tron , Inc. Certification Label & User’s Manual Information MXMT CFR Title 47, Part 90 MET Report: EMCU20331-FCC90 © 2006, MET Laboratories, Inc. Page 28 of 36 DOC-EMC700 7/9/04 9. RF Exposure Requirements RF Exposure Requirements: §90.1217, §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 0 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (mW) G = Antenna Gain (63.1 numeric) Power Input to Antenna in dBm 28.8 Power Input to Antenna in W 0.758577575 Antenna Gain in dBi 0 Numeric Antenna Gain 1 S,W/m 2 1.509907594
