OGN5032-27T3 Channel Turbo Blimp

Kwok's Winty Manufacturing Ltd.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jan 24, 2001
Application Purpose: Original Equipment
Date of Application: Jan 24, 2001
Equipment Note: 3 Channel Turbo Blimp
Frequency Range: 26.96000000 - 27.28000000
Company: Kwok's Winty Manufacturing Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

FCC ID: OGN5032-27T FCC ID: OGN5032-27T

External Photos

FCC ID: OGN5032-27T PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

ID Label/Location Info

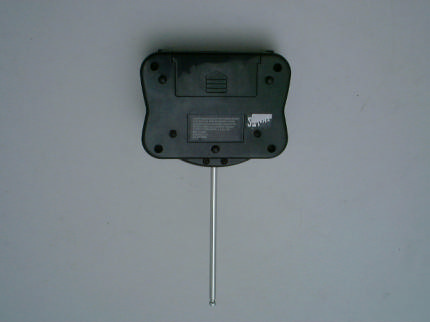

FCC ID: OGN5032-27T PHOTOGRAPH OF THE PRODUCT BOTTOM VIEW OF DEVICE WITH FCC ID LABEL

Internal Photos

FCC ID: OGN5032-27T INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW FCC ID: OGN5032-27T TEST SET UP PHOTOGRAPH OF THE PRODUCT

Operational Description

FCC ID: OGN5032-27T Circuit Description The 27.145MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC (U1). The output of Q2 has the matching network consisting of L2 and C10 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 31cm long metal wire. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9Volt (“6F22”) primary storage cell.

Schematics

FCC ID: OGN5032-27T

Test Setup Photos

FCC ID: OGN5032-27T TEST SET UP PHOTOGRAPH OF THE PRODUCT
