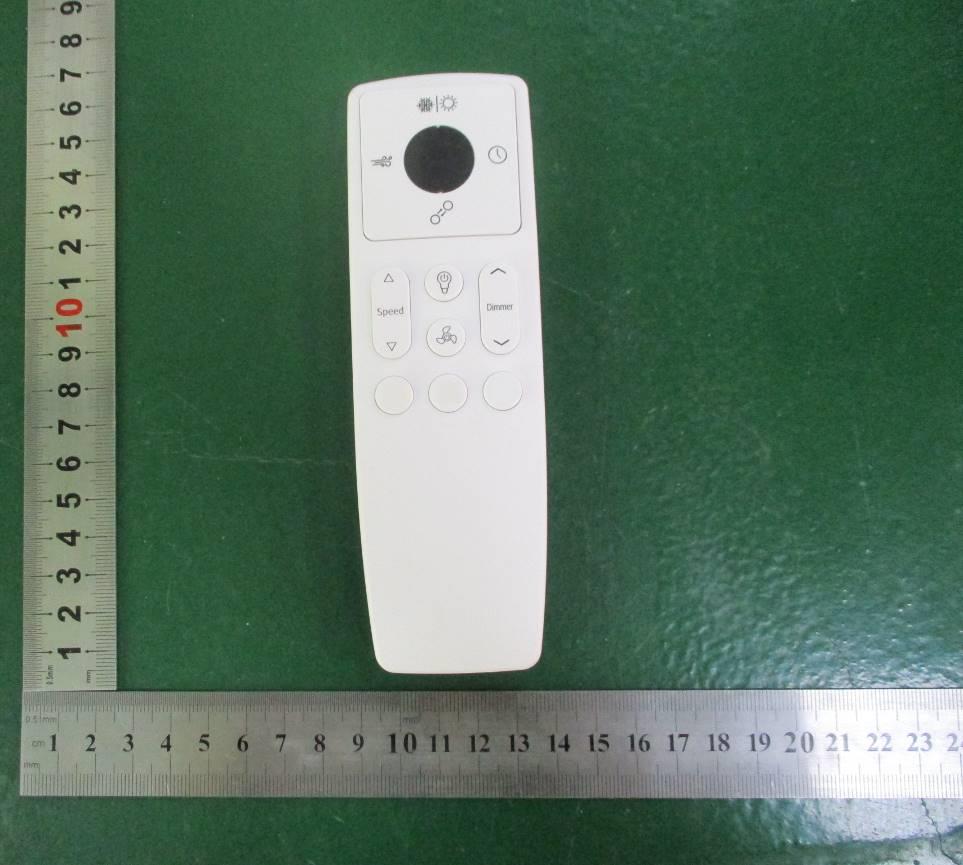

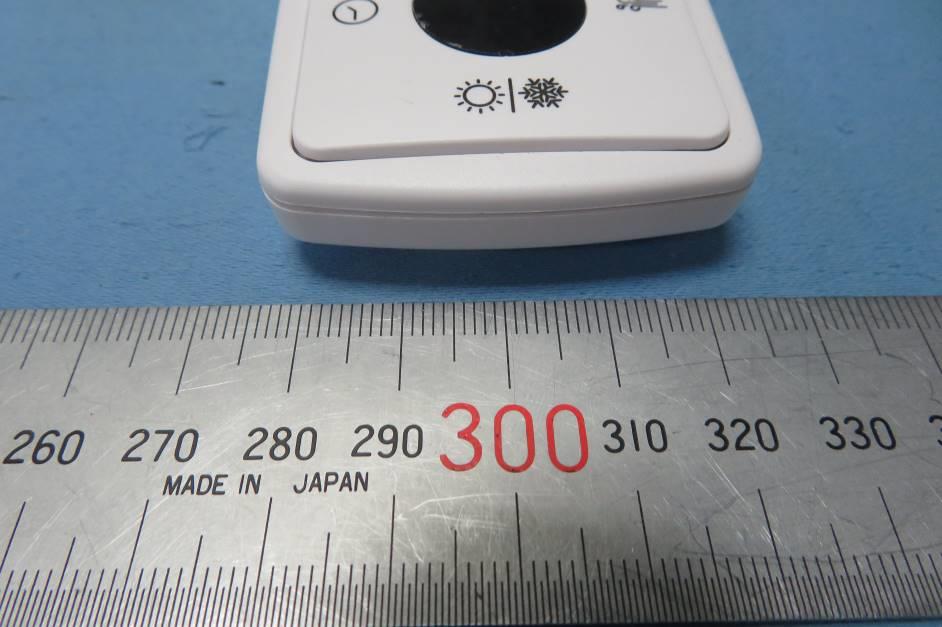

OGT-2022-NNRemote control

①③⑤⑥⑦⑧⑫⑬ ②④⑨⑩⑪⑭ ①DISPLAY: (a)If the display is OFF, press the button would wake up the display, And the display show the status of fan, light or timing by flickering. (b)If the display is ON, the display would be bright for 10s and show the status of fan, light or timing after you press the button. ②F/R: Press and hold the button for 2s to change the direction of fan. And the display would show the direction of fan. (Forward/Summer: Reversal/Winter: ) ③NATURAL WIND ON/OFF: (a)The natural wind mode: the fan run from speed level 1 increase to level 3 slowly in 10s, and then from speed level 3 decrease to level 1 slowly in 10s, and so on. (b)If the fan is OFF, this button is useless. The display will show the fan speed when you press this button. (c)If the fan is ON, but is not in the natural wind mode, the fan will be enter the natural wind mode when you press this button. And the display will show (d)If the fan is ON and is in the natural wind mode, the fan will exit the natural wind mode and run in the last speed when you press this button. And the display will show the fan speed. ④TIMING: (a)If the fan is OFF, this button is useless, The display will show "0" when you press this button. (b)If the fan is ON or is in the natural wind mode, it will set the timing increase 1 hour when you press this button. And the display will show the timing.(The timing of display cycles from 0 to 9.) (c)If the fan is ON or is in the natural wind mode, it will cancel the timing when you press and hold on this button for 2s. And the display will show “0”. (d)If the fan turns off during timing, the timing will be canceled.(e)The timing of display is not cleared to “0” after the timing is over. INSTRUCTION FOR REMOTE CONTROLLER MODE:NN13T4 SERIES ⑤Temperature Control & CODE ： (a)Press and hold on this button less then 1s, the function is open or close the temperature control. And the display will show the status of temperature control. (open temperature control: close temperature control: )(b)When you would like to operate ceiling fan by remote controller, you need to press and hold on this button more then 1s to code withinthe receiver powered in 10s. You would hear a sound “beep” if the controller codes with receiver successfully. (c)If you press and hold on this button more then 1s, the display will show “ ”. ⑥SPEED UP: (a)If the fan is ON and is in natural wind mode, the fan will exit the natural wind and increase one speed level based on the speed levelbefore entering natural wind mode when you press this button. The display will show the fan speed level. (The maximum speed level is 6.) (b)If the fan is ON and is not in natural wind mode, the fan willincrease one speed level when you press this button. The display will show the fan speed level. (The maximum speed level is 6.) ⑦SPEED DOWN: (a)If the fan is ON and is in natural wind mode, the fan will exit the natural wind and decrease one speed level based on the speedlevel before entering natural wind mode when you press thisbutton. The display will show the fan speed level. (The minimum speed level is 1.) (b)If the fan is ON and is not in natural wind mode, the fan will decrease one speed level when you press this button. The display will show the fan speed level. (The minimum speed level is 1.) ⑧FAN ON/OFF: (a)If the fan is OFF, the fan will run in the last speed when you press this button. And the display will show the fan speed level. (b)If the fan is ON, the fan will stop when you press this button. And the display will show “0”. ⑨LIGHT ON/OFF: (a)If the light is OFF, the light will be turned on with the last luminance level when you press this button. And the display will show the luminance level. (b)If the light is ON, the light will be turned off when you press this button. And the display will show “0”. ⑩BRIGHTNESS UP: (a)If the light is OFF, this button is useless. And the display will show“0” when you press this button.(b)If the light is ON, The luminance will increase one level when you press this button. And the display will show the luminance level. (The maximum luminance level of display is 9.) ⑪BRIGHTNESS DOWN: (a)If the light is OFF, this button is useless. And the display will show“0” when you press this button.(b)If the light is ON, The luminance will decrease one level when you press this button. And the display will show the luminance level. (The minimum luminance level of display is 1.) ⑫YELLOW BUTON: (a)If the light is OFF, this button is useless. And the display will don’t show anything when you press this button. (b)If the light is ON, change the color temperature to warm when you press this button. But the display will don’t show anything. ⑬WHITE BUTTON: (a)If the light is OFF, this button is useless. And the display will don’t show anything when you press this button. (b)If the light is ON, change the color temperature to neutral when you press this button. But the display will don’t show anything. ⑭BLUE BUTTON: (a)If the light is OFF, this button is useless. And the display will don’t show anything when you press this button. (b)If the light is ON, change the color temperature to white when you press this button. But the display will don’t show anything. FCC ID: OGT-2022-NN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy an…

Text truncated - open the document above for the full version.

NN13T4A NN13T4B NN13T4C NN13T4D

1.Label 2.Schematicdiagramoflabellocation

NN13T4A NN13T4B NN13T4C NN13T4D

Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Job No.: 220721164GZU FCC ID: OGT-2022-NN RF Exposure Compliance Requirement Calculation formula： E (V/m) = (30*P*G) 0.5/d E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between EUT and antenna (m) Remark: E(V/m)=10 X (dBUV/m) /20 ×10 -6 P=(E*d) 2 /30G EIRP= ERP+2.15dBi in the formula above, d=3m, field strength= 82.9BuV/m (max described by client), so ERP=PG=0.059mW, EIRP= 0.097mW The worst case test separation distance is 5mm. The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. In KDB 447498 D01 v06: 4.3.1 Standalone SAR test exclusion considerations: The SAR Test Exclusion Threshold is calculated from: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR ⚫ f(GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation 17 ⚫ The result is rounded to one decimal place for comparison The Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit Frequency (MHz) Output power (mW) SAR Test Exclusion Threshold (mW) 433.92 0.097 22.77 According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v06, the SAR report is not required. Test Location: Intertek Testing Services Shenzhen Ltd. Guangzhou Branch All tests were performed at: Room102/104, No 203, KeZhu Road, Science City, GETDD Guangzhou, China

Xin Hui A.A. Electronics Ltd TEST REPORT SCOPE OF WORK EMC TESTING–NN13T4A, NN13T4B, NN13T4C, NN13T4D REPORT NUMBER 220721164GZU-001 ISSUE DATE [REVISED DATE] 22-August-2022 [--------------------] PAGES 21 DOCUMENT CONTROL NUMBER FCC part 15.231-e © 2017 INTERTEK TEST REPORT Room 02, & 101/E201/E301/ E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Version: 03 September 2021 Page 2 of 21 FCC Part 15.231-e Applicant Name & Address : Xin Hui A.A. Electronics Ltd Building No. 110, No. 1 North of San He Avenue, Xin Hui District, Jiang Men City, Guang Dong Province, China Manufacturing Site : Same as applicant Intertek Report No: FCC ID: 220721164GZU-001 OGT-2022-NN Test standards CFR 47, FCC PART 15 Subpart C: 2020 section 15.231 Sample Description Product : Remote controller Model No. : NN13T4A, NN13T4B, NN13T4C, NN13T4D Electrical Rating : 1.5VDC*2 Serial No. : Not Labeled Date Received : 21 July 2022 Date Test Conducted : 29 July 2022-02 August 2022 Prepared and Checked By Elena Lei Engineer Approved By: Dean Liu Project Engineer TEST REPORT Intertek Report No.: 220721164GZU-001 Version: 03 September 2021 Page 3 of 21 FCC Part 15.231-e CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION .............................................................................................. 5 2.1 PRODUCT DESCRIPTION ........................................................................................................ 5 2.2 RELATED SUBMITTAL(S) GRANTS ............................................................................................ 5 2.3 TEST METHODOLOGY ........................................................................................................... 5 2.4 TEST FACILITY ...................................................................................................................... 5 3.0 SYSTEM TEST CONFIGURATION .................................................................................. 6 3.1 JUSTIFICATION ..................................................................................................................... 6 3.2 EUT EXERCISING SOFTWARE.................................................................................................. 7 3.3 SPECIAL ACCESSORIES ........................................................................................................... 7 3.4 MEASUREMENT UNCERTAINTY ............................................................................................... 7 3.5 EQUIPMENT MODIFICATION .................................................................................................. 8 3.6 SUPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 8 4.0 MEASUREMENT RESULTS ........................................................................................... 9 4.1 ANTENNA REQUIREMENT ...................................................................................................... 9 4.2 RADIATED EMISSIONS ......................................................................................................... 10 4.3 OCCUPIED BANDWIDTH ...................................................................................................... 18 4.4 DWELL TIME ..................................................................................................................... 19 4.5 CONDUCTED EMISSION TEST ................................................................................................ 20 5.0 TEST EQUIPMENT LIST ............................................................................................. 21 TEST REPORT Intertek Report No.: 220721164GZU-001 Version: 03 September 2021 Page 4 of 21 FCC Part 15.231-e 1.0 TEST RESULT SUMMARY Test Item Test Requirement Test Method Result Radiated Emission FCC PART 15 section 15.231(b) ANSI C 63.10: Clause 6.4, 6.5 and 6.6 PASS Occupied Bandwidth FCC PART 15 section 15.231(c) ANSI C 63.10: Clause 6.9 PASS Dwell Time FCC PART 15 section 15.231(a) FCC PART 15: Section 15.231(a) PASS Remark: N/A: not applicable. Refer to the relative section for the details. EUT: In this whole report EUT means Equipment Under Test. Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radio Frequency. ANSI C63.10: the detail version is ANSI C63.10:201…

Text truncated - open the document above for the full version.

Note:EUT is positioned at the center of the turntable to keep 3 m between the measurement antenna and EUT for the radiated emissions measurements Radiated Emission (30MHz-1000MHz) Radiated Emission (Above 1000MHz)
