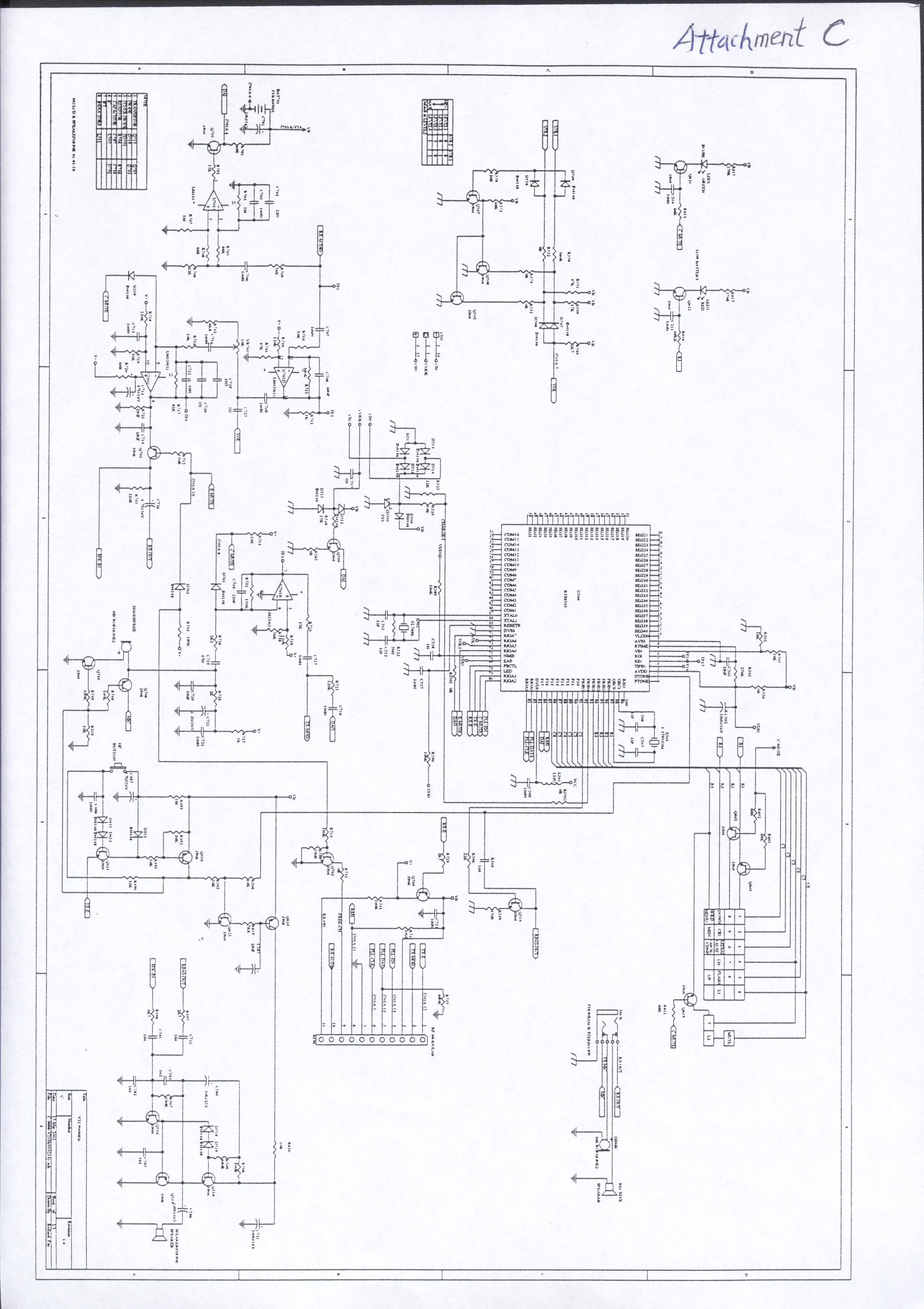

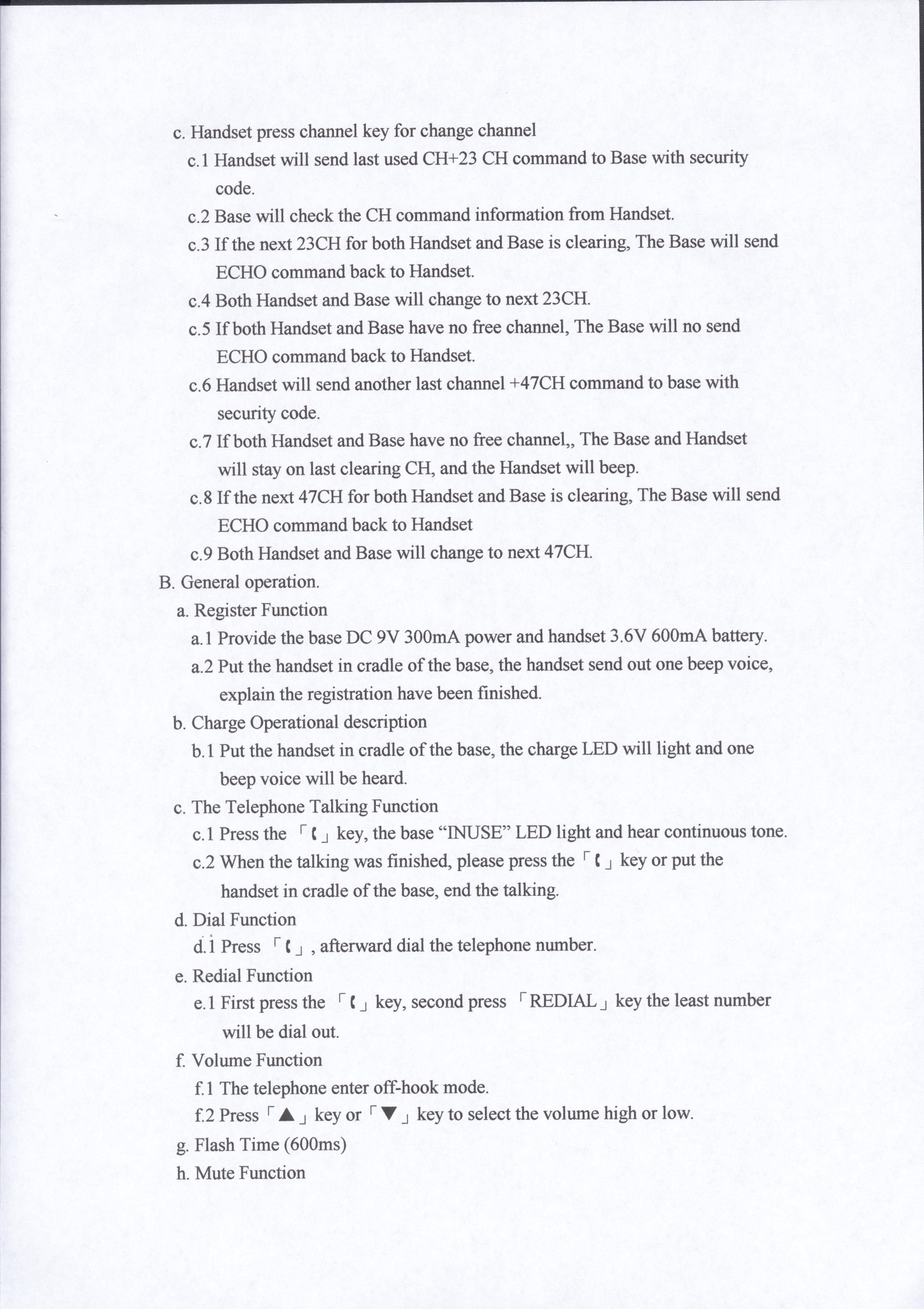

OHGMNP-310900MHz Cordless Mini Phone

Line IF Amp RF Amp ANT DIMF OUT PLL Control Bus DATA OUT RF Amp. PLL Control Bus: PLL_EN PLL_CLK PLL_DATA Polarity Transform Ring Detector Holding Circuit Voice Frequency Amplifier Sidetone Cancellation Switch Demodulation U602 Decoder MPU RTS8503 Signal Amp. High Frequency Oscillation and Modulation V609 VD602 IF Filter CF602 10.7MHz Dual Phaselock loop Duplex RX CONTROL Local Oscillator Q602 SGM2016M RF Amp . IF Amp. ANT Q601 2SC4226 DATA IN Ring Out PLL Control Bus Q661 DATA OUT 2SC3356 RX ON RF Amp. PLL Control Bus: PLL_EN PLL_CLK PLL_DATA Voice Frequency Magnify Demodulation U602 Decoder MPU RTS8503 High Frequency Oscillation and Modulation V609 VD602 IF Filter CF602 10.7MHz Dual Phaselock loop U601 Duplex Local Oscillator RX CONTROL Amplifier (Handfree) Key Board

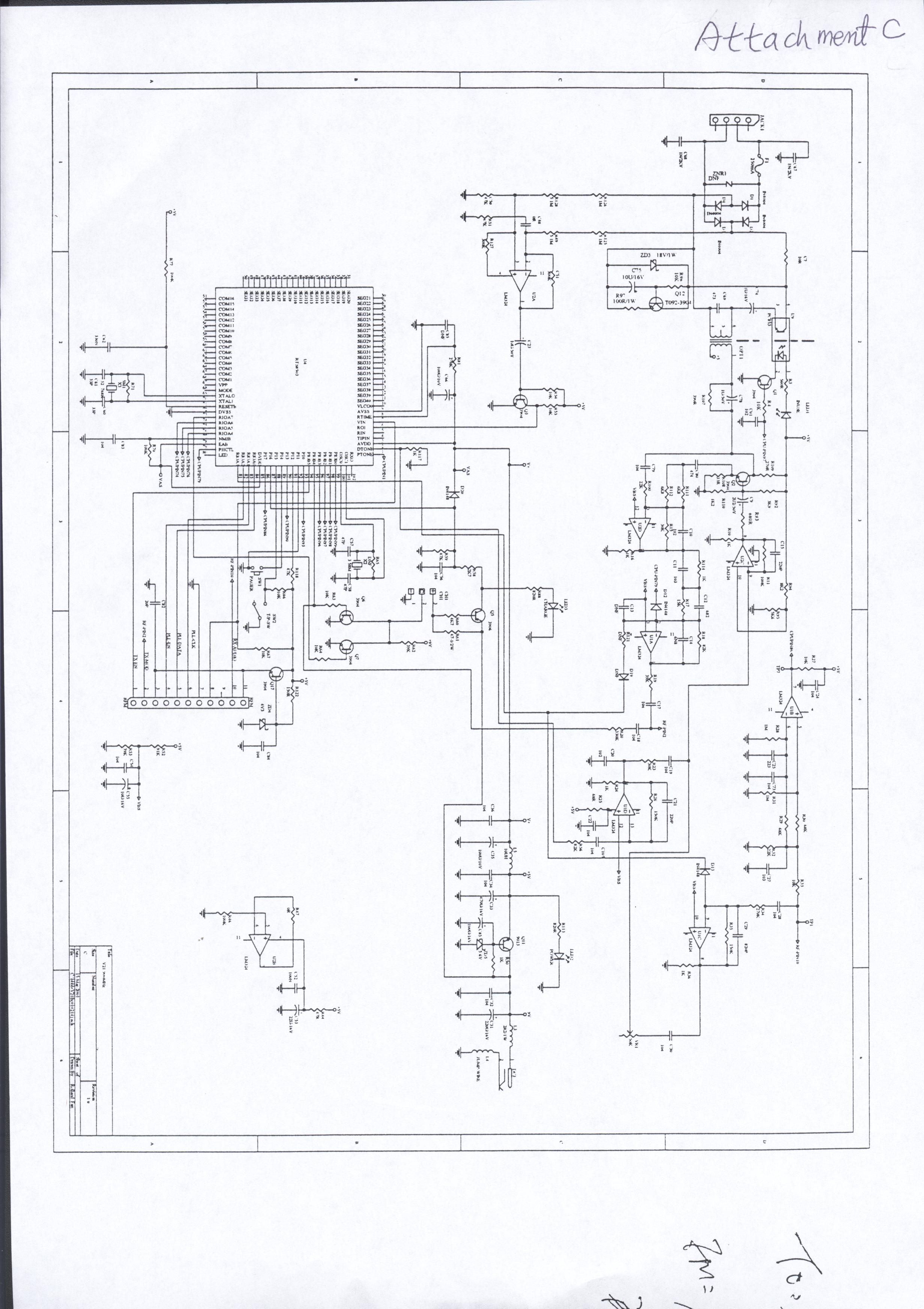

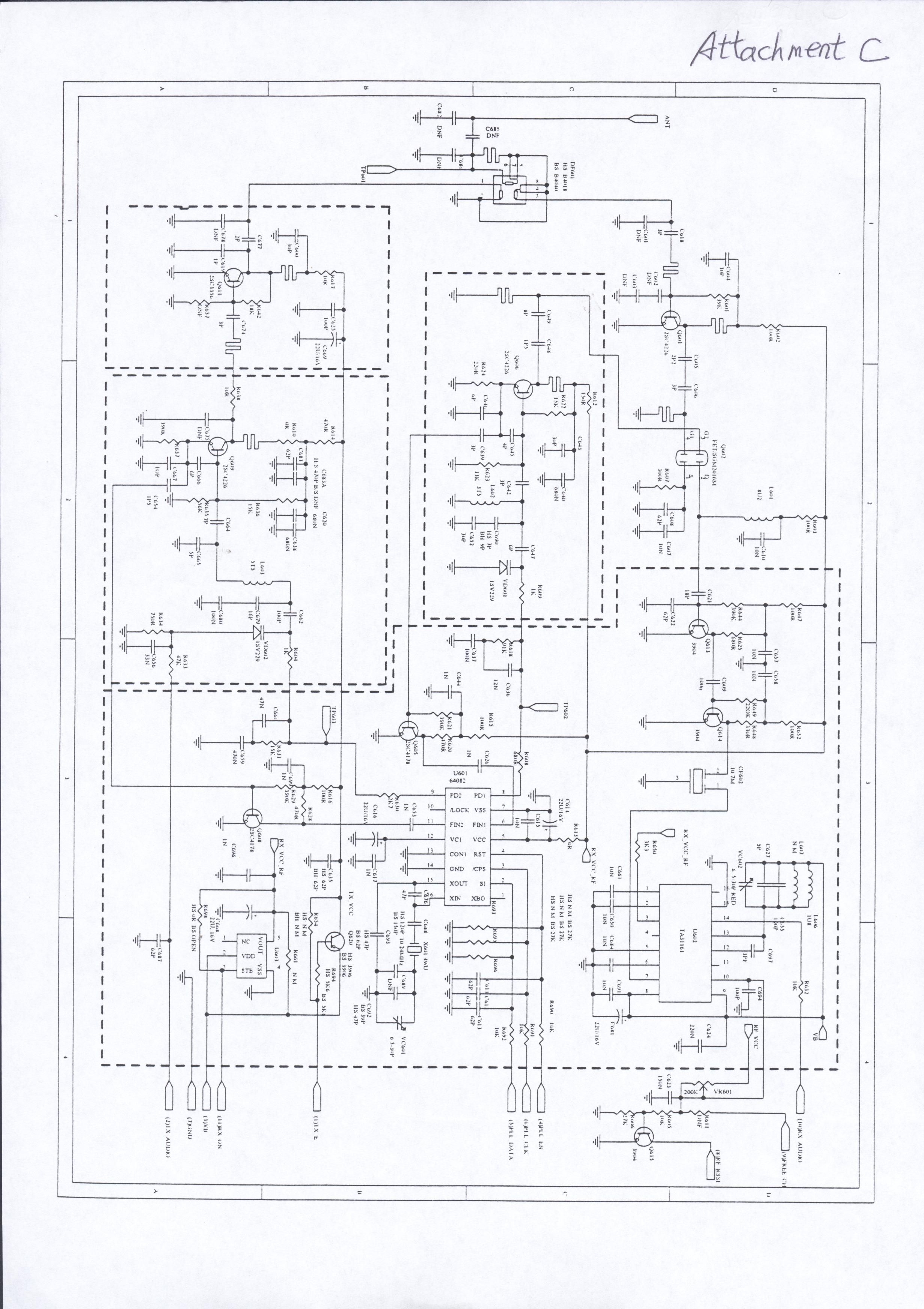

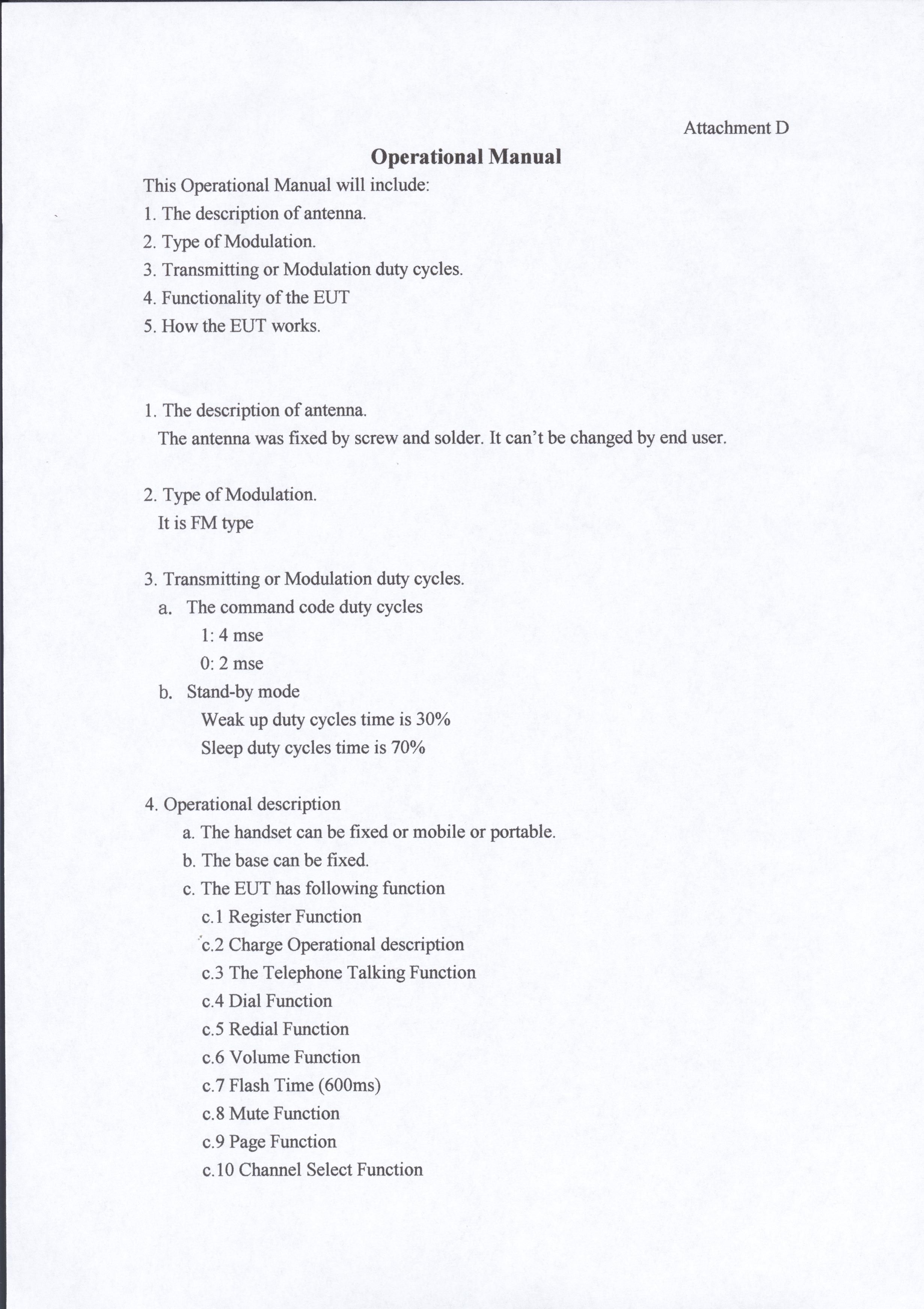

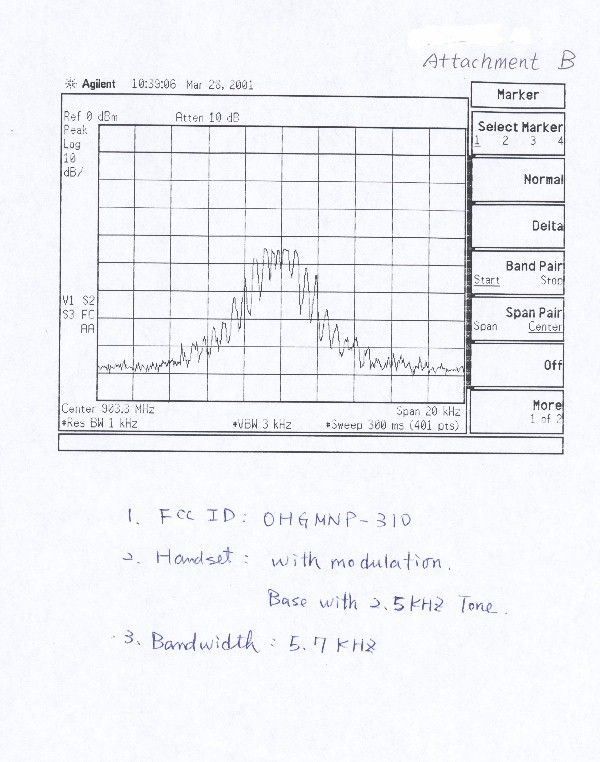

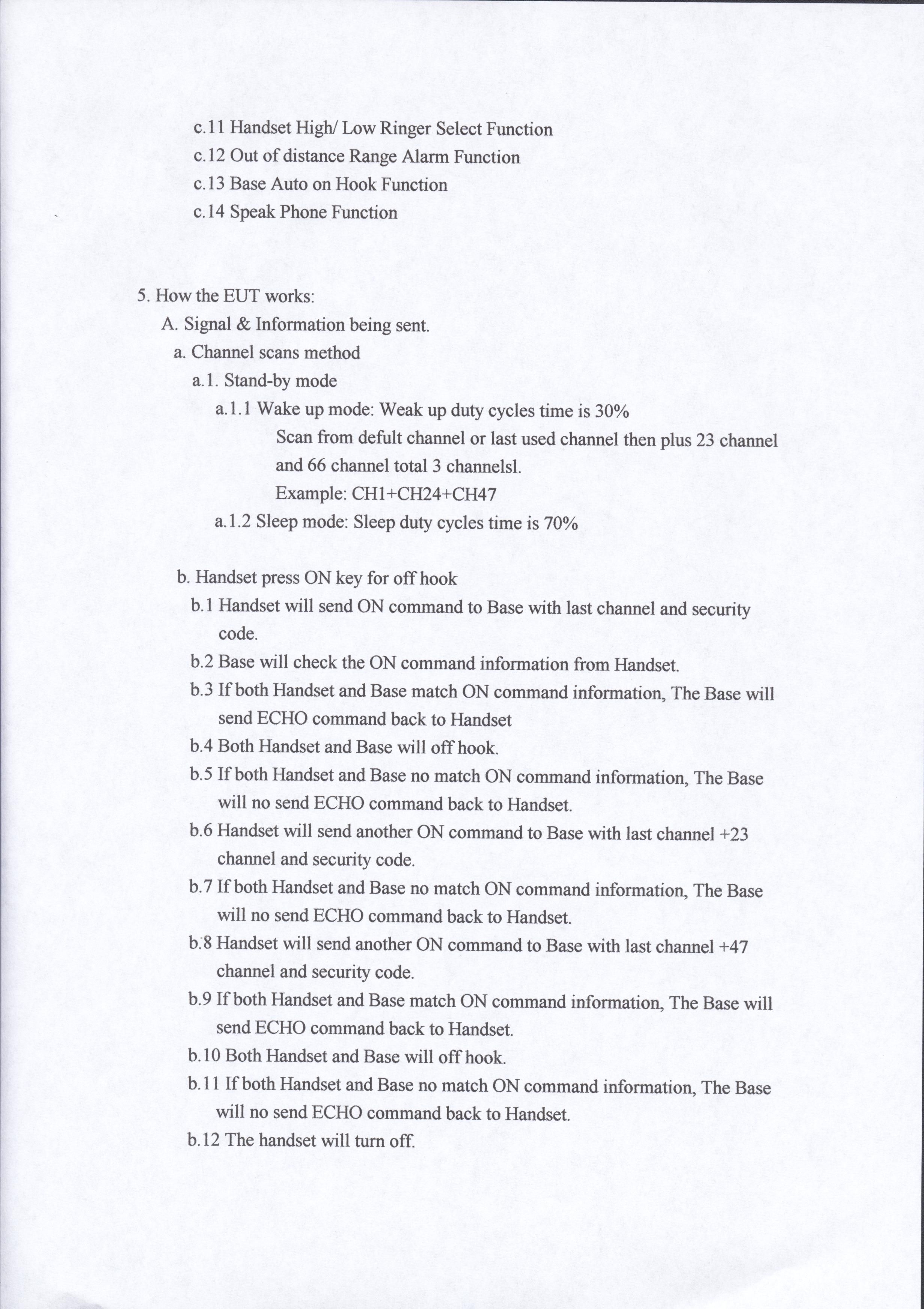

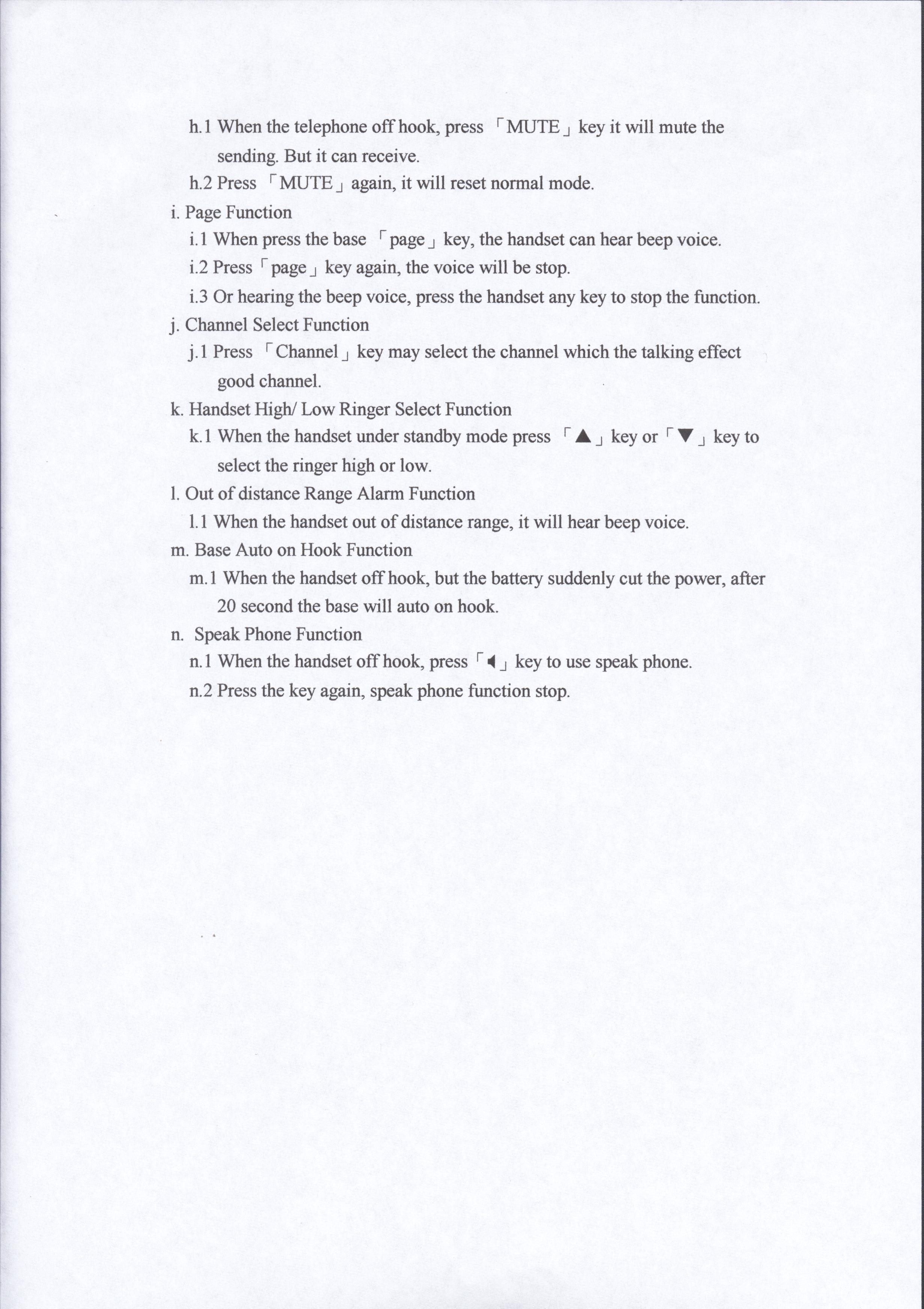

D:\Ready_To_Convert\Doc\146838.DOC TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: tei@t imcoengr.com 25 April 2001 FCC SUBJECT: CHAW KHONG TECHNOLOGY CO., LTD. FCC ID: OHGMNP-310 To Whom It May Concern: We asked the test laboratory to confirm that the handset & the base were modulated when they were tested, and they confirmed this. Also the original schematics were not acceptable and they resent new schematics. The original did not include an operational description. Sincerely, Sid Sanders

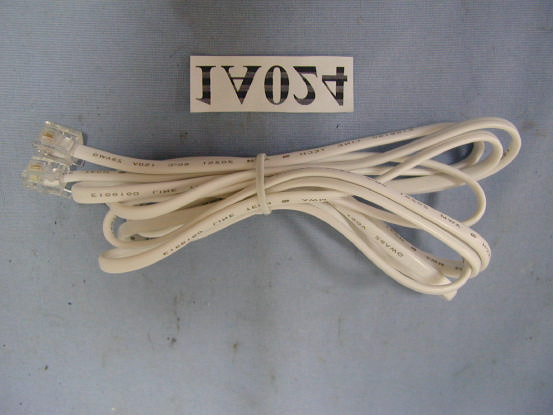

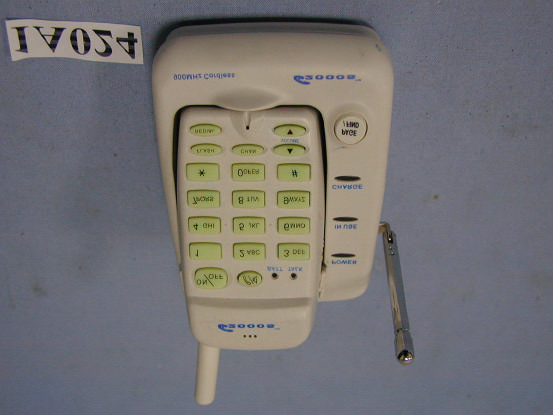

PHOTOS OF TESTING A. EUT front view B. EUT back view PHOTOS OF TESTING C. Adaptor top view D. RJ11 whole view

Sample of FCC ID Label THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENE THAT MAY CAUSE UNDESIRED OPERATION. PRIVCY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. FCC ID : OHGMNP-310

PHOTOS OF TESTING Base main board component side PHOTOS OF TESTING B. Base main board solder side PHOTOS OF TESTING C. Handset main board component side PHOTOS OF TESTING D. Handset main board solder side PHOTOS OF TESTING E. Handset transmitt and receiver board component side F. Handset transmitt and receiver board solder side PHOTOS OF TESTING G. Adaptor board component side H. Adaptor board solder side

PHOTOS OF TESTING A. Base inside whole view B. Base case inside whole view PHOTOS OF TESTING C. Handset inside whole view D. Handset case inside whole view PHOTOS OF TESTING E. Adaptor inside whole view PHOTOS OF TESTING F. Handset ANT whole view G. Base ANT whole view

Class B Certification Application Under part 15, subpart B & C EUT 900MHz Cordless Mini Phone MODEL MNP-310 FCC ID OHGMNP-310 SRT REPORT # T1A024 PREPARED FOR CHAW KHONG TECHNOLOGY CO., LTD. NO. 29, WU-CHUANG 3RD RD., WU-KU INDUSTRIAL PARK, TAIPEI COUNTY, TAIWAN, R.O.C. Spectrum Research & Testing Lab. FCC ID OHGMNP-310 REPORT# T1A024 PAGE 2 OF 43 Spectrum Research & Testing Lab. FCC ID OHGMNP-310 REPORT# T1A024 PAGE 3 OF 43 EMI TESTING REPORT EUT : 900MHz Cordless Mini Phone MODEL : MNP-310 FCC ID : OHGMNP-310 PREPARED FOR CHAW KHONG TECHNOLOGY CO., LTD. NO. 29, WU-CHUANG 3RD RD., WU-KU INDUSTRIAL PARK, TAIPEI COUNTY, TAIWAN, R.O.C. PREPARED BY SPECTRUM RESEARCH & TESTING LABORATORY INC. NO. 101-10 , LING 8 , SHAN-TONG LI CHUNG – LI CITY , TAOYUAN, TAIWAN , R. O. C. TEL (03) 4987684 FAX (03) 4986528 Spectrum Research & Testing Lab. FCC ID OHGMNP-310 REPORT# T1A024 PAGE 4 OF 43 TABLE OF CONTENTS 1. TEST REPORT CERTIFIICATION................................................................ 5 2. TEST STATEMENT 2 . 1 TEST STATEMENT.............................................................................. 6 3. DEPARTURE FROM DOCUMENT POLICIES, PROCEDURE OR SPECIFICATIONS, TEST STATEMENT........................................................... 7 4. EUT MODIFICATIONS................................................................................. 9 5. CONDUCTED POWER LINE TEST 5 . 1 TEST EQUIPMENT.............................................................................. 10 5 . 2 TEST PROCEDURE ... .......................................................................... 10 5 . 3 TEST SETUP...................................................................................... 11 5 . 4 CONFIGURATION OF THE EUT........................................................ 12-13 5 . 5 EUT OPERATING CONDITION.............................................................. 14 5 . 6 EMISSION LIMITS............................................................................. 14 5 . 7 EMISSION TEST RESULTS................................................................. 15-18 6. RADIATED EMISSION TEST 6 . 1 TEST EQUIPMENT.............................................................................. 19 6 . 2 TEST PROCEDURE............................................................................. 20 6 . 3 TEST SETUP...................................................................................... 20-21 6 . 4 CONFIGURATION OF THE EUT......................................................... 22 6 . 5 EUT OPERATING CONDITION ... ......................................................... 22 6 . 6 EMISSION LIMITS............................................................................. 22 6 . 7 RADIATION EMISSION TEST RESULTS............................................ 23-35 7. BANDWIDTH 7 . 1 LIMIT.................................................................................................. 36 7 . 2 RESULT............................................................................................... 37-42 8. VERIFY CHANNELS AND FREQUENCIES.................................................... 43 Spectrum Research & Testing Lab. FCC ID OHGMNP-310 REPORT# T1A024 PAGE 5 OF 43 1. TEST REPORT CERTIFICATION APPLICANT CHAW KHONG TECHNOLOGY CO., LTD. ADDRESS NO. 29, WU-CHUANG 3RD RD., WU-KU INDUSTRIAL PARK, TAIPEI COUNTY, TAIWAN, R.O.C. EUT DESCRIPTION 900MHz Cordless Mini Phone (A) POWER SUPPLY BASE BY ADAPTOR ( 120VAC / 60Hz ) HANDSET BY BATTERY ( 3.6V / 610mAh ) (B) MODEL MNP-310 (C) FCC ID OHGMNP-310 FINAL TEST DATE 02/22/2001 MEASUREMENT PROCEDURE USED * PART 15 SUBPART B & C OF FCC RULES AND REGULATIONS ( 47 CFR PART 15) * ANSI C63.4 - 1992 * TEST PROCEDURE AND DATA ARE TRACEABLE TO NIST / USA. We hereby certify that The measurements contained in this report were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. TESTING ENGINEER DATE 2/22/2001 Alen Chou SUPERVISOR DATE 2/22/2001 Jesse Ho APPROVED BY DATE 2/22/2001 Johnson Ho Spectrum Research & Testing Lab. FCC ID OHGMNP-310 REPORT# T1A024 PAGE 6 OF 43 2. TEST STATEMENT 2 . 1 TEST STATEMENT 1. This letter is to explain the test condition of this project. The EUT be tested as the following status. 2. The data was shown in this report reflects the worst – case data for the condition as listed above. Please disregard any other processor (s) speed shown in this user manual. 3. EUT conditions: Frequency Range : Base ‡ 925.08 ~ 927.44 MHz Handset ‡ 902.58 ~ 904.94MHz Support Channel : 60 channel 4. NVLAP logo is to be approved by management (it is according to NVLAP requirement if it need) before use. Spectrum Research & Testing Lab. FCC ID OHGMNP-310 REPORT# T1A024 PAGE 7 OF 43 3. DEPARTURE FROM DOCUMENT POLICIES, PROCEDURE OR SPECIFICATIONS , THE STATEMNT A . Did have Any departure from document policies & procedures or from specifications. Yes , No √ . If yes , the description as below. B . The certificate and report shall not be reproduced except in full , without the written approval of SRT laboratory. C . The report must not be used by the client to claim product endorsement by NVLAP or any agency the government. D . This product is a prototype product. E . The effect that the results relate only to the items tested. Spectrum Research & Testing Lab. FCC ID OHGMNP-310 REPORT# T1A024 PAGE 8 OF 43 Spectrum Research & Testing Lab. FCC ID OHGMNP-310 REPORT# T1A024 PAGE 9 OF 43 4. EUT MODIFICATIONS The following accessories were added to the EUT during testing (1). To series a choke(R6H-6*10 2.5Ts) between L3 and U7. (2). Added a core(KCF-65-B) at power cable of adapter. (3). Replaced the C674, C675 instead of capacitor 1pF. Spectrum Research & Testing Lab. FCC ID OHGMNP-310 REPORT# T1A024 PAGE 10 OF 43 5. CONDUCTED POWER LINE TEST 5 . 1 TEST EQUIPMENT The following test equipment were used during the conducted power line test EQUIPMENT/ FACILITIES SPECIFICATIONS MANUFAC…

Text truncated - open the document above for the full version.

PHOTOS OF TESTING A. Conducted test front view (CHARGE MODE) B. Conducted test back view PHOTOS OF TESTING C. Conducted test front view (BASE MODE) D. Conducted test back view PHOTOS OF TESTING E. Open site test back view (CHARGE MODE) PHOTOS OF TESTING F. Open site test back view (BASE MODE) PHOTOS OF TESTING G. Open site test back view (HANDSET MODE)
