OHH-BC3200BLUETOOTH HEADSET

BC3200 Quick Guide Appearance BC3200 1. Indicator light: provide visual cues for headset status 2. Switch: turn on/turn off 3. Volume down button: decrease the speaker volume 4. Volume up button: Increase speaker volume 5. Multi-function button (MFB): control several headset functions 6. Microphone: pick up your voice input 7. Earphone: spread out voice 8. Ear-hook: attach the headset to your ear 9. Charging port: connect the plug to your battery charger Charging When you use the headset at the first time, please charge for 24 hours to make sure that your headset is fully charged. Five short tones from the headset every 20 seconds means that the battery is running low, please immediately charge it around 2.5 hours. Notice 1. It is normal that the battery will gradually deteriorate after using the headset for a while. 2. The headset switches off when charging. How to Charge 1. Plug the charger into the charging port. While the headset is being charged, the LED indicator light will show different color according to battery power. a. GreenÆ fully charged b. BlueÆ 80% charged c. RedÆ being charged 2. It could use Mini USB cable to be charged through USB interface or adaptor for travel use. Battery Detect Keep press the switch and Multi-function button when turn off the headset a. if red indicator light flashes: power consumptionÆ please being charging ASAP b. if blue indicator light flashes slowly: 60% battery powerÆ it could be use normal c. if green indicator light bright always: fully battery power Turning On & Off the Headset <On> Simultaneously press the switch more than 3 seconds, the indicator light will start flashing 1.2 seconds and the speaker will have audio tones for turn on. <Off> Continuously press the switch more than 3 seconds, the indicator light will start flashing 1.2 seconds and the speaker will have audio tones for turn off Pairing Your Headset and Phone *Effective range (10 m) 1. Make sure the headset turn on 2. Press volume-up or down button and Multi-function button over 3 seconds until the indicator light shows blue (the first phone) or green (the second phone) 3. If search successful, it will appear BC3200 from the found device 4. Select " BC3200 " from the found device listed on the phone screen to pair the headset and the phone. 5. Enter “0000” as the password when asked. Successful pairing makes the indicator light flash 10 times rapidly. 6. If the phone fails to connect to the headset automatically after paring, click the MFB once, the headset will try to connect to the phone, and the phone may ask you to confirm the connection with the headset, please select “Yes”. Try again if failed. 7. The pairing mode will keep 90 seconds continuously. If failed or over time, you could follow the step 1 to try again. 8. If you want to start pair mode for headset with the second phone, please execute pair mode for 1~5 steps repeatedly Change Different Device The indicator light will change color and spread out audio tones when you press switch shortly 1. Blue indicator light and spread out audio tones Æ The first device 2. Green indicator light and spread out audio tones two timesÆ The second device Answer & Reject Calls It will send out lower to higher warning notice when you have a call and indicator light shows blue color (the first phone) or green color (the second phone) flash rapidly. At this time you could answer a call according to press MFB shortly or reject the call according to press MFB long. Switch Communication Channel If your headset have two calls from two mobile phone, you could press switch shortly and choice which one you want to answer. At this time another one will be hold and you can answer this call to press switch shortly. Close a Call Press MFB shortly and it will became standby mode. If you want to close one call, only need press switch into connection and press MFB shortly. Making & Answering Calls Device Status Action Function Phone 1 Phone 2 HeadsetHF Profile HS Profile Voice dial Idle (Unpaired) Idle (Unpaired) Idle Short click the MFB None Last call re-dial Idle (Unpaired) Idle (Unpaired) Idle Long press the MFB None Ringing (Shocked) Idle (Taking/Unpaired) Answer a call Idle (Talking/Unpaired) Ringing (Shocked) Idle Short click the MFB Ringing (Shocked) Idle (Taking/Unpaired) Reject a call Idle (Taking/Unpaired) Ringing (Shocked) Idle (Busy) Long press the MFB None Talking Idle (Unpaired) Close a call Idle (Talking/Unpaired) Taking Busy Short dick the MFB Switch holding call Talking Taking Busy Short press the switch Talking & Ringing Idle (Unpaired) Busy Idle (Unpaired) Talking & Ringing Busy Short dick the MFB Answer 2 ed Call Talking Talking Busy None None Talking & Ringing Idle (Unpaired) Busy Idle (Unpaired) Talking & Ringing Busy Short dick the MFB Hold an active call Talking Talking Busy None None Talking & Ringing Idle (Unpaired) Busy Idle (Unpaired) Talking & Ringing Busy Long press the MFB Reject 2 nd call Talking Talking Busy None None Indicator Light Headset status Color Action Power On Multi-color exchange flash once Pairing mode 1 st Device: Blue 2 rd Device: Green Continue bright Pairing success 1 st Device: Blue & Purple replace 2 rd Device: Green & Purple replace 10 rapid flashes Idle 1 st Device: Blue 2 rd Device: Green 1 Fast flashes per 3 seconds. Busy 1 st Device: Blue 2 rd Device: Green 1 Slow flashes per 8 seconds. Charging Red Continue bright Battery full Green Continue bright Battery normal Blue Flash slowly Battery low Red Rapid flash Power off Multi-color exchange flash once Audio Tones Headset status The audio tone Power on 2 tones from low to high Power off 2 tones from low to high Pairing success 1 single tone Switch to first device 1 single tone Switch to second device 2 single tone Battery low 5 rapid high tones once per 20 seconds No network service 2 rapid high tones once per 20 seconds Microphone muted 1 low tone once per 5 seconds Turn on the audio gateway 4 tones from low to high Turn off the audio gateway …

Text truncated - open the document above for the full version.

Cal-Comp Electronics & Communications Company Limited 1/1 Date: Aug. 01, 2006 Federal Communications Commission Authorization and Evaluation Division FCC IDOHH-BC3200 Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. Parts List The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, AUG. 01. 06. John Lee Cal-Comp Electronics & Communications Company Limited 3F, No. 99, Sec. 5, Nan King E. Rd., Taipei, Taiwan TEL: 886-2-8913-2001 ext. 7797 FAX: 886-2-8913-2043 e-mail: [email protected]

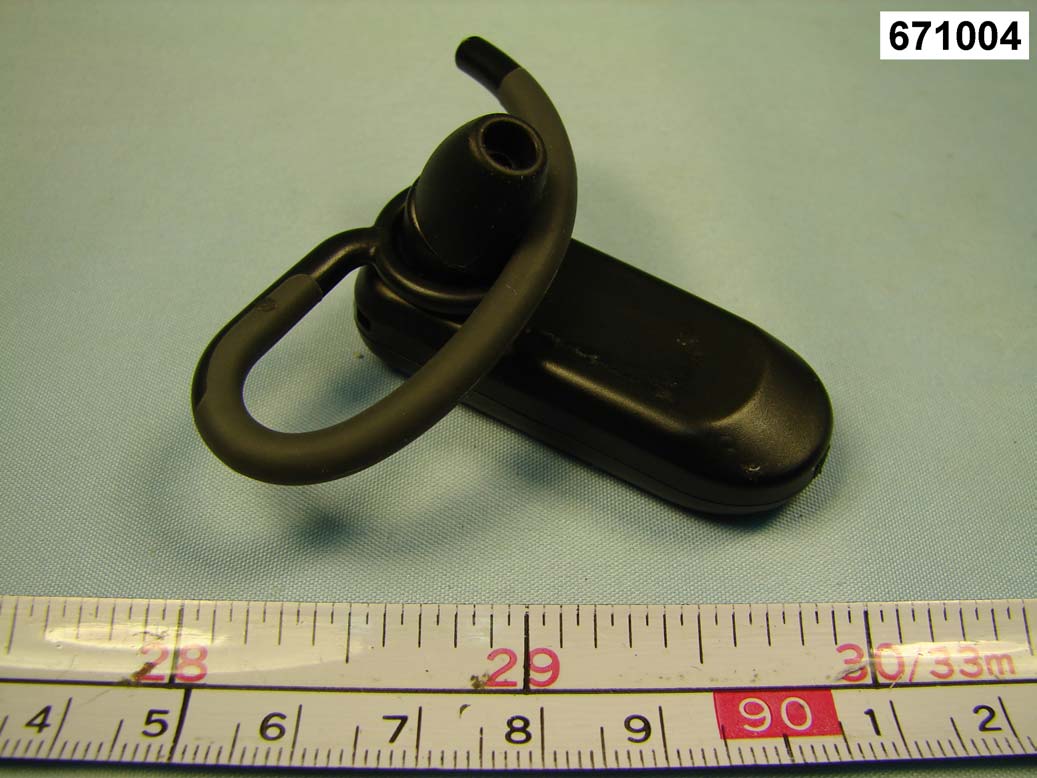

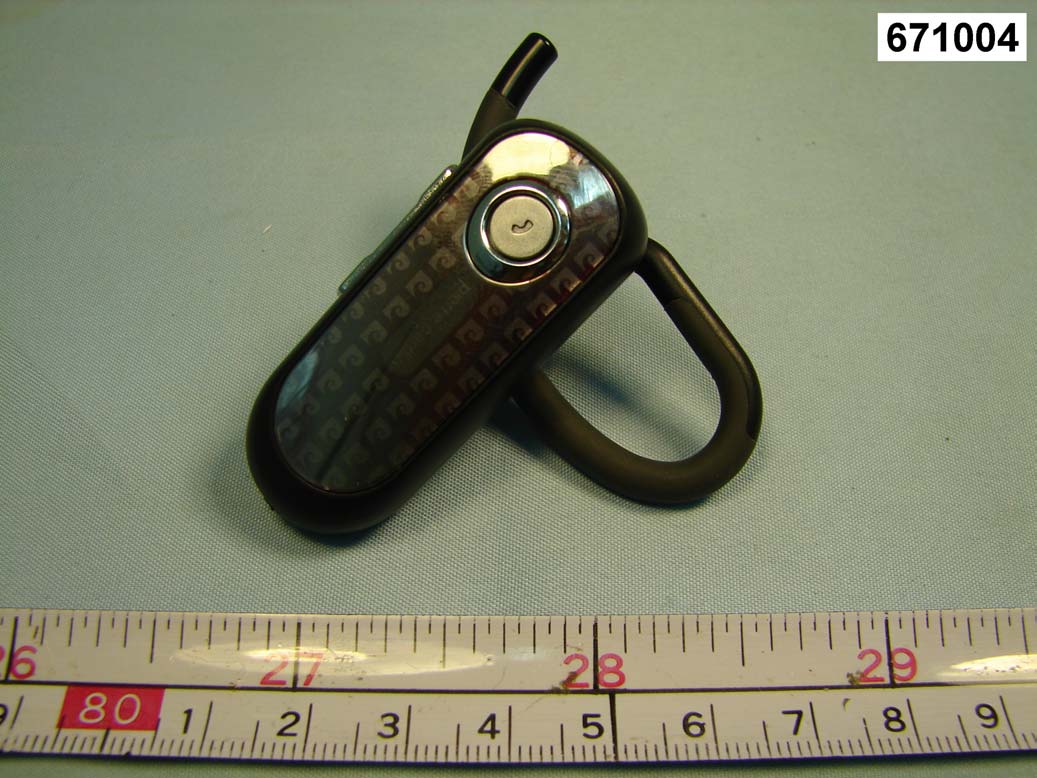

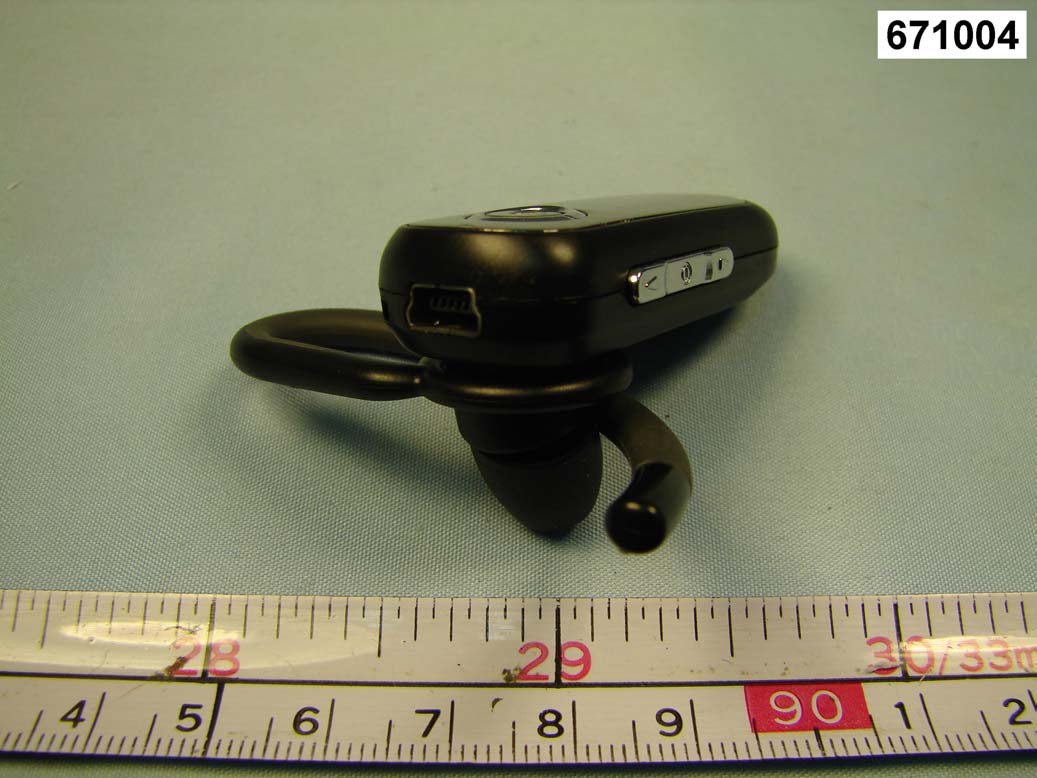

FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : A1 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 APPENDIX A. Photographs of EUT FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : A2 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : A3 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : A4 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : A5 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : A6 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : A7 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : A8 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200

FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : B1 OF B5 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 APPENDIX B. Photographs of EUT Internal FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : B2 OF B5 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : B3 OF B5 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : B4 OF B5 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 FCC TEST REPORT REPORT NO. : FR671004 SPORTON International Inc. Page Number : B5 OF B5 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200

Document No.: 671003 RF Exposure Test Report Date: Aug. 15, 2006 FCC ID: OHH-BC3200 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Cal-Comp Electronics & Communications Company Limited BC3200 Equipment : Bluetooth Headset Trade Name : Cal-Comp Model No. : BC3200 FCC ID : OHH-BC3200 Filing Type : Certification Applicant : Cal-Comp Electronics & Communications Company Limited 3F, No. 99, Sec. 5, Nan King E. Rd., Taipei, Taiwan ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 671003 RF Exposure Test Report Date: Aug. 15, 2006 FCC ID: OHH-BC3200 Sporton International Inc. Maximum Permissible Exposure Test Report for BC3200 1.0 Introduction The report has been prepared on behalf of Cal-Comp Electronics & Communications Company Limited Bluetooth Headset to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Cal-Comp Electronics & Communications Company Limited BC3200 is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to Document No.: 671003 RF Exposure Test Report Date: Aug. 15, 2006 FCC ID: OHH-BC3200 Sporton International Inc. exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Bluetooth Headset is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation For this device, the calculation is as follows: ¾ No Evaluation Required if power is below this threshold: F (GHz) MW dBm 2.48 24.19 13.84 Maximum measured transmitter power for the EUT: Document No.: 671003 RF Exposure Test Report Date: Aug. 15, 2006 FCC ID: OHH-BC3200 Sporton International Inc. Pout (dBm) 0.38 Threshold for no RF Exposure evaluation is 13.84 dBm. Transmitter power of this device is 0.38 dBm Conclustion: No RF Exposure evaluation required since Transmitter Pout is below FCC threshold.

FCC TEST REPORT Report No. : FR671004 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report Version: Rev. 01 FCC TEST REPORT for 47 CFR Part 15 Subpart C Equipment : Bluetooth Headset Trade Name : Cal-Comp Model No. : BC3200 FCC ID : OHH-BC3200 Filing Type : Certification Applicant : Cal-Comp Electronics & Communications Company Limited 3F., No. 99, Sec. 5, Nan King E. Rd., Taipei, Taiwan ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Jul. 24, 2006 at Sporton International Inc. LAB. ‚ Report No.: FR671004, Report Version: Rev. 01. Roy Wu Deputy Manager SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : FR671004 SPORTON International Inc. Page No : i TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : OHH-BC3200 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant..................................................................................................................................................1 1.2. Manufacturer ...........................................................................................................................................1 1.3. Basic Description of Equipment under Test ............................................................................................1 1.4. Feature of Equipment under Test ...........................................................................................................1 2. Test Configuration of Equipment under Test ...............................................................................................2 2.1. Test Manner ............................................................................................................................................2 2.2. Test Mode ...............................................................................................................................................2 2.3. Ancillary Equipment List ..........................................................................................................................2 2.4. Connection Diagram of Test System ......................................................................................................3 3. RF Utility ...........................................................................................................................................................5 4. General Information of Test............................................................................................................................6 4.1. Test Voltage ............................................................................................................................................6 4.2. Standard for Methods of Measurement...................................................................................................6 4.3. Test in Compliance with ..........................................................................................................................6 4.4. Frequency Range Investigated ...............................................................................................................6 4.5. Test Distance ..........................................................................................................................................6 5. Report of Measurements and Examinations ................................................................................................7 5.1. List of Measurements and Examinations ................................................................................................7 5.2. Hopping Channel Separation ..................................................................................................................8 5.3. Number of Hopping Frequency .............................................................................................................12 5.5 Dwell Time of Each Frequency .............................................................................................................18 5.6 Output Power ........................................................................................................................................38 5.7 100kHz Bandwidth of Frequency Band Edges.....................................................................................42 5.8 Conducted Emission .............................................................................................................................46 5.9 Radiated Emission Measurement .........................................................................................................51 5.10 Antenna Requirements........................................................................................................................70 6. List of Measuring Equipments Used ...........................................................................................................71 7. Uncertainty Evaluation..................................................................................................................................72 Appendix A. External Product Photograph Appendix B. Internal Photograph Appendix C. Setup Photograph FCC TEST REPORT Report No. : FR671004 SPORTON International Inc. Page No : ii TEL : 886-2-2696-2468 Report Issued Date :…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : FR671004 SPORTON International Inc. Page No. : C1 of C7 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 Conducted Emission Mode1 FRONT VIEW REAR VIEW Appendix C. Set up Photograph 671104 671004 FCC TEST REPORT Report No. : FR671004 SPORTON International Inc. Page No. : C2 of C7 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 SIDE VIEW 671004 FCC TEST REPORT Report No. : FR671004 SPORTON International Inc. Page No. : C3 of C7 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 Mode2 FRONT VIEW REAR VIEW 671104 671004 FCC TEST REPORT Report No. : FR671004 SPORTON International Inc. Page No. : C4 of C7 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 SIDE VIEW 671004 FCC TEST REPORT Report No. : FR671004 SPORTON International Inc. Page No. : C5 of C7 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 Radiation Emission Mode 1~Mode 3 FRONT VIEW REAR VIEW 671004 671004 FCC TEST REPORT Report No. : FR671004 SPORTON International Inc. Page No. : C6 of C7 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 Mode 4 FRONT VIEW REAR VIEW 671004 671004 FCC TEST REPORT Report No. : FR671004 SPORTON International Inc. Page No. : C7 of C7 TEL : 886-2-2696-2468 Report Issued Date : Jul. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID: OHH-BC3200 Mode 5 FRONT VIEW REAR VIEW 671004 671004
