OHH-BD1000Bluetooth Headset

Index 1. Attention 2. Software Installation 3. Hardware Installation 4. Pairing 5. Bluetooth Services NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. 2.Software Installation 2-1 Please insert the Bluetooth soft ware/application CD-Rom into your CD-Rom Drive. 2-2 The software will automatically begin. 2-3 If the software installation are successful, you'll see a blue with white Bluetooth icon in the Windows System Tray. 2-4 Reboot you system . 3.Hardware Installation 3-1 Remove the cap before use. 3-2 Directly plug into an available USB port. 3-3 The LED (light) on the device will be successfully inserted. 4. Pairing 4-1 Double-click the” BlueSoleil” on your desktop. 4-2 The Local Bluetooth enabled device, known as "My Device", represents the user's computer that is running BlueSoleil. 4-3 Pairing 5. Bluetooth Services 5-2 Services DECLARATION OF CONFORMITY Hereby, Cal-Comp Electronics & Communications Company Limited, declares that this Bluetooth Dongle is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Cal-Comp Electronics & Communications Company Limited May 18, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID: OHH-BD1000 Confidentiality Letter Request Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematic Circuitry Diagram 2. Functional Block Diagram 3. Parts List (BOM) 4. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustify benefits to its competitors. The Applicants understands the pursant to Rule 0.457, disclosure of this Application and all accompanying documentation will not made before the date of the Grant for this application. Sincerely,

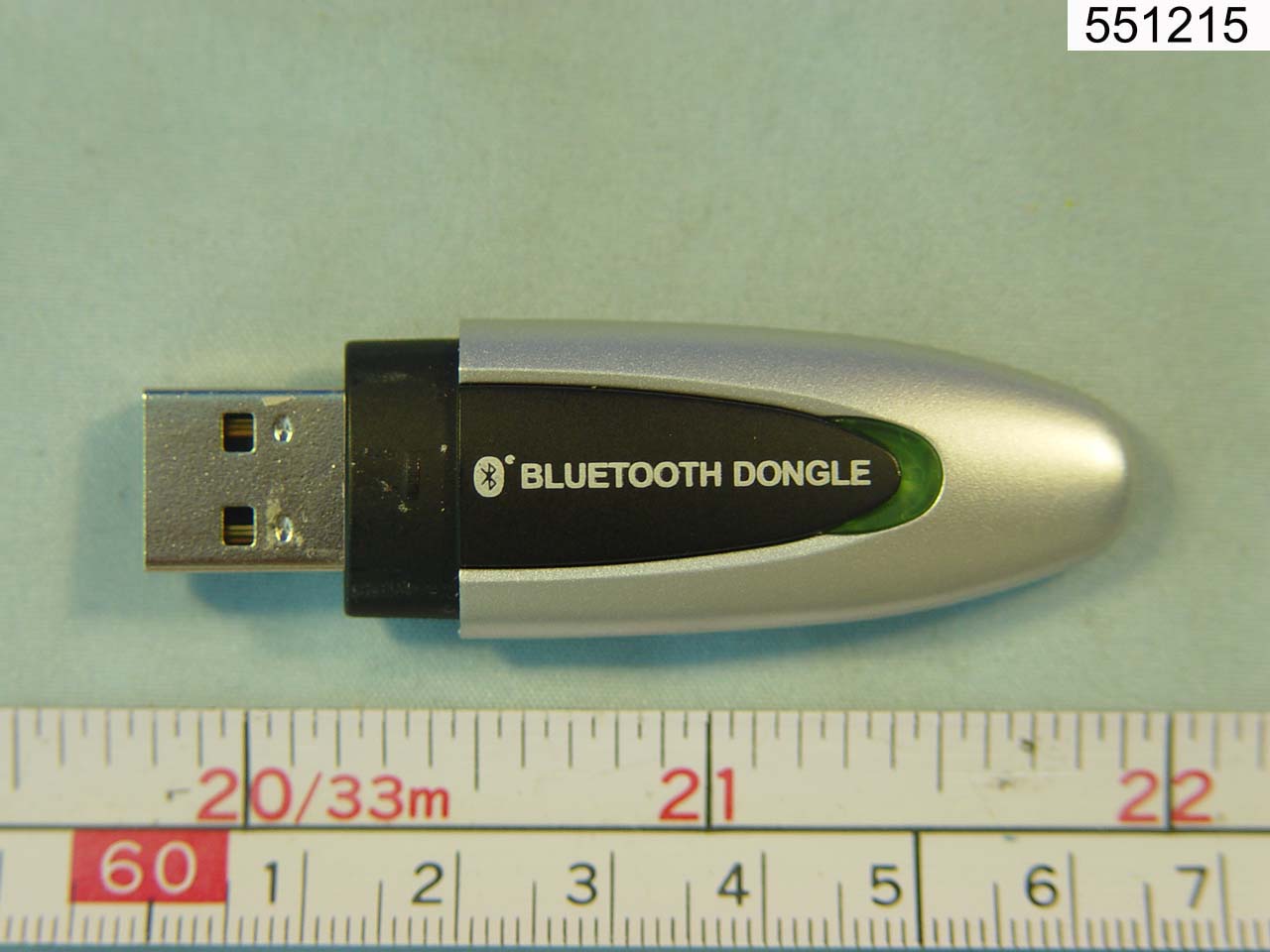

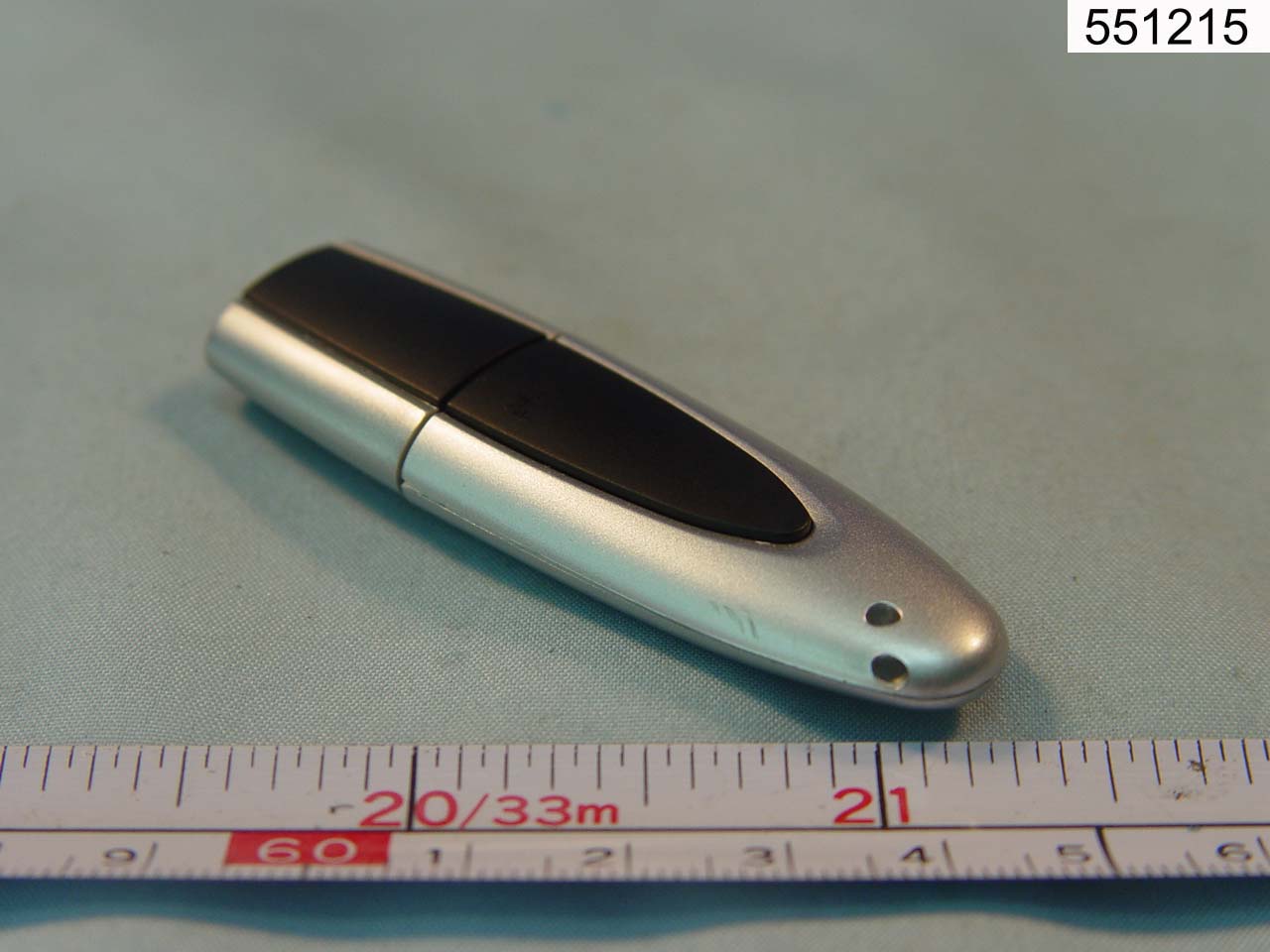

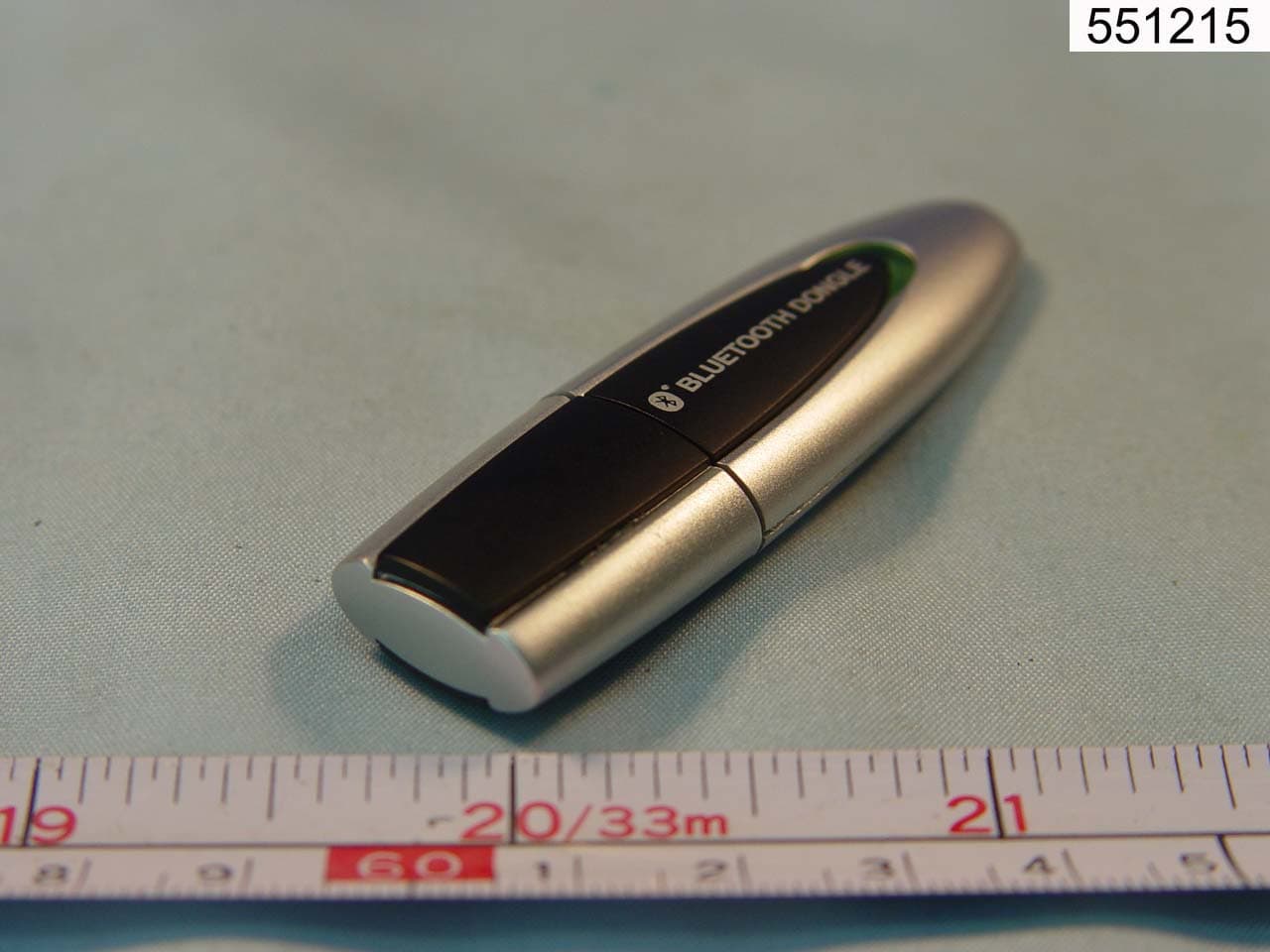

FCC TEST REPORT REPORT NO. : FR551215 SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2005 FAX : 886-2-2696-2255 APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : FR551215 SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR551215 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR551215 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2005 FAX : 886-2-2696-2255

FCC TEST REPORT REPORT NO. : FR551215 SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2005 FAX : 886-2-2696-2255 APPENDIX b. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : FR551215 SPORTON International Inc. PAGE NUMBER : B2 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR551215 SPORTON International Inc. PAGE NUMBER : B3 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR551215 SPORTON International Inc. PAGE NUMBER : B4 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : May 27, 2005 FAX : 886-2-2696-2255

Document No.: 551215 RF Exposure Test Report Date: May 27, 2005 FCC ID: OHH-BD1000 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Cal-Comp Electronics & Communications Company Limited BD-1000 Equipment : Bluetooth Dongle Trade Name : Cal-Comp Model No. : BD-1000 FCC ID : OHH-BD1000 Filing Type : Certification Applicant : Cal-Comp Electronics & Communications Company Limited 3F, No. 205, Sec. 3, Beision Rd., Sindian City, Taipei County 231, Taiwan ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 551215 RF Exposure Test Report Date: May 27, 2005 FCC ID: OHH-BD1000 Sporton International Inc. Maximum Permissible Exposure Test Report for BD-1000 1.0 Introduction The report has been prepared on behalf of Cal-Comp Electronics & Communications Company Limited Bluetooth Dongle to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Motorola Corporation Indoor UWB Device with unity gain antenna is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to Document No.: 551215 RF Exposure Test Report Date: May 27, 2005 FCC ID: OHH-BD1000 Sporton International Inc. exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Bluetooth Dongle is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation For this device, the calculation is as follows: ¾ No Evaluation Required if power is below this threshold: F (GHz) MW dBm 2.48 24.19 13.84 Maximum measured transmitter power for the EUT: Document No.: 551215 RF Exposure Test Report Date: May 27, 2005 FCC ID: OHH-BD1000 Sporton International Inc. Pout (dBm) 2.26 Threshold for no RF Exposure evaluation is 13.84 dBm. Transmitter power of this device is 2.26 dBm Conclustion: No RF Exposure evaluation required since Transmitter Pout is below FCC threshold.

FCC TEST REPORT Report No. : FR551215 SPORTON International Inc. FCC ID. : OHH-BD1000 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Report Issued Date : May 27, 2005 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant..................................................................................................................................................1 1.2. Manufacturer ...........................................................................................................................................1 1.3. Basic Description of Equipment under Test ............................................................................................1 1.4. Feature of Equipment under Test ...........................................................................................................2 2. Test Configuration of Equipment under Test ...............................................................................................3 2.1. Test Manner ............................................................................................................................................3 2.2. Test Mode ...............................................................................................................................................3 2.3. Connection Diagram of Test System ......................................................................................................4 2.4. Ancillary Equipment List ..........................................................................................................................4 3. RF Utility ...........................................................................................................................................................5 4. General Information of Test............................................................................................................................6 4.1. Test Voltage ............................................................................................................................................6 4.2. Standard for Methods of Measurement...................................................................................................6 4.3. Test in Compliance with ..........................................................................................................................6 4.4. Frequency Range Investigated ...............................................................................................................6 4.5. Test Distance .................................................................................................................. ........................6 5. Report of Measurements and Examinations ................................................................................................7 5.1. List of Measurements and Examinations ................................................................................................7 5.2. Hopping Channel Separation ..................................................................................................................8 5.3. Number of Hopping Frequency .............................................................................................................12 5.5 Dwell Time of Each Frequency within a 30 Seconds Period ................................................................18 5.6 Output Power ........................................................................................................................................38 5.7 100kHz Bandwidth of Frequency Band Edges.....................................................................................42 5.8 Conducted Emission .............................................................................................................................46 5.9 Radiated Emission Measurement .........................................................................................................49 5.10 Antenna Requirements........................................................................................................................55 6. List of Measuring Equipments Used ...........................................................................................................56 7. Uncertainty Evaluation..................................................................................................................................57 Appendix A. External Product Photograph Appendix B. Internal Photograph Appendix C. Setup Photograph FCC TEST REPORT Report No. : FR551215 SPORTON International Inc. FCC ID. : OHH-BD1000 TEL : 886-2-2696-2468 Page No. : ii FAX : 886-2-2696-2255 Report Issued Date : May 27, 2005 History of this test report Report Issue Date: May 27, 2005 Original Report Issue Date Description FCC TEST REPORT Report No. : FR551215 SPORTON International Inc. FCC ID. : OHH-BD1000 TEL : 886-2-2696-2468 Page No. : 1 of 58 FAX : 886-2-2696-2255 Report Issued Date : May 27, 2005 1. General Description of Equipment under Test 1.1. Applicant Cal-Comp Electronics & Communications Company Limited 3F., No. 205, Sec. 3, Beision Rd., Sindian City, Taipei County 231, Taiwan 1.2. Manufacturer Cal-Comp Electronics & Communications Company Limited 191/54, 57, 18 th FL., Rachadapisek Rd., Kongtoey, Bangkok, Thailand 1.3. Basic Description of Equipment under Test Equipment : Bluetooth Dongle Trade Name : Cal-Comp Model No. : BD-1000 FCC ID : OHH-BD1000 AC Power Cord : DC 3.3V FCC TEST REPORT Report No. : FR551215 SPORTON International Inc. FCC ID. : OHH-BD1000 TEL : 886-2-2696-2468 Page No. : 2 of 58 FAX : 886-2-2696-2255 Report Issued Date : May 27, 2005 1.4. Feature of Equipment under Test Product Feature & Specification 1. M…
