OHH-D200bluetooth dongle

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Microsoft and Windows Media are registered trademarks of Microsoft Corporation in the United States and/or other countries. Apple and iTunes are registered trademarks of Apple Computer, Inc., registered in the U.S. and other countries. RealNetworks and RealPlayer are registered trademarks of RealNetworks, Inc. Nullsoft and Winamp are registered trademarks of AOL LLC. Skype is a trademark of Skype Limited. All other product or service names are the property of their respective owners. © Motorola, Inc. 2006. Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-877-MOTOBLU 1-888-390-6456 (TTY/TDD United States for hearing impaired) Guide Number: 6809508A57-O motorola Bluetooth ® Stereo PC Adapter Get connected in 4 quick steps. D200 My adapter does not find my headphones. Make sure your headphones are in pairing (discoverable) mode when your adapter is searching for your device. My adapter did not find my previously paired headphones. Make sure your headphones are turned on before plugging in the adapter to ensure the adapter will find it. My music playing application is playing music but I don't hear it through my headphones. If the music playing application was being used before the adapter was plugged into the computer, the application may need to be restarted. TROUBLESHOOTING Indicator Light USB Connector Connector Cap Button Take a moment before you get started to familiarize yourself with your new D200 Adapter. BEFORE YOU BEGIN Before using this product, read the Important Safety and Legal Information pamphlet and follow its instructions. Note: The D200 is a Class 1-capable Bluetooth device. Bluetooth features and Bluetooth Class 1 power levels are not allowed for outdoor operation in France. To avoid unlawful interference with radio signals, do not use the Bluetooth features in France unless you are indoors. To use your adapter to connect your computer to your Bluetooth stereo headphones or Bluetooth handsfree (mono) headset, you must pair (link) your adapter with your Bluetooth device. To do this, your headphones or headset must first be placed into pairing (discoverable) mode. On most Motorola Bluetooth stereo headphones and handsfree headsets, you simply press and hold the Call button until the indicator light turns on and remains steadily lit. For details on placing your Bluetooth device into pairing mode, see your device’s user’s guide. 1 PUT YOUR HEADPHONES/HEADSET IN PAIRING MODE Your adapter is a plug-and play device. For first time use, simply plug the adapter into a USB port on your computer. After a few moments, your adapter begins to search for your Bluetooth headphones or headset. While searching, the indicator light flashes quickly until the adapter successfully finds and pairs with your Bluetooth device. When your adapter and headphones or headset are successfully paired, the adapter’s indicator light changes from flashing blue to steadily lit. 2 PLUG IN ADAPTER AND PAIR WITH HEADPHONES/HEADSET 3 TEST AND USE STREAMING MUSIC To confirm proper streaming music operation with your adapter and stereo headphones: Place your headphones over your ears. On your computer, play music from your music playing application. Ensure the application remains the active (top) window on your computer. If your adapter and headphones are successfully paired and connected for streaming music, you will hear music on your headphones. After successfully pairing and connecting your adapter and stereo headphones, you don't need to repeat these steps. For daily use, ensure that your adapter is plugged into your computer and that your headphones are turned ON. 1 2 Place your headphones over your ears. On your computer, make a call from your VoIP calling application. If your adapter and headphones are successfully paired and connected for VoIP calling, you will hear ringing on your headphones or headset. After successfully pairing and connecting your adapter and headphones or headset, you don't need to repeat these steps. For daily use, ensure that your adapter is plugged into a computer and that your headphone or headset is turned ON. 4 TEST AND USE VOICE OVER IP CALLING To confirm proper voice-over-IP (VoIP) calling operation with your adapter and stereo headphones or handsfree headset: 1 2 PAIRING WITH ADDITIONAL DEVICES Your adapter stores pairing information for up to five Bluetooth devices. After pairing your adapter with your initial device (steps 1-4), you can subsequently pair (link) your adapter with an additional Bluetooth stereo headphone or handsfree (mono) headset as follows: USING YOUR D200 See Features and Functions Guide on the reverse side for information on using your D200 1 Place your headphone or headset device in pairing mode. Press and hold the adapter's button for three seconds until the indicator light begins flashing quickly. The adapter drops the current connection (if active), and begins searching for your Bluetooth device. Your adapter searches for discoverable Bluetooth devices for up to 2 minutes. If no device is found, your adapter enters an Idle state (indicator light not lit). 2 DRAFT DRAFT HOW YOUR ADAPTER OPERATES IMPORTANT: Be sure to first follow the Quick Start Guide on the reverse side of this guide to complete initial setup of your D200. Features and Functions Guide D200 Bluetooth® Stereo PC Adapter Hereby, Motorola declares that this product is in compliance with: • The essential requirements and other relevant provisions of Directive 1999/5/EC. • All other relevant EU Directives. European Union Directives Conformance Statement [France Only] Product Approval Numbe…

Text truncated - open the document above for the full version.

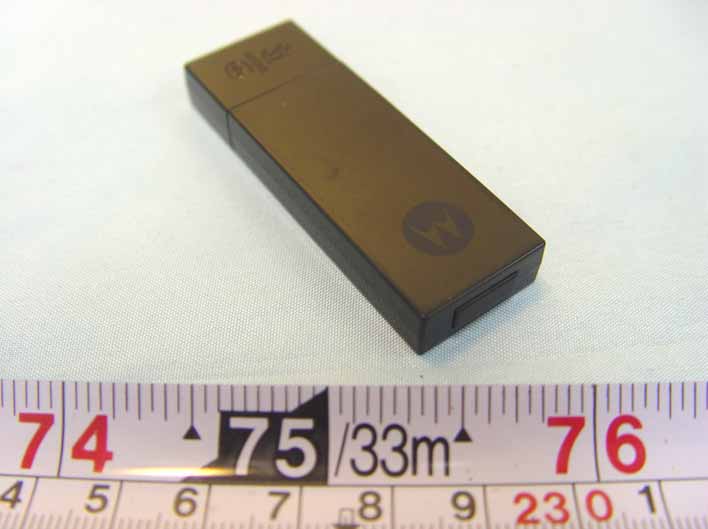

FCC TEST REPORT Report No. : FR6D1421 SPORTON International Inc. Page Number : A1 OF A2 TEL : 886-2-2696-2468 Report Issued Date : Jan. 22, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : OHH-D200 IC ID : 109O-D200 APPENDIX A. External Photographs of EUT 6D1421 FCC TEST REPORT Report No. : FR6D1421 SPORTON International Inc. Page Number : A2 OF A2 TEL : 886-2-2696-2468 Report Issued Date : Jan. 22, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : OHH-D200 IC ID : 109O-D200 6D1421

Product Label Winda 1:1 PnP Motorola 4321 A A B B C D E 54321876 8 C D E 765 SCALE TOL UNITMMSIGNATUREDATE 1PLC2PLCANGLE 0.10.050.5 + - + - + - MATERIAL MODEL DRAW CHK APPO SIZE A4 DEPT SHEET OF P/N TITLE Cal-Comp Electronics(Thailand) Public Co.,Ltd. CUSTOMER BY BY BY REV 07/01/02 HGPB1947017 38.00 mm 1.65 mm 1 . 6 5 m m 1 4 . 0 0 m m 1. Label Color: Pantone Process Black C 2. Label must be 3M 7818 Label - Mat PET(Taiwan KK) 3. T=0.05mm Silver Polyster 4. Adhesive: 0.025mm Acrylic, 120 C ~ -20 C 5. Release Liner: white Glassine Paper 6. Tolerance: +0.0 / -0.3 NOTICE: Made in Thailand YYDDD SYN1947A / D200 FCC ID: OHH-D200 IC: 109O-D200 Rated: 5V ... 200mA The number will change by every Calcomp produce Ex:"06221" is for 06/Aug/09 Calcomp shipment Cutting Line Black White Made in Thailand YYDDD SYN1947A / D200 FCC ID: OHH-D200 IC: 109O-D200 Rated: 5V ... 200mA Pasting on the back of the housing

Product Label Winda 1:1 PnP Motorola 4321 A A B B C D E 54321876 8 C D E 765 SCALE TOL UNITMMSIGNATUREDATE 1PLC2PLCANGLE 0.10.050.5 + - + - + - MATERIAL MODEL DRAW CHK APPO SIZE A4 DEPT SHEET OF P/N TITLE Cal-Comp Electronics(Thailand) Public Co.,Ltd. CUSTOMER BY BY BY REV 07/01/02 HGPB1947017 38.00 mm 1.65 mm 1 . 6 5 m m 5.50 mm 7 . 9 8 m m 1 4 . 0 0 m m 1. Label Color: Pantone Process Black C 2. Label must be 3M 7818 Label - Mat PET(Taiwan KK) 3. T=0.05mm Silver Polyster 4. Adhesive: 0.025mm Acrylic, 120 C ~ -20 C 5. Release Liner: white Glassine Paper 6. Tolerance: +0.0 / -0.3 NOTICE: Made in Thailand Made in Thailand YYDDD YYDDD SYN1947A / D200 FCC ID: OHH-D200 IC: 109O-D200 Rated: 5V ... 200mA SYN1947A / D200 FCC ID: OHH-D200 IC: 109O-D200 Rated: 5V ... 200mA FONT:Arial FONT SIZE:4 DATE CODE "Date Code" Printing by label vendor by every produce "Date Code" fellow Order List Label vendor need to check the "Date Code" with purchaser before produce The number will change by every Calcomp produce Ex:"06221" is for 06/Aug/09 Calcomp shipment Cutting Line Black White st 1 Version

FCC TEST REPORT Report No. : FR6D1421 SPORTON International Inc. Page Number : B1 OF B3 TEL : 886-2-2696-2468 Report Issued Date : Jan. 22, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : OHH-D200 IC ID : 109O-D200 APPENDIX B. Internal Photographs of EUT 6D1421 FCC TEST REPORT Report No. : FR6D1421 SPORTON International Inc. Page Number : B2 OF B3 TEL : 886-2-2696-2468 Report Issued Date : Jan. 22, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : OHH-D200 IC ID : 109O-D200 6D1421 FCC TEST REPORT Report No. : FR6D1421 SPORTON International Inc. Page Number : B3 OF B3 TEL : 886-2-2696-2468 Report Issued Date : Jan. 22, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : OHH-D200 IC ID : 109O-D200 6D1421

Document No.: 6D1421 RF Exposure Test Report Date: Jan. 25, 2007 FCC ID: OHH-D200 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for MOTOROLA INC. D200 Equipment : Bluetooth Dongle Trade Name : MOTOROLA Model No. : D200 FCC ID : OHH-D200 Filing Type : Certification Applicant : MOTOROLA INC. 600 North US Highway 45, Libertyville, Illinois 60048, USA ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 6D1421 RF Exposure Test Report Date: Jan. 25, 2007 FCC ID: OHH-D200 Sporton International Inc. Maximum Permissible Exposure Test Report for D200 1.0 Introduction The report has been prepared on behalf of MOTOROLA INC. Bluetooth Dongle to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the MOTOROLA INC. D200 is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to Document No.: 6D1421 RF Exposure Test Report Date: Jan. 25, 2007 FCC ID: OHH-D200 Sporton International Inc. exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Bluetooth Dongle is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation For this device, the calculation is as follows: ¾ No Evaluation Required if power is below this threshold: F (GHz) MW dBm 2.48 24.19 13.84 Maximum measured transmitter power for the EUT: Document No.: 6D1421 RF Exposure Test Report Date: Jan. 25, 2007 FCC ID: OHH-D200 Sporton International Inc. Pout (dBm) 8.15 Threshold for no RF Exposure evaluation is 13.84 dBm. Transmitter power of this device is 8.15 dBm Conclustion: No RF Exposure evaluation required since Transmitter Pout is below FCC threshold.

/ IC TEST REPORT Report No. : FD6D1421 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report Version: Rev. 01 FCC TEST REPORT according to 47 CFR Part 15 Subpart B Equipment : Bluetooth Dongle Trade Name : MOTOROLA Model No. : D200 FCC ID : OHH-D200 IC ID : 109O-D200 Filing Type : Declaration of Conformity Applicant : MOTOROLA INC. 600 North US Highway 45, Libertyville, Illinois 60048, USA ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. ‚ Report Version: Rev. 01. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. / IC TEST REPORT Report No. : FD6D1421 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Report Issued Date : Jan. 23, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : OHH-D200 IC ID : 109O-D200 Table of Contents History of this test report....................................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1 Applicant..........................................................................................................................................................................................2 1.2 Manufacturer ...................................................................................................................................................................................2 1.3 Basic Description of Equipment under Test ....................................................................................................................................2 1.4 Feature of Equipment under Test ...................................................................................................................................................3 2. Test Configuration of Equipment under Test ...............................................................................................4 2.1 Test Manner ....................................................................................................................................................................................4 2.2 Description of Test System .............................................................................................................................................................4 2.3 Connection Diagram of Test System ..............................................................................................................................................5 3. Test Software ...................................................................................................................................................6 4. General Information of Test............................................................................................................................7 4.1 Test Facility .....................................................................................................................................................................................7 4.2 Test Voltage ....................................................................................................................................................................................7 4.3 Standard for Methods of Measurement...........................................................................................................................................7 4.4 Test in Compliance with ..................................................................................................................................................................7 4.5 Frequency Range Investigated .......................................................................................................................................................7 4.6 Test Distance ..................................................................................................................................................................................7 5. Test of Conducted Powerline .........................................................................................................................8 5.1 Major Measuring Instruments..........................................................................................................................................................8 5.2 Test Procedures ..............................................................................................................................................................................8 5.3 Typical Test Setup Layout of Conducted Powerline .......................................................................................................................9 5.4 Test Result of AC Powerline Conducted Emission .......................................................................................................................10 5.5 Photographs of Conducted Powerline Test Configuration ............................................................................................................12 6. Test of Radiated Emission............................................................................................................................14 6.1 Major Measuring Instruments........................................................................................................................................................14 6.2 Test Procedures ............................................…

Text truncated - open the document above for the full version.

FCC/IC TEST REPORT Report No. : FR6D1421 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC/IC TEST REPORT for 47 CFR Part 15 Subpart C, IC RSS-210 Equipment : Bluetooth Dongle Trade Name : MOTOROLA Model No. : D200 FCC ID : OHH-D200 IC ID : 109O-D200 Filing Type : Certification Applicant : MOTOROLA INC. 600 North US Highway 45, Libertyville, Illinois 60048, USA ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Jan. 19, 2007 at Sporton International Inc. LAB. ‚ Report No.: FR6D1421, Report Version: Rev. 01. Roy Wu Deputy Manager SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC/IC TEST REPORT Report No. : FR6D1421 SPORTON International Inc. Page No : i TEL : 886-2-2696-2468 Report Issued Date : Jan. 22, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : OHH-D200 IC ID : 109O-D200 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant..................................................................................................................................................1 1.2. Manufacturer ...........................................................................................................................................1 1.3. Basic Description of Equipment under Test ............................................................................................1 1.4. Feature of Equipment under Test ...........................................................................................................1 2. Test Configuration of Equipment under Test ...............................................................................................2 2.1. Test Manner ............................................................................................................................................2 2.2. Test Mode ...............................................................................................................................................2 2.3. Ancillary Equipment List ..........................................................................................................................2 2.4. Connection Diagram of Test System ......................................................................................................2 3. RF Utility ...........................................................................................................................................................3 4. General Information of Test............................................................................................................................4 4.1. Test Voltage ............................................................................................................................................4 4.2. Standard for Methods of Measurement...................................................................................................4 4.3. Test in Compliance with ..........................................................................................................................4 4.4. Frequency Range Investigated ...............................................................................................................4 4.5. Test Distance ..........................................................................................................................................4 5. Report of Measurements and Examinations ................................................................................................5 5.1. List of Measurements and Examinations ................................................................................................5 5.2. Hopping Channel Separation ..................................................................................................................6 5.3. Number of Hopping Frequency .............................................................................................................10 5.5 Dwell Time of Each Frequency .............................................................................................................16 5.6 Output Power ........................................................................................................................................37 5.7 100kHz Bandwidth of Frequency Band Edges.....................................................................................38 5.8 Radiated Emission Measurement .........................................................................................................42 5.9 Antenna Requirements..........................................................................................................................64 6. List of Measuring Equipments Used ...........................................................................................................65 7. Uncertainty Evaluation..................................................................................................................................66 Appendix A. External Product Photograph Appendix B. Internal Photograph Appendix C. Setup Photograph FCC/IC TEST REPORT Report No. : FR6D1421 SPORTON International Inc. Page No : ii TEL : 886-2-2696-2468 Report Issued Date : Jan. 22, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : OHH-D200 IC ID : 109O-D200 History of this test report Report Issue Date: Jan. 22, 2…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : FR6D1421 SPORTON International Inc. Page No. : C1 of C1 TEL : 886-2-2696-2468 Report Issued Date : Jan. 22, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : OHH-D200 IC ID : 109O-D200 Radiation Emission Mode 1~3 FRONT VIEW REAR VIEW 6D1421 6D1421 Appendix C. Set up Photograph
