OHH-H605Bluetooth Headset

Important Safety and Legal Information > 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc., 2005. Manual Number: 6809494A55-O 3 The information contained in Motorola's user's guides is believed to be correct at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice. The contents of Motorola’s user manuals are provided “as is.” Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability, or contents of this document. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software 4 contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Contents 5 Contents Safety Information . . . . . . . . . . . . . . 6 Warranty . . . . . . . . . . . . . . . . . . . . . 11 Export Law Assurances . . . . . . . . . 22 Wireless Phone Safety Tips . . . . . . 23 6 Safety Information Safety and General Information Safety Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR DEVICE. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). Safety Information 7 Electromagnetic Interference/Compatibility Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. Facilities To avoid electromagnetic interference and/or compatibility conflicts, turn off your device in any facility where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your device when on board an aircraft. Any use of a device must be in accordance with applicable regulations per airline crew instructions. 8 Safety Information Medical Devices Hearing Aids Some devices may interfere with some hearing aids. In the event of such interference, you may want to consult with your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. Industry Canada Notice to Users Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device Ref IC RSS 210 Sec. 5.11. The term “IC:” before the Safety Information 9 certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. See Ref IC Self-Marking 6(f) and RSP-100 Sec. 4. FCC Notice to Users This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be 10 Safety Information determined by turning the equipment off andon, the user is encouragedto try to correct the interference byone or more of the following meas ures : •Reorient or relocate the receiving antenna. •Increase the separationbetweenthe equipment and the receiver. •Connecttheequipmenttoanoutletona circuit different fromthat to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exp…

Text truncated - open the document above for the full version.

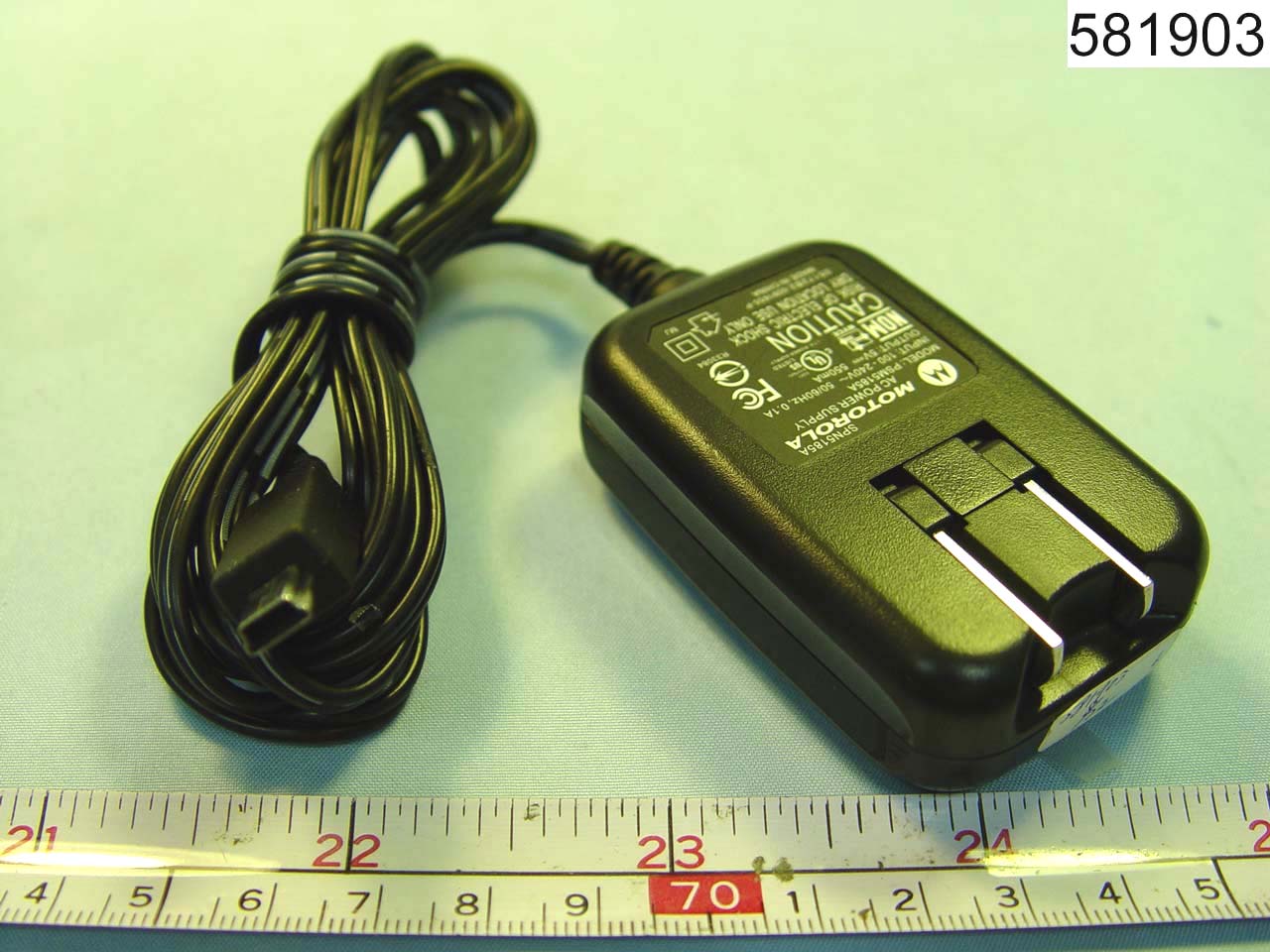

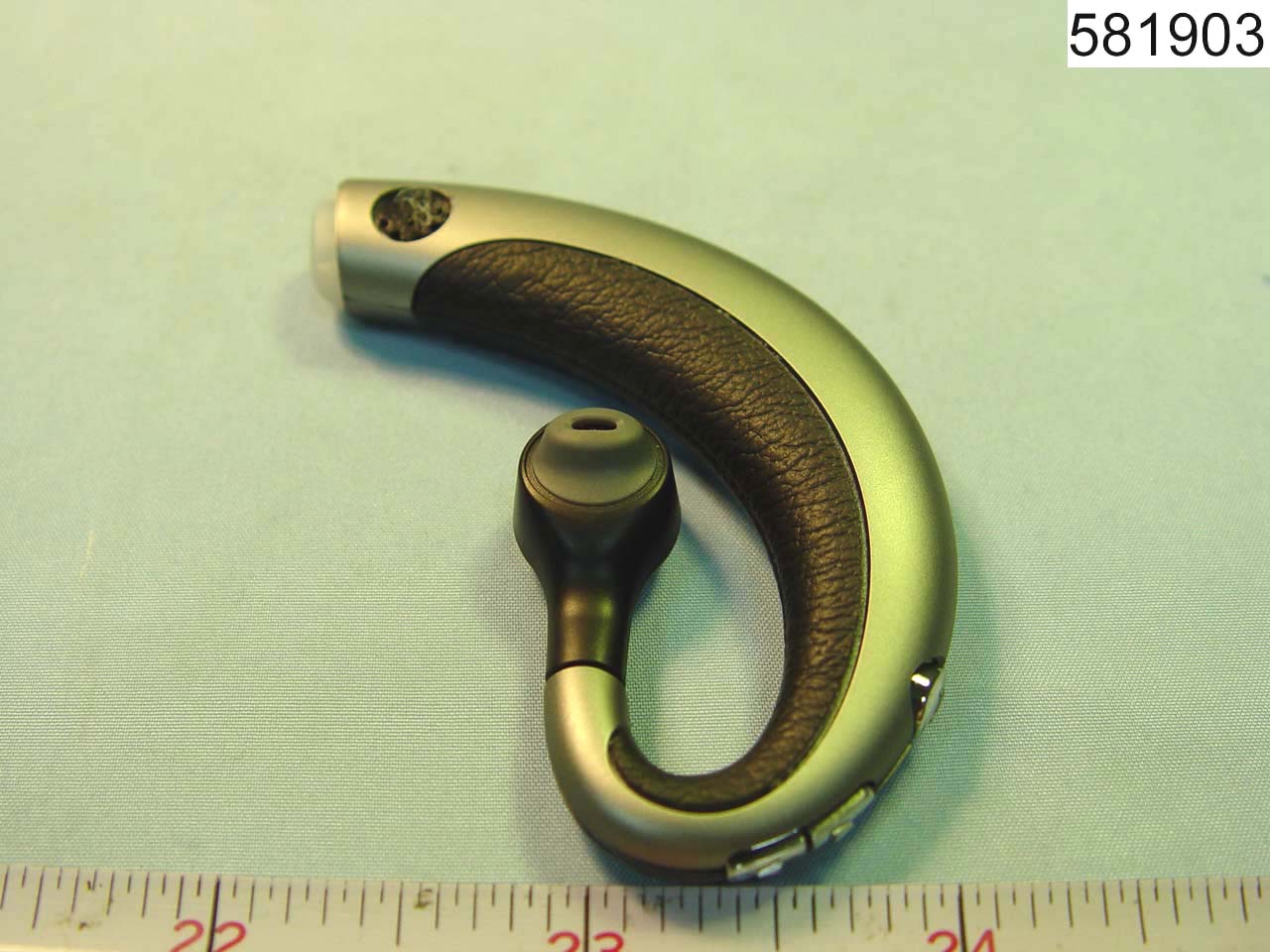

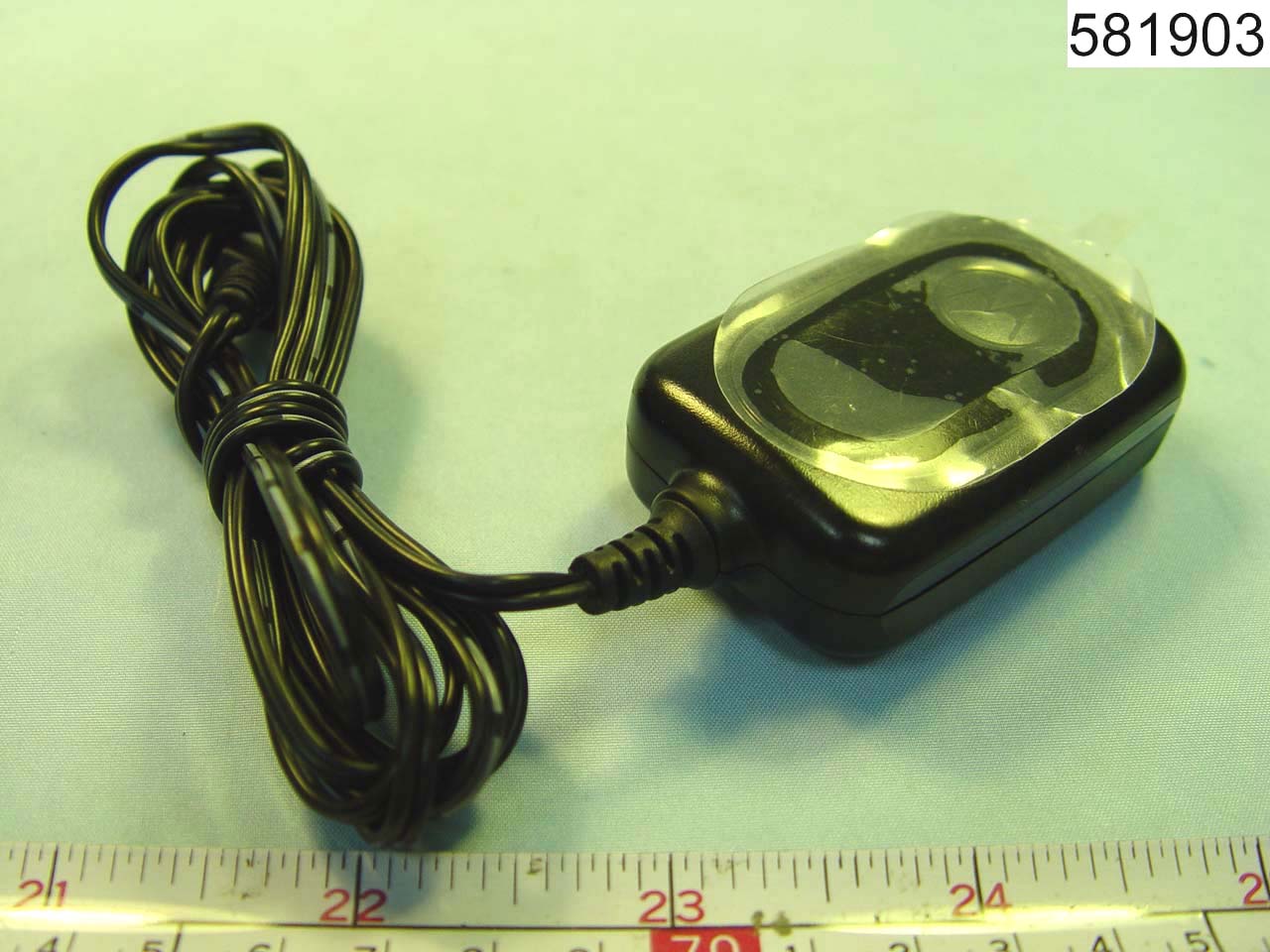

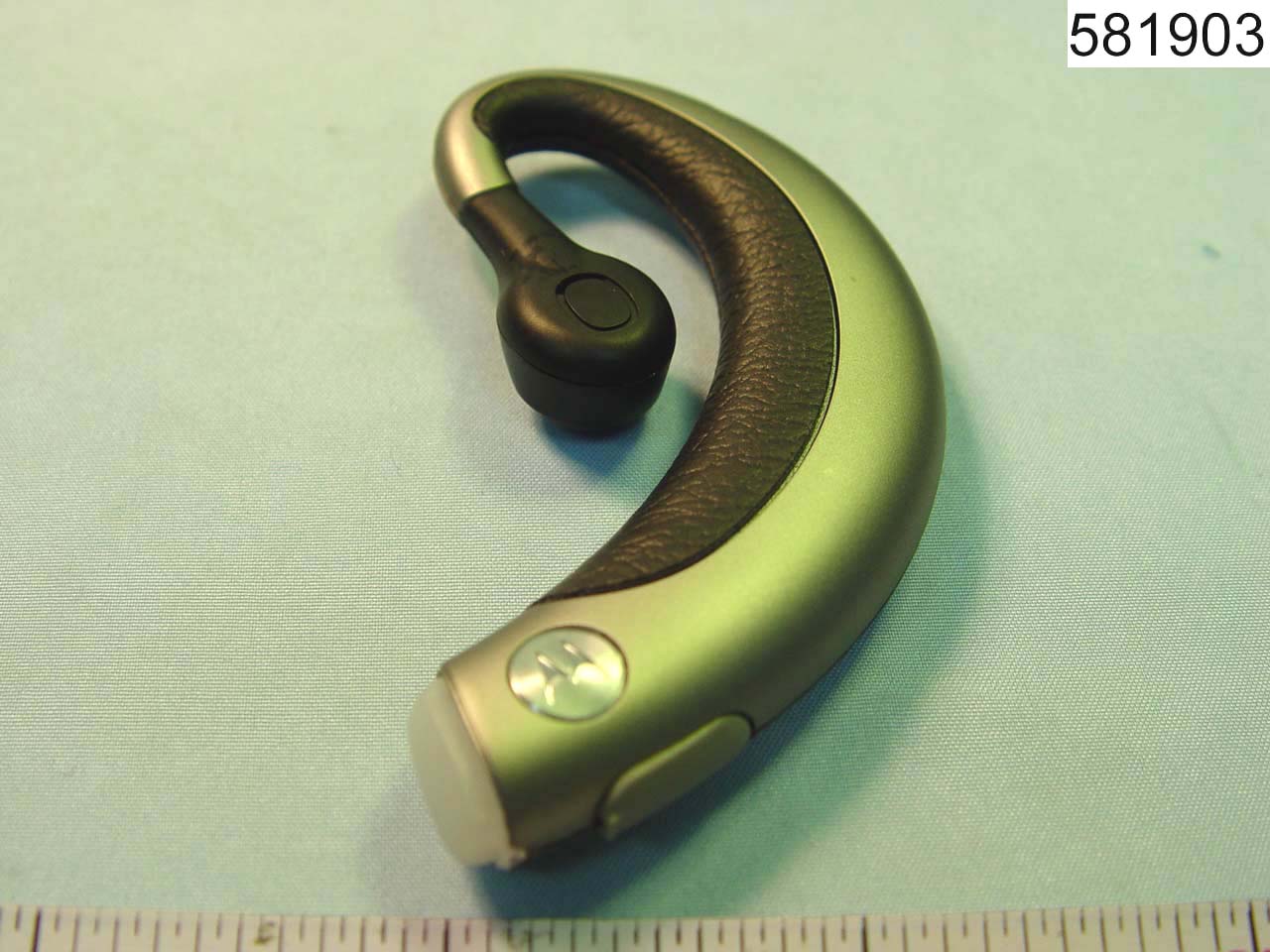

FCC TEST REPORT REPORT NO. : FR581903 SPORTON International Inc. Page Number : A1 OF A5 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01 APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : FR581903 SPORTON International Inc. Page Number : A2 OF A5 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581903 SPORTON International Inc. Page Number : A3 OF A5 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581903 SPORTON International Inc. Page Number : A4 OF A5 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581903 SPORTON International Inc. Page Number : A5 OF A5 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01

0.3mm 0.6mm 0.6mm 0.6mm 0.5mm 23.65mm FCC ID: N136 IC: 109O-H605 SYN1303A / H605 LPXXXXXXXXXXXXX OHH-H605 05/08/31 SCALE:1:1 0.3mm 0.6mm 0.6mm 0.6mm 0.5mm 23.65mm FCC ID: N136 IC: 109O-H605 SYN1303A / H605 LPXXXXXXXXXXXXX OHH-H605

FCC TEST REPORT REPORT NO. : FR581903 SPORTON International Inc. Page Number : B1 OF B4 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : FR581903 SPORTON International Inc. Page Number : B2 OF B4 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581903 SPORTON International Inc. Page Number : B3 OF B4 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581903 SPORTON International Inc. Page Number : B4 OF B4 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01

Document No.: 581903 RF Exposure Test Report Date: Sep. 20, 2005 FCC ID: OHH-H605 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Motorola Inc. H605 Equipment : Bluetooth headset Trade Name : Motorola Model No. : H605 FCC ID : OHH-H605 Filing Type : Certification Applicant : Motorola Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048 U.S.A. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 581903 RF Exposure Test Report Date: Sep. 20, 2005 FCC ID: OHH-H605 Sporton International Inc. Maximum Permissible Exposure Test Report for H605 1.0 Introduction The report has been prepared on behalf of Motorola Inc. Bluetooth headset to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Motorola Corporation Indoor UWB Device with unity gain antenna is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to Document No.: 581903 RF Exposure Test Report Date: Sep. 20, 2005 FCC ID: OHH-H605 Sporton International Inc. exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Bluetooth headset is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation For this device, the calculation is as follows: ¾ No Evaluation Required if power is below this threshold: F (GHz) MW dBm 2.48 24.19 13.84 Maximum measured transmitter power for the EUT: Document No.: 581903 RF Exposure Test Report Date: Sep. 20, 2005 FCC ID: OHH-H605 Sporton International Inc. Pout (dBm) 3.76 Threshold for no RF Exposure evaluation is 13.84 dBm. Transmitter power of this device is 3.76 dBm Conclustion: No RF Exposure evaluation required since Transmitter Pout is below FCC threshold.

FCC TEST REPORT Report No. : FR581903 SPORTON International Inc. FCC ID. : OHH-H605 TEL : 886-2-2696-2468 IC ID : 109O-H605 FAX : 886-2-2696-2255 Page No. : i Report Issued Date : Sep. 15, 2005 Rev. 01 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant..................................................................................................................................................1 1.2. Manufacturer ...........................................................................................................................................1 1.3. Basic Description of Equipment under Test ............................................................................................1 1.4. Feature of Equipment under Test ...........................................................................................................1 2. Test Configuration of Equipment under Test ...............................................................................................2 2.1. Test Manner ............................................................................................................................................2 2.2. Test Mode ...............................................................................................................................................2 2.3. Connection Diagram of Test System ......................................................................................................3 2.4. Ancillary Equipment List ..........................................................................................................................3 3. RF Utility ...........................................................................................................................................................4 4. General Information of Test............................................................................................................................5 4.1. Test Voltage ............................................................................................................................................5 4.2. Standard for Methods of Measurement...................................................................................................5 4.3. Test in Compliance with ..........................................................................................................................5 4.4. Frequency Range Investigated ...............................................................................................................5 4.5. Test Distance ..........................................................................................................................................5 5. Report of Measurements and Examinations ................................................................................................6 5.1. List of Measurements and Examinations ................................................................................................6 5.2. Hopping Channel Separation ..................................................................................................................7 5.3. Number of Hopping Frequency .............................................................................................................11 5.5 Dwell Time of Each Frequency within a 30 Seconds Period ................................................................17 5.6 Output Power ........................................................................................................................................37 5.7 100kHz Bandwidth of Frequency Band Edges .....................................................................................41 5.8 Conducted Emission .............................................................................................................................45 5.9 Radiated Emission Measurement .........................................................................................................48 5.10 Antenna Requirements........................................................................................................................54 6. List of Measuring Equipments Used ...........................................................................................................55 7. Uncertainty Evaluation..................................................................................................................................56 Appendix A. External Product Photograph Appendix B. Internal Photograph Appendix C. Setup Photograph FCC TEST REPORT Report No. : FR581903 SPORTON International Inc. FCC ID. : OHH-H605 TEL : 886-2-2696-2468 IC ID : 109O-H605 FAX : 886-2-2696-2255 Page No. : ii Report Issued Date : Sep. 15, 2005 Rev. 01 History of this test report Report No.: FR581903 Report Issue Date: Sep. 15, 2005 Original Report Issue Date Description FCC TEST REPORT Report No. : FR581903 SPORTON International Inc. FCC ID. : OHH-H605 TEL : 886-2-2696-2468 IC ID : 109O-H605 FAX : 886-2-2696-2255 Page No. : 1 of 57 Report Issued Date : Sep. 15, 2005 Rev. 01 1. General Description of Equipment under Test 1.1. Applicant Motorola Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048 U.S.A. 1.2. Manufacturer CAL-COMP ELECTRONICS & COMMUNICATIONS COMPANY LIMITED 3F, No. 205, Sec. 3, Beision Rd., Sindian City, Taipei County 231, Taiwan 1.3. Basic Description of Equipment under Test Equipment : Bluetooth headset Trade Name : Motorola Model No. : H605 FCC ID : OHH-H605 IC ID : 109O-H605 Power Supply Type : Switching AC Power Cord : AC 120V, Non-Shielded, Wall-mount, 1.8 meter, 2 pin 1.4. Feature of Equipment under Test Product Feature & Specification 1. Modulation Type/Data Rate GFSK 2. Frequency Range. 2400 …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : FR581903 SPORTON International Inc. Page No. : C1 of C3 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01 Conducted Emission FRONT VIEW REAR VIEW Appendix C. Set up Photograph FCC TEST REPORT Report No. : FR581903 SPORTON International Inc. Page No. : C2 of C3 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01 SIDE VIEW FCC TEST REPORT Report No. : FR581903 SPORTON International Inc. Page No. : C3 of C3 TEL : 886-2-2696-2468 Report Issued Date : Sep. 15, 2005 FAX : 886-2-2696-2255 Rev. 01 Radiation Emission FRONT VIEW REAR VIEW
