OI4XMTR12BTwelve Command Remote Control Transmitter

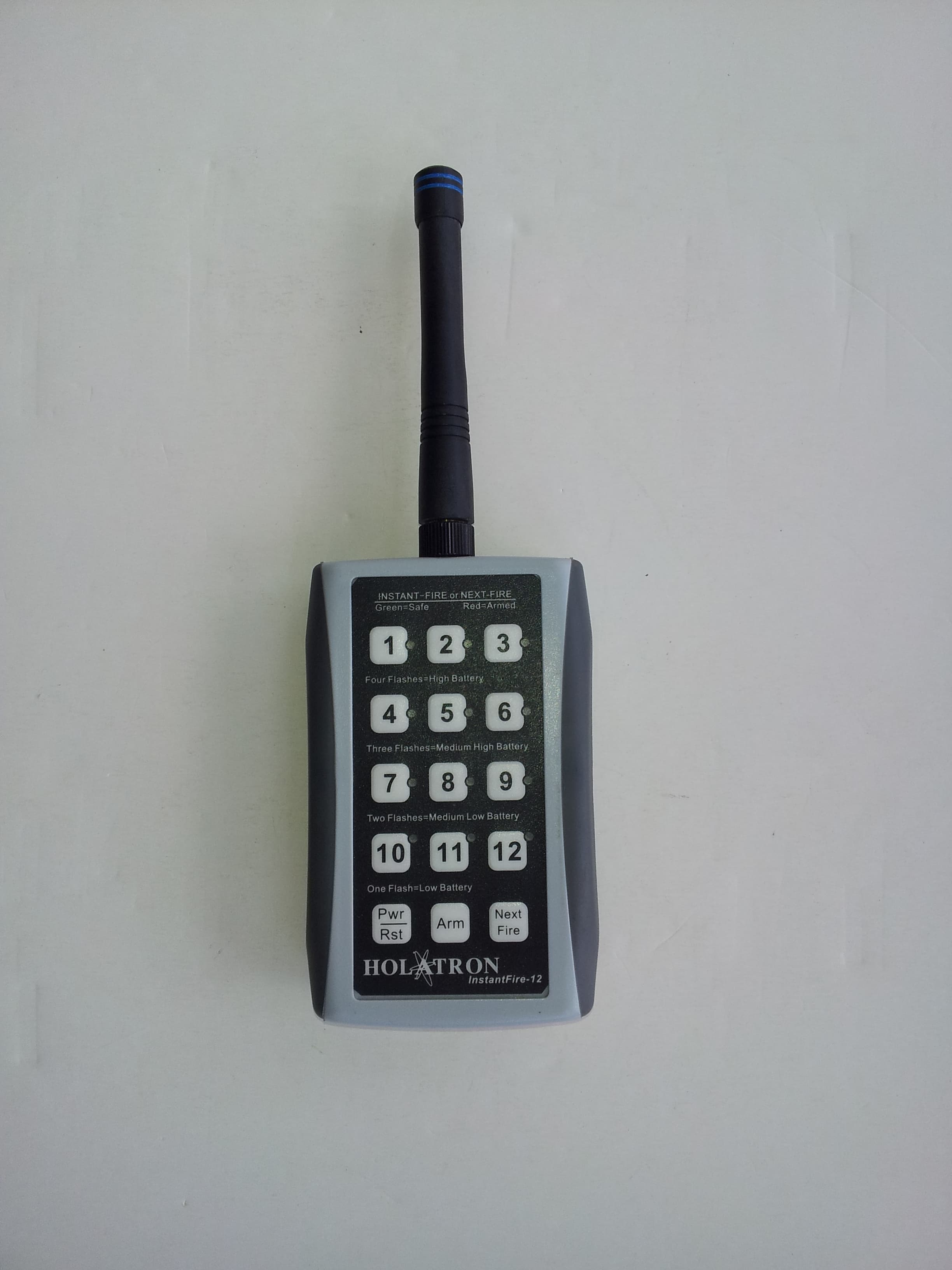

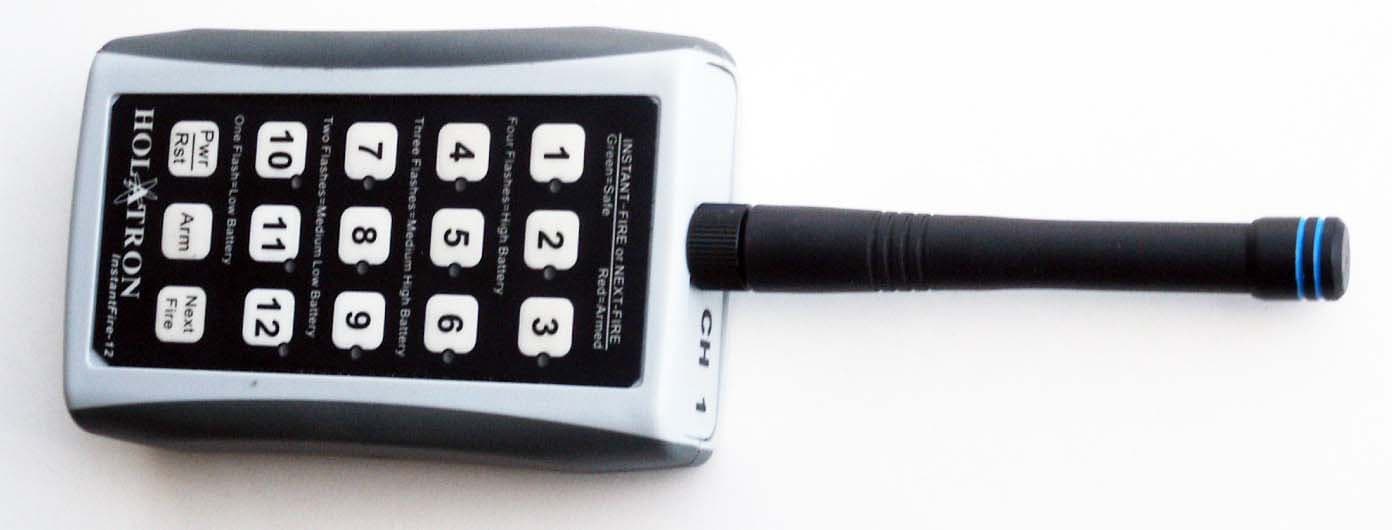

OPERATION & MAINTENANCE GUIDE - InstantFire-12B High-speed 12-shot Controller HOLATRON SYSTEMS, LLC 833 ILANIWAI ST, STE. 2 Honolulu, HI 96813 (808) 372-0956 www.holatron.com 2 of 11 WARNING Holatron Systems specializes in the design and manufacture of standard and custom electronic control systems where reliability and error free data communication are critical. The transmitter described in this manual is part of a system intended to remotely actuate pyrotechnic or other hazardous devices, and the components of this system have been carefully designed to minimize the possibility of accidental actuation of such devices. Holatron’s design goal is to ensure that data communication errors due to radio interference or to insufficient signal strength due to low battery, exceeding specified range, or conductive objects in the signal path will result in failure of intentional actuation rather than unintended actuation. Techniques used to achieve this design goal are described in section 2.0. Though the probability of unintended actuation is extremely small, it cannot be guaranteed to be zero. It is also possible that an unexpected actuation can occur if another Holatron transmitter set to the same digital channel and system code is being operated in the vicinity. Therefore, it is important that the user not enable (arm) the receiver until all persons who might be harmed by accidental actuation are in a safe area. Equipment that has been damaged or contaminated internally with water or other substances could be hazardous to operate, and it could generate an unintended actuation. The user must consult with Holatron Systems before continuing use of such equipment. As a condition of purchase, the user must acknowledge awareness and agreement that utilization of this product and participation in activities utilizing compressed gas, fireworks, rockets, explosives, etc. is an ultra-hazardous activity carrying implied and explicit risks of injuries and damages to the user and to other participants. The user assumes the risk connected with the utilization of this product and all risks of participation in the activities for which this product is sold. User acknowledges that he/she/it has the necessary and required skill, expertise, training and licensing, as may be applicable or necessary by custom, usage, trade or law, to engage and participate in the ultra-hazardous activities connected with the use, purchase, transportation, or employment of the products sold under this agreement. User acknowledges that Holatron Systems, LLC, has not and will not conduct any investigation into the skill, expertise, training and licensing, as may be applicable or necessary by custom, usage, trade or law, of the user or of user’s agents, employees and assigns, to engage and participate in the ultra-hazardous activities connected with the use, purchase, transportation, or employment of this product. User specifically agrees that Holatron Systems, LLC, its officers, employees, and agents shall not be liable for any claim, demand, cause of action of any kind whatsoever for, or on account of death, personal injury, property damage or loss of any kind resulting from or related to user’s or user’s employees’, agents’ or assigns’ use of this product, and user agrees to indemnify, defend in any action at law, and hold harmless Holatron Systems, LLC, from same, whether brought by the user, user’s agent, or assigns, or any third party. 3 of 11 INFORMATION TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested, assigned FCC ID number OI4XMTR12B, and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. · Reorient or relocate the receiving antenna · Increase the separation between the equipment and receiver · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected · Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Les changements ou modifications non approuvés expressément par la partie responsable de la conformité pourrait annuler l'autorité de l'utilisateur à faire fonctionner l'équipement.. This device also complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This radio transmitter 11556A-XMTR12B has been approved by Industry Canada to operate with the antenna types listed below wi…

Text truncated - open the document above for the full version.

15 April 2014 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification FCC ID: OI4XMTR12B Authority to Act as Agent On our behalf, I appoint Alan Laudani of Nemko USA Inc., 2210 Faraday Ave, STE 150, Carlsbad, CA, USA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communication Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Holatron Systems LLC, 833 ILANIWAI ST., Ste 2, Honolulu, HI 96813, expiring 1 June 2014. Sincerely, Charles R. Holdaway, Chief Executive Officer Holatron Systems LLC Holatron Systems LLC 833 Ilaniwai St., Ste. 2, Honolulu, HI 96813 Phone: 808-372-0956 | Fax: 808-732-5419 [email protected] | www.holatron.com SAFE AND RELIABLE WIRELESS ACTUATION SYSTEMS

15 April 2014 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification FCC ID: OI4XMTR12B Request For Confidentiality Pursuant to Sections 0.457(d)(I)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Parts List, Operating Description, Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(I)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Charles R. Holdaway, Chief Executive Officer Holatron Systems LLC Holatron Systems LLC 833 Ilaniwai St., Ste. 2, Honolulu, HI 96813 Phone: 808-372-0956 | Fax: 808-732-5419 [email protected] | www.holatron.com SAFE AND RELIABLE WIRELESS ACTUATION SYSTEMS

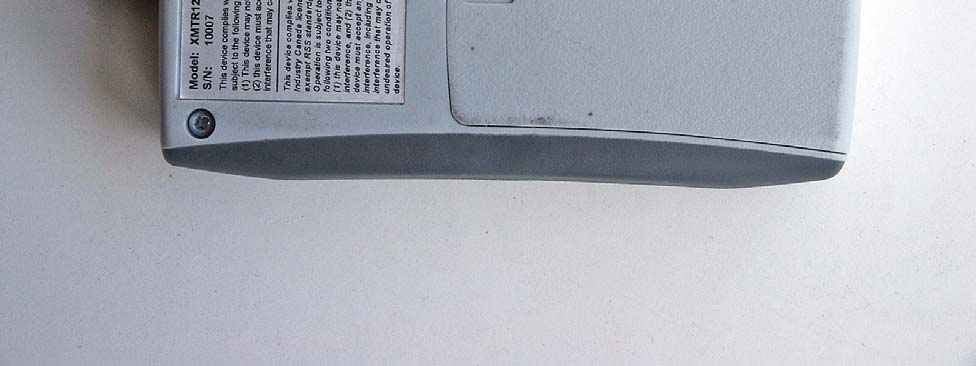

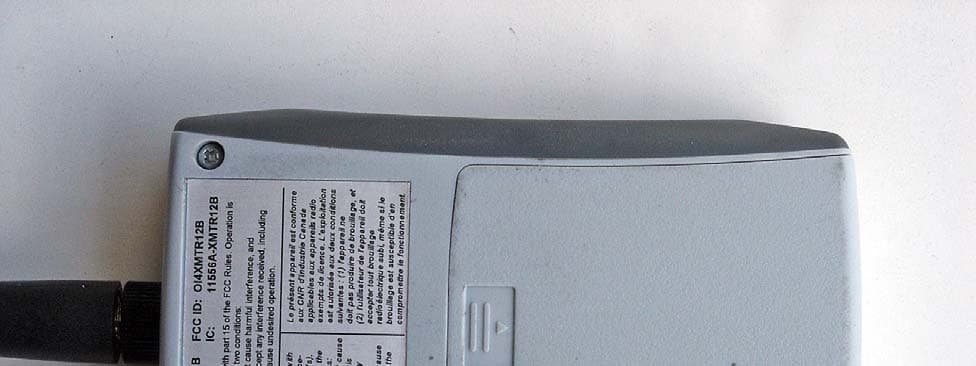

FCC ID: OI4XMTR12BIC: 11556A-XMTR12B 1.730 " 1.355 " DCBA 4 3 2 1 DCBA 4 3 2 1 Holatron Systems LLC833 ILANIWAI ST., STE. 2Honolulu, HI 96813808-372-0956www.holatron.com SIZE FSCM NO DWG NO REV A XMTR12B_FCC_LABEL A SCALE 1 : 1 SHEET 1 OF 1 DATE 3/28/14 REV. DESCRIPTION DATE BY DRAWN BY C. HOLDAWAY 3/23/14 DESCRIPTION Artwork - FCC/IC Label for XMTR12B Transmitter Location of labelon rear panelLabel Artwork(scale to dimensions shown) This device complies with part 15 of the FCC Rules. Operation issubject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, includinginterference that may cause undesired operation. NOTES: UNLESS OTHERWISE SPECIFIED 1. Label material - black text on bright metallic, self-adhesive, tamper resistant per HME #371-G089.2. Upper left 5 digit S/N number is to be serialized, starting with 10001. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Model: XMTR12BS/N: 10001This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Nemko Test Report: 2014 04244501 FCC Applicant: Holatron Systems 833 Ilaniwai St.,Ste 2 Honolulu HI 96813 United States Equipment Under Test: XMTR12B (E.U.T.) FCC Identifier: OI4XMTR12B IC: 11556A-XMTR12B In Accordance With: FCC Part 15, Subpart C and Industry Canada RSS-210, Issue 8 For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By: Nemko USA Inc. 2210 Faraday Ave. Suite 150 Carlsbad, CA 92008 TESTED BY: DATE: 1 April 2014 David Light, Wireless Engineer APPROVED BY: DATE: 15 April 2014 Alan Laudani Senior RF/EMC Engineer Total Number of Pages: 14 Nemko USA, Inc. FCC Part 15, Subpart C and Industry Canada RSS-210, Issue 8 PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: XMTR12B REPORT NO.:2014 04244501 FCC Page 2 of 14 TABLE OF CONTENTS SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. EQUIPMENT UNDER TEST (E.U.T.) 5 SECTION 3. TRANSMISSION REQUIREMENTS 8 SECTION 4. RADIATED EMISSIONS 10 SECTION 5. OCCUPIED BANDWIDTH 13 ANNEX A - RESTRICTED BANDS 14 Nemko USA, Inc. FCC Part 15, Subpart C and Industry Canada RSS-210, Issue 8 PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: XMTR12B REPORT NO.:2014 04244501 FCC Page 3 of 14 Section 1. Summary of Test Results Manufacturer: Holatron Systems Model No.: XMTR12B Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR47 Part 15, Subpart C, Paragraph 15.231 and Industry Canada RSS-210, Issue 8. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC and Industry Canada. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP Lab Code 200116-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC Part 15, Subpart C and Industry Canada RSS-210, Issue 8 PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: XMTR12B REPORT NO.:2014 04244501 FCC Page 4 of 14 Summary of Test Data Name of Test Paragraph No. Results Transmission Requirements FCC 15.231(a) RSS-210 A1.1.1 Complies Radiated Emissions FCC 15.231(b) RSS-210 A1.1.2 Complies Occupied Bandwidth FCC15.231(c) RSS-210 A1.1.3 Complies Frequency Tolerance FCC 15.231(d) RSS-210 A1.1.4 NA Alternate Field Strength Requirements FCC 15.231(e) RSS-210 A1.1.5 NA Powerline Conducted Emissions FCC 15.207 RSS-Gen 7.2.4 NA Footnotes: 1) The device does not operate between 40.66 to 40.70 MHz 2) The device does not operate at a periodic rate. 3) The device is battery powered. Nemko USA, Inc. FCC Part 15, Subpart C and Industry Canada RSS-210, Issue 8 PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: XMTR12B REPORT NO.:2014 04244501 FCC Page 5 of 14 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Range: 418 MHz Operating Frequency(ies) of Sample: 418 MHz Type of Emission: ASK Supply Power Requirement: 3 Vdc (2 AAA batteries) Integral Antenna: No Antenna Connector: R-SMA Nemko USA, Inc. FCC Part 15, Subpart C and Industry Canada RSS-210, Issue 8 PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: XMTR12B REPORT NO.:2014 04244501 FCC Page 6 of 14 Modifications A 2.2k Ω resistor was substituted for the 750Ω resistor at R31 to reduce power output for compliance. Nemko USA, Inc. FCC Part 15, Subpart C and Industry Canada RSS-210, Issue 8 PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: XMTR12B REPORT NO.:2014 04244501 FCC Page 7 of 14 Description of E.U.T. The model XMTR12B high-speed 12-shot controller is a low power hand-held remote control transmitter which can transmit commands over any of twelve different digital channels. Each transmitter’s channel setting is fixed in software at time of manufacture and cannot be changed. A label displaying the channel setting is affixed to the top of the transmitter next to the antenna. Transmitters fixed to separate digital channel numbers can transmit simultaneously without interfering with each other. This permits up to twelve different receivers or groups of receivers to be controlled by separate transmitters simultaneously. The transmitter will only actuate receivers whose digital channel switches are set to select the same channel as the transmitter. System Diagram Nemko USA, Inc. FCC Part 15, Subpart C and Industry Canada RSS-210, Issue 8 PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: XMTR12B REPORT NO.:2014 04244501 FCC Page 8 of 14 Section 3. Transmission Requirements NAME OF TEST: Transmission Requirements PARA. NO.: FCC 15.231(a) RSS-210 A1.1.1 TESTED BY: David Light DATE: 01 April 2014 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regula…
