OIBKWL-210WLAN PCMCIA Card

KAI-LINK Wireless LAN KWL-210(PCMCIA card) KWL-220(USB adapter) User’s Guide Page 1 Contents 1 Introduction ....................................................................................... 2 1.1 Package Contents ........................................................................................................ 3 1.2 System Requirements ................................................................................................. 3 1.3 Firmware Features...................................................................................................... 3 1.4 Driver Features ........................................................................................................... 4 2 Quick Installation .............................................................................. 5 3 Installation Procedures Under Windows/95/98/Me/2000 ............... 7 3.1 Installing the Application and Drivers Under Windows 95/98/2000...................... 7 3.2 Uninstall Procedure Under Windows 95/98/Me..................................................... 14 3.3 Uninstall Procedure Under Windows 2000............................................................. 14 4 Installation Procedures Under Windows NT 4.0 .......................... 16 4.1 Installing the Driver Under Windows NT 4.0 ........................................................ 16 4.2 Configuration Under Windows NT 4.0 ................................................................... 17 4.3 Uninstall Procedure Under Windows NT 4.0 ......................................................... 17 5 Configuration & Monitor Utility...................................................... 19 5.1 How to Install the Configuration & Monitor Utility ............................................. 19 5.2 Using the Configuration & Monitor Utility............................................................ 20 5.3 How to Uninstall the Configuration & Monitor Utility......................................... 27 6 Warranty & Contact US........................................................28 Page 2 1 Introduction The KAI-LINK KWL-210/220 is a Wireless LAN Card with a rate of 1, 2, 5.5, and 11 Mbps operating in the ISM band using Direct Sequence Spread Spectrum (DSSS) transmission, implementing the IEEE 802.11b standard. For these card KAI-LINK currently provides Device Drivers for MS Windows® 95/98/2000, Windows® NT 4.0,and Windows CE. Linux Drivers will be supported soon. KAI-LINK also provides tools for the configuration and firmware upgrade of the cards. These tools, as well as the installation procedure for the MS Windows 95/98/2000, MS Windows® NT4.0, operating systems are described in this document. Two pieces of software are needed, in order to install the adapter in a PCMCIA card or USB adapter slot of a PC and operate under an operating system. The first one is the driver, which provides the necessary mechanisms to the operating system in order to use the adapter as any other networking adapters. The driver communicates with the firmware using exchange of commands (Set MIB, Get MIB, Scan, Sync, etc.). The other piece of software needed is the code written on the MAC chip, which is responsible for the implementation of the IEEE 802.11b, and for the interface with driver. Page 3 1.1 Package Contents Before you do anything, open your package and verify it includes: z A KAI-LINK KWL-210 / 220 Wireless LAN Card z Firmware, Drivers, User Guide, and Software Tools CD 1.2 System Requirements z Operating System: MS Windows 95/98/2000, Windows NT 4.0 with Service Pack 4 or later z Desktop PC or notebook PC with CD-ROM drive z SA to PCMCIA or PCI to PCMCIA controller in case of desktop PC (For KAI-LINK KWL-210) z PCMCIA Type II or Type III card slot in case of notebook pc z USB 1.1 (For KAI-link KWL-220) Note: Your PCMCIA controller must support 3.3V PC cards. Some old PCs may not support 3.3V cards. 1.3 Firmware Features The IEEE 802.11b firmware supports: – Distributed Coordination Function CSMA/CA Backoff Procedure NAV Management ACK Procedure Retransmission of unacknowledged frames – RTS/CTS Handshake – Duplicate Detection and Recovery – Beacon Generation (ad-hoc mode) – Probe Response (ad-hoc mode) Page 4 – Fragmentation and Reassembly – Wired Equivalent Privacy Algorithm (WEP-40 bits) – Authentication Algorithm (Open System, Shared Key) – Auto Rate Fallback – TSF synchronization – Short Preamble 1.4 Driver Features The drivers for the KWL-210/220 Wireless LAN Card support: – Roaming – Preferred AP – Dynamic configuration – Site Survey – Preamble Type detection – Firmware Upgrade Page 5 2 Quick Installation This section provides a quick step by step guide on how to install your KWL-210/220 Wireless LAN Card. Please follow the steps described below and refer to the appropriate sections for further details: z Power on the computer z Please make sure that you don’t insert your PCMCIA /USB adapter yet. z Install the drivers and application: Insert the given Installation CD into your CD-Rom drive. Select the Utilities & Drivers folder. Locate the executable file “setup.exe” and double click it. Follow the installation instructions from the InstallShield Wizard by pressing the “Next” button. Choose the appropriate of installation, according to your needs, (Application Only, Application & PCMCIA Drivers, Application & USB Drivers or Application & PCMCIA & USB Drivers). Provide the destination path of where the application will be installed. To set the path of your choice select Browse and then Next. Choose the Mode of Operation (Ad-Hoc or Infrastructure) In Ad-Hoc Mode, set the same ESSID for all participants station, and choose the channel of operation. In Infrastructure Mode , set the ESSID to be the same with the ESSID of the AP to which you will be associated with. Confirm the current settings of ESSID, Network Mode and Utility directory and click Next. Finish the installation. z Insert your PCMCIA card or USB adapter. Page 6 z The “ Add New Hard…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 14, 2002 RE: Kai-Link Corporation FCC ID: OIBKWL-210 I have a few comments on this Application. 1.) Please provide a sample of the Label for this device. 2.) Please include the two-part label statement as described in 47CFR 15.19(a)(3) on the device. 3.) Please provide Information to User as described in 15.21 within the manual. 4.) The RF Exposure report quotes a safe MPE distance of 20cm. This is not appropriate for PCMCIA cards with built in integral antennas. Please note the correct MPE distance should be 2.5cm. Since the RF Exposure Evaluation is included inside the Test Report, please be sure to also correct this also. 5.) There is no RF Exposure information included in Manual. Please correct manual to show MPE distance and prohibition from co-location. 6.) Form 731 shows an upper frequency range of 2463MHz. With your permission, this will be changed to the standard 802.11 Ch. 11 frequency of 2462MHz. 7.) FYI: The FCC has eliminated the Processing Gain requirement for all 15.247 Spread Spectrum devices. A copy of this notice is attached to this email. 8.) Was the equipment rotated about three orthogonal planes for finding of maximum radiated emissions as required in ANSI C63.4? 9.) The Confidentiality Request covers only the Schematics. Please confirm that the Block Diagram is not considered Confidential by the Applicant as well. 10.) There is no radiated data showing compliance with the restricted bands provision of 15.205 especially the band below 2390MHz, and above 2483.5MHz. Both peak and average readings should be shown. I look forward to your response. Sincerely. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 25, 2002 RE: Kai-Link Corporation FCC ID: OIBKWL-210 I have a few comments on this Application. 1.) Please provide Information to User as described in 15.21 within the manual. 2.) The RF Exposure report quotes a safe MPE distance of 2.5cm. However, there continues to be no prohibition from co-location of other transmitters or antennas as required by the Rules. Please add this to the Manual 3.) FYI: Radiated data showing compliance with the restricted bands provision of 15.205 especially the band below 2390MHz, and above 2483.5MHz must be done in both peak and average modes. Unless compliance can be demonstrated exclusively with Peak settings [1MHz RBW/1MHzVBW], average readings [1MHzRBW, 10HzVBW] will be required. It is recommended practice that average readings always be taken with peak during radiated band edge tests above 1GHz. I look forward to your response. Sincerely. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Report No.: 022H015FI Page : 1 of 1 Version : 1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

鍇聯股份有限公司 KAI-LINK CORPORATION LTD. FCC ID.: OIBKWL-210 No.13-1, Chung Hwa Road, Hsin-Chu Industrial District, Hsin-Chu, 303, Taiwan, R.O.C. Tel: 886 3 597 2050 Fax: 886 3 597 2715 LabelLoc The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. WLAN PCMCIA CARD Model No.: KWL-210 F F C C C C I I D D : : O O I I B B K K W W L L - - 2 2 1 1 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan FCC DoC: KAI-LINK CORPORATION LTD. Model No.: KWL-210 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan

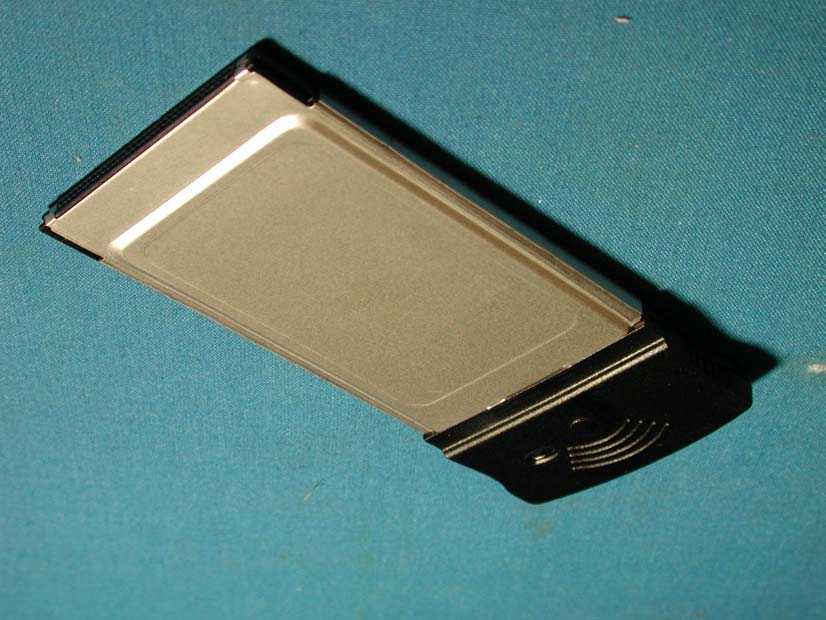

Report No.: 022H015FI Page : 1 of 4 Version : 1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 022H015FI Page : 2 of 4 Version : 1.0 (3) EUT Photo Report No.: 022H015FI Page : 3 of 4 Version : 1.0 (4) EUT Photo Report No.: 022H015FI Page : 4 of 4 Version : 1.0 (5) EUT Photo

1.1. EUT Description EUT is a WLAN PCMCIA CARD with 11 Channels. This device provided four kind of transmitting Speed 1, 2, 5.5 and 11Mbps. The device of RF Carrier is DBPSK modulation for transmitting Speed 1Mbps, DQPSK modulation for transmitting Speed 2Mbps and CCK modulation for transmitting Speed 5.5Mbps and 11Mbps. The device was adapted direct sequence Speed Spectrum modulation. The antenna was printed on the PCB directly provides diversity function to improve the transmitting and receiving function. The PCMCIA Interface provides the connection to PC for data transmissions data can be transmitted by the radio signal connect to the local network.

Report No. 022H015FI Page : 14 of 77 Version:1.0 4. RF Exposure Evaluation According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz 4.1. Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 4.2. EUT Operation condition A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Report No. 022H015FI Page : 15 of 77 Version:1.0 4.3. Test Result of RF Exposure Evaluation Product : WLAN PCMCIA CARD Test Item : RF Exposure Evaluation Data Test Site : No.1 OATS Test Mode : Normal Operation 4.3.1 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.6dBi or 1.45in linear scale. 4.3.2 Output Power Into Antenna & RF Exposure Evaluation Distance Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Minimum Allowable Distance ® From Skin(cm) 1 (1Mbps) 2412 11.83 0.99 1 (11Mbps) 2412 10.81 0.88 6 (1Mbps) 2436 12.82 1.10 6 (11Mbps) 2436 12.16 1.02 11 (1Mbps) 2461 12.90 1.11 11 (11Mbps) 2461 12.87 1.11 The distance r (4 th column) calculated from the Friis transmission formula is far shorter than 2.5 cm separation requirement. So, RF exposure limit warning or SAR test are not required.

Report No. 022H015FI Page : 1 of 77 Version:1.0 Test Report Product Name : WLAN PCMCIA CARD Model No. : KWL-210 FCC ID.: OIBKWL-210 Applicant : KAI-LINK CORPORATION LTD. Address : No.13-1, Chung Hwa Road, Hsin-Chu Industrial District, Hsin-Chu, 303, Taiwan, R.O.C. Date of Receipt : Jan.30, 2002 Date of Test : Feb.04, 2001 Report No. : 022H015FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 022H015FI Page : 3 of 77 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. EUT Description............................................................................................................................5 1.3. Configuration of tested System .....................................................................................................7 1.4. EUT Exercise Software .................................................................................................................7 1.5. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment List.......................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................12 3.1. Test Equipment............................................................................................................................12 3.2. Test Setup ....................................................................................................................................12 3.3. Test Condition .............................................................................................................................12 3.4. Minimum Standard......................................................................................................................12 3.5. Test Result of Peak Power Output...............................................................................................13 4. RF Exposure Evaluation ...........................................................................................................14 4.1. Friis Formula ...............................................................................................................................14 4.2. EUT Operation condition ............................................................................................................14 4.3. Test Result of RF Exposure Evaluation.......................................................................................15 5. Radiated Emission .....................................................................................................................16 5.1. Test Equipment............................................................................................................................16 5.2. Test Setup ....................................................................................................................................16 5.3. Test Condition .............................................................................................................................17 5.4. Limits ..........................................................................................................................................17 5.5. Test Procedure .............................................................................................................................18 5.6. Test Result of Radiated Emission................................................................................................19 5.7. Test Result of Band Edge ............................................................................................................31 6. Occupied Bandwidth .................................................................................................................35 6.1. Test Equipment............................................................................................................................35 6.2. Test Setup ....................................................................................................................................35 6.3. Test Condition .............................................................................................................................35 6.4. Standard Reqirement ...................................................................................................................35 6.5. Test Result of Occupied Bandwidth ............................................................................................36 7. Transmitter Power Density.......................................................................................................39 7.1. Test …

Text truncated - open the document above for the full version.
