OIFERMO-482X3PROKMicrowave Protection Barrier

20MACIE0366 ERMO 482X3 PRO External Microwave Protection Barrier Installation Handbook Edition 1.2  CIAS Elettronica S.r.l. Ed. 1.2 Installation Handbook Page 1 of 36 ERMO 482X3 PRO INDEX 1 DESCRIPTION ................................................................................................................................................................. 2 1.1 DESCRIPTION .................................................................................................................................................................. 2 1.2 BLOCK DIAGRAM ........................................................................................................................................................... 3 2 INSTALLATION .............................................................................................................................................................. 4 2.1 PRELIMINARY INFORMATION .......................................................................................................................................... 4 2.2 NUMBER OF SECTIONS .................................................................................................................................................... 4 2.3 GROUND CONDITIONS ..................................................................................................................................................... 5 2.4 PRESENCE OF OBSTACLES .............................................................................................................................................. 5 2.5 AMPLITUDE OF THE SENSITIVE BEAM ............................................................................................................................. 6 2.6 LENGTH OF THE DEAD ZONES NEAR THE EQUIPMENT ..................................................................................................... 8 2.7 HOW TO CALCULATE THE SIZE OF THE BEAM AND DEAD ZONES ...................................................................................... 9 2.8 MICROWAVE WORKING PLANE ...................................................................................................................................... 10 2.9 WALL INSTALLATION .................................................................................................................................................... 13 3 CONNECTIONS ............................................................................................................................................................. 14 3.1 TERMINAL BLOCKS, CONNECTORS AND CIRCUITS FUNCTIONS ..................................................................................... 14 3.1.1 Transmitter Circuit ........................................................................................................................................... 14 3.1.2 Receiver Circuit ................................................................................................................................................ 17 3.2 EQUIPMENT CONNECTION TO THE POWER SUPPLY ....................................................................................................... 20 3.2.1 Connection to the Power Supply ...................................................................................................................... 20 3.2.2 Connection of stand-by Battery ........................................................................................................................ 20 3.3 CONNECTION TO THE CONTROL PANEL ........................................................................................................................ 21 3.3.1 Alarm contacts: Alarm, Tamper, Fault............................................................................................................. 21 3.3.2 Synchronism connection ................................................................................................................................... 22 3.3.3 Stand-by connection ......................................................................................................................................... 22 3.3.4 Test connection ................................................................................................................................................. 22 3.3.5 Balanced Line connection ................................................................................................................................ 22 3.4 SERIAL LINE RS-485 .................................................................................................................................................... 24 3.4.1 RS - 485 / 232 / USB Network Connection Interface ........................................................................................ 24 3.4.2 RS -485 Serial Line connections ....................................................................................................................... 24 3.4.3 Network Configuration and Signal Repeaters .................................................................................................. 24 4 ADJUSTMENT AND TESTING ................................................................................................................................... 26 4.1 ADJUSTMENT AND TESTING .......................................................................................................................................... 26 4.1.1 Transmitter Setting-up ...................................................................................................................................... 26 4.1.2 Receiver Setting-up ........................................................................................................................................... 28 4.2 ADJUSTMENT AND TESTING WITH SOFTWARE ............................................................................................................... 33 5 MAINTENANCE AND ASSISTANCE ..............…

Text truncated - open the document above for the full version.

Document Version 1.1 2020-10-30 LONG-TERM CONFIDENTIALITY REQUEST for Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT M AY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request Long-Term Confidentiality for the following product: For the product stated above, we request Long-Term Confidentiality for exhibits which contain Block Diagram, Operational Description, Parts List/Tune Up Info, Schematics, SDR Software/Security Info. The above exhibits contain ou r trade secrets and proprietary information that could be of benefit to o ur competitors. This information will not be publicly available. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Company Name: Phone: Company Address: Fax: E-mail: Contact Name: Signature: Signature Date: Check your GC here. Click Grantee Search. FCC I D: Grantee Code Equipment Product Code

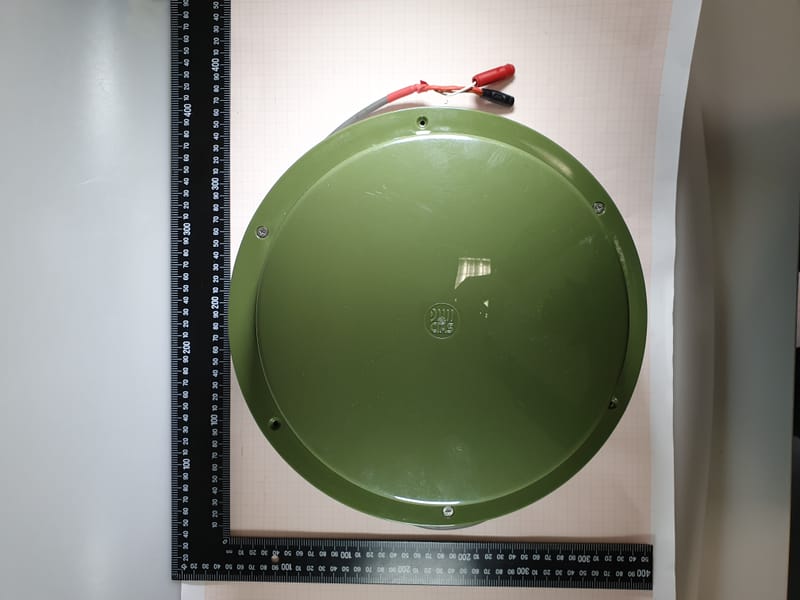

Annex A No.1-5252/22-01-01_Annex_A External photos of the equipment under test This document is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Stephan Thiel Testing Manager Radio Labs CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photo 1: Top view Photo 2: Side view 2023-04-11Document 1-5252/22-01-01_Annex_A2/3 Photo 3: Bottom view - END OF DOCUMENT - 2023-04-11Document 1-5252/22-01-01_Annex_A3/3

Label for ERMO482X3PROF5 Transmitter CIAS Elettronica Model: ERMO482X3PROF5 FCC ID: OIFERMO-482X3PROK IC: 3325A-ERMOX3PROK This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptble d'en compromettre le fonctionnement. Label for ERMO482X3PROF5 Receiver CIAS Elettronica Model: ERMO482X3PROF5 CANADA 210 This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptble d'en compromettre le fonctionnement.

© cetecom advanced GmbH Page 1 of 2 RF Exposure Evaluation according to KDB 447498 D01 v06 Report identification number: 1-5252/22-01-03_MPE_FCC Certification numbers and labeling requirements FCC ID OIFERMO-482X3PROK This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Eric Tüttmann Lab Manager Testing Manager Radio Communications & EMC Radio Communications & EMC Report no.: 1-5252/22-01-03 © cetecom advanced GmbH Page 2 of 2 1. MPE at given distance (KDB 447498 D01 General RF Exposure Guidance v06) Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4 π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna PG = Output Power including antenna gain The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) 2. EUT technologies Declared minimum safety distance: 20 cm f Min f Max #P E RP P E IRP P RF E xp S Resu lt S Limit % HF2413324133AN/A16.716.70.011.000.92% SRD Technology Frequency [MHz] Reference Power Density [mW /cm²] Share of Limit Output Power [dBm] Referenced Documents: # Results from: Details: A Test Report 1-5252/22-01-02 Max rated output power calculated from field strength of fundamental emission: 111.9 dbμV/m @3m (Page 25) 3. Conclusion This prediction demonstrates the following: The power density levels for FCC at a distance of 20 cm are below the maximum levels allowed by regulations. Conclusion: RF exposure evaluation is not required.

CIAS ELETTRONICA S.R.L. DENOMINAZIONE / DESCRIPTION MAT. TRATTAMENTO/FINISHING TOL. UFFICIO/OFFICE REV. MISURE SCALA/SCALECOD. DATA/DATE DIS./DES. FILENAME NOTE PAG.

REPORT Mw Barrier: ERMO482X3PRO - ANTENNA_RADIATION PATTERN.DOC pag. 1/1 DT Data 15/09/2023 Antenna Gain = 24 dBi CIAS Elettronica S.r.l.

BNetzA-CAB-02/21-102 TEST REPORT Test report no.: 1-5252_22-01-02-A Testing laboratory Applicant cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.cetecomadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS). The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12047-01-00. ISED Testing Laboratory Recognized Listing Number: DE0001 FCC designation number: DE0002 CIAS Elettronica s.r.l. Via Durando, 38 20158 Milano / ITALY Phone: +39-02-3767161 Contact: Romano Manzoli e-mail: [email protected] Manufacturer CIAS Elettronica s.r.l. Via Durando, 38 20158 Milano / ITALY Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: External Microwave Protection Barrier (24GHz) Model name: ERMO482X3PROF5 FCC ID: OIFERMO-482X3PROK Frequency: 24.075 GHz – 24.175 GHz Antenna: Integrated antenna Power supply: 11.5 V to 16.0 V DC by external power supply Temperature range: -35°C to +70°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Frank Heussner Stephan Thiel Lab Manager Testing Manager Radio Labs Radio Labs Test report no.: 1-5252_22-01-02-A © cetecom advanced GmbH Page 2 of 45 1 Table of contents 1 Table of contents .................................................................................................................................... 2 2 General information ................................................................................................................................ 3 2.1 Notes and disclaimer .................................................................................................................. 3 2.2 Application details ...................................................................................................................... 3 2.3 Test laboratories sub-contracted ................................................................................................ 3 3 Test standard/s, references and accreditations ....................................................................................... 4 4 Reporting statements of conformity – decision rule ................................................................................ 5 5 Test environment .................................................................................................................................... 6 6 Test item ................................................................................................................................................ 6 6.1 General description ..................................................................................................................... 6 6.2 Additional information ................................................................................................................ 7 7 Description of the test setup ................................................................................................................... 8 7.1 Shielded semi anechoic chamber ................................................................................................ 9 7.2 Shielded fully anechoic chamber ............................................................................................... 11 7.3 Radiated measurements > 18 GHz ............................................................................................. 13 7.4 Radiated measurements > 50/85 GHz ....................................................................................... 13 7.5 AC conducted ........................................................................................................................... 15 8 Sequence of testing .............................................................................................................................. 16 8.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ............................................................ 16 8.2 Sequence of testing radiated spurious 30 MHz to 1 GHz ............................................................ 17 8.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ............................................................ 18 8.4 Sequence of testing radiated spurious above 18 GHz ................................................................ 19 8.5 Sequence of testing radiated spurious above 50 GHz with external mixers ................................. 20 9 Measurement uncertainty ..................................................................................................................... 21 10 Summary of measurement results .................................................................................................... 22 11 Additional comments ....................................................................................................................... 22 12 Measurement results ........................................................................................................................ 24 12.1 Field strength of fundamental emission .................................................................................... 24 12.2 Bandwidth and frequency stability of the wanted signal ............................................................. 27 12.3 Field strength of emissions (radiated outside of the specified frequency bands) ........................ 30 12.4 Conducted emiss…

Text truncated - open the document above for the full version.

Measurements Results No.1-5252/22-01-02_Annex_MR_1 Test logging This document is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test/s performed: Stephan Thiel Testing Manager Radio Labs CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Table of Content EUT Information3 2023-04-03Document 1-5252/22-01-02_Annex_MR_12/14 EUT Information EUT DEFINITION ManufacturerCIAS TypeERMO482X3PRO Serial NumberNI Setup Number1.0 Version SWNI Version FWNI Version HWNI Comment 1 Comment 2 Temperature [°C] Min-35 Temperature [°C] Nom20 Temperature [°C] Max70 Voltage [V] Min11.5 Voltage [V] Nom13.8 Voltage [V] Max16 Test References TC Start03.04.2023 14:03:43 Ambit Temp [°C] | Humidity [rel%] not enabled | not enabled System Version4.0.0.1 Test SpecificationSystems FCC - Test Method TC Version0.0.1 My DescriptionSystems FCC Freq stability over temp/volt Add. Information Test Parameter Switched Pathnone Temp Variation enabled | Voltage Variation enabledYes Yes Additional Information Test Equipment Signal analyzer,Rohde&Schwarz,FSW-50,1331.5003K50/101332,5.20 Power supply,Agilent Technologies,N5767A,US26F7337F,A.05.06,REV:E Climatic box,CTS T40/50,58566046820010,NI 2023-04-03Document 1-5252/22-01-02_Annex_MR_13/14 Test for Temperature[°C]: 20 | Voltage [V]: 13.8 READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]15.00 | 0 | 25 Start [MHz] | Stop [MHz]24025.000 | 24225.000 RBW [MHz] | VBW [MHz]0.010000 | 0.030000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type57000 | 1 | 20001 | SWE 24040.0024060.0024080.0024100.0024120.0024140.0024160.0024180.0024200.0024220.00 MHz Frequency 10.0 5.0 0.0 -5.0 -10.0 -15.0 -20.0 -25.0 -30.0 -35.0 -40.0 -45.0 -50.0 -55.0 -60.0 dBm Magnitude Frequency stability RESULT Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Bandwidth 99%------0.594MHzINFO T1 99%24075---24133.6172MHzPASS T2 99%---2417524134.2107MHzPASS Test for Temperature[°C]: 20 | Voltage [V]: 11.73 READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]15.00 | 0 | 25 Start [MHz] | Stop [MHz]24025.000 | 24225.000 RBW [MHz] | VBW [MHz]0.010000 | 0.030000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type57000 | 1 | 20001 | SWE 2023-04-03Document 1-5252/22-01-02_Annex_MR_14/14 24040.0024060.0024080.0024100.0024120.0024140.0024160.0024180.0024200.0024220.00 MHz Frequency 10.0 5.0 0.0 -5.0 -10.0 -15.0 -20.0 -25.0 -30.0 -35.0 -40.0 -45.0 -50.0 -55.0 -60.0 dBm Magnitude Frequency stability RESULT Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Bandwidth 99%------0.505MHzINFO T1 99%24075---24133.6957MHzPASS T2 99%---2417524134.2003MHzPASS Test for Temperature[°C]: 20 | Voltage [V]: 15.87 READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]15.00 | 0 | 25 Start [MHz] | Stop [MHz]24025.000 | 24225.000 RBW [MHz] | VBW [MHz]0.010000 | 0.030000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type57000 | 1 | 20001 | SWE 2023-04-03Document 1-5252/22-01-02_Annex_MR_15/14 24040.0024060.0024080.0024100.0024120.0024140.0024160.0024180.0024200.0024220.00 MHz Frequency 10.0 5.0 0.0 -5.0 -10.0 -15.0 -20.0 -25.0 -30.0 -35.0 -40.0 -45.0 -50.0 -55.0 -60.0 dBm Magnitude Frequency stability RESULT Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Bandwidth 99%------0.574MHzINFO T1 99%24075---24133.6334MHzPASS T2 99%---2417524134.2071MHzPASS Test for Temperature[°C]: -20 | Voltage [V]: 13.8 READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]15.00 | 0 | 25 Start [MHz] | Stop [MHz]24025.000 | 24225.000 RBW [MHz] | VBW [MHz]0.010000 | 0.030000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type57000 | 1 | 20001 | SWE 2023-04-03Document 1-5252/22-01-02_Annex_MR_16/14 24040.0024060.0024080.0024100.0024120.0024140.0024160.0024180.0024200.0024220.00 MHz Frequency 20.0 10.0 0.0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 dBm Magnitude Frequency stability RESULT Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Bandwidth 99%------0.795MHzINFO T1 99%24075---24130.7768MHzPASS T2 99%---2417524131.5721MHzPASS Test for Temperature[°C]: -10 | Voltage [V]: 13.8 READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]15.00 | 0 | 25 Start [MHz] | Stop [MHz]24025.000 | 24225.000 RBW [MHz] | VBW [MHz]0.010000 | 0.030000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type57000 | 1 | 20001 | SWE 2023-04-03Document 1-5252/22-01-02_Annex_MR_17/14 24040.0024060.0024080.0024100.0024120.0024140.0024160.0024180.0024200.0024220.00 MHz Frequency 20.0 10.0 0.0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 dBm Magnitude Frequency stability RESULT Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Bandwidth 99%------0.915MHzINFO T1 99%24075---24130.5675MHzPASS T2 99%---2417524131.4823MHzPASS Test for Temperature[°C]: 0 | Voltage [V]: 13.8 READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]15.00 | 0 | 25 Start [MHz] | Stop [MHz]24025.000 | 24225.000 RBW [MHz] | VBW [MHz]0.010000 | 0.030000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type57000 | 1 | 20001 | SWE 2023-04-03Document 1-5252/22-01-02_Annex_MR_18/14 24040.0024060.0024080.0024100.0024120.0024140.0024160.0024180.0024200.0024220.00 MHz Frequency 20.0 10.0 0.0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 dBm Magnitude Frequency stability RESULT Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Bandwidth 99%------0.816MHzINFO T1 99%24075---24130.1761MHzPASS T2 99%---2417524130.9920MHzPASS Test for Temperature[°C]: 10 | Voltage [V]: 13.8 READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]15.00 | 0 | 25 Start [MHz] | Stop [MHz]24025.000 |…

Text truncated - open the document above for the full version.

Annex D No.1-5252/22-01-01_Annex_D Setup photos of the equipment under test This document is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Stephan Thiel Testing Manager Radio Labs CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photo 1: Temperature setup Photo 2: Setup > 18GHz 2023-04-11Document 1-5252/22-01-01_Annex_D2/5 Photo 3: Setup Shielded fully anechoic chamber Photo 4: Setup Shielded fully anechoic chamber 2023-04-11Document 1-5252/22-01-01_Annex_D3/5 Photo 5: Setup Shielded fully anechoic chamber Photo 6: Setup Shielded fully anechoic chamber 2023-04-11Document 1-5252/22-01-01_Annex_D4/5 Photo 7: Setup Shielded semi anechoic chamber Photo 8: Setup Shielded semi anechoic - END OF DOCUMENT - 2023-04-11Document 1-5252/22-01-01_Annex_D5/5
