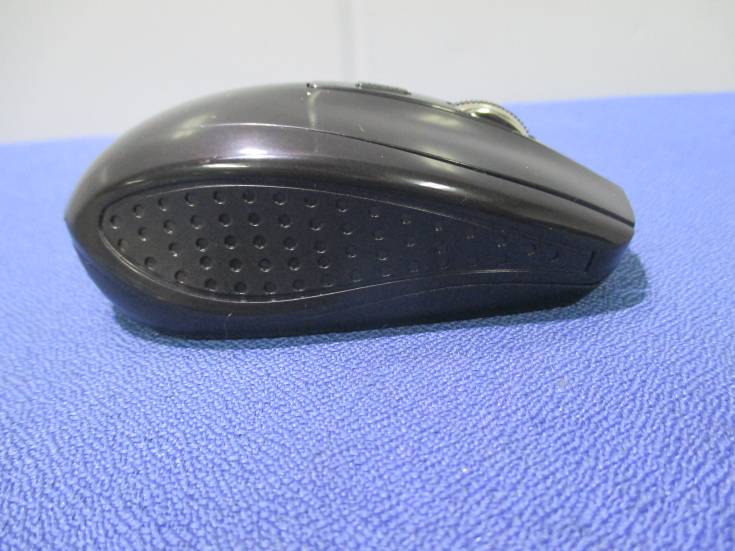

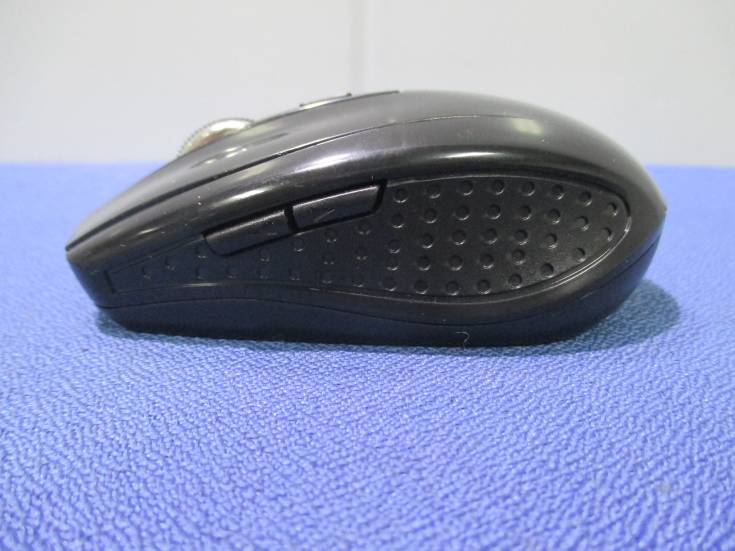

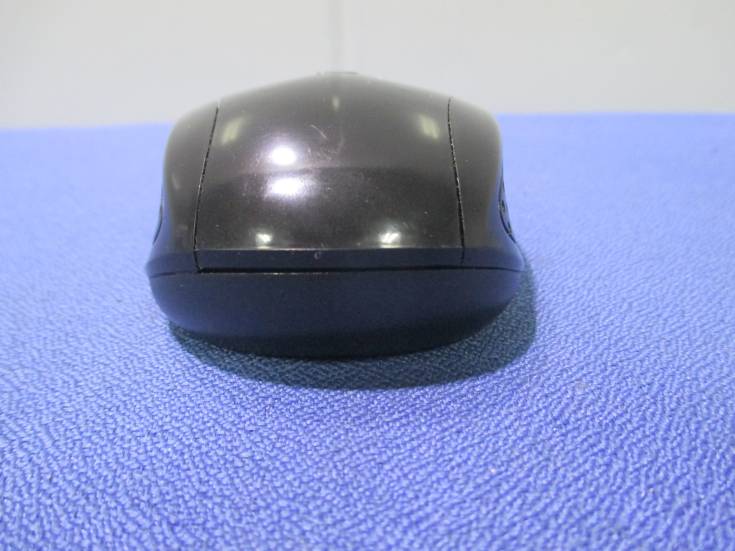

OIHG-109-1Wireless Mouse

User Manual 2.4GHz Wireless Mouse User Manual 1 Thanks for purchasing this wireless mouse. This creative and easy-to-use wireless mouse will bring you a whole new wireless life experience. Be sure to careful -ly read this User’s Manual first for the proper use of the wireless mouse, and then keep it for future reference. User Manual 2 1. Feature 1．1． Transmission mode：RF 1．2． Frequency：2408~2474MHz 1．3． 1．4． 1．5． Power：2pcs *7# batteries 1．6． Modulate mode：GFSK 1．7． Effective distance：8m 1．8． Operating Temperature: -5°C～45°C Dots per inch : 1000/1200/1600 Support MAC/windows XP/Vista/win7 User Manual 4 3. Use guide 3．1 Battery Installation or Replacement a. Unlock the battery cover ,as below figure: b. Put the batteries into the batteries casket, lock the cover. Caution: Risk of explosion if battery is replaced by an incorrect type Dispose of used batteries according to the instructions Power switch USB receiver batteries casket mouse User Manual 5 3. 2 Binding Need to check and binding for the first time of usage only, Please binding as below: a. Pluging the USB receiver into a computer’s USB port. the USB receiver lies to the bottom of wireless mouse, you can take out the USB receiver from the bottom of wireless mouse. b. Turn on the power switch of mouse,you will see the LED lights and then turns off. With the mouse close to the receiver within 20cm，When the mouse LED is always light. the mouse is ready to be used. User Manual 6 4.FAQ If unable to connect the wireless mouse to the computer ,or the mouse work unconventionally, Please try the steps below: 1.Before you install your wireless mouse, please make sure you have done the receiver installation Procedu- re, and the receiver has start-up. 2.Make sure that the batteries has enclosed and the Power switch has open, if they are matched to each Other before, then under the Standby State, you can Press any key. if it can’t work, please rematch the mouse to computer . 3.Make sure that the mouse are within the effective Range---8M 4.Make sure that there’s no change of the receiver Facility. If anything changed, please kindly rematch 5.Please kindly check the batteries. If they are short of power, replace them for new ones. User Manual 7 Federal Communication Commis- Sion Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device. Pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if no installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: 1、Reorient or relocate the receiving antenna 2、Increase the separation between the equipment and receiver. 3、Connect the equipment into an outlet on a circuit User Manual 8 different from that to which the receiver is connected. 4、Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditi- ons(1)This device may not cause harmful interference and(2)this device must accept any interference receive- d,including interference that may cause undesired operation. Caution: *Risk of explosion if battery is replaced by an incorrect type. *Dispose of used batteries according to the instructions. *Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. User Manual 9 Thanks for using the wireless mouse again. if you have some questions and suggestions with our products, Please telephone or Email to our service personnel we will solve all of the questions as soon as possible.

Shenzhen Leader-union Technology Co ., Ltd 3F No.90, Alley 5, Hekan Village, Bantian, Longgang District, Shenzhen, China TEL: +86-755-28227718 FAX: +86-755-28775387 DATE 06-05-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: OIHG-109-1 Product Name: Wireless Mouse Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 06-05-2015 By: Yadong Chen Signature Printed Title: General Manager On behalf of : Shenzhen Leader-union Technology Co ., Ltd Telephone: +86-755-28227718

Shenzhen Leader-union Technology Co., Ltd 3F No.90, Alley 5, Hekan Village, Bantian, Longgang District, Shenzhen, China TEL: +86-755-28227718 FAX: +86-755-28775387 Series Models Description FCC ID: OIHG-109-1 Date: June 05, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: Wireless Mouse) Models Name: G-109, G-102, G-108, G-180, G-113, G-202, G-301, G-106, G-162 have same electrical, PCB and BOM, only the model’s name and colour are different for marketing requirements. Sincerely, Yadong Chen/General Manager The device (Product Name: Wireless Mouse) Models Name: G-109, G-102, G-108, G-180, G-113, G-202, G-301, G-106, G-162 are electrically identical, only the model’s name and color are different for marketing requirements.

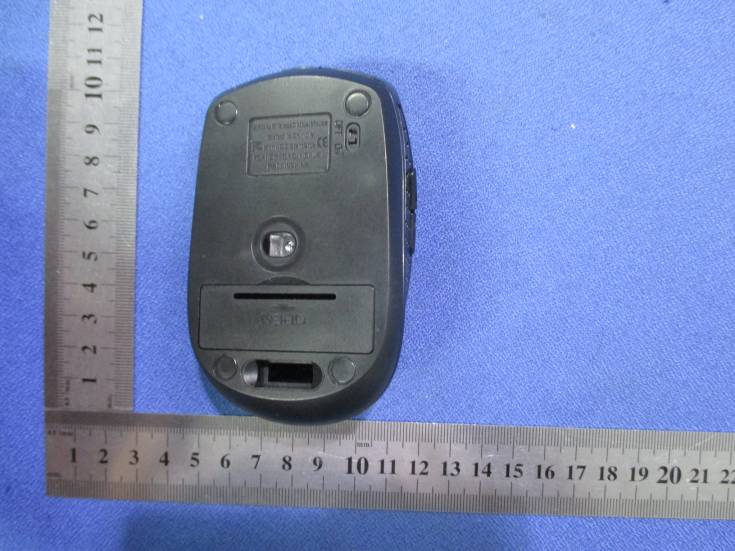

FCC ID Label Information 1. Label location: 2. FCC ID Label: Wireless Mouse Model: G-109 FCC ID: OIHG-109-1 FCCID Label Location

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Ant gain 0dBi ;so Ant numeric gain=1 Field strength = 91.15 dBuV/m @3m So Pt={ [10 (91.15 /20) /10 6 x3] 2 /30x1 }x1000 mW = 0.4 mW So ( 0.4 mW/5mm)x √2.440 GHz = 0.126 < 3 Then SAR evaluation is not required

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No......................: CTL1505181276-WF Compiled by ( position+printed name+signature)..: File administrators Happy Guo Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Nice Nong Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: June 02, 2015 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: Shenzhen Leader-union Technology Co ., Ltd Address.............................................: 3F No.90, Alley 5, Hekan Village, Bantian, Longgang District, Shenzhen, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Wireless Mouse Trade Mark .......................................: Indena, Polaroid Models/Type reference.....................: G-109, G-102, G-108, G-180, G-113, G-202, G-301, G-106, G-162 Modulation .......................................: GFSK Work Frequency...........................: 2408 MHz~2474 MHz Antenna Type..............................: internal FCC ID .............................................: OIHG-109-1 Result................................................: Positive V1.0 Page 2 of 45 Report No.: CTL1505181276-WF T E S T R E P O R T Test Report No. :CTL1505181276-WF June 02, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wireless Mouse Model /Type : G-109 Listed Models G-102, G-108, G-180, G-113, G-202, G-301, G-106, G-162 Difference Description Only the color and model's name is different Applicant : Shenzhen Leader-union Technology Co ., Ltd Address : 3F No.90, Alley 5, Hekan Village, Bantian, Longgang District, Shenzhen, China Manufacturer Shenzhen Leader-union Technology Co ., Ltd Address 3F No.90, Alley 5, Hekan Village, Bantian, Longgang District, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 45 Report No.: CTL1505181276-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Fundamental Emissions 12 4.3.Transmitter Radiated Unwanted Emissions 13 4.4.Band Edge Measurement 29 4.5.Occupied Bandwidth Measurement 38 5. ANTENNA REQUIREMENT ....................................................... 40 6.TEST SETUP PHOTOS OF THE EUT .......................................... 41 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 42 V1.0 Page 4 of 45 Report No.: CTL1505181276-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 45 Report No.: CTL1505181276-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : May 18, 2015 Testing commenced on : May 18, 2015 Testing concluded on : June 02, 2015 2.2.Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.0V from battery(AAA*2) 2.3. Short description of the Equipment under Test (EUT) The EUT is a Wireless Mouse work at 2408~2474 MHz. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 01 2408 27 2460 02 2410 28 2462 03 2412 29 2464 04 2414 30 2466 05 2416 31 2468 06 2418 32 2470 07 2420 33 2472 08 2422 34 2474 09 2424 10 2426 11 2428 12 2430 13 2432 14 2434 15 2436 16 2438 17 2440 18 2442 19 2444 20 2446 21 2448 22 2450 23 2452 24 2454 25 2456 26 2458 Modulation: GFSK For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 45 Report No.: CTL1505181276-WF 2.4. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down posit…

Text truncated - open the document above for the full version.

V1.0 Page 41 of 45 Report No.: CTL1505181276-WF 6. Test Setup Photos of the EUT
