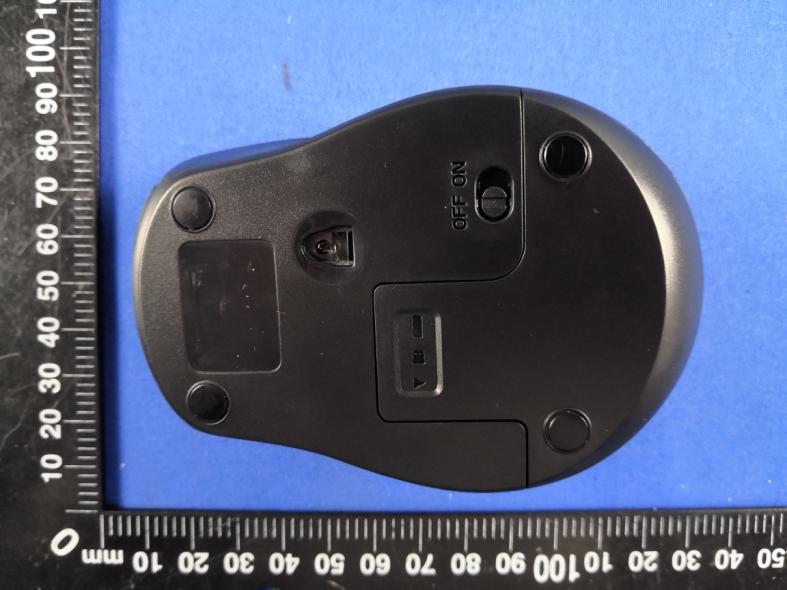

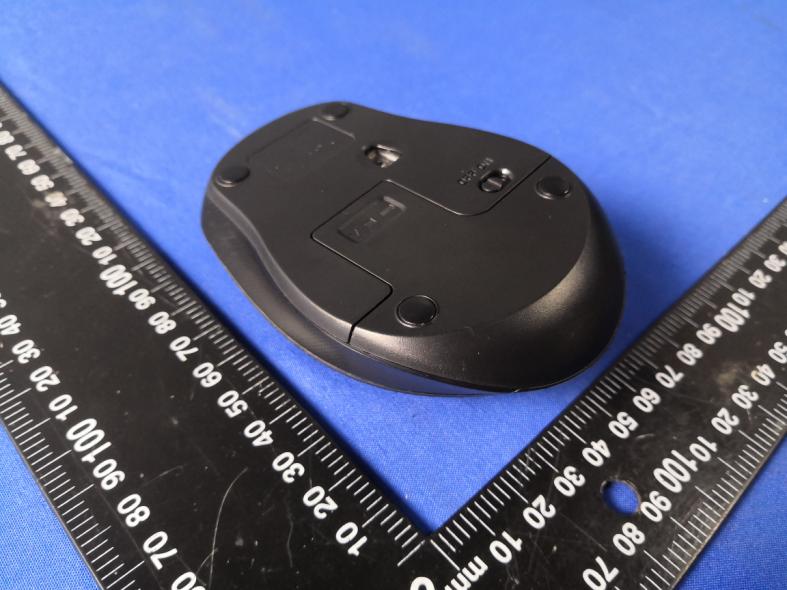

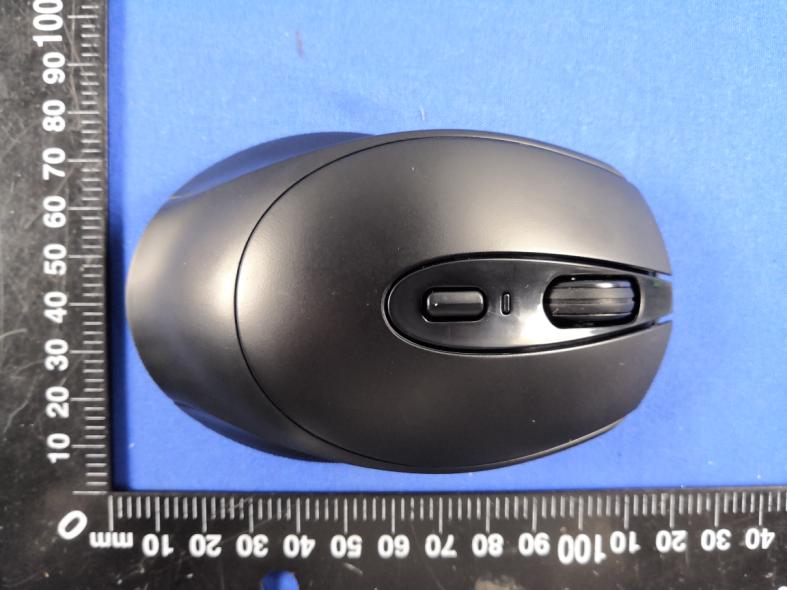

OIHG-2222.4G Wireless mouse

User Manual 2.4GHz Wireless Mouse User Manual 1 Thanks for purchasing this wireless mouse. This creative and easy-to-use wireless mouse will bring you a whole new wireless life experience. Be sure to careful -ly read this User’s Manual first for the proper use of the wireless mouse, and then keep it for future reference. User Manual 2 1. Feature 1．1． Transmission mode：RF 1．2． Frequency：2402~2480MHz 1．3． 1．4． 1．5． 1．6． 1．7． 1．8． Power：1pcs *AA batteries Modulate mode：GFSK Effective distance：8m Operating Temperature: -5 °C～45°C Dots per inch : 1000/1200/1600 Support MAC/windows XP/Vista/win7 User Manual 4 3.Use guide 3．1 Battery Installation or Replacement a.Unlock the battery cover ,as below figure: b. Put the batteries into the batteries casket, lock the cover. Caution: Risk of explosion if battery is replaced by an incorrect type Dispose of used batteries according to the instructions Power switch USB receiver batteries casket mouse User Manual 5 3. 2 Binding Need to check and binding for the first time of usage only, Please binding as below: a. Pluging the USB receiver into a computer’s USB port. the USB receiver lies to the bottom of wireless mouse, you can take out the USB receiver from the bottom of wireless mouse. b. Turn on the power switch of mouse,you will see the LED lights and then turns off. With the mouse close to the receiver within 20cm，When the mouse LED is always light. the mouse is ready to be used. User Manual 6 4.FAQ If unable to connect the wireless mouse to the computer ,or the mouse work unconventionally, Please try the steps below: 1.Before you install your wireless mouse, please make sure you have done the receiver installation Procedu- re, and the receiver has start-up. 2.Make sure that the batteries has enclosed and the Power switch has open, if they are matched to each Other before, then under the Standby State, you can Press any key. if it can’t work, please rematch the mouse to computer . 3.Make sure that the mouse are within the effective Range---8M 4.Make sure that there’s no change of the receiver Facility. If anything changed, please kindly rematch 5.Please kindly check the batteries. If they are short of power, replace them for new ones. User Manual 7 Federal Communication Commis- Sion Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device. Pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if no installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: 1、Reorient or relocate the receiving antenna 2、Increase the separation between the equipment and receiver. 3、Connect the equipment into an outlet on a circuit User Manual 8 different from that to which the receiver is connected. 4、Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditi- ons(1)This device may not cause harmful interference and(2)this device must accept any interference receive- d,including interference that may cause undesired operation. Caution: *Risk of explosion if battery is replaced by an incorrect type. *Dispose of used batteries according to the instructions. *Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. User Manual 9 Thanks for using the wireless mouse again. if you have some questions and suggestions with our products, Please telephone or Email to our service personnel we will solve all of the questions as soon as possible.

FCC ID:OIHG-222

Antenna

version01 Shenzhen Leader-Union Technology Co., Ltd. 3F, No. 90, Alley 5, Hekan Village, Ban Tian, LongGang District, Shenzhen, China Tel: +86-755-28227718 Fax: +86-755-28775387 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: G-222, G-219, G-220, G-226, G-228, G-266, G-268 FCC ID: OIHG-222 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type(s) described below: Model No. of antenna: SE69D Type of antenna: PCB Antenna Gain of the antenna: -2.36dBi Frequency range: 2402~2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Leader-Union Technology Co., Ltd. Address: 3F, No. 90, Alley 5, Hekan Village, Ban Tian, LongGang District, Shenzhen, China City: Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: 2020-06-19 Signature:

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison pt=-7.92dBm =0.161mW at 2480MHz So (0.161mW/5mm)x √2.480GHz =0.05<3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FOR FCC PART 15 SUBPART C 15.249 Report Reference No. ................ : CTL2005211013-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : 2.4G Wireless mouse Model/Type reference ................ : G-222 List Model(s) ............................... : G-219, G-220, G-226, G-228, G-266, G-268 Trade Mark .................................. : Indena, Trust, G-sedo, Miniso FCC ID ......................................... : OIHG-222 Applicant’s name ....................... : Shenzhen Leader-Union Technology Co., Ltd. Address of applicant ................. : 3F No.90, Alley 5, Hekan Village, Bantian, Longgang District, Shenzhen, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.249:Operation within the bands 920-928 MHz, 2400-2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : May 25, 2020 Date of sampling ........................ : May 25, 2020 Date of Test Date ........................ : May 25, 2020–Jun. 08, 2020 Data of Issue............................... : Jun. 09, 2020 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 23 Report No.: CTL2005211013-WF TEST REPORT Test Report No. : CTL2005211013-WF Jun. 09, 2020 Date of issue Equipment under Test : 2.4G Wireless mouse Model /Type : G-222 Listed Models : G-219, G-220, G-226, G-228, G-266, G-268 Applicant : Shenzhen Leader-Union Technology Co., Ltd. Address : 3F No.90, Alley 5, Hekan Village, Bantian, Longgang District, Shenzhen, China Manufacturer : Dongguan Indena Electronic Technology Co., Ltd. Address : No. 6, 7th Road Gaoli Qinghutou Community, Tangxia Town, Dongguan, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 23 Report No.: CTL2005211013-WF ** Modified History ** Revision Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-06-09 CTL2005211013-WF Tracy Qi V1.0 Page 4 of 23 Report No.: CTL2005211013-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 8 2.5. RELATED SUBMITTAL(S) / GRANT(S)................................................................................................................................. 8 2.6. MODIFICATIONS ........................................................................................................................................................... 8 3. TEST CONDITIONS AND RESULTS .............................................................................................................................. 9 3.1. CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 10 3.3. OCCUPIED BANDWIDTH MEASUREMENT ....................…
