OIJ8007V2Planetarium with Wireless Bluetooth Speaker(Northern Hemisphere)

User Instructions Item no. 8007 Planetarium with Wireless Bluetooth ® Speaker COMPONENTS 1 ON/STOP/OFF switch 2 Sleep Timer Button 3 30 Minute Sleep Indicator 4 60 Minute Sleep Indicator 5 Rotate Right Button 6 Rotate Right Indicator 7 Slide Tray Eject Button 8 Rotate Left Button 9 Rotate Left Indicator 10 Shooting Star Button 11 Shooting Star Indicator 12 Date Dial 13 Time Scale 14 Focus Dial 15 Stand 16 Star Disc (2 pieces) 17 Speaker ON/OFF/Pairing Button 18 Vol + /Next Song Button  Quickpress = Next Song  Press & Hold = Volume Up 19 Vol – /Previous Song Button  Quickpress = Previous Song  Press & Hold = Volume Down 20 Play/Pause Button 21 Star Disc tray 22 Speakers 23 Shooting star projection lens 24 Main projection lens 25 Audio IN Connector 26 5V DC IN Connector 27 Speaker Status LED 28 Audio cable Setting up the Planetarium 1. Open the battery cover at the bottom of the unit and insert 3 pieces of AA size batteries. Please refer to the “Battery Installation Section” below. Replace battery cover firmly. 2. Place the unit over the stand(15) on a flat and stable platform (e.g. a table), the optimum project distance is about 1.8m to 2m. 3. Press the Slide Tray Eject Button (7) to open the tray and install the star disc (16). Note the keys on the disc have to match the ridges on the tray. N Time Scale (fixed): Time from 20:00 (8 p.m.) to 02:00 (2 a.m.) is shown. Align the Date Dial with it to project stars at a particular time. (Each subdivision equals 30 minutes.) Date Dial (Adjustable): The Date Dial has 365 days. Adjust the dial to project stars you want to see on a particular date. (Each subdivision equals to 2 days. The long mark corresponds to the last day of the previous month.) Example 1: If you want to see the star pattern at mid- night (00:00) on 7 th July, align 00:00 on the time scale with 7 th July. Position of the date 7 th is between 6 th and 8 th . Example 2: If you want to see the star pattern at 22:30 (10:30 p.m.) on 30 th December, align 22:30 on the time scale with 30 th December. As shown in the figure, the small marking represents 3 days. Therefore the day 30 th would be at 2/3 of the marking. (The same setting applies to January, March, May, July, August and October.) Note that 28 th and 29 th of February are at the same mark. Using the Star Motion Function 1. Press the Rotate Left Button (8) to rotate the night sky anticlockwise, which is the motion of the stars in the northern hemisphere. Press the button again to increase the rotation speed. A total of five speed is available. Each press will select the next higher speed. The Rotate Left Indicator (9) will blink according to the speed. Press the “ON/STOP/OFF” button to stop. 2. Similarly, press the Rotate Right Button (5) to rotate the stars clockwise, which is the motion of the stars in the southern hemisphere. A total of five speed is also selectable. 4. While the slide tray is still opened, set the time and date of the night sky you want to view by aligning the desired date on Date Dial with the desired hour on the Time Scale. 6. Press the ON/STOP/OFF switch (1) once to turn on the Projector Light. Dim or turn off the light in the room for best visual experience. Note that the unit cannot be turned on when the tray is opened. 7. You can freely adjust the projection angle of the projection head over the stand (15) to suit viewing on the ceiling or sidewall. 8. Adjust the focus dial (14) until the projected star field is sharp. The optimum project distance is 1.8m to 2m, image will become blur if the distance is too near or too far. 5. Close the tray. Note that you are looking to the north when you face the star projector from the front. Please do not turn the Date Dial when the tray is closed. You need to open the tray again if you want to set the date, or you can use the Rotate Left (8) or Rotate Right button (5) while the unit is turned on. Technical Specifications Projection method: Optical Viewing Location: N35 O Constellations: 61 Stars: 8000 Light Source: High Brightness White LED Star field orientation adjustment: Date, Hour Projection Area: 1.8 x 2.2m at 2.0m distance Number of stars: 8000 (each star disc) Auto Off Timer: 30, 60, 120 minute Power: 5V DC / 3 x 1.5V AA/LR6 Speaker Power: 1.5W x 2 Bluetooth: Version 5.0 Using the Shooting Star Function When the night sky is in the rotating state, press the Shooting Star Button (10) to enable the shooting star function. A shooting star will appear in the night sky at regular time interval. It will appear more frequently if the rotating speed is set higher. Press the same button again to disable shooting star. Using the Timer Function Press the Sleep timer button (2) to enable 30 or 60 minute sleep timer, the corresponding LED indicator will show the current selected timer. To disable sleep timer, press the timer button until both timer indicator light (3,4) are off. However, the projector will still turn off automatically in 2 hours to save battery. Powering OFF Press and hold the ON/STOP/OFF (1) button to turn off the projector. Set up the Bluetooth speaker Note: Ensure the audio cable is removed from the “Audio Input” jack (25) of the speaker in order to use the Bluetooth function.. Pairing the speaker and a device 1. Make sure the speaker is turn off and keep it within 30 feet of the device it is paired to. Now press and hold the On/Off/Pairing button until a second tone is emitted. The status LED (27) will flash in RED and BLUE alternatively, indicating it is in pairing mode. 2. On your device (smartphone or tablet), locate your Bluetooth setting and turn on Bluetooth. 3. In Bluetooth Settings, scan for devices if necessary, then select “Planetarium Spkr” from your device’s list. The status LED will change to blinking twice (in BLUE) every 5 seconds if the connection is successful. Your device and speaker are paired and your speaker is ready to use. Pairing another device Turn off the speaker by pressing and holding the On/Off/Pairing button unti…

Text truncated - open the document above for the full version.

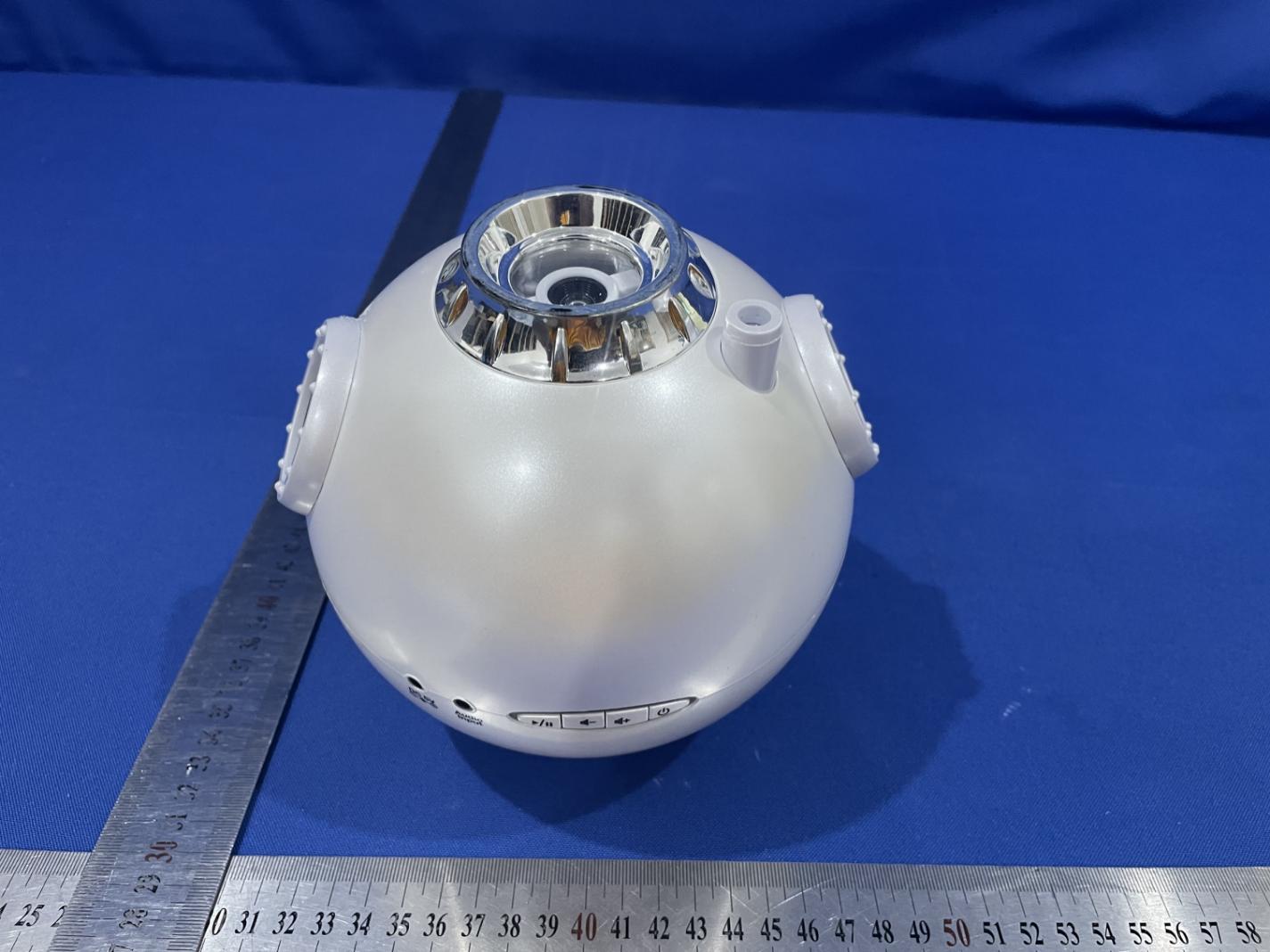

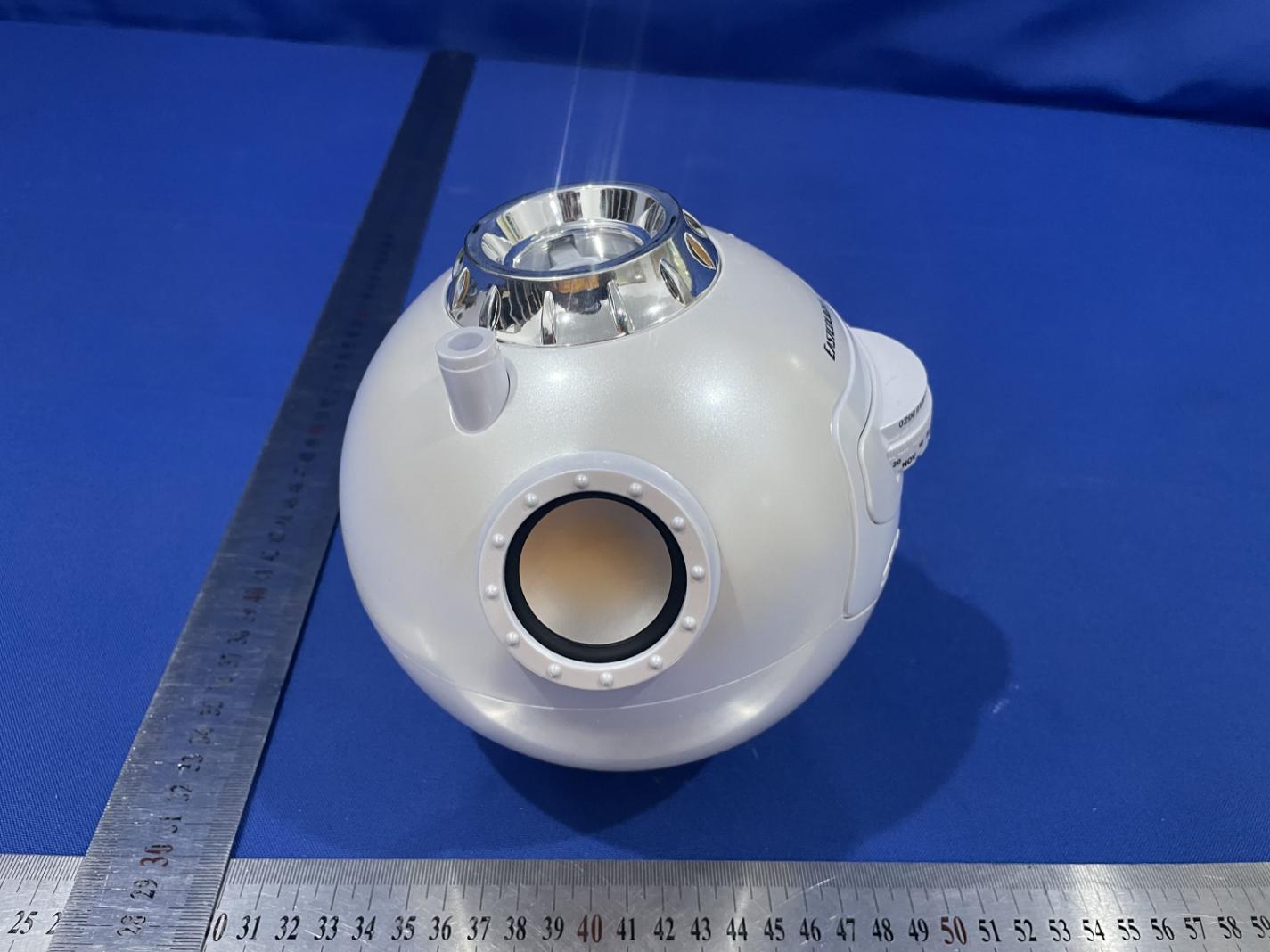

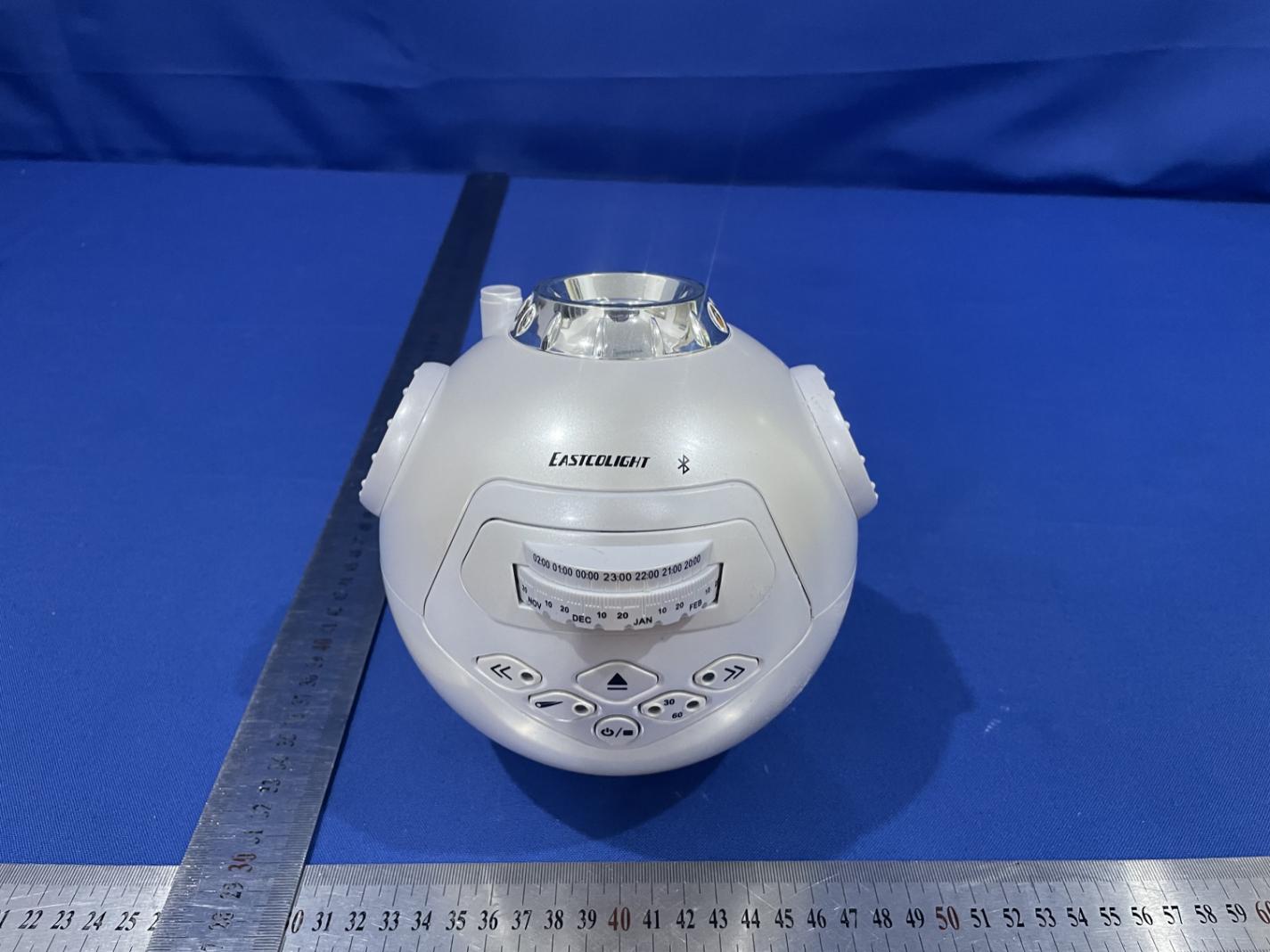

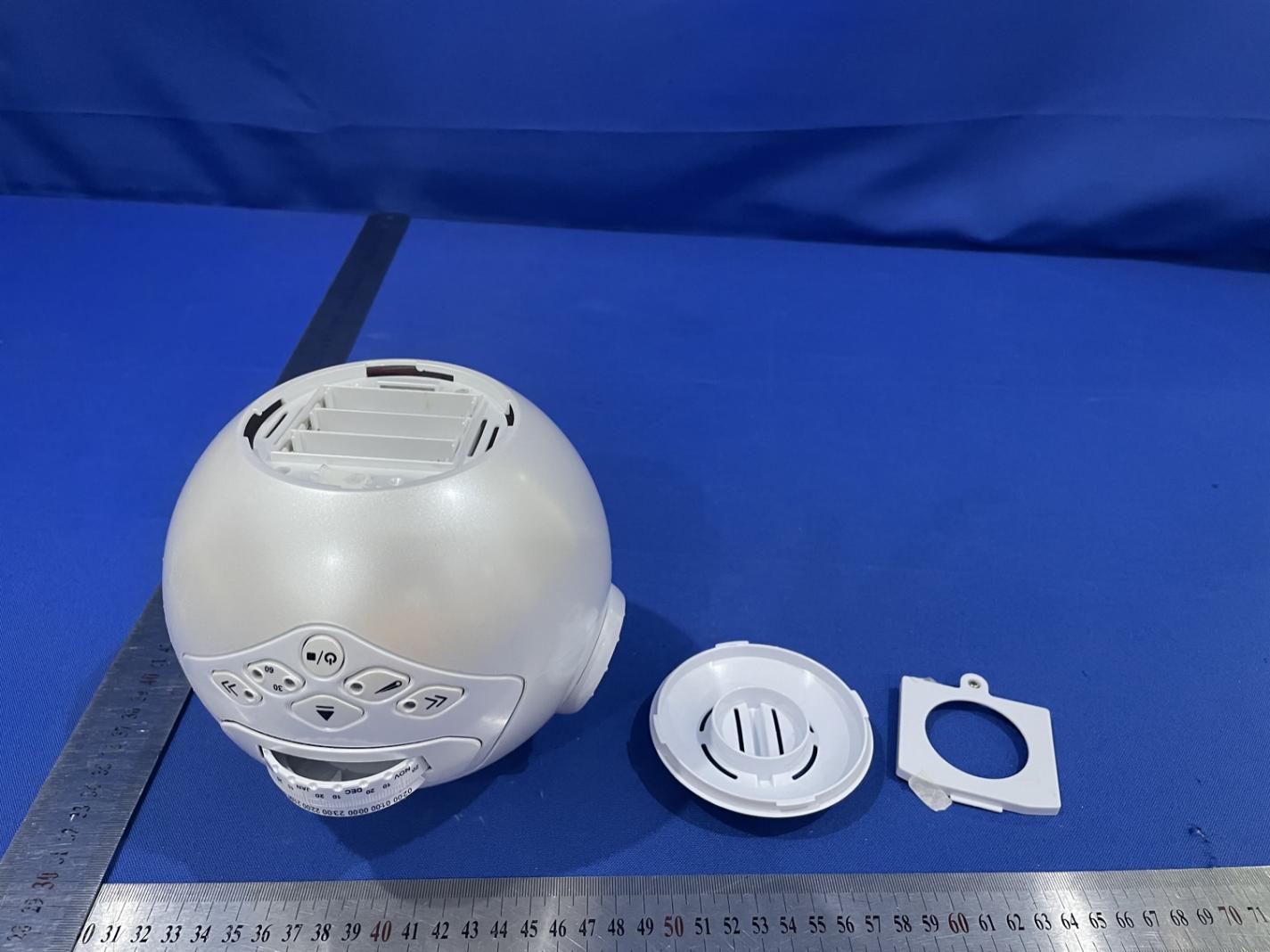

Report No. : EED32N80283401Page 46 of 54 8 PHOTOGRAPHS OF EUT Constructional Details Test mode No.: 8007 View of Product-1 View of Product-2 Report No. : EED32N80283401Page 47 of 54 View of Product-3 View of Product-4 Report No. : EED32N80283401Page 48 of 54 View of Product-5 View of Product-6 Report No. : EED32N80283401Page 49 of 54 View of Product-7 View of Product-8

FCC ID: OIJ8007V2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.undesired operation. FCC ID: OIJ8007V2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.undesired operation. 55mm 17mm

Report No.: EED32N80283402Page 1 of 8 1 COVER PAGE RF Exposure Evaluation Report Product : Planetarium with Wireless Bluetooth Speaker (Northern Hemisphere) Trade mark : EASTCOLIGHT Model/Type reference : 8007, 8008 Serial Number : N/A Report Number : EED32N80283402 FCC ID : OIJ8007V2 Date of Issue : Jul. 07, 2021 Test Standards :47 CFR Part 1.1307 47 CFR Part 2.1093 KDB447498D01 General RF Exposure Guidance v06 Test result : PASS Prepared for: Eastcolight(HK) LTD Room 1108-1110, Peninsula Centre, 67 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Prepared by: Centre Testing International Group Co., Ltd. Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Compiled by:Reviewed by: To m C h e n Aaron Ma Approved by:Date:Jul. 07, 2021 David Wang CheckNo.:7402270421 Report No.: EED32N80283402Page 2 of 8 2 Version Version No.DateDescription 00Jul. 07, 2021Original Report No.: EED32N80283402Page 3 of 8 3 Contents Page 1 COVER PAGE ..................................................................................................................................................................... 1 2 VERSION .............................................................................................................................................................................. 2 3CONTENTS .......................................................................................................................................................................... 3 4 GENERAL INFORMATION ............................................................................................................................................... 4 4.1 C LIENTINFORMATION .................................................................................................................................................... 4 4.2 G ENERALDESCRIPTION OFEUT .................................................................................................................................. 4 4.3 P RODUCTSPECIFICATION SUBJECTIVE TO THIS STANDARD ........................................................................................ 4 4.4 T ESTLOCATION ............................................................................................................................................................. 5 4.5 D EVIATION FROMSTANDARDS ...................................................................................................................................... 5 4.6 A BNORMALITIES FROMSTANDARDCONDITIONS .......................................................................................................... 5 4.7 O THERINFORMATIONREQUESTED BY THECUSTOMER .............................................................................................. 5 5 RF EXPOSURE EVALUATION ........................................................................................................................................ 6 5.1 RF E XPOSURECOMPLIANCEREQUIREMENT ............................................................................................................... 6 5.2 M AXIMUMPERMISSIBLEEXPOSURE ............................................................................................................................. 7 PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS ........................................................................................... 8 Report No.: EED32N80283402Page 4 of 8 4 General Information 4.1 Client Information Applicant: Eastcolight(HK) LTD Address of Applicant: Room 1108-1110, Peninsula Centre, 67 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Manufacturer: Eastcolight(HK) LTD Address of Manufacturer: Room 1108-1110, Peninsula Centre, 67 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Factory: Eastco Enterprise (Zhongshan) Ltd. Address of Factory:No.1 Jun Mei Road, Shenwan Town, Zhong Shan City, Guangdong, China 4.2 General Description of EUT Product Name:Planetarium with Wireless Bluetooth Speaker (Northern Hemisphere) Model No.: 8007, 8008 Test model:8007 Trade Mark: EASTCOLIGHT EUT Supports Radios application: BT: 2402MHz~2480MHz 4.3 Product Specification subjective to this standard FrequencyRange: BT: 2402MHz~2480MHz Modulation T ype:GFSK,π/4DQPSK, 8DPSK Test Power Grade:Default Test Software of EUT:BT_tool.exe Antenna Type:PCB antenna Antenna Gain:5dBi Power Suppl y:3X1.5V Batteries; sizeAA, DC 5.4V Max Conducted Peak Output Power: 0.89dBm The Max Conducted Peak Output Power data refer to the report EED32N80283401 Sample Received Date: Apr. 27, 2021 Sample tested Date: Apr. 27, 2021 to Jun. 05, 2021 Company Name and Address shown on Report, the sample(s) and sample Information was/ were provided by the applicant who should be responsible for the authenticity which CTI hasn’t verified. N/A 1) The Product is powered battery. Model No.: 8007, 8008 Only the model 8007 was tested, 8008 compared with 8007 all parts of the product, Their electrical circuit design, layout, components used and internal wiring are identical, except only the model name are different . Report No.: EED32N80283402Page 5 of 8 4.4 Test Location All tests were performed at: Centre Testing International Group Co., Ltd Building C, Hongwei Industrial Park Block 70, Bao'an District, Shenzhen, China Telephone: +86 (0) 755 33683668 Fax:+86 (0) 755 33683385 No tests were sub-contracted. FCC Designation No.: CN1164 4.5 Deviation from Standards None. 4.6 Abnormalities from Standard Conditions None. 4.7 Other Information Requested by the Customer None. Report No.: EED32N80283402Page 6 of 8 5 RF Exposure Evaluation 5.1 RF Exposure Compliance Requirement Given d GP E   30 & 377 2 E S WhereE = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 …

Text truncated - open the document above for the full version.

Report No. EED32N80283401Page 1 of 67 Appendix: Bluetooth BR&EDR Report No. EED32N80283401Page 2 of 67 Contents Appendix A: 20dBEmission Bandwidth ....................................................................................... 3 Test Result ................................................................................................................................................... 3 Test Graphs ................................................................................................................................................. 4 Appendix B: Occupied Channel Bandwidth ................................................................................ 9 Test Result ................................................................................................................................................... 9 Test Graphs ............................................................................................................................................... 10 Appendix C: Maximum conducted output power .................................................................... 15 Test Result ................................................................................................................................................. 15 Test Graphs ............................................................................................................................................... 16 Appendix D: Carrier frequency separation ............................................................................... 21 Test Result ................................................................................................................................................. 21 Test Graphs ............................................................................................................................................... 22 Appendix E: Time of occupancy ................................................................................................ 27 Test Result ................................................................................................................................................. 27 Test Graphs ............................................................................................................................................... 28 Appendix F: Number of hopping channels ............................................................................... 37 Test Result ................................................................................................................................................. 37 Test Graphs ............................................................................................................................................... 38 Appendix G:Band edge measurements .................................................................................... 40 Test Result ................................................................................................................................................. 40 Test Graphs ............................................................................................................................................... 41 Appendix H:Conducted Spurious Emission ............................................................................... 47 Test Result ................................................................................................................................................. 47 Test Graphs ............................................................................................................................................... 48 Appendix I: DutyCycle ............................................................................................................... 62 Test Result ................................................................................................................................................. 62 Test Graphs ............................................................................................................................................... 63 Report No. EED32N80283401Page 3 of 67 Appendix A: 20dBEmission Bandwidth Test Result Test Mode AntennaChannel 20db EBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict DH5Ant1 24020.8042401.589 2402.393---PASS 24410.8012440.595 2441.396---PASS 24800.8912479.535 2480.426---PASS 2DH5Ant1 24021.2932401.361 2402.654---PASS 24411.3352440.328 2441.663---PASS 24801.3442479.325 2480.669---PASS 3DH5Ant1 24021.2662401.364 2402.630---PASS 24411.3112440.328 2441.639---PASS 24801.3172479.316 2480.633---PASS Report No. EED32N80283401Page 4 of 67 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 Report No. EED32N80283401Page 5 of 67 DH5_Ant1_2480 2DH5_Ant1_2402 Report No. EED32N80283401Page 6 of 67 2DH5_Ant1_2441 2DH5_Ant1_2480 Report No. EED32N80283401Page 7 of 67 3DH5_Ant1_2402 3DH5_Ant1_2441 Report No. EED32N80283401Page 8 of 67 3DH5_Ant1_2480 Report No. EED32N80283401Page 9 of 67 Appendix B: Occupied Channel Bandwidth Test Result Test Mode AntennaChannel OCB[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict DH5Ant1 24020.846972401.569 2402.416---PASS 24410.860302440.559 2441.419---PASS 24800.846972479.582 2480.429---PASS 2DH5Ant1 24021.18102401.401 2402.582---PASS 24411.18052440.405 2441.586---PASS 24801.17192479.402 2480.574---PASS 3DH5Ant1 24021.20022401.385 2402.586---PASS 24411.17232440.414 2441.587---PASS 24801.20382479.385 2480.589---PASS Report No. EED32N80283401Page 10 of 67 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 Report No. EED32N80283401Page 11 of 67 DH5_Ant1_2480 2DH5_Ant1_2402 Report No. EED32N80283401Page 12 of 67 2DH5_Ant1_2441 2DH5_Ant1_2480 Report No. EED32N80283401Page 13 of 67 3DH5_Ant1_2402 3DH5_Ant1_2441 Report No. EED32N80283401Page 14 of 67 3DH5_Ant1_2480 Report No. EED32N80283401Page 15 of 67 Appendix C: Maximum conducted output power Test Result Test ModeAntennaChannelResult[dBm]Limit[dBm]Verdict DH5Ant1 2402-1.62<=20.97PASS 2441-2.34<=20.97PASS 2480-3.03<=20.97PASS 2DH5Ant1…

Text truncated - open the document above for the full version.

Report No. EED32N80283401Page 39 of 67 3DH5_Ant1_Hop Report No. EED32N80283401Page 40 of 67 Appendix G:Band edge measurements Test Result Test Mode AntennaChNameChannel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-2.35-47.2<=-22.35 PASS High2480-3.97-46.94<=-23.97 PASS LowHop_2402-2.62-45.57<=-22.62 PASS HighHop_2480-3.79-45.62<=-23.79 PASS 2DH5Ant1 Low2402-4.71-46.74<=-24.71 PASS High2480-5.31-46.52<=-25.31 PASS LowHop_2402-2.75-45.66<=-22.75 PASS HighHop_2480-3.85-44.65<=-23.85 PASS 3DH5Ant1 Low2402-5.12-46.98<=-25.12 PASS High2480-5.52-46.3<=-25.52 PASS LowHop_2402-2.57-44.94<=-22.57 PASS HighHop_2480-3.54-44.73<=-23.54 PASS Report No. EED32N80283401Page 41 of 67 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 Report No. EED32N80283401Page 42 of 67 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Report No. EED32N80283401Page 43 of 67 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Report No. EED32N80283401Page 44 of 67 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 Report No. EED32N80283401Page 45 of 67 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Report No. EED32N80283401Page 46 of 67 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Report No. EED32N80283401Page 47 of 67 Appendix H:Conducted Spurious Emission Test Result Test Mode AntennaChannel Freq Range [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference-2.33-2.33---PASS 30~100030~1000-57.804 <=-22.334 PASS 1000~265001000~26500 -49.829 <=-22.334 PASS 2441 Reference-3.24-3.24---PASS 30~100030~1000-49.138 <=-23.242 PASS 1000~265001000~26500 -49.463 <=-23.242 PASS 2480 Reference-3.85-3.85---PASS 30~100030~1000-46.076 <=-23.851 PASS 1000~265001000~26500 -49.832 <=-23.851 PASS 2DH5Ant1 2402 Reference-2.70-2.70---PASS 30~100030~1000-56.796 <=-22.698 PASS 1000~265001000~26500 -49.653 <=-22.698 PASS 2441 Reference-3.26-3.26---PASS 30~100030~1000-57.885 <=-23.262 PASS 1000~265001000~26500 -48.773 <=-23.262 PASS 2480 Reference-4.18-4.18---PASS 30~100030~1000-57.766 <=-24.182 PASS 1000~265001000~26500 -49.492 <=-24.182 PASS 3DH5Ant1 2402 Reference-2.38-2.38---PASS 30~100030~1000-58.202 <=-22.383 PASS 1000~265001000~26500 -48.765 <=-22.383 PASS 2441 Reference-3.47-3.47---PASS 30~100030~1000-57.898 <=-23.472 PASS 1000~265001000~26500-49.74 <=-23.472 PASS 2480 Reference-4.87-4.87---PASS 30~100030~1000-57.517 <=-24.872 PASS 1000~265001000~26500 -49.526 <=-24.872 PASS Report No. EED32N80283401Page 48 of 67 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 Report No. EED32N80283401Page 49 of 67 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_0~Reference Report No. EED32N80283401Page 50 of 67 DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 Report No. EED32N80283401Page 51 of 67 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 Report No. EED32N80283401Page 52 of 67 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference Report No. EED32N80283401Page 53 of 67 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 Report No. EED32N80283401Page 54 of 67 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 Report No. EED32N80283401Page 55 of 67 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_0~Reference Report No. EED32N80283401Page 56 of 67 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Report No. EED32N80283401Page 57 of 67 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 Report No. EED32N80283401Page 58 of 67 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference Report No. EED32N80283401Page 59 of 67 3DH5_Ant1_2441_30~1000 3DH5_Ant1_2441_1000~26500 Report No. EED32N80283401Page 60 of 67 3DH5_Ant1_2480_0~Reference 3DH5_Ant1_2480_30~1000 Report No. EED32N80283401Page 61 of 67 3DH5_Ant1_2480_1000~26500 Report No. EED32N80283401Page 62 of 67 Appendix I: DutyCycle Test Result Test ModeAntennaChannel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] LimitVerdict DH5Ant1 24022.903.7577.30---PASS 24412.903.7577.30---PASS 24802.903.7577.30---PASS 2DH5Ant1 24022.903.7577.44---PASS 24412.903.7577.44---PASS 24802.903.7577.44---PASS 3DH5Ant1 24022.913.7577.50---PASS 24412.913.7577.51---PASS 24802.913.7577.50---PASS Report No. EED32N80283401Page 63 of 67 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 Report No. EED32N80283401Page 64 of 67 DH5_Ant1_2480 2DH5_Ant1_2402 Report No. EED32N80283401Page 65 of 67 2DH5_Ant1_2441 2DH5_Ant1_2480 Report No. EED32N80283401Page 66 of 67 3DH5_Ant1_2402 3DH5_Ant1_2441 Report No. EED32N80283401Page 67 of 67 3DH5_Ant1_2480 *** End of Report ***

Report No. :EED32N80283401Page 1 of 54 TEST REPORT Product:Planetarium with Wireless Bluetooth Speaker (Northern Hemisphere) Trade mark: EASTCOLIGHT Model/Type reference : 8007, 8008 Serial Number:N/A Report Number: EED32N80283401 FCC ID:OIJ8007V2 Date of Issue:Jul. 07, 2021 Test Standards: 47 CFR Part 15 Subpart C Test result:PASS Prepared for: Eastcolight(HK) LTD Room 1108-1110, Peninsula Centre, 67 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Prepared by: Centre Testing International Group Co., Ltd. Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Compiled by:Reviewed by: Tom Chen Aaron Ma Approved by:Date:Jul. 07, 2021 David Wang CheckNo.:7402270421 Report No. : EED32N80283401Page 2 of 54 1 Contents Page 1CONTENTS ...................................................................................................................................................................... 2 2 VERSION .......................................................................................................................................................................... 3 3 TEST SUMMARY ............................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................................... 5 4.1 C LIENTINFORMATION ................................................................................................................................................ 5 4.2 G ENERALDESCRIPTION OFEUT .............................................................................................................................. 5 4.3 T ESTCONFIGURATION ............................................................................................................................................... 7 4.4 T ESTENVIRONMENT .................................................................................................................................................. 8 4.5 D ESCRIPTION OFSUPPORTUNITS ............................................................................................................................ 8 5 TEST RESULTS AND MEASUREMENT DATA ..................................................................................................... 12 5.1 A NTENNAREQUIREMENT ......................................................................................................................................... 12 5.2 M AXIMUMCONDUCTEDOUTPUTPOWER ............................................................................................................... 13 5.3 20 DBEMISSIONBANDWIDTH .................................................................................................................................. 14 5.4 C ARRIERFREQUENCYSEPARATION ....................................................................................................................... 15 5.5 N UMBER OFHOPPINGCHANNEL ............................................................................................................................ 16 5.6 T IME OFOCCUPANCY .............................................................................................................................................. 17 5.7 B AND EDGEMEASUREMENTS ................................................................................................................................. 18 5.8 C ONDUCTEDSPURIOUSEMISSIONS ....................................................................................................................... 19 5.9 P SEUDORANDOMFREQUENCYHOPPINGSEQUENCE ............................................................................................ 20 5.10 R ADIATEDSPURIOUSEMISSION&RESTRICTED BANDS ..................................................................................... 22 6 APPENDIX A ................................................................................................................................................................. 44 7 PHOTOGRAPHS OF TEST SETUP .......................................................................................................................... 45 8 PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS .................................................................................. 46 Report No. : EED32N80283401Page 3 of 54 2Version Version No.DateDescription 00Jul. 07, 2021Original Report No. : EED32N80283401Page 4 of 54 3 Test Summary Test ItemTest RequirementResult Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 N/A 1) Maximum Conducted Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) PASS 20dB Emission Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) PASS Carrier Frequency Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) PASS Number of Hopping Channels 47 CFR Part 15, Subpart C Section 15.247 (a)(1) PASS Time of Occupancy47 CFR Part 15, Subpart C Section 15.247 (a)(1)PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4) PASS Band Edge Measurements 47 CFR Part 15, Subpart C Section 15.247(d) PASS Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209PASS Restricted bands around fundamental frequency 47 CFR Part 15, Subpart C Section 15.205/15.209PASS Remark: Company Name and Address shown on Report, the sample(s) and sample Information were provided by the applicant who should be responsible for the authenticity which CTI hasn’t verified. N/A 1) The Product is powered battery. Model No.: 8007, 8008 Only the model 8007 was tested, 8008 compared with 8007 all parts of the product, Their electrical circuit design, layout, c…

Text truncated - open the document above for the full version.

Report No. : EED32N80283401Page 45 of 55 7 PHOTOGRAPHS OF TEST SETUP Test model No.: 8007 Radiated spurious emission Test Setup-1 (Below 1GHz) Radiated spurious emission Test Setup-2(Above 1GHz) Report No. : EED32N80283401Page 46 of 55 Radiated spurious emission Test Setup-3( Above 1GHz) There are absorbing materials under the ground.
