OIJSI010SUPER DIGITAL WALKIE TALKIE

Super Digital Walkie Talkie Item No. Si010 Contents:  2 Super Digital Walkie Talkies  2 Earphones  Instruction manual Product overview: 1. Digital Watch 2. Watch Button A 3. Watch Button B 4. Microphone 5. On/Off Switch 6. Earphone Jack 7. TALK Button 8. Battery Compartment 9. Voice Changer Button 10. LED indicator 11. Earphone How to use: A. Pairing: The two walkie talkies are paired in factory by default and are ready to communicate. In case the units cannot detect each other even in close proximity, try pairing again as follows: 1. It is recommended to switch off any walkie talkies nearby other than the two units for pairing. 2. Press and hold the TALK button and Voice Changer button while switch on the unit. Wait until the LED indicator flashes quickly. Release both buttons. Repeat for the second unit. Both units should be close to each other. 3. The LED indicator will flash quickly while searching. 4. The LED indicator will flash slowly if pairing is successful. Now the two units can communicate with each other. B. Talk 1. Plug the earphone (included) into the earphone jack. 2. Switch on both walkie talkies. 3. The LED indicator will flash slowly if both unit are in the listening state. 4. Press and hold the TALK button in one unit and speak into the microphone. Release the TALK button to listen. The receiving side do not need to press any button. 5. The LED indicators of both units are ON when they are communicating. 6. Talking is allowed in single direction only. Only one unit can talk at a time. 7. Press the Voice Changer button on the transmitting side to apply voice changer effect. There are four different effects. Press the Voice Changer button to cycle through the effects. Voice returns to normal when pressed the fifth time with a double beep tone. Voice changer effect is cancelled when the unit is switched off. C. Power-Save Mode The walkie talkie will enter Power-Save mode if it is left idle for 10 minutes. The LED indicator will be turned off in this state. Press the TALK button or Voice Changer button to wake up the device. Although the battery drain is reduced in Power-Save Mode, it is highly recommended to slide the ON/OFF switch to OFF when not in use. D. Controls of Digital Watch: Normal Display Mode 1: Display Hour: Minute Press B – Button: Display shows Month, and Date for 1 second and back to normal time display Press A – Button Normal Display Mode 2: Display Hour: Minute and Month, Date alternatively Press B – Button: Display shows Second, press again to show normal time Press A – Button Time Setting Mode: Allow adjustment of Month, Date, Hour and Minute Month Setting Mode Press B- Button : Month advance Press A Button Date Setting Mode Press B- Button : Date advance Press A Button Hour Setting Mode Press B- Button : Hour advance Press A Button Minute Setting Mode Press B- Button : Minute advance (Minute not adjusted) (Minute adjusted) Press A – Button Press A – Button, then B - Button Normal Display Mode 1 E. Battery Installation: Each Super Digital Walkie Talkie uses three AG13/LR44 (1.5V X 3) batteries (included) 1. Unscrew the battery compartment (8) door on the back of the unit. 2. Insert three AG13 (LR44) batteries into the unit with the “+” side on top. 3. Replace the battery compartment door and tighten the screw. 4. Replace with new batteries when the sound becomes weak. 5. Insert new batteries according to the polarity marks. M SI010 ENG REV.2 The Digital Watch (1) uses one LR41 (1.5V X 1) battery (included). Follow the steps below to replace the battery when required. 1. Remove the two screws from the back of the spy listener (a) with a screwdriver (not included). 2. Take out the watch module (b) from the case. Loosen the two screws holding the metal plate of the watch module with a small Phillips/cross head screwdriver (not included). 3. After the metal plate (c) is removed, take the old battery out. Insert a new LR41 battery (d), with the “+” side on top. 4. Replace the metal plate, the watch module and the back cover. F. LED Indicator The LED indicator will show the status of the walkie talkie LED Indicator State Flashing (Fast) Pairing in progress Flashing (Slow) Idle (Waiting for transmission) On (Constant) Transmitting/Receiving Off Walkie Talkie is OFF or in Power-Save Mode G. Troubleshooting Your Super Digital Walkie Talkie Problem Solution No sound (green LED indicator is not illuminated)  Replace all three batteries with new ones.  The walkie talkie is in Power-Save mode No sound (green LED indicator is illuminated)  Speak closer and louder into the microphone  Out of range, move closer  Press the TALK button when speaking  Do not press the TALK button when the other side is speaking  Keep away from radio interference such as microwave cooker, wireless router or other wireless device  Switch off and switch on again if the above do not resolve the problem No sound (green LED indicator is flashing)  Out of range, move closer  Press the TALK button when speaking  Keep away from radio interference such as microwave cooker, wireless router or other wireless device  Repeat Pairing by following the steps in Section A Batteries required: Walkie Talkies – 6 x AG13 (LR44) (1.5V X 3) (included) Digital Watches – 2 x LR41 (1.5V X 1) (included) IMPORTANT: Keep these instructions. DO NOT DISCARD. 1. Only adults should install and replace batteries. 2. Alkaline batteries are recommended. 3. If the toy has not been used for a long time, remove the batteries. 4. Do not mix old and new batteries. 5. Do not mix alkaline, standard (carbon zinc) or rechargeable (nickel cadmium) batteries. 6. Exhausted batteries are to be removed from the toy. 7. The supply terminals are not to be short-circuited. 8. Non-rechargeable batteries are not to be recharged. 9. Rechargeable batteries are to be removed from the toy before being charged. 10. Rechargeable batteries are only to be charged under adult supervision. 11. Only batteries of the same or equivalent typ…

Text truncated - open the document above for the full version.

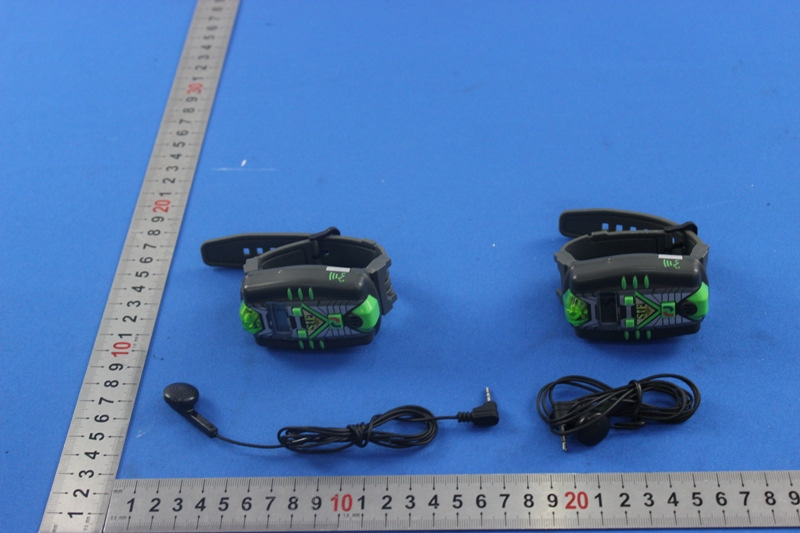

1 Photographs - EUT Constructional Details Test Model No.: SI010

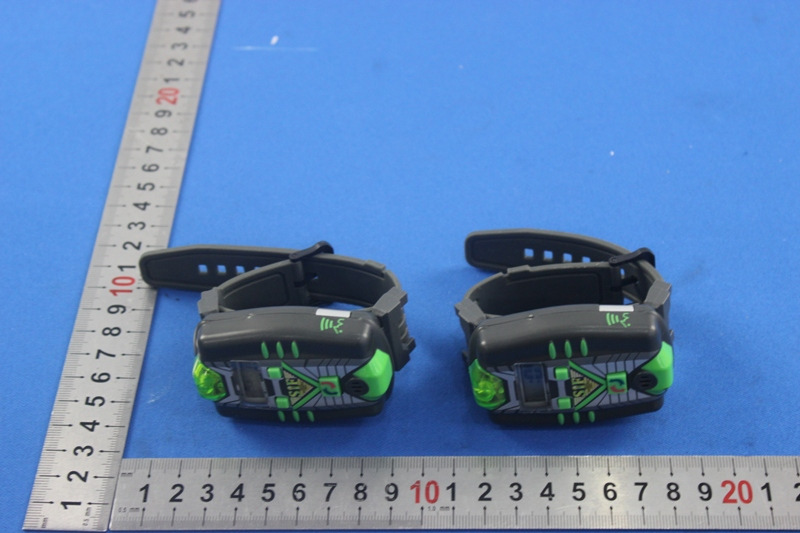

1 Photographs - EUT Constructional Details Test Model No.: SI010
