OJB-ENA2T1

Axxcelera Broadband Wireless, Inc.

AxxceLTE eNodeB

Click to zoom

Application Details

Equipment Class: TBC - Licensed Broadcast Station Transmitter
Date of Grant: Nov 18, 2015
Application Purpose: Original Equipment
Date of Application: Nov 18, 2015
Equipment Note: AxxceLTE eNodeB
Frequency Range: 2503.00000000 - 2683.50000000
Company: Axxcelera Broadband Wireless, Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

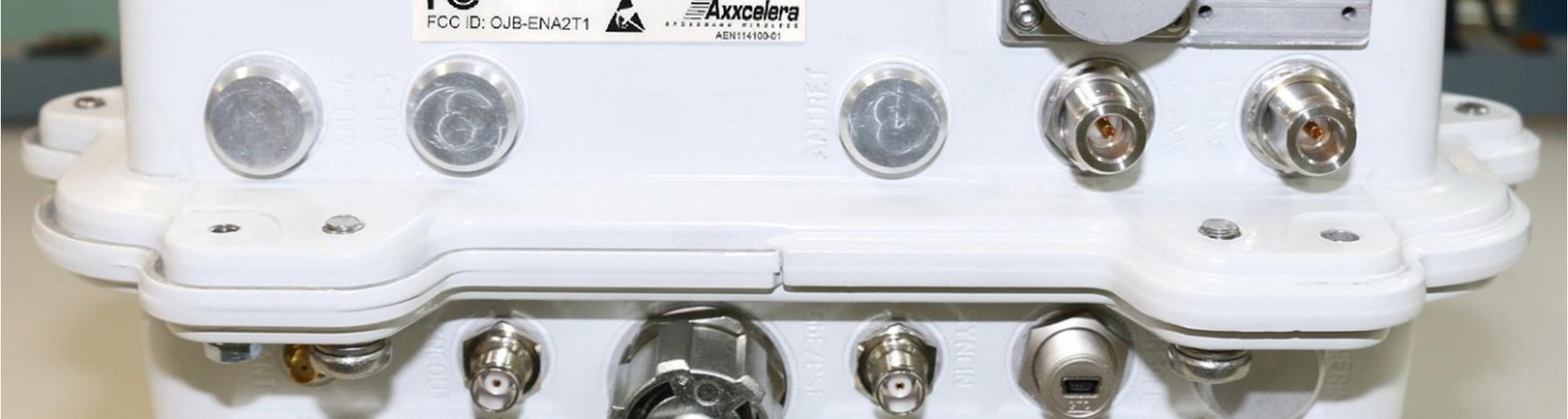

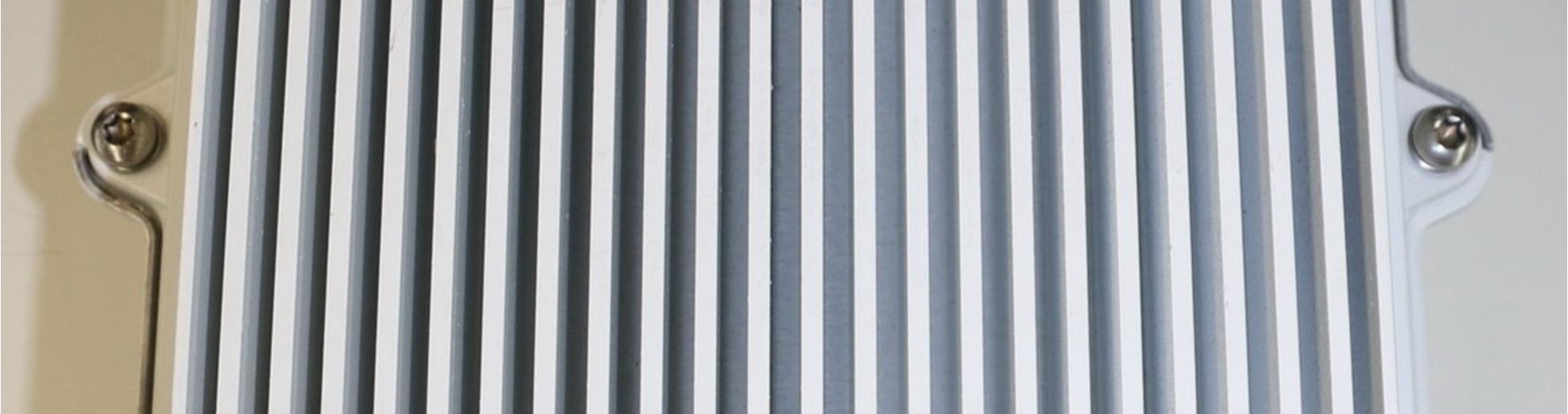

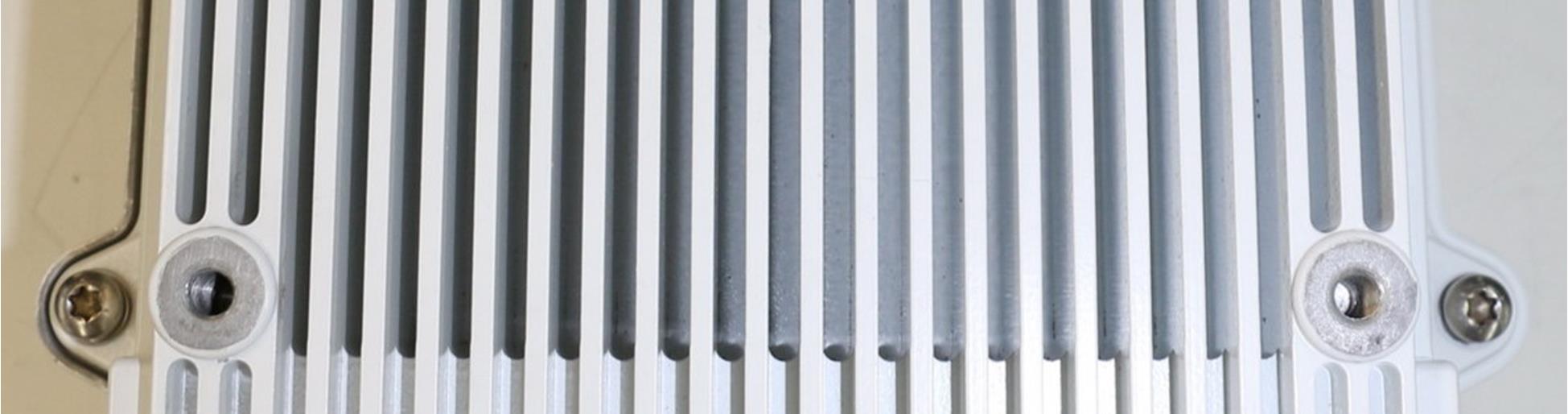

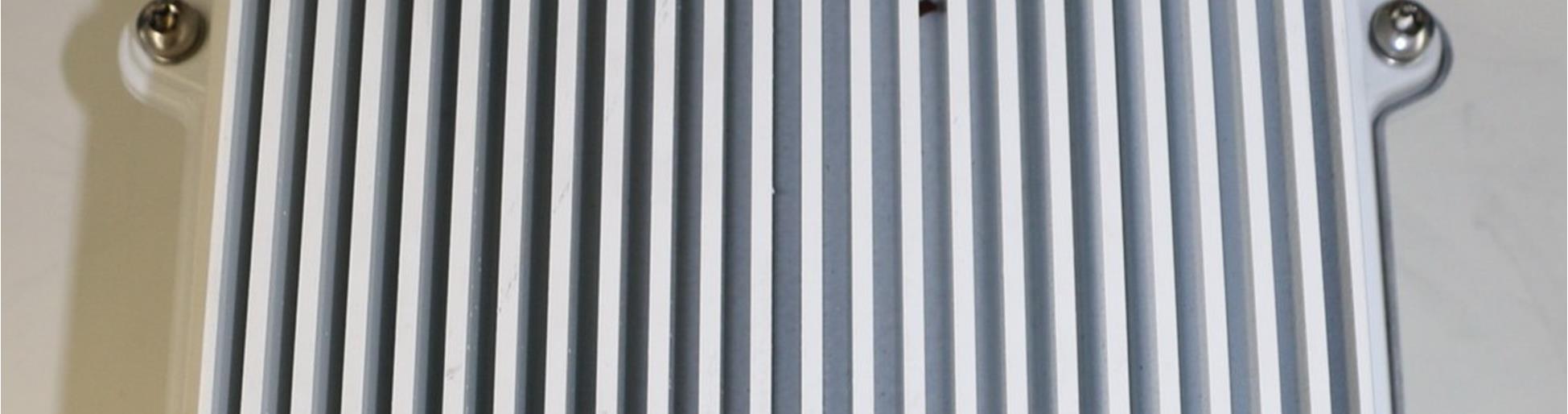

External Photos

ID Label/Location Info

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Thomas Siner(Principal Engineer)

[email protected]804-864-4121Fax: 804-864-4100

Technical Contact

MiCOM LabsGordon Hurst

[email protected](925)4620304

575 Boulder Ct · Pleasanton, California · United States

Test Firm

MiCOM LabsGordon Hurst

[email protected]925-462-0304Fax: 925-462-0306

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	27	2.50 GHz - 2.68 GHz	9.49 W	18M0D1D	0.158 ppm

Confidentiality

Long Term

Grant Notes

The output power listed is combined maximum conducted output power. The device is a 2x2 MIMO Device, as is described within the filing. The antenna must be installed to provide a minimum separation distance of at least 99 cm from all persons. Installers must be provided with antenna installation instructions and operating procedures for minimizing their occupational RF exposure. This device supports bandwidths of 5.0 MHz, 10 MHz, 15 MHz & 20 MHz under part 27 M (LTE Band 41 2496-2690 MHz). Maximum E.I.R.P: 95.71 W (4M5D1D), 95.06 W (9M0D1D), 97.73 W (13M5DID), 94.85 W (18M0D1D)
