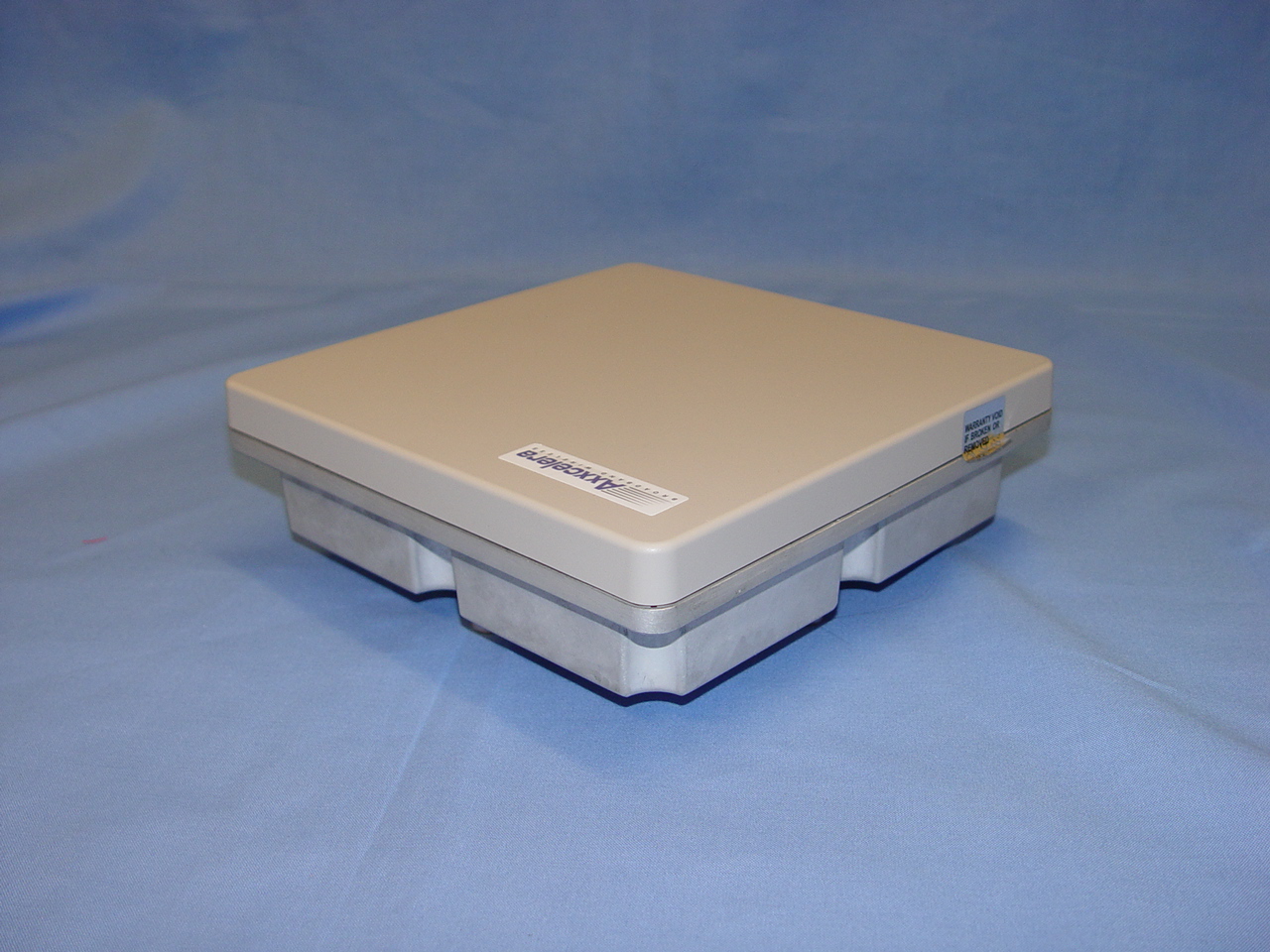

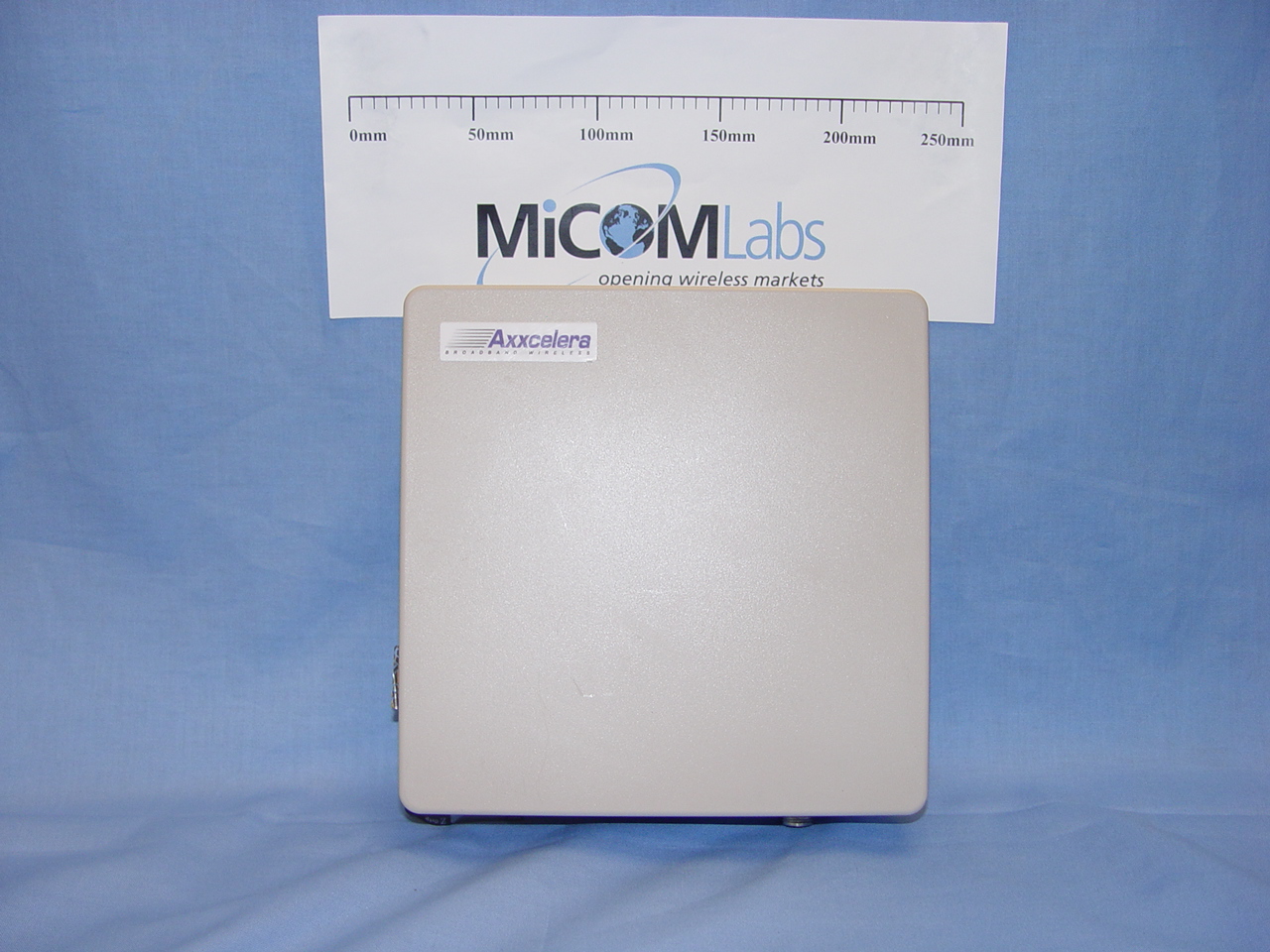

the wireless lab 6 October 2010 Axxcelera Broadband Wireless External Photographs EHD-CPE3320-C10 External Front View MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab External side View Page 2 of 3 the wireless lab External Back View Page 3 of 3

3GHz ODU Antenna Specification Feature Item Description Frequency Band 3300MHz ~ 3800MHz Polarization V or H depending mounting Antenna pattern Directional Per ETSI EN302 326-3 DN2 Gain 16 dBi Degree 25Vertical 22 Horizontal Return loss Less than -10dB in 3300MHz ~ 3800MHz Number of antennas 1 Sample Azimuth pattern

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Maximum Permissible Exposure FCC, Part 90 Subpart C §90.1217 Industry Canada RSS-Gen 5.5 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) The Axxcelera EHD-CPE3320-C10 has a single transmitter. The calculated safe distance is computed using; the highest conducted power measured (+25.35dBm) when used with the 11dBi antenna; the calculated maximum conducted power (+23.4dBm) that can be used with the 16dBi antenna to meet EIRP requirements. Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 Freq. Band (GHz) Antenna Gain (dBi) Numeric Gain (numeric) Max Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 3650 11 12.6 +25.35 342.8 18.5 20.0* 3650 16 39.8 +23.40 218.8 26.3 20.0* *Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if the calculations indicate the MPE distance to be lower. Specification Maximum Permissible Exposure Limits §90.1217 Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency levels in excess of the Commission’s guidelines. See §1.1307 (b)(1) of this chapter. Limit = 1mW / cm 2 from 1.310 Table 1 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less.

COVER PAGE Test of Axxcelera EHD-CPE3320-C10 To: FCC Part 90 SubPart Z, RSS-197 Test Report Serial No.: AXXC15-U1 Rev A TEST REPORT FROM Test of Axxcelera EHD-CPE3320-C10 To FCC Part 90 SubPart Z, RSS-197 Test Report Serial No.: AXXC15-U1 Rev A This report supersedes NONE Manufacturer: Axxcelera Broadband Wireless, Inc 1600 E.Parham Road Richmond Virginia 23228 USA Product Function: Wireless Voice and Data Communication Copy No: pdf Issue Date: 5th October 2010 This Test Report is Issued Under the Authority o f; MiCOM Labs, Inc. 440 Boulder Cour t, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com TESTING CERTIFICATE #2381.01 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Axxcelera EHD-CPE3320-C10 To: Serial #: Issue Date: Page: FCC Part 90 SubPart Z, RSS-197 A XXC15-U1 Rev A 5th October 2010 3 of 144 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs Inc, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com This page has been left intentionally blank Title: Axxcelera EHD-CPE3320-C10 To: Serial #: Issue Date: Page: FCC Part 90 SubPart Z, RSS-197 A XXC15-U1 Rev A 5th October 2010 4 of 144 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs Inc, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS ACCREDITATION, LISTINGS & RECOGNITION ..........................................................5 ACCREDITATION............................................................................................................ 5 LISTINGS......................................................................................................................... 6 RECOGNITION................................................................................................................ 6 1. TEST RESULT CERTIFICATE .................................................................................8 2. REFERENCES AND MEASUREMENT UNCERTAINTY ........................................9 2.1. Normative References ............................................................................................ 9 2.2. Test and Uncertainty Procedures ........................................................................... 9 3. PRODUCT DETAILS AND TEST CONFIGURATIONS ........................................10 3.1. Technical Details .................................................................................................. 10 3.2. Scope of Test Program ......................................................................................... 11 3.3. Equipment Model(s) and Serial Number(s) .......................................................... 15 3.4. Antenna Details .................................................................................................... 15 3.5. Cabling and I/O Ports ........................................................................................... 15 3.6. Test Configurations............................................................................................... 16 3.7. Equipment Modifications....................................................................................... 17 3.8. Deviations from the Test Standard ....................................................................... 17 3.9. Subcontracted Testing or Third Party Data .......................................................... 17 4. TEST SUMMARY ....................................................................................................18 5. TEST RESULTS ......................................................................................................19 5.1. Device Characteristics .......................................................................................... 19 5.1.1. Occupied Bandwidth ............................................................................. 19 5.1.2. Peak Output Power ............................................................................... 42 5.1.3. Power Spectral Density ......................................................................... 65 5.1.4. Maximum Permissible Exposure ........................................................... 88 5.1.5. Frequency Stability; Temperature Variations, and Voltage Variations .. 89 5.1.6. Spectrum Mask & Spurious Emissions at Antenna Terminal ................ 99 5.1.7. Radiated Spurious Emissions ............................................................. 119 5.1.8. AC Wireline Conducted Emissions (150 kHz – 30 MHz)..................... 134 6. TEST SET-UP PHOTOGRAPHS..........................................................................137 6.1. General Measurement Test Set-Up .................................................................... 137 6.2. Environmental Chamber ..................................................................................... 138 6.3. Radiated Spurious Emissions below 1GHz ........................................................ 139 6.4. Radiated Spurious Emissions above 1GHz ........................................................ 141 6.5. Conducted Emissions (150 kHz - 30 MHz) ......................................................... 142 7. TEST EQUIPMENT DETAILS...............................................................................143 Title: Axxcelera EHD-CPE3320-C10 To: Serial #: Issue Date: Page: FCC Part 90 SubPart Z, RSS-197 A XXC15-U1 Rev A 5th October 2010 5 of 144 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs Inc, 440 Boulder Cou…

Text truncated - open the document above for the full version.

the wireless lab 7 October 2010 Axxcelera Broadband Wireless Test Set Up Photographs EHD-CPE3320-C10 General Measurement Test Set-Up MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Environmental Chamber Page 2 of 5 the wireless lab Radiated Spurious Emissions below 1GHz Page 3 of 5 the wireless lab Radiated Spurious Emissions above 1GHz Page 4 of 5 the wireless lab Conducted Emissions (150 kHz - 30 MHz) Page 5 of 5
